Alpine R2 4 Channel Amp & R2-S652 6.5" Audio Upgrade Bundle

Product details

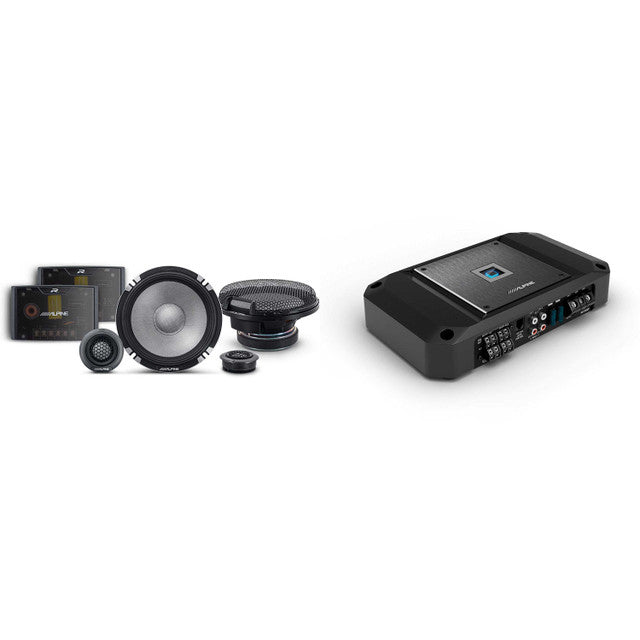

This bundle includes an Alpine R2-A60F R-Series 4-Channel Amplifier - 150W x 4 at 2-Ohm, Hi-Res Certified, and an Alpine R2-S652 6.5" R-Series Pro High-Resolution 2-Way Component Speaker Set, Pair.

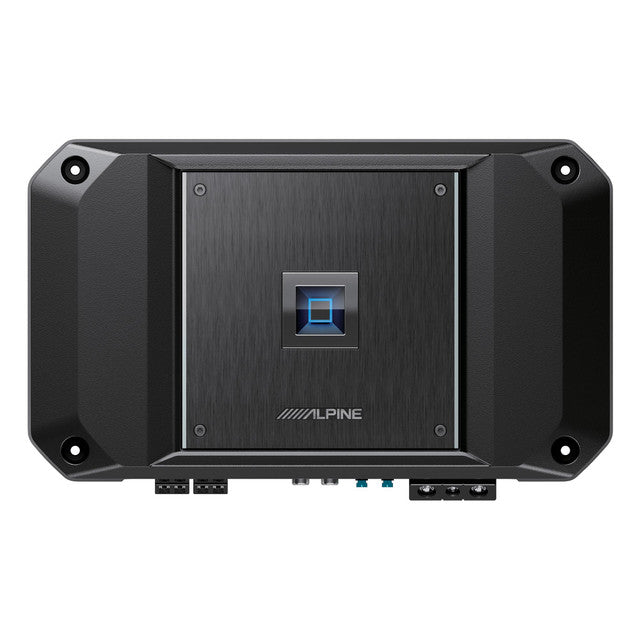

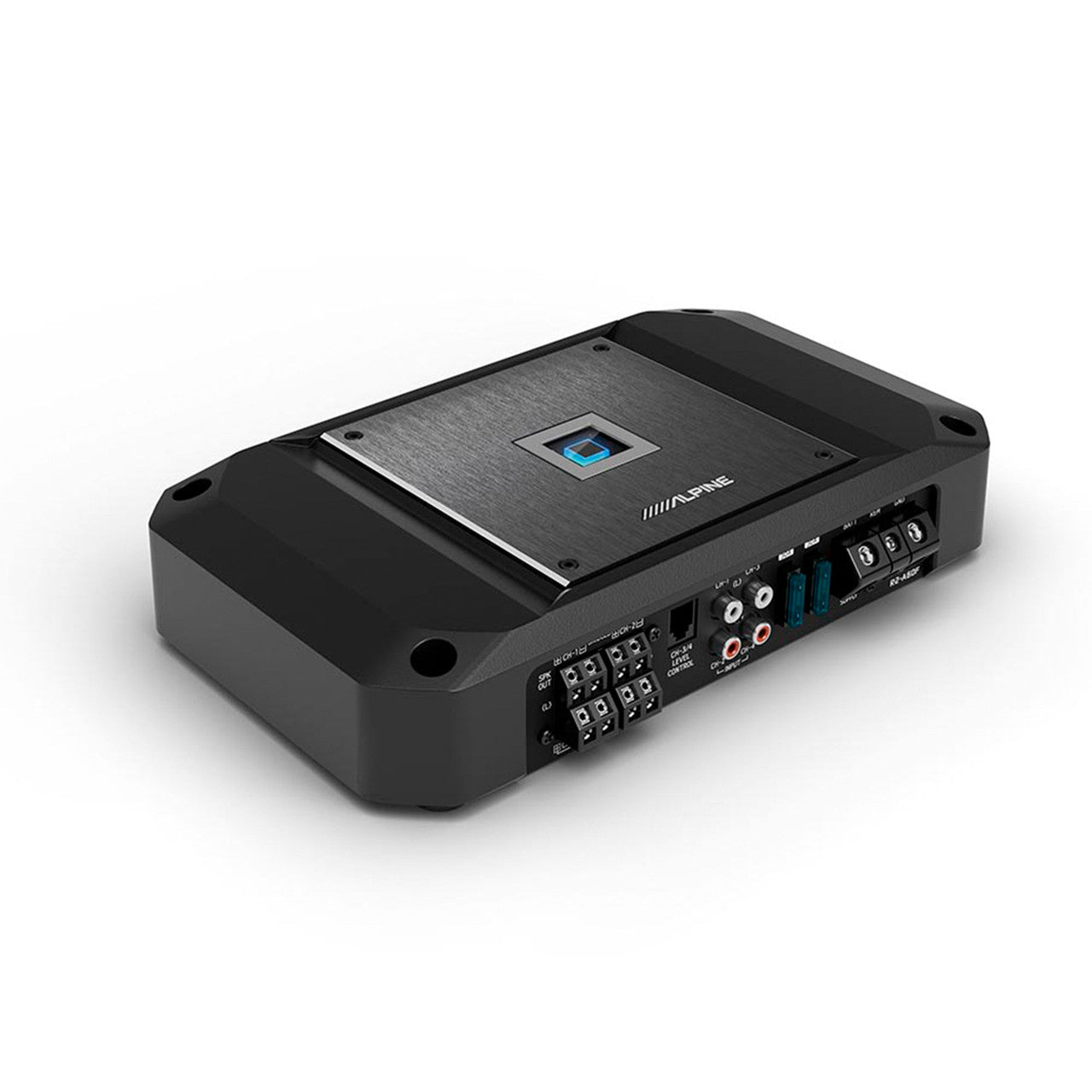

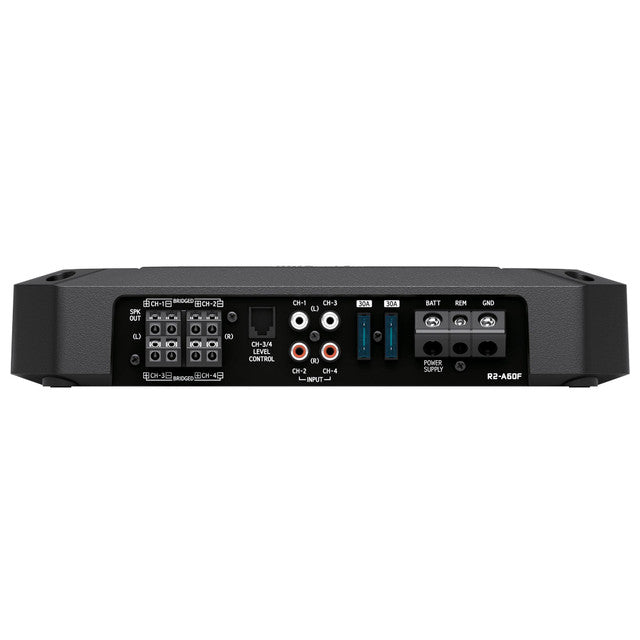

1x Alpine R2-A60F R-Series 4-Channel Amplifier - 150W x 4 at 2-Ohm, Hi-Res Certified - (R2-A60F)

Tried, tested, and true, the Alpine R-Series system has only gotten better over time. With a line-up that’s capable of achieving High-Resolution Playback, without compromising the “Loud and Fun” performance of its heritage, R-Series proves that legends never die.

IMPRESSIVE POWER
A full amplifier lineup that boasts impressive power, yet compact in size, makes the R-Series amplifiers a powerhouse in performance.

Features
High efficiency digital circuit design
Selectable Input Level
Variable High Pass / Low Pass / Band Pass Crossover
Selectable Auto Turn-on with Remote Sensing
Remote Level Control Ready

Specifications:
Performance:
Power Output: Per Channel, Ref: 4 Ohms, 14.4 V: 100 W RMS x4; Per Channel, Ref: 2 Ohms, 14.4 V: 150 W RMS x 4; Bridged, Ref: 4 Ohms, 14.4 V: 300 W RMS x 2
THD+N: Ref: 10 W into 4 Ohms: ≤0.04%; Ref: 10 W into 2 Ohms: ≤0.06%; Ref: Rated Power into 4 Ohms: ≤0.5%; Ref: Rated Power into 2 Ohms: ≤ 1.0%
S/N Ratio: IHF A-wtd + AES-17, Ref: 1 W into 4 Ohms: >80 dB; IHF A-wtd + AES-17, Ref: Rated power into 4 Ohms: >100 dB
Frequency Response: +0/-3 dB, Ref: 1 W into 4 Ohms: 10 kHz - 45 Hz;+0/-1 dB, Ref: 1 Watt into 4 Ohms: 20Hz - 20 kHz
Damping Factor: Ref: 10 W into 4 Ohms at 100 Hz >100

Control:
Input Select: Selectable Input Signal Configuration (2ch/4ch Input): CH-3/4: Ch-1/2 or CH-3/4
Input Selectivity: RCA Input, Ref: Rated power into 4 Ohms: Hi: 0.5-10V, Lo: 0.2 - 4.0V
Crossover: Variable HPF/LPF/HPF-H: CH-1/2: HPF/LPF: 50 Hz - 400Hz (-12 dB/oct.)/HPF-H: 400 Hz-6 kHz; Variable HPF/LPF/BPF: CH-3/4: HPF/LPF/BPF-L: 50 Hz -400 Hz, BPF-H: 400 Hz - 6 kHz
Remote Level (Requires Optional RUX-KNOB.2): Linear Attenuation: CH-3/4: 0 to 20 dB

General:
Input Impedance: >10 kOhms
Dimensions (WxHxD): 282 mm (11-1/8") x 55 mm (2-3/16") x 165 mm (6-1/2")
Weight: 3.3 kg (7 lbs 3 oz)

Note: Specifications and design subject to change without notice

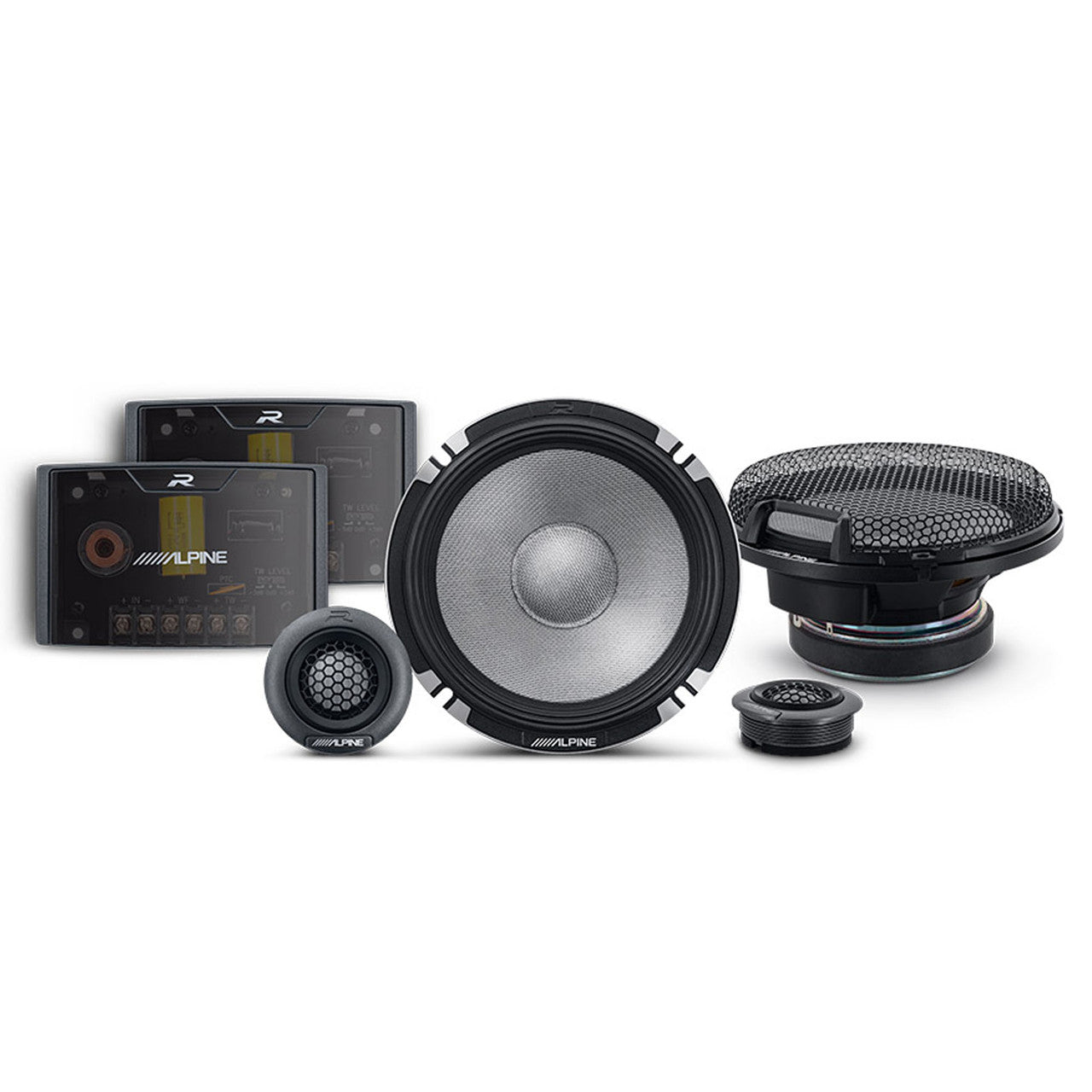

1x Alpine R2-S652 6.5" R-Series Pro High-Resolution 2-Way Component Speaker Set, Pair - (R2-S652)

If you play your music loud and want others to know, the R-Series speakers are the match for you. You’ll enjoy a center sound stage with speakers that play loud and clear without distortion. The R-Series speakers are tuned with an emphasis on the high- and low-end frequencies, so they deliver power while naturally producing bright, active sound. They are the perfect power and performance match for the R-Series subwoofers and amplifiers.

The all-new 2022 line-up of R-Series speakers are all Hi-Res Audio certified and feature a frequency response up to 40kHz. For the first time, the R-Series line includes a 3-way system and you can even choose from a Professional and Standard speaker line.

2-Way Component PRO Speaker -
The R2-S652 is the 2-Way PRO model of the new 2022 R-Series speaker line-up. It features a 16,5cm door woofer and a 4,3cm tweeter with up to 40kHz frequency response.

Glass-Fiber Reinforced Cone -
The door woofer and the mid-range speaker feature all-new glass-fiber reinforced cones. This material is very stiff and extremely light-weight, resulting in a super-fast response and highly accurate music reproduction.

Features -
• 16.5cm Door Woofer (2pcs) / 4,3cm Hard-Dome Tweeter (2pcs)
• Die-Cast Aluminum Baskets (Door Woofer)
• Magnesium Hard-Dome Tweeters (Flush-Mount / On-Dash Mounting Options)
• Glass-Fiber Reinforced Cone (Door Woofer)
• Flexible PRO X-Over Networks
• Included Speaker Grills

Specifications -
• Maximum Peak Power: 300 Watts
• Maximum RMS Power: 100 Watts
• Nominal Impedance: 4 Ohm
• Frequency Response: 65Hz-40kHz
• Sensitivity: 88dB SPL (1W @ 1m)
• Woofer Mounting Depth: 6,3cm
• Woofer Cutout Diameter: 13,5cm
