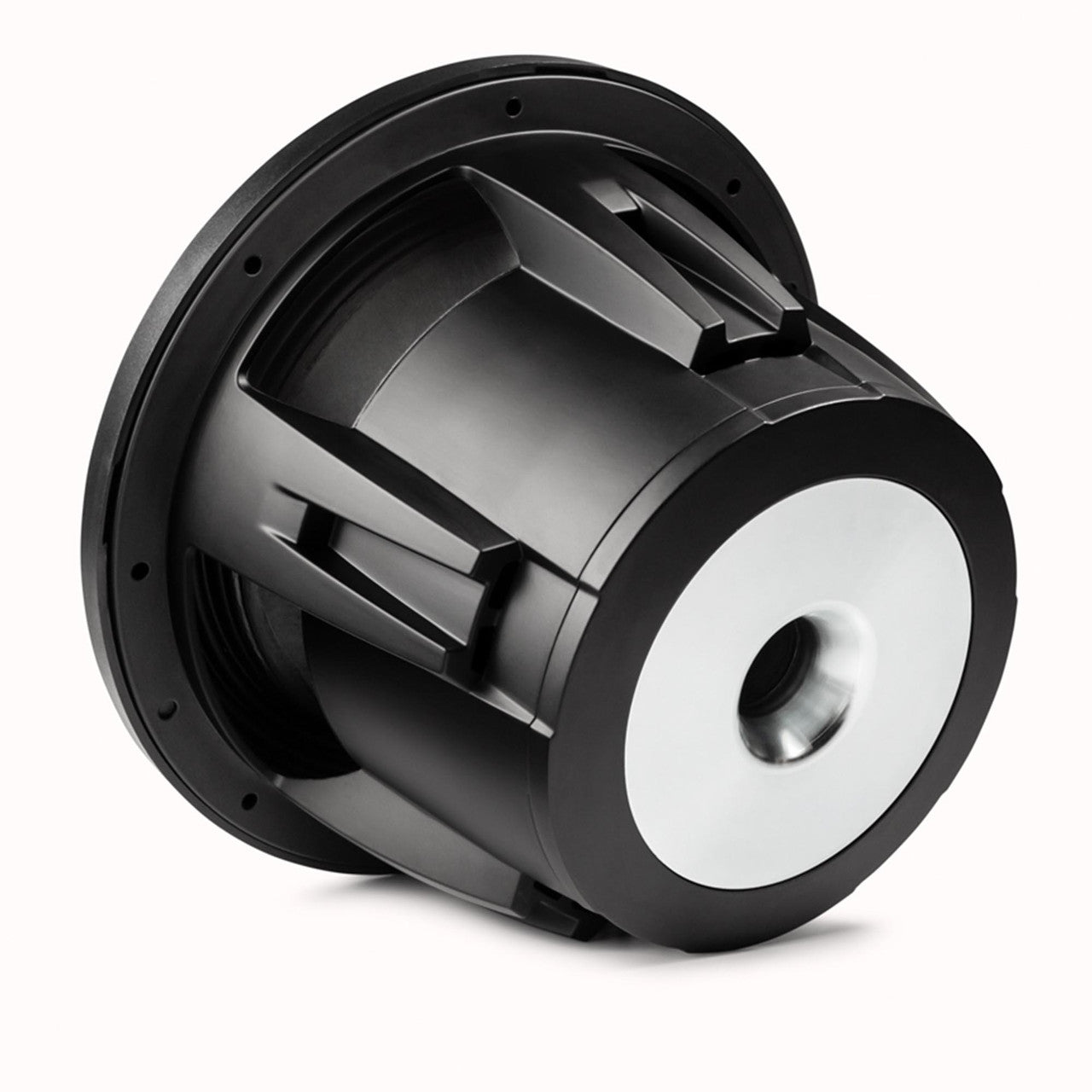

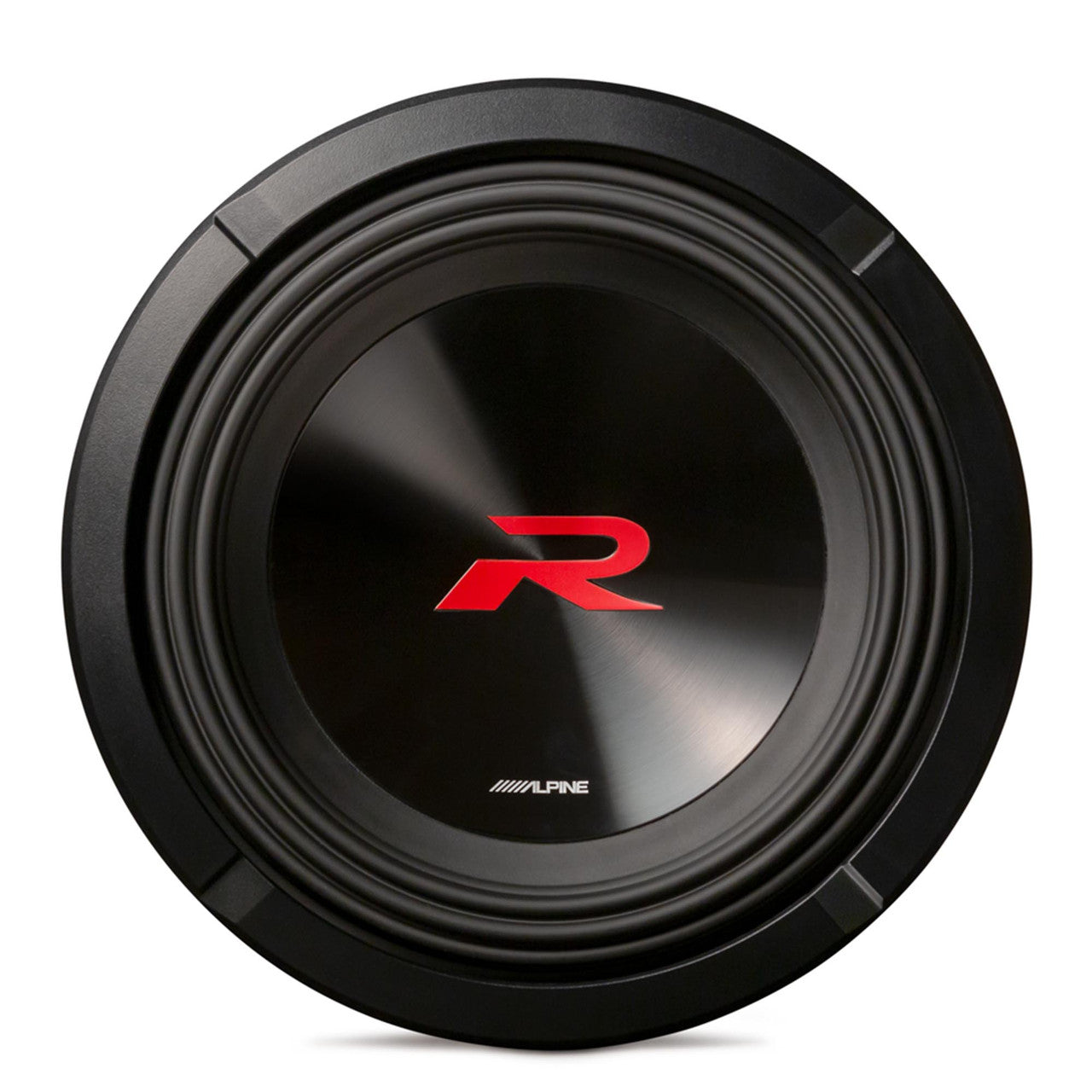

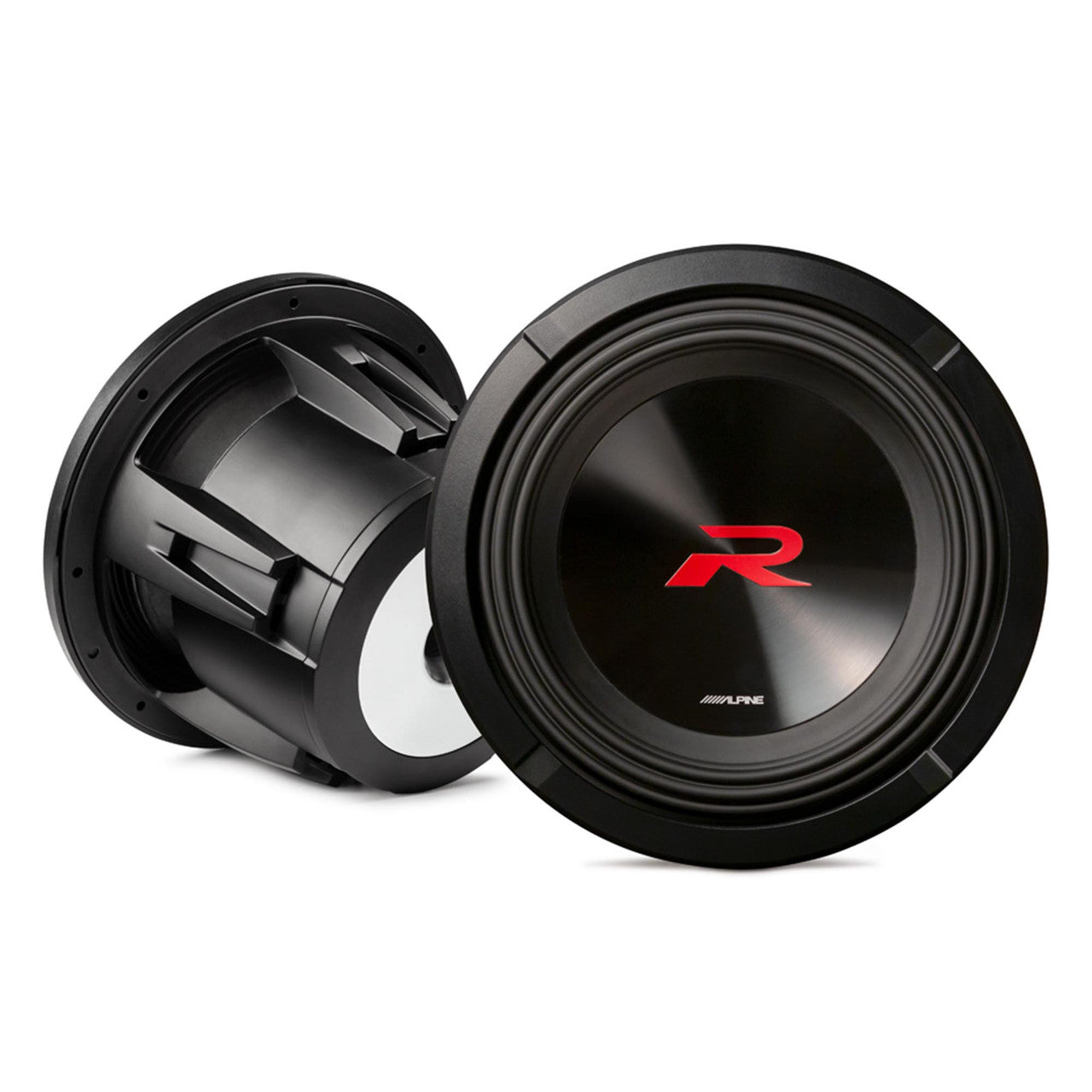

Alpine R2-W10D2 10" R-Series "R2" Subwoofer, Dual 2-Ohm, 750 Watt RMS
R-Series Type R2 10-inch Sub Woofer 2+2 ohms
The new R-Series subwoofers now feature larger, double-stacked magnets that contribute more motor force for deeper bass and tighter bass control. An integrated Faraday ring minimizes distortion for cleaner bass output. A Kevlar-treated cone ensures durability in the subwoofer for reliable performance, even at high volumes. A new Polypropylene/ceramic composite dust cap ensures rigidity while also providing incredible internal damping. The new R-Series subwoofers contain a Dual Voice Coil (DVC) with easy configuration jumpers that allow for flexible applications. A new “EZ-Change” twist-lock grille mounting system makes it easy to install and remove an optional grille without mounting screws for added protection to the cone. The new R-Series subwoofers contain Alpine’s High Amplitude Multi-Roll (HAMR) Surround Technology. The R-Series subwoofers are High-Resolution Audio Compliant. Rated at 750W RMS (2250 peak power handling), the R-Series subwoofers will provide deep bass output.
Key Features
Key Features
- Dual Voice Coil (DVC) Subwoofers with Configuration Jumpers
- Frequency Response (0/-3dB): 26Hz-200Hz
- Sensitivity (1W/1m): 82.4dB
- Nominal Impedance: 2Ω (4+4) or 4Ω (2+2)
- 65mm voice coil
- CTA-2031 compliant
- Mounting Depth: 6” (152mm)
- Cutout Size: 9-1/16” (231mm)
- XMax: 20mm
- Magnet Weight: 123 oz

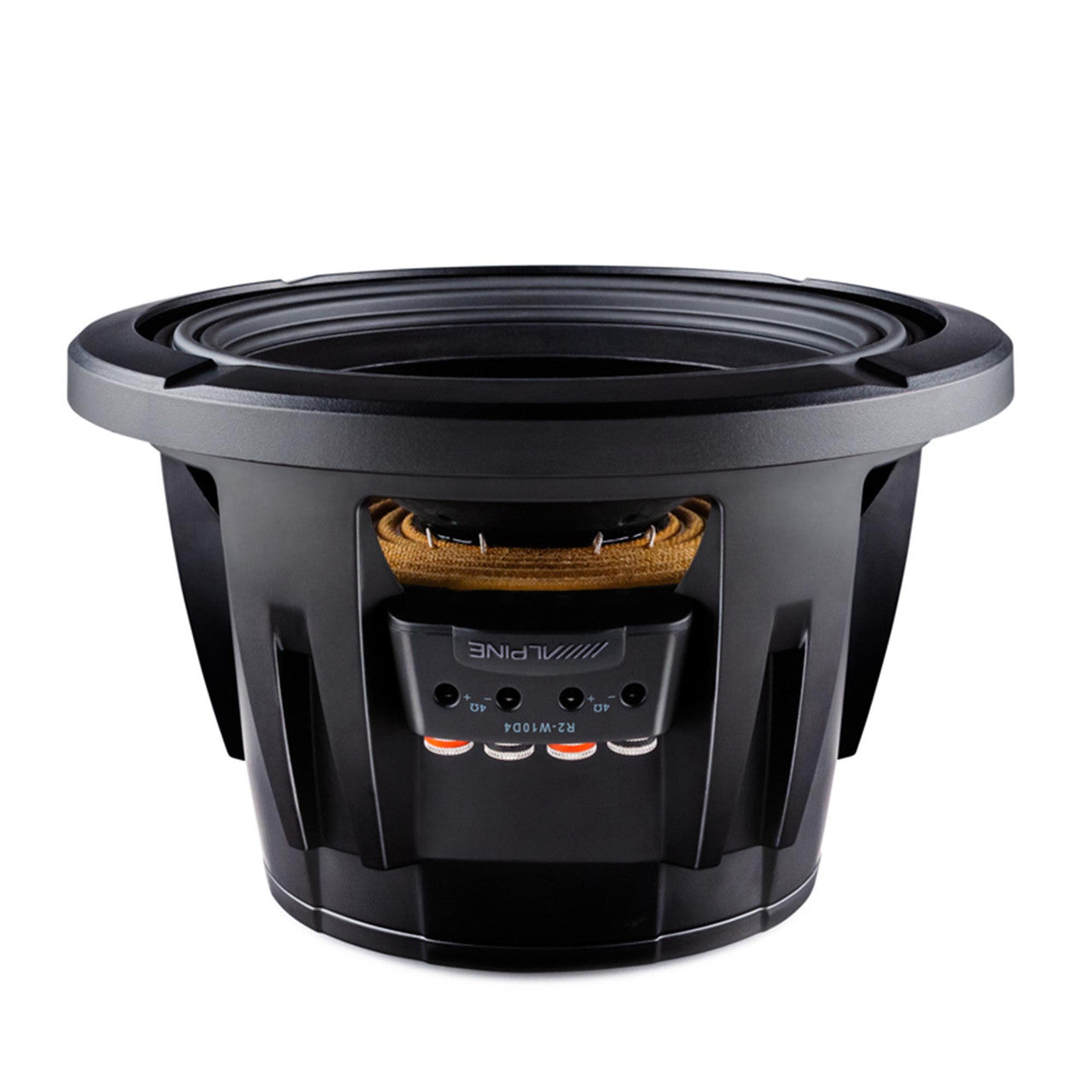

- Push-Type Speaker Terminals (Up to 8AWG Wire Size)
- Polypropylene/Ceramic Composite Dust Cap
- Kevlar Reinforced Pulp Cone High-Performance subwoofers
- Twist-Lock Grille Mount System
- High-Amplitude Multi-Roll (H.A.M.R.) Surround
- Hi-Res Audio Compliant (High-Resolution Audio Playback)
- Large Double-Stacked Magnets
- 750W RMS/2250W Peak Power Handling
- • Size: 10”
- • Dimensions: 9.72” x 9.72” x 5.92”
- • Frequency Response: 26Hz - 200Hz
- • Power Range: 300W - 750W RMS
- • Power Handling: 750W RMS / 2250W Peak
- • Magnet Weight: 123 oz
- • Voice Coil Diameter: 65.5 mm (2.6”)
- SEALED BOX RANGE:
- Net Internal Volume: 0.4 - 0.85 cubic ft
- RECOMMENDED SEALED BOX:
- External Dimensions: 12” x 12” x 10.5”
- Gross Internal Volume: 0.58 cubic ft
- Net Internal Volume: 0.50 cubic ft
- D2 - F3, Qtc: 44 Hz, 0.70
- D4 - F3, Qtc: 42 Hz, 0.78
- VENTED BOX RANGE:
- Net Internal Volume: 0.75 - 1.3 cubic ft
- Fb, Tuning: 35-39 Hz
- RECOMMENDED VENTED BOX:
- External Dimensions: 13” x 11.5” x 25.25”
- Gross Internal Volume: 1.58 cubic ft
- Vent Area (W x H): 15 square in (10” x 1.5”)
- Vent Length: 19.5”
- Vent Displacement: 0.25 cubic ft
- Net Internal Volume (Vb): 1.25 cubic ft
- D2 - F3, Ripple, Fb: 29 Hz, 6.0 dB, 37 Hz
- • Sensitivity (1W/1m): 82.3 dB
- • DC Resistance (Re): 1.9∆ + 1.9∆
- • Free Air Resonance (Fs): 31 Hz
- • Equivalent Stiffness: 18.2 L
- • Mechanical Q (Qms): 7.07
- • Electrical Q (Qes): 0.5
- • Total Q (Qts): 0.47
- • Cone Area (Sd): 333 square cm
- • Linear Excursion (Xmax): 20 mm
- • Mechanical Travel (Xmech): 70 mm
