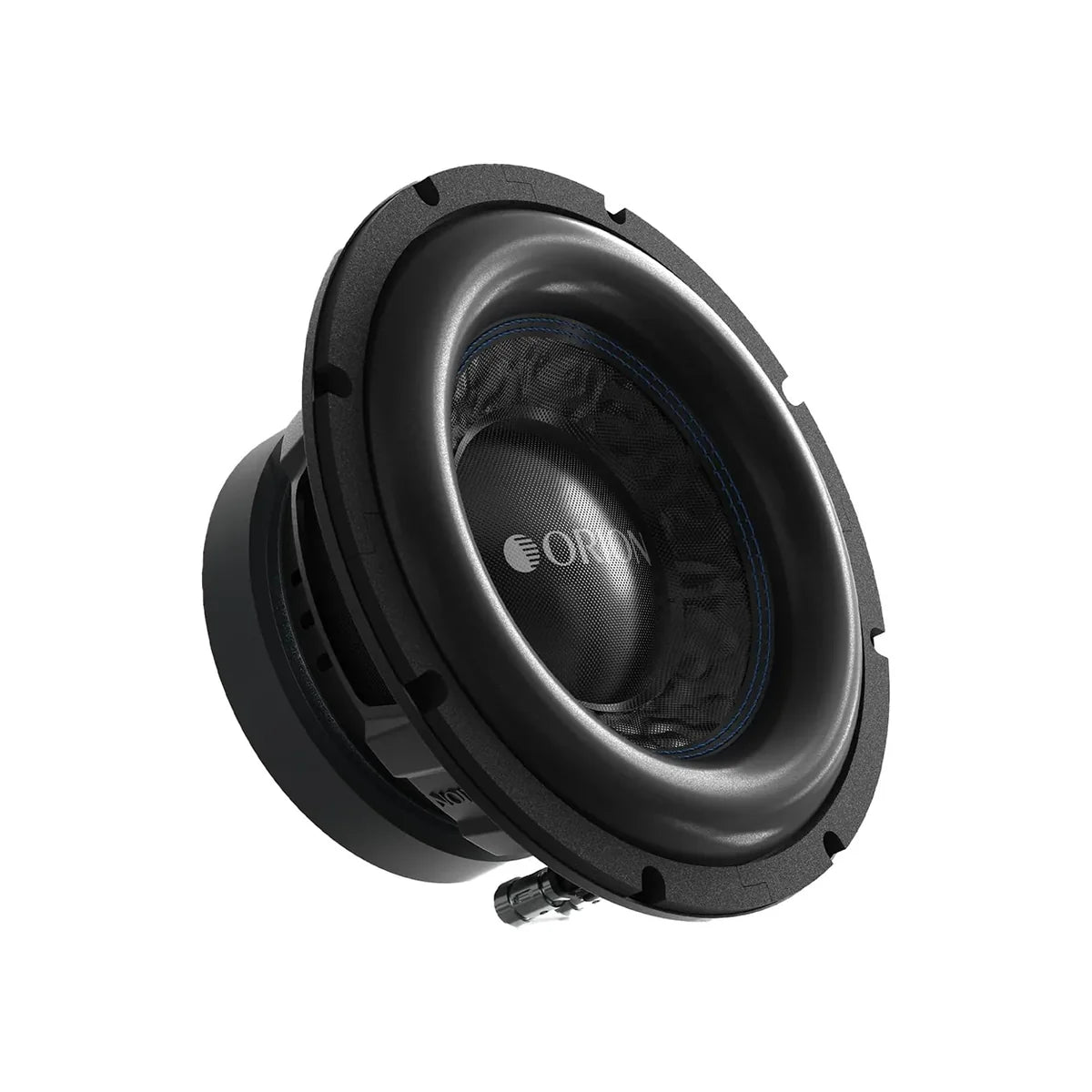

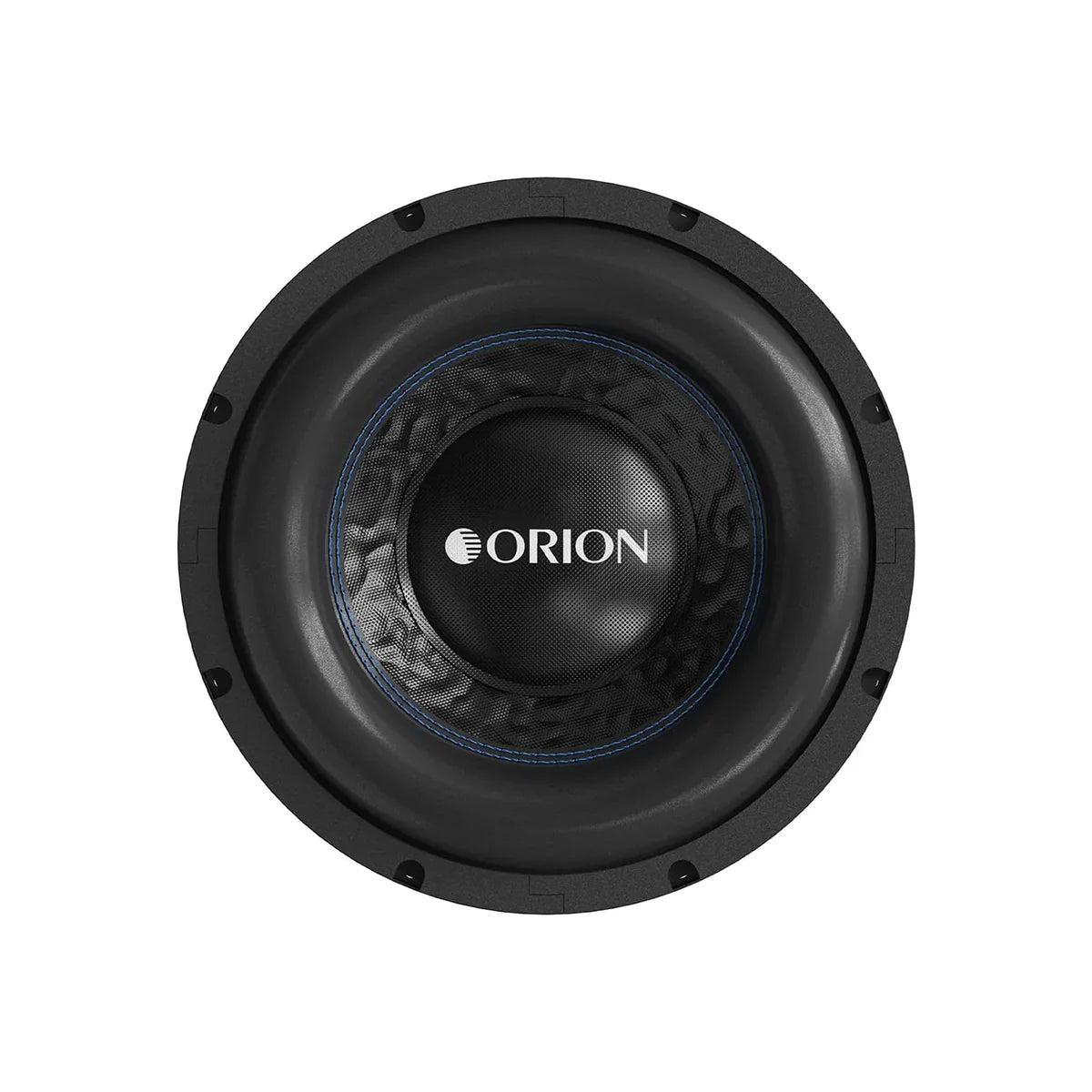

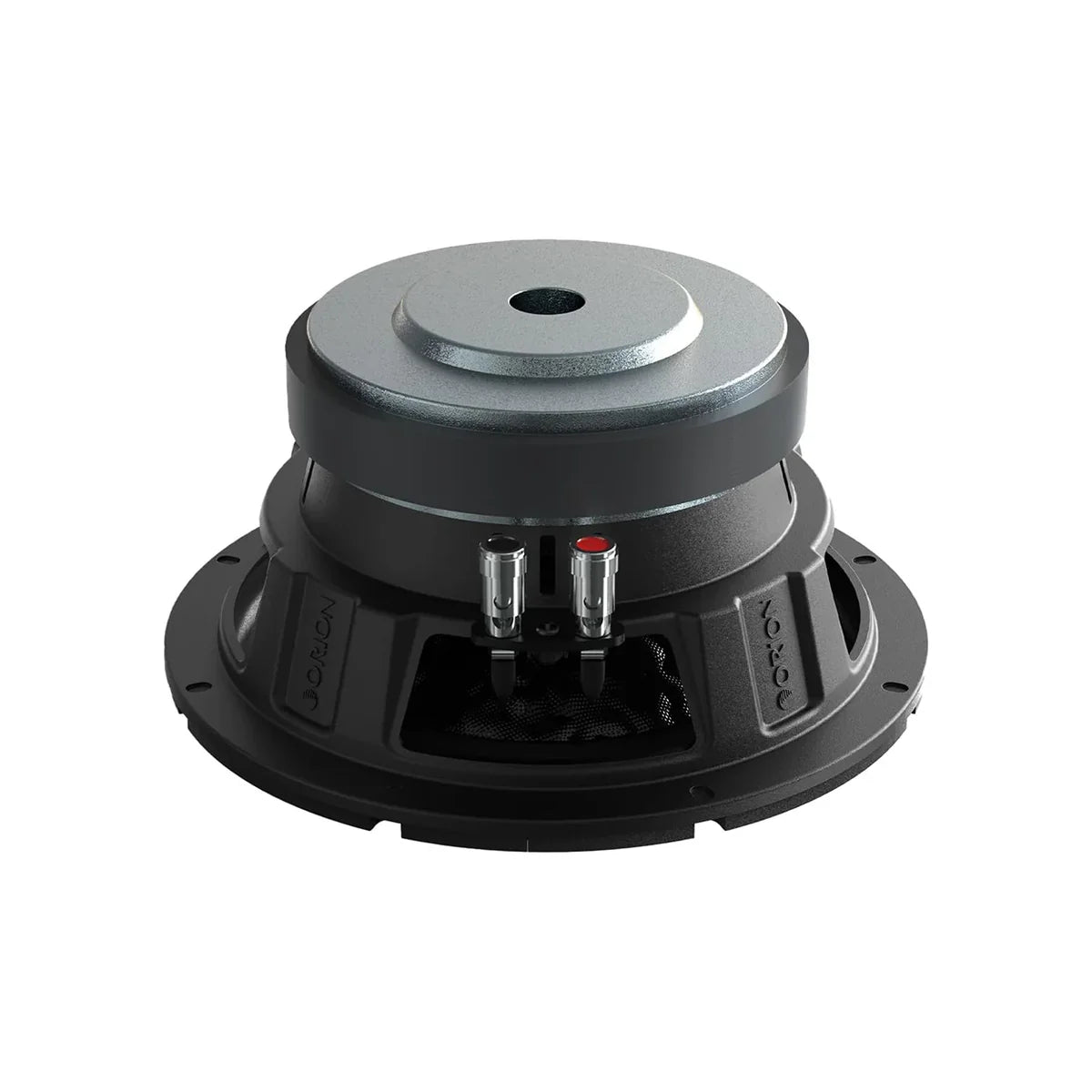

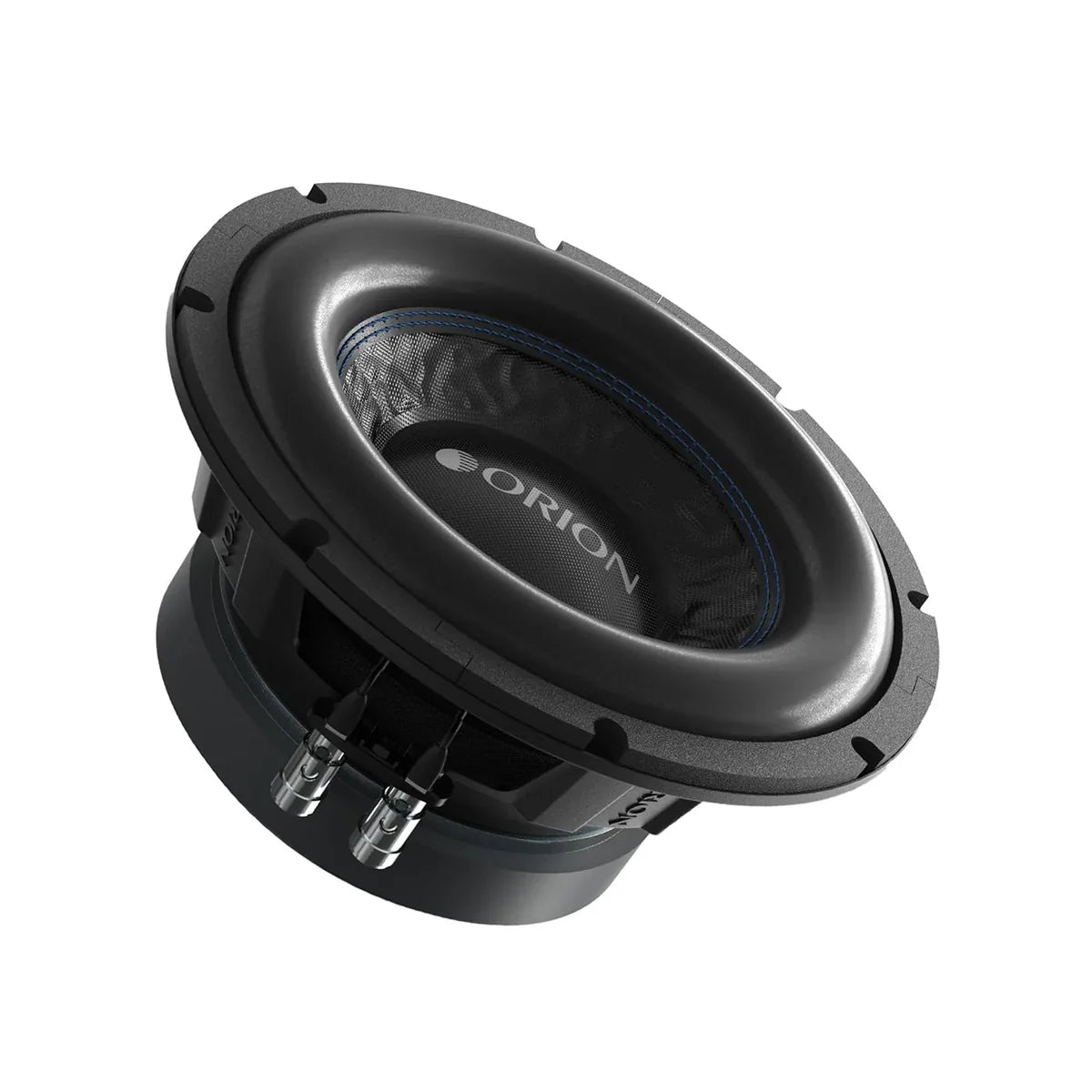

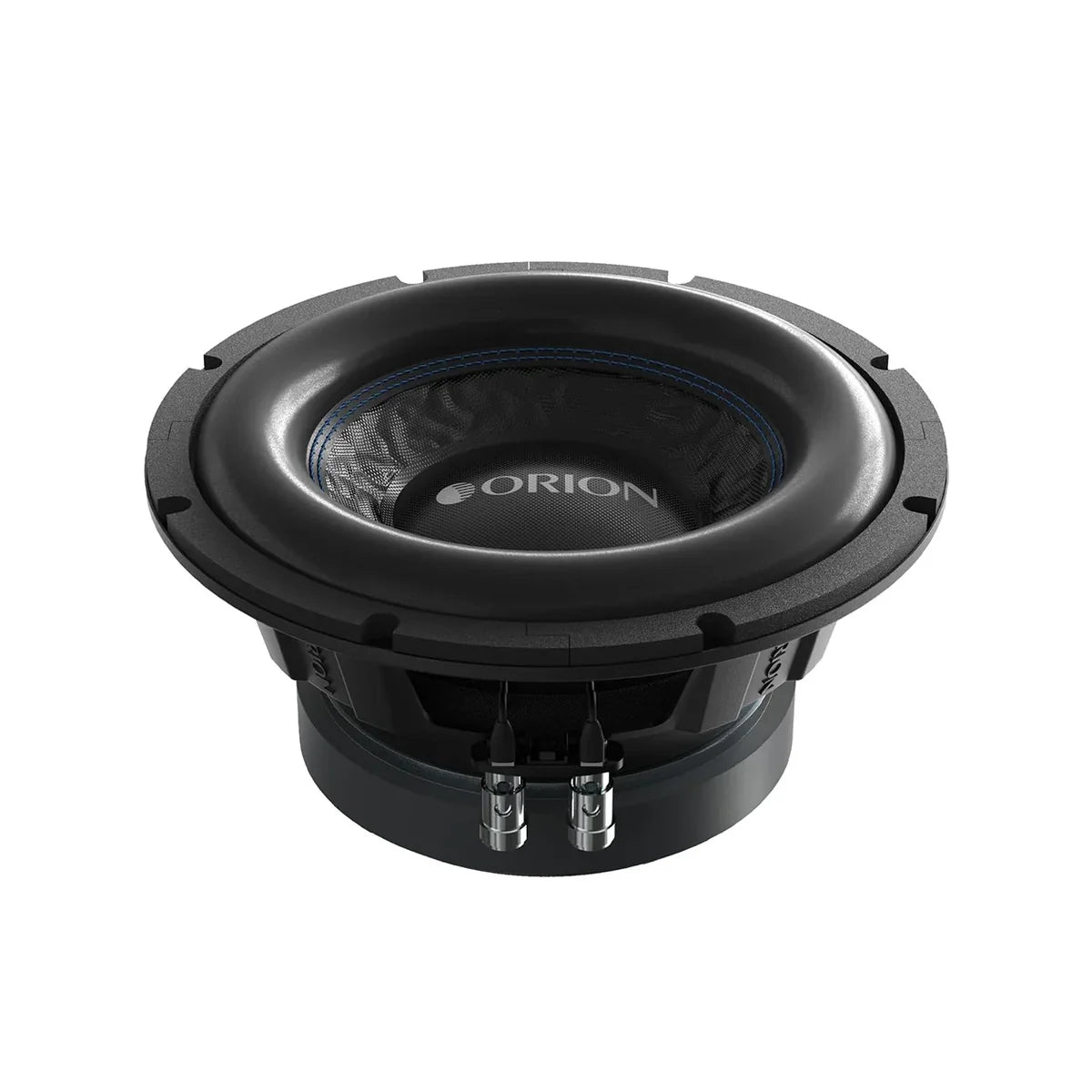

Orion CBW804S - 8" Subwoofer 200 Watts RMS SINGLE 4-Ohm

Upgrade your sound system with the Orion CBW804S 8" Subwoofer from the Cobalt Series—engineered to deliver clean, powerful bass in any vehicle. Built for reliability and everyday performance, this subwoofer pushes out 800W Max and 200W RMS, giving your music the depth and impact it deserves.

Crafted for clarity and durability, the CBW804S features a 2" copper wire voice coil on a sturdy Kapton former, paired with a UV-coated paper/fiber blend cone and high-quality foam surround. This design ensures accurate bass response while standing up to long hours of play and demanding audio conditions.

With a frequency response of 20 Hz to 300 Hz and 86 dB sensitivity, this subwoofer is tuned to reproduce low-end frequencies with precision—perfect for everything from deep bass lines to heavy-hitting drops across all genres.

Its 40 oz ferrite magnet and 3.78" mounting depth make the CBW804S compatible with a wide range of sealed or ported enclosures, making it ideal for both custom builds and simple system upgrades.

Whether you’re replacing a factory subwoofer or building a complete audio setup from scratch, the Orion CBW804S delivers dependable performance and rich bass output—all at an accessible price point backed by Orion’s trusted audio legacy.

High-Efficiency 4-Ohm Subwoofer: Delivers clean, powerful bass response that integrates seamlessly into a wide range of car audio setups.

High-Strength 2" Copper Voice Coil: Built on a durable Kapton former to handle heat and maintain stable performance during long, high-power sessions.

UV-Coated Paper/Fiber Cone: Features a rigid, UV-protected cone designed for accurate low-frequency reproduction and long-term durability.

Premium Foam Surround: Ensures smooth cone movement and reduced distortion, enhancing overall bass clarity and depth.

Strong Power Handling: Provides 200W RMS and 800W Max Power, delivering impactful, distortion-free bass output.

Wide Low-Frequency Response: Covers 20 Hz to 300 Hz, capturing deep lows and tight bass notes across all music genres.

High-Performance Ferrite Magnet: Equipped with a 40 oz magnet for increased motor force, improved control, and stronger bass impact.

Vehicle-Friendly Mounting Depth: With a 3.78" mounting depth, the CBW804S fits easily into sealed or ported enclosures for versatile installations.

Subwoofer Size: 8 (Inches)

Voice Coil Configuration: Single 4-ohm

Power Handling (Peak): 800 Watts

Power Handling (RMS): 200 Watts

Sensitivity: 86 dB

Frequency Response: 20 Hz - 300 Hz

Voice Coil Diameter: 2 (Inches)

Cone Material: UV Coated Paper / Fiber Blend Cone

Surround Material: Foam Surround

Magnet Information: 40 Oz Ferrite

Mounting Depth: 96mm / 3.78 (Inches)

Overall Depth: 113.25mm / 4.46 (Inches)

Mounring Diameter: 204mm / 8.03 (Inches)

Overall Diameter: 214mm / 8.43 (Inches)
