Alpine (2) S2-SB10V 10" Halo S-Series Preloaded Subwoofer Ported Enclosure S2-A120M Mono Amp and Rux Bundle

Product details

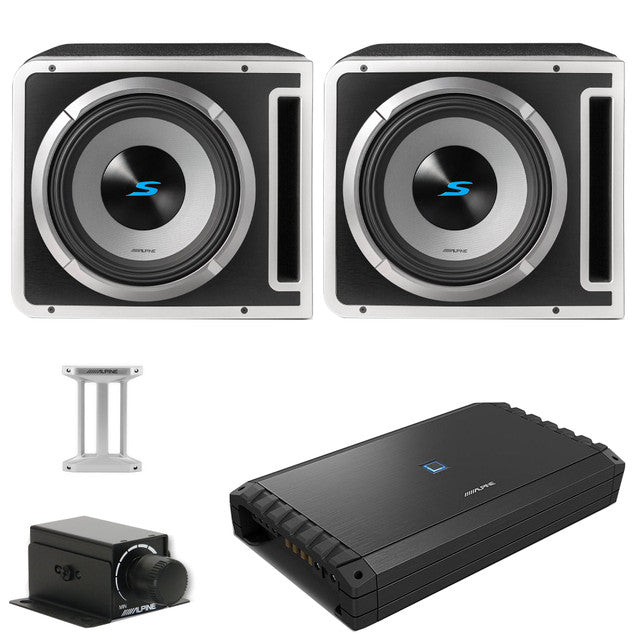

This bundle includes an Alpine RUX-KNOB.2 Remote Bass Knob, 2x Alpine S2-SB10V 10" Halo S-Series Preloaded Subwoofer Ported Enclosure with ProLink, an Alpine S2-A120M S-Series Class-D Mono Subwoofer Amplifier, Hi-Res Certified, 1200W RMS at 1 & 2-Ohm, and an Alpine KTX-H10 Linking Kit for Dual 10" Alpine Halo Preloaded Subwoofer Enclosures with ProLink™.

1x Alpine RUX-KNOB.2 Remote Bass Knob - (RUX-KNOB.2)

The optional RUX-KNOB remote bass control knob plugs right in to the MRX-M50, MRX-M100, MRX-V60, PDX-M12 and PDX-M6 mono models for quick direct subwoofer control to make bass adjustments on the fly.

Compatible Models
The RUX-KNOB is specifically designed as the controller for use with any of the following PDX Amplifiers: MRX-M50, MRX-M100, MRX-V60, PDX-M12, and PDX-M6.

From the Inside
With the RUX-KNOB, get full control over your PDX-M6 or PDX-M12 amplifier, conveniently from inside the car. With the RUX-KNOB installed inside the vehicle cabin, easily adjust the bass gain of your amp while seated inside.

Multiple Amp Control
Yes, there is a way to control multiple amps from just one RUX-KNOB controller – with the use of simple telephone cord adapters (which are readily available at many retailers).

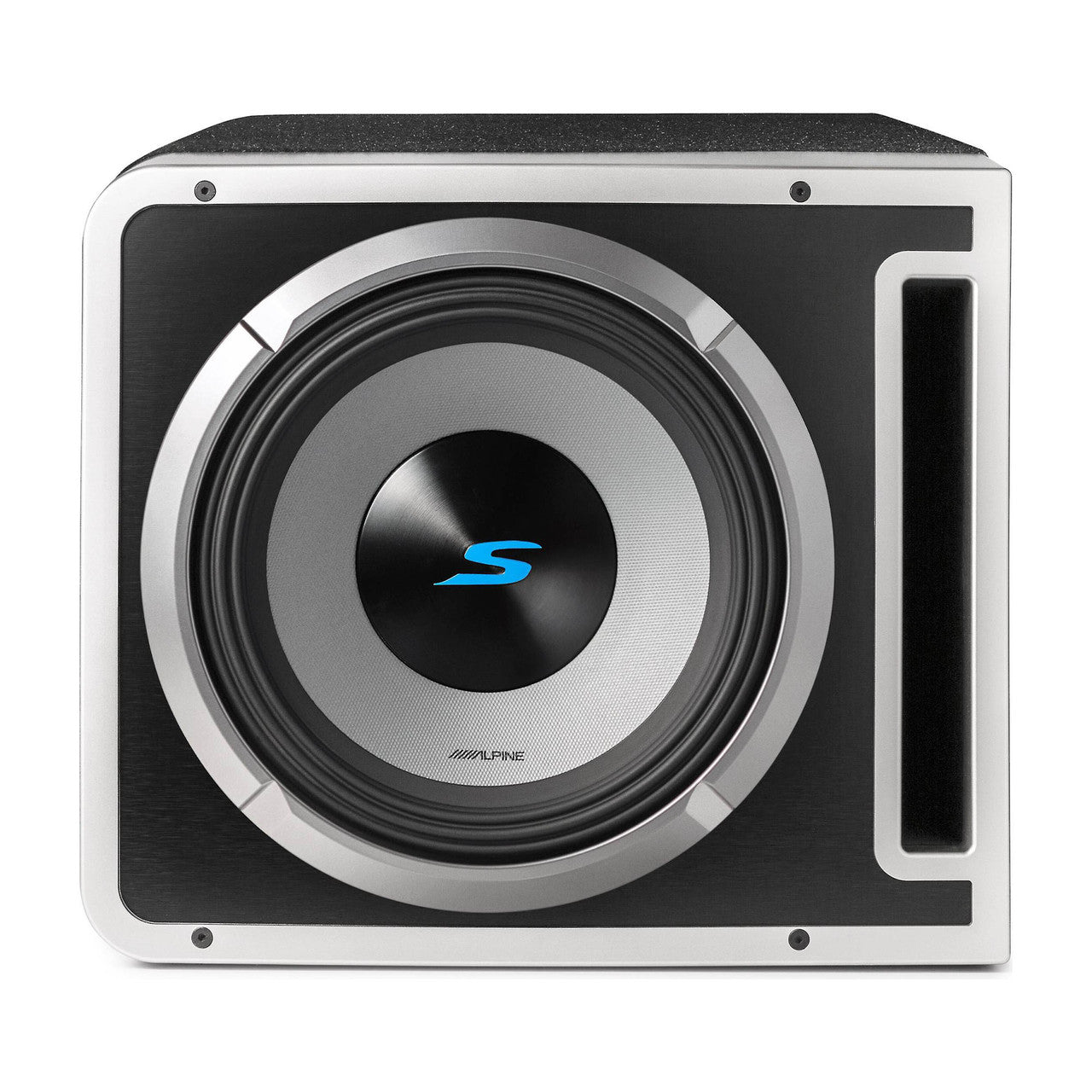

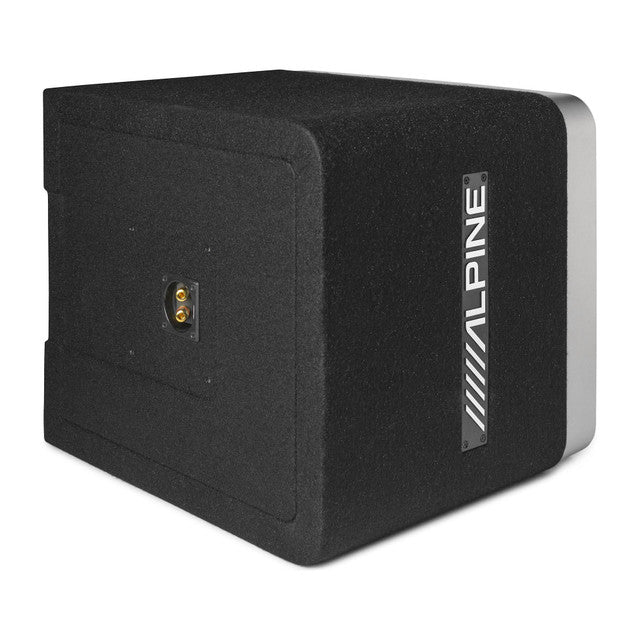

2x Alpine S2-SB10V 10" Halo S-Series Preloaded Subwoofer Ported Enclosure with ProLink - (S2-SB10V)

Double The Fun -
Alpine has been pumping out great sound for over 40 years, and now their Halo Series subwoofer enclosures make it easier to add more bass to your system. You'll get the low end you're looking for from one box, but when you want to expand your system, you can add a second enclosure and the optional linking kit to create a single two-speaker system with double the impact.

Dishing It Out -
The S2-SB10V comes loaded with Alpine's S2-W10D4 subwoofer wired for 2-ohm impedance. The sub's Kevlar-reinforced cone and Santoprene surround give you solid bass response at power levels up to 600 watts RMS. The ported enclosure is tuned to 36 Hz to maximize performance.

Getting It Together -

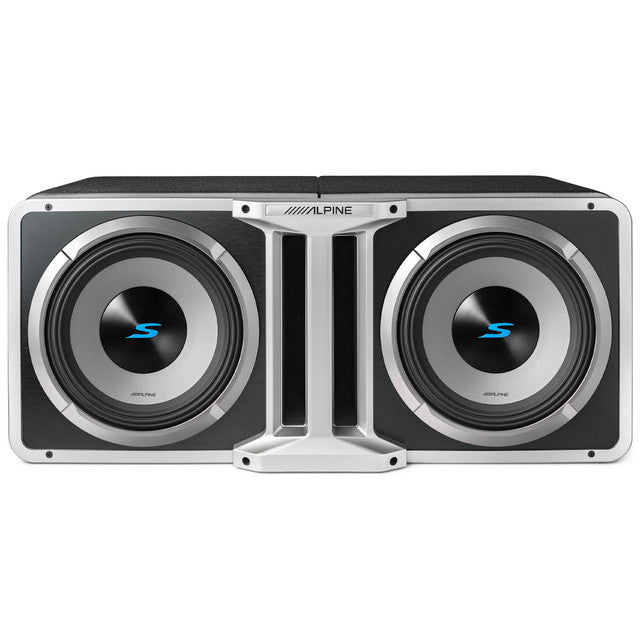

Two S2-SB10V enclosures can be linked using Alpine's KTX-H10 linking kit (sold separately). Heavy-duty steel front and rear linking brackets connect the enclosures for a compact, sturdy dual-subwoofer solution. The silver linking brackets match the enclosure trim for a neat, coordinated look.

Features -
• 10" ported subwoofer enclosure
• loaded with Alpine's S2-W10D4 subwoofer
• linkable to second S2-SB10V enclosure with linking kit (sold separately)
• Kevlar-reinforced pulp cone with Santoprene rubber surround
• power handling: 600 watts RMS
• frequency response: 28-200 Hz
• 2-ohm impedance
• dimensions: 16"W x 12.75"H x 15"D
• warranty: 1 year

Specifications -
• Driver: Single 10"
• Impedance: 2Ω (dual 4Ω voice coils paralleled)
• Power Handling: 600W RMS
• Enclosure: Ported
• Frequency Response: 28-200Hz
• Port Tuning: 36Hz
• Dimensions: W = 16.0", H = 12.750", Depth = 15.0"

1x Alpine S2-A120M S-Series Class-D Mono Subwoofer Amplifier, Hi-Res Certified, 1200W RMS at 1 & 2-Ohm - (S2-A120M)

PRODUCT OVERVIEW
Entry-level sound just got elevated with the S2-A120M Mono Amplifier. Its sleek design houses an Alpine Class D Amplifier Circuit with 1200W of powerful bass performance.

PRODUCT FEATURES
Unparalled Power - Alpine’s S-Series S2-A120M 1200W Mono Amplifier is the perfect solution for unparalleled power and performance on a budget. With a power output of 1200W at a 1ohm or 2ohm drive, this mono amp is capable of driving even the most demanding subwoofers, delivering clean and distortion-free bass for a wide range of applications.

Simplified Installation – The amplifier was intentionally designed with sound controls located on the side panels, instead of the top panel, making it easier to access gain and crossover controls when installed under vehicle seats or in shallow-depth locations. Removable end caps were added to cover the side controls and connections, providing a clean, sleek finish to the amplifier.

MAIN FEATURES
• 1200W Mono Amplifier
• Alpine’s Class D Amplifier Circuit
• Two-Sided Terminal Layout
• Built-in Selectable / Adjustable Crossovers
• Optional Remote Bass Knob Compatible (required RUX-KNOB.2 or RUX-H01, sold separately)

TECH SPECS
• Dimensions: 13.1” W x 2.25” H x 8.25” D
• Weight: 8 lbs, 11 oz
• Power Rating: 14.4V, < 0.1% THD +N
• Power Output: 600W x 1 @ 4Ω, 1200W x 1 @ 2Ω, 1200W x 1 @ 1Ω
• S/N Ratio: >85dB
• Frequency Response: 20Hz – 400Hz
• Damping Factor: >750

WHAT’S IN THE BOX
• (x1) S2-A120M Mono Amplifier
• (x2) Connection end covers w/4 attachment screws
• Owner’s Manual
• “Birth Sheet” that certifies by measurement the actual power of the amplifier in the box
• (x4) Self-tapping screws
• (x1) Hexagon wrench
• Alpine Registration Card
• Alpine Limited Warranty Sheet
• Tips sheet for power supply wire connections

1x Alpine KTX-H10 Linking Kit for Dual 10" Alpine Halo Preloaded Subwoofer Enclosures with ProLink™ - (KTX-H10)

When you’re looking to make a noticeable impact in your sound system, you add a subwoofer that will bring out the low ends of your music. But what if you already have a single subwoofer and still crave more bass? You could throw out your single enclosure and purchase a new dual enclosure or you can build your bass with Alpine's new ProLink™ technology. The KTX-H10 Linking Kit features ProLink™ technology and allows you to link two Single 10” Alpine Halo Preloaded Subwoofer Enclosures together to create a dual subwoofer-enclosure. Now you have the flexibility in power and price to use a single subwoofer or add another subwoofer when more bass is desired.

The KTX-H10 was designed for both function and form. The sturdy metal hardware follows the outline of the enclosure ports and links two Single 10” Alpine Halo Preloaded Subwoofer Enclosures together to create a dual subwoofer-enclosure. To create a seamless installation look, the KTX-H10 shares the same clean, silver finish as the enclosures and features a stainless steel Alpine badge on the top of the bracket.

Features:
Fits the S-SB10V and R-SB10V 10" Alpine Halo Preloaded Subwoofer Enclosures
Heavy-duty steel rear link bracket
Heavy-duty steel port link bracing
Stainless steel Alpine badge
All hardware included
