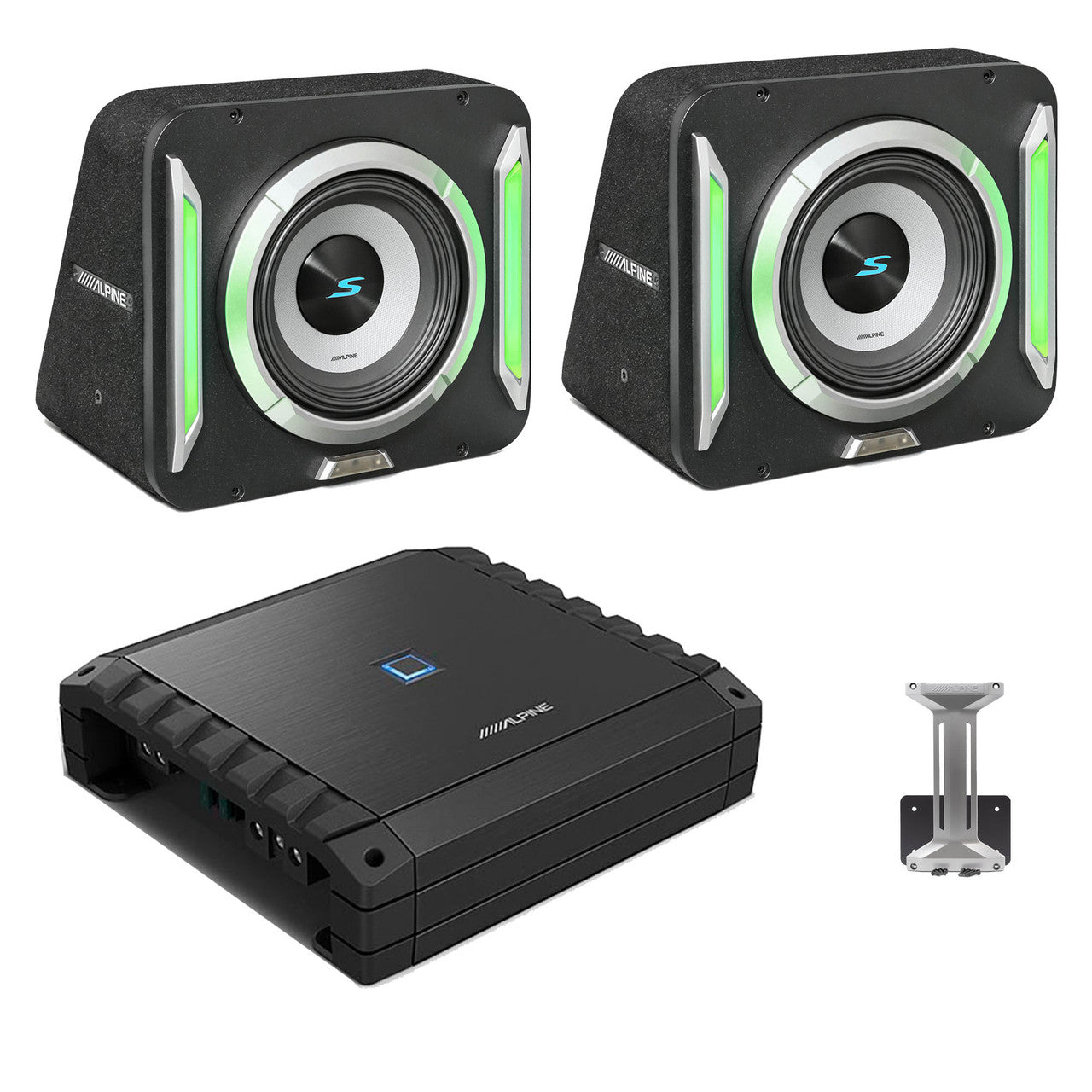

Alpine (2) S2-SB12 PrismaLink™ S2-Series 12" subwoofer Built-In RGB lighting & S2-A60M Amplifier Bundle

This bundle includes an Alpine S2-A60M S-Series Class-D Mono Subwoofer Amplifier, Hi-Res Certified, 600W RMS at 1 & 2-Ohm, 2x Alpine S2-SB12 12" S-Series Halo PrismaLink Preloaded Subwoofer Wedge Enclosure with RGB Lighting, and an Alpine KTX-LK12 Heavy-Duty Steel Front and Rear Linking Brackets for Connecting Two Alpine S-Series Prismalink 12" Sub Enclosures.

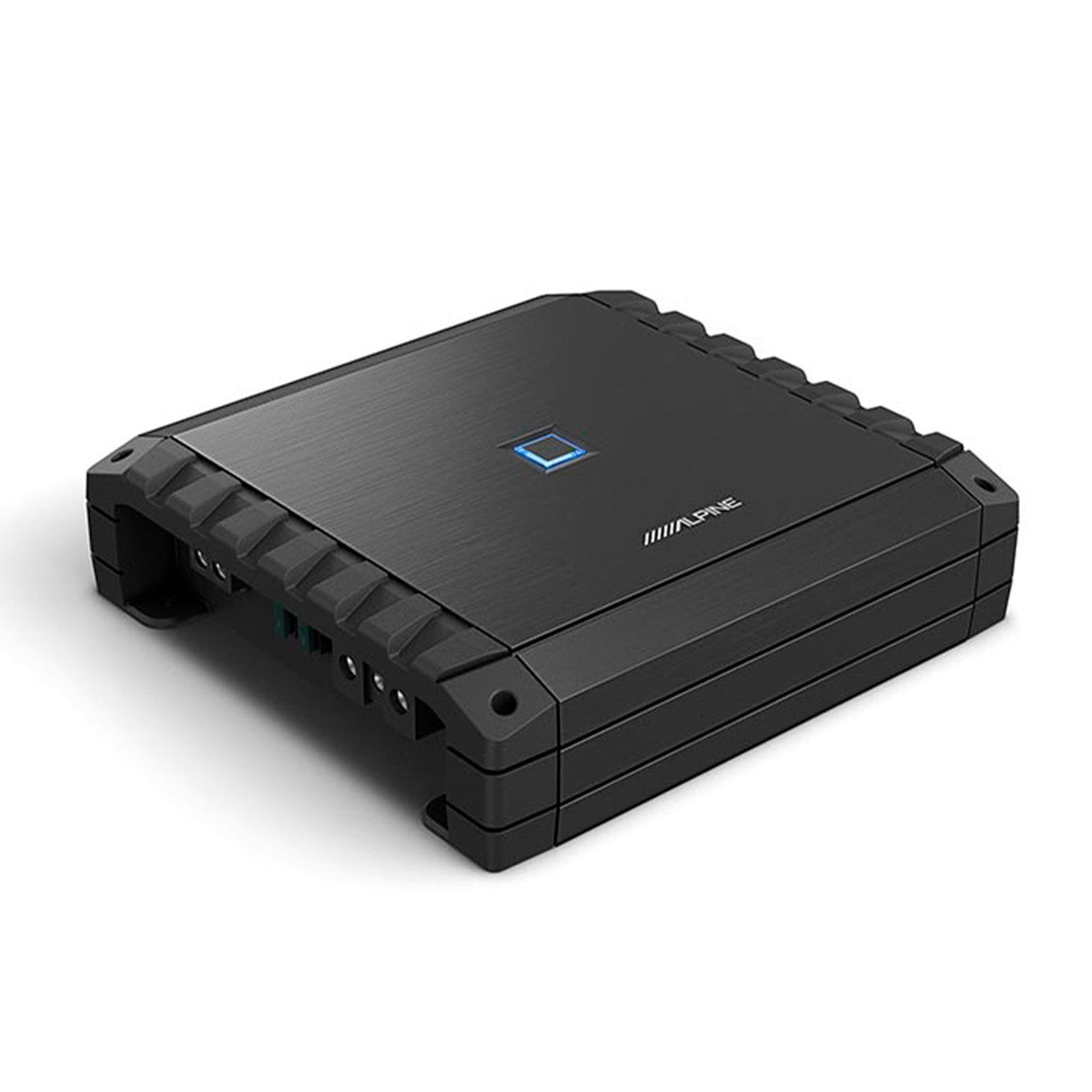

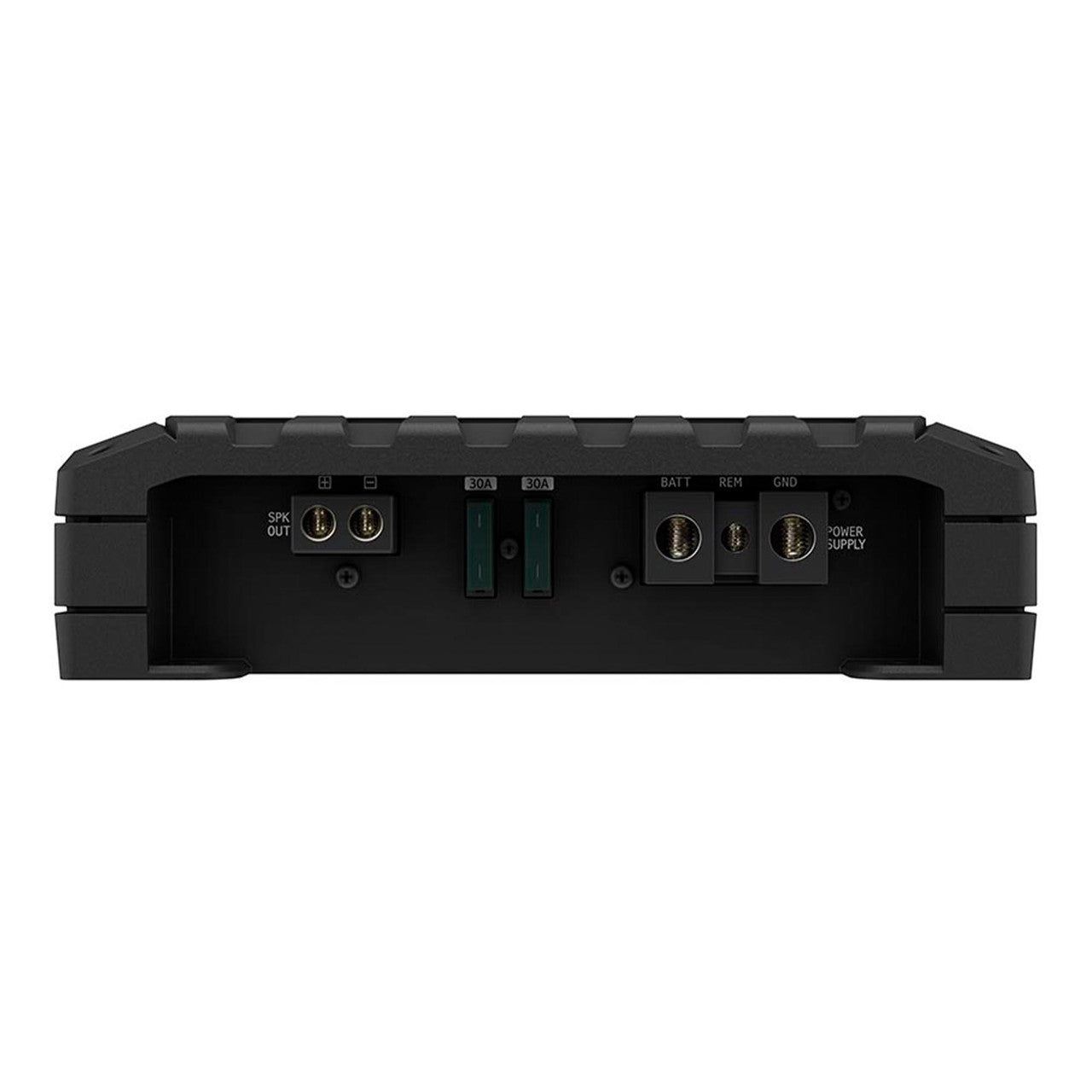

1x Alpine S2-A60M S-Series Class-D Mono Subwoofer Amplifier, Hi-Res Certified, 600W RMS at 1 & 2-Ohm - (S2-A60M)

Reliable Performance and Value-Oriented Products -
Three new S-Series amplifiers join the S-Series family, known for reliable performance and value-oriented products. All three S-Series amps (mono, 4-channel and 5-channel) contain technology currently implemented in R and X-Series models. The S-Series amps feature attractive prices and are designed to perform perfectly with the existing S-Series speakers.

Allows High Power Output -
Compact and Powerful: the new digital amplification circuit allows high power output while keeping a small footprint. The S-A60M measures just 204mm in width x 204mm in length for easy installation in virtually any vehicle.Along with Alpine’s new intelligent amplifier platform, the new S-Series amplifiers feature an improved heat sink and protection circuit design that eliminates thermal shut-down, for dependable music playback.

Specifications -
• Power Requirements: 14.4 V.DC (9 - 16 V allowable)
• Input Sensitivity (RCA Input): Hi: 0.5 - 10 V Lo: 0.2 - 4.0 V
• High Level Input with automatic power on
• Cable size: Power Cable AWG 4, SPK Cable AWG 8
• Frequency Response (+0, -3dB: 1W into 4 ohms): 10Hz - 400Hz
• THD+N (@ 10W into 4 ohms): <0.03%
• THD+N (@ 50W into 4 ohms): <0.08%
• Damping Factor: >1000
• Signal to Noise (@ 50 Watts into 4 Ohms): >105dB
• Weight: 1.9 kg

Features -
• Amplifier Type: Class-D (Digital)
• Channel Design: Mono Channel
• Thermal Management Control
• Top Mounted LED Power/Status Indicator
• Speaker Level Input with remote turn on
• Crossover: Adjustable Low-pass (LPF)
• Gain Control: Adjustable
• Bass EQ
• Bass Control: Remote Bass Control (RUX-KNOB2) Ready

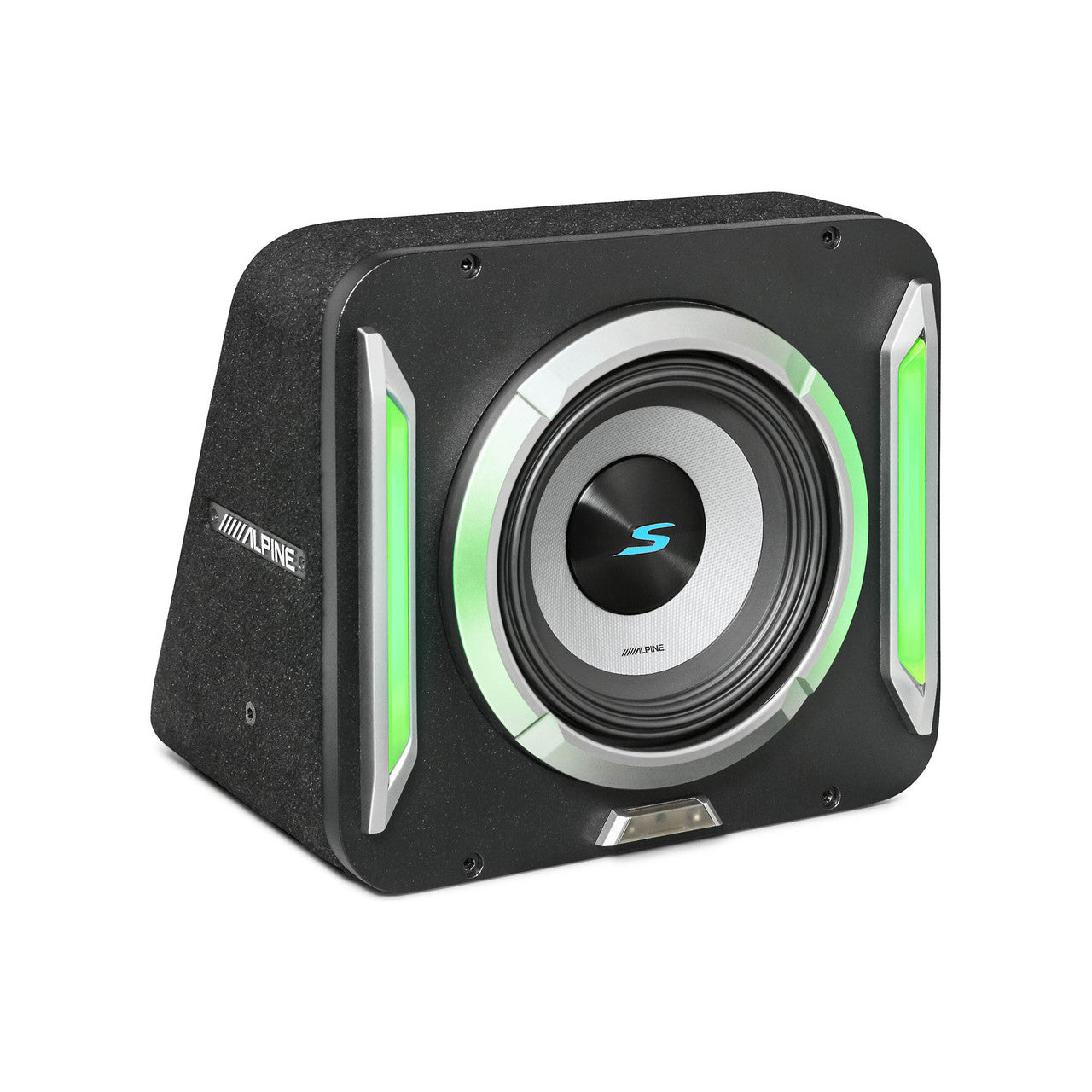

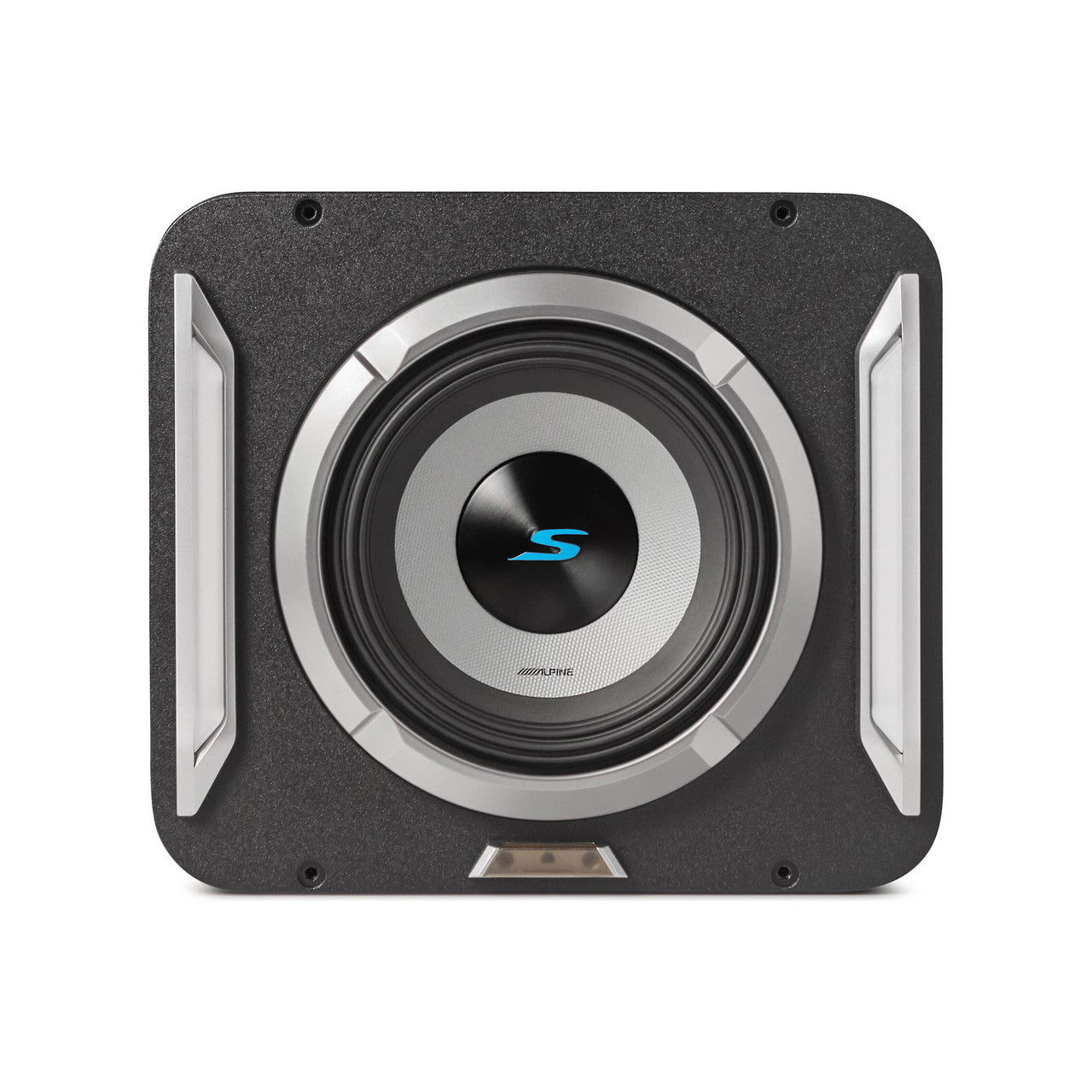

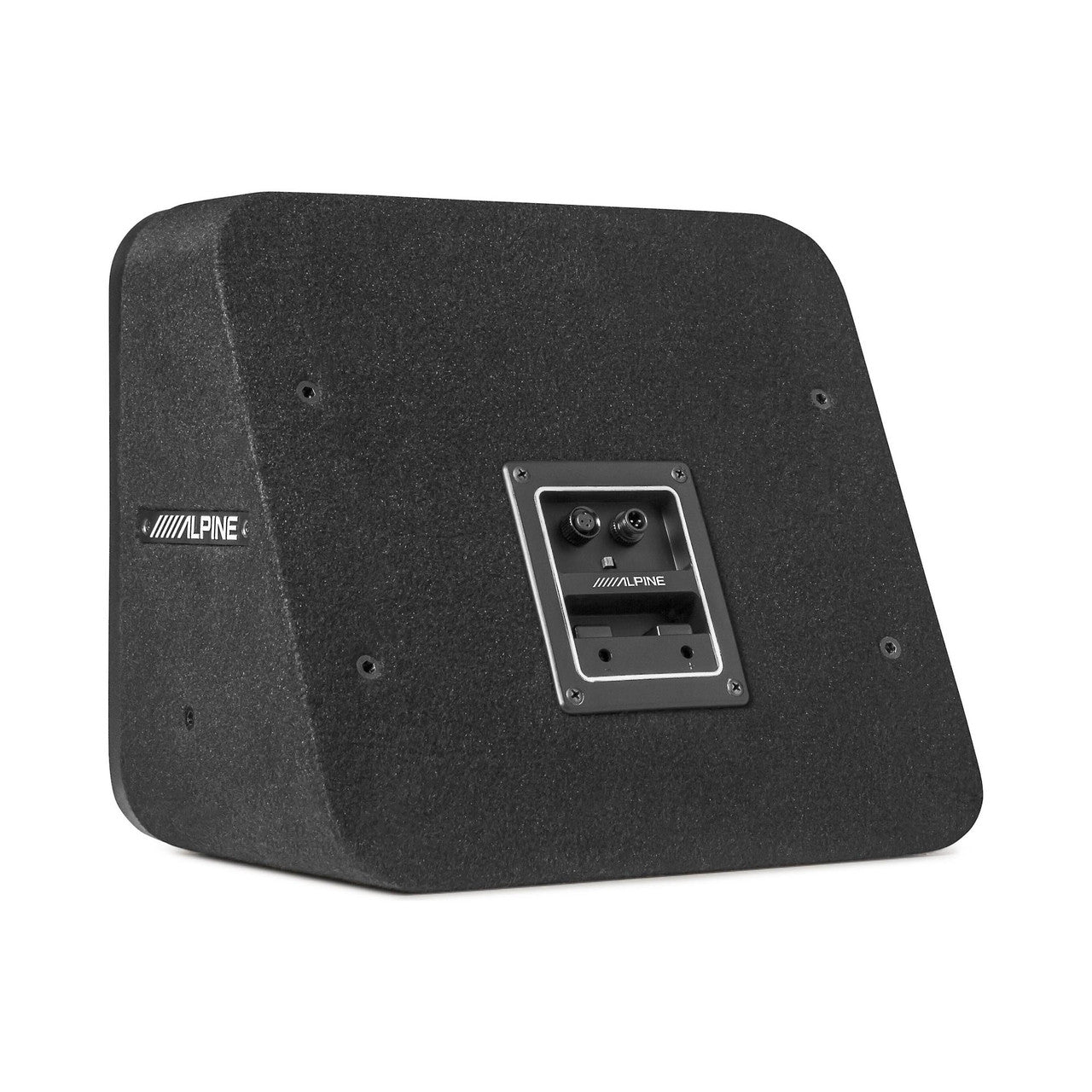

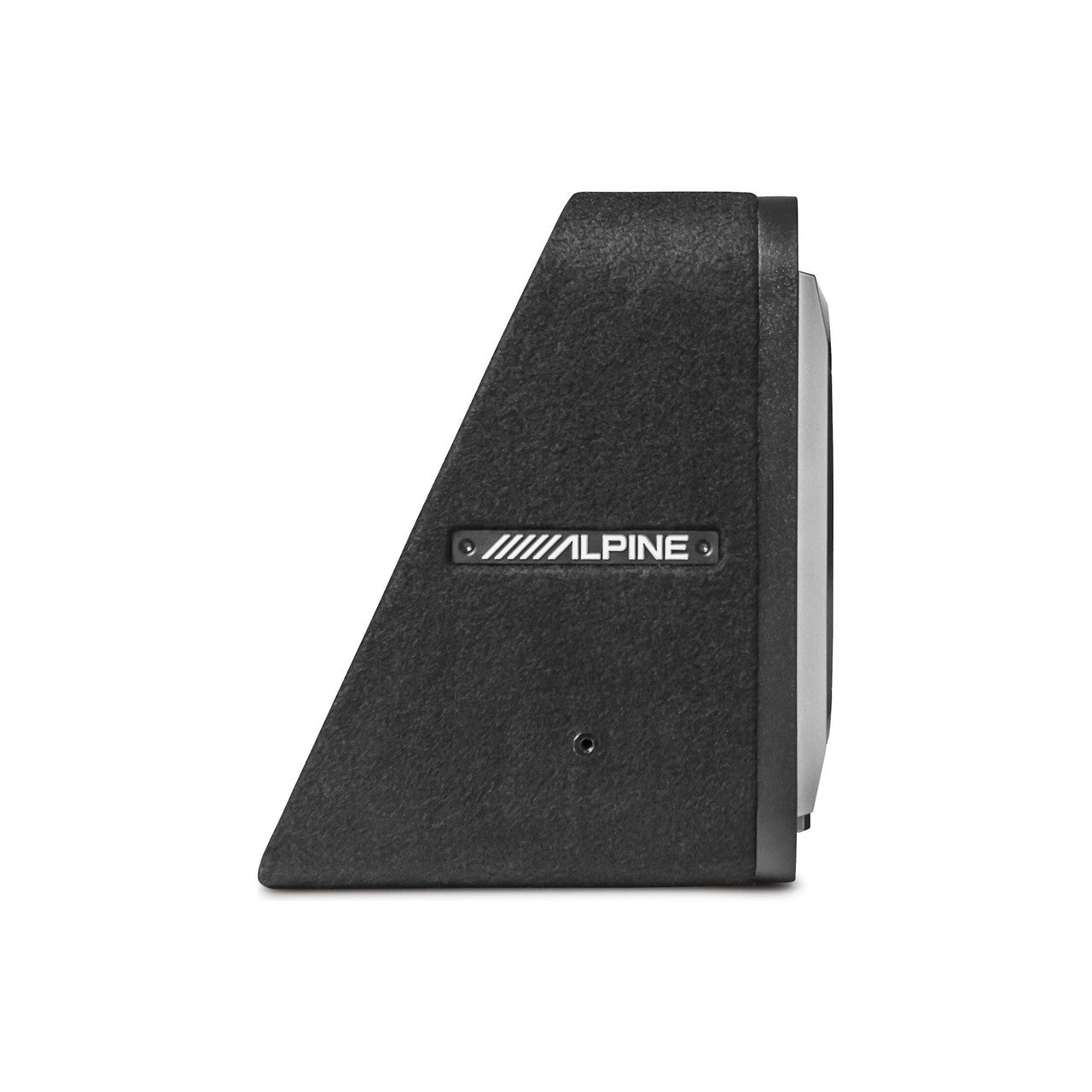

2x Alpine S2-SB12 12" S-Series Halo PrismaLink Preloaded Subwoofer Wedge Enclosure with RGB Lighting - (S2-SB12)

Experience your sound system in a whole new light with Alpine’s PrismaLink™ Subwoofer Enclosures. These innovative subwoofer enclosures seamlessly blend style, performance, and expandability, delivering powerful bass with a visual lighting experience.

Illuminate your Sound System – Color and sound collide to bring you an intentionally crafted wedge enclosure, designed for optimal bass performance and vehicle fitment, and an integrated RGB lighting system that’s multi-link capable for single, dual, and even quad-enclosure installations.

Multi-Link Lighting - The PrismaLink™ Subwoofer Enclosures feature a pre-wired, RGB light integration in the enclosure trim bars that’s able to connect across the optional subwoofer linking brackets (KTX-LK12, sold separately) for a display of color that’s controlled by a remote or the iLX-W670 Receiver (Sold Separately).

S-Series Performance – PrismaLink™ Enclosures come preloaded with Alpine’s next-generation S-Series Subwoofers, which feature a lightweight but rigid cone material and Alpine Proprietary High-Amplitude Multi-Roll (HAMR) surround that contribute to enhanced “punch” and accurate bass performance.

FEATURES
• Preloaded S2-W12D4 12” S-Series Subwoofer
• Sealed Wedge Style Enclosure Design
• RGBW Multi-color Trim Bar Lighting with IR Remote
• 12 Static Colors, 4-Dynamic Modes
• Multi-Link Capable (Link 2 or more enclosures together)
• Lighting Link Control via iLX-W670
• Carbon Fiber / Poly Propylene Subwoofer Cone
• Lightweight Construction, High Output, Low Distortion
• Enhanced “Punch” and Accurate Bass
• Compatible with the KTX-LK12 12” Linking Bracket for Multi-Link Application

TECH SPECS
• Enclosure Dimensions: 16.5” (W) x 15” (H) x 13.25” (D)
• Power Handling: 600W RMS / 1800W Peak
• Nominal Impedance: 2Ω
• Frequency Response: 23Hz - 215Hz
• Sensitivity: 86dB
• X-Max (1-Way): 15mm
• Voice Coil: 2.6”
• Magnet Weight: 64oz
• Dual 4Ω voice coils wired in parallel for a 2Ω load

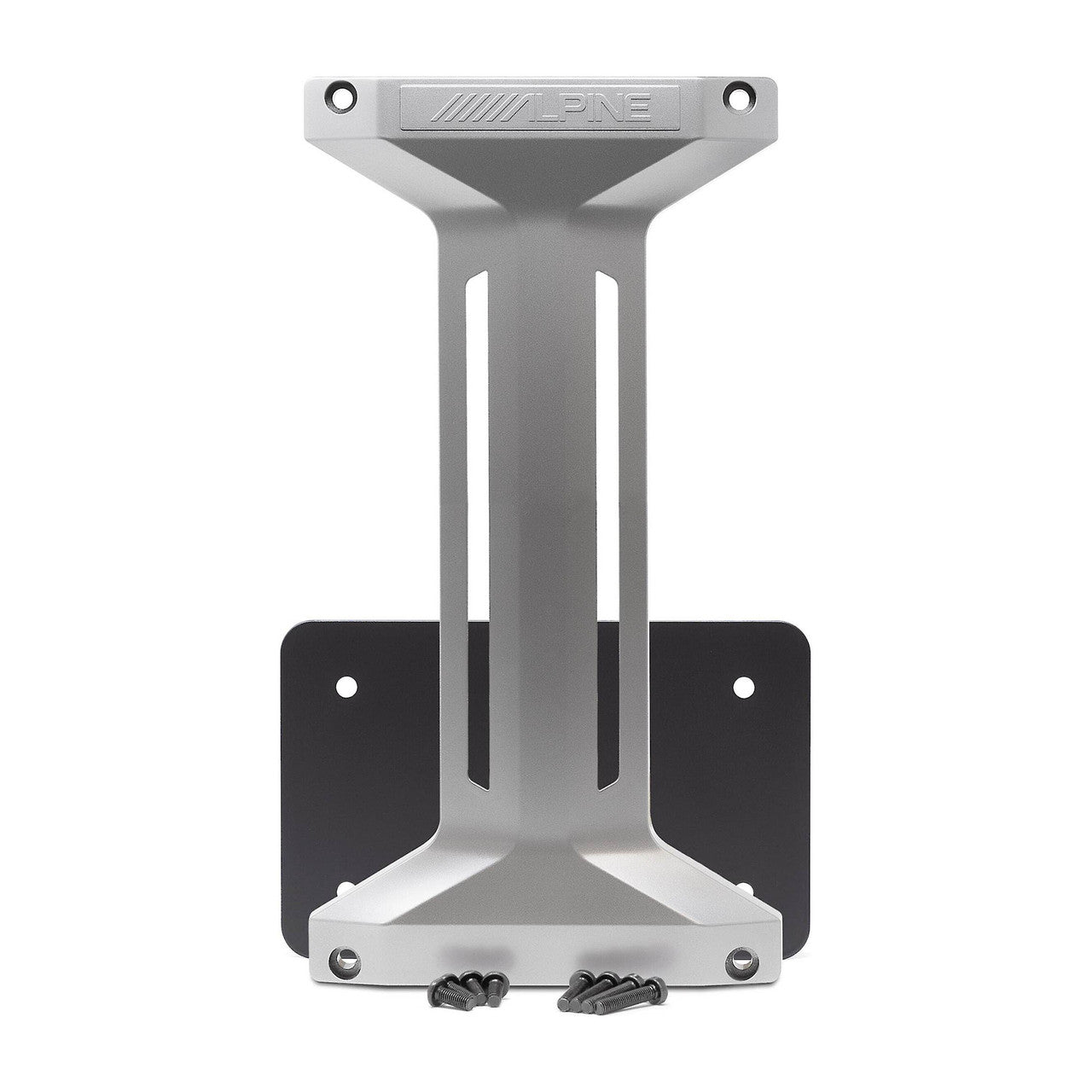

1x Alpine KTX-LK12 Heavy-Duty Steel Front and Rear Linking Brackets for Connecting Two Alpine S-Series Prismalink 12" Sub Enclosures - (KTX-LK12)

When it comes to bass, two is always better than one. Alpine's KTX-LK12 linking kit allows you to connect two Alpine S2-SB12 12" subwoofer enclosures to double your bass. The kit includes heavy-duty steel front and rear linking brackets to securely connect the enclosures as well as all the hardware you'll need. The front bracket's silver finish is made to coordinate with the enclosures' design, while the silver Alpine badge adds a touch of style. Warranty: 1 year.
