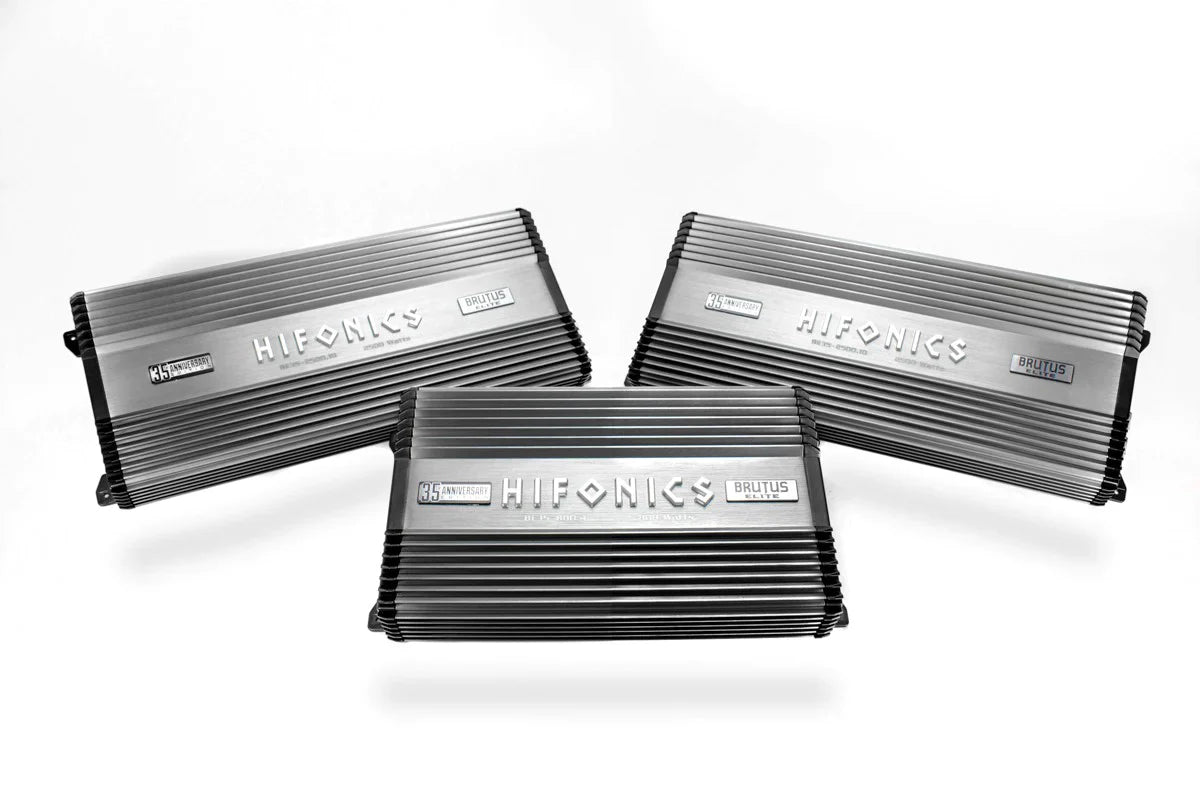

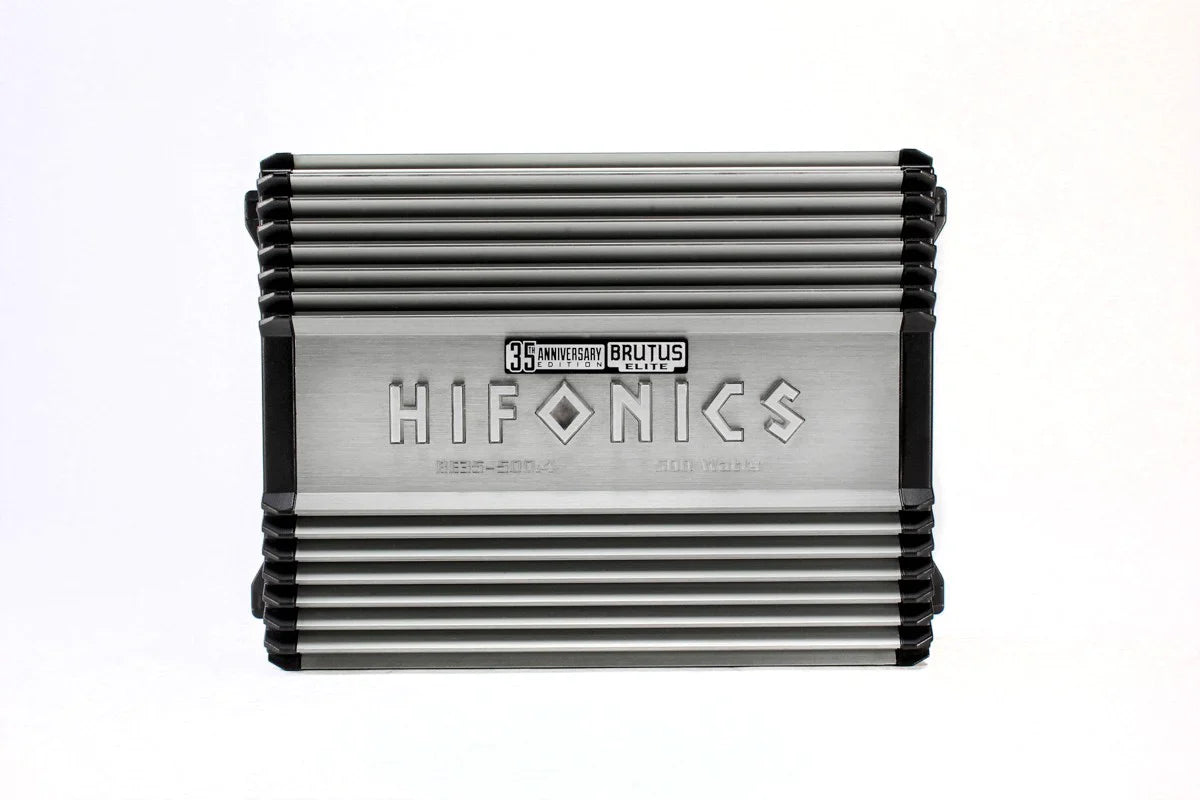

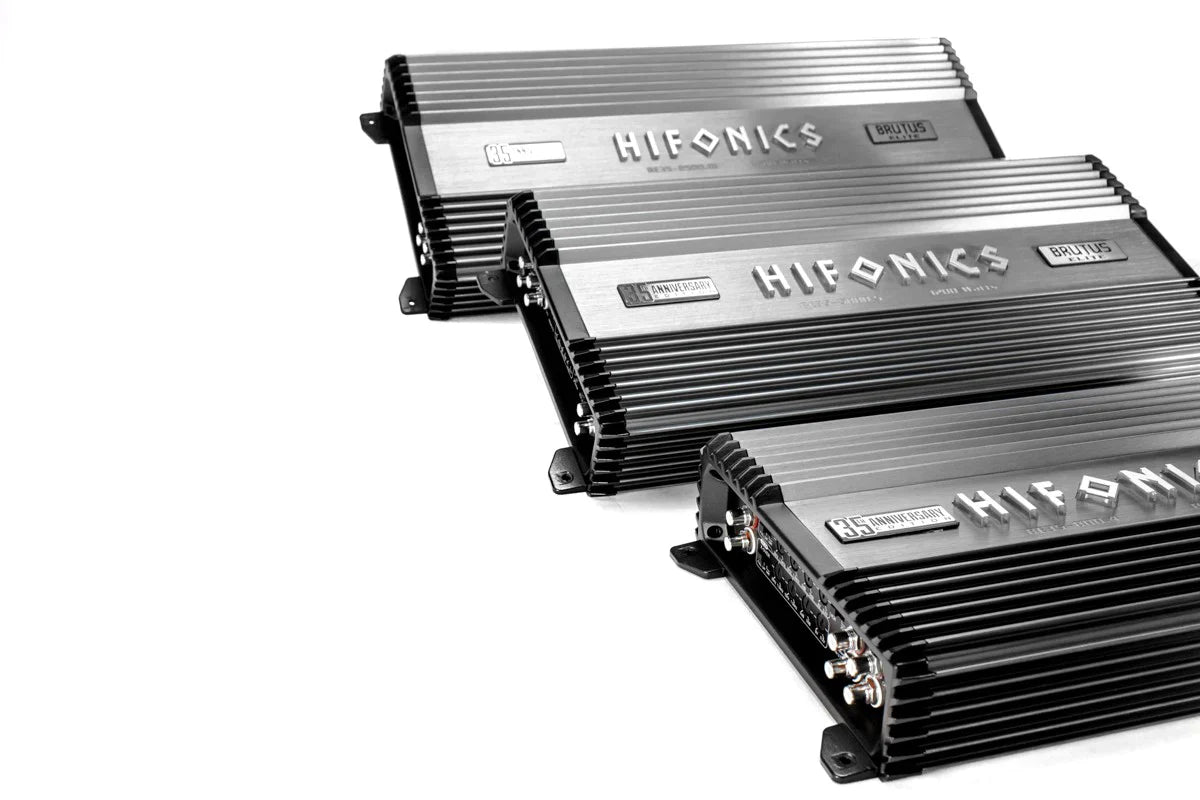

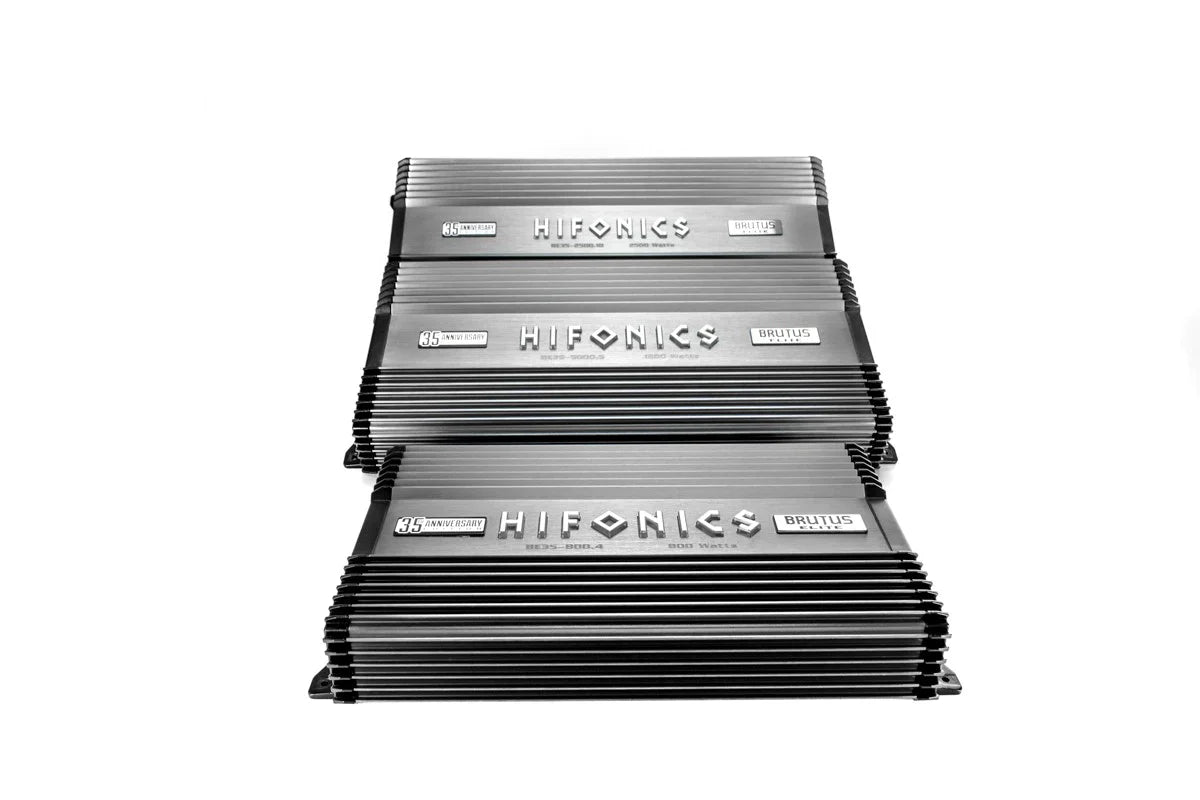

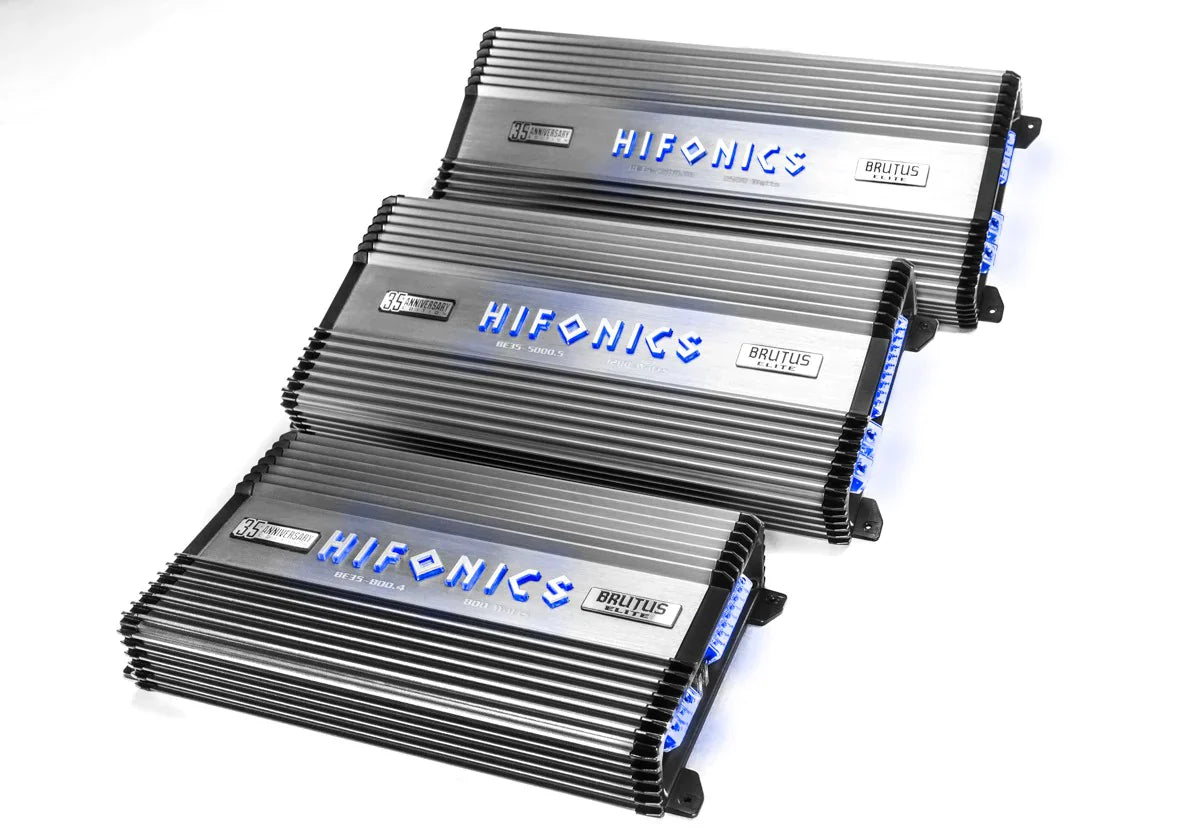

Hifonics BE35 500.4 BRUTUS ELITE 4 CHANNEL AMPLIFIER

Product details

Hifonics 35th Anniversary 4 x 125 Super A/B Class™ Brutus Elite four channel car audio amplifier with electronic crossovers.

Specification

• CLASS

  Super A/B Class™

• VARIABLE VOLTAGE

  0.2V - 6V

• SIGNAL TO NOISE

  >85dB

• FREQUENCY RESPONSE

  20-35kHz

• CROSSOVER TYPE

  Electronic

• HIGH PASS CROSSOVER: 12DB PER OCTAVE

  10Hz - 1.5KHz

• LOW PASS CROSSOVER: 12DB PER OCTAVE

  30Hz -500Hz

• CROSSOVER FREQUENCY RANGE: CH1 & CH2

  N/A

• CROSSOVER FREQUENCY RANGE: CH3 & CH4

  N/A

• CROSSOVER FREQUENCY RANGE: CH 5

  N/A

• TONE CONTROL

  Bass EQ

• BASS BOOST

  0~9dB@45Hz

• SUBSONIC FILTER

  N/A

• PHASE SHIFT

  N/A

• POWER @ 1-OHM

  N/A

• POWER @ 2-OHMS

  4 x 125

• POWER @ 4-OHMS

  4 x 65

• MONO BRIDGED @ 2-OHMS

  N/A

• MONO BRIDGED @ 4-OHMS

  2 x 250

• TOTAL CHANNELS

  4

• AUDIO INPUTS

  Yes

• AUDIO OUTPUTS

  No

• POWER TERMINAL: 12V/GND

  4ga

• SPEAKER TERMINAL WIRE GAUGE

  12g

Features

• PRE-AMP CIRCUITRY: Low Noise PreAmplifier

  Low voltage signal from the source unit comes into the amplifier pre-amplifier circuit with minimal distortion

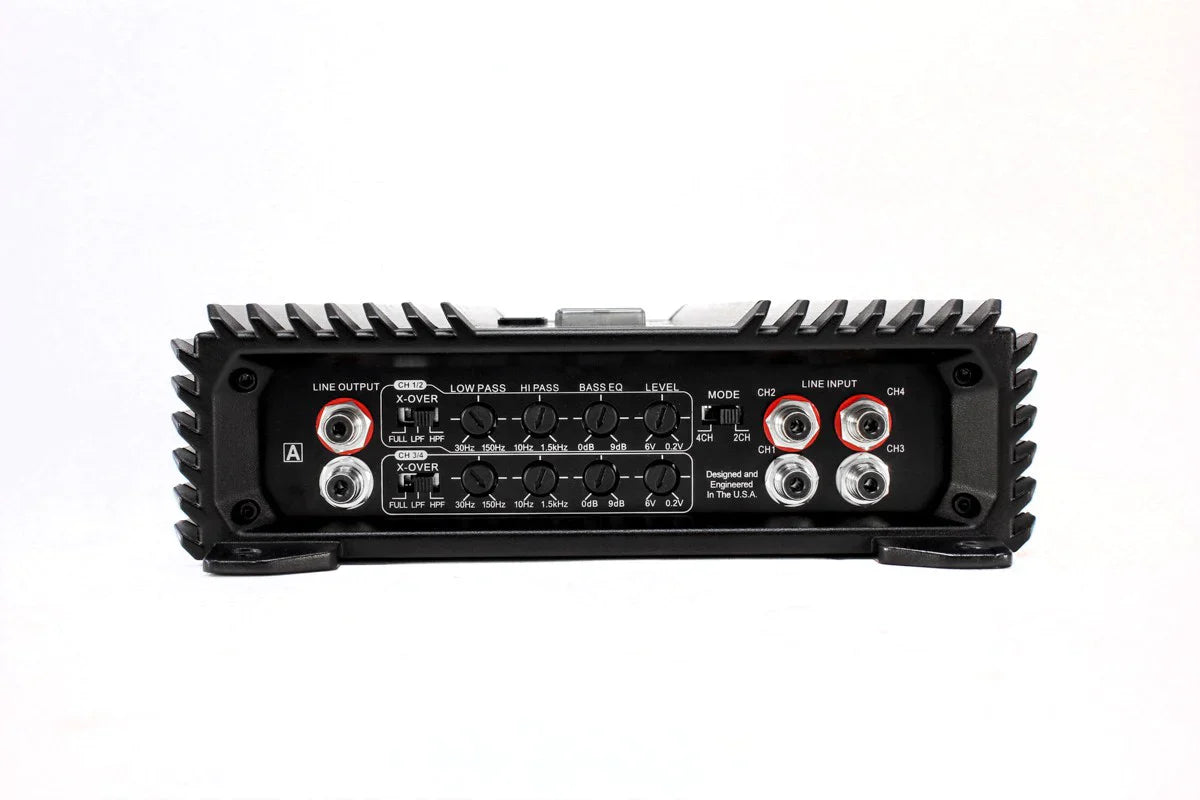

• INPUTS: Tiffany Style RCA Connectors

  Audiophile signal quality and maximum signal throughput with minimum distortion and maximum external noise rejection

• HI LEVEL INPUTS:

  N/A

• OPERATION MODE: Four Channel, Full Range, Bridgeable

  Flexible installation allows this amplifier to run in four channel or bridged mono mode

• CROSSOVER / SIGNAL SHAPING: Accu-Cross

  Accu-Cross crossovers allow for complete control of the signal directing to all speakers. See specifications section for specific frequencies

• EQUALIZER: Electronic

  Control of amplifier output with on board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier

• CLASS / TOPOLOGY: Super A/B Class™

  Developed over three decades of engineering to deliver the highest level of sound quality and power efficiency. At very high listening levels. Hifonics Super A/B Class results in lower distortion, higher current efficiencies and less heat than conventional amplifier designs.

• OUTPUT DEVICES TECHNOLOGY: Ultra-Fi™ MOSFET

  The Ultra-Fi™ MOSFET is designed for music production vs just electronics output power. It produces very musical high power with high efficiency for cooling and minimal distortion

• HEAT SINK: Aluminum

  Heavy duty aluminum alloy heat-sink efficiently moves heat from the MOSFET where it can be cooled

• POWER SUPPLY: Twin turbo

  The Twin Turbo Coil PS is a Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices

• STRAPPING:

  N/A

• BASS REMOTE:

  N/A

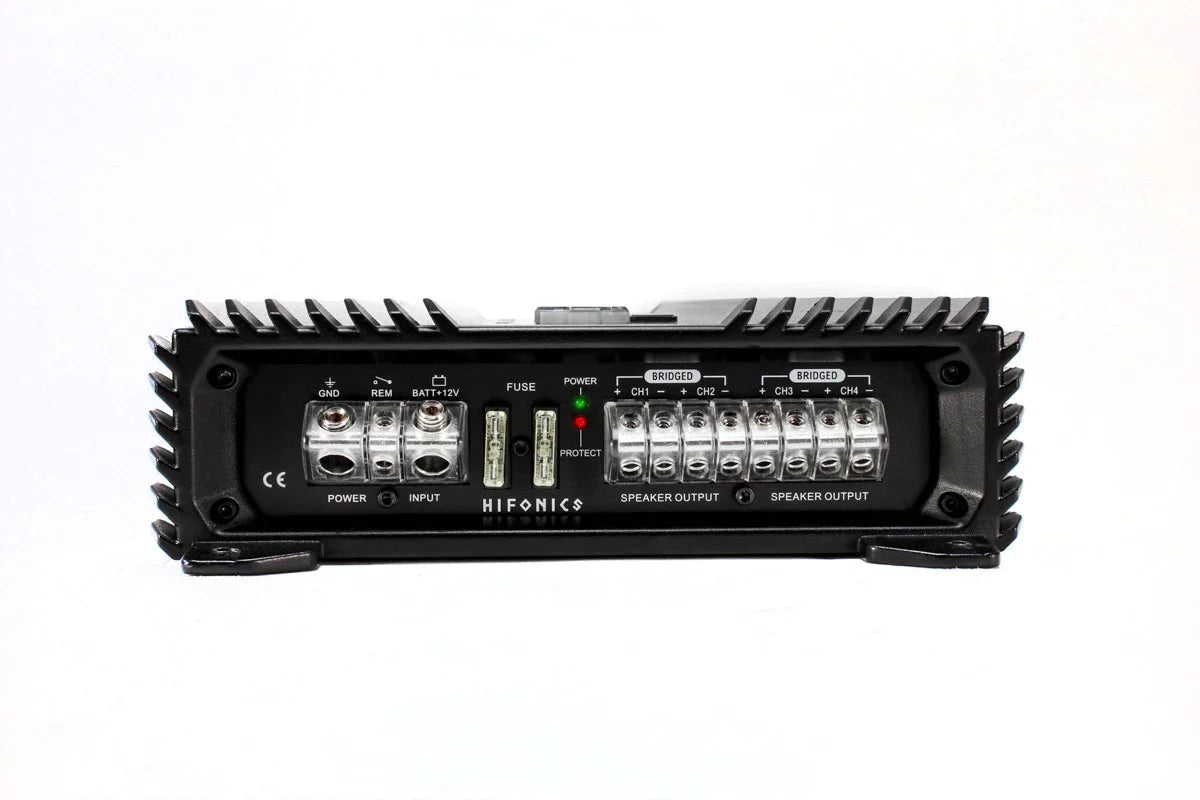

• OUTPUT CONNECTIONS: Nickel-Plated

  High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant

• CONNECTIONS TYPE: Illuminated, Molded and Angled

  Secure connection for all Power, Ground and Speaker connections. Angled for ease of access during installation.

• SIGNAL PASS THROUGH: Yes

  One pair of Tiffany style connectors for a full range, L & R output allow distortion free signal to be passed through this amplifier to feed that signal to other components without the need for noise generating Y cables

• DIAGNOSTICS: 4-Way System Protection Circuitry

  Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel

• MARINIZED / WATERPROOF:

  N/A

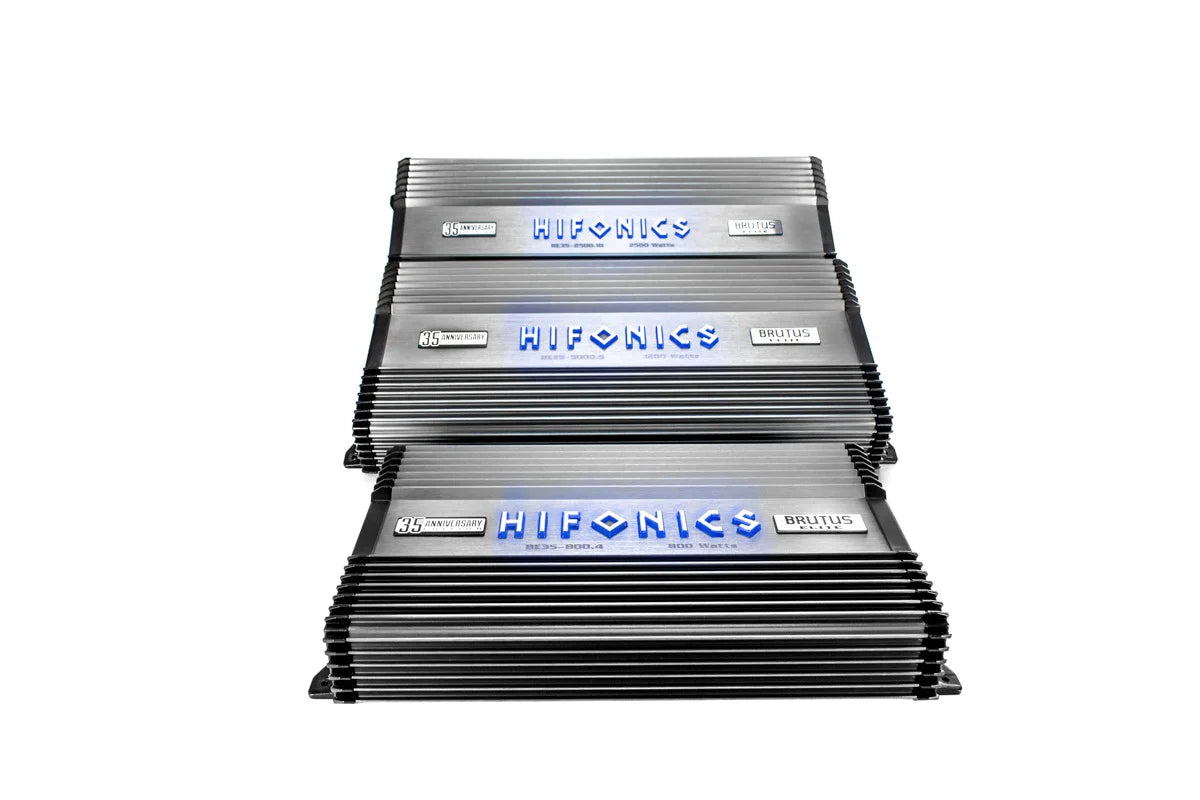

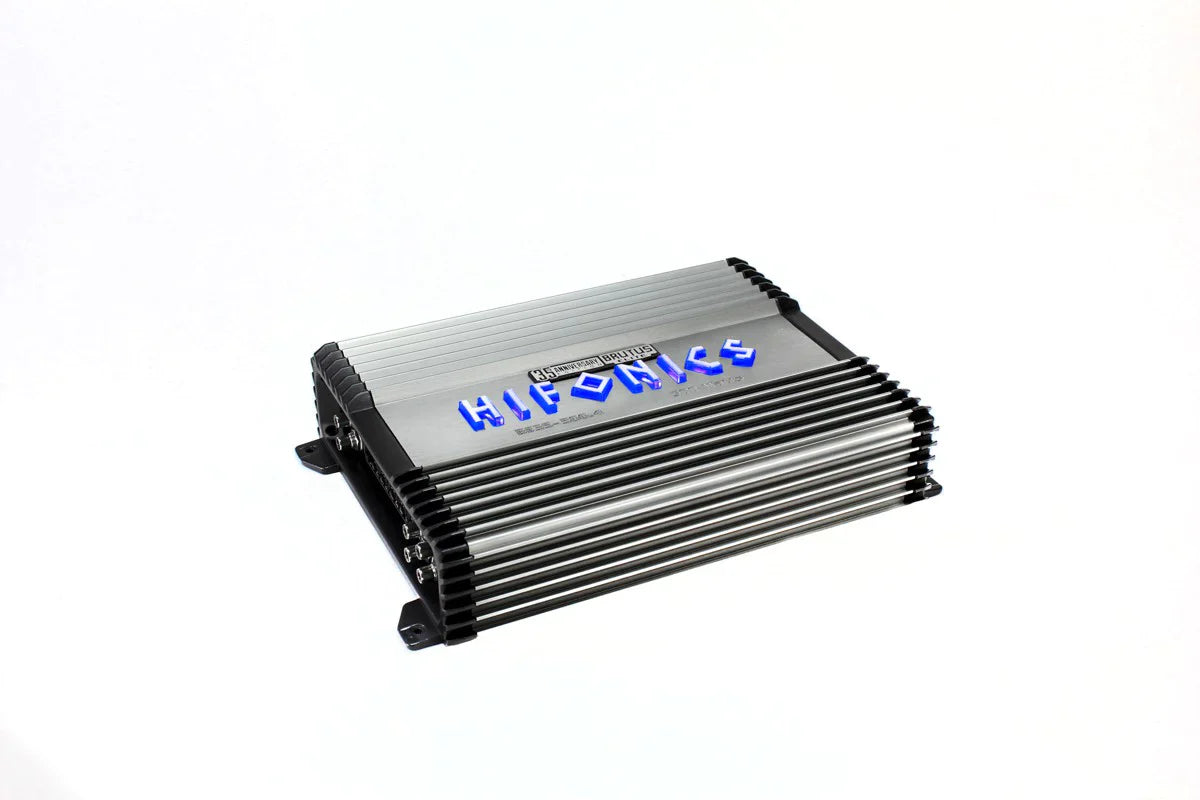

• ILLUMINATION: Yes

  Hifonics logo the molded and angled output connectors
