Kenwood
Kenwood CMOS-230 Universal backup camera — surface-mount
$134.99
In Stock
Pre-Order
Sold out
Couldn't load pickup availability
100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
- Description
- Shipping and Refund
- Reviews

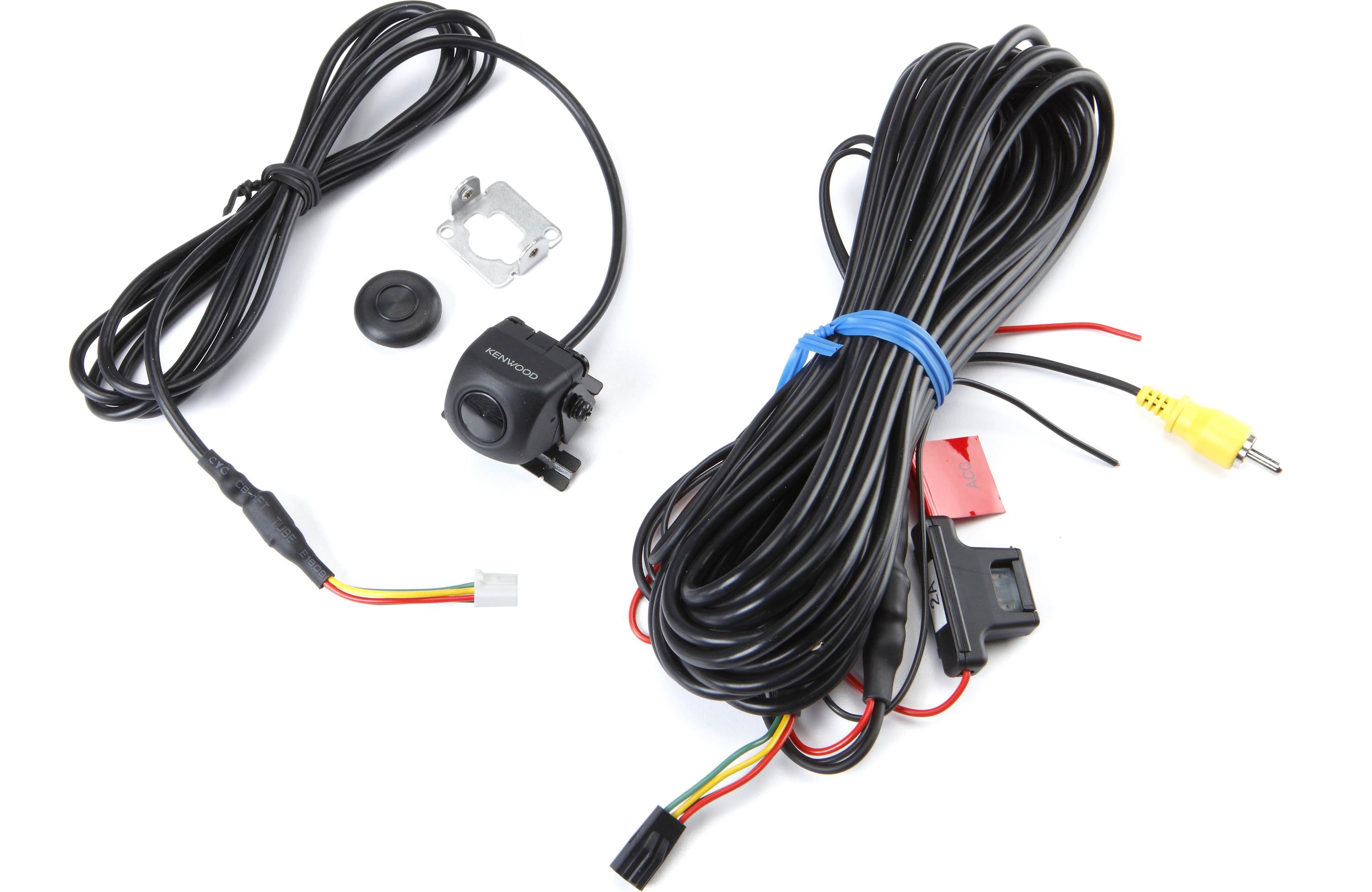

Kenwood CMOS-230 Universal backup camera — surface-mount
Product details
Any car will do
Kenwood's CMOS-230 backup camera is tiny — less than a cubic inch — so it's a natural fit on the rear of almost any vehicle. Once installed, shifting into reverse will let you check out the view behind you on your receiver's video screen. The camera captures a 128-degree horizontal view and 103-degree vertical view, so you'll really get the big picture — especially handy if you're trying to back up in a large vehicle or if you're towing something.
The 24-foot cable and harness assembly is long enough for most vehicles and includes a composite video connector, which means it'll work with almost any video receiver. Mounting bracket included.
Installing this camera yourself? Here's what you should know.
What does it do? Unless otherwise noted, a backup camera is only intended for use backing up your vehicle. (If you require a front-view or constant rear-view camera, check for that capability.)
What tools and supplies will I need? A panel tool, a wire cutter/stripper, a soldering iron, and a rosin-core solder with heat shrink tubing are recommended, along with whatever tools are needed to remove the radio from the dash.
How much wiring is required? Wiring instructions vary from camera to camera. Some cameras have power wiring that can only be connected near the radio. Others let you power the camera at compatible reverse lights. In all cases, the camera must be wired for power and ground, the camera's video output must be connected to the radio/monitor, and the radio/monitor must be connected to a reverse trigger in your vehicle. Some radio replacement interfaces supply a reverse trigger wire for the radio -- using that wire to power your camera will damage the interface.
Will the included video cable be long enough? You'll need to route the camera's video cable from its mounting location outside your vehicle into your vehicle's cabin and all the way to the screen in the dash. This often requires drilling a small hole in your vehicle or filing some metal and or plastic. You'll also need to estimate the length of cable needed to run from the camera to the dash, which will not be a straight shot. Each camera's cable length is listed.
Product highlights:
- waterproof CMOS backup camera
- 128-degree horizontal and 103-degree vertical view
- 330,000 pixels
- compatible with any radio with an RCA video input (most aftermarket models, only a few factory)
- dimensions: 15/16"Wx15/16"Hx15/16"D
- built-in power supply
- 24-foot cable harness and mounting bracket included
