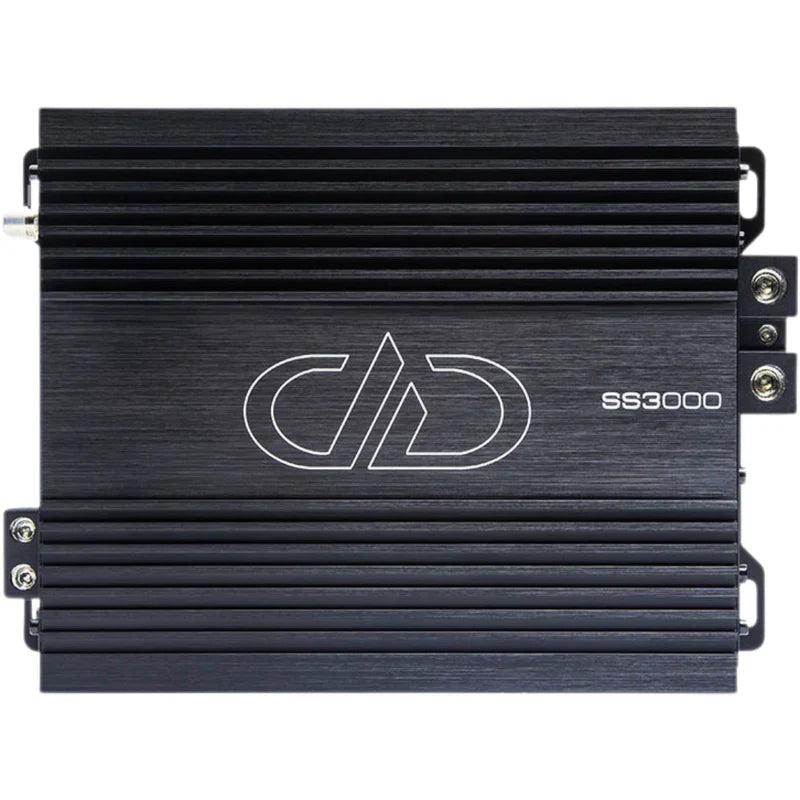

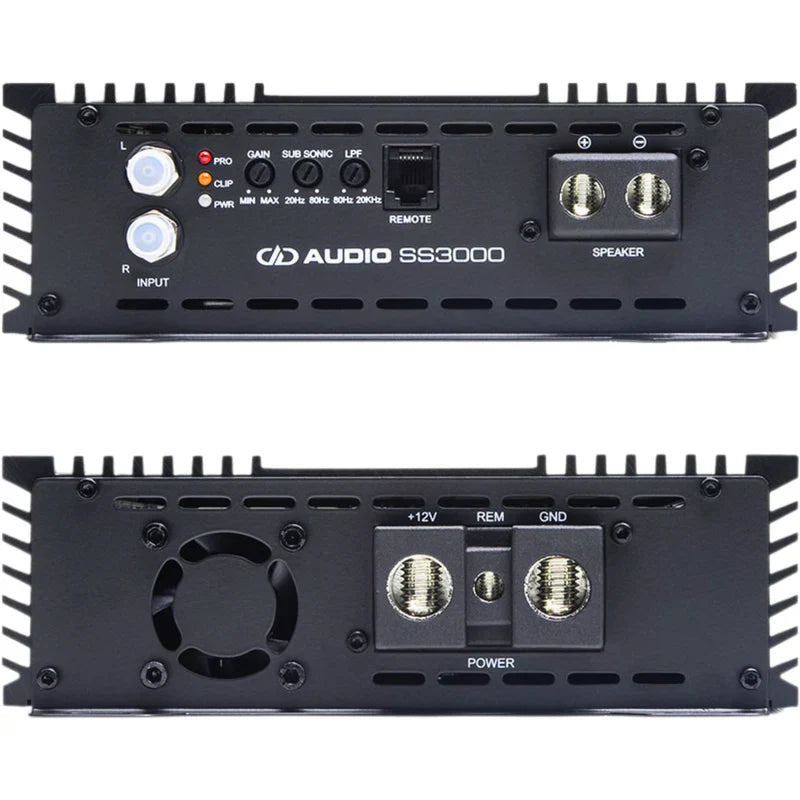

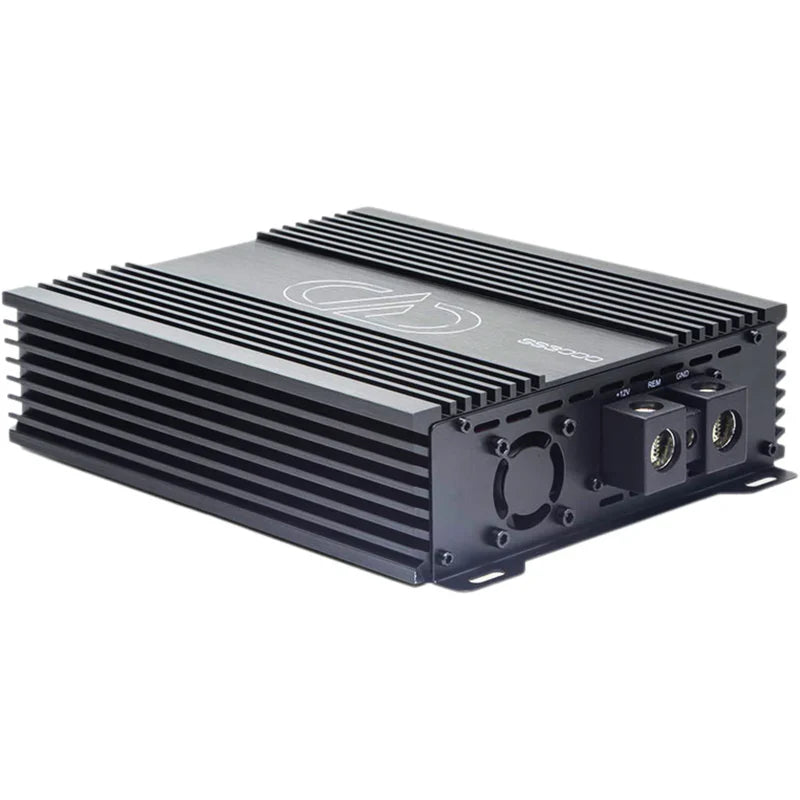

DD Audio SS Series 3000W 1-Ohm Class-D Compact Monoblock Amplifier / SS3000

DD Audio SS Series 3000W 1-Ohm Class-D Compact Monoblock Amplifier / SS3000

This Listing Includes:

• (1) SS3000 Amplifier

Description:

The latest addition to the Super Small Series, the SS3000, is a powerful 3000-watt monoblock amplifier featuring a dual toroidal power supply. This advanced hybrid amplifier combines elements of a full-bridge design with high-current circuitry, resulting in a compact, cost-effective, full-range monoblock that’s ideal for various system designs, especially in pro audio setups.

Optimized for exceptional sound quality, the SS3000’s hybrid output section reduces noise, making it perfect for setups like stunt walls where mid and high-range speakers need a clean signal. Meanwhile, the enhanced power supply provides higher current, driving subwoofers with impressive force and impact.

The SS amplifiers are renowned for delivering substantial, clean power in a small package. Their high-speed, high-current Class D design ensures both high power output and superior sound quality within a compact footprint. The classic DD AUDIO heat sink design enhances cooling efficiency with 50% thicker side walls and extra-long fins for increased surface area. All major components are from reputable brands, including higher-current MOSFETs, upgraded output devices, larger power capacitors, a more robust transformer, and improved venting and PCB with double the thermal capacity.

These state-of-the-art mini amplifiers offer unparalleled power-to-size ratios, providing transformative audio performance that is both physically impressive and audibly remarkable.

Download Owner's Manual

Features:

• 12dB/Oct High Pass 20Hz-80Hz
• 12dB/oct Low Pass 80Hz-20kHz
• Heavyweight DD Aluminum Chassis
• Set Screw Power and Speaker Terminals
• Remote Gain Control
• 0 AWG Power Terminals

Specifications:

• Operating Voltage: 9 - 16
• Test Voltage: 14.4
• Input Channel(s): 2
• Output Channel(s): 1
• Continuous Wattage @2ohm: 2200
• Continuous Wattage @1ohm: 3000
• Max Current Draw (Amps): 300
• RCA Input Voltage Sensitivity: 6 - 0.25
• RCA Input S/N: >95
• Damping Factor: >100
• THD: <1.0
• Frequency Response (Hz): 20 - 20k
• Sub-Sonic Filter: 20 - 80
• Low-Pass Filter: 80 - 20k
• Remote Control: Remote Included in Box
• Power Wire Gauge: 0
• Speaker Wire Gauge: 4

Measurements:

• Dimensions (Inches): 8.7 x 7.3 x 2.4
• Dimensions (MM): 221 x 185 x 60
• Shipping Weight (Lbs): 5
