6.5" 65W RMS 2-Way Neodymium Component Speaker Set DD Audio C Series w Crossover
- Premium 2-way component set engineered for natural, high-fidelity sound.
- Includes precision passive crossovers for seamless midrange and treble integration..
- 6.5" carbon and glass fiber midwoofers deliver warm, detailed vocals and clean midbass.
- 20mm magnesium-aluminum tweeters produce crystal-clear highs up to 40kHz.
- Built with hybrid neodymium/ferrite motors and acrylic crossover housings for performance and durability.
6.5" 65W RMS 2-Way Neodymium Component Speaker Set DD Audio C Series w Crossover

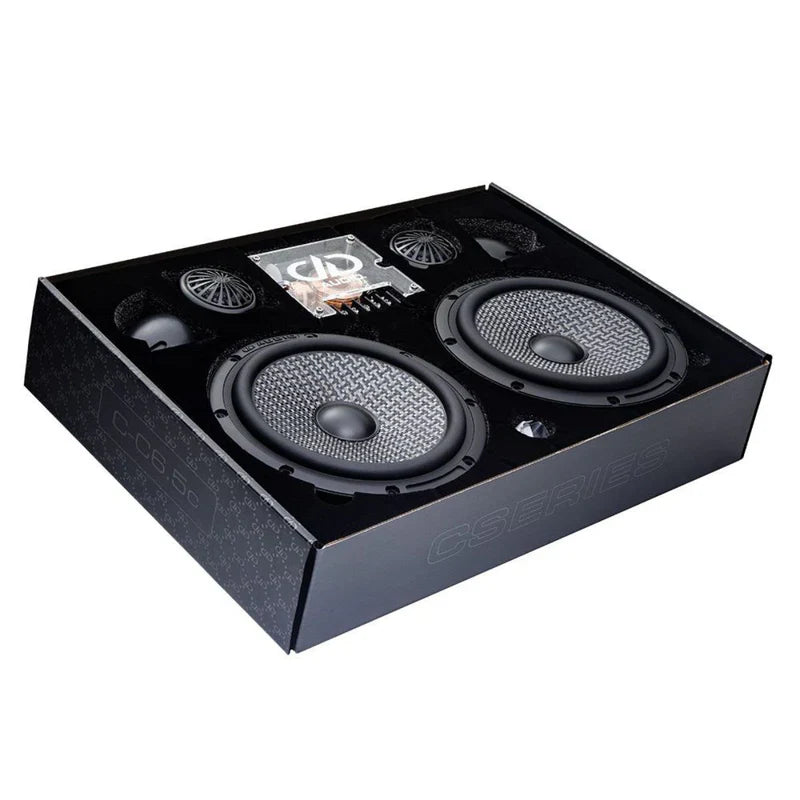

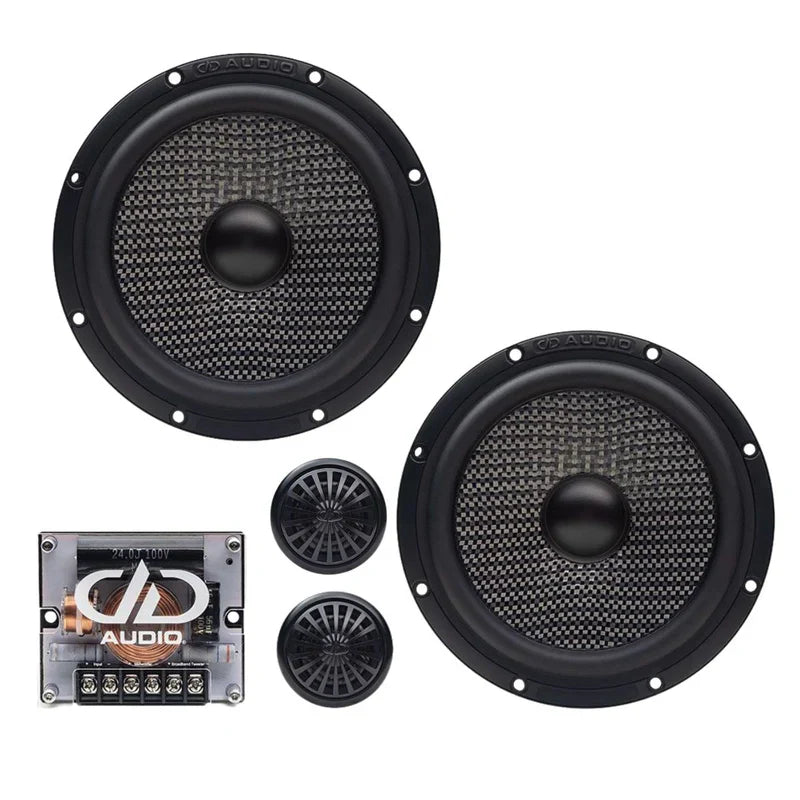

This Listing Includes:
- (2) 6.5" Midwoofers
- (2) 20mm Tweeters
- Passive Crossovers Mounting Pods and Stainless Steel Grills
The DD Audio C Series 6.5"" Component Set with Crossovers delivers an audiophile experience that transforms your vehicle’s sound into something rich, detailed, and true to life. Designed and refined over two years by DD’s R&D team, this system merges advanced acoustic engineering with high-end materials to produce natural tonality and precision across every frequency range.
The 6.5" midwoofers handle vocals and instruments with lifelike warmth and presence, thanks to their asymmetrical carbon and glass fiber composite cone and shorting ring motor that minimize distortion. The 20mm magnesium-aluminum tweeters create a spacious, crystal-clear high end extending beyond 40kHz, giving your music true air and dimension.
Woofer Specifications:

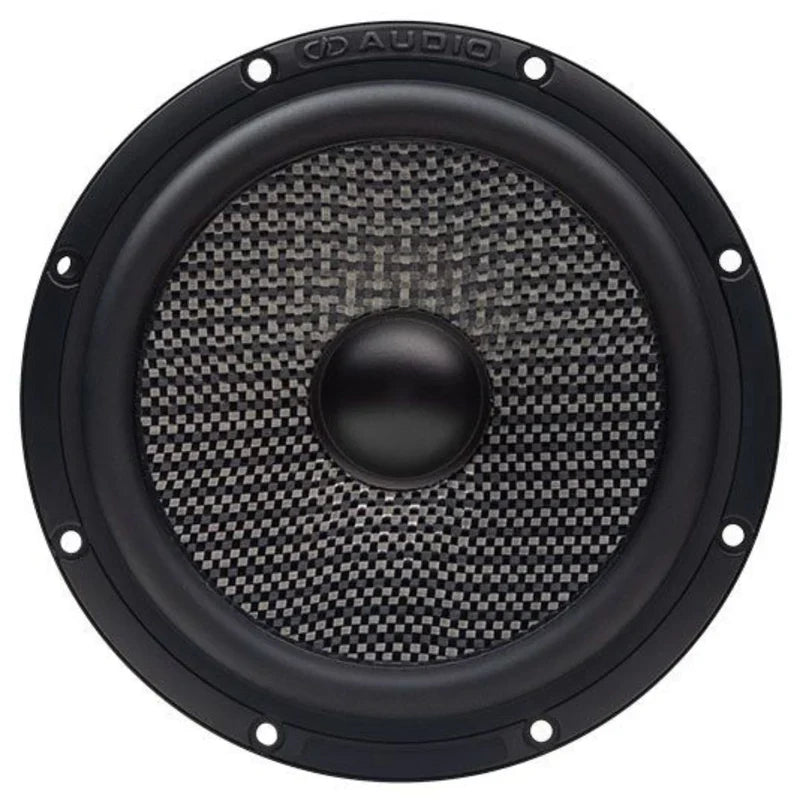

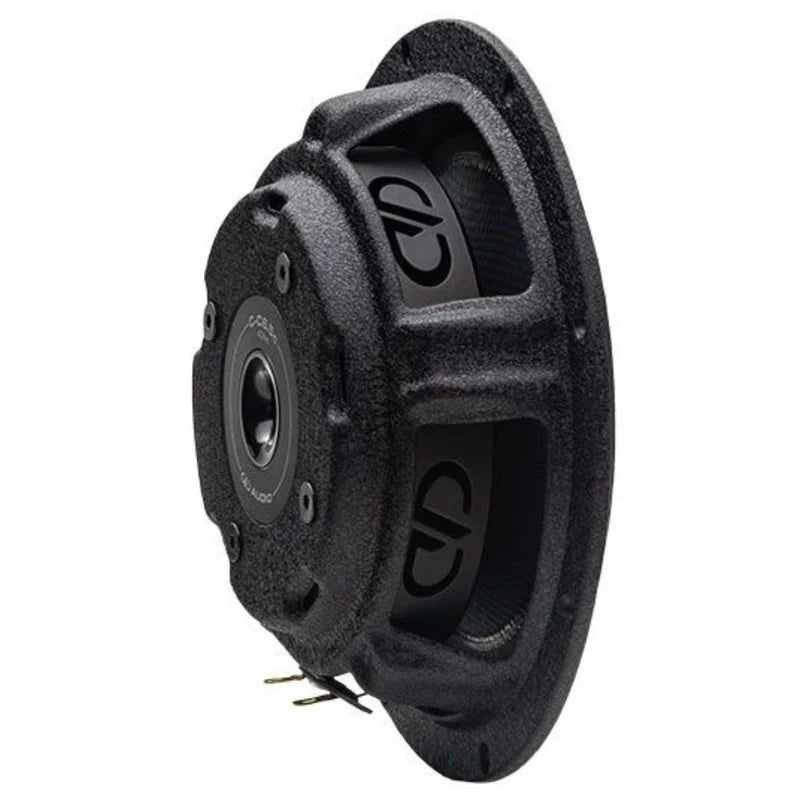

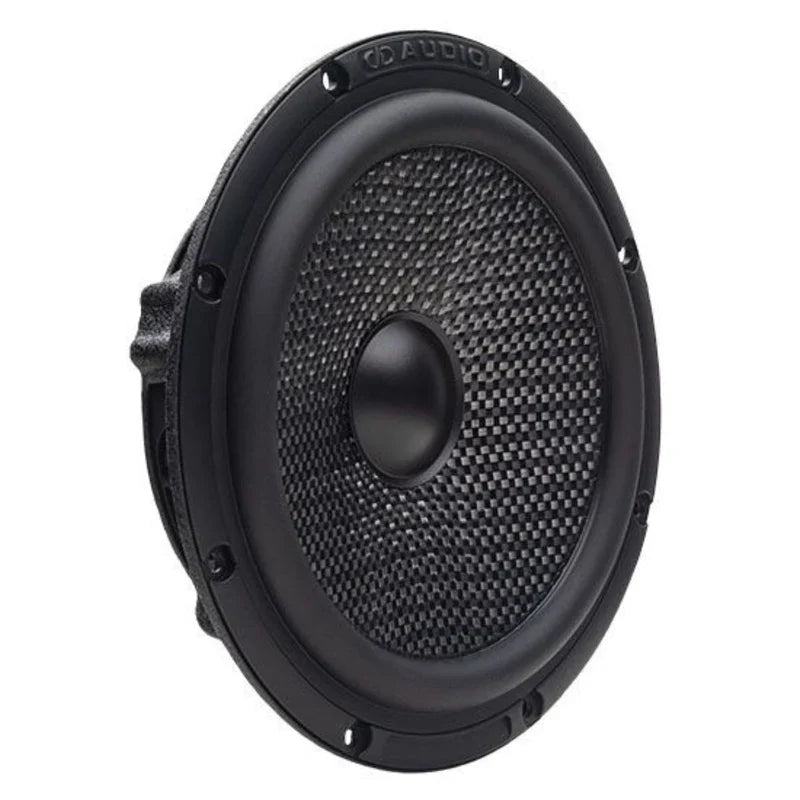

- Model: C Series 6.5" Midwoofer
- Nominal Impedance: 2 ohms
- DC Resistance (Re): 2.05 ohms
- Frequency Range: 60Hz–6kHz
- Resonance Frequency (Fs): 49.37Hz
- Sensitivity (1W/1M): 89.6dB
- Voice Coil Diameter: 1.0" (25.5mm) Aluminum Former
- Voice Coil Wire: Copper
- Voice Coil Layers: 4
- Magnet Type: Ferrite + Neodymium Hybrid
- Magnet Weight: 15 oz
- Motor Design: Shorting Ring High Energy
- Cone Material: Asymmetrical Carbon & Glass Fiber Composite
- Surround: NBR Rubber
- Basket Design: Shallow Frame with Vented Suspension
- Linear Excursion (P-P): 8mm
- Mechanical Q (Qms): 3.912
- Electrical Q (Qes): 0.359
- Total Q (Qts): 0.329
- Effective Piston Area (Sd): 128.68 cm
- Equivalent Volume (Vas): 18.2 L
- Mounting Depth: 1.69" (43mm)
- Cutout Diameter: 5.63" (143mm)
- Overall Diameter: 6.57" (167mm)
Tweeter Specifications:

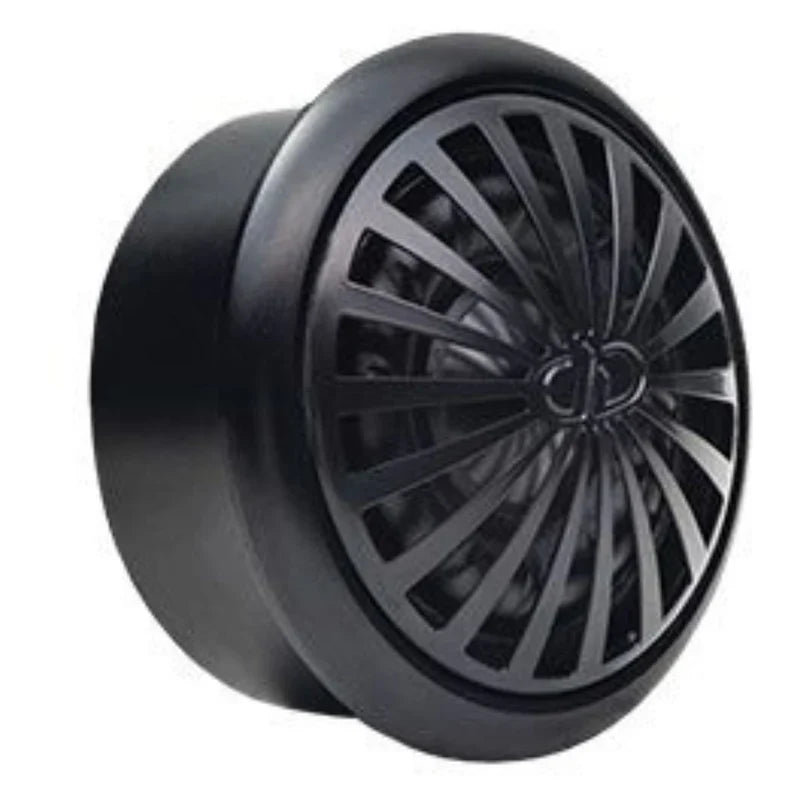

- Model: C Series 20mm Broadband Tweeter
- Nominal Impedance: 3 ohms
- DC Resistance (Re): 2.82 oh - 40kHz
- Resonance Frequency (Fs): 582Hz
- Sensitivity (1W/1M): 89.6dB
- Diaphragm: Magnesium-Aluminum Alloy (0.035mm thick)
- Voice Coil Diameter: 0.72" (18.4mm)
- Voice Coil Material: CCAW
- Magnet Type: Dual Neodymium with Copper Shorting Ring
- Housing: CNC Machined Aluminum Back Cavity
- Grill: Stainless Steel CNC Cut

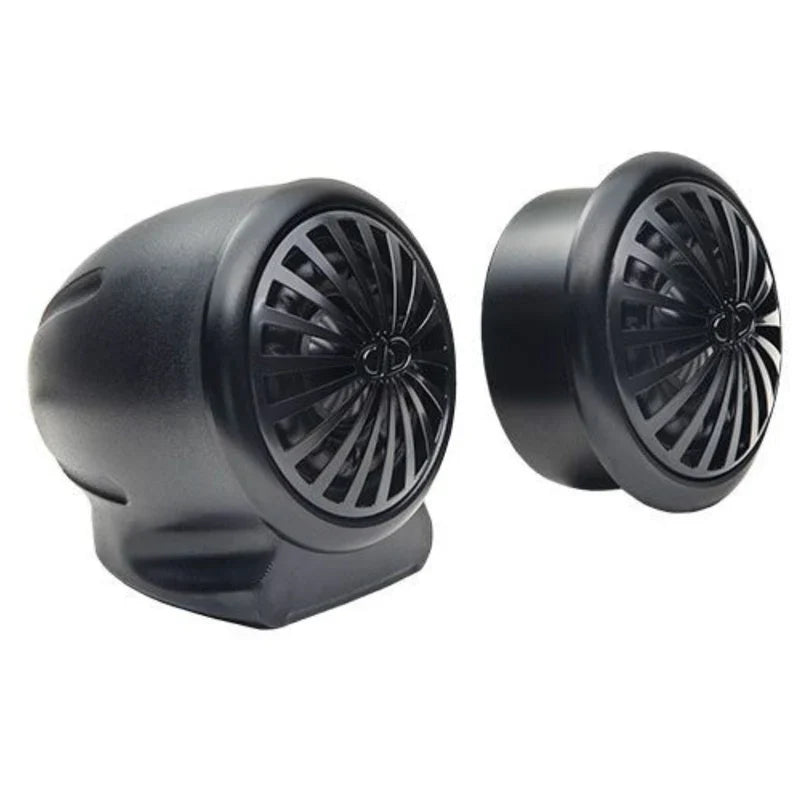

- Mounting Pod: ABS Remote Pod Included
- Overall Diameter: 2.08" (53mm)
- Mounting Depth: 0.67" (17mm)

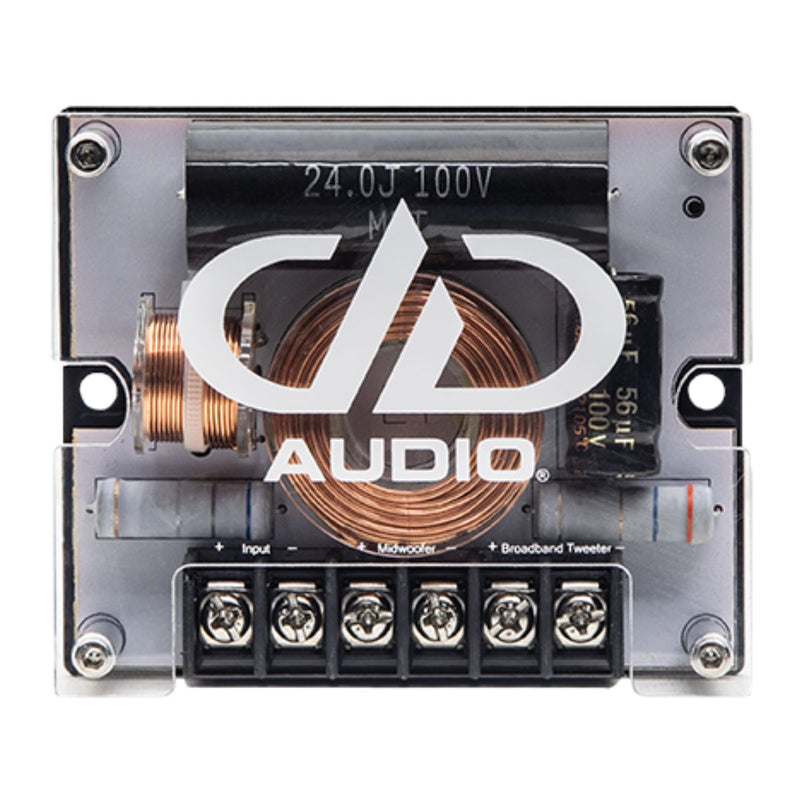

Crossover Specifications:
- Type: Passive 2-Way Network
- Crossover Frequency: 1600Hz
- High Pass Slope: 12dB/Oct (Butterworth)
- Low Pass Slope: 6dB/Oct
- Components: Air-Core Inductors, Large Film Capacitors
- Design: Transparent Acrylic Housing
- Impedance Compensation: Yes
- Phase Matching: Precise Coupling
General Specifications:
- Power Handling: 65W RMS / 150W Peak
- Frequency Response: 60Hz - 40kHz
- System Impedance: 2 ohm (woofer) / 3 ohm (tweeter)
Dimensions:
- Length: 14"
- Width: 10"
- Height: 5"
- Weight: 6 lbs
