DD Audio
6.5" 65W RMS 2-Way Neodymium Component Speaker Set DD Audio C Series
$299.00
In Stock
Pre-Order
Sold out
Couldn't load pickup availability
100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
- Description
- Shipping and Refund
- Reviews
6.5" 65W RMS 2-Way Neodymium Component Speaker Set DD Audio C Series
- Designed for active setups, ideal for DSP or amplifier crossover control for maximum tuning flexibility and precision.
- 6.5" carbon and glass fiber midwoofers with shorting ring motor deliver clean, natural vocals and dynamic midbass response.
- 20mm magnesium-aluminum tweeters reproduce ultra-crisp highs with frequency extension up to 40kHz for true audiophile clarity.
- Compact shallow-mount design ensures easy fitment in a wide range of vehicles without compromising performance.
6.5" 65W RMS 2-Way Neodymium Component Speaker Set DD Audio C Series

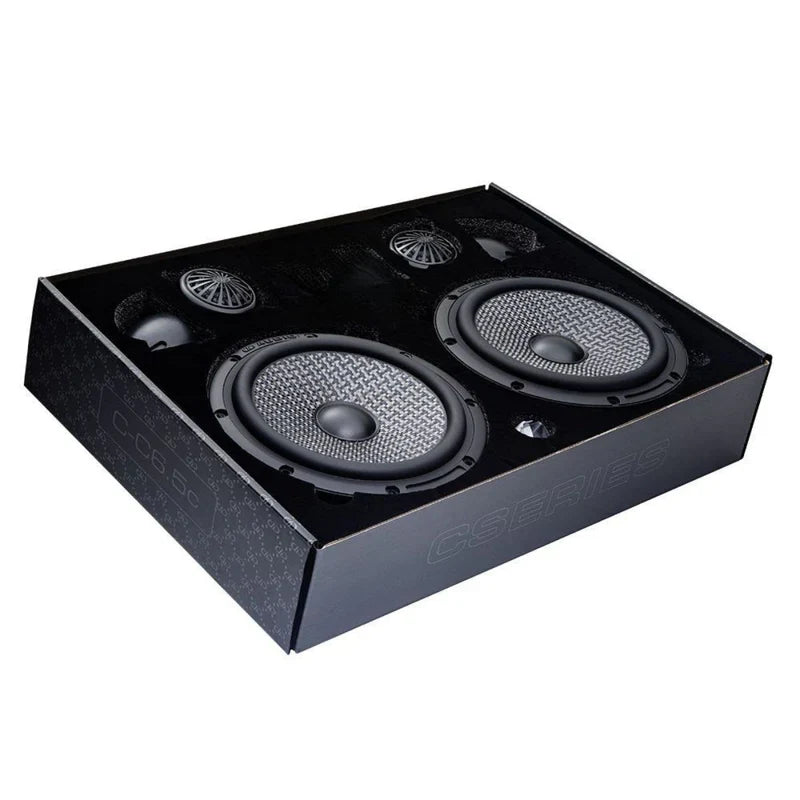

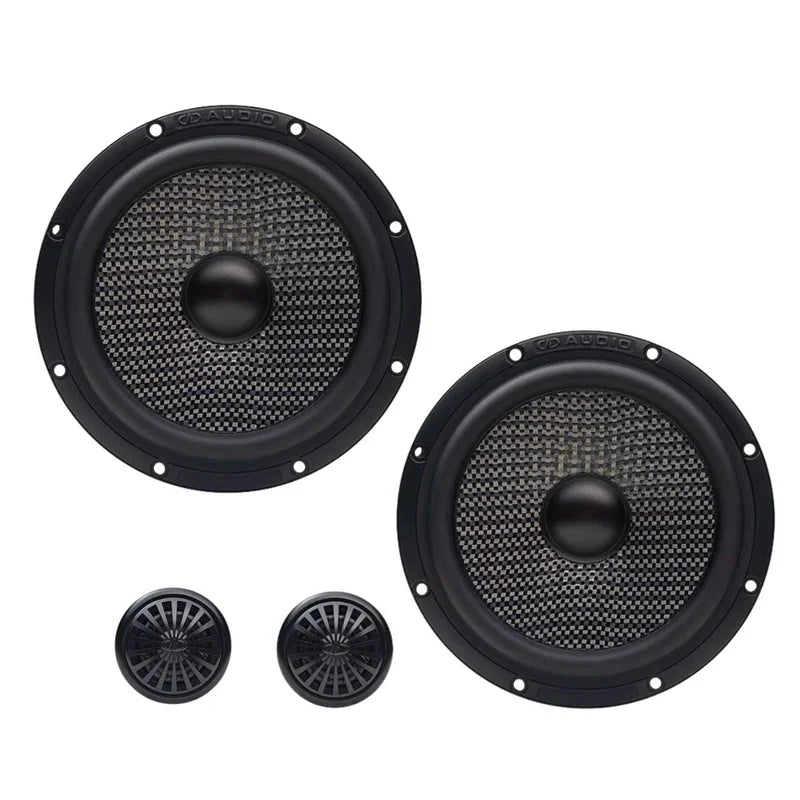

This Listing Includes:
- (2) 6.5" Midwoofers
- (2) 20mm Tweeters
- Mounting Pods and Stainless Steel Grills (Crossovers not included)
The DD Audio C Series 6.5" Component Set (Active) gives installers and advanced audio tuners the freedom to run active crossover setups for maximum precision and control. Developed alongside the full C Series system, this configuration maintains all the same premium materials, design, and sonic performance - minus the passive crossovers.
The shorting ring motor and asymmetrical carbon/glass fiber cone deliver clean, powerful midrange, while the magnesium-aluminum tweeters extend effortlessly to 40kHz for crisp, natural highs. This version is ideal for DSP-controlled systems or users who prefer fully active tuning.
WOOFER SPECIFICATIONS:

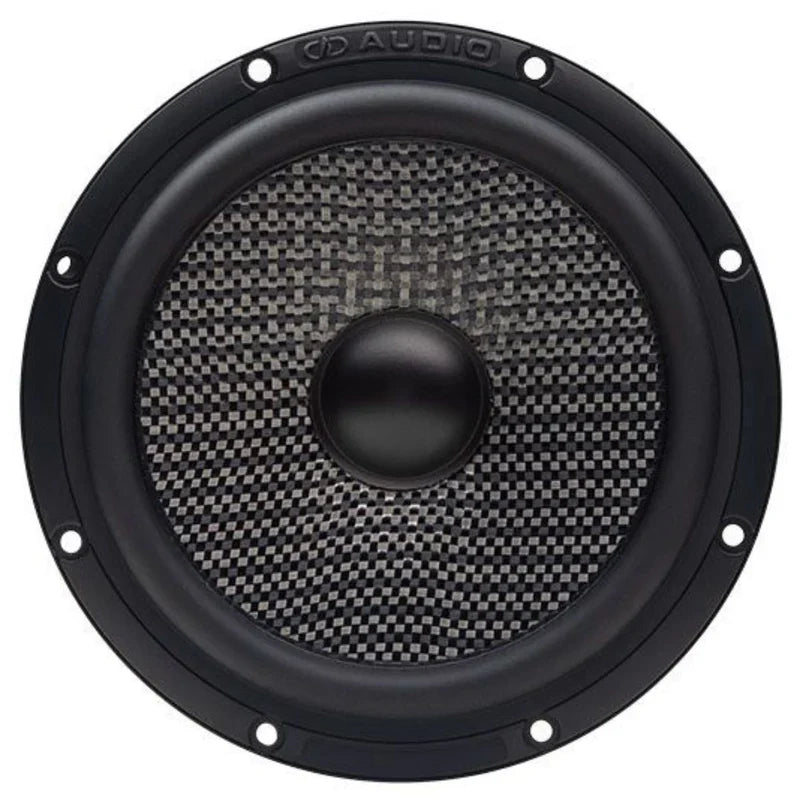

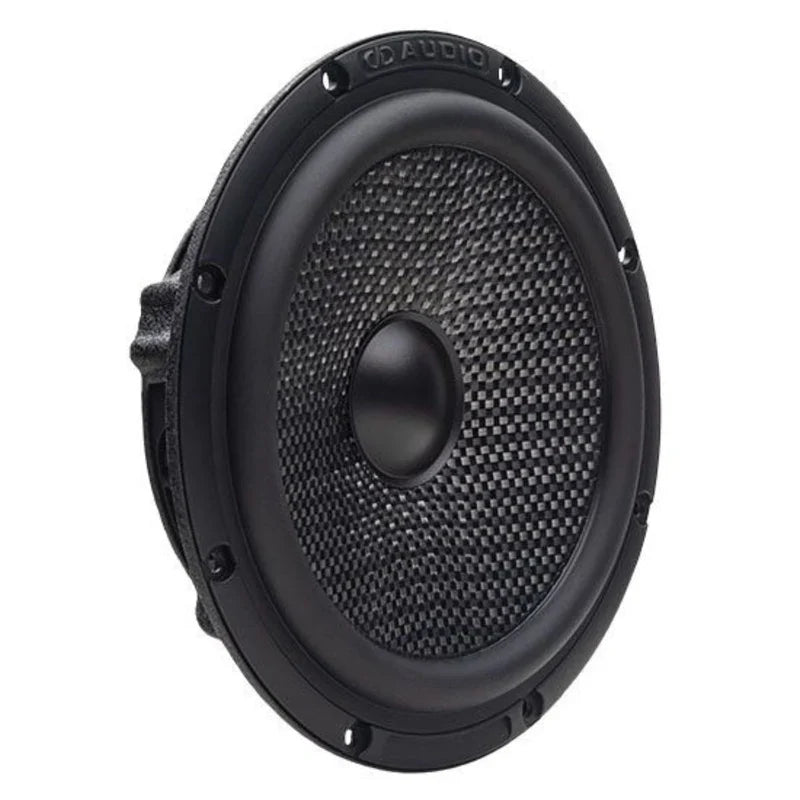

- Model: C Series 6.5" Midwoofer
- Nominal Impedance: 2 ohms
- DC Resistance (Re): 2.05 ohms
- Frequency Range: 60Hz–6kHz
- Resonance Frequency (Fs): 49.37Hz
- Sensitivity (1W/1M): 89.6dB
- Voice Coil Diameter: 1.0" (25.5mm) Aluminum Former
- Voice Coil Wire: Copper
- Voice Coil Layers: 4
- Magnet Type: Ferrite + Neodymium Hybrid
- Magnet Weight: 15 oz
- Motor Design: Shorting Ring High Energy
- Cone Material: Asymmetrical Carbon & Glass Fiber Composite
- Surround: NBR Rubber

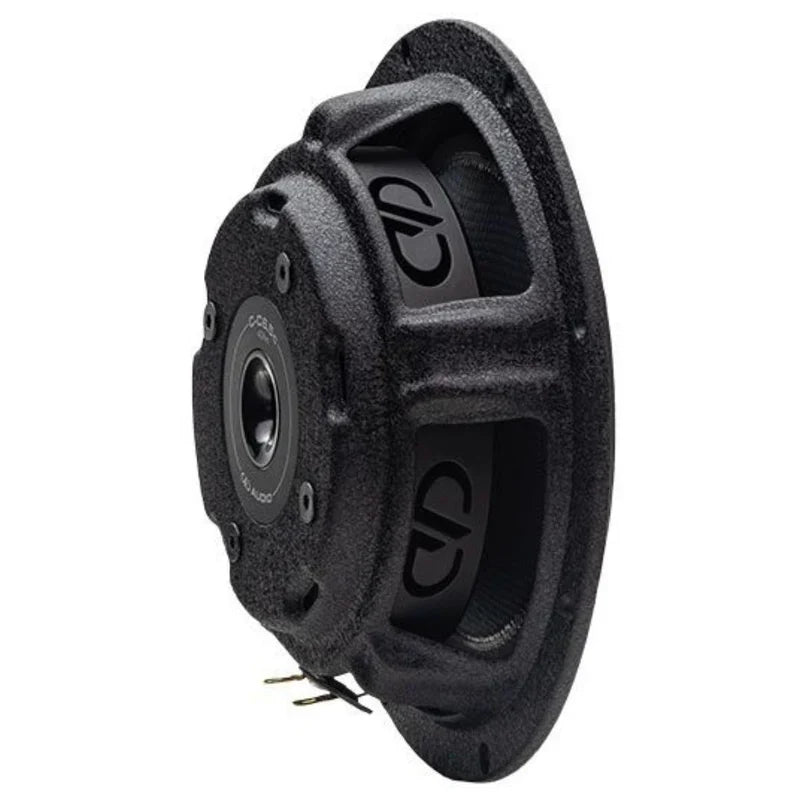

- Basket Design: Shallow Frame with Vented Suspension
- Linear Excursion (P-P): 8mm
- Mechanical Q (Qms): 3.912
- Electrical Q (Qes): 0.359
- Total Q (Qts): 0.329
- Effective Piston Area (Sd): 128.68 cm
- Equivalent Volume (Vas): 18.2 L
- Mounting Depth: 1.69" (43mm)
- Cutout Diameter: 5.63" (143mm)
- Overall Diameter: 6.57" (167mm)

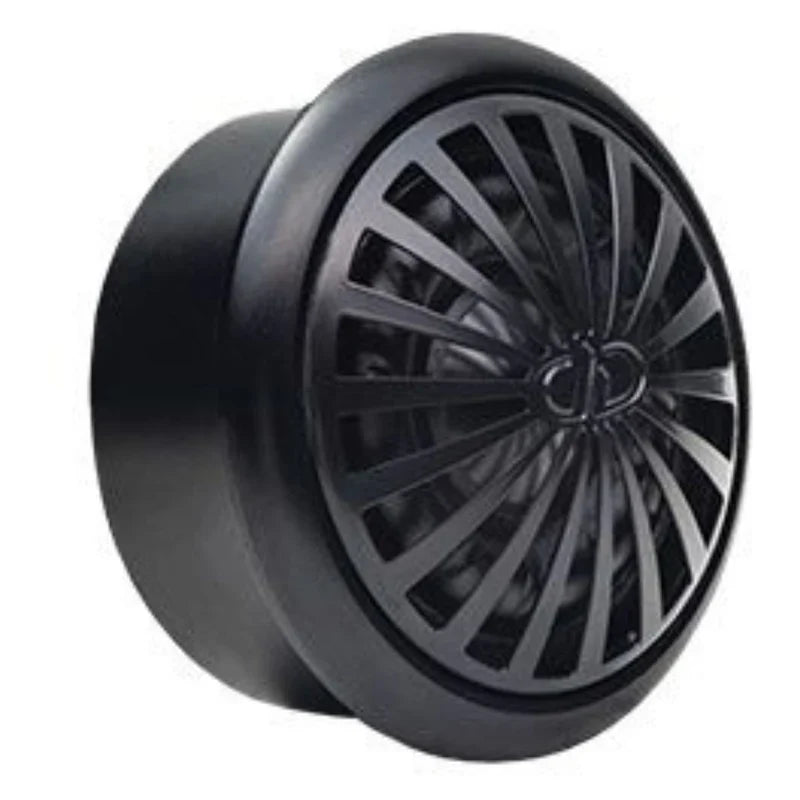

TWEETER SPECIFICATIONS:

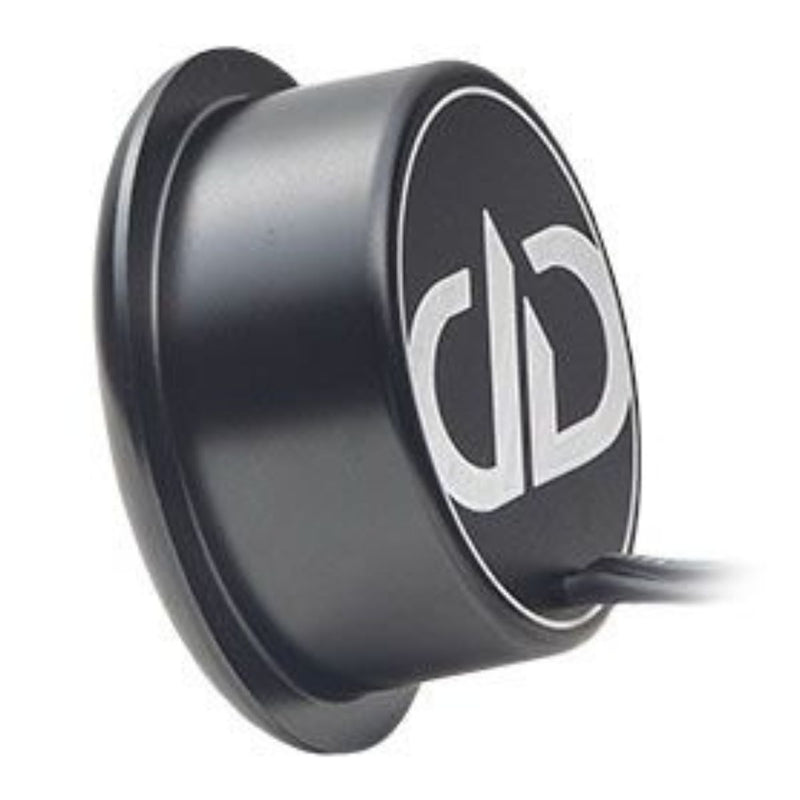

- Model: C Series 20mm Broadband Tweeter
- Nominal Impedance: 3 ohms
- DC Resistance (Re): 2.82 oh - 40kHz
- Resonance Frequency (Fs): 582Hz
- Sensitivity (1W/1M): 89.6dB
- Diaphragm: Magnesium-Aluminum Alloy (0.035mm thick)
- Voice Coil Diameter: 0.72" (18.4mm)
- Voice Coil Material: CCAW
- Magnet Type: Dual Neodymium with Copper Shorting Ring
- Housing: CNC Machined Aluminum Back Cavity
- Grill: Stainless Steel CNC Cut

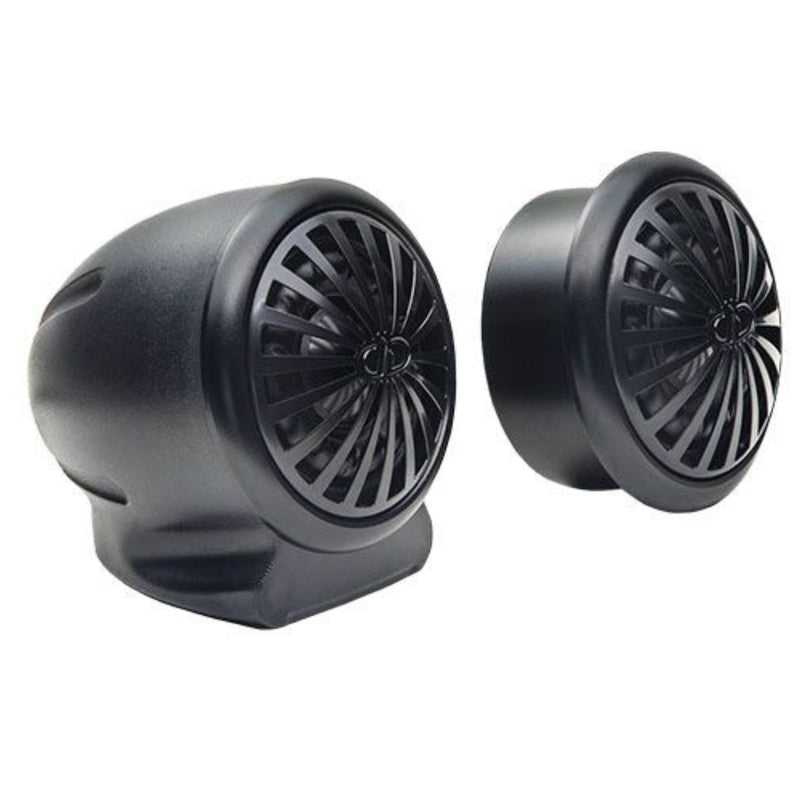

- Mounting Pod: ABS Remote Pod Included
- Overall Diameter: 2.08" (53mm)
- Mounting Depth: 0.67" (17mm)
General Specifications:
- Power Handling: 65W RMS / 150W Peak
- Frequency Response: 60Hz - 40kHz
- System Impedance: 2 ohm (woofer) / 3 ohm (tweeter)
Dimensions:
- Length: 12"
- Width: 9"
- Height: 4"
- Weight: 5 lbs
