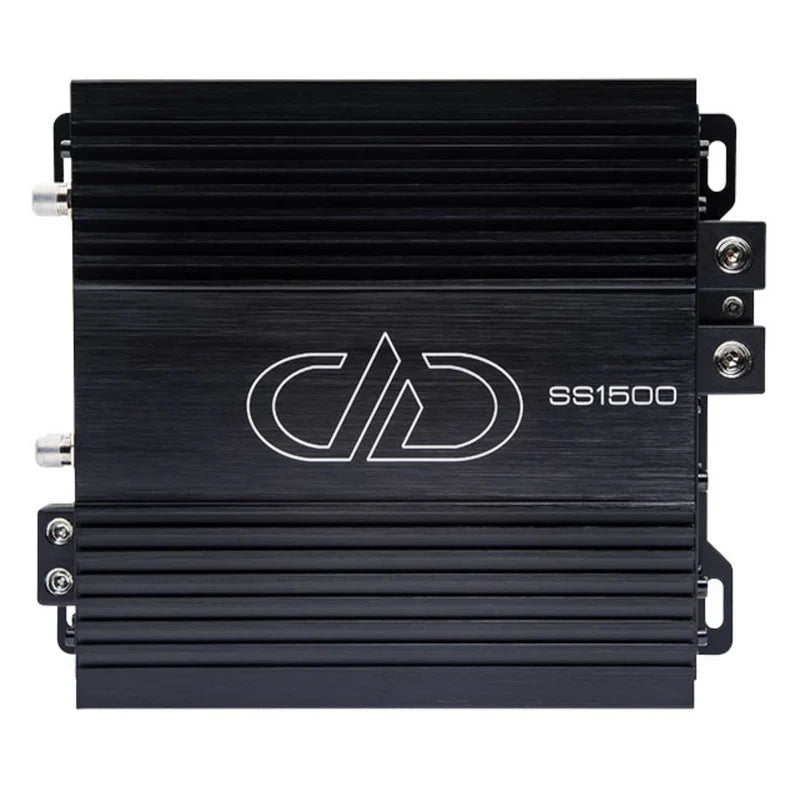

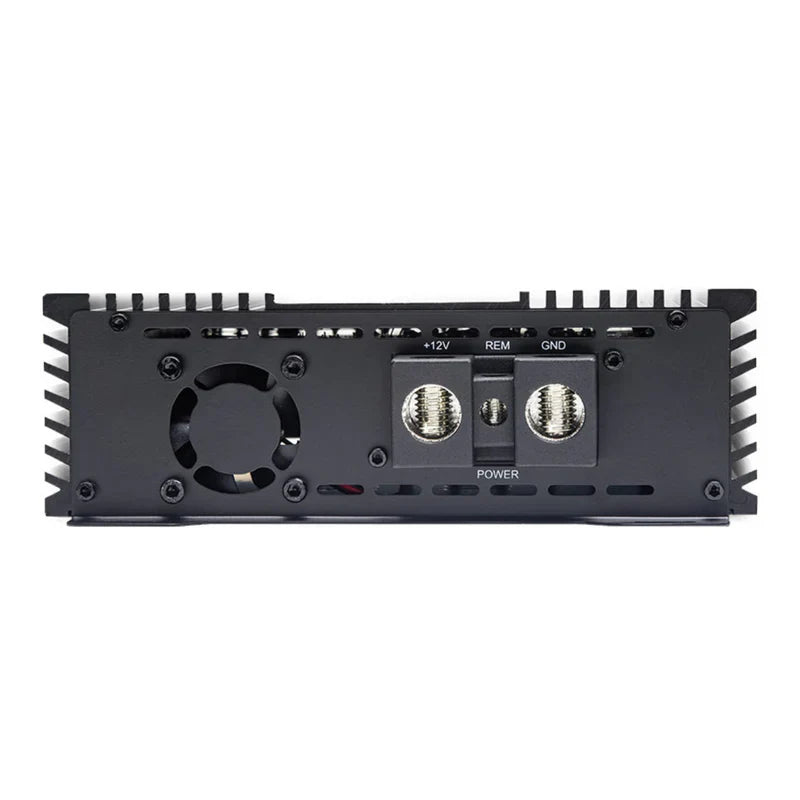

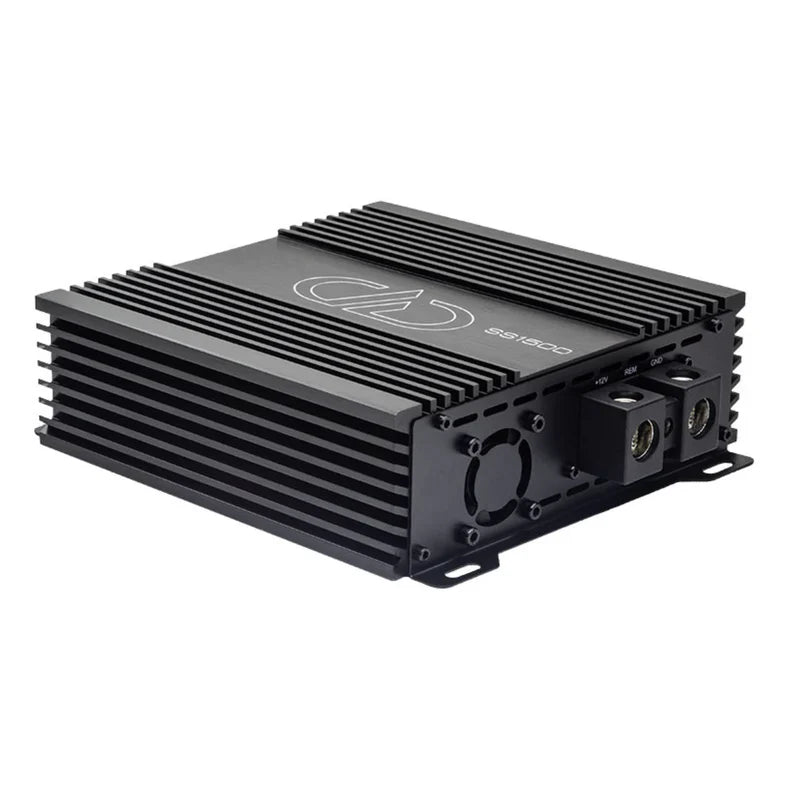

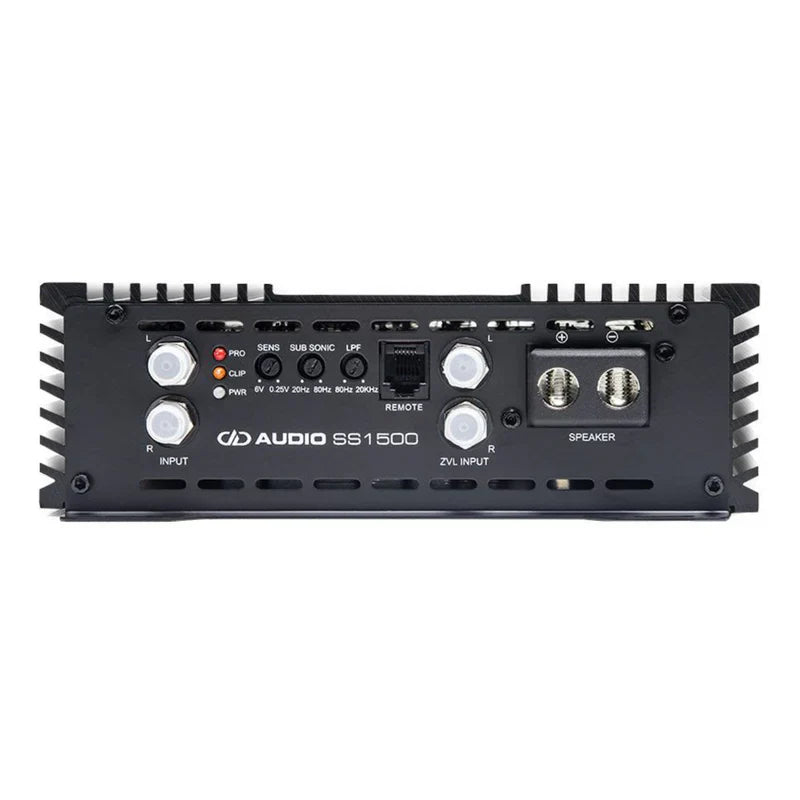

1500W 1-Ohm Class-D Compact Monoblock Amplifier DD Audio SS Series SS1500

1500W 1-Ohm Class-D Compact Monoblock Amplifier DD Audio SS Series SS1500

• ZVL Linking Module Input for expanded connectivity and control between multiple amplifiers.
• Heavyweight DD Aluminum Chassis for durability and efficient heat dissipation.
• Remote Gain Control included for easy volume adjustments from the driver’s seat.
• Compact design with a durable DD-style aluminum heat sink and internal fan cooling
• The SS1500 is a monoblock, class D amplifier delivering over 1500 watts of power at 1 ohm, covering a frequency range from 20Hz to 20kHz.

1500W 1-Ohm Class-D Compact Monoblock Amplifier DD Audio SS Series SS1500

This Listing Includes:

• (1) Compact Monoblock Amplifier DD Audio SS Series SS1500

Description:

The new SS1500 is a half bridge, high speed, full range, class D amplifier with more than enough power to fulfill the majority of system designs. This monoblock comfortably makes in excess of 1500 watts of 20Hz to 20kHz power at less than 1% THD+N, at 1 Ohm. The SS1500 can drive subwoofers and multiple mid/high speaker combinations with sound quality exceeding the current crop of low-cost full bridge amplifiers. The design starts with the DD style strong power supply, using a high efficiency toroidal transformer coupled to an oversized cap bank and high current mosfets. Clean power is delivered unstressed thanks to the internal fan cooling and thick walled, DD style aluminum heat sink, contributing to a very small footprint of 7.125†wide x 7.3†deep. The preamp section features variable crossovers covering subwoofer and mid/high frequencies as well as the DD ZVL input.

Features:

• ZVL Linking Module Input
• 12dB/Oct High Pass 20Hz-80Hz
• 12dB/oct Low Pass 80Hz-20kHz
• Heavyweight DD Aluminum Chassis
• Set Screw Power and Speaker Terminals
• Remote Gain Control
• 0 AWG Power Terminals

Specifications:

• Operating Voltage: 9 - 16
• Test Voltage: 14.4
• Input Channel(s): 2
• Output Channel(s): 1
• Continuous Wattage @2ohm: 1100
• Continuous Wattage @1ohm: 1500
• Dynamic Wattage: 150
• RCA Input Voltage Sensitivity: 6 - 0.25
• High-Level Input Voltage Sensitivity: 20 - 1.1
• RCA Input S/N: > 95
• Damping Factor: > 100
• THD: < 1.0%
• Frequency Response (Hz): 20 - 20k
• Sub-Sonic Filter: 20 - 80
• Low-Pass Filter: 80 - 20k
• ZVL Input: Yes
• Remote Control: Remote Included in Box
• Power Wire Gauge: 0
• Speaker Wire Gauge: 4

Dimensions (In Inches):

• Length: 7.125"
• Width: 7.3"
• Height: 2.4"
