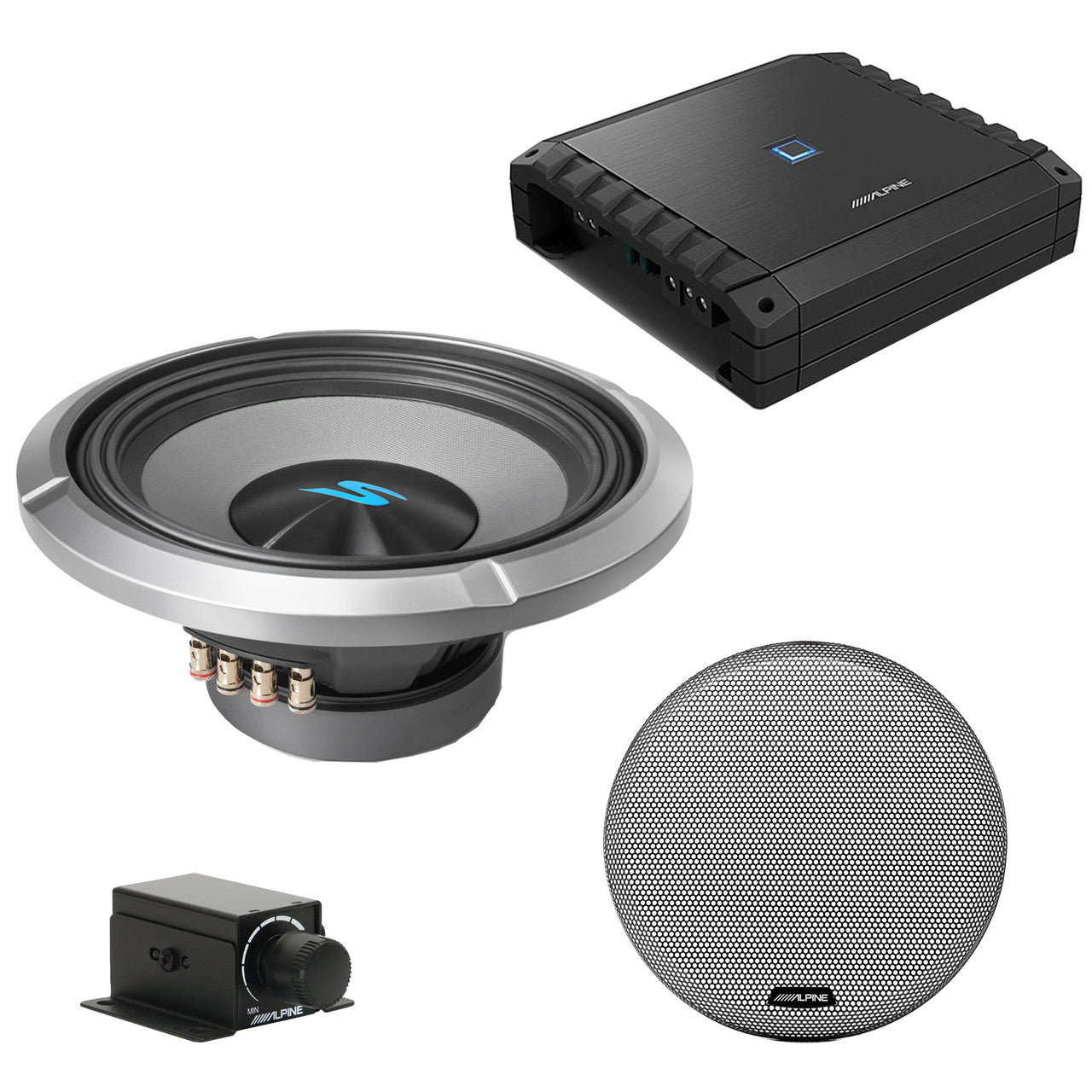

Alpine S2-A60M S-Series Class-D Amp, S2-W12D4 12" S-Series Dual 4-Ohm Car Sub & Grill w/ RUX bundle
This bundle includes an Alpine S2-A60M S-Series Class-D Mono Subwoofer Amplifier, Hi-Res Certified, 600W RMS at 1 & 2-Ohm, an Alpine KTE-12G.3 Grille for 12" Type-R and Type-S subwoofers, an Alpine RUX-KNOB.2 Remote Bass Knob, and an Alpine S2-W12D4 12" S-Series Dual 4 Ohm Car Subwoofer, 1800W Max, 600W RMS.

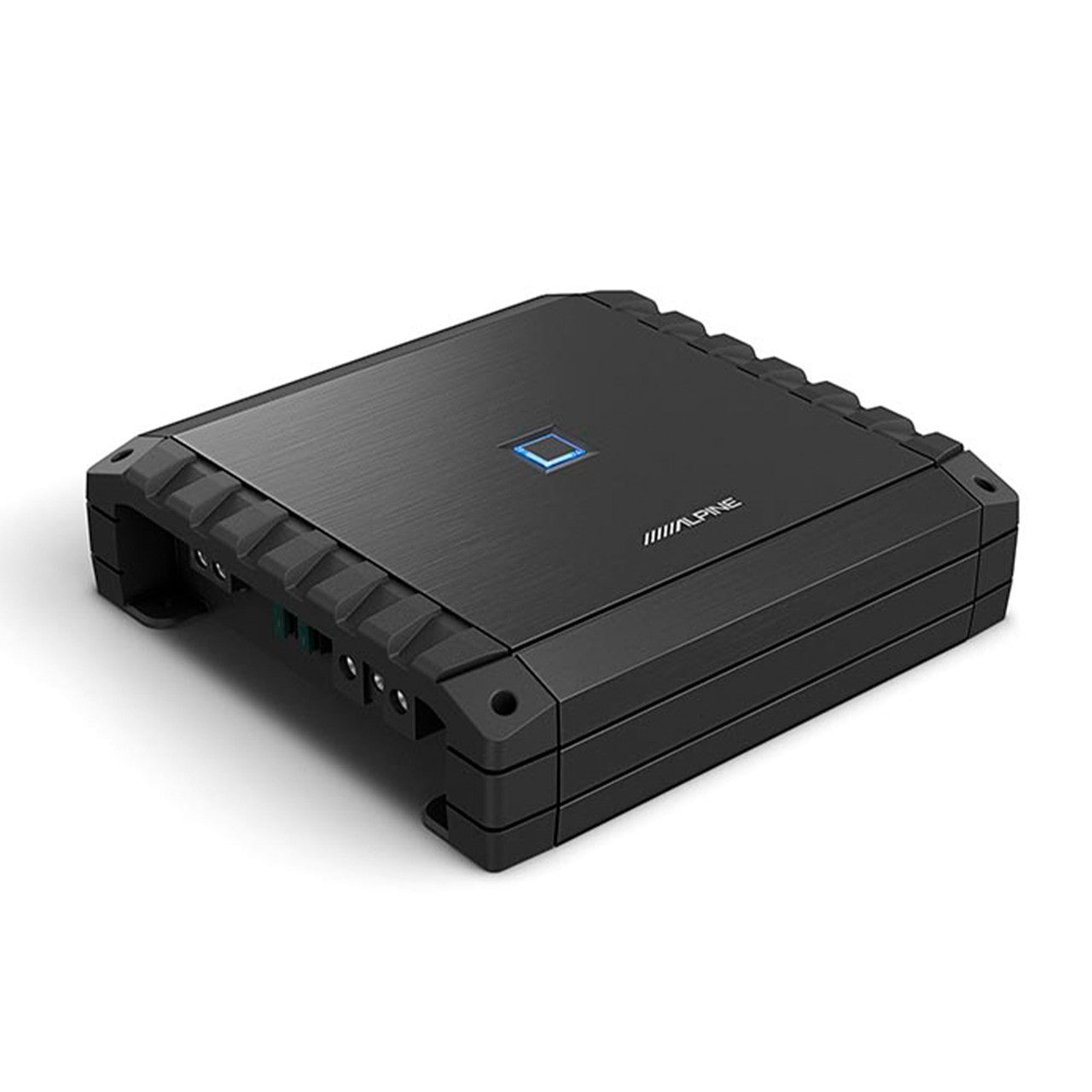

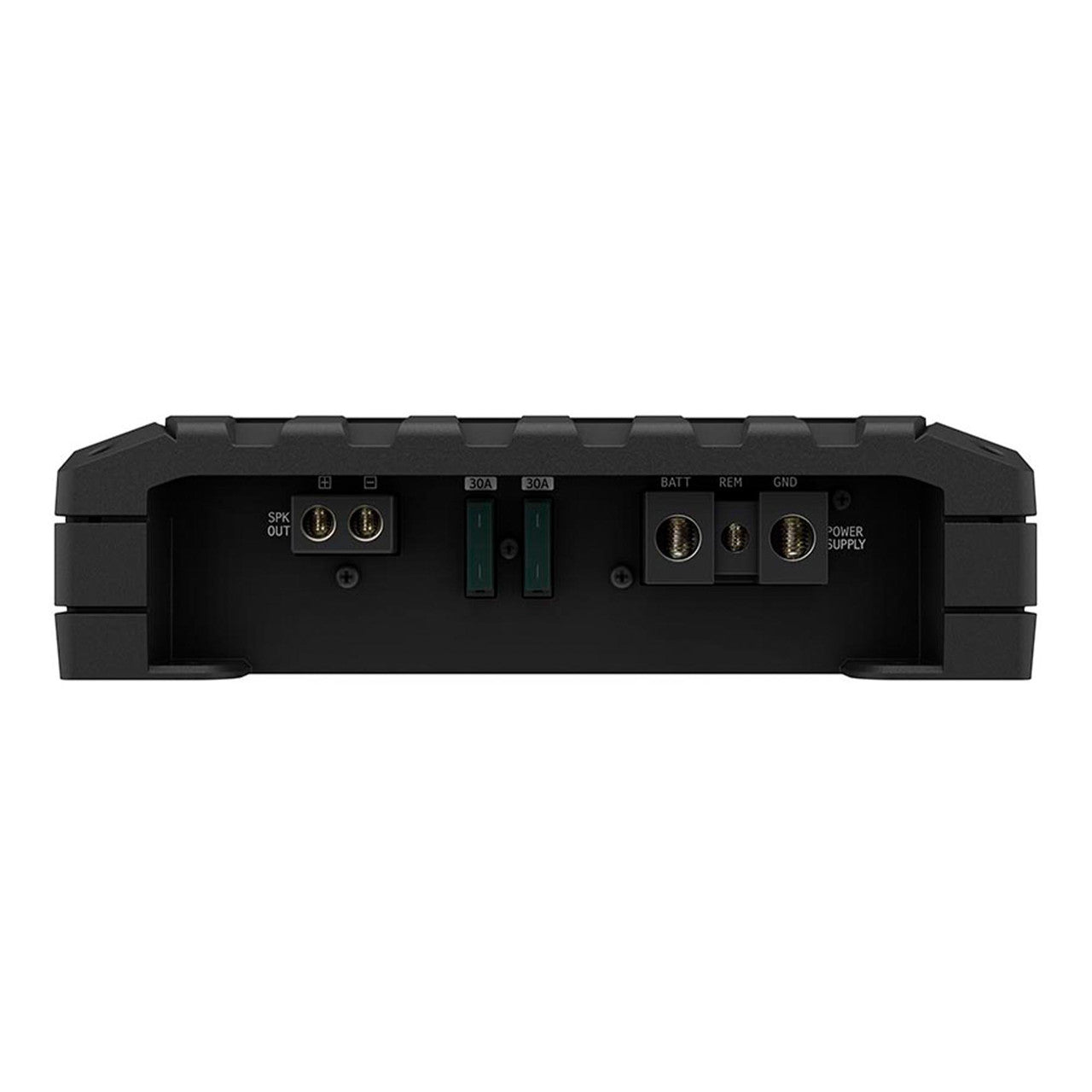

1x Alpine S2-A60M S-Series Class-D Mono Subwoofer Amplifier, Hi-Res Certified, 600W RMS at 1 & 2-Ohm - (S2-A60M)
Reliable Performance and Value-Oriented Products -
Three new S-Series amplifiers join the S-Series family, known for reliable performance and value-oriented products. All three S-Series amps (mono, 4-channel and 5-channel) contain technology currently implemented in R and X-Series models. The S-Series amps feature attractive prices and are designed to perform perfectly with the existing S-Series speakers.
Allows High Power Output -
Compact and Powerful: the new digital amplification circuit allows high power output while keeping a small footprint. The S-A60M measures just 204mm in width x 204mm in length for easy installation in virtually any vehicle.Along with Alpine’s new intelligent amplifier platform, the new S-Series amplifiers feature an improved heat sink and protection circuit design that eliminates thermal shut-down, for dependable music playback.
Specifications -
• Power Requirements: 14.4 V.DC (9 - 16 V allowable)
• Input Sensitivity (RCA Input): Hi: 0.5 - 10 V Lo: 0.2 - 4.0 V
• High Level Input with automatic power on
• Cable size: Power Cable AWG 4, SPK Cable AWG 8
• Frequency Response (+0, -3dB: 1W into 4 ohms): 10Hz - 400Hz
• THD+N (@ 10W into 4 ohms): <0.03%
• THD+N (@ 50W into 4 ohms): <0.08%
• Damping Factor: >1000
• Signal to Noise (@ 50 Watts into 4 Ohms): >105dB
• Weight: 1.9 kg
Features -
• Amplifier Type: Class-D (Digital)
• Channel Design: Mono Channel
• Thermal Management Control
• Top Mounted LED Power/Status Indicator
• Speaker Level Input with remote turn on
• Crossover: Adjustable Low-pass (LPF)
• Gain Control: Adjustable
• Bass EQ
• Bass Control: Remote Bass Control (RUX-KNOB2) Ready

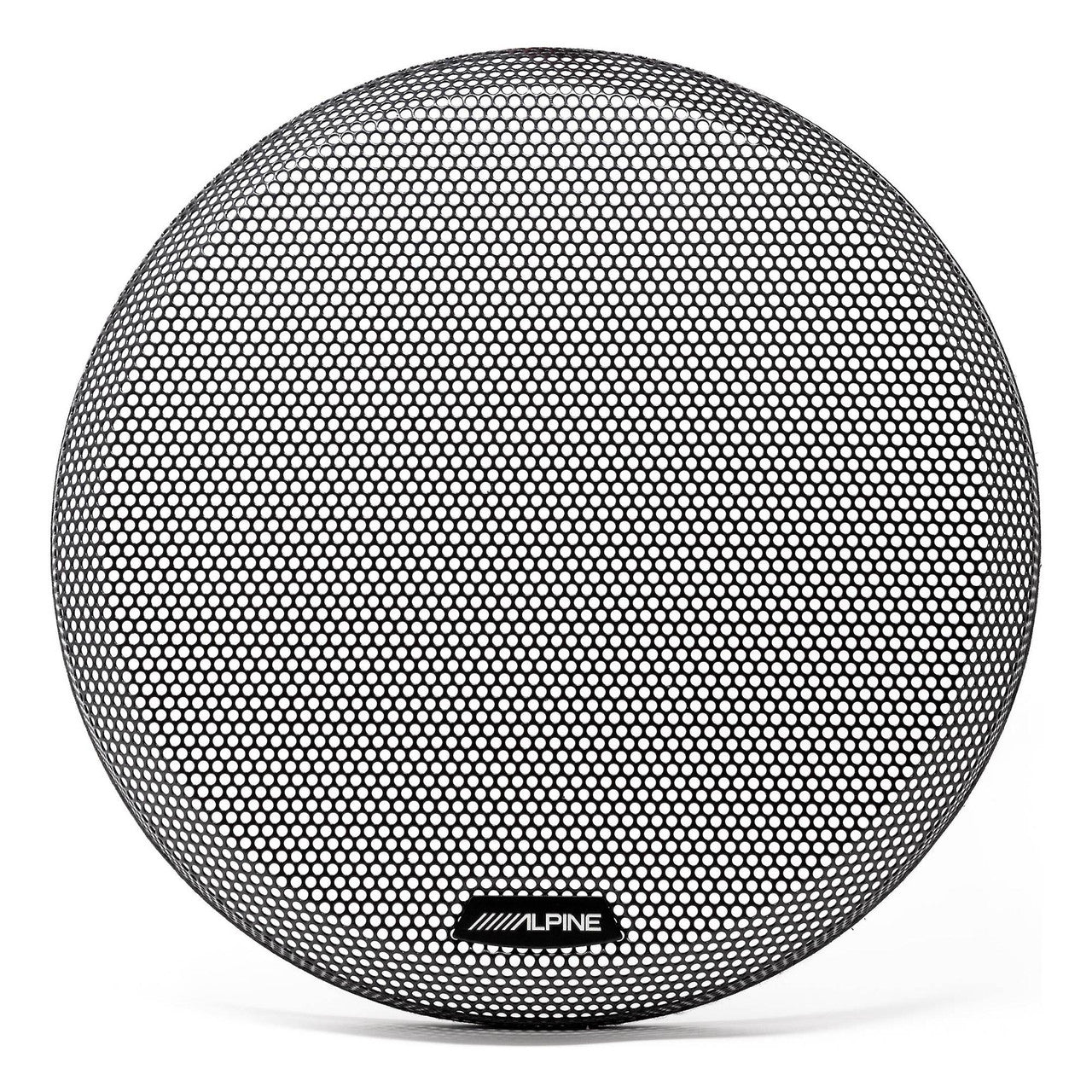

1x Alpine KTE-12G.3 Grille for 12" Type-R and Type-S subwoofers - (KTE-12G.3)
Protect your subwoofer with a sleek and durable grille for your Alpine subwoofer.
SLEEK FINISH
Not only does the KTE-12G.3 offer added protection to your subwoofer, but the matte black finish also provides a sleek, professional look that will elevate the cosmetic appearance of your subwoofer. An Alpine logo badge gives this protective mesh grille a premium finished look.
DURABLE CONSTRUCTION MATERIAL
Made from the sturdiest materials, the KTE-12G.3 protects your subwoofer with a strong, metal mesh grille that has a powder-coated finish for extra protection.
EASY INSTALLATION
The KTE-12G.3 is designed for Alpine's R2-W12D4 and R2-W12D2 8" subwoofers and is easy to install with Alpine's twist-lock EZ change grille system. Just remove the subwoofer's trim ring, put the grille in place, and replace the trim ring.
FEATURES
12” Subwoofer Grille Kit
Black metal mesh grille
Fits the R2-W12D4 and R2-W12D2
What's in the Box:
Black metal mesh grille
Installation Instructions

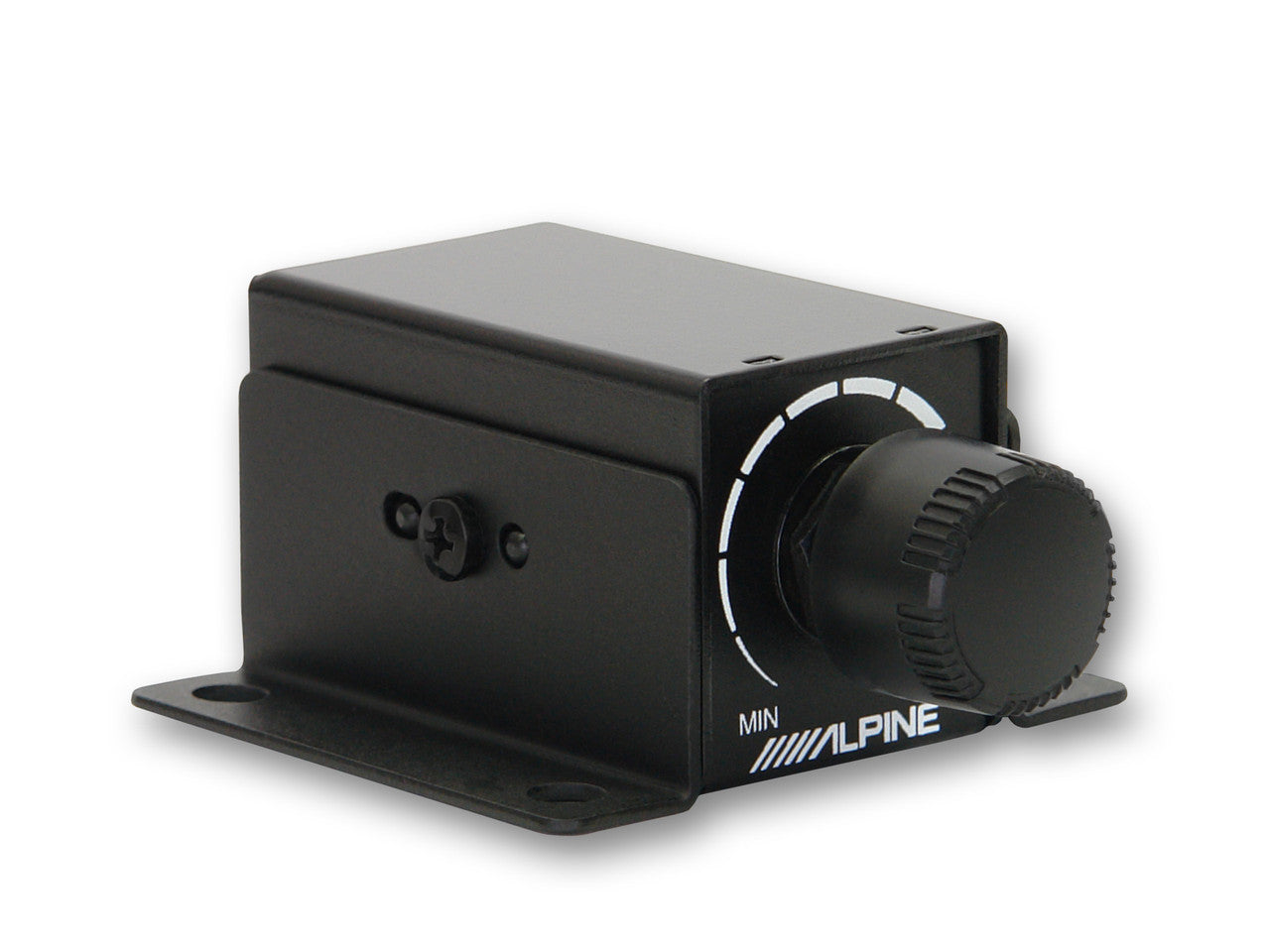

1x Alpine RUX-KNOB.2 Remote Bass Knob - (RUX-KNOB.2)
The optional RUX-KNOB remote bass control knob plugs right in to the MRX-M50, MRX-M100, MRX-V60, PDX-M12 and PDX-M6 mono models for quick direct subwoofer control to make bass adjustments on the fly.
Compatible Models
The RUX-KNOB is specifically designed as the controller for use with any of the following PDX Amplifiers: MRX-M50, MRX-M100, MRX-V60, PDX-M12, and PDX-M6.
From the Inside
With the RUX-KNOB, get full control over your PDX-M6 or PDX-M12 amplifier, conveniently from inside the car. With the RUX-KNOB installed inside the vehicle cabin, easily adjust the bass gain of your amp while seated inside.
Multiple Amp Control
Yes, there is a way to control multiple amps from just one RUX-KNOB controller – with the use of simple telephone cord adapters (which are readily available at many retailers).

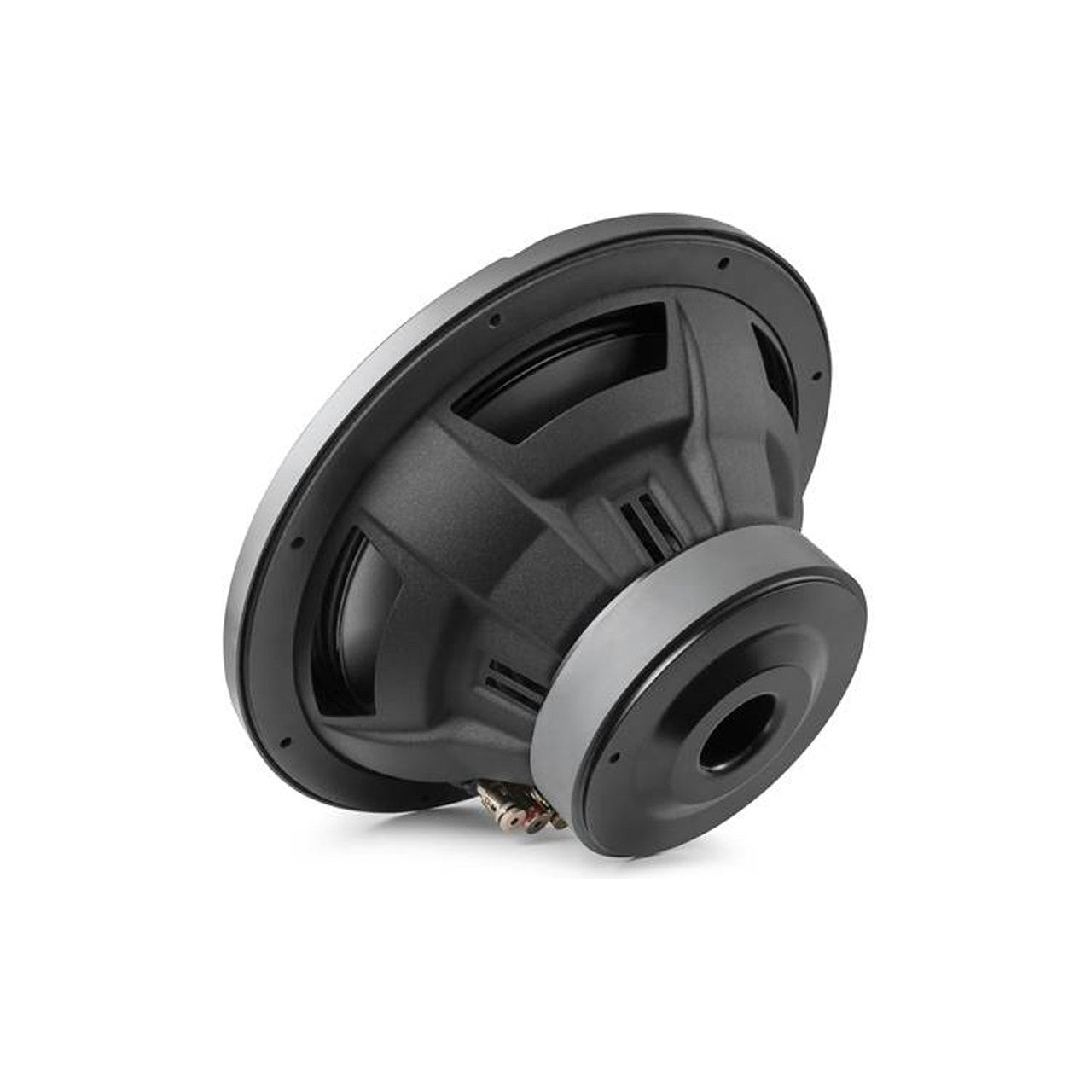

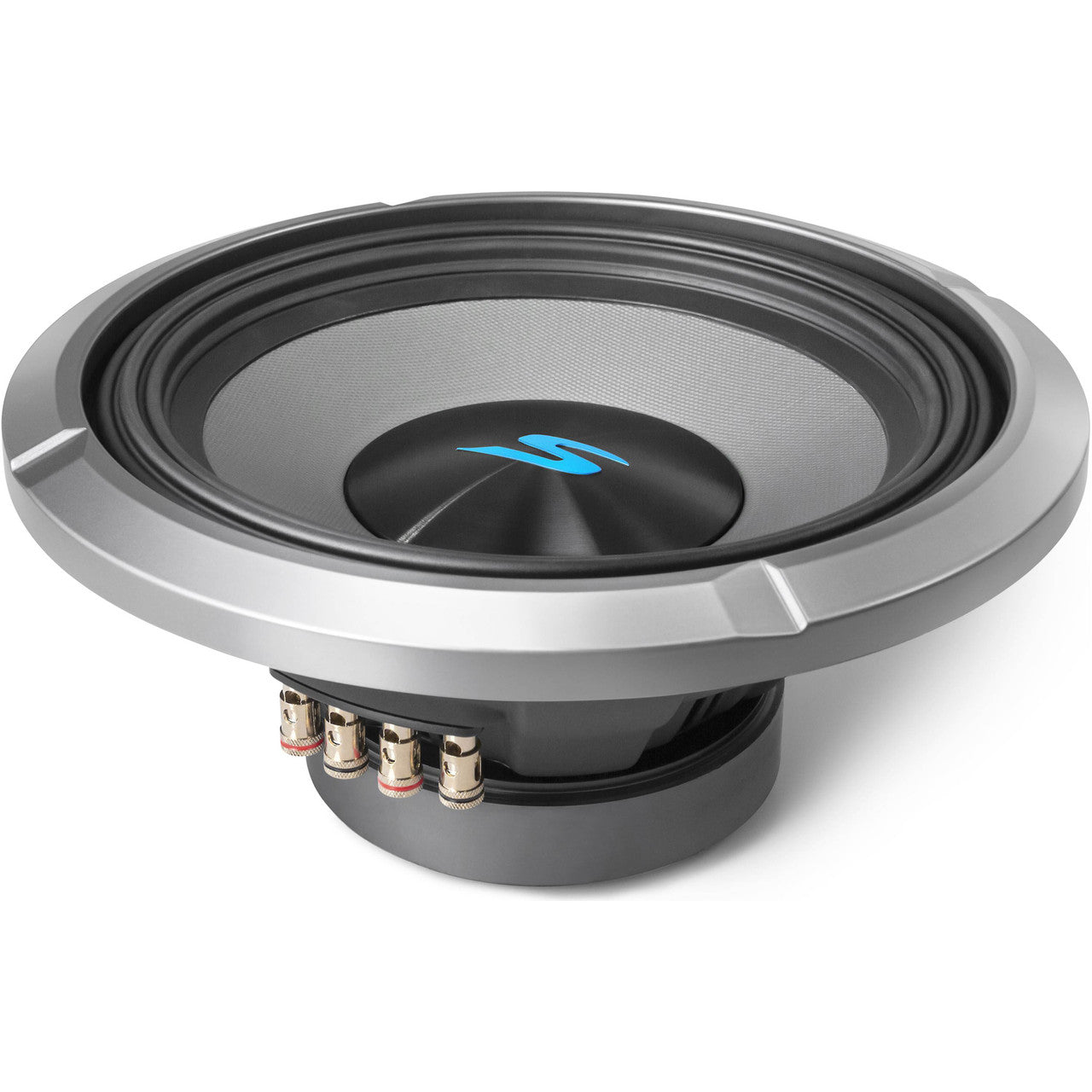

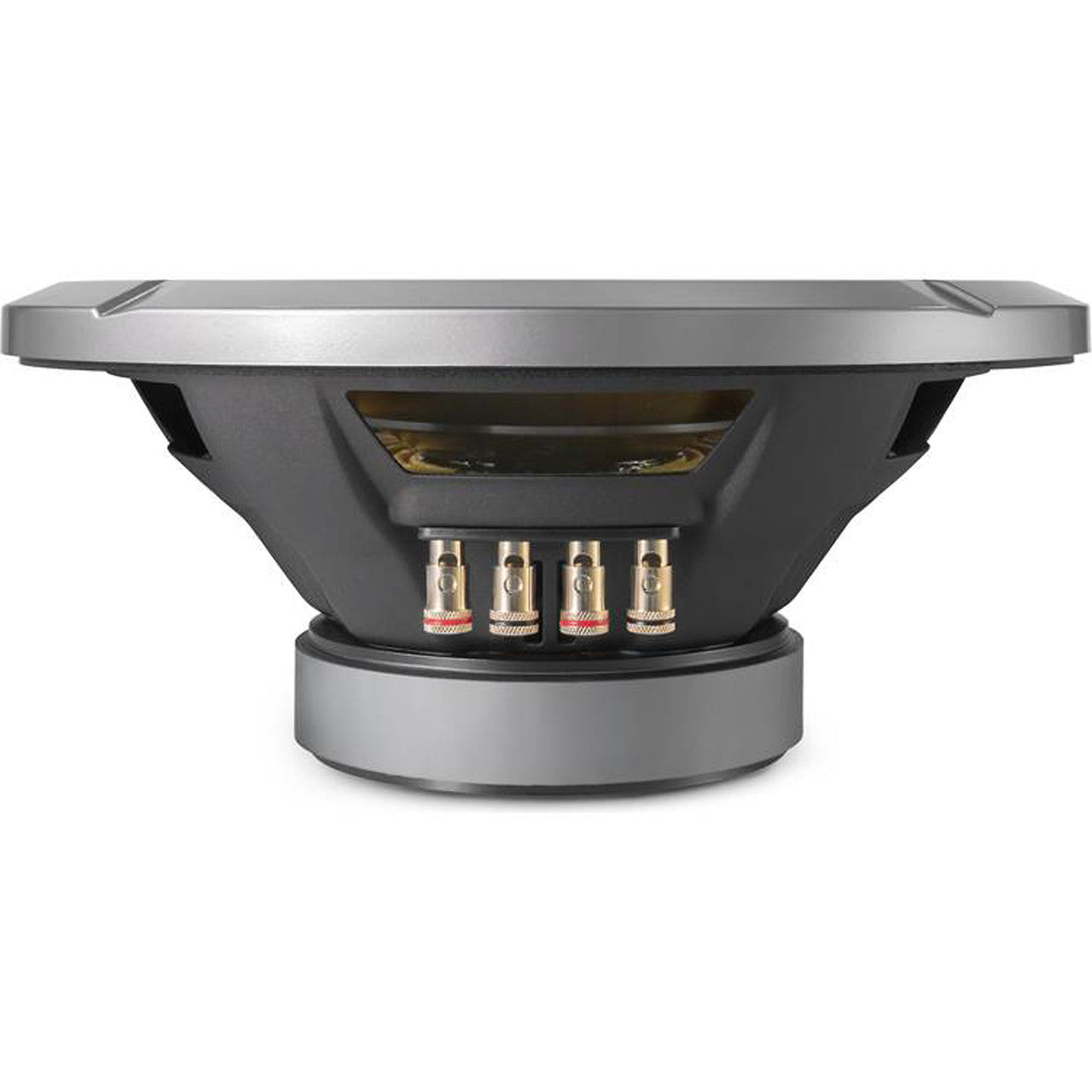

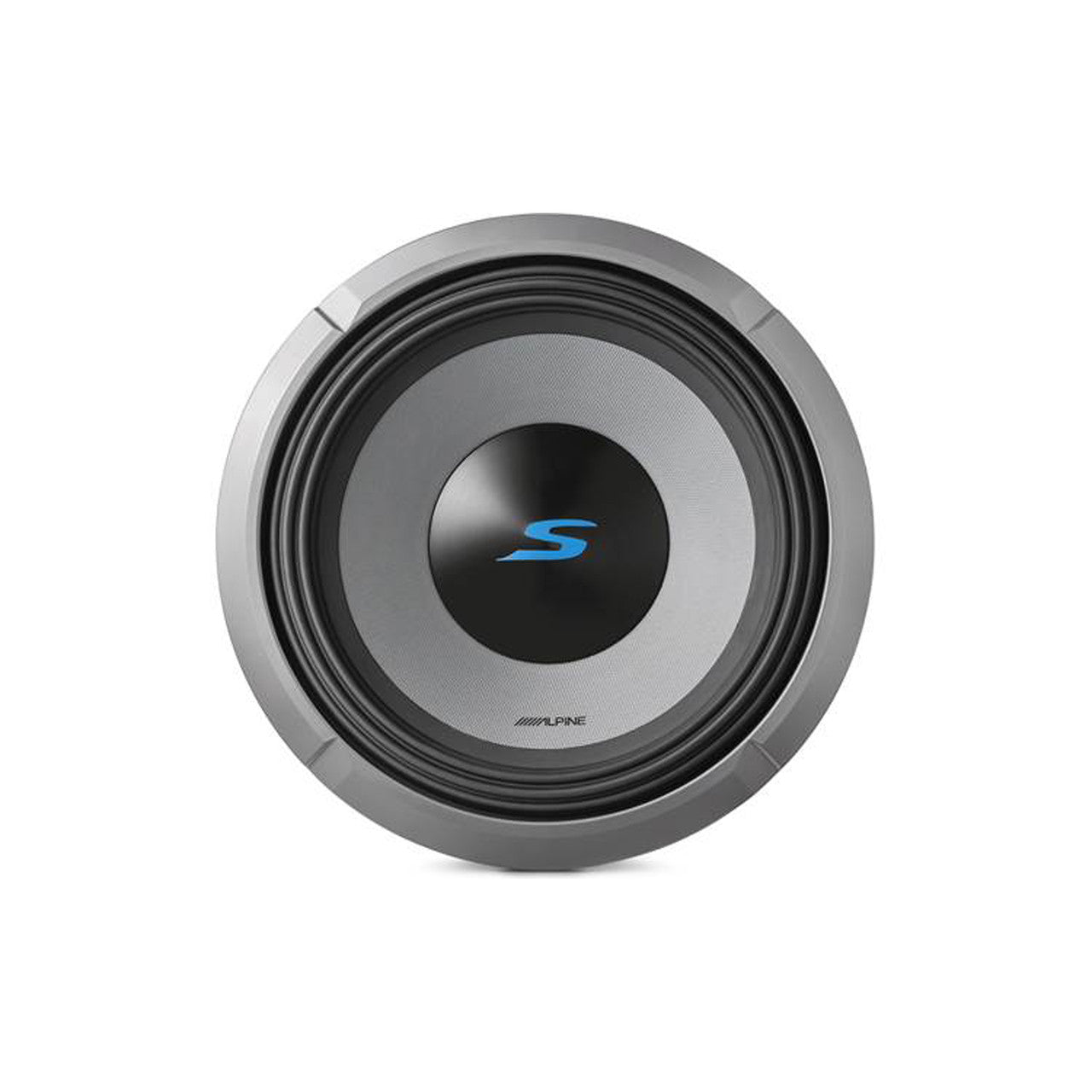

1x Alpine S2-W12D4 12" S-Series Dual 4 Ohm Car Subwoofer, 1800W Max, 600W RMS - (S2-W12D4)
Alpine S2-W12D4 - Next-Generation 12” S-Series Subwoofer with Dual 4-Ohm Voice Coils
Add extra punch to your sound system with the S-Series S2-W12D4 12" Subwoofer; now redesigned for powerful and reliable bass performance at an approachable price point.
PERFORMANCE & VALUE
With an impressive power handling of 600W RMS and a peak power handling of 1800W, the Next-Gen 12” S-Series Subwoofers deliver outstanding performance value. Boasting a wide frequency response range of 23Hz to 215Hz and a sensitivity of 86dB (1W/1m), these subs ensure powerful and accurate bass reproduction across a diverse range of music genres.
ENHANCED PUNCH
Featuring the lightweight yet sturdy combination of carbon fiber and polypropylene, the Next-Gen S-Series Subwoofer cone delivers deep, low-distortion bass that enhances the depth and richness of your music.
FLEXIBLE APPLICATION
A Dual Voice Coil (DVC) with easy configuration jumpers make installing the S-Series subwoofers a breeze. A new twist-lock grille mounting system makes it easy to install and remove an optional grille without mounting screws for added protection to the cone.
PERFECT POWER MATCH
Maximize the potential of your S-Series subwoofers with Alpine's perfectly power-matched S-Series amps. Power a single S2-W12D4 subwoofer effortlessly with the 600W S2-A60M mono amplifier, or for an even bigger impact, pair two or more S2-W12D4 subs with the powerful 1200W S2-A120M amp to ensure optimal sound quality and performance.
FEATURES
• Dual Voice Coil Subwoofers with Configuration Jumpers
• Carbon Fiber / Poly Propylene Cone
• Poly Propylene / Ceramic Dust Cap
• High-Grade Strontium Ferrite Magnets
• Twist-Lock Grille Mount System
• High-Amplitude Multi-Roll (H.A.M.R.) Surround
• Push-Type Speaker Terminals
TECH SPECS
• Power Handling: 600W RMS / 1800W Peak
• Nominal Impedance: 4Ω
• Frequency Response: 23Hz - 215Hz
• Sensitivity (1W/1M): 86.2dB
• Voice Coil: 2.6"
• X-Max (1-Way): 15mm
• Magnet Weight: 64oz
