Alpine ILX-F509 Halo9 9" Multimedia Touchscreen Receiver & 2 Pairs Alpine S2-S80C Type S 8" Component Speakers w/ Power Pack

Product details

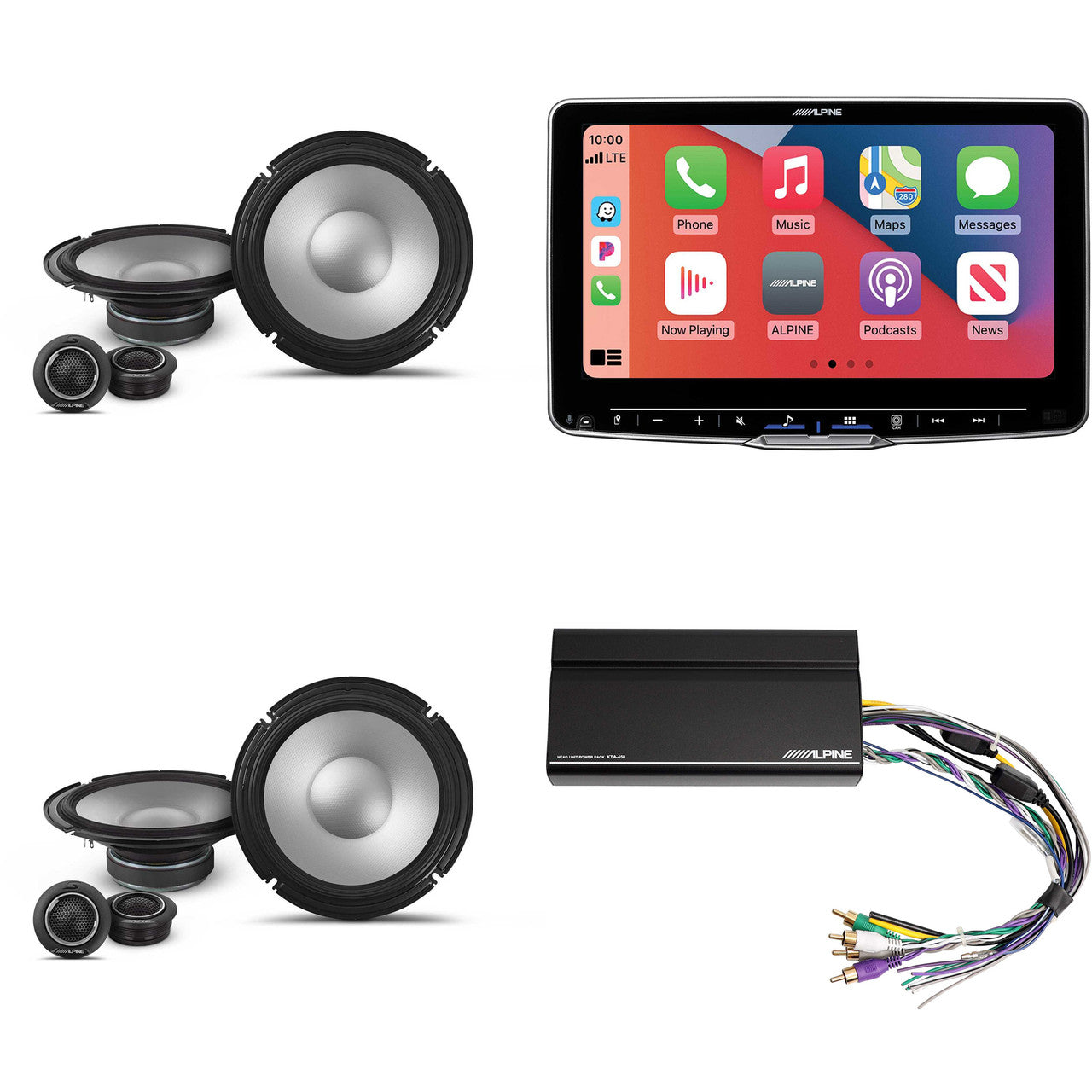

This bundle includes an Alpine iLX-F509 Halo9 Multimedia Receiver with 9-inch Floating HD Touchscreen Display, 2x Alpine S2-S80C - Next-Generation S-Series 8" Component Speaker Set, and an Alpine KTA-450 4-Channel Power Pack Amplifier with Dynamic Peak Power 45W RMS x 4, At 2 Or 4 Ohms.

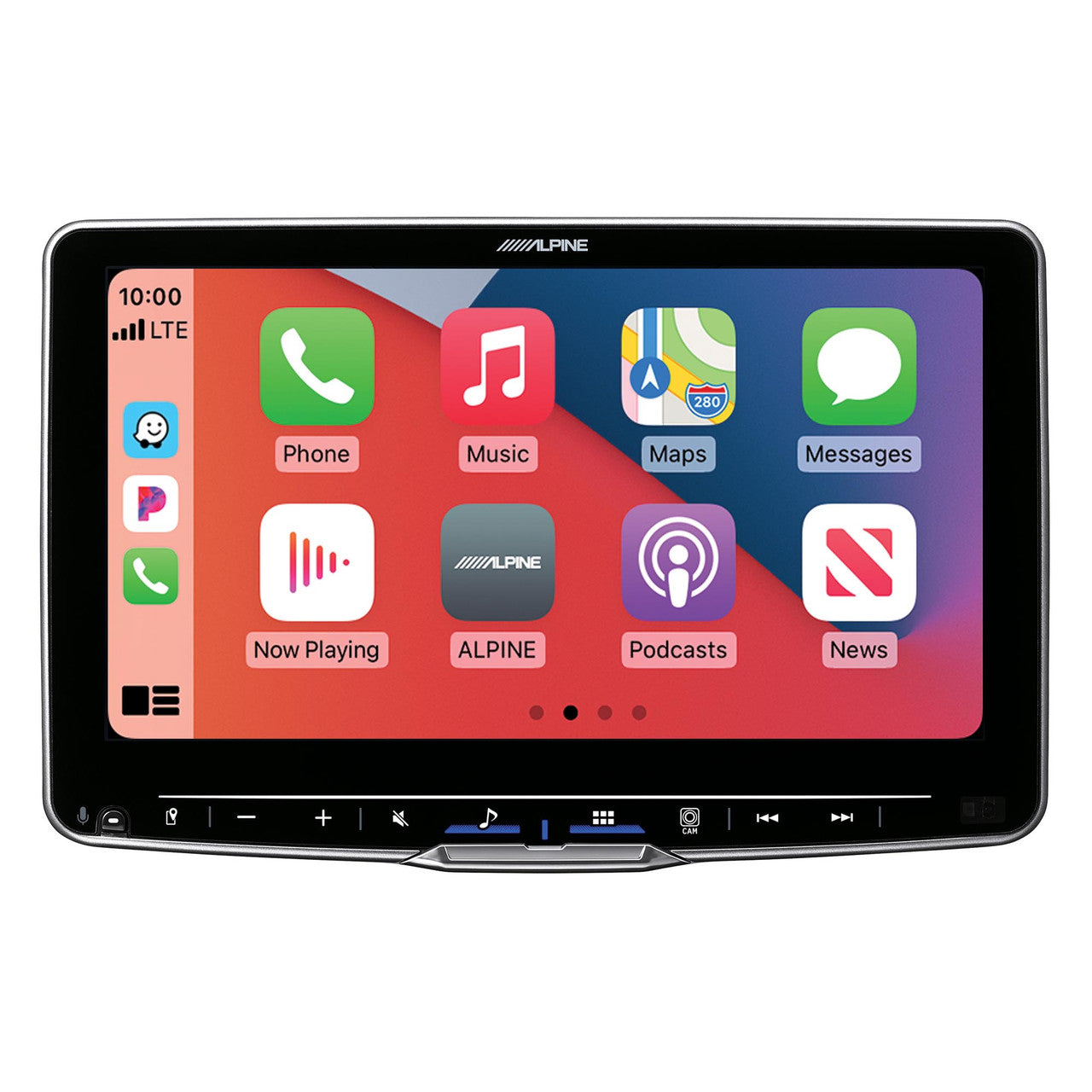

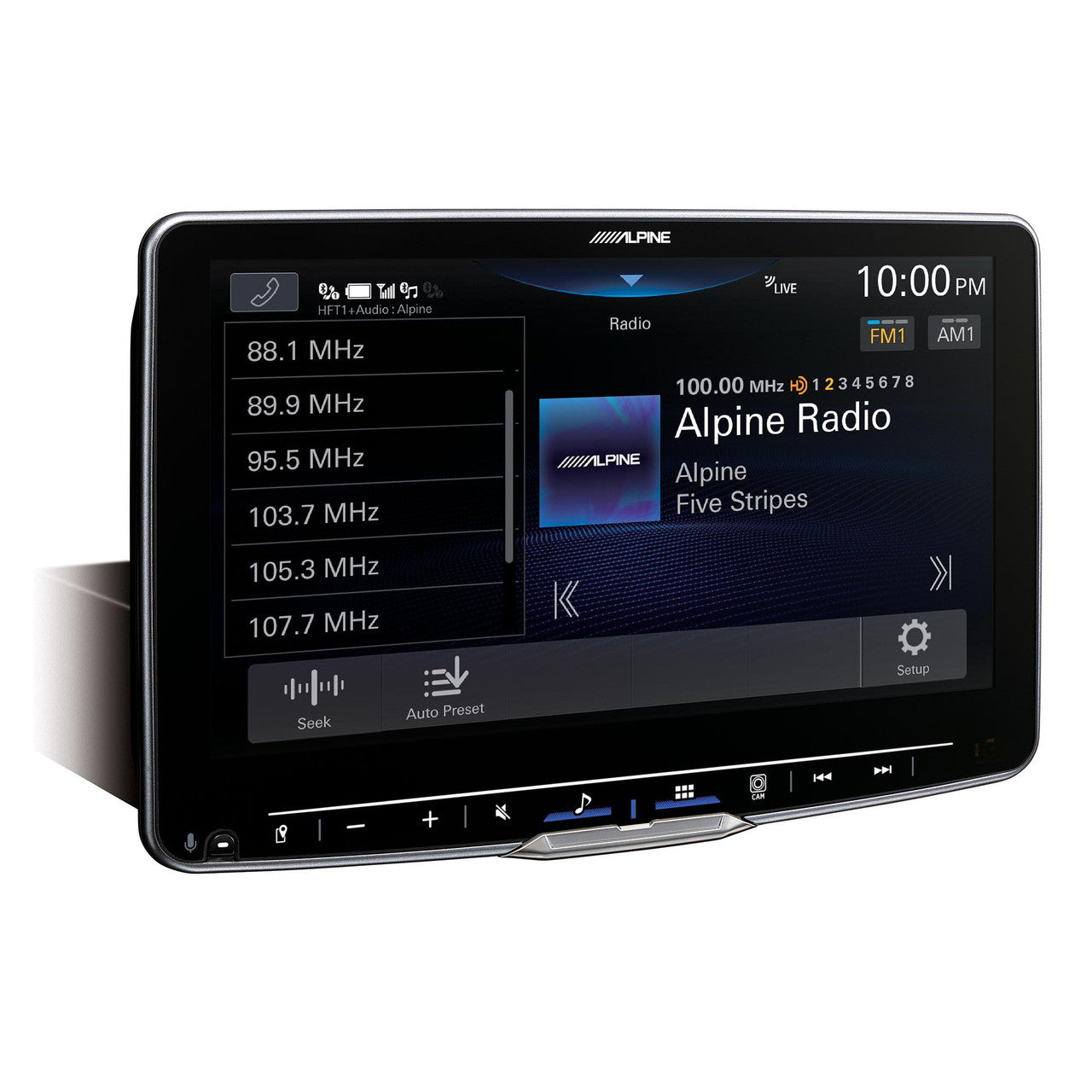

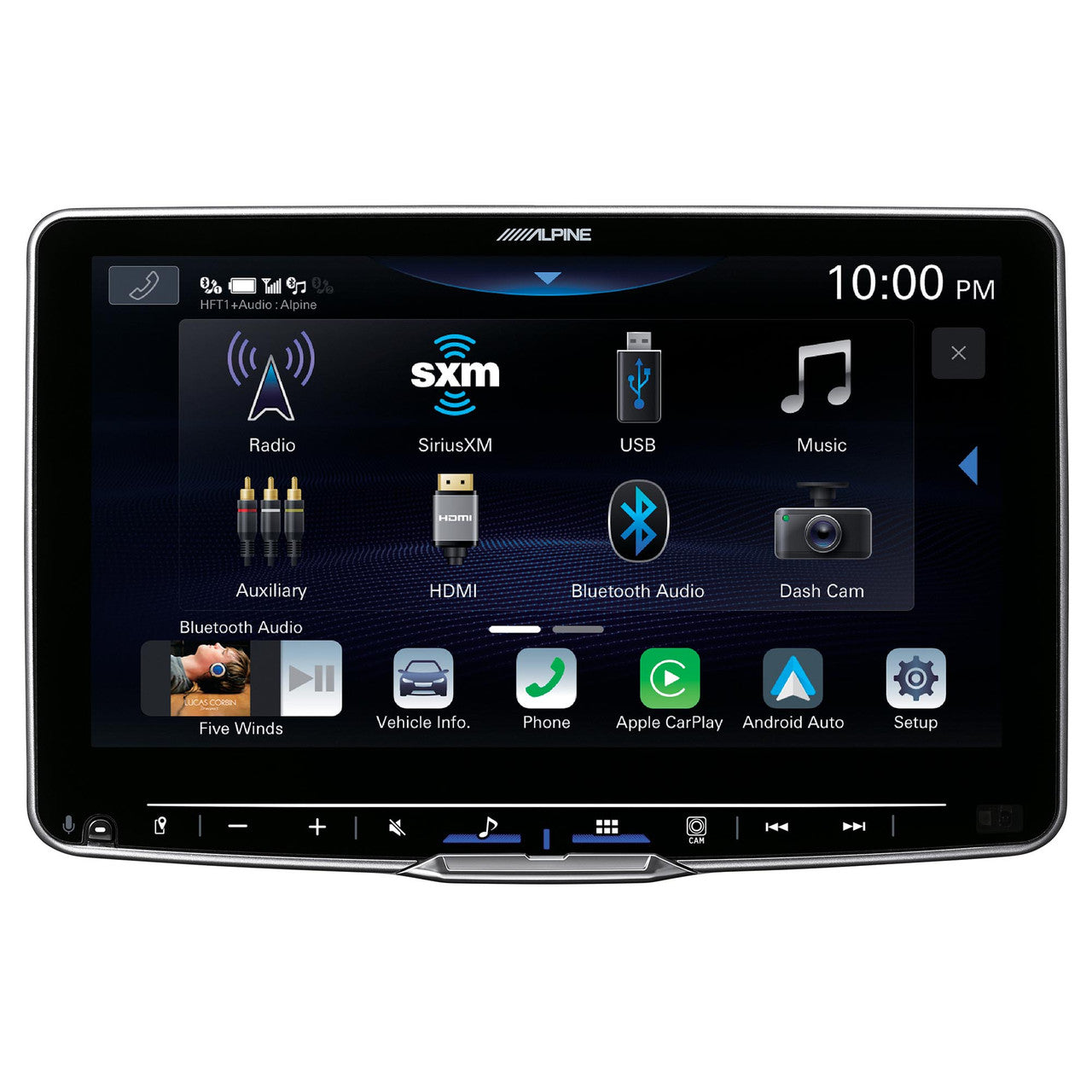

1x Alpine iLX-F509 Halo9 Multimedia Receiver with 9-inch Floating HD Touchscreen Display - (iLX-F509)

Next-generation dash technology takes the Alpine Halo display to new heights with even more features that bring out the full potential of music playback.

Next-Gen Dash Technology – Take your dash to new heights with the high resolution Alpine Halo9. Featuring Wireless Apple CarPlay® and Android Auto™, plus built-in Bluetooth® hands-free calling with audio streaming. Access music, messages, phone calls, and maps on a smartphone through touch or voice commands with the included external microphone.
Hi-Res Audio – The Alpine Halo9 features Hi-Res Audio playback and has on-board tuning features like 5-band graphic EQ or 13-band parametric EQ per channel, for continuous frequency control. The 6-channel time correction ensures that music is staged properly in the front and center of the vehicle.
MAIN FEATURES:
• Alpine Halo Design
• Adjustable Floating Style Display with 1-DIN Chassis
• Hi-Res Audio Playback (96kHz / 24bit)
• Apple Carplay® (Wired & Wireless)
• Android Auto™ (Wired & Wireless)
• Bluetooth® Hands-Free
• SiriusXM-Ready®
• Built-in HD Radio®
• iDatalink® Maestro Compatible
• Alpine DVR-C320R Dash Cam Compatible
• Navigation Compatible with KTX-NS01
• Media Xpander

TECH SPECS
• Screen Size: 9”
• Screen Resolution: WXGA 1280 x 720px
• AUX Input: 1
• HDMI Input: 1
• HDMI Output: 1
• Camera Inputs: 2 RCA (Front/Rear)
• Dash Cam Input: 1 (Alpine DVR-C320R)
• USB Inputs: 2
• 4V Pre-Outs: 3
• Built-in Amplifier: 16W RMS x 4
• EQ: 5-Band Graphic or 13-Band Parametric (per channel)
• DAC: 24 Bit
• Crossover: High Pass / Low Pass
• Audio Playback: AAC, APE, FLAC, MP3, WMA
• Photo Viewer: JPG, PNG, BMP
• Video Playback: AVC, FLV, H,264, MP4, MPEG-4, MOV

2x Alpine S2-S80C - Next-Generation S-Series 8" Component Speaker Set - (S2-S80C)

Alpine S2-S80C - Next-Generation S-Series 8" Component Speaker Set

Newly redesigned and Hi-Res Audio Certified, the Next-Generation S-Series S2-S80C 8” Component Speakers offer a new standard in entry-level sound performance.

Hi-Res Certified – Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status system, the Next-Generation Alpine S-Series Speakers are now Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This new benchmark in sound quality elevates the Next-Gen S-Series Speakers resulting in a more accurate and natural sound at an entry-level price point.

Reliable Performance – Crafted with a unique combination of Poly Propylene, Glass Fiber, and Mica Cone materials, the S2-S80C is designed for lightweight construction, high output, and low distortion, giving you a clean and accurate audio experience.

HAMR Surround - Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology is integrated into the speaker design which allows for maximum cone movement, delivering powerful and accurate bass notes.

• Woofer Size: 8”
• Tweeter Size: 1” (Component)
• Maximum Peak Power: 260W
• Maximum RMS Power: 85W
• Frequency Response: 50Hz - 40kHz (Hi-Res)
• Hi-Res Audio Certified
• Poly Propylene, Glass Fiber, and Mica Cone Material
• High-Amplitude Multi-Roll (H.A.M.R.) Surround
• Included 1” Tweeters with Threaded Removable Housing
• OEM Fitment with In-Line Crossovers

1x Alpine KTA-450 4-Channel Power Pack Amplifier with Dynamic Peak Power 45W RMS x 4, At 2 Or 4 Ohms - (KTA-450)

Alpine KTA-450 4-Channel Power Pack Amplifier with PowerStack Capability

The next generation of Power Pack is here! The compact KTA-450 Power Pack Amplifier utilizes Alpine’s exclusive DPP technology for a big power boost in a small space.

The KTA-450 measures just 7” W x 3.5” H x 1.25” D. For vehicles that do not have the space for a traditional amplifier, the KTA-450’s small size allows it to be tucked away in hidden areas such as in the glove box or behind the radio. It could even be used in a motorcycle’s saddlebag or on a boat.

No Extra Wires! Thanks to the efficient power needs of the DPP technology, the KTA-450 does not require a new power supply wire at the battery, so installation is fast using the supplied radio power wires. In addition, the KTA-450 uses a 22-pin power harness with a recessed design on one side, so the cables can be tucked-in for a cleaner, less-bulky installation.

Features:
• Compact size, measuring just 7” W x 3.5” H x 1.25” D
• Class D amplifier circuit
• Dynamic Peak Power (DPP) technology doubles the power during dynamic musical passages
• Power Stacking bracket included for mounting to the iLX-W650 7” Mech-less AV Receiver (sold separately)
Specifications:
• Power output 4-Ohm @ 14.4 Volts: 50 W RMS X 4
• Power output 2-Ohm @ 14.4 Volts: 45 W RMS X 4
• Dynamic Peak Power output 4-Ohm @ 14.4 Volts: 100 W RMS X 4
• Dynamic Peak Power output 2-Ohm @ 14.4 Volts: 100 W RMS X 4
• THD 10 W into 4 Ohms: Less Than 0.2%
• THD 10 W into 2 Ohms: Less Than 0.1%
• THD Rated Power 4 Ohms: Less Than 0.1%
• THD Rated Power 2 Ohms: Less Than 0.1%
• S/N Ratio: 1 W into 4 Ohms: >85dB
• Frequency Response:+0/-3 dB 15Hz - 50kHz
• Input Sensitivity: RCA (0.152 - 2.80V), Speaker (0.33 - 6.05V)
• Crossover: Variable HPF/LPF, (OFF/60/80/120Hz)
• Weight: 1.3lb

In the box:
• KTA-450 4-Channel Amplifier
• Input/Output/Power Wire Harness
• Universal Bracket Set
• Cable Tie
• Self Tapping Screw
• W650 Mounting Brackets
