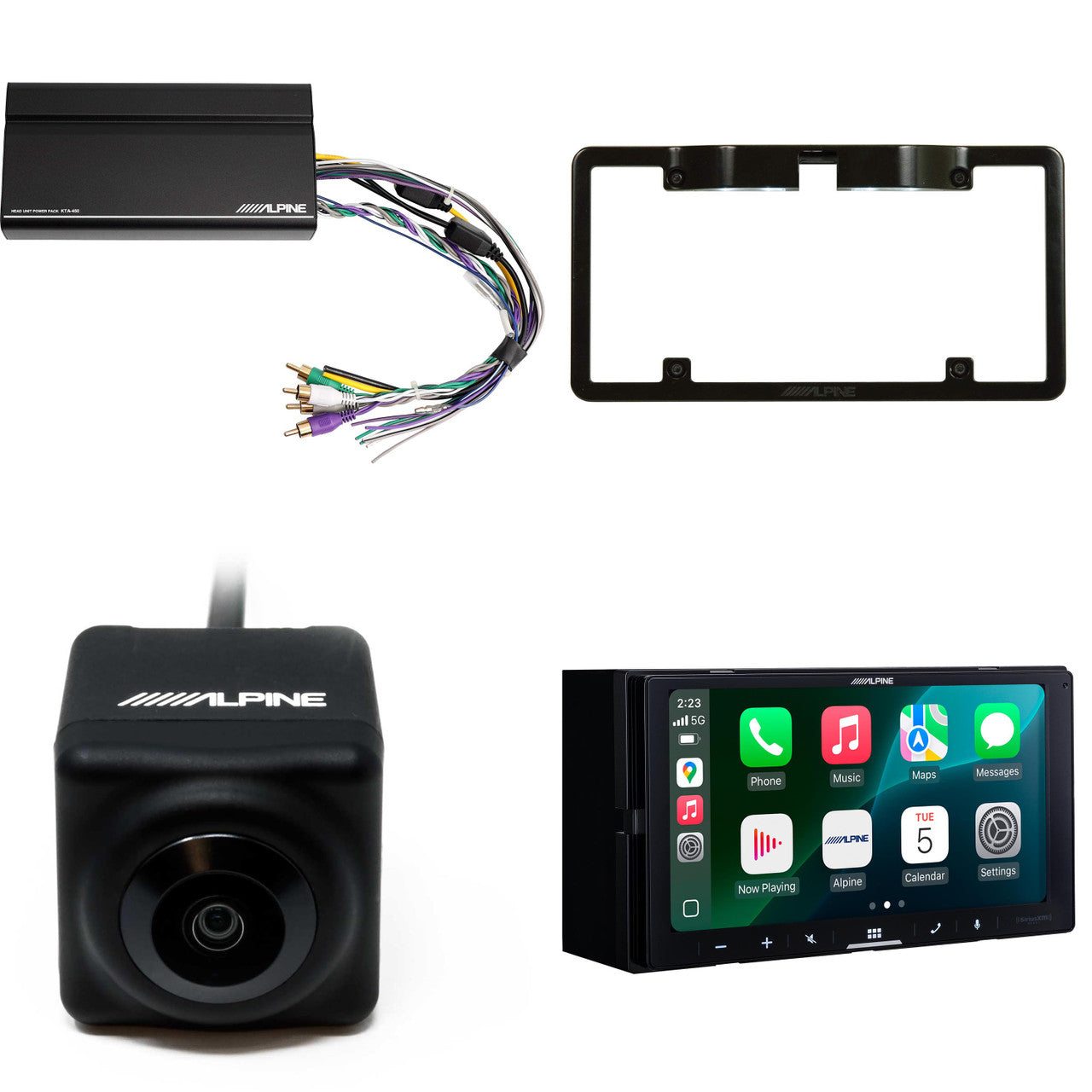

Alpine iLX-W770 Receiver with Apple CarPlay, Android Auto Includes KTA-450 4-Channel Amplifier, Back up Camera and License Plate Fame

Upgrade your car's entertainment system with the Alpine iLX-W770, a sleek and powerful 6.75-inch shallow-chassis digital multimedia receiver. With Wireless Apple CarPlay and Android Auto, you can connect to your favorite apps, stream music, and access navigation effortlessly, all while keeping your hands on the wheel.

Designed for safety and convenience, the iLX-W770 features dual camera inputs, perfect for integrating both front and rear cameras, giving you greater visibility and control while driving. Switch easily between camera views to navigate tight spaces or monitor your surroundings.

This receiver doesn’t just connect you to your apps, it also enhances your car’s audio performance with its Sound Boost menu, allowing you to fine-tune bass, mid-bass, and subwoofer levels for a richer listening experience. The built-in 13-band graphic EQ and 6-channel time correction provide precise control over your sound, so you can enjoy your music just the way you like it.

For audio and video enthusiasts, the iLX-W770 is equipped with a 3.5mm SWC jack, AUX input, and USB input, supporting a wide range of audio and video playback formats, including AAC, FLAC, MP3, and more. Plus, it’s SiriusXM-Ready®, so you can enjoy your favorite satellite radio stations on the go.

Compatible with Alpine's PowerStack™ amplifiers, the iLX-W770 allows for easy mounting and control of PrismaLink™ subwoofers, adding stunning visuals to your in-car audio experience through Lighting Link Control.

Key Features:
6.75” Double-DIN Touchscreen Display
Wireless Apple CarPlay® & Android Auto™
Dual Camera Inputs for front and rear cameras
Built-in Amplifier: 16W RMS / 45W Peak x 4
Sound Boost Menu with Bass and Subwoofer Controls
13-Band Graphic EQ and 6-Channel Time Correction
PowerStack™ Compatible with Alpine KTA Amplifiers
Customizable Home Screen with 5-Color Key Illumination
SiriusXM-Ready® and Bluetooth® Hands-Free

1x Alpine KTA-450 4-Channel Power Pack Amplifier with Dynamic Peak Power 45W RMS x 4, At 2 Or 4 Ohms - (KTA-450)

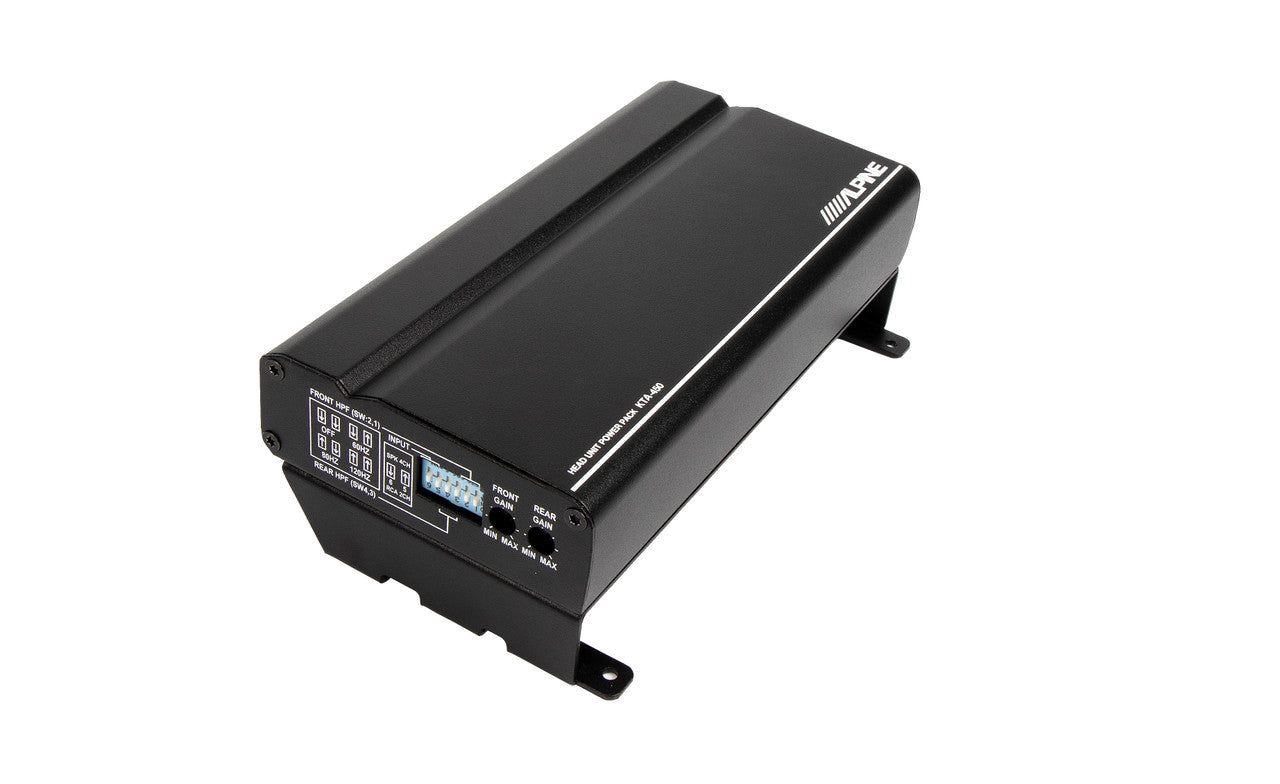

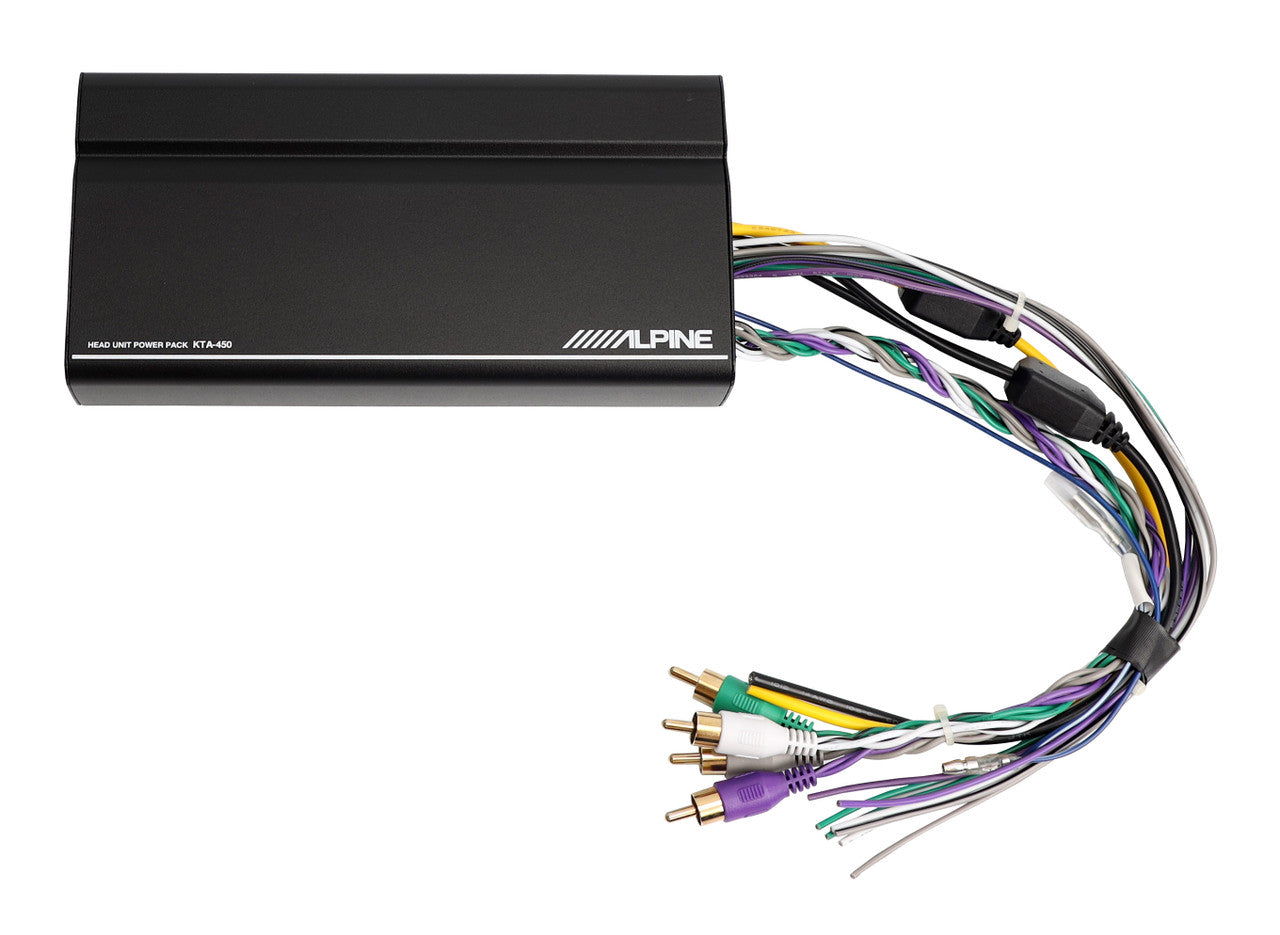

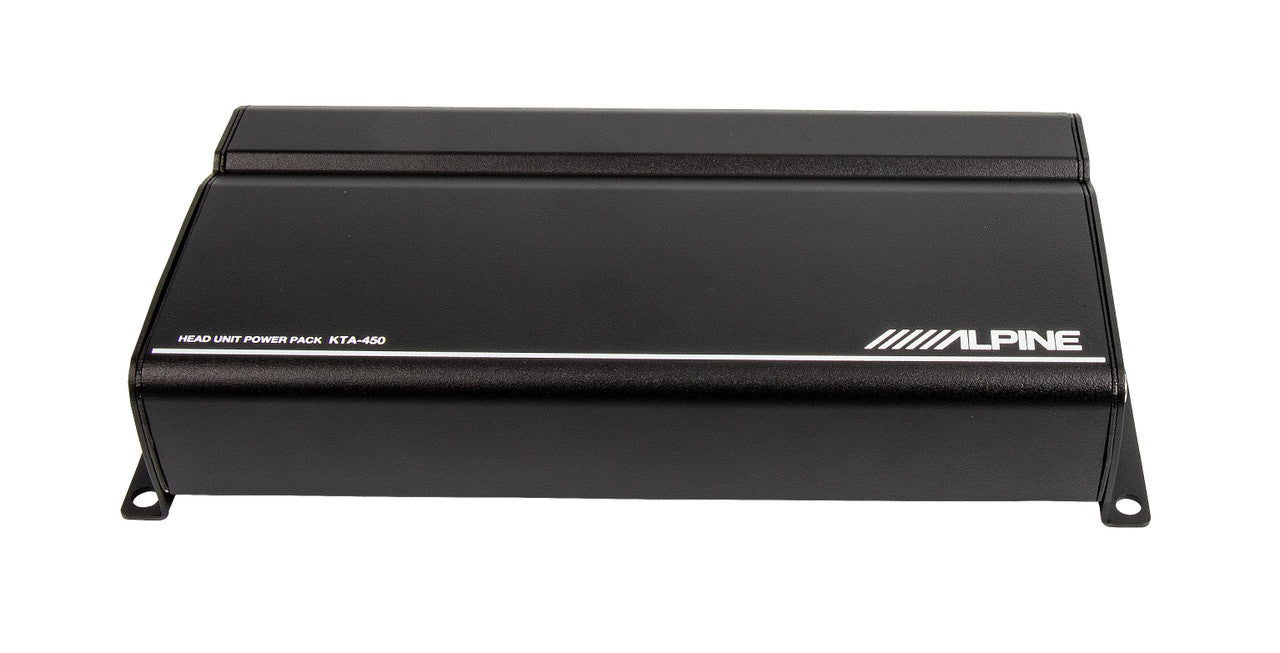

Alpine KTA-450 4-Channel Power Pack Amplifier with PowerStack Capability

The next generation of Power Pack is here! The compact KTA-450 Power Pack Amplifier utilizes Alpine’s exclusive DPP technology for a big power boost in a small space.

The KTA-450 measures just 7” W x 3.5” H x 1.25” D. For vehicles that do not have the space for a traditional amplifier, the KTA-450’s small size allows it to be tucked away in hidden areas such as in the glove box or behind the radio. It could even be used in a motorcycle’s saddlebag or on a boat.

No Extra Wires! Thanks to the efficient power needs of the DPP technology, the KTA-450 does not require a new power supply wire at the battery, so installation is fast using the supplied radio power wires. In addition, the KTA-450 uses a 22-pin power harness with a recessed design on one side, so the cables can be tucked-in for a cleaner, less-bulky installation.

Features:
• Compact size, measuring just 7” W x 3.5” H x 1.25” D
• Class D amplifier circuit
• Dynamic Peak Power (DPP) technology doubles the power during dynamic musical passages
• Power Stacking bracket included for mounting to the iLX-W650 7” Mech-less AV Receiver (sold separately)
Specifications:
• Power output 4-Ohm @ 14.4 Volts: 50 W RMS X 4
• Power output 2-Ohm @ 14.4 Volts: 45 W RMS X 4
• Dynamic Peak Power output 4-Ohm @ 14.4 Volts: 100 W RMS X 4
• Dynamic Peak Power output 2-Ohm @ 14.4 Volts: 100 W RMS X 4
• THD 10 W into 4 Ohms: Less Than 0.2%
• THD 10 W into 2 Ohms: Less Than 0.1%
• THD Rated Power 4 Ohms: Less Than 0.1%
• THD Rated Power 2 Ohms: Less Than 0.1%
• S/N Ratio: 1 W into 4 Ohms: >85dB
• Frequency Response:+0/-3 dB 15Hz - 50kHz
• Input Sensitivity: RCA (0.152 - 2.80V), Speaker (0.33 - 6.05V)
• Crossover: Variable HPF/LPF, (OFF/60/80/120Hz)
• Weight: 1.3lb

In the box:
• KTA-450 4-Channel Amplifier
• Input/Output/Power Wire Harness
• Universal Bracket Set
• Cable Tie
• Self Tapping Screw
• W650 Mounting Brackets

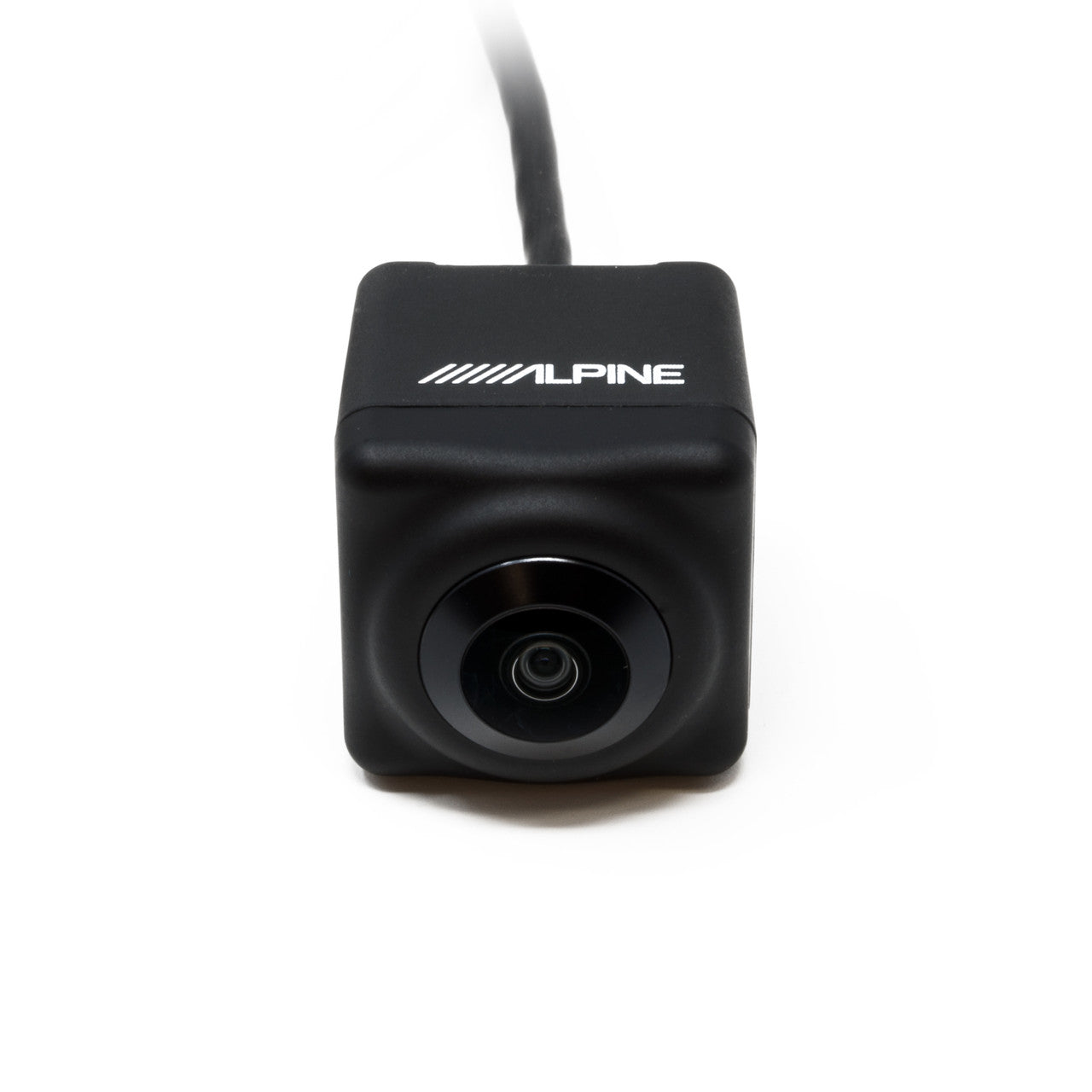

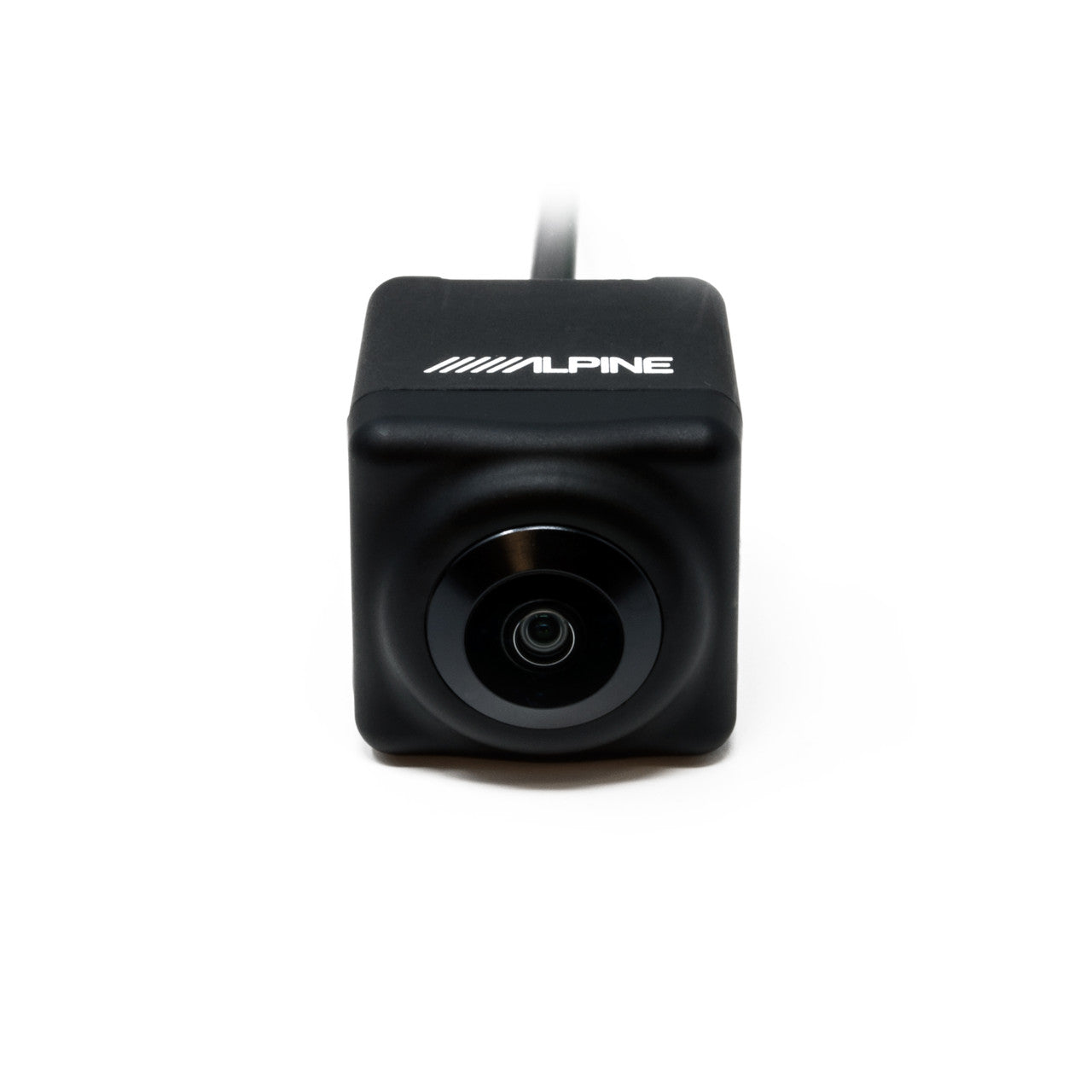

1x Alpine HCE-C1100 HDR Rear-View Camera - (HCE-C1100)

First Alpine Cameras with HDR!
The new CMOS image sensors have HDR which allows very large variances in light to be handled without washing out the image or being too dark.
4 different viewing angles for up to 180°of vision left and right making it easy to what’s lurking around the corner, behind you.
Power Requirements - 6.0v Dc
Ground Type - Negative Ground Type
Max Power Consumption - 1.2w @ 6v
Output Image - Mirror Image, Cvbs (NTSC Video Signal) Image Output For 16:9 Wide-Screen
Image Output Impedance - 75 Ohms (1vp-p)
Image Sensor - 1/4 Inch Cmos Image Sensor, 4:3 Aspect Ratio
Effective Number Of Pixels - 1280 X 960 - 1.2 Megapixels
Lens Section - Focal Length F=1.27mm, Brightness F=1.8
Angle Of Field - Approximately 131° Horizontally, Approximately 125° Vertically
Automatic Image Adjusting Function - Automatic Exposure Adjustment, Automatic White Balance Adjustment
Syncronization System - Internal Synchronization
Luminance S/N - 8.41 Lx
Resolution (horizontal) - 330 Tv Lines Or More
Illumination Range - Approximately 1.5lx To 100klx
Operating Temperature Range - 158°F To -22°F
Water Resistance - Ip68

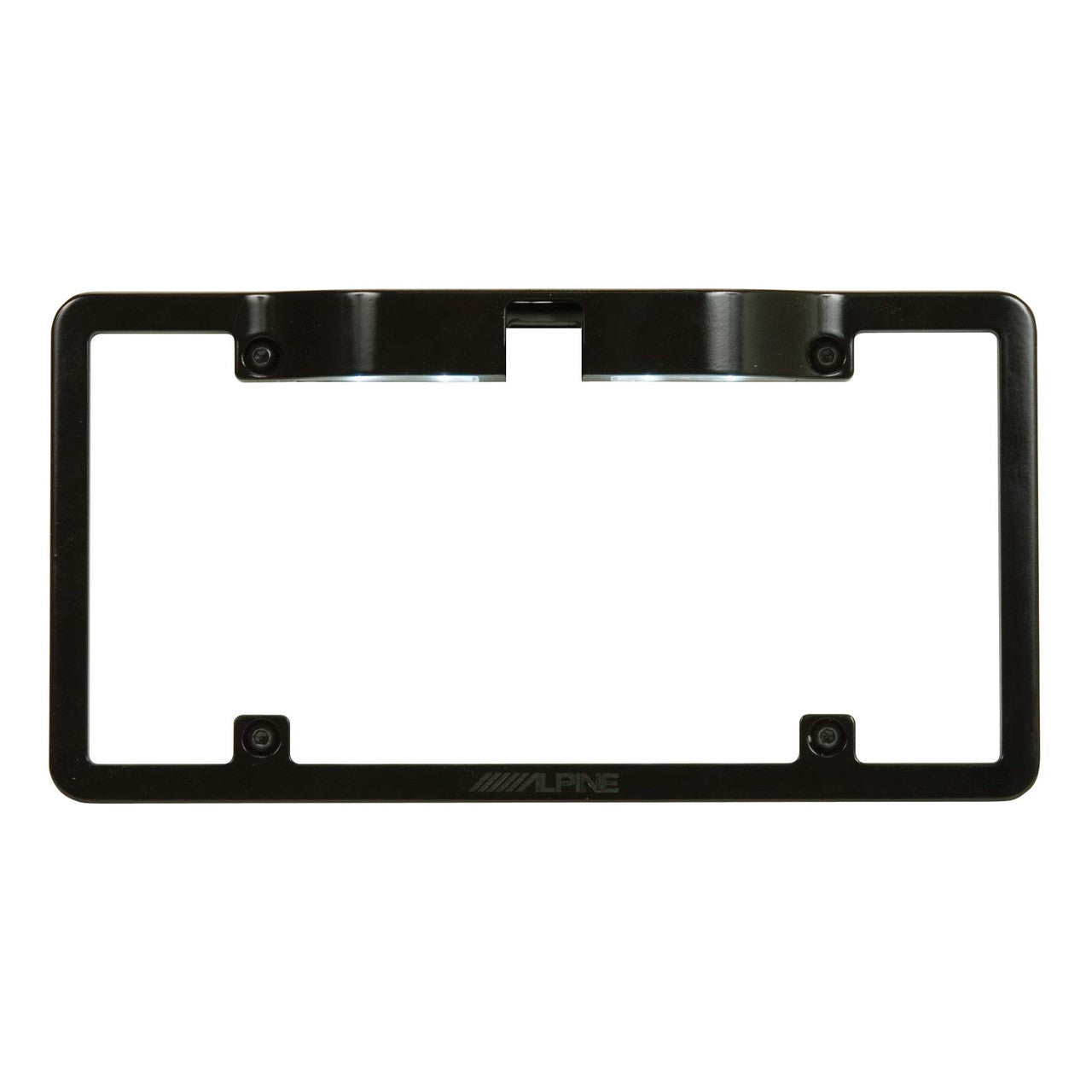

1x Alpine KTX-C10LP License Plate Mounting Kit - (KTX-C10LP)

Radio and cameras are sold separately

Mount your Rear View Camera
A convenient camera view brings additional convenience and safety when backing up!

This License Plate Mounting Kit works specifically with:

HCE-C105, HCE-C107D, HCE-C200F, HCE-C200R, HCE-C300R, HCE-C104, HCE-C125, HCE-C210RD, HCE-C212F, HCE-C155, HCE-C157D, and HCE-C305R.
Easy to Install Kit
Here's the simple, clean kit you need to mount an Alpine camera on your vehicle's license plate. This durable kit is constructed from a rigid, sturdy cast metal frame. Built-in LED's illuminate your plate for added safety across various vehicle applications.
