Alpine KTA-450 4 Ch.Power Pack Amp w/ R2-S69 & S2-S69 Speakers

Product details

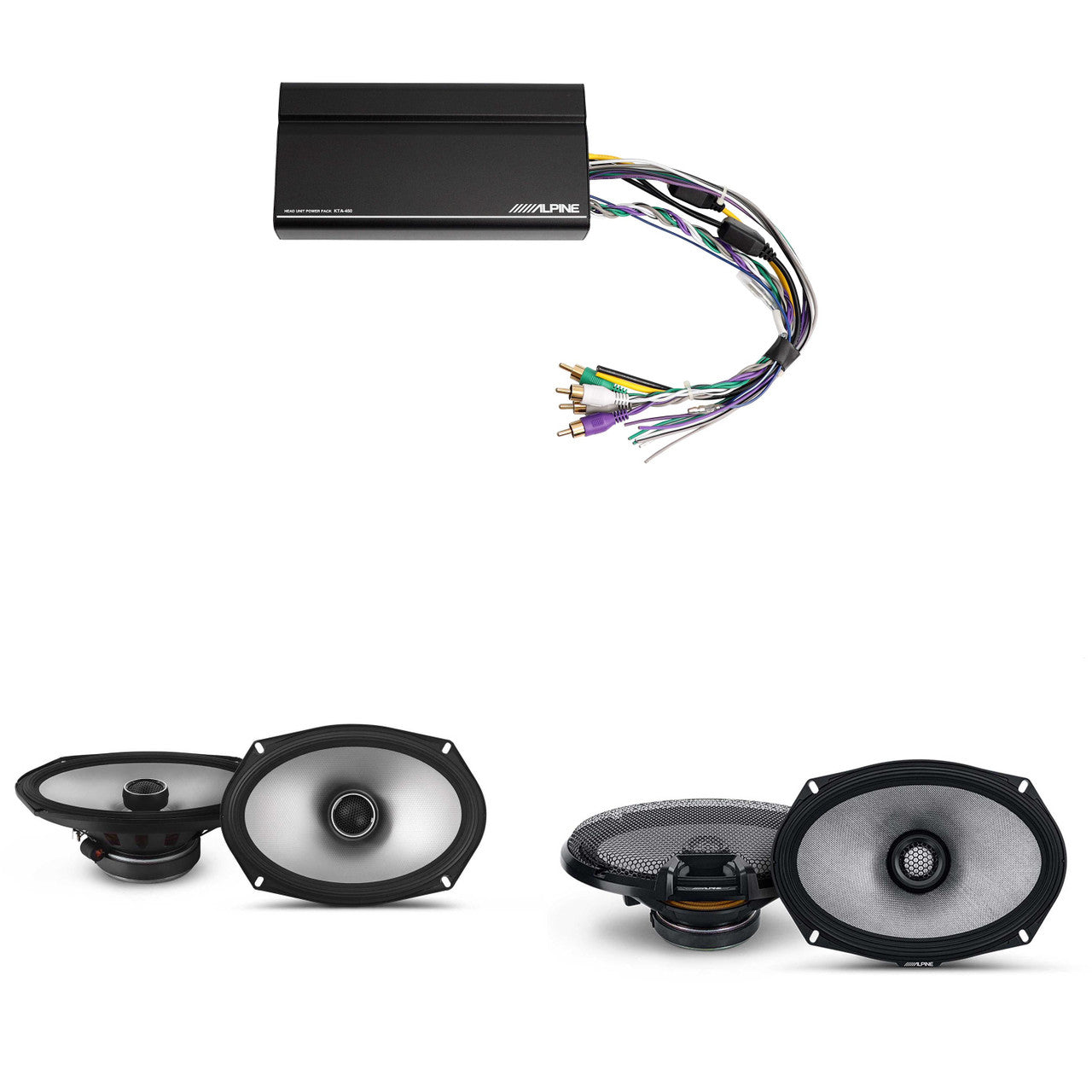

This bundle includes an Alpine KTA-450 4-Channel Power Pack Amplifier with Dynamic Peak Power 45W RMS x 4, At 2 Or 4 Ohms, an Alpine S2-S69 - Next-Generation S-Series 6x9" Coaxial Speaker Set, and an Alpine R2-S69 6x9" R-Series High-Resolution Coaxial Speakers, Pair.

1x Alpine KTA-450 4-Channel Power Pack Amplifier with Dynamic Peak Power 45W RMS x 4, At 2 Or 4 Ohms - (KTA-450)

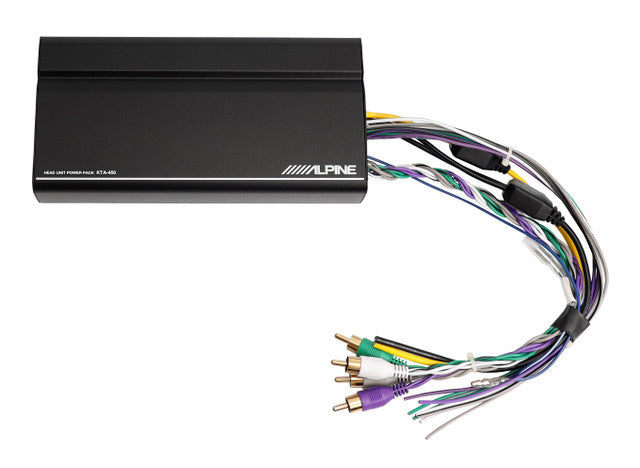

Alpine KTA-450 4-Channel Power Pack Amplifier with PowerStack Capability

The next generation of Power Pack is here! The compact KTA-450 Power Pack Amplifier utilizes Alpine’s exclusive DPP technology for a big power boost in a small space.

The KTA-450 measures just 7” W x 3.5” H x 1.25” D. For vehicles that do not have the space for a traditional amplifier, the KTA-450’s small size allows it to be tucked away in hidden areas such as in the glove box or behind the radio. It could even be used in a motorcycle’s saddlebag or on a boat.

No Extra Wires! Thanks to the efficient power needs of the DPP technology, the KTA-450 does not require a new power supply wire at the battery, so installation is fast using the supplied radio power wires. In addition, the KTA-450 uses a 22-pin power harness with a recessed design on one side, so the cables can be tucked-in for a cleaner, less-bulky installation.

Features:
• Compact size, measuring just 7” W x 3.5” H x 1.25” D
• Class D amplifier circuit
• Dynamic Peak Power (DPP) technology doubles the power during dynamic musical passages
• Power Stacking bracket included for mounting to the iLX-W650 7” Mech-less AV Receiver (sold separately)
Specifications:
• Power output 4-Ohm @ 14.4 Volts: 50 W RMS X 4
• Power output 2-Ohm @ 14.4 Volts: 45 W RMS X 4
• Dynamic Peak Power output 4-Ohm @ 14.4 Volts: 100 W RMS X 4
• Dynamic Peak Power output 2-Ohm @ 14.4 Volts: 100 W RMS X 4
• THD 10 W into 4 Ohms: Less Than 0.2%
• THD 10 W into 2 Ohms: Less Than 0.1%
• THD Rated Power 4 Ohms: Less Than 0.1%
• THD Rated Power 2 Ohms: Less Than 0.1%
• S/N Ratio: 1 W into 4 Ohms: >85dB
• Frequency Response:+0/-3 dB 15Hz - 50kHz
• Input Sensitivity: RCA (0.152 - 2.80V), Speaker (0.33 - 6.05V)
• Crossover: Variable HPF/LPF, (OFF/60/80/120Hz)
• Weight: 1.3lb

In the box:
• KTA-450 4-Channel Amplifier
• Input/Output/Power Wire Harness
• Universal Bracket Set
• Cable Tie
• Self Tapping Screw
• W650 Mounting Brackets

1x Alpine S2-S69 - Next-Generation S-Series 6x9" Coaxial Speaker Set - (S2-S69)

Alpine S2-S69 - Next-Generation S-Series 6x9" Coaxial Speaker Set

Newly redesigned and Hi-Res Audio Certified, the Next-Generation S-Series S2-S69 6x9” Coaxial Speakers offer a new standard in entry-level sound performance.

Hi-Res Certified – Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status system, the Next-Generation Alpine S-Series Speakers are now Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This new benchmark in sound quality elevates the Next-Gen S-Series Speakers resulting in a more accurate and natural sound at an entry-level price point.

Reliable Performance – Crafted with a unique combination of Poly Propylene, Glass Fiber, and Mica Cone materials, the S2-S69 is designed for lightweight construction, high output, and low distortion, giving you a clean and accurate audio experience.

HAMR Surround - Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology is integrated into the speaker design which allows for maximum cone movement, delivering powerful and accurate bass notes.

Protect Your Speaker - The S-Series S2-S69 is compatible with the KTE-S69G Speaker Grille (sold separately). This sleek and stylish grille will not only add a visual upgrade to your speakers but also provide protection against any damage.

• Woofer Size: 6x9”
• Tweeter Size: 1” (Coaxial)
• Maximum Peak Power: 260W
• Maximum RMS Power: 85W
• Frequency Response: 65Hz - 40kHz (Hi-Res)
• Hi-Res Audio Certified
• Poly Propylene, Glass Fiber, and Mica Cone Material
• High-Amplitude Multi-Roll (H.A.M.R.) Surround
• Integrated 1” Tweeters (Coaxial)
• Compatible with KTE-S69G Speaker Grille (sold separately)

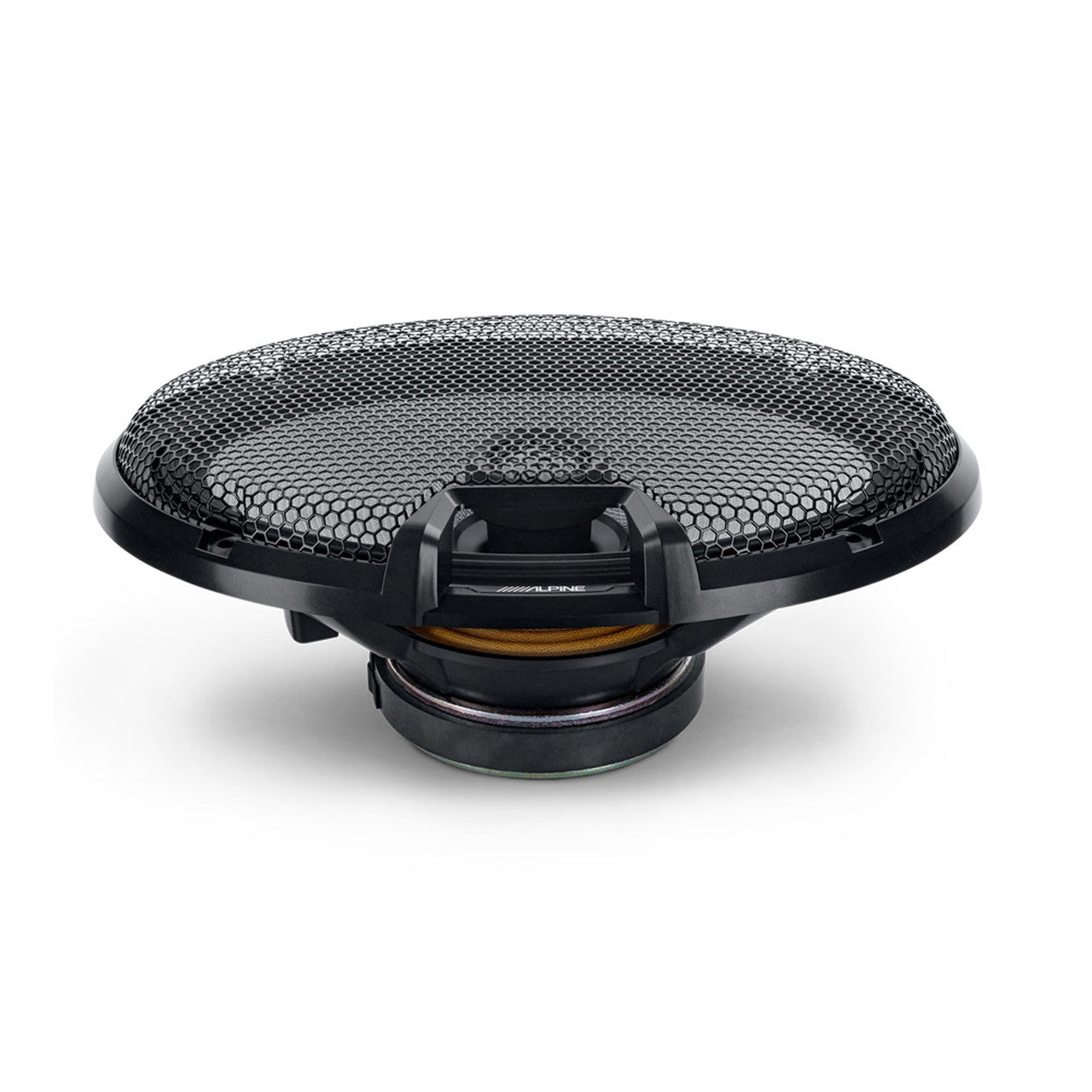

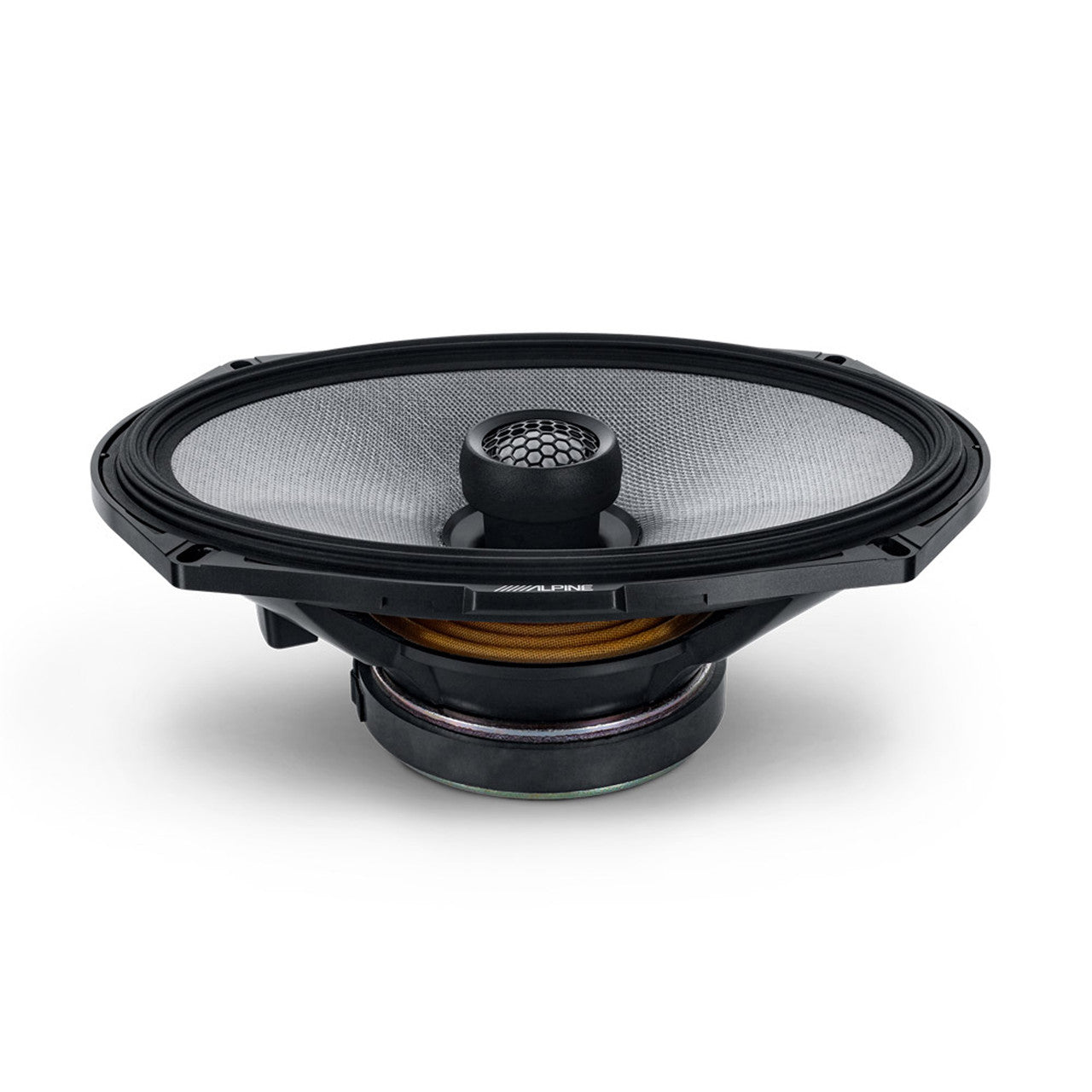

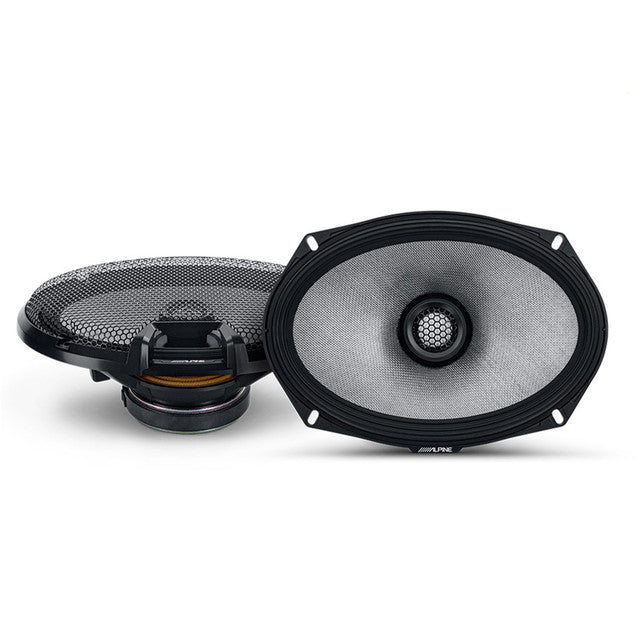

1x Alpine R2-S69 6x9" R-Series High-Resolution Coaxial Speakers, Pair - (R2-S69)

If you play your music loud and want others to know, the R-Series speakers are the match for you. You’ll enjoy a center sound stage with speakers that play loud and clear without distortion. The R-Series speakers are tuned with an emphasis on the high- and low-end frequencies, so they deliver power while naturally producing bright, active sound. They are the perfect power and performance match for the R-Series subwoofers and amplifiers.

The all-new 2022 line-up of R-Series speakers are all Hi-Res Audio certified and feature a frequency response up to 40kHz. For the first time, the R-Series line includes a 3-way system and you can even choose from a Professional and Standard speaker line.

6x9” 2-Way Component Speaker -
The R2-S69C is the 6x9” 2-Way model of the new 2022 R-Series speaker line-up. It features a 16 x 24cm door woofer and a 4,3cm tweeter with up to 40kHz frequency response.

Glass-Fiber Reinforced Cone -
The door woofer features an all-new glass-fiber reinforced cone. This material is very stiff and extremely light-weight, resulting in a super-fast response and highly accurate music reproduction.

Features -
• 16 x 24cm (6x9”) Door Woofer (2pcs) / 4,3cm Hard-Dome Tweeter (2pcs)
• Composite Baskets (Door Woofer)
• Magnesium Hard-Dome Tweeters (Flush-Mount / On-Dash Mounting Options)
• Glass-Fiber Reinforced Cone (Door Woofer)
• High-Pass X-Over Networks
• Included Speaker Grills

Specifications -
• Maximum Peak Power: 300 Watts
• Maximum RMS Power: 100 Watts
• Nominal Impedance: 4 Ohm
• Frequency Response: 65Hz-40kHz
• Sensitivity: 88dB SPL (1W @ 1m)
• Woofer Mounting Depth: 7,6cm
• Woofer Cutout Diameter: 14,9 x 22cm
