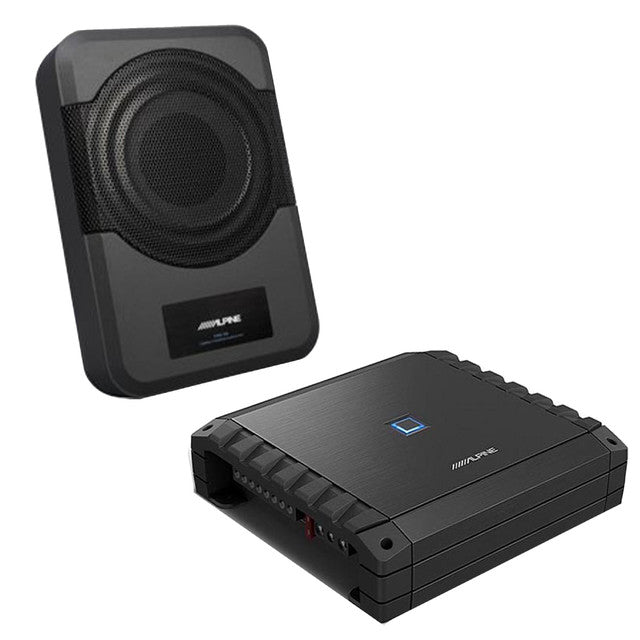

Alpine PWE-S8 Compact 8-Inch Powered Subwoofer System & S2-A36F S-Series Class-D 4-Channel Amp Bundle

Product details

This bundle includes an Alpine PWE-S8 Compact Powered 8" Subwoofer System, and an Alpine S2-A36F S-Series Class-D 4-Channel Amplifier, Hi-Res Certified, 60W x 4 @ 4 Ω, 90W x 4 @ 2 Ω.

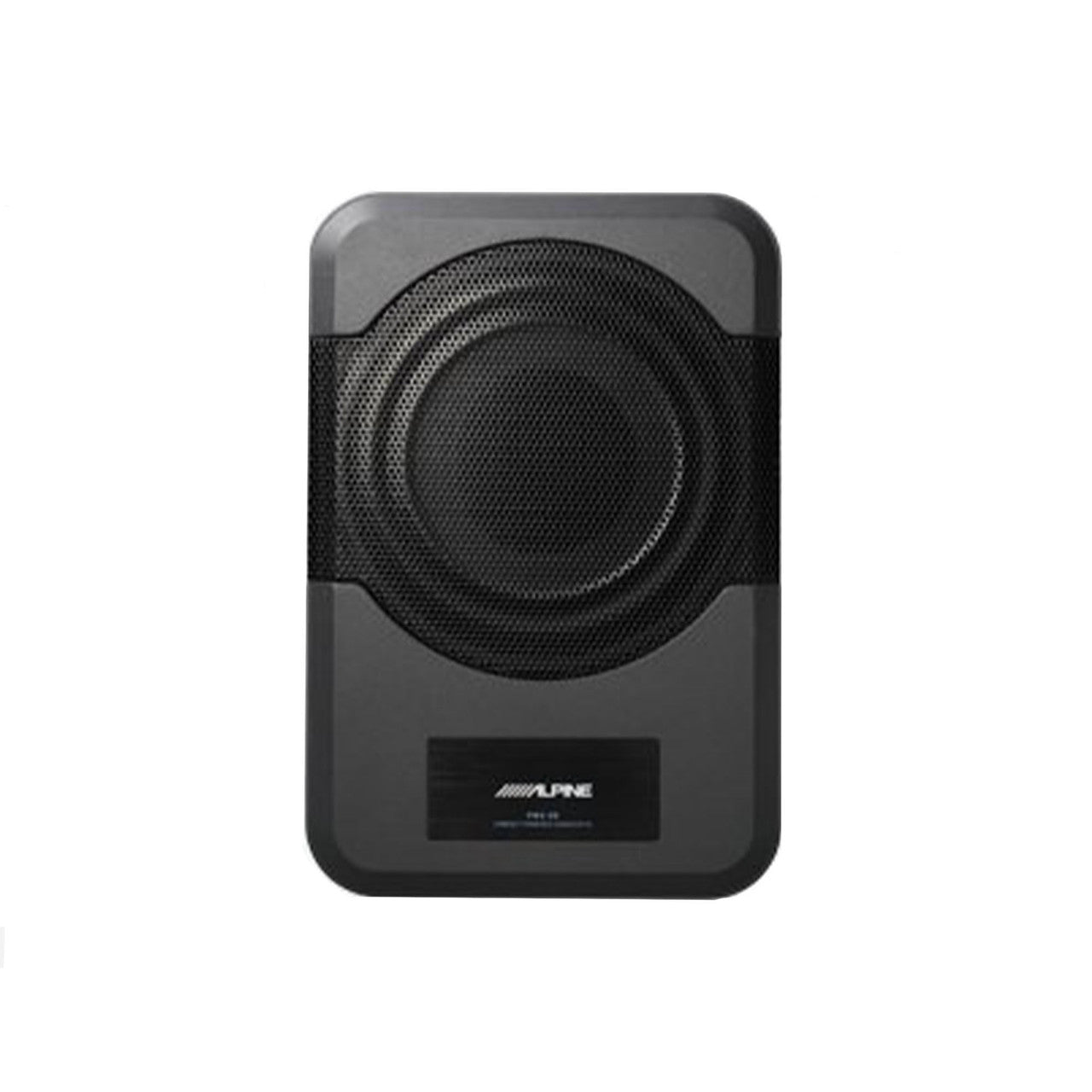

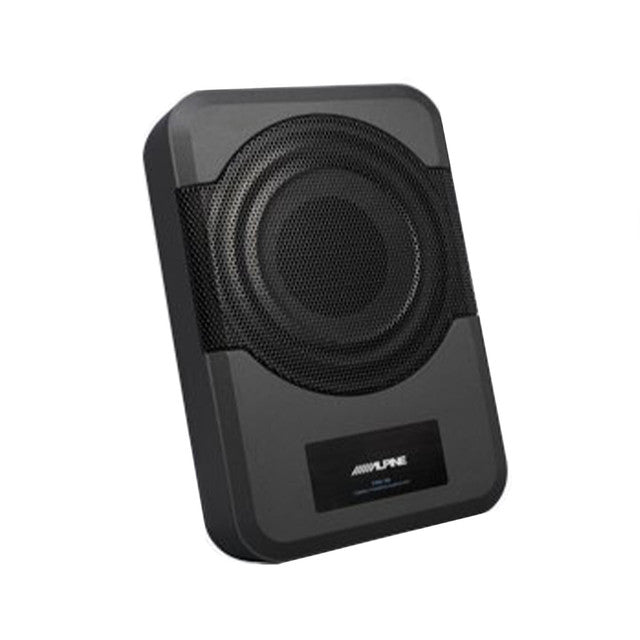

1x Alpine PWE-S8 Compact Powered 8" Subwoofer System - (PWE-S8)

Compact Powered 8-inch Subwoofer
PWE-S8 8-inch High-Performance Quad-Coil Subwoofer

SOMETIMES, POWERFUL THINGS COME IN SMALL PACKAGES
The compact PWE-S8 amplified subwoofer system lets you add deep, accurate bass to your sound system without taking up much space in your vehicle

Small Footprint With A Strong Presence
With the PWE-S8, the high-excursion 8-inch subwoofer and 120W gives strong bass output.

More Bass, Less Space
With a shallow mount, the PWE-S8 is just 3-inches deep (at deepest point), 13.5-inches wide and 9-inches tall - completely application ready. This compact subwoofer system works well under or behind the seat of a pickup truck, in a sedan trunk, or in the hatch of an SUV.

Not Just Small And Strong, But Also Durable
The PWE-S8 Compact Subwoofer was designed in a cast metal construction for ultimate durability and performance.

Accessibility Catered To You

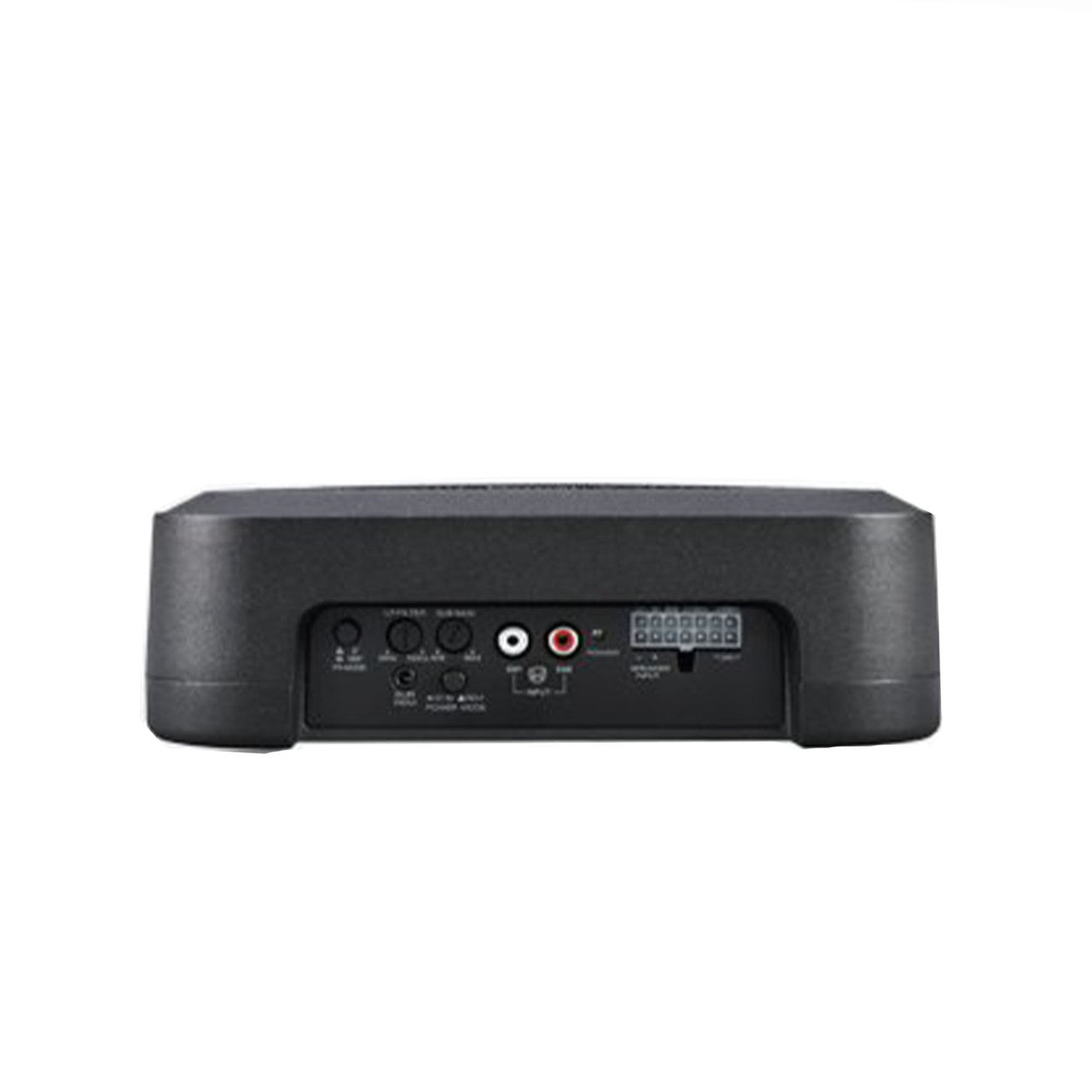

The side panel offers easy access to RCA and auto-sensing speaker inputs. The side panel also gives access to Phase, Gain, LP Crossover and Remote Sub Level controls for greater flexibility during installation.

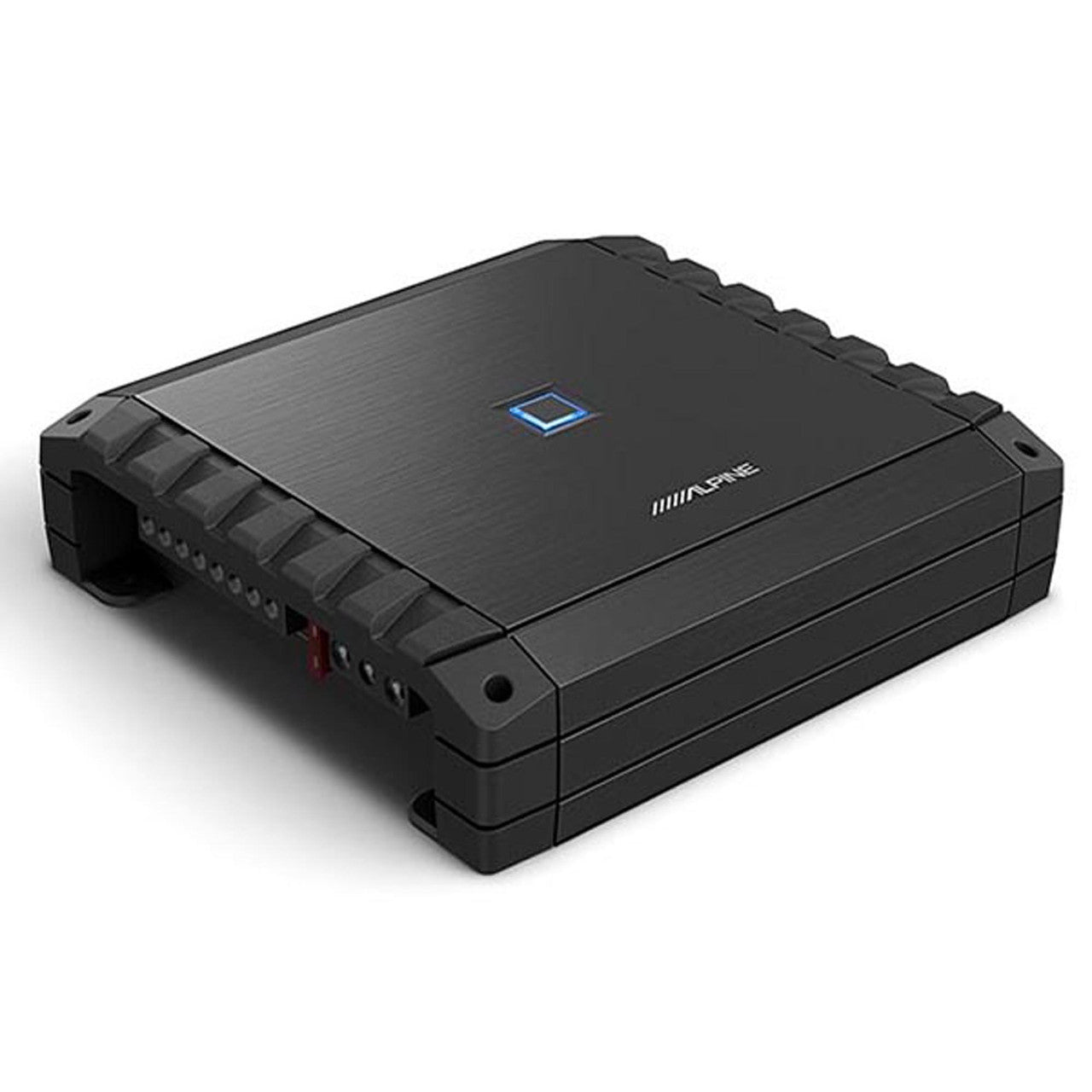

1x Alpine S2-A36F S-Series Class-D 4-Channel Amplifier, Hi-Res Certified, 60W x 4 @ 4 Ω, 90W x 4 @ 2 Ω - (S2-A36F)

Entry-level sound just got elevated with the S2-A36F 4-Channel Amplifier. Its sleek redesign houses an Alpine Class D Amplifier Circuit and is now certified for Hi-Res Audio Playback.

Hi-Res Audio - The Next-Gen Alpine S-Series S2-A36F 4-Channel Amplifier is Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth coupled with the elevated S-Series design brings out a new benchmark for entry-level performance and price.

Mid-Bass EQ – With its new and unique variable Mid-Bass EQ Circuit, the S2-A36F allows you to dial in the mid-bass impact as desired, making it an ideal choice for those seeking a more dynamic and powerful audio experience.

Flexible Application - The Next-Gen S-Series Amplifiers now feature a new selectable remote turn-on circuit, a three-position switch that ensures the amplifier turns on and off at the proper times. This design is crucial with newer, in-vehicle technology and allows for proper integration with any factory or aftermarket system.

MAIN FEATURES
• Hi-Res Audio Certified (Up to 40kHz)
• 4-Channel Amplifier
• Alpine’s Class D Amplifier Circuit
• Two-sided terminal layout
• Built-in Selectable/ Adjustable Crossovers
• Variable Mid-Bass EQ Circuit for more upper bass impact
• Optional Remote Bass Knob Compatible (required RUX-KNOB.2 or RUX-H01, sold separately

TECH SPECS
• Dimensions: 8.7” W x 2.25” H x 8.25” D
• Weight: 4 lbs, 13 oz
• Power Rating: 14.4V, < 0.1% THD +N
• Power Output: 60W RMS x 4 @ 4Ω, 90W RMS x 4 @ 2Ω
• Bridged Power: 180W RMS x 2 @ 4Ω
• S/N Ratio: >83dB
• Frequency Response: 20Hz – 40kHz
• Damping Factor: >100

What's in the Box:
• (1) S2-A36F 4-Channel Amplifier
• (2) Connection end covers w/4 attachment screws
• Owner’s Manual
• “Birth Sheet” that certifies by measurement the actual power of the amplifier in the box
• (4) Self-tapping screws
• (1) Hexagon wrench
• Alpine Registration Card
• Alpine Limited Warranty Sheet
• Tips sheet for power supply wire connections
