Alpine PXE-C60-60 Optim6 6-Ch. Processor w/ R2-A60F 4Ch. Amp Bundle

Product details

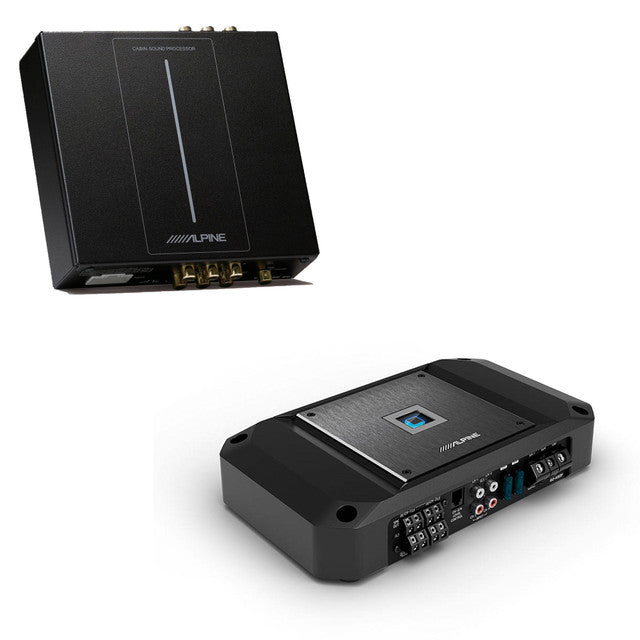

This bundle includes an Alpine PXE-C60-60 Optim6 6-Channel Hi-Res Sound Processor with Automatic Sound Tuning, and an Alpine R2-A60F R-Series 4-Channel Amplifier - 150W x 4 at 2-Ohm, Hi-Res Certified.

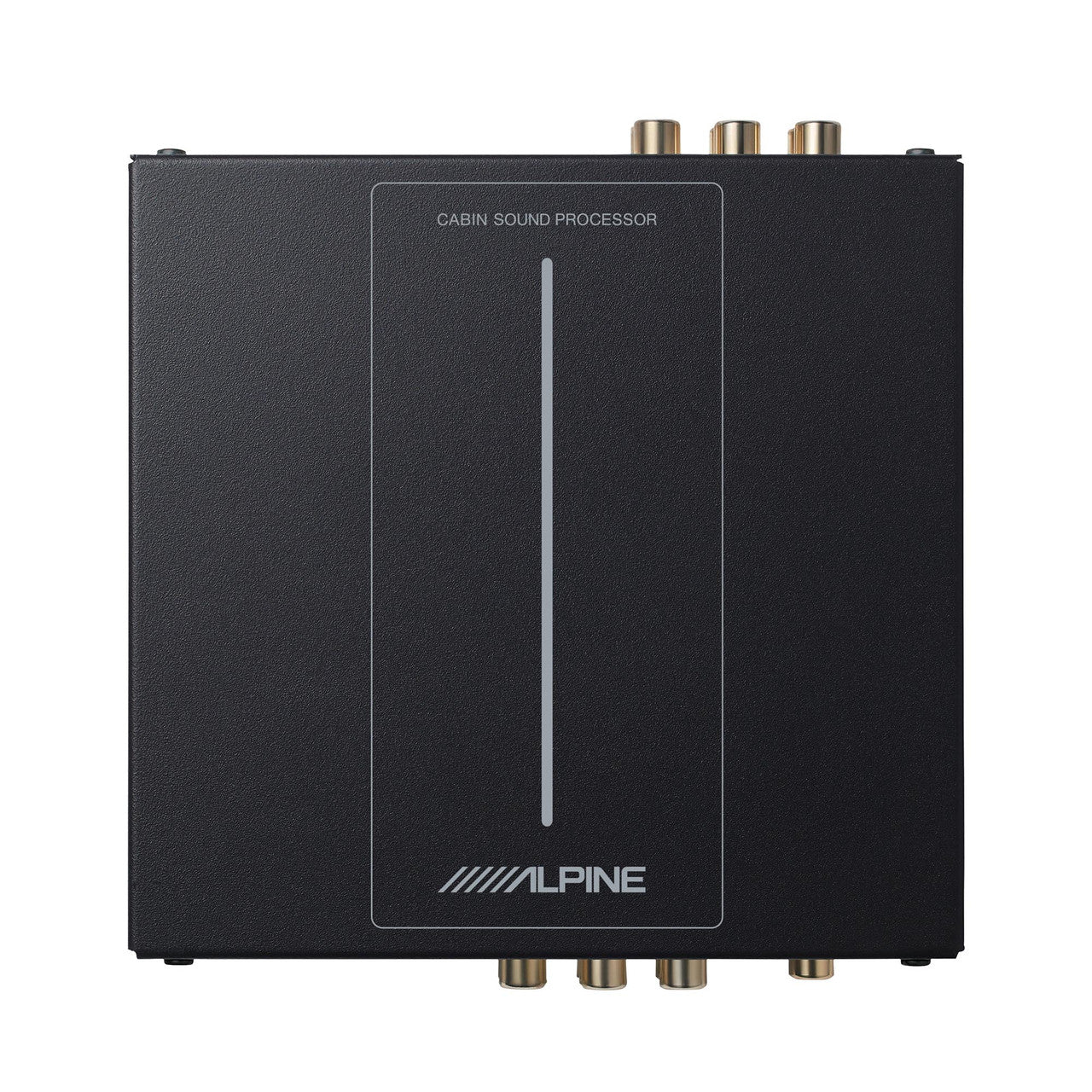

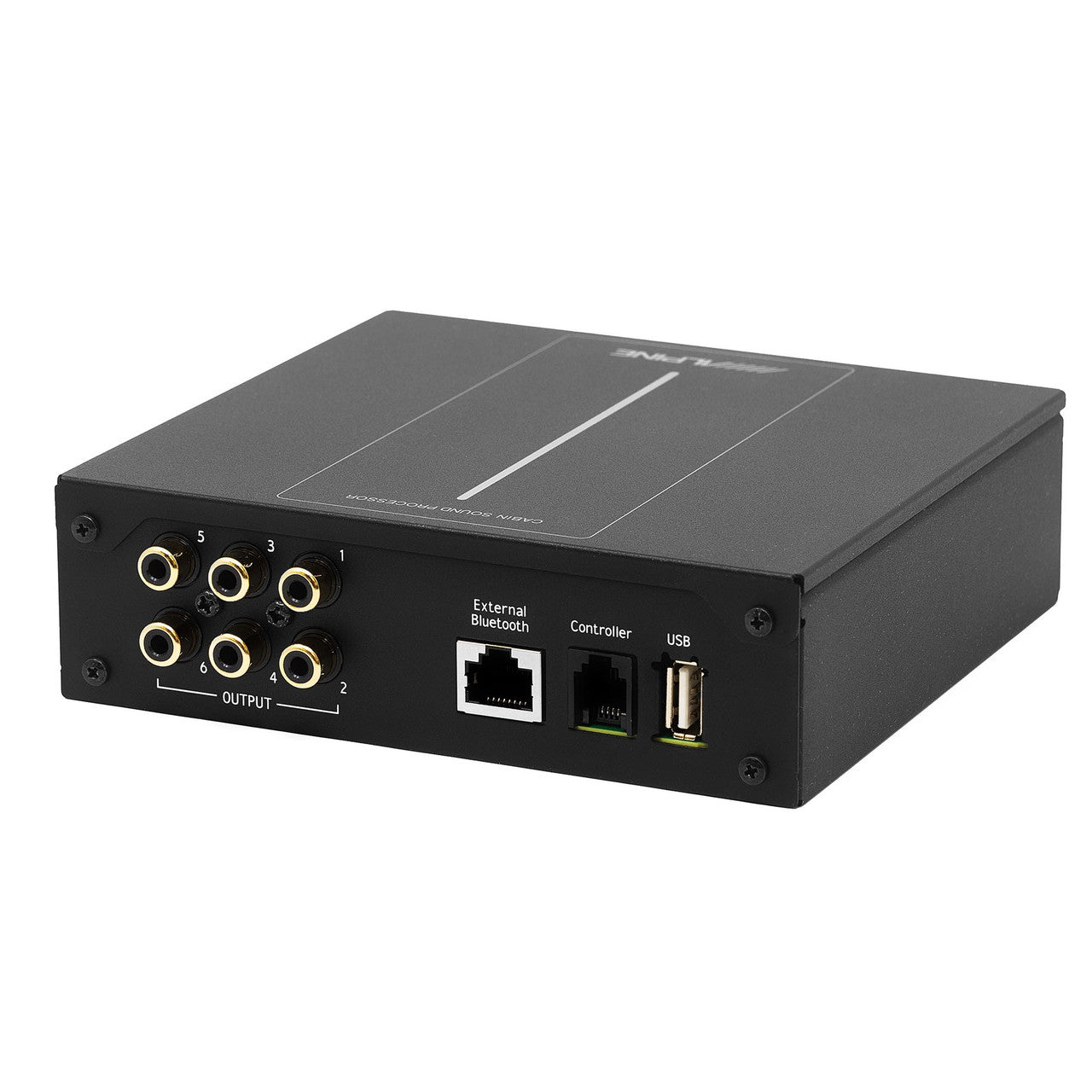

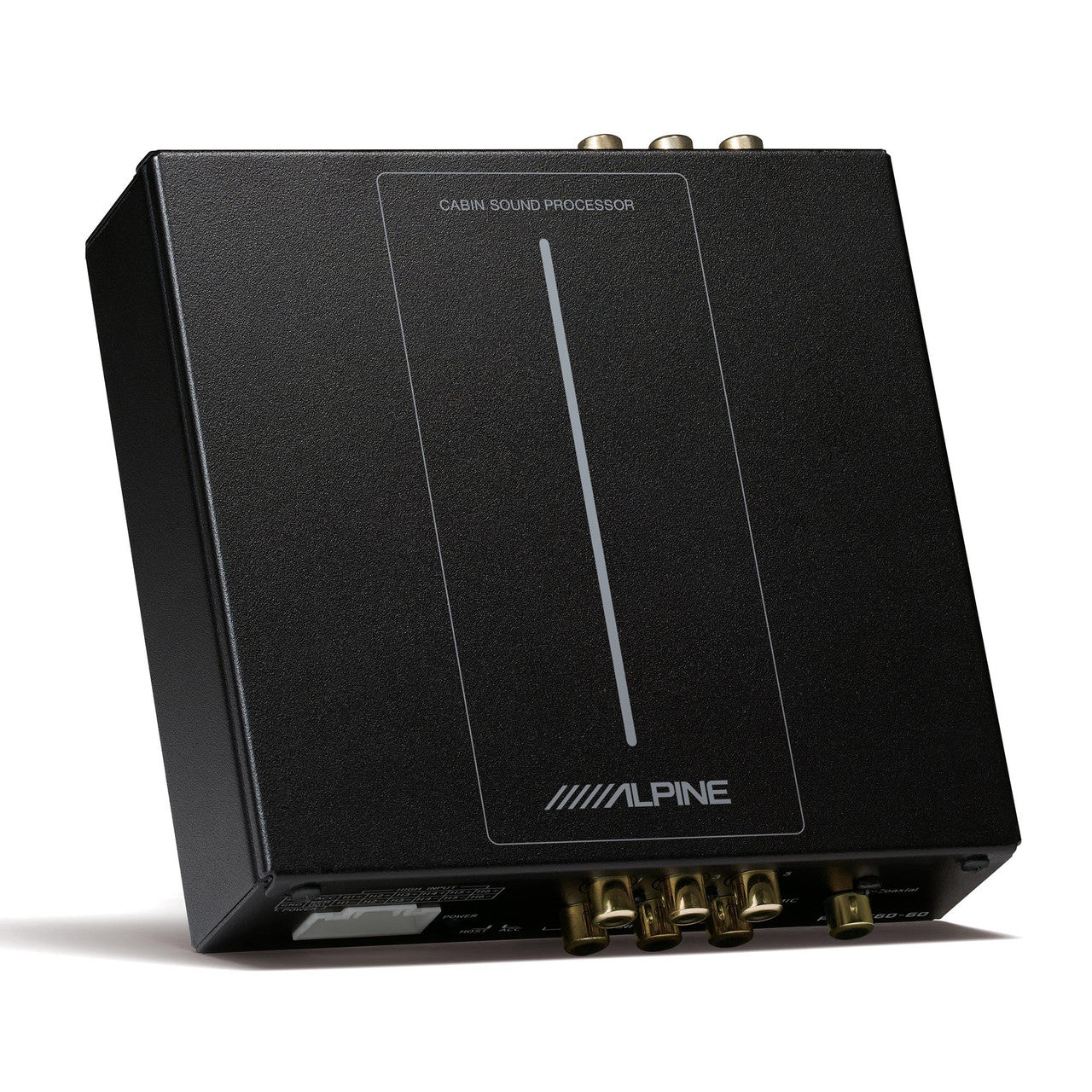

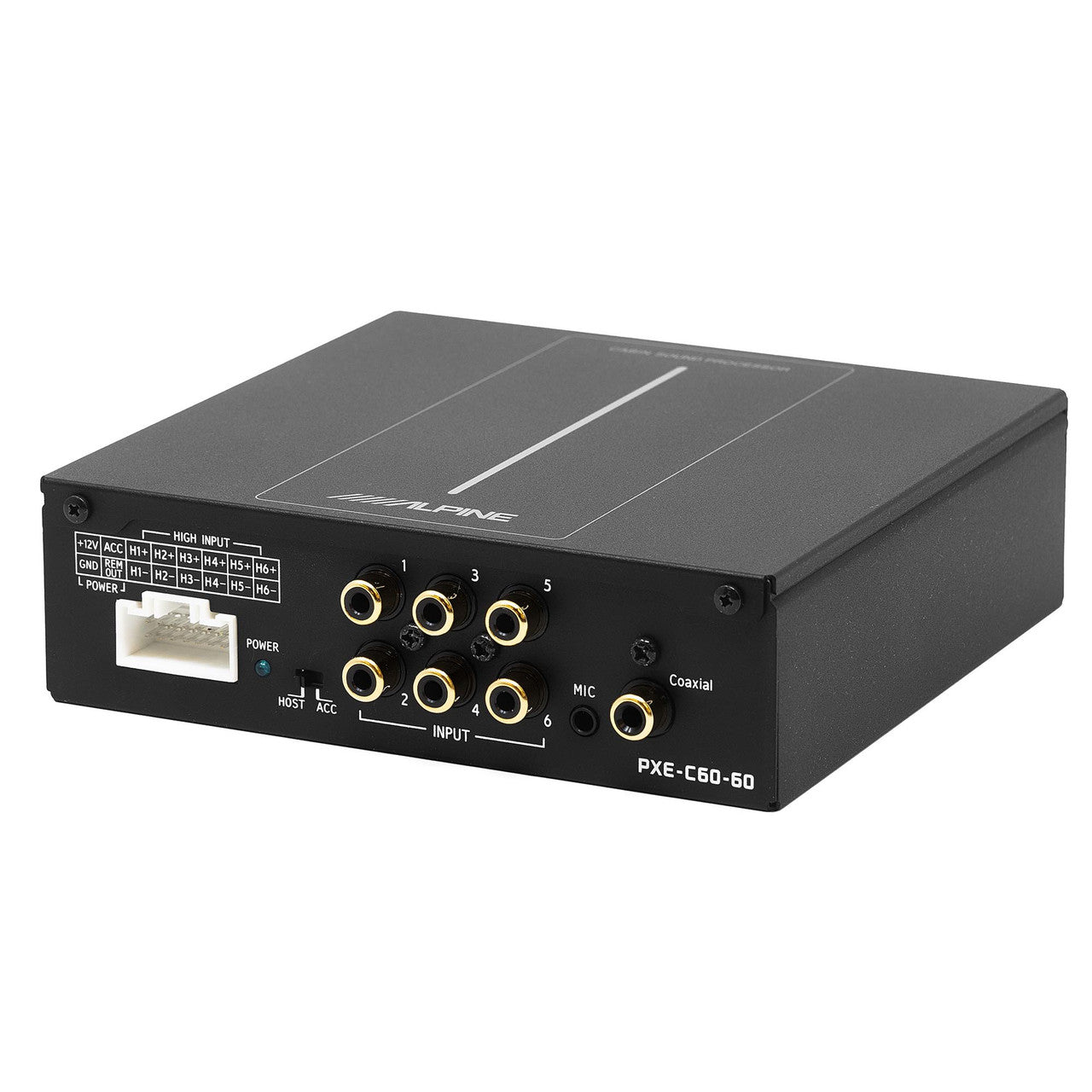

1x Alpine PXE-C60-60 Optim6 6-Channel Hi-Res Sound Processor with Automatic Sound Tuning - (PXE-C60-60)

Unleash the hidden potential of any sound system with the Alpine OPTIM™6. This 6-channel sound processor is the ultimate tool to effortlessly measure, correct, and fine-tune your audio in minutes.

The Alpine OPTIM™6 removes all the complexities of tuning a sound system by providing a simple, self-guided process via the OPTIM IOS App (iPhone/iPad) or PC App with the KTX-CSP1 External Mic kit (sold separately) to quickly and precisely measure your vehicle's interior. This innovative Auto-EQ software analyzes your vehicle’s acoustic environment and intelligently adjusts to optimize the audio output for your vehicle and provide the best possible listening experience.

Tune your system in real-time using tuning tools like crossover adjustments and time correction to create an experience that’s tailored to your ideal listening position or music genre preference. Use any of the six included presets to save your favorite tuning adjustments and access on the fly using the included OPTIM™6 controller.

MAIN FEATURES & SPECS
• Hi-Res Audio Playback (96kHz/24Bit)
• Intuitive Realtime Sound Set-Up with 5 Minute Self-Tuning
• Manual & Automatic Sound Tuning with PC App Control
• Automatic Sound Tuning with iPhone App
• Anti-EQ for OEM System (Eliminates Factory EQ Curve)
• Auto-EQ with APVD Collection (Creates a Flat Vehicle Response)
• 31-Band Parametric and Graphic EQ
• Outputs: 6-Channel 4V RCA
• Digital Inputs: Coax, USB (DAC)
• Speaker Input: Up to 30V
• Optional Microphone and AUX Cable (KTX-CSP1) for PC Tuning (Sold Separately)

1x Alpine R2-A60F R-Series 4-Channel Amplifier - 150W x 4 at 2-Ohm, Hi-Res Certified - (R2-A60F)

Tried, tested, and true, the Alpine R-Series system has only gotten better over time. With a line-up that’s capable of achieving High-Resolution Playback, without compromising the “Loud and Fun” performance of its heritage, R-Series proves that legends never die.

IMPRESSIVE POWER
A full amplifier lineup that boasts impressive power, yet compact in size, makes the R-Series amplifiers a powerhouse in performance.

Features
High efficiency digital circuit design
Selectable Input Level
Variable High Pass / Low Pass / Band Pass Crossover
Selectable Auto Turn-on with Remote Sensing
Remote Level Control Ready

Specifications:
Performance:
Power Output: Per Channel, Ref: 4 Ohms, 14.4 V: 100 W RMS x4; Per Channel, Ref: 2 Ohms, 14.4 V: 150 W RMS x 4; Bridged, Ref: 4 Ohms, 14.4 V: 300 W RMS x 2
THD+N: Ref: 10 W into 4 Ohms: ≤0.04%; Ref: 10 W into 2 Ohms: ≤0.06%; Ref: Rated Power into 4 Ohms: ≤0.5%; Ref: Rated Power into 2 Ohms: ≤ 1.0%
S/N Ratio: IHF A-wtd + AES-17, Ref: 1 W into 4 Ohms: >80 dB; IHF A-wtd + AES-17, Ref: Rated power into 4 Ohms: >100 dB
Frequency Response: +0/-3 dB, Ref: 1 W into 4 Ohms: 10 kHz - 45 Hz;+0/-1 dB, Ref: 1 Watt into 4 Ohms: 20Hz - 20 kHz
Damping Factor: Ref: 10 W into 4 Ohms at 100 Hz >100

Control:
Input Select: Selectable Input Signal Configuration (2ch/4ch Input): CH-3/4: Ch-1/2 or CH-3/4
Input Selectivity: RCA Input, Ref: Rated power into 4 Ohms: Hi: 0.5-10V, Lo: 0.2 - 4.0V
Crossover: Variable HPF/LPF/HPF-H: CH-1/2: HPF/LPF: 50 Hz - 400Hz (-12 dB/oct.)/HPF-H: 400 Hz-6 kHz; Variable HPF/LPF/BPF: CH-3/4: HPF/LPF/BPF-L: 50 Hz -400 Hz, BPF-H: 400 Hz - 6 kHz
Remote Level (Requires Optional RUX-KNOB.2): Linear Attenuation: CH-3/4: 0 to 20 dB

General:
Input Impedance: >10 kOhms
Dimensions (WxHxD): 282 mm (11-1/8") x 55 mm (2-3/16") x 165 mm (6-1/2")
Weight: 3.3 kg (7 lbs 3 oz)
