Alpine PXE-C80-88 OPTIM8 8-Channel Hi-Res Digital Sound Processor Amplifier w/ S-DB8V-TRK Dual 8” Preloaded Truck Sub Enclosure & S2-S80C 8" Comp.

Product details

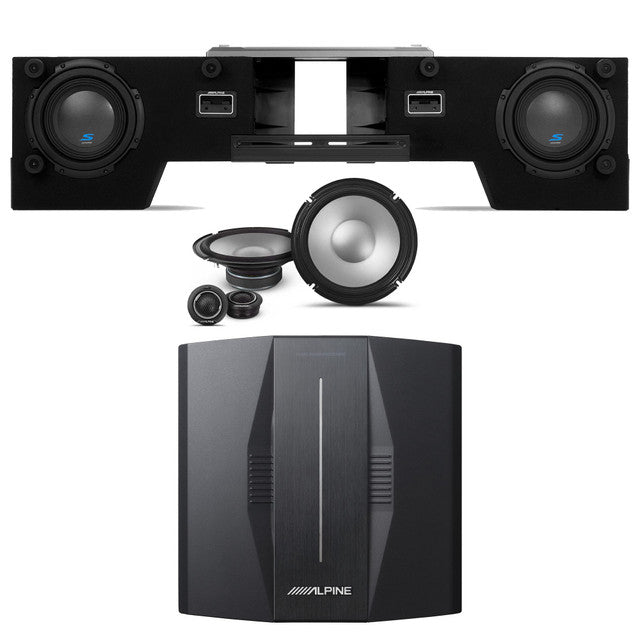

This bundle includes an Alpine PXE-C80-88 OPTIM8 8-Channel Hi-Res Digital Sound Processor Amplifier - 50W x 6 @ 2Ω + 300W x 2 @ 2Ω, an Alpine S-DB8V-TRK Dual 8” Alpine Halo S-Series Preloaded Truck Subwoofer Enclosure, and an Alpine S2-S80C - Next-Generation S-Series 8" Component Speaker Set.

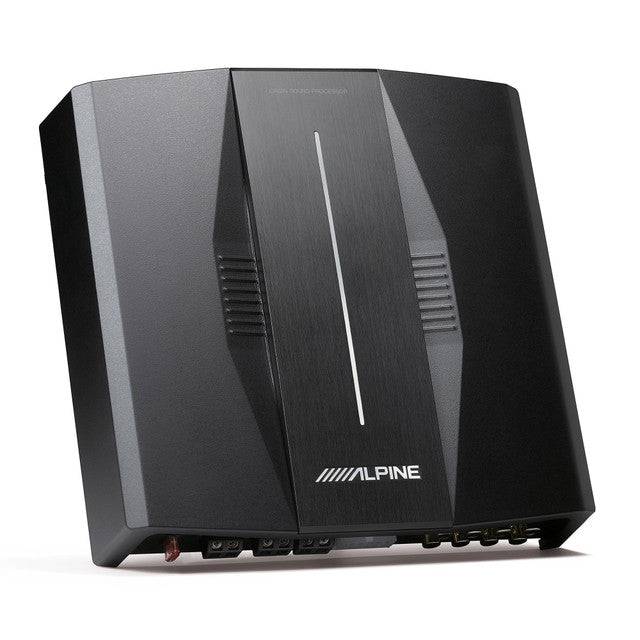

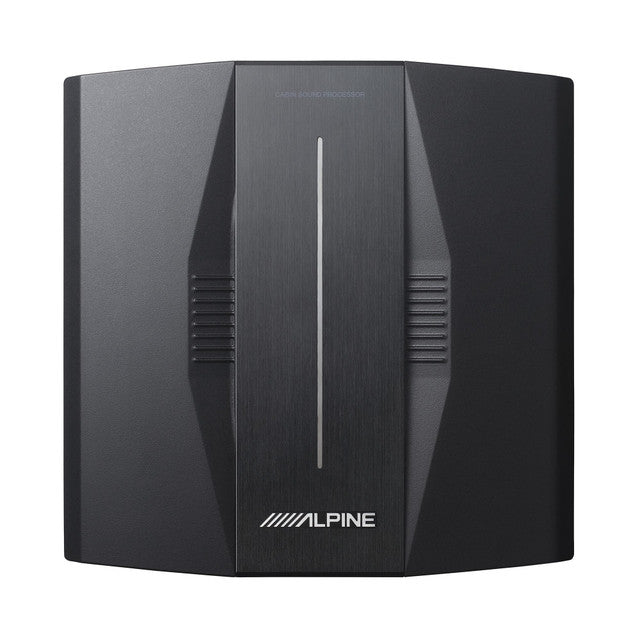

1x Alpine PXE-C80-88 OPTIM8 8-Channel Hi-Res Digital Sound Processor Amplifier - 50W x 6 @ 2Ω + 300W x 2 @ 2Ω - (PXE-C80-88)

All-in-one Solution – With a built-in internal 8-channel amplifier and High Resolution processing (96kHz/24Bit), the Alpine Optim8™ is the all-in-one solution to amplify and sound tune a factory or aftermarket head unit.

Real-Time Sound Tuning – The Alpine Optim8™ features automatic sound tuning through PC App or IOS App for the iPhone that guides users through quick and simple measurements of their factory or aftermarket sound system. Guided motions on the app instruct the user where to place the external microphone (KTX-CSP1 Tuning Microphone for PC, sold separately) or built-in mic on the iPhone in the front cabin of the vehicle for accurate measurements.

Hi-Res Sound – The Optim8™ uses a Variable-Resolution Impulse Response (VIR) that features a wide bandwidth for High-Resolution audio (10Hz – 48kHz @ 96kHz), making it the ideal product for High-Resolution systems. VIR filters also use lower MIPS (millions of instructions per second) for increased speed and accuracy in tuning.

MAIN FEATURES & SPECS
• Hi-Res Audio Playback (96kHz/32Bit)
• Built-in 8-Channel Amplifier (50W x 6 @ 4Ω + 150W x 2 @4Ω or 50W x 6 @2Ω + 300W x 2@ 2Ω)
• Intuitive Realtime Sound Set-Up with 5 Minute Self-Tuning
• Manual & Automatic Sound Tuning with PC App Control
• Automatic Sound Tuning with iPhone App
• Anti-EQ for OEM System (Eliminates Factory EQ Curve)
• Auto-EQ with APVD Collection (Creates a Flat Vehicle Response)
• 31-Band Parametric and Graphic EQ
• Outputs: 8-Channel 4V RCA
• Digital Inputs: Coax, USB (DAC)
• Speaker Input: Up to 30V
• Optional Microphone and AUX Cable (KTX-CSP1) for PC Tuning (Sold Seperately)

1x Alpine S-DB8V-TRK Dual 8” Alpine Halo S-Series Preloaded Truck Subwoofer Enclosure - (S-DB8V-TRK)

From towing to travel, you depend on your truck to get you where you want to go, but can you rely on getting the best performance from your sound system? Now you can add deep, accurate bass in your truck without compromising valuable cabin space with the new S-DB8V-TRK Dual 8” Alpine Halo S-Series Preloaded Truck Subwoofer Enclosure with ProLink™.

Features:
Designed for Trucks – These enclosures were designed to fit under the back seat of most full-size trucks. Two 8” subwoofers are preloaded into the compact enclosure and linked with a ProLink™ bracket that can be adjusted from 40” to 51” for a wide range of applications.
Integrated Amp Tray – Centered on the enclosures is an integrated amplifier mount tray that’s optimized for Alpine Mono-Power Amplifiers (sold separately).
Reliable Performance – The ported subwoofer enclosures feature Alpine’s reliable 8” S-Series subwoofers. The subwoofers are designed with an improved voice coil that brings out the full potential of the subwoofer.
Alpine Halo Design – The enclosure pulls design cues from the Alpine Halo Display with unique, curved edges outlined by a silver trim and a front link bracket cover with an Alpine logo badge.

TECH SPECS:
• Dimensions: 40”-51” (W) x 8-3/4” (H) x 13-3/4” (D)
• Power Range: 300W - 600W
• Power Handling: 600W
• Frequency Response: 34Hz-200Hz
• Vented Enclosure Tuning Frequency: 36Hz
• Sensitivity: 84dB
• Dual voice coils Wired in Parallel for a 2Ω Load
• Custom speaker terminals fit up to 12AWG speaker wire

WHAT’S IN THE BOX
• Two subwoofer enclosures preloaded with two S-W8D2 8” S-Series Subwoofers
• Front and rear ProLink™ brackets
• Alpine front logo cover
• Two amplifier tray brackets
• Owner’s Manual

OPTIMIZED FITMENT
• 2018-Up RAM 1500 (Crew Cab)
• 2015-Up Ford F-150 (Crew Cab)
• 2018-Up GMC Sierra (Crew Cab)
• 2018-Up Chevrolet Silverado (Crew Cab)
• 2007-Up Jeep® Wrangler (JK/JL) and Jeep® Gladiator

1x Alpine S2-S80C - Next-Generation S-Series 8" Component Speaker Set - (S2-S80C)

Alpine S2-S80C - Next-Generation S-Series 8" Component Speaker Set

Newly redesigned and Hi-Res Audio Certified, the Next-Generation S-Series S2-S80C 8” Component Speakers offer a new standard in entry-level sound performance.

Hi-Res Certified – Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status system, the Next-Generation Alpine S-Series Speakers are now Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This new benchmark in sound quality elevates the Next-Gen S-Series Speakers resulting in a more accurate and natural sound at an entry-level price point.

Reliable Performance – Crafted with a unique combination of Poly Propylene, Glass Fiber, and Mica Cone materials, the S2-S80C is designed for lightweight construction, high output, and low distortion, giving you a clean and accurate audio experience.

HAMR Surround - Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology is integrated into the speaker design which allows for maximum cone movement, delivering powerful and accurate bass notes.

• Woofer Size: 8”
• Tweeter Size: 1” (Component)
• Maximum Peak Power: 260W
• Maximum RMS Power: 85W
• Frequency Response: 50Hz - 40kHz (Hi-Res)
• Hi-Res Audio Certified
• Poly Propylene, Glass Fiber, and Mica Cone Material
• High-Amplitude Multi-Roll (H.A.M.R.) Surround
• Included 1” Tweeters with Threaded Removable Housing
• OEM Fitment with In-Line Crossovers
