Alpine S2-A36F S-Series Class-D 4-Channel Amp w/ S2-S69 6x9" Coaxial & Grill Bundle

Product details

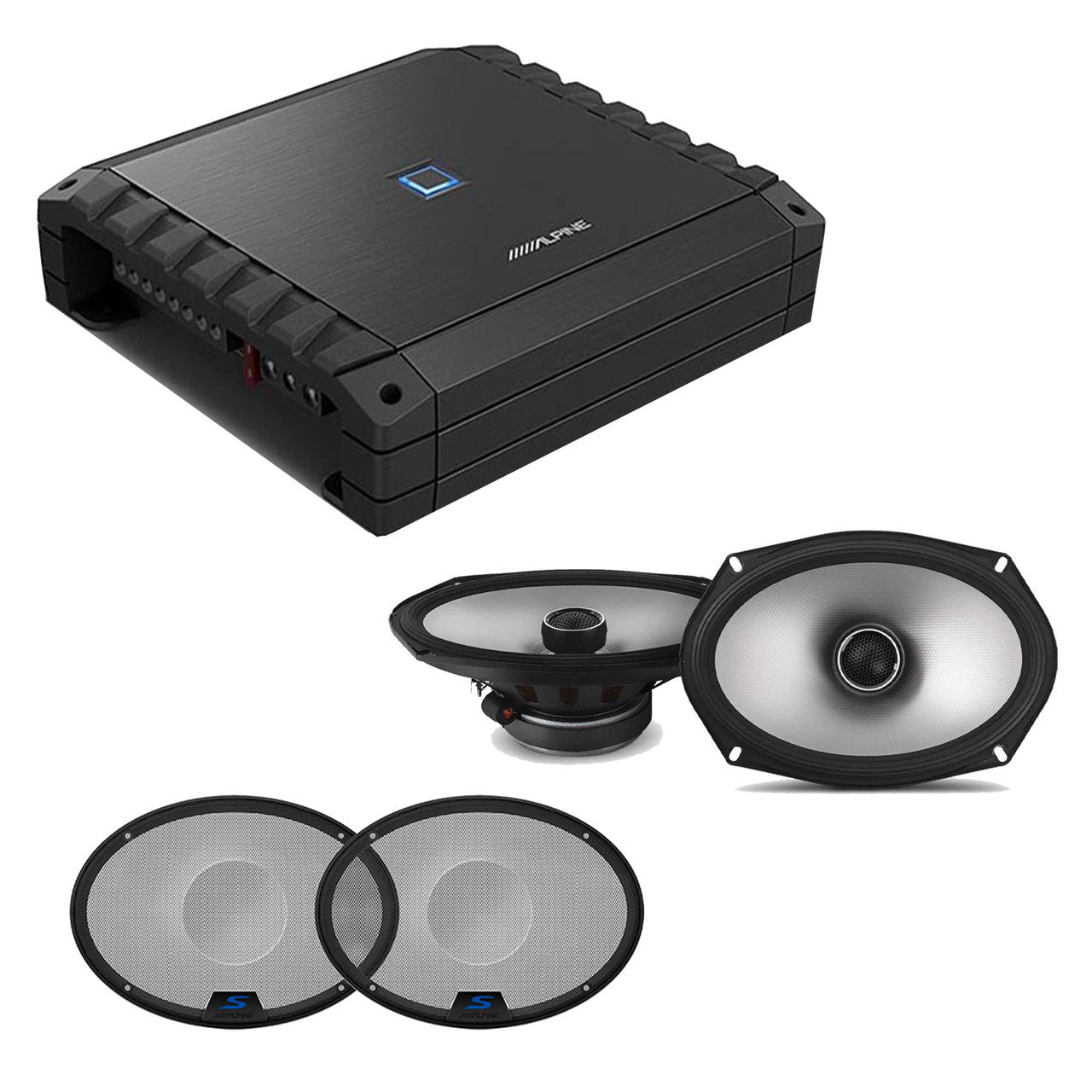

This bundle includes an Alpine S2-A36F S-Series Class-D 4-Channel Amplifier, Hi-Res Certified, 60W x 4 @ 4 Ω, 90W x 4 @ 2 Ω, an Alpine S2-S69 - Next-Generation S-Series 6x9" Coaxial Speaker Set, and an Alpine KTE-S69G 6x9" S-Series Speaker Grill.

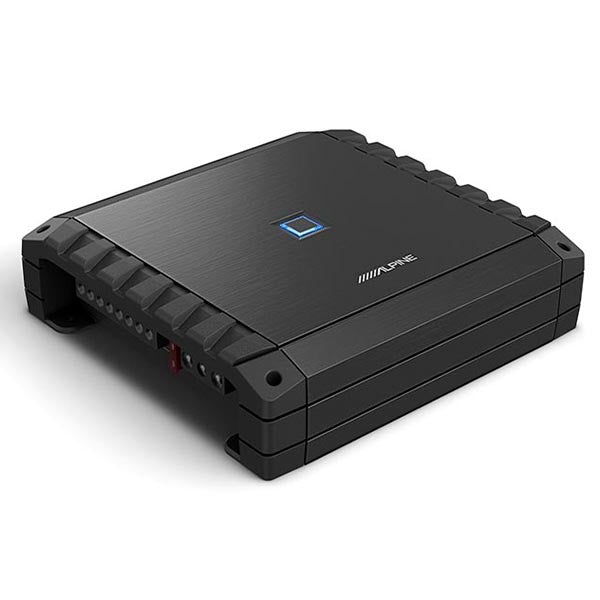

1x Alpine S2-A36F S-Series Class-D 4-Channel Amplifier, Hi-Res Certified, 60W x 4 @ 4 Ω, 90W x 4 @ 2 Ω - (S2-A36F)

Entry-level sound just got elevated with the S2-A36F 4-Channel Amplifier. Its sleek redesign houses an Alpine Class D Amplifier Circuit and is now certified for Hi-Res Audio Playback.

Hi-Res Audio - The Next-Gen Alpine S-Series S2-A36F 4-Channel Amplifier is Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth coupled with the elevated S-Series design brings out a new benchmark for entry-level performance and price.

Mid-Bass EQ – With its new and unique variable Mid-Bass EQ Circuit, the S2-A36F allows you to dial in the mid-bass impact as desired, making it an ideal choice for those seeking a more dynamic and powerful audio experience.

Flexible Application - The Next-Gen S-Series Amplifiers now feature a new selectable remote turn-on circuit, a three-position switch that ensures the amplifier turns on and off at the proper times. This design is crucial with newer, in-vehicle technology and allows for proper integration with any factory or aftermarket system.

MAIN FEATURES
• Hi-Res Audio Certified (Up to 40kHz)
• 4-Channel Amplifier
• Alpine’s Class D Amplifier Circuit

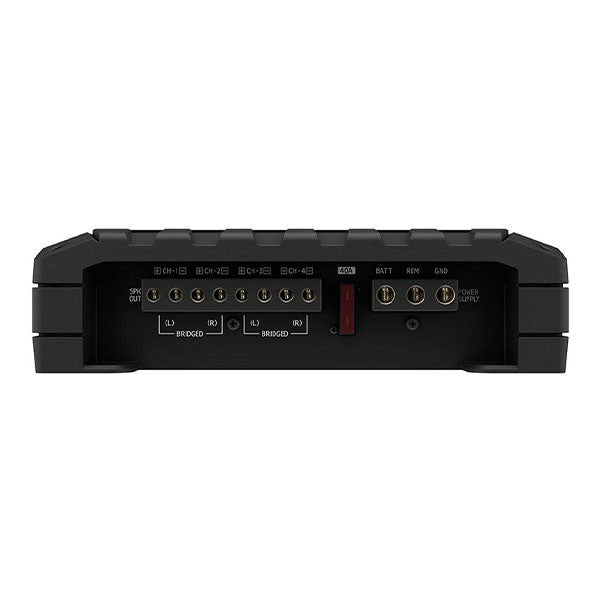

• Two-sided terminal layout
• Built-in Selectable/ Adjustable Crossovers
• Variable Mid-Bass EQ Circuit for more upper bass impact
• Optional Remote Bass Knob Compatible (required RUX-KNOB.2 or RUX-H01, sold separately

TECH SPECS
• Dimensions: 8.7” W x 2.25” H x 8.25” D
• Weight: 4 lbs, 13 oz
• Power Rating: 14.4V, < 0.1% THD +N
• Power Output: 60W RMS x 4 @ 4Ω, 90W RMS x 4 @ 2Ω
• Bridged Power: 180W RMS x 2 @ 4Ω
• S/N Ratio: >83dB
• Frequency Response: 20Hz – 40kHz
• Damping Factor: >100

What's in the Box:
• (1) S2-A36F 4-Channel Amplifier
• (2) Connection end covers w/4 attachment screws
• Owner’s Manual
• “Birth Sheet” that certifies by measurement the actual power of the amplifier in the box
• (4) Self-tapping screws
• (1) Hexagon wrench
• Alpine Registration Card
• Alpine Limited Warranty Sheet
• Tips sheet for power supply wire connections

1x Alpine S2-S69 - Next-Generation S-Series 6x9" Coaxial Speaker Set - (S2-S69)

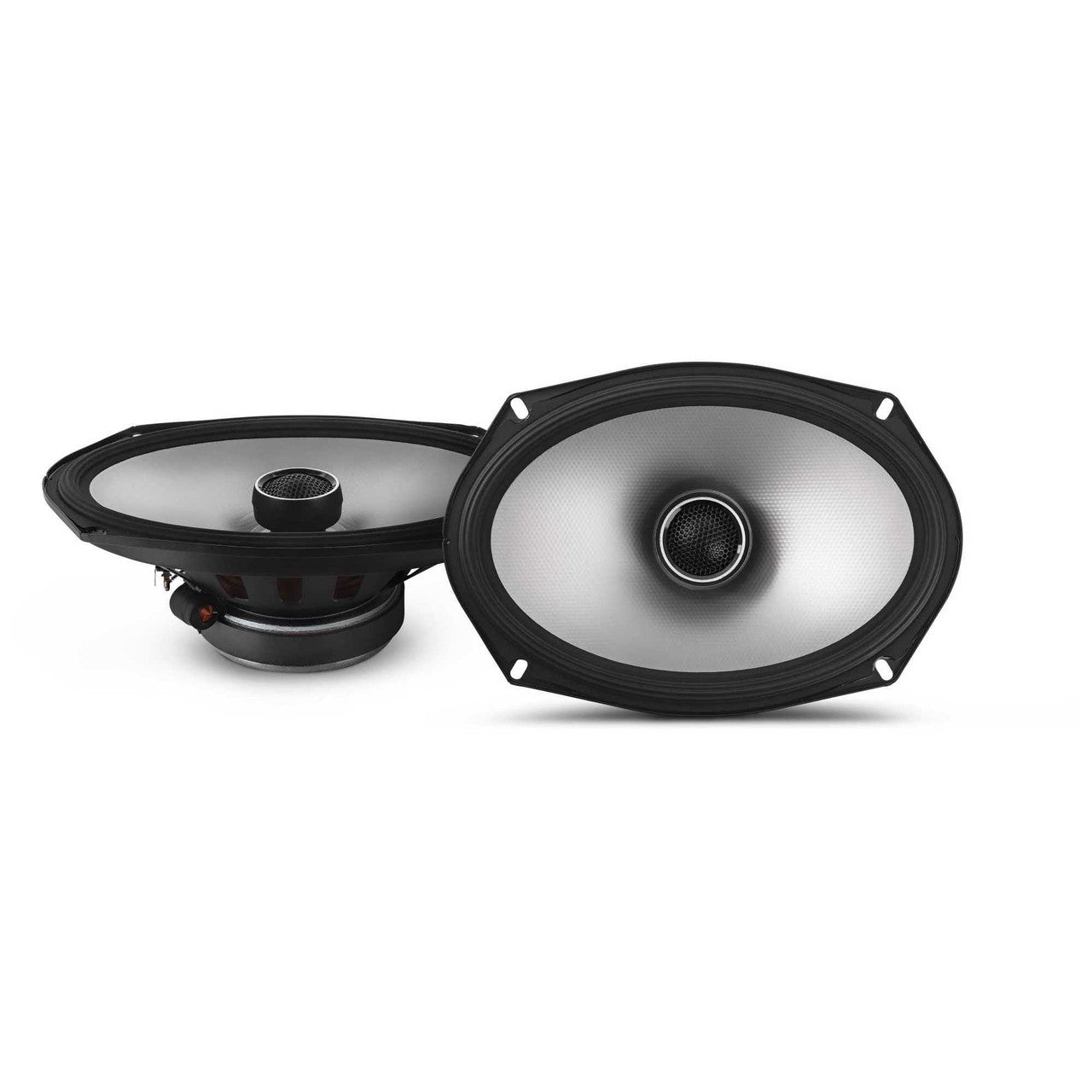

Alpine S2-S69 - Next-Generation S-Series 6x9" Coaxial Speaker Set

Newly redesigned and Hi-Res Audio Certified, the Next-Generation S-Series S2-S69 6x9” Coaxial Speakers offer a new standard in entry-level sound performance.

Hi-Res Certified – Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status system, the Next-Generation Alpine S-Series Speakers are now Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This new benchmark in sound quality elevates the Next-Gen S-Series Speakers resulting in a more accurate and natural sound at an entry-level price point.

Reliable Performance – Crafted with a unique combination of Poly Propylene, Glass Fiber, and Mica Cone materials, the S2-S69 is designed for lightweight construction, high output, and low distortion, giving you a clean and accurate audio experience.

HAMR Surround - Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology is integrated into the speaker design which allows for maximum cone movement, delivering powerful and accurate bass notes.

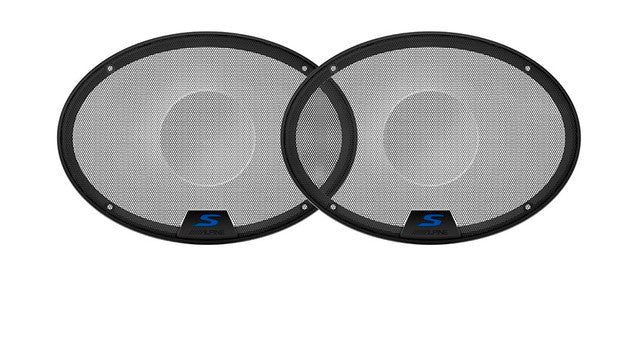

Protect Your Speaker - The S-Series S2-S69 is compatible with the KTE-S69G Speaker Grille (sold separately). This sleek and stylish grille will not only add a visual upgrade to your speakers but also provide protection against any damage.

• Woofer Size: 6x9”
• Tweeter Size: 1” (Coaxial)
• Maximum Peak Power: 260W
• Maximum RMS Power: 85W
• Frequency Response: 65Hz - 40kHz (Hi-Res)
• Hi-Res Audio Certified
• Poly Propylene, Glass Fiber, and Mica Cone Material
• High-Amplitude Multi-Roll (H.A.M.R.) Surround
• Integrated 1” Tweeters (Coaxial)
• Compatible with KTE-S69G Speaker Grille (sold separately)
