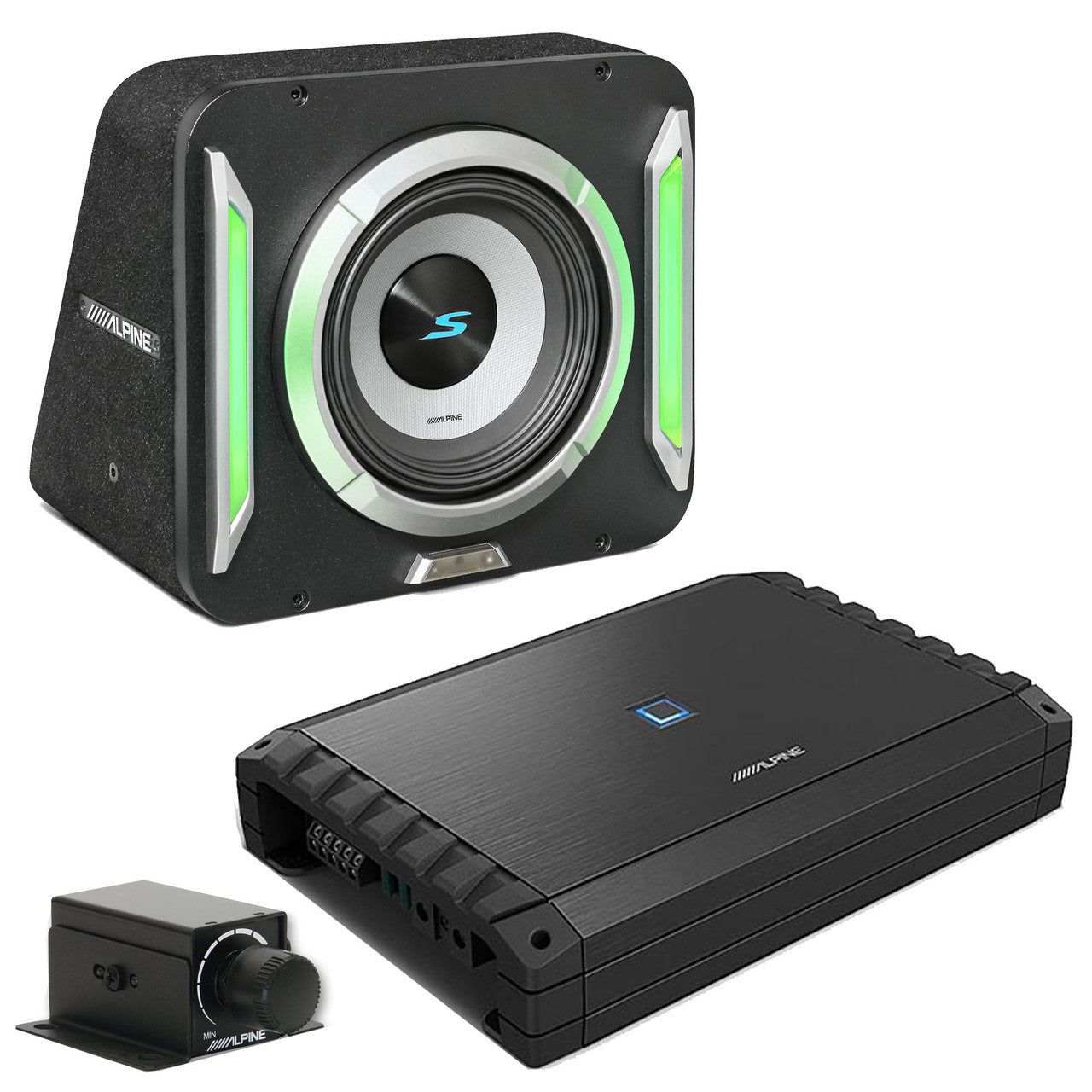

Alpine S2-A55V S-Series 5-Channel Amp / Rux Knob & S2-SB8 8" S-Series Halo PrismaLink Preloaded Subwoofer Wedge Enclosure w/ RGB Lighting

This bundle includes an Alpine S2-A55V S-Series Class-D 5-Channel Amplifier, Hi-Res Certified, 40W x 4 + 200W x 1 @ 4 Ω, 60W x 4 + 300W x 1 @ 2 Ω, an Alpine RUX-KNOB.2 Remote Bass Knob, and an Alpine S2-SB8 8" S-Series Halo PrismaLink Preloaded Subwoofer Wedge Enclosure with RGB Lighting.

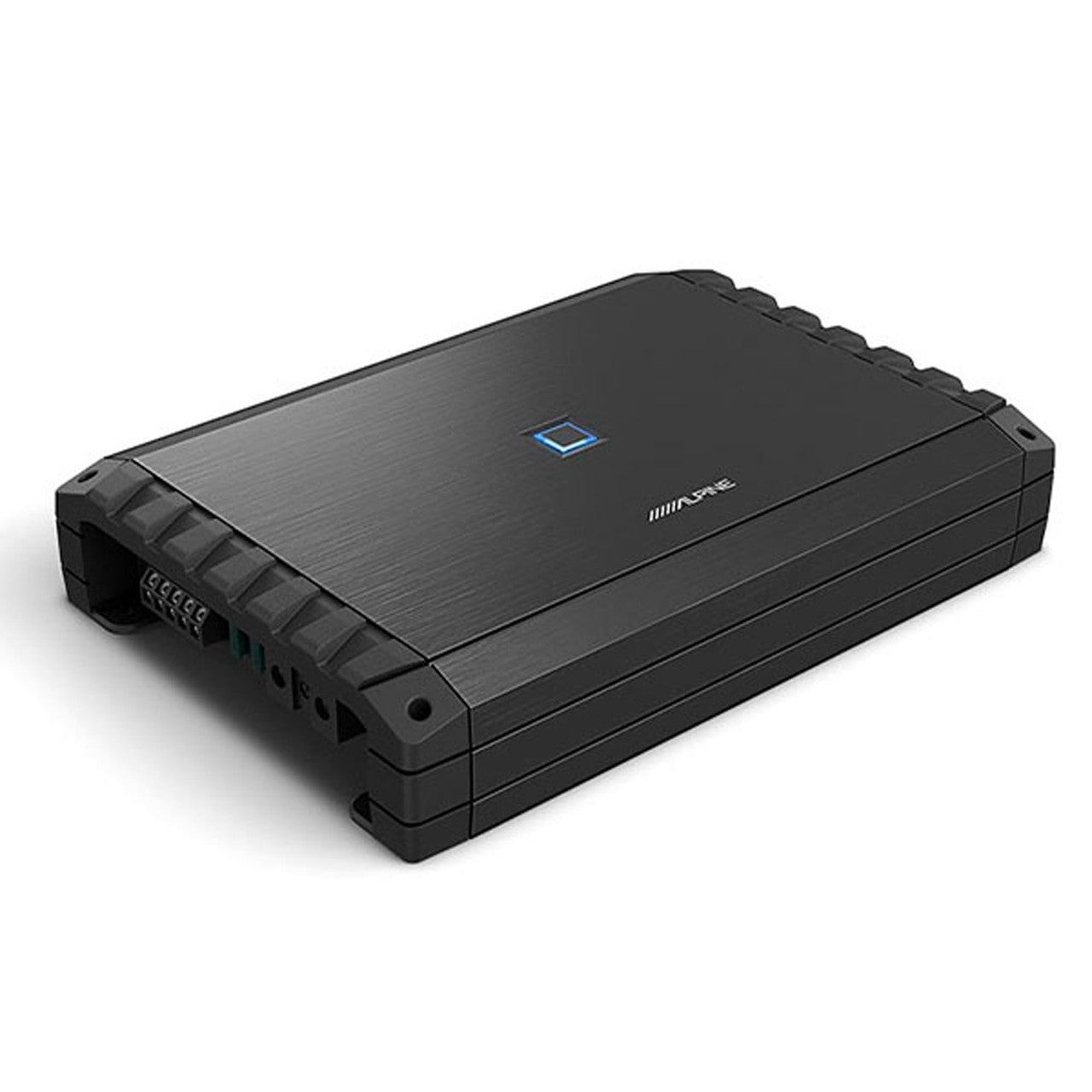

1x Alpine S2-A55V S-Series Class-D 5-Channel Amplifier, Hi-Res Certified, 40W x 4 + 200W x 1 @ 4 Ω, 60W x 4 + 300W x 1 @ 2 Ω - (S2-A55V)

Entry-level sound just got elevated with the S2-A55V 5-Channel Amplifier. Its sleek redesign houses an Alpine Class D Amplifier Circuit and is now certified for Hi-Res Audio Playback.

Hi-Res Audio - The Next-Gen Alpine S-Series S2-A55V 5-Channel Amplifier is Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth coupled with the elevated S-Series design brings out a new benchmark for entry-level performance and price.

Flexible Application - The Next-Gen S-Series Amplifiers now feature a new selectable remote turn-on circuit, a three-position switch that ensures the amplifier turns on and off at the proper times. This design is crucial with newer, in-vehicle technology and allows for proper integration with any factory or aftermarket system.

Power a Full System – With its versatile 5-Channel design, the S2-A55V Amplifier is the perfect solution to power your sound system all in a single chassis. This amplifier delivers crisp and clear audio to up to four speakers plus an additional subwoofer to give your system a complete audio upgrade

MAIN FEATURES
• Hi-Res Audio Certified (Up to 40kHz)
• 5-Channel Amplifier
• Alpine’s Class D Amplifier Circuit

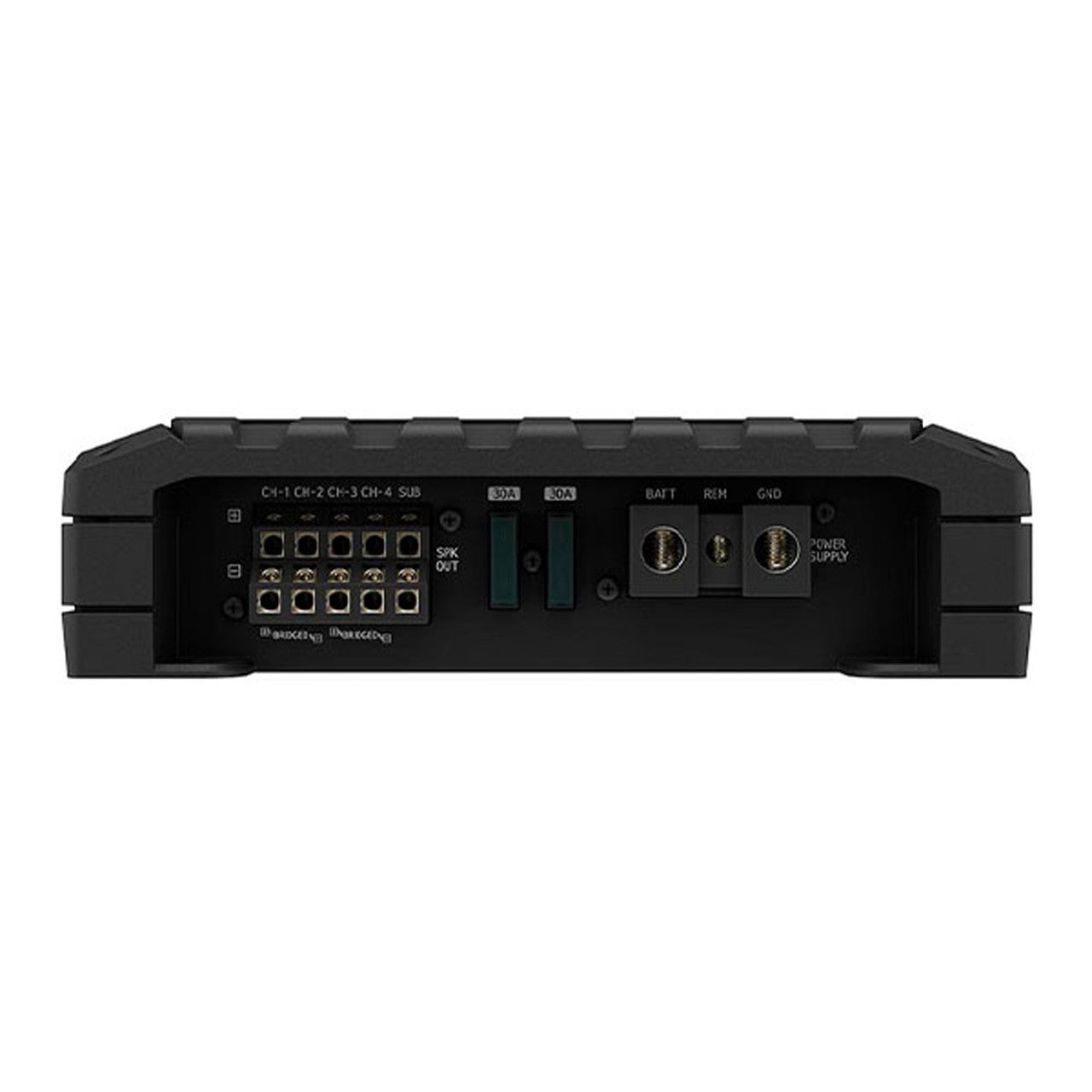

• Two-sided terminal layout

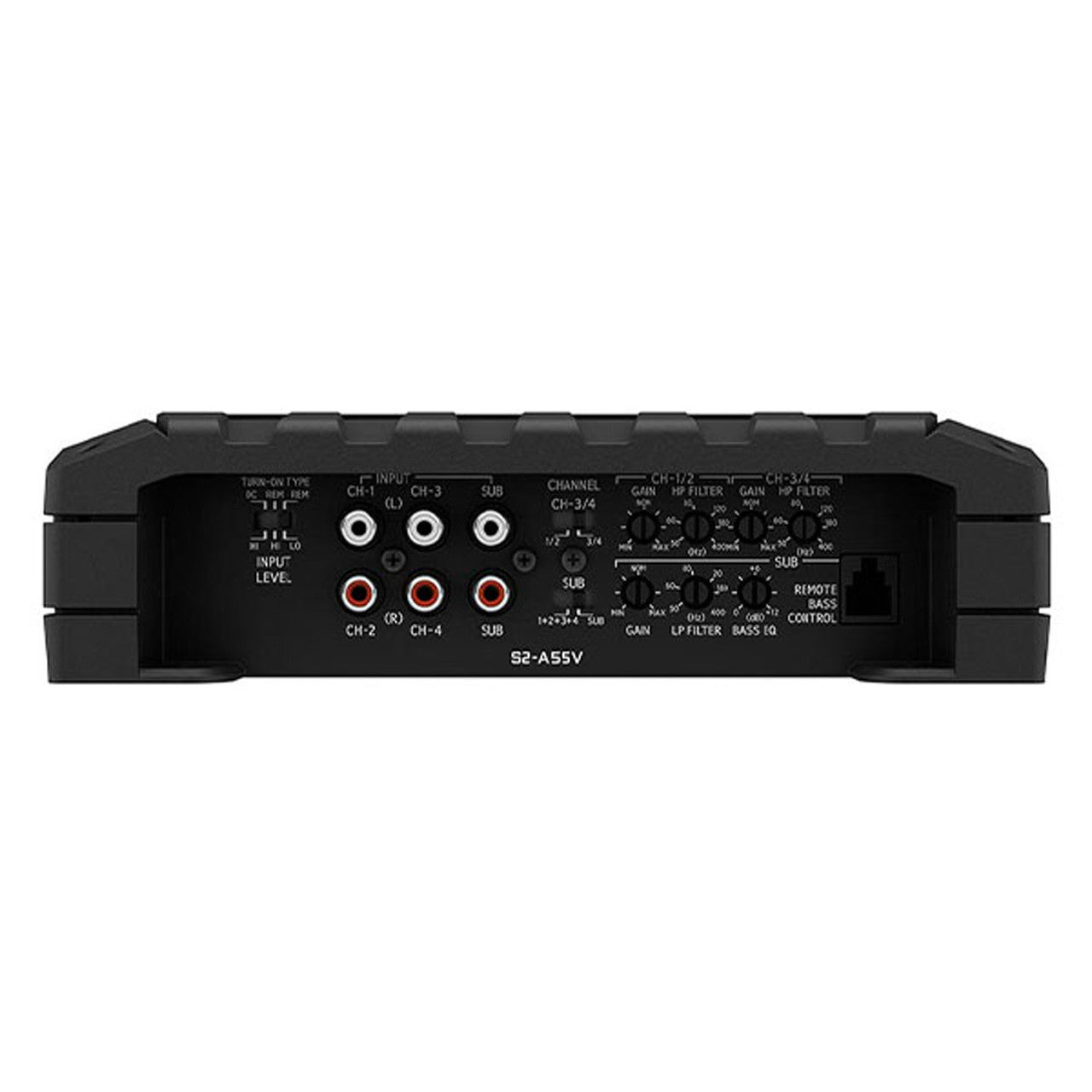

• Built-in Selectable/ Adjustable Crossovers
• Optional Remote Bass Knob Compatible (required RUX-KNOB.2 or RUX-H01, sold separately)

TECH SPECS
• Power Rating: 14.4V, < 0.1% THD +N
• Power Output: 40W x 4 + 200W x 1 @ 4Ω, 60W x 4 + 300W x 1 @ 2Ω
• Bridged Power: 120W RMS x 2 @ 4Ω
• S/N Ratio: >83dB
• Frequency Response: 20Hz – 40kHz
• Damping Factor: >100

WHAT’S IN THE BOX
• 1 S2-A55V 5-Channel Amplifier
• 2 Connection end covers w/4 attachment screws
• Owner’s Manual
• “Birth Sheet” that certifies by measurement the actual power of the amplifier in the box
• 4 Self-tapping screws
• 1 Hexagon wrench
• Alpine Registration Card
• Alpine Limited Warranty Sheet
• Tips sheet for power supply wire connection

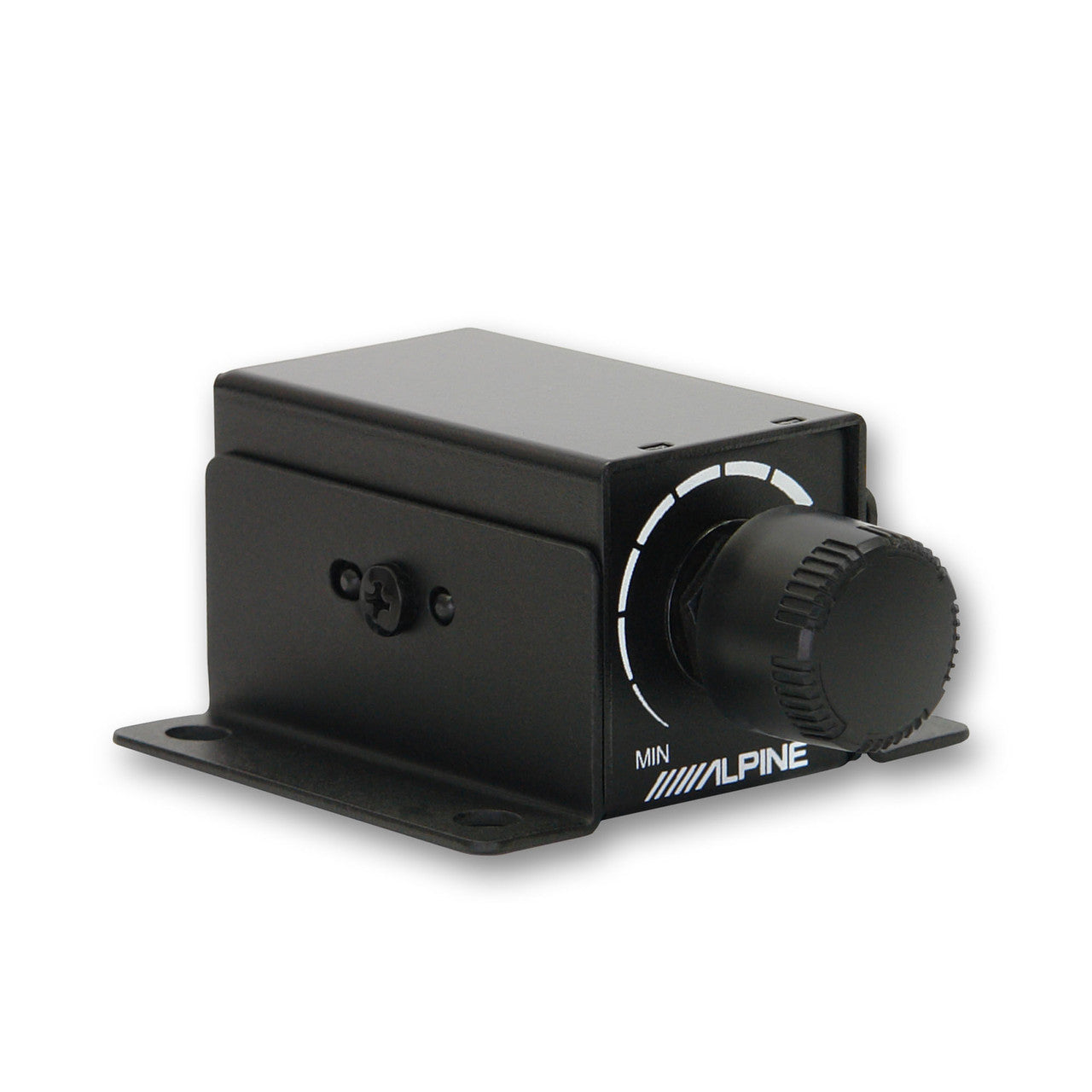

1x Alpine RUX-KNOB.2 Remote Bass Knob - (RUX-KNOB.2)

The optional RUX-KNOB remote bass control knob plugs right in to the MRX-M50, MRX-M100, MRX-V60, PDX-M12 and PDX-M6 mono models for quick direct subwoofer control to make bass adjustments on the fly.

Compatible Models
The RUX-KNOB is specifically designed as the controller for use with any of the following PDX Amplifiers: MRX-M50, MRX-M100, MRX-V60, PDX-M12, and PDX-M6.

From the Inside
With the RUX-KNOB, get full control over your PDX-M6 or PDX-M12 amplifier, conveniently from inside the car. With the RUX-KNOB installed inside the vehicle cabin, easily adjust the bass gain of your amp while seated inside.

Multiple Amp Control
Yes, there is a way to control multiple amps from just one RUX-KNOB controller – with the use of simple telephone cord adapters (which are readily available at many retailers).

1x Alpine S2-SB8 8" S-Series Halo PrismaLink Preloaded Subwoofer Wedge Enclosure with RGB Lighting - (S2-SB8)

Good Looks, Great Bass -

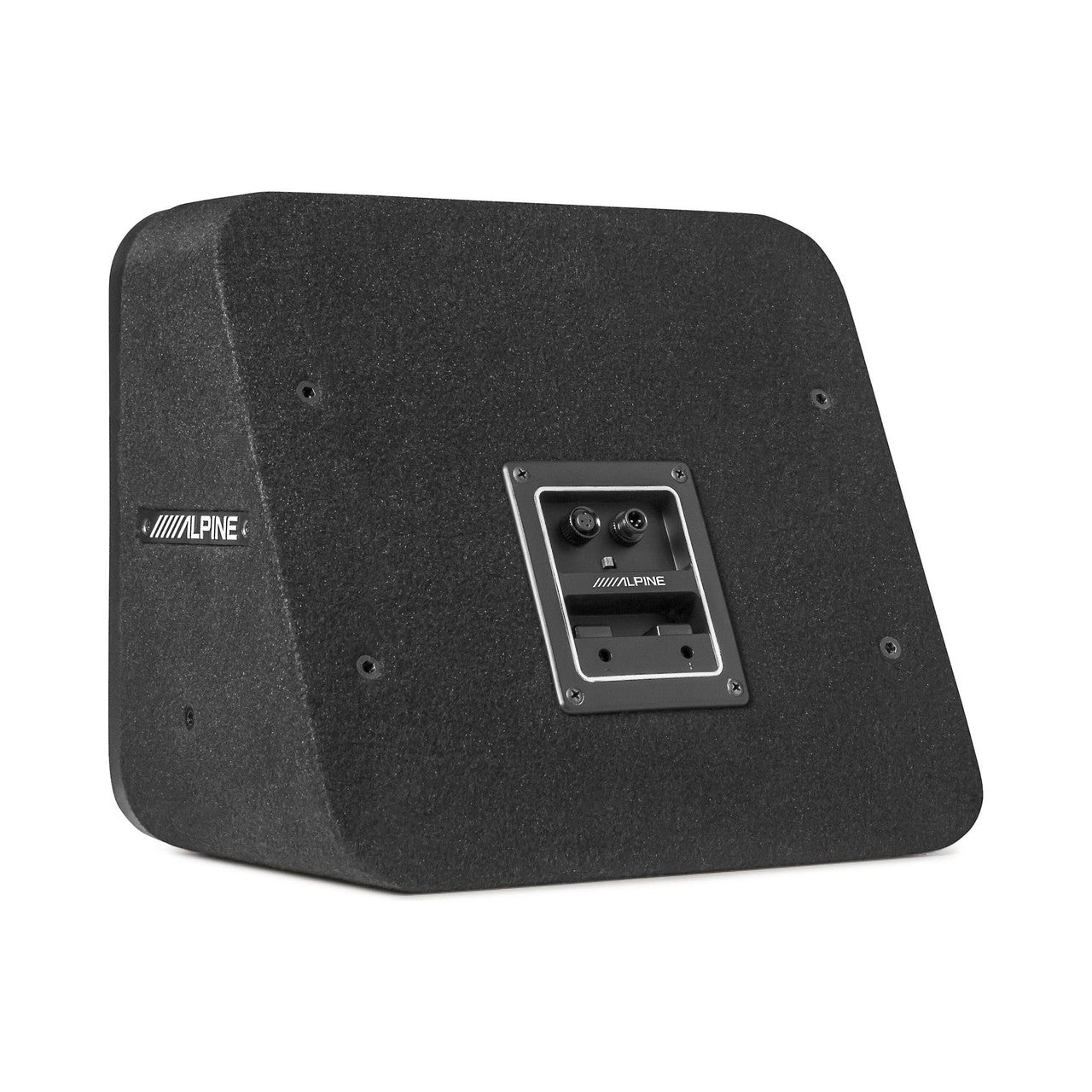

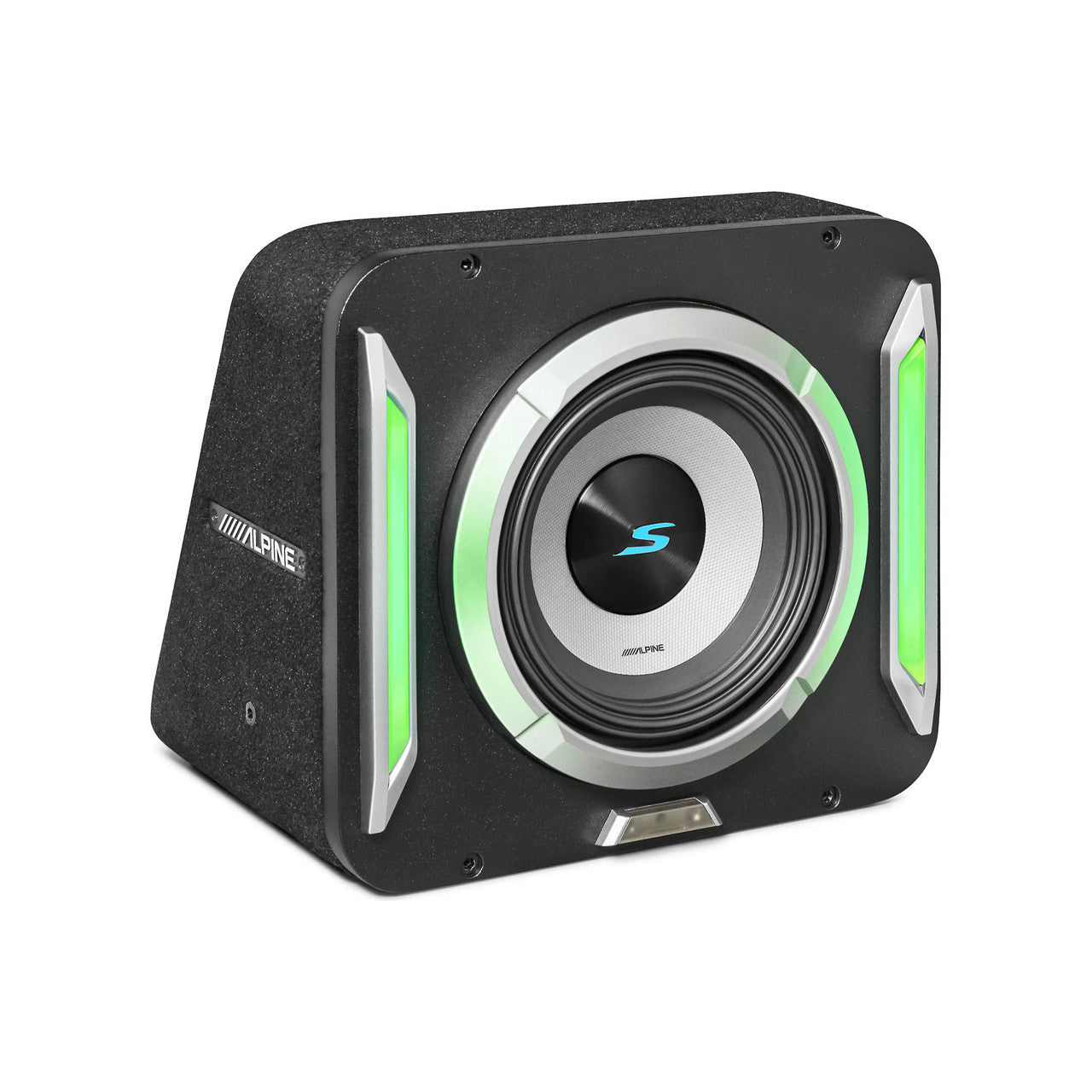

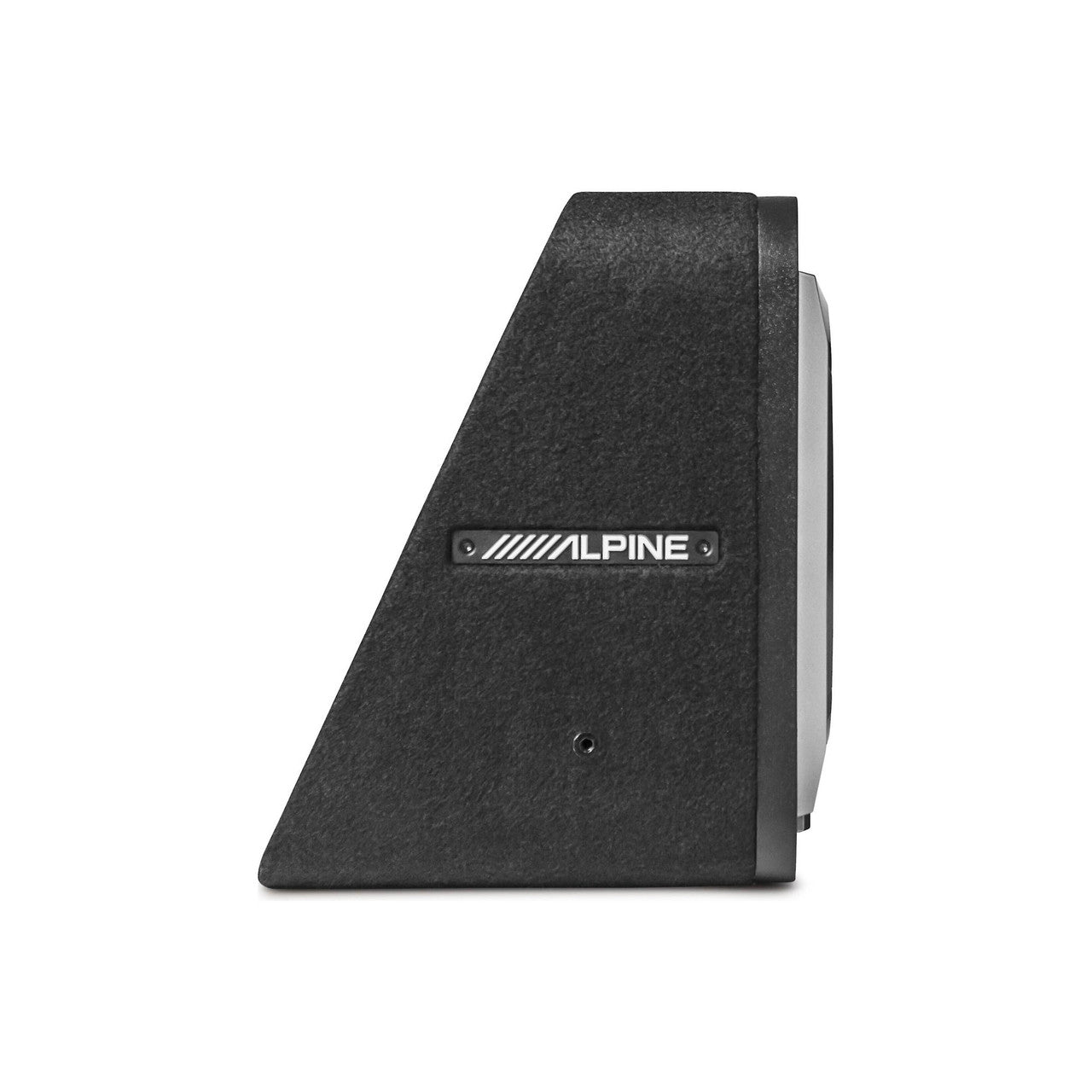

Alpine's PrismaLink S2-Series powered subwoofer enclosures combine great Alpine bass with stunning visual appeal. Integrated RGB lighting bars make your system look as good as it sounds while rugged built-in S2-Series subwoofers deliver the sonic goods. The rugged polypropylene box stands up to the stresses of car life, and its wedge-shaped design allows it to fit in more places.

Lighting and multi-sub options -
The pre-wired dual RGB lighting bars can be controlled by the included wireless remote or through the screen of the Alpine ILX-W670 receiver (sold separately). You can link multiple S2-S8B enclosures with the optional KTX-LK8 bracket for a kaleidoscopic multi-sub system. For the final touch, a twist-lock mounting system makes it easy to add one of Alpine's specially-designed speaker grilles (sold separately).

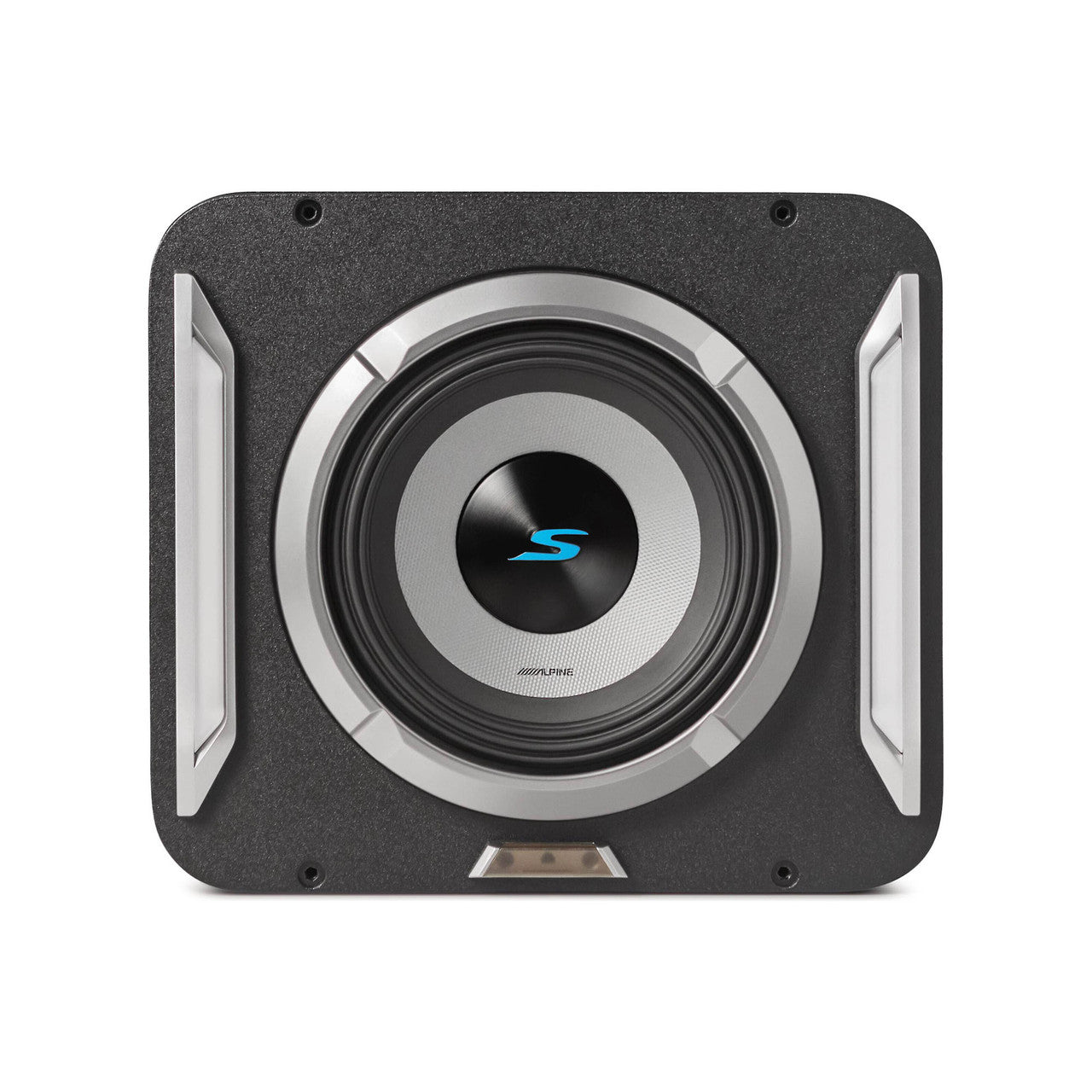

Big bass from a 8" sub This S2-SB8 features Alpine's S2-W8D4 subwoofer with dual 4-ohm voice coils wired for 2-ohm impedance. Its carbon fiber/polypropylene cone and HAMR multi-roll rubber surround deliver powerful bass. It handles up to 300 watts of RMS power (900 watts peak), so you can feed it plenty of power.

Features -
• sealed polypropylene enclosure with one S2 Series 8" woofer
• carbon fiber/polypropylene cone with ceramic/polypropylene dust cap
• High-Amplitude Multi-Roll (HAMR) rubber surround
• integrated RGB lighting bars
• linkable to additional S2-SB8 enclosures with KTX-LK8 linking kit (sold separately)
• includes twist-lock surround trim ring
• 2-ohm total impedance
• power handling: 300 watts (900 watts peak)
• frequency response: 35-215 Hz
• warranty: 1 year
