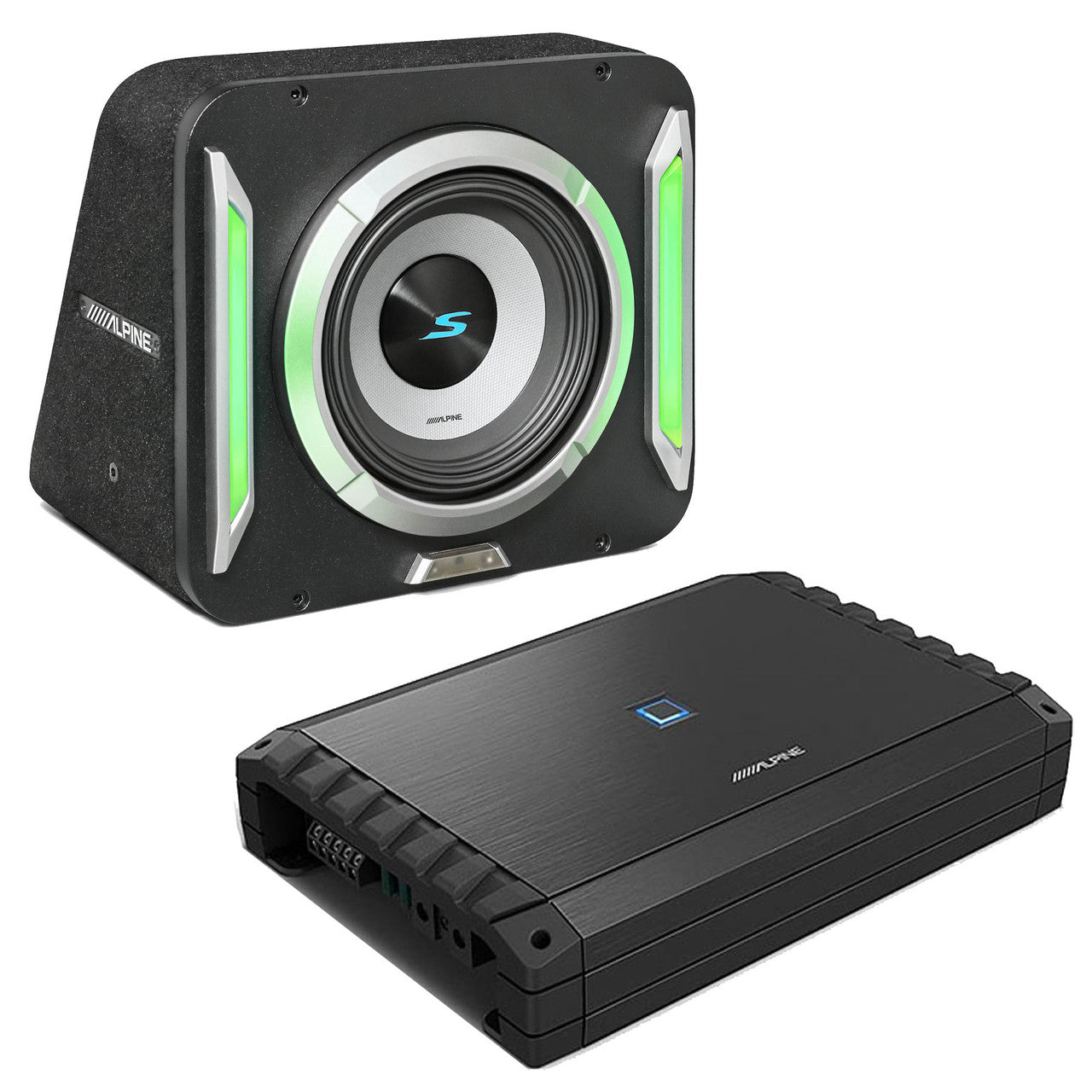

Alpine S2-A55V S-Series 5-Channel Amplifier & S2-SB12 12" S-Series Halo PrismaLink Preloaded Subwoofer Wedge Enclosure w/ RGB Lighting

Product details

This bundle includes an Alpine S2-A55V S-Series Class-D 5-Channel Amplifier, Hi-Res Certified, 40W x 4 + 200W x 1 @ 4 Ω, 60W x 4 + 300W x 1 @ 2 Ω, and an Alpine S2-SB12 12" S-Series Halo PrismaLink Preloaded Subwoofer Wedge Enclosure with RGB Lighting.

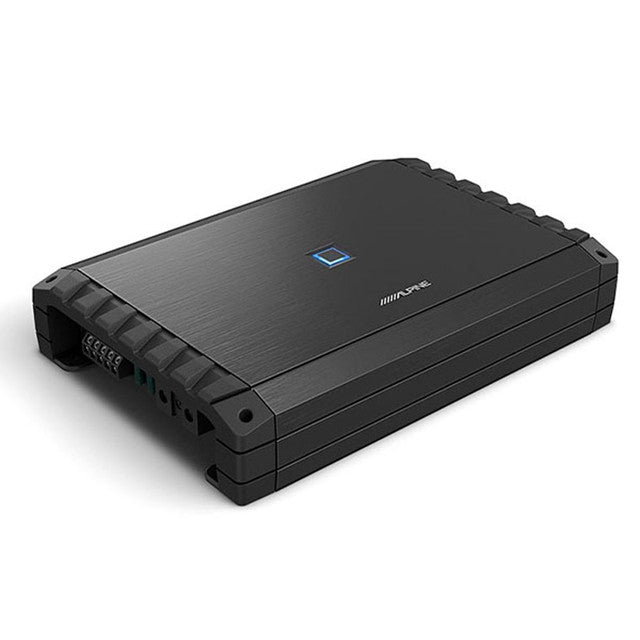

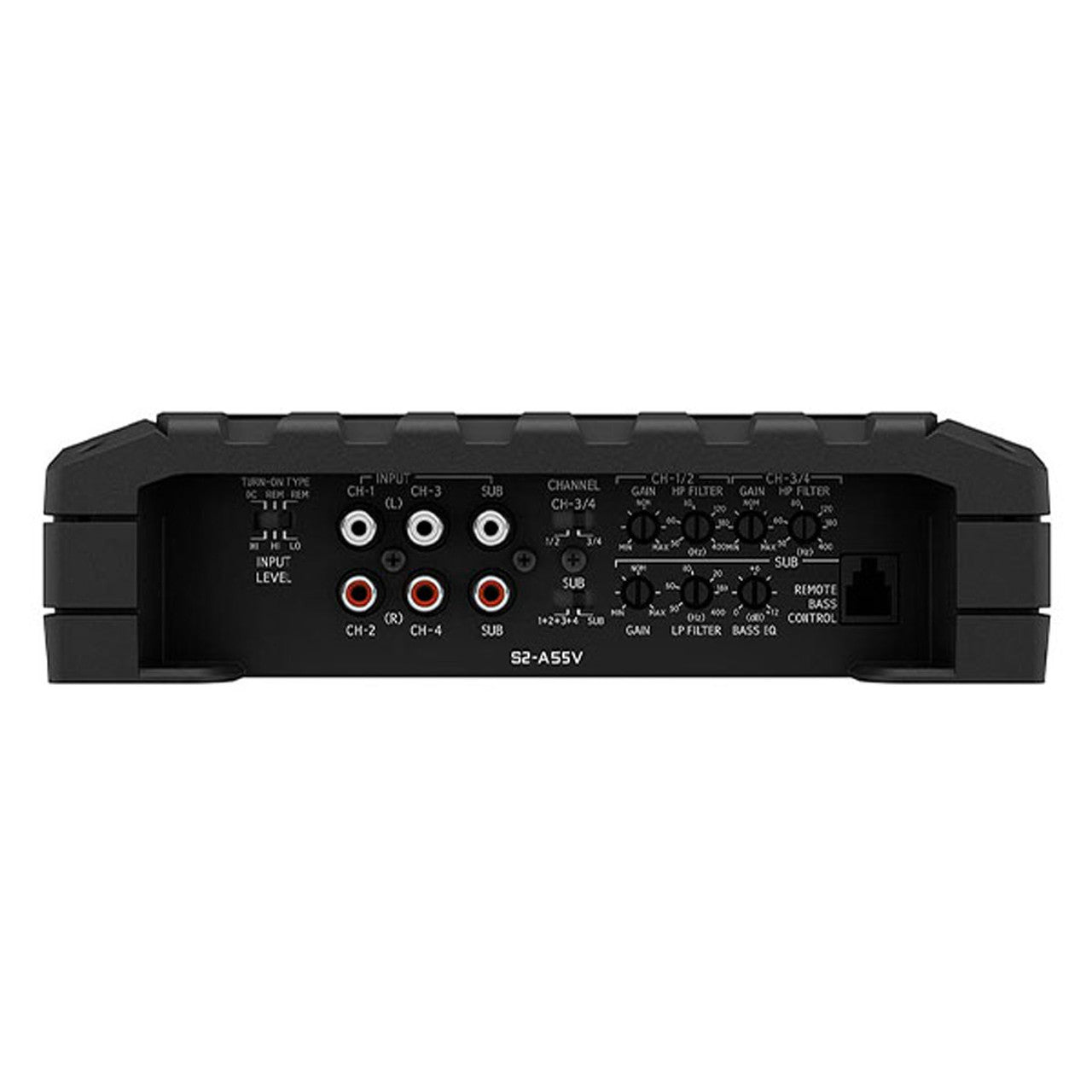

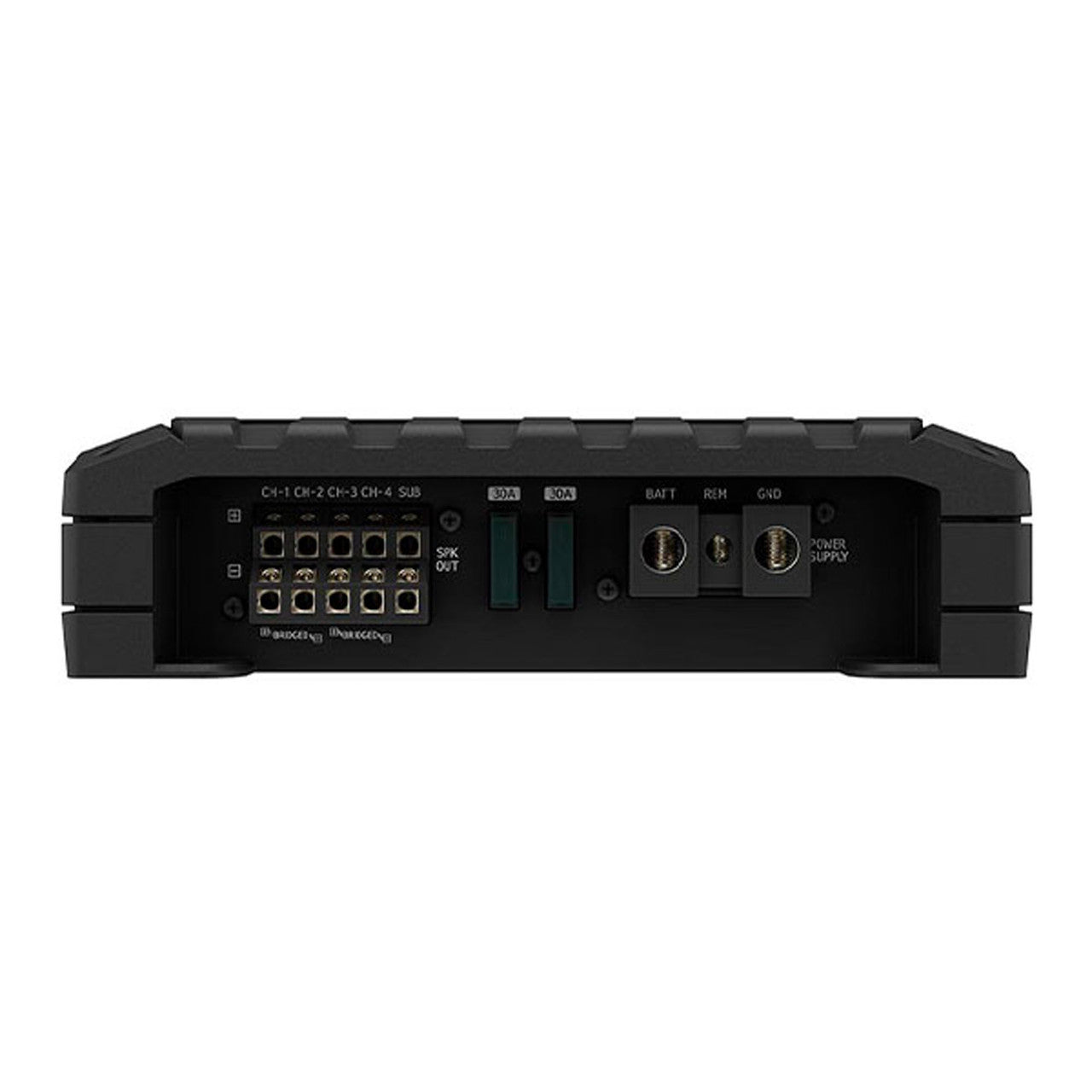

1x Alpine S2-A55V S-Series Class-D 5-Channel Amplifier, Hi-Res Certified, 40W x 4 + 200W x 1 @ 4 Ω, 60W x 4 + 300W x 1 @ 2 Ω - (S2-A55V)

Entry-level sound just got elevated with the S2-A55V 5-Channel Amplifier. Its sleek redesign houses an Alpine Class D Amplifier Circuit and is now certified for Hi-Res Audio Playback.

Hi-Res Audio - The Next-Gen Alpine S-Series S2-A55V 5-Channel Amplifier is Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth coupled with the elevated S-Series design brings out a new benchmark for entry-level performance and price.

Flexible Application - The Next-Gen S-Series Amplifiers now feature a new selectable remote turn-on circuit, a three-position switch that ensures the amplifier turns on and off at the proper times. This design is crucial with newer, in-vehicle technology and allows for proper integration with any factory or aftermarket system.

Power a Full System – With its versatile 5-Channel design, the S2-A55V Amplifier is the perfect solution to power your sound system all in a single chassis. This amplifier delivers crisp and clear audio to up to four speakers plus an additional subwoofer to give your system a complete audio upgrade

MAIN FEATURES
• Hi-Res Audio Certified (Up to 40kHz)
• 5-Channel Amplifier
• Alpine’s Class D Amplifier Circuit
• Two-sided terminal layout
• Built-in Selectable/ Adjustable Crossovers
• Optional Remote Bass Knob Compatible (required RUX-KNOB.2 or RUX-H01, sold separately)

TECH SPECS
• Power Rating: 14.4V, < 0.1% THD +N
• Power Output: 40W x 4 + 200W x 1 @ 4Ω, 60W x 4 + 300W x 1 @ 2Ω
• Bridged Power: 120W RMS x 2 @ 4Ω
• S/N Ratio: >83dB
• Frequency Response: 20Hz – 40kHz
• Damping Factor: >100

WHAT’S IN THE BOX
• 1 S2-A55V 5-Channel Amplifier
• 2 Connection end covers w/4 attachment screws
• Owner’s Manual
• “Birth Sheet” that certifies by measurement the actual power of the amplifier in the box
• 4 Self-tapping screws
• 1 Hexagon wrench
• Alpine Registration Card
• Alpine Limited Warranty Sheet
• Tips sheet for power supply wire connection

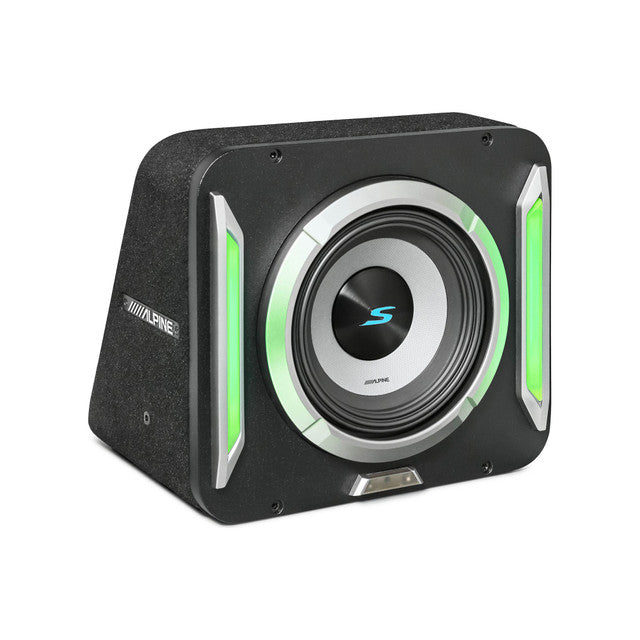

1x Alpine S2-SB12 12" S-Series Halo PrismaLink Preloaded Subwoofer Wedge Enclosure with RGB Lighting - (S2-SB12)

Experience your sound system in a whole new light with Alpine’s PrismaLink™ Subwoofer Enclosures. These innovative subwoofer enclosures seamlessly blend style, performance, and expandability, delivering powerful bass with a visual lighting experience.

Illuminate your Sound System – Color and sound collide to bring you an intentionally crafted wedge enclosure, designed for optimal bass performance and vehicle fitment, and an integrated RGB lighting system that’s multi-link capable for single, dual, and even quad-enclosure installations.

Multi-Link Lighting - The PrismaLink™ Subwoofer Enclosures feature a pre-wired, RGB light integration in the enclosure trim bars that’s able to connect across the optional subwoofer linking brackets (KTX-LK12, sold separately) for a display of color that’s controlled by a remote or the iLX-W670 Receiver (Sold Separately).

S-Series Performance – PrismaLink™ Enclosures come preloaded with Alpine’s next-generation S-Series Subwoofers, which feature a lightweight but rigid cone material and Alpine Proprietary High-Amplitude Multi-Roll (HAMR) surround that contribute to enhanced “punch” and accurate bass performance.

FEATURES
• Preloaded S2-W12D4 12” S-Series Subwoofer
• Sealed Wedge Style Enclosure Design
• RGBW Multi-color Trim Bar Lighting with IR Remote
• 12 Static Colors, 4-Dynamic Modes
• Multi-Link Capable (Link 2 or more enclosures together)
• Lighting Link Control via iLX-W670
• Carbon Fiber / Poly Propylene Subwoofer Cone
• Lightweight Construction, High Output, Low Distortion
• Enhanced “Punch” and Accurate Bass
• Compatible with the KTX-LK12 12” Linking Bracket for Multi-Link Application

TECH SPECS
• Enclosure Dimensions: 16.5” (W) x 15” (H) x 13.25” (D)
• Power Handling: 600W RMS / 1800W Peak
• Nominal Impedance: 2Ω
• Frequency Response: 23Hz - 215Hz
• Sensitivity: 86dB
• X-Max (1-Way): 15mm
• Voice Coil: 2.6”
• Magnet Weight: 64oz
• Dual 4Ω voice coils wired in parallel for a 2Ω load
