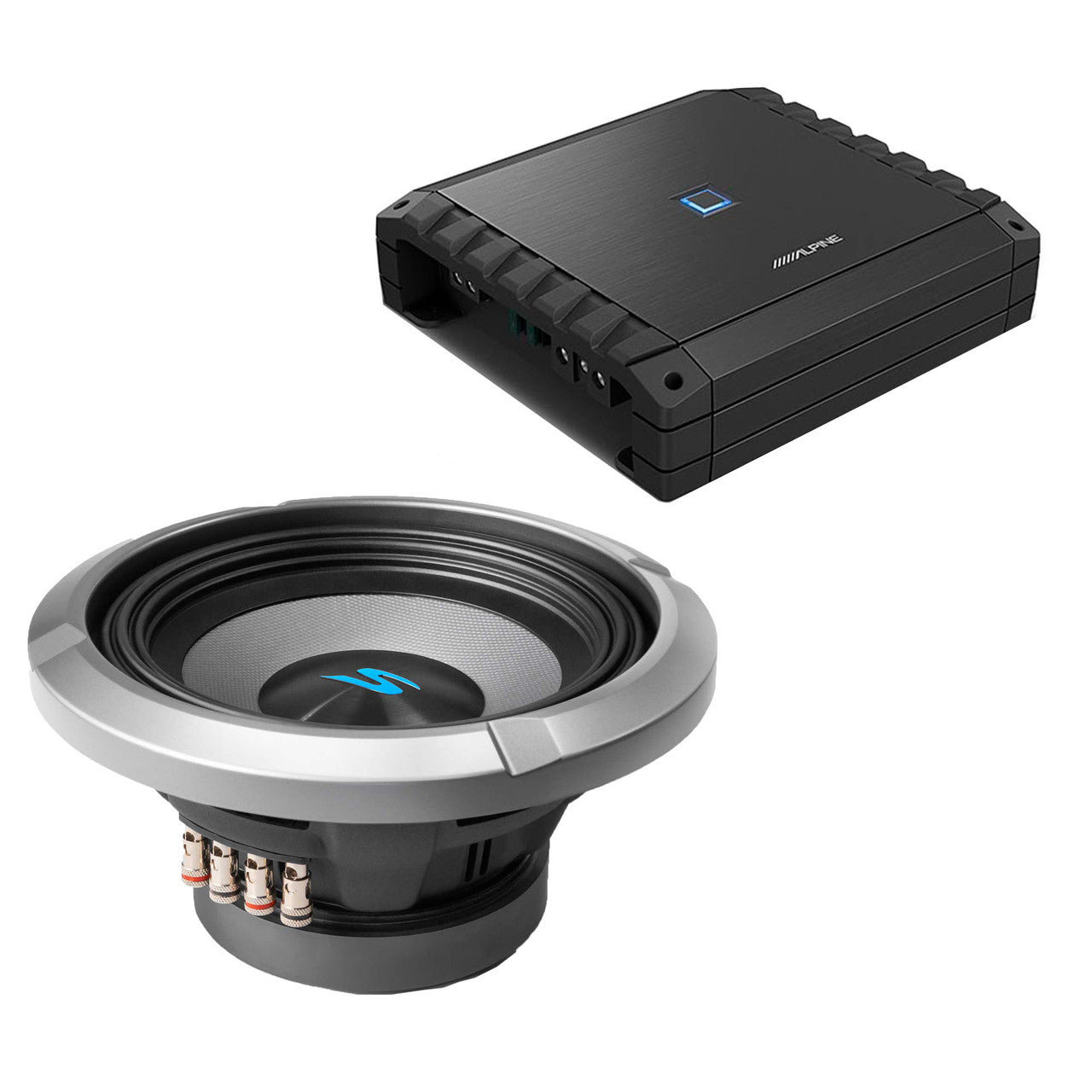

Alpine S2-A60M S-Series Class-D Amp w/ S2-W8D4 8" S-Series Dual 4-Ohm Car Subwoofer
This bundle includes an Alpine S2-A60M S-Series Class-D Mono Subwoofer Amplifier, Hi-Res Certified, 600W RMS at 1 & 2-Ohm, and an Alpine S2-W8D4 8" S-Series Dual 4 Ohm Car Subwoofer, 900W Max, 300W RMS.

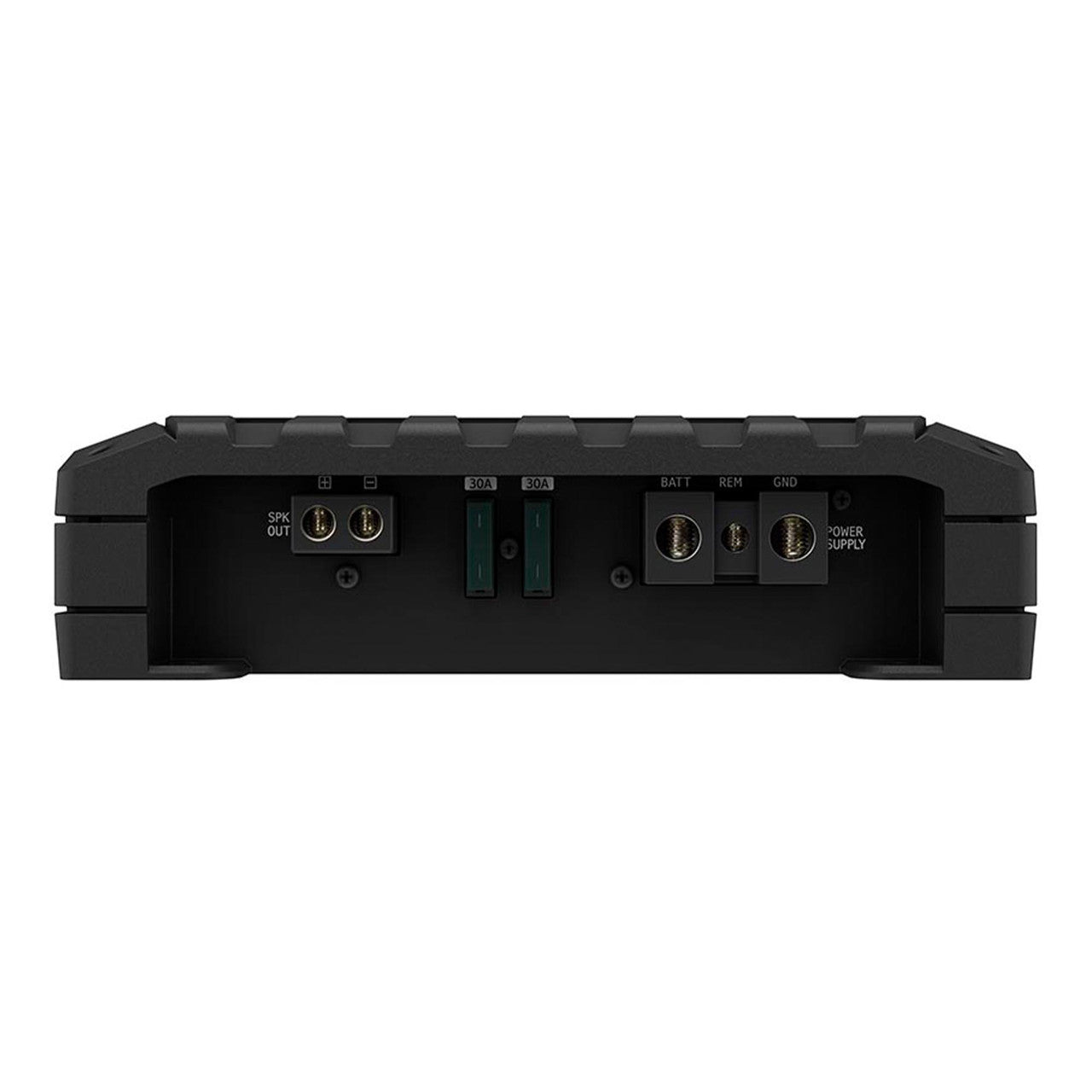

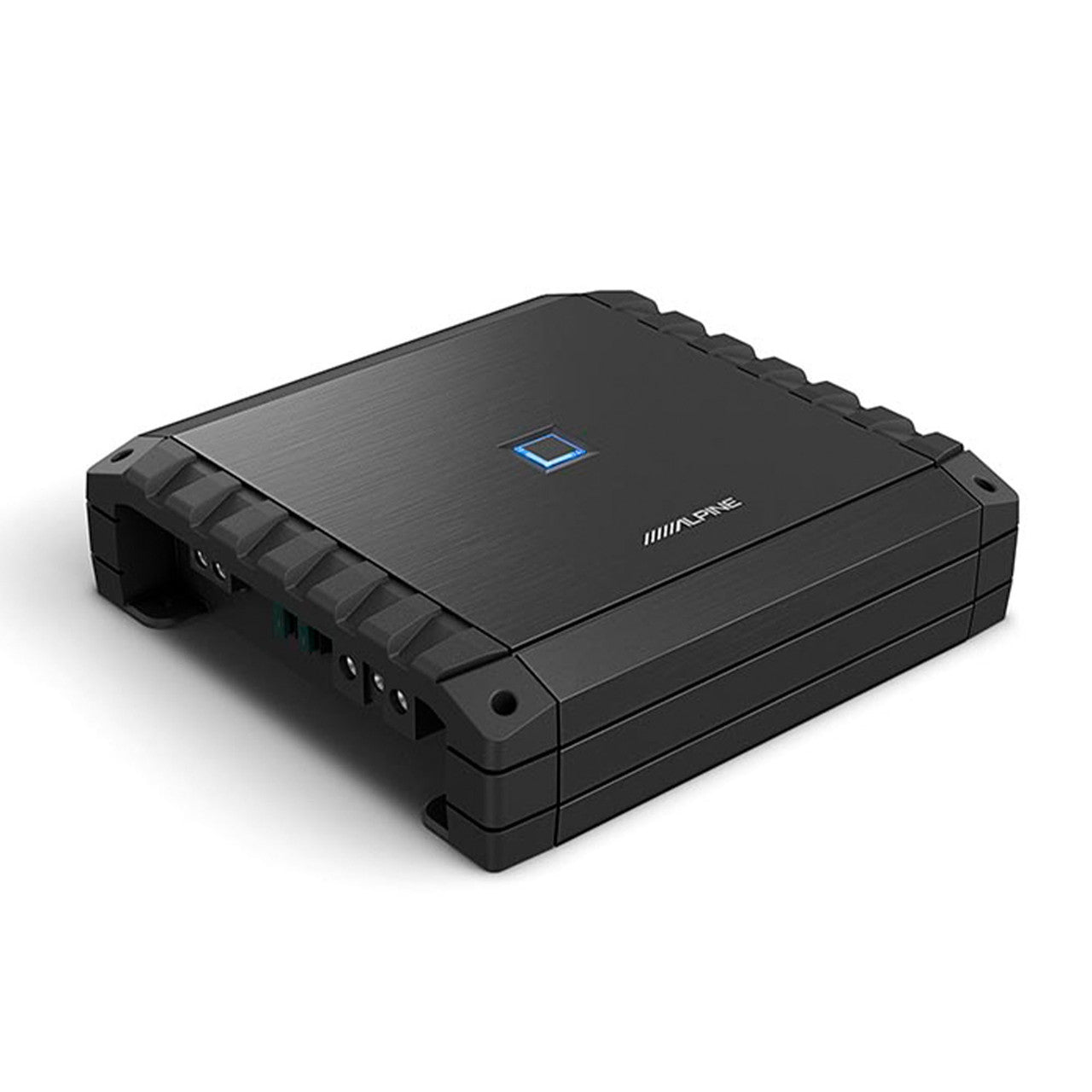

1x Alpine S2-A60M S-Series Class-D Mono Subwoofer Amplifier, Hi-Res Certified, 600W RMS at 1 & 2-Ohm - (S2-A60M)
Reliable Performance and Value-Oriented Products -
Three new S-Series amplifiers join the S-Series family, known for reliable performance and value-oriented products. All three S-Series amps (mono, 4-channel and 5-channel) contain technology currently implemented in R and X-Series models. The S-Series amps feature attractive prices and are designed to perform perfectly with the existing S-Series speakers.
Allows High Power Output -
Compact and Powerful: the new digital amplification circuit allows high power output while keeping a small footprint. The S-A60M measures just 204mm in width x 204mm in length for easy installation in virtually any vehicle.Along with Alpine’s new intelligent amplifier platform, the new S-Series amplifiers feature an improved heat sink and protection circuit design that eliminates thermal shut-down, for dependable music playback.
Specifications -
• Power Requirements: 14.4 V.DC (9 - 16 V allowable)
• Input Sensitivity (RCA Input): Hi: 0.5 - 10 V Lo: 0.2 - 4.0 V
• High Level Input with automatic power on
• Cable size: Power Cable AWG 4, SPK Cable AWG 8
• Frequency Response (+0, -3dB: 1W into 4 ohms): 10Hz - 400Hz
• THD+N (@ 10W into 4 ohms): <0.03%
• THD+N (@ 50W into 4 ohms): <0.08%
• Damping Factor: >1000
• Signal to Noise (@ 50 Watts into 4 Ohms): >105dB
• Weight: 1.9 kg
Features -
• Amplifier Type: Class-D (Digital)
• Channel Design: Mono Channel
• Thermal Management Control
• Top Mounted LED Power/Status Indicator
• Speaker Level Input with remote turn on
• Crossover: Adjustable Low-pass (LPF)
• Gain Control: Adjustable
• Bass EQ
• Bass Control: Remote Bass Control (RUX-KNOB2) Ready

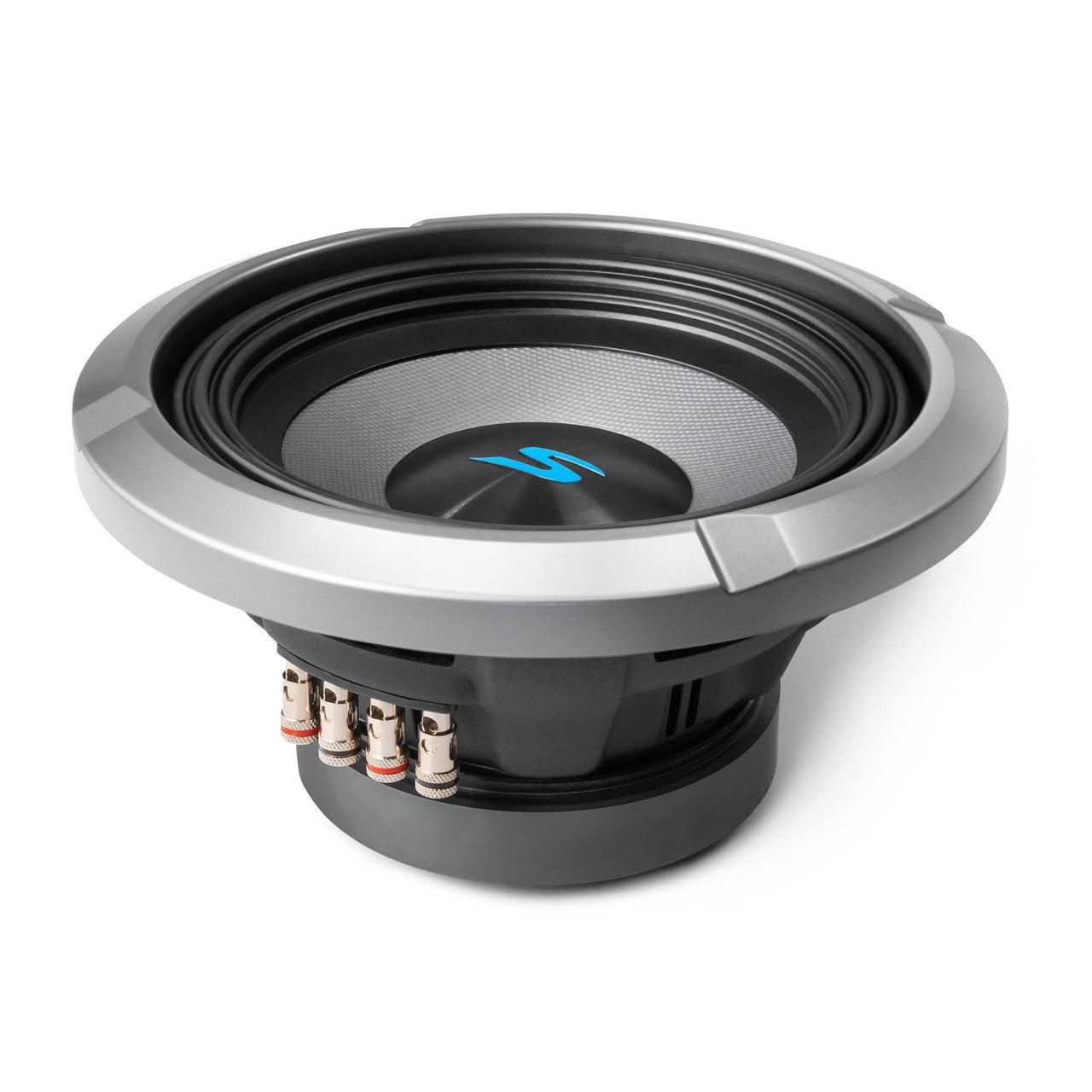

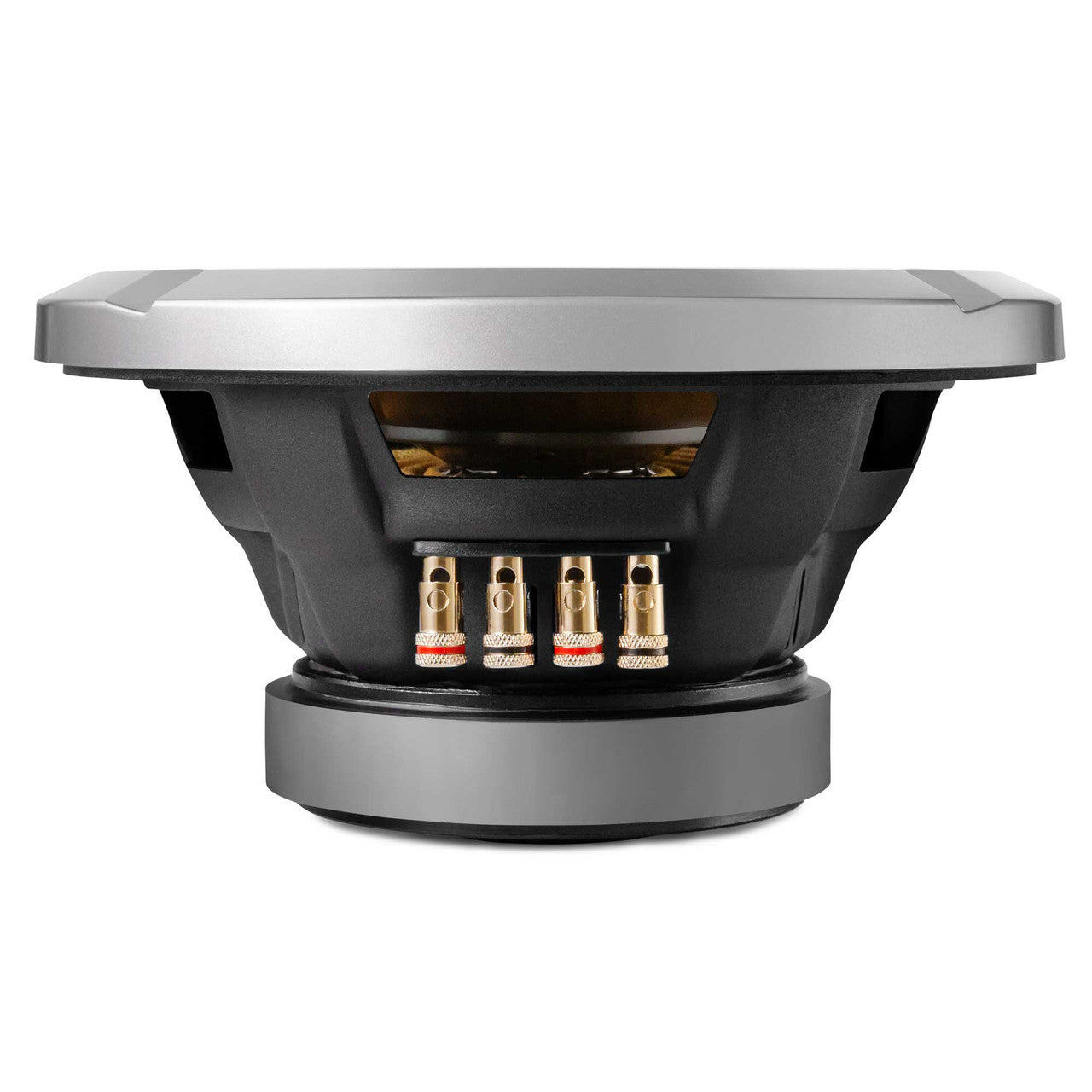

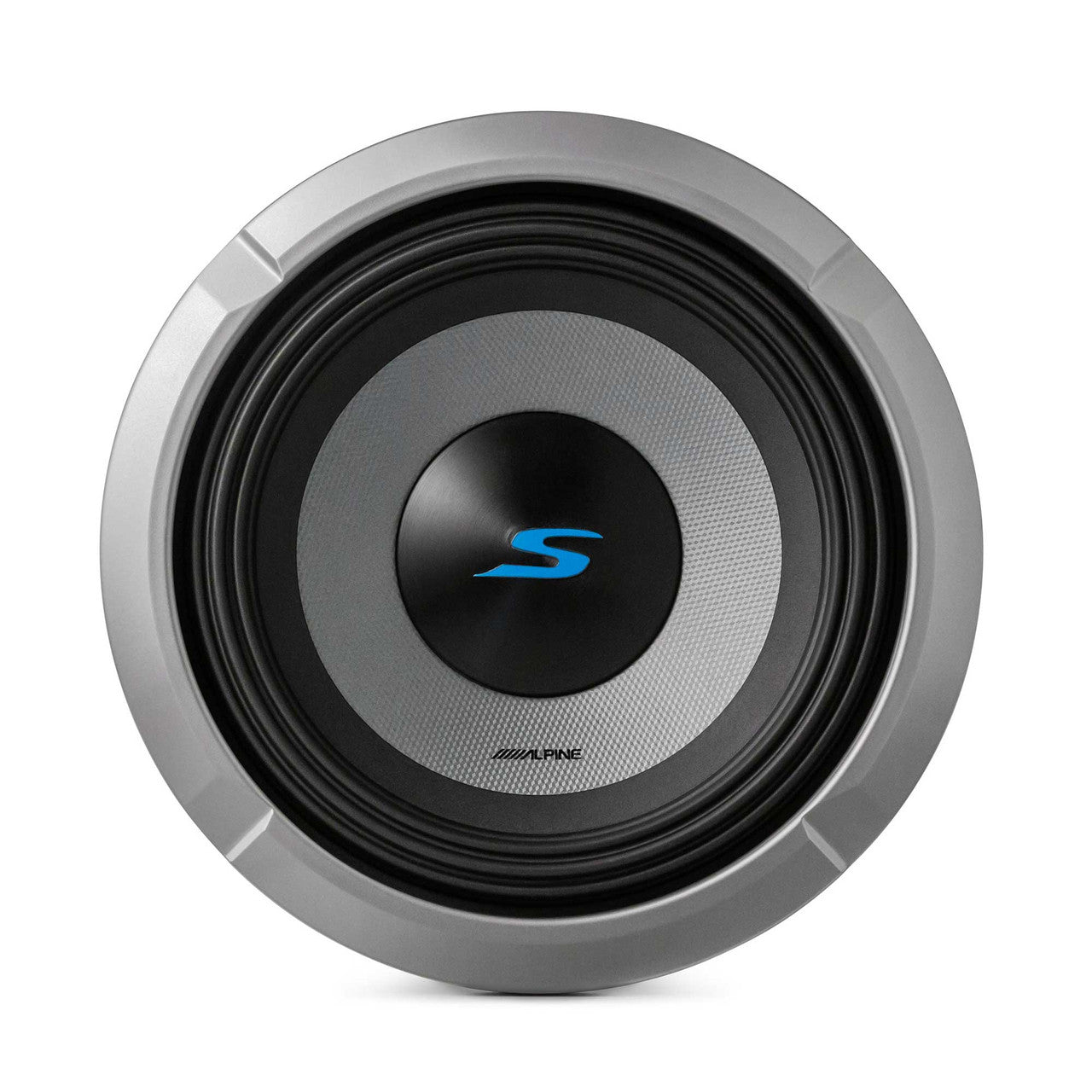

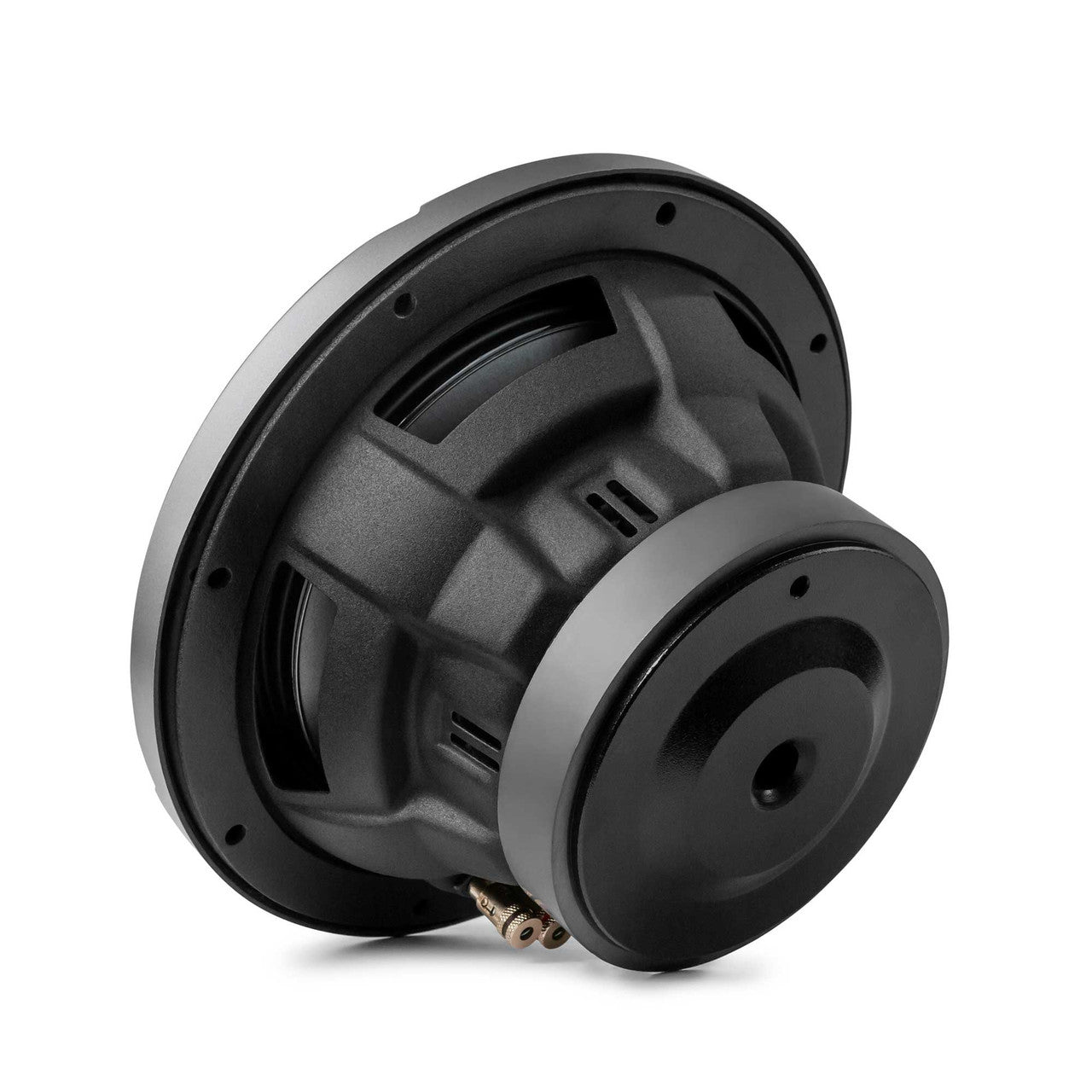

1x Alpine S2-W8D4 8" S-Series Dual 4 Ohm Car Subwoofer, 900W Max, 300W RMS - (S2-W8D4)
Alpine S2-W8D4 - Next-Generation 8” S-Series Subwoofer with Dual 4-Ohm Voice Coils
Add extra punch to your sound system with the S-Series S2-W8D4 8" Subwoofer; now redesigned for powerful and reliable bass performance at an approachable price point.
PERFORMANCE & VALUE
With a power handling of 300W RMS and a peak power handling of 900W, the Next-Gen 8” S-Series Subwoofers deliver outstanding performance value. Boasting a wide frequency response range of 23Hz to 215Hz and a sensitivity of 83dB (1W/1m), these subs ensure powerful and accurate bass reproduction across a diverse range of music genres.
ENHANCED PUNCH
Featuring the lightweight yet sturdy combination of carbon fiber and polypropylene, the Next-Gen S-Series Subwoofer cone delivers deep, low-distortion bass that enhances the depth and richness of your music.
FLEXIBLE APPLICATION
A Dual Voice Coil (DVC) with easy configuration jumpers make installing the S-Series subwoofers a breeze. A new twist-lock grille mounting system makes it easy to install and remove an optional grille without mounting screws for added protection to the cone.
PERFECT POWER MATCH
Maximize the potential of your S-Series subwoofers with Alpine's perfectly power-matched S-Series amps. Power up to two S2-W8D4 subwoofers effortlessly with the 600W S2-A60M mono amplifier, or for an even bigger impact, pair up to four S2-W8D4 subs with the powerful 1200W S2-A120M amp to ensure optimal sound quality and performance.
FEATURES
• Dual Voice Coil Subwoofers with Configuration Jumpers
• Carbon Fiber / Poly Propylene Cone
• Poly Propylene / Ceramic Dust Cap
• High-Grade Strontium Ferrite Magnets
• Twist-Lock Grille Mount System
• High-Amplitude Multi-Roll (H.A.M.R.) Surround
• Push-Type Speaker Terminals
TECH SPECS
• Power Handling: 300W RMS / 900W Peak
• Nominal Impedance: 4Ω
• Frequency Response: 23Hz - 215Hz
• Sensitivity (1W/1M): 82.7dB
• Voice Coil: 1.4"
• X-Max (1-Way): 13mm
• Magnet Weight: 34oz
