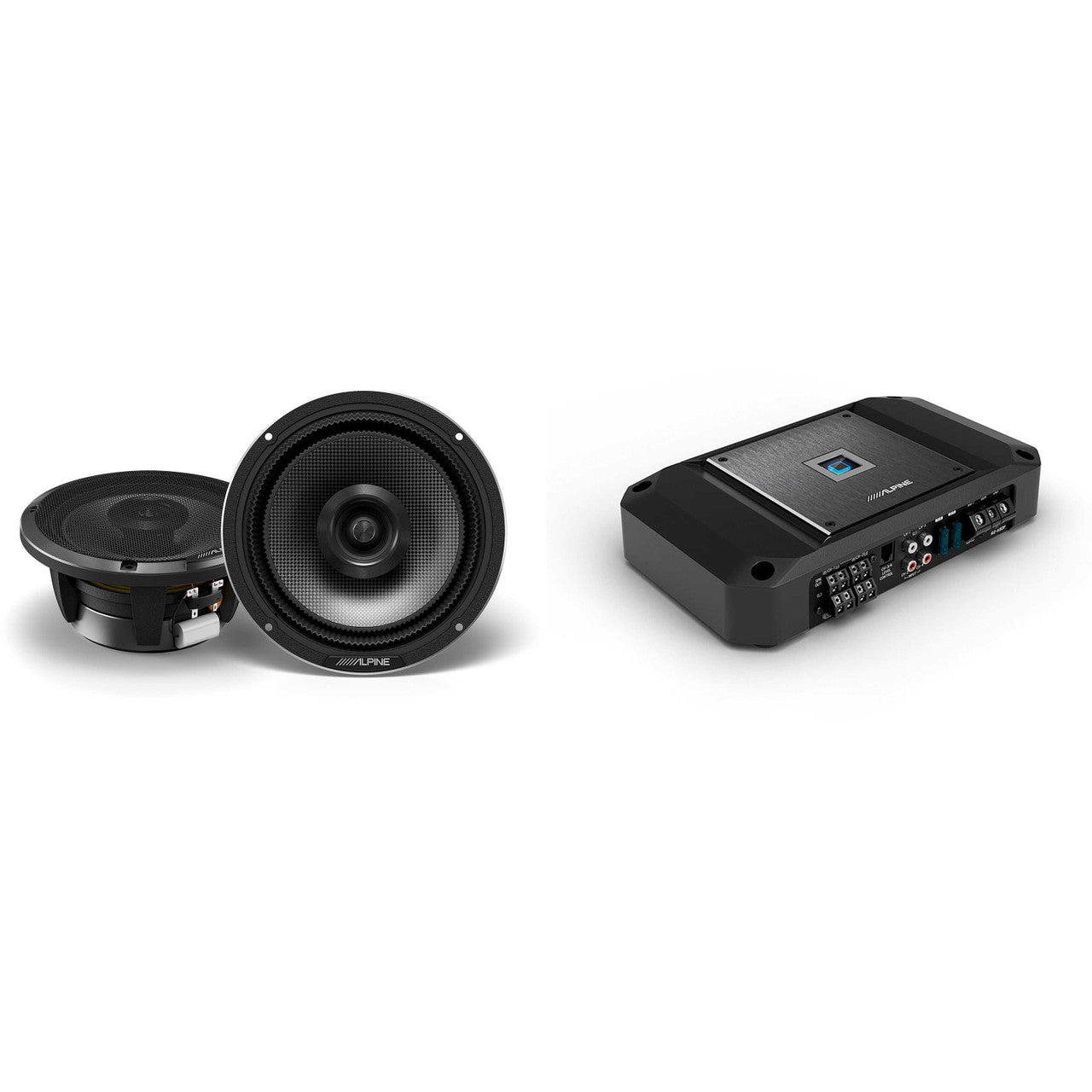

Alpine HDZ-65 Alpine Status Hi-Res 6.5” Coaxial Speaker Set & R2-A60F R-Series 4-Channel Amp Bundle

With the highest quality music streaming available on the market, Alpine Status delivers a superior level of audio performance that will take your music to a whole new level.

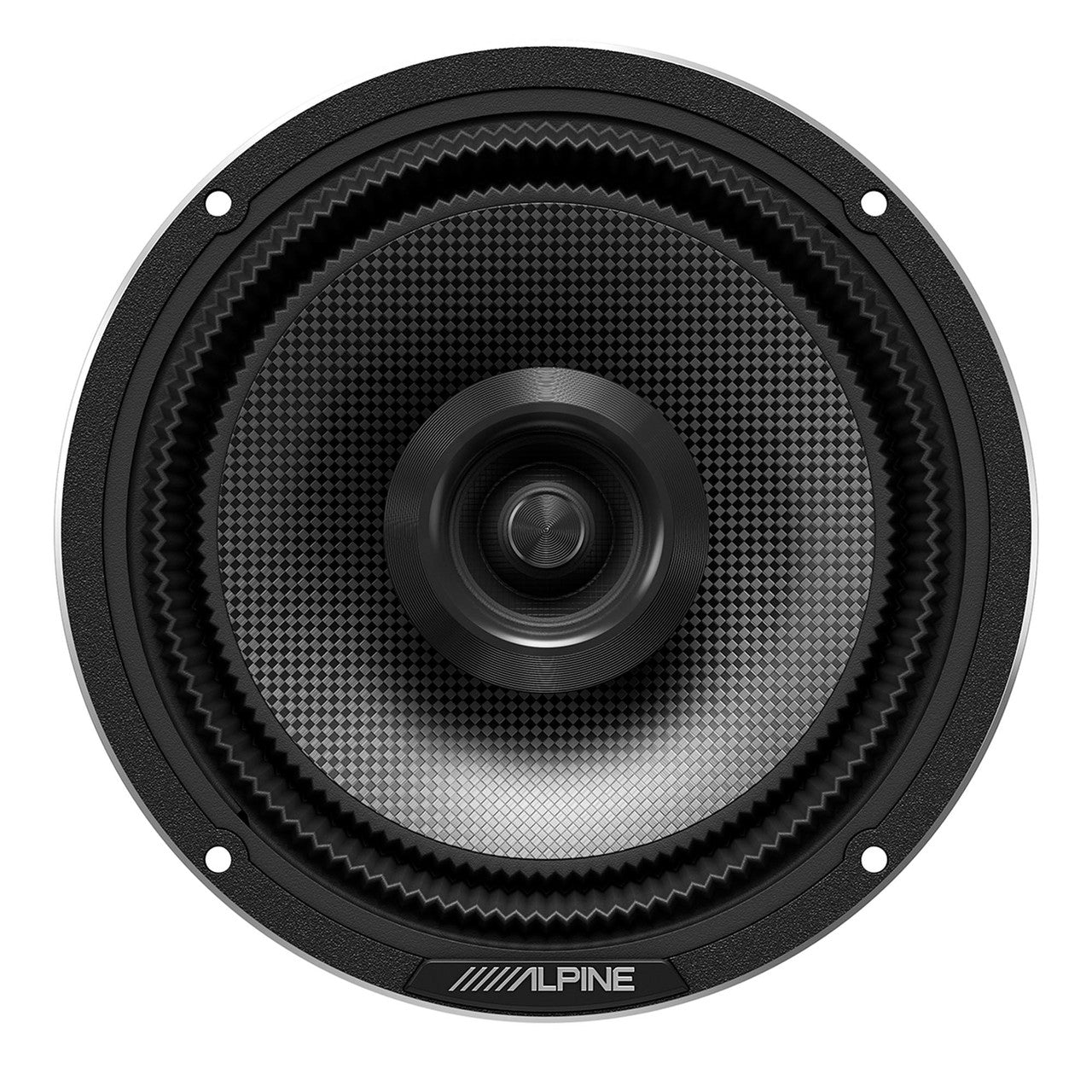

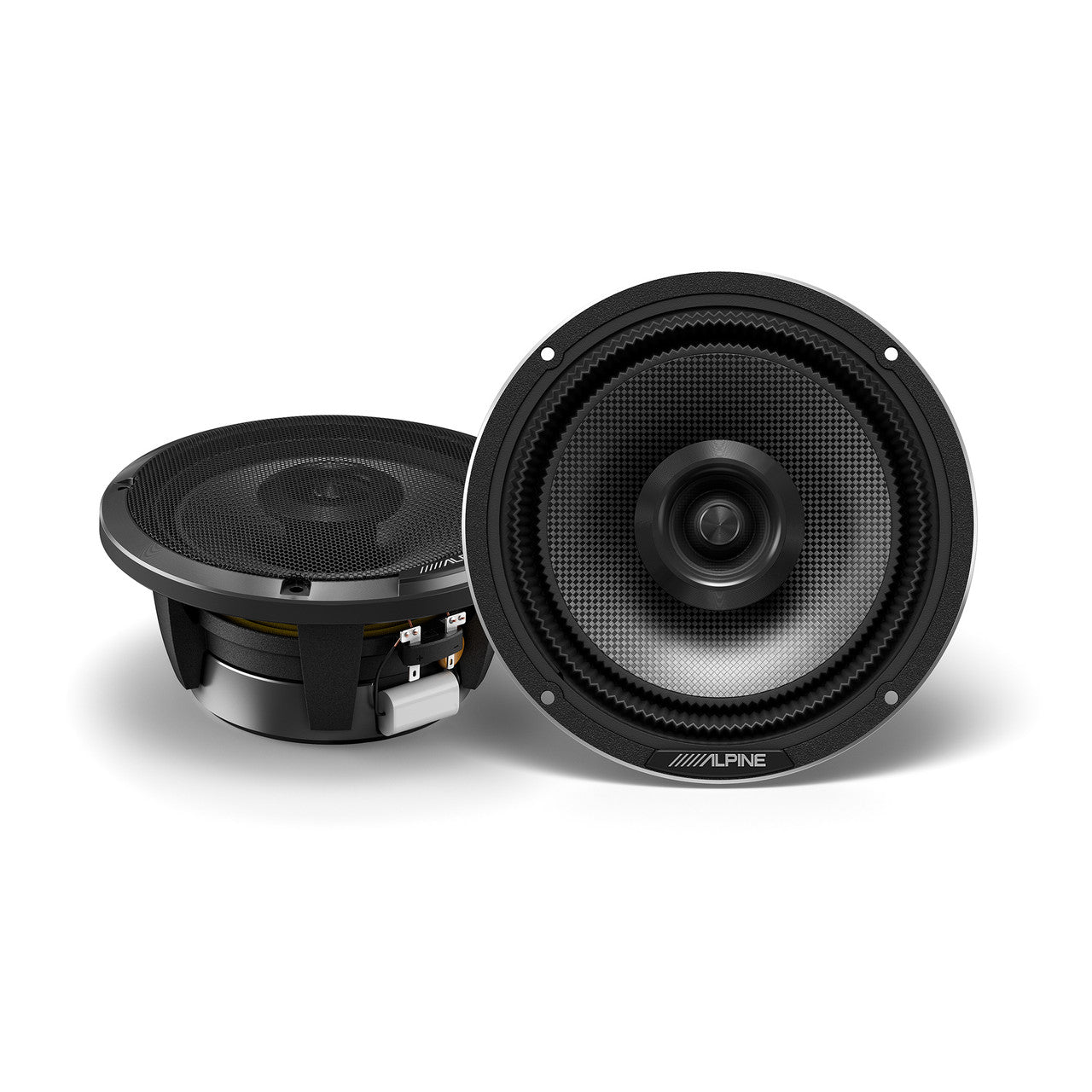

The HDZ-65 is a factory-fit model that includes a 6.5-inch mid-bass driver and a 1-inch coaxial high-range driver.

Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance.

HDZ-65 features a unified carbon composite cone construction throughout the speaker components for a unified timbre identity.

Custom developed for Hi-Res Audio Playback, the HDZ-65 has an ultra-wide bandwidth of 55Hz-40kHz which is perfectly suited for accurate reproduction of even the highest quality of studio recordings. Each speaker component is designed to cover a wider range of playback spectrum giving the tuner a wider range of adjustability.

Features & Specs -
• Hi-Res Audio Playback (192kHz/24Bit) w/full Alpine Status system
• Carbon Composite Diaphragm Material
• Alpine Proprietary Double Gathered Edge Surround
• 6.5” Mid-Bass Driver (16.5cm)
• 1” Coaxial Tweeter (2.5cm)
• 100W RMS
• 300W Peak Power Handling
• Frequency response: 55Hz – 40kHz
• Sensitivity: 88dB

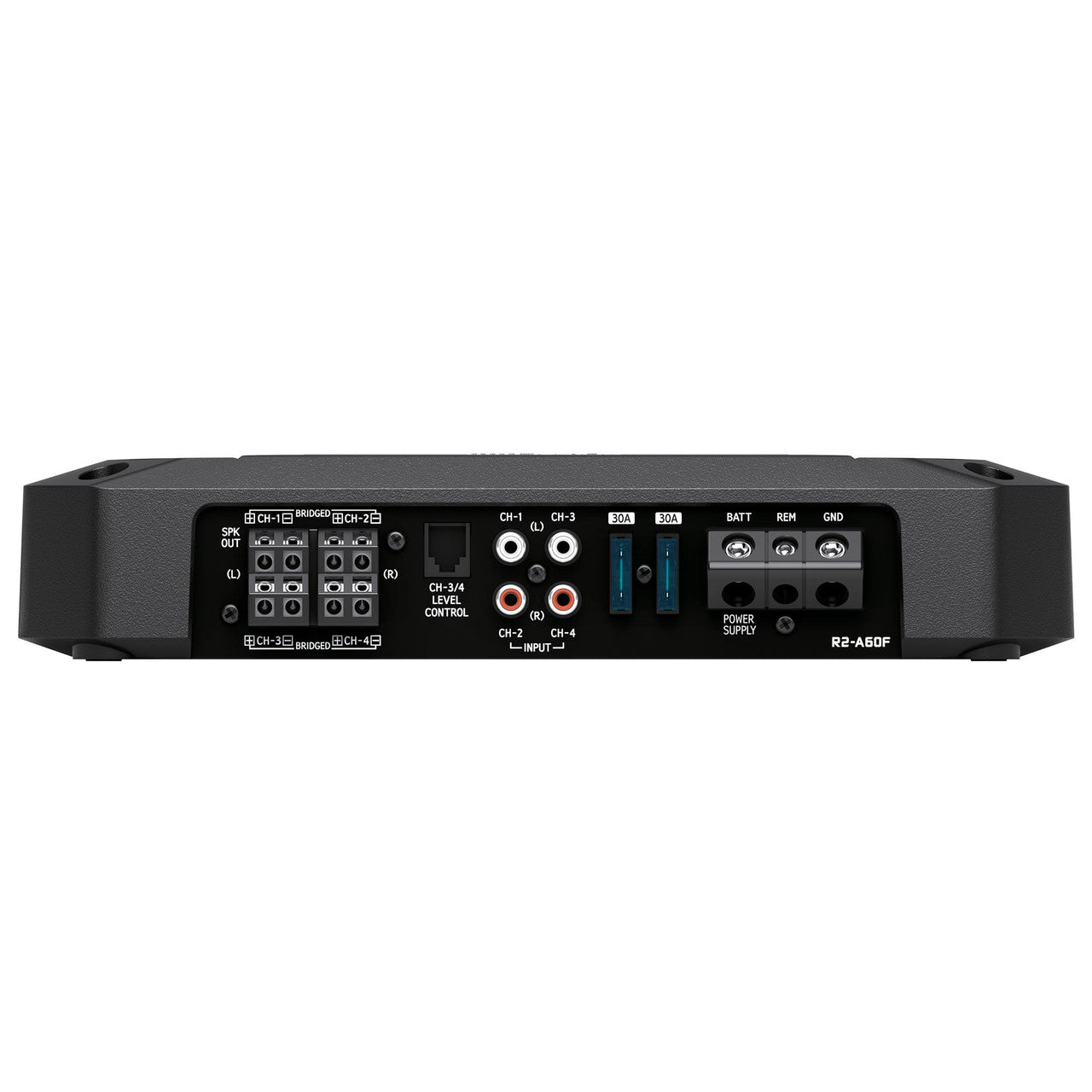

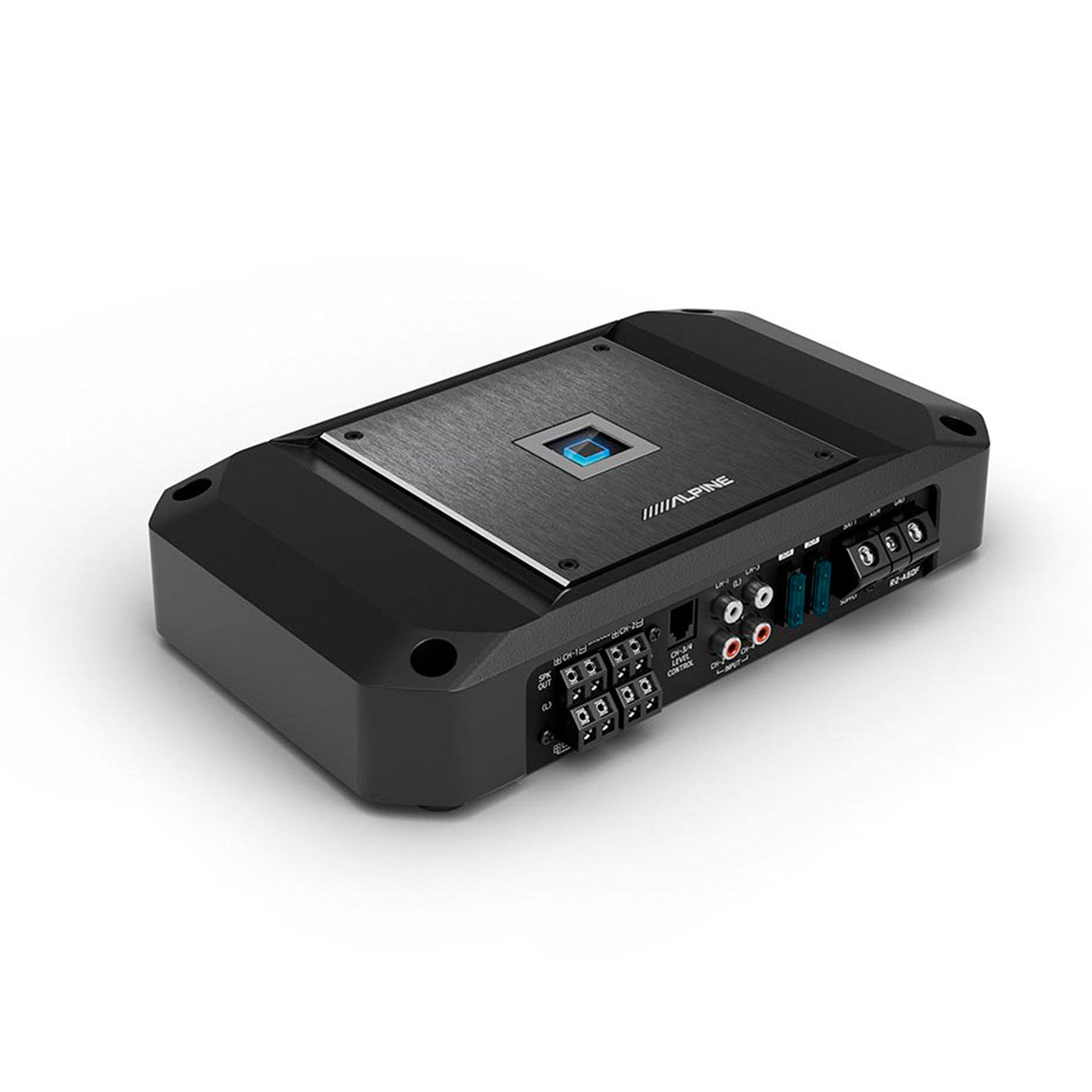

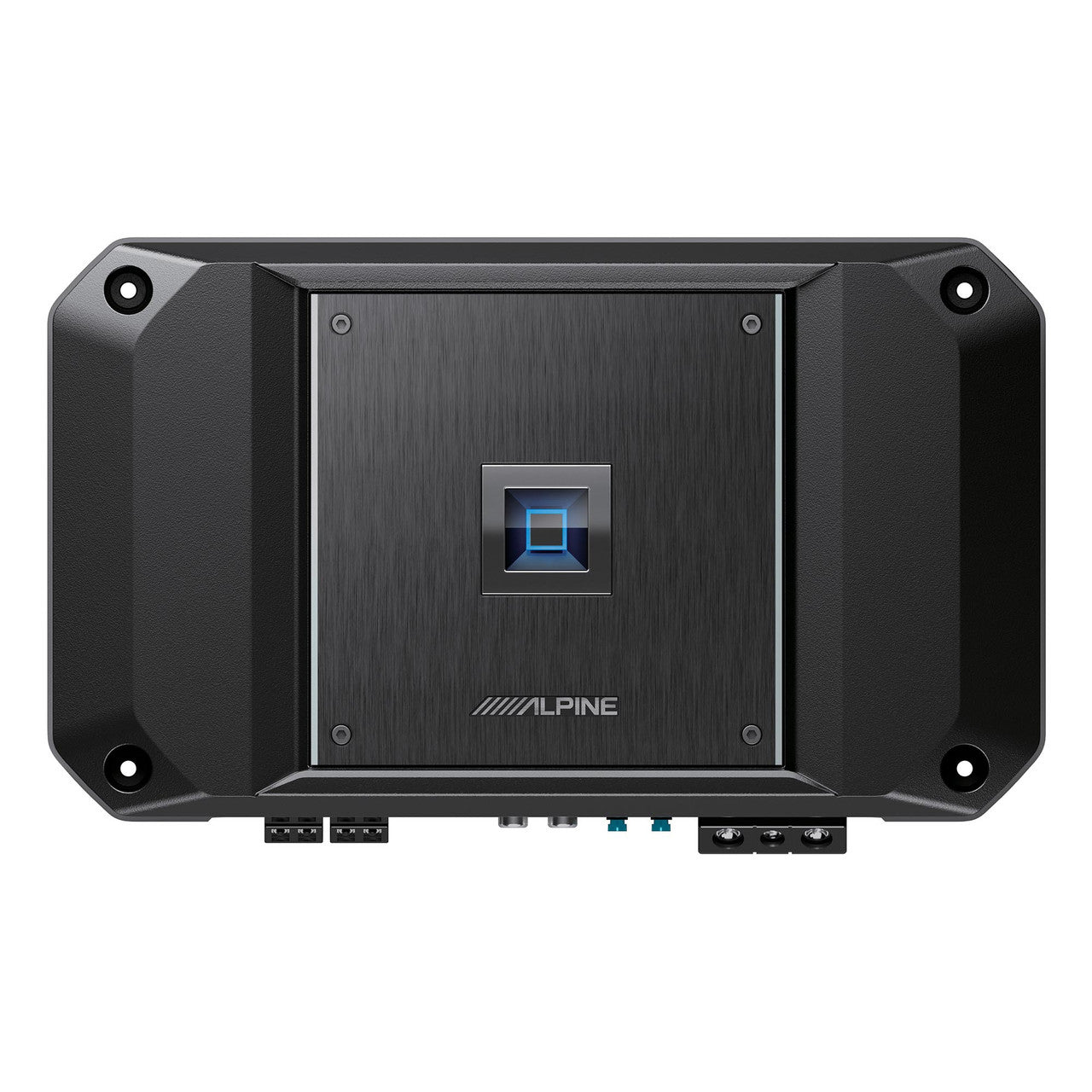

1x Alpine R2-A60F R-Series 4-Channel Amplifier - 150W x 4 at 2-Ohm, Hi-Res Certified - (R2-A60F)

Tried, tested, and true, the Alpine R-Series system has only gotten better over time. With a line-up that’s capable of achieving High-Resolution Playback, without compromising the “Loud and Fun” performance of its heritage, R-Series proves that legends never die.

IMPRESSIVE POWER
A full amplifier lineup that boasts impressive power, yet compact in size, makes the R-Series amplifiers a powerhouse in performance.

Features
High efficiency digital circuit design
Selectable Input Level
Variable High Pass / Low Pass / Band Pass Crossover
Selectable Auto Turn-on with Remote Sensing
Remote Level Control Ready

Specifications:
Performance:
Power Output: Per Channel, Ref: 4 Ohms, 14.4 V: 100 W RMS x4; Per Channel, Ref: 2 Ohms, 14.4 V: 150 W RMS x 4; Bridged, Ref: 4 Ohms, 14.4 V: 300 W RMS x 2
THD+N: Ref: 10 W into 4 Ohms: ≤0.04%; Ref: 10 W into 2 Ohms: ≤0.06%; Ref: Rated Power into 4 Ohms: ≤0.5%; Ref: Rated Power into 2 Ohms: ≤ 1.0%
S/N Ratio: IHF A-wtd + AES-17, Ref: 1 W into 4 Ohms: >80 dB; IHF A-wtd + AES-17, Ref: Rated power into 4 Ohms: >100 dB
Frequency Response: +0/-3 dB, Ref: 1 W into 4 Ohms: 10 kHz - 45 Hz;+0/-1 dB, Ref: 1 Watt into 4 Ohms: 20Hz - 20 kHz
Damping Factor: Ref: 10 W into 4 Ohms at 100 Hz >100

Control:
Input Select: Selectable Input Signal Configuration (2ch/4ch Input): CH-3/4: Ch-1/2 or CH-3/4
Input Selectivity: RCA Input, Ref: Rated power into 4 Ohms: Hi: 0.5-10V, Lo: 0.2 - 4.0V
Crossover: Variable HPF/LPF/HPF-H: CH-1/2: HPF/LPF: 50 Hz - 400Hz (-12 dB/oct.)/HPF-H: 400 Hz-6 kHz; Variable HPF/LPF/BPF: CH-3/4: HPF/LPF/BPF-L: 50 Hz -400 Hz, BPF-H: 400 Hz - 6 kHz
Remote Level (Requires Optional RUX-KNOB.2): Linear Attenuation: CH-3/4: 0 to 20 dB

General:
Input Impedance: >10 kOhms
Dimensions (WxHxD): 282 mm (11-1/8") x 55 mm (2-3/16") x 165 mm (6-1/2")
Weight: 3.3 kg (7 lbs 3 oz)

Note: Specifications and design subject to change without notice
