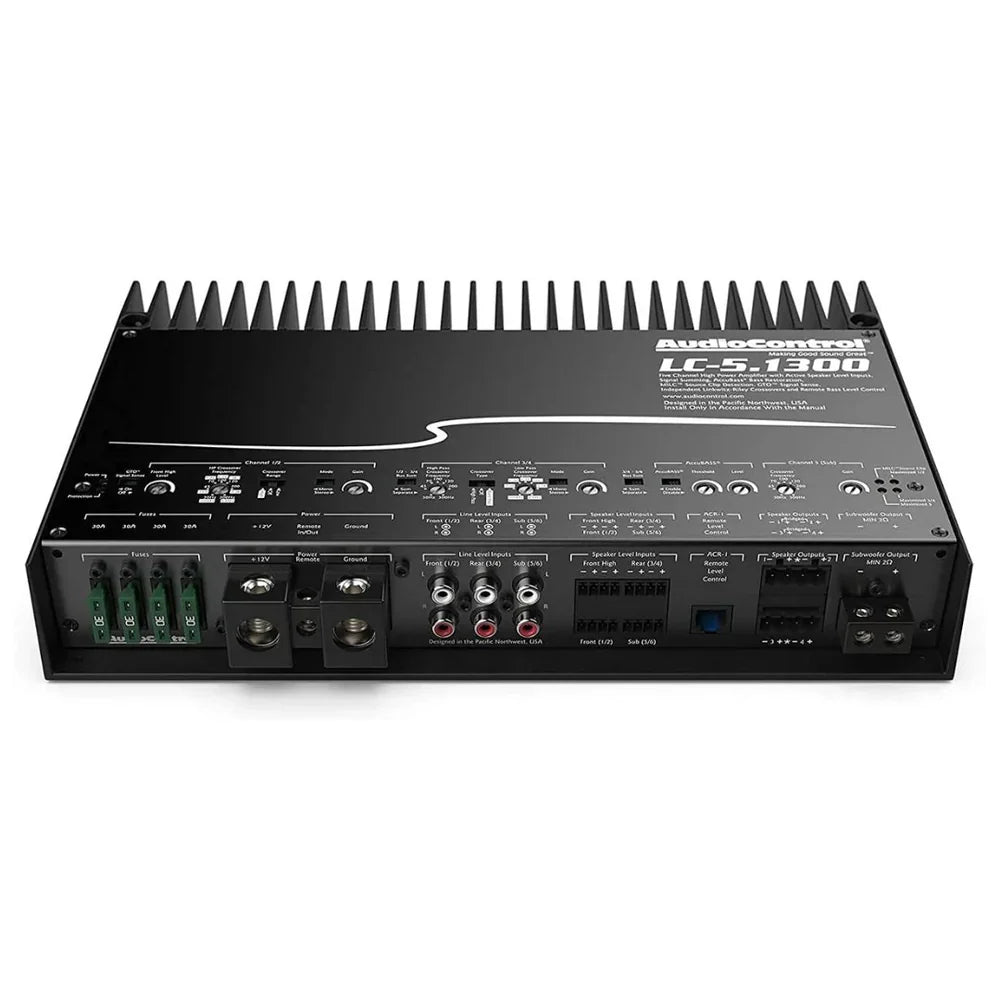

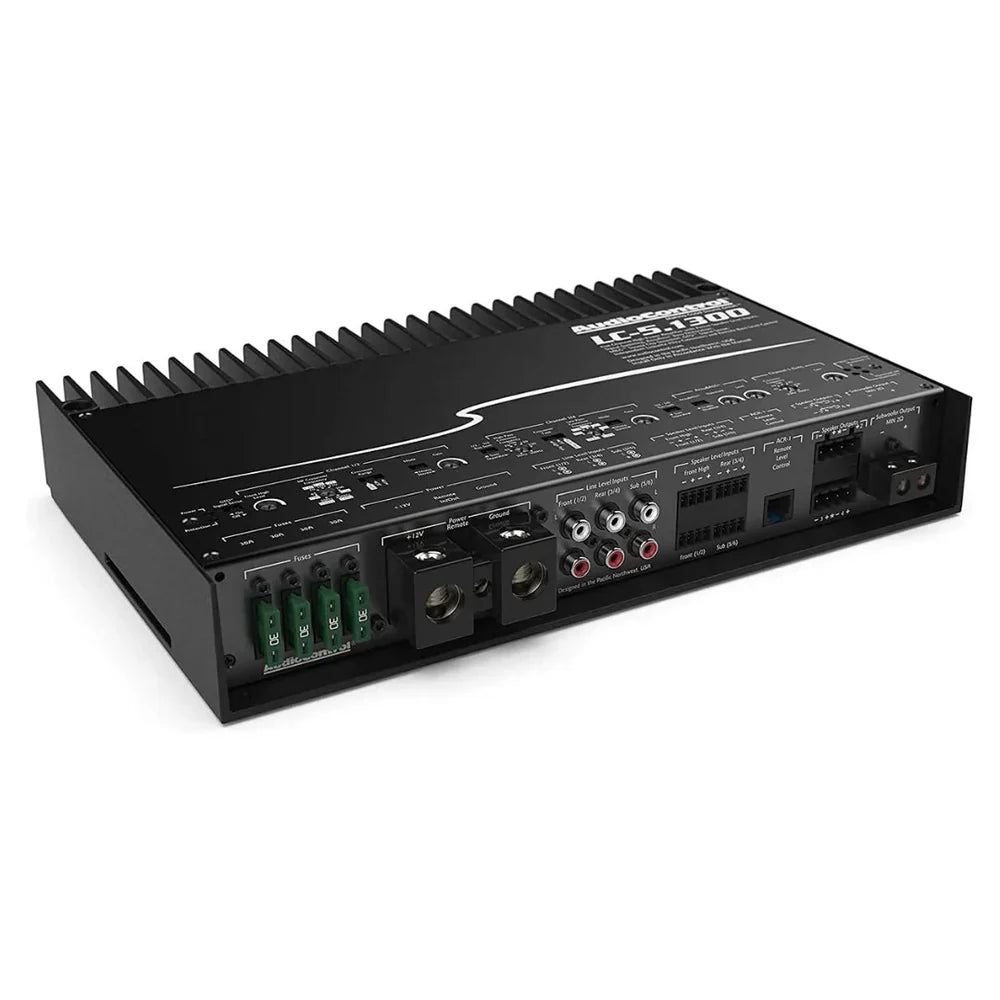

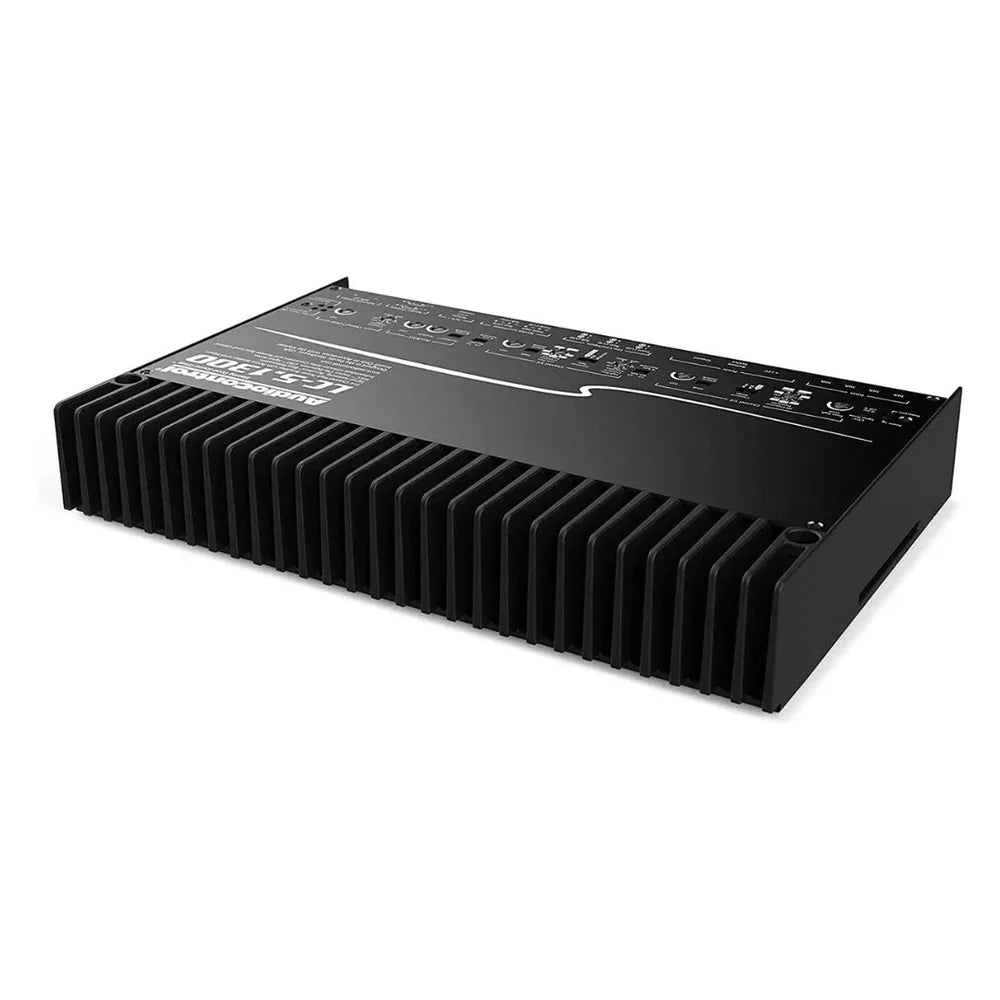

AudioControl LC-5.1300 5-Channel Car Amplifer with AccuBass

Description

Prepare for an unparalleled driving soundtrack with the AudioControl LC-5.1300 5-Channel Car Amplifier featuring Accubass technology. This powerhouse delivers exceptional audio quality, ensuring crystal-clear and powerful notes across all five channels. The durable all-aluminum chassis offers a sleek design and long-lasting performance, while the user-friendly interface simplifies setup and customization. Whether you're cruising or stuck in traffic, this amplifier will elevate your driving experience to new heights. Buckle up, crank up the volume, and get ready for the ultimate ride!

Features

• Speaker Input: The speaker inputs work with most car stereo systems and can handle 3 to 40 volts per channel, equivalent to 400 watts at 4Ω.

• Channel Summing: You can merge multiple speaker inputs to create a single stereo signal, useful when dealing with factory tweeters, midrange, woofers, etc.

• Maximum Input Level Control (MILC): Checks for clipping in the input signal. If it detects clipping, an LED lights up to signal that you should lower the input level.

• Gain Maximized LEDs: Three LED indicators show when the amplifier gain for each set of output channels has been optimized for the best performance.

• AccuBASS: Compensates for factory bass roll-off and has controls to fine-tune the bass levels to your preference.

• ACR-1 Remote: An optional wired remote (ACR-1) allows you to adjust the subwoofer channel output level from the driver's seat for added convenience.

• GTO (Great Turn On) Signal Sense: Automatically turns on the amp when it detects an audio signal and can turn itself off after a period of no input signal.

• Controls: All controls are located under a removable panel. A 2.5mm Allen wrench is included to remove the panel, and a small flat-head screwdriver (not included) is needed to adjust the rotary controls.

• GTO Signal Sense: On/Off


• Front Channels (1/2):


• Front High Level: Adjusts the level of the Front High speaker-level input.
• Crossover Range: Sets the crossover frequency adjustment range.
• HP Crossover Frequency: Sets the high-pass crossover point.
• Mode: Chooses between mono or stereo.
• Gain: Adjusts the gain of channels 1/2.


• Channels 3/4:
• Crossover Type: Chooses between High-Pass, Off, or Band-Pass.
• High-Pass/Low-Pass Crossover Frequency: Sets the crossover points.
• Mode: Chooses between mono or stereo.
• Gain: Adjusts the gain of channels 3/4.

• AccuBASS: AccuBASS enhances the bass performance of the subwoofer output
  • Enable/Disable: Turns the circuit on/off.
    Threshold: Controls the level at which AccuBASS begins to work.
    Level: Adjusts the level of AccuBASS output.


• Channel 5 (Subwoofer):
• Crossover Frequency: Sets the low-pass crossover point.

• Gain: Adjusts the gain of the subwoofer channel.

• LED Indicators: six LEDs on the top panel let you know the status of the amp.


  • Power: Lights green when the amp powers on correctly.

  • Protection: Lights red when the protection circuit engages.

  • MILC Source Clip LED: Lights when the input signal is distorting.

  • Maximized LEDs: Flash to indicate when the amp's gain is distorting the output.

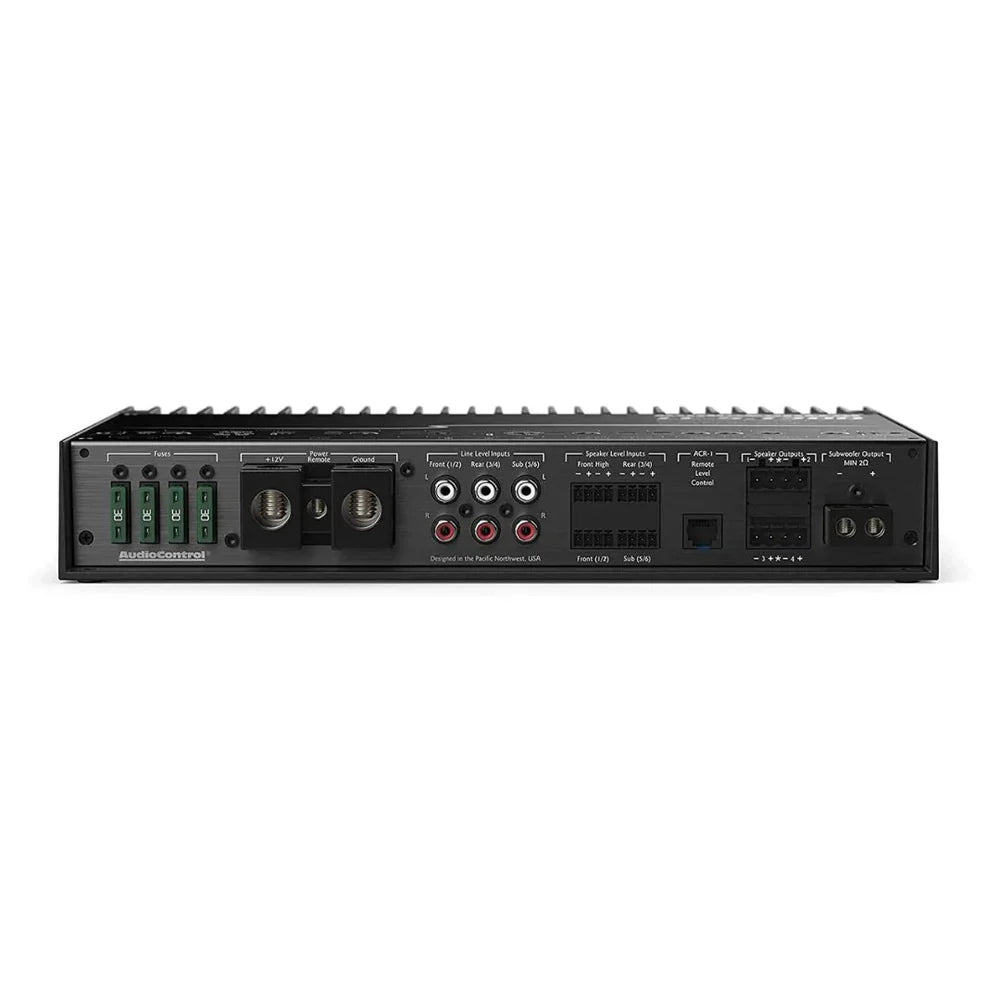

• Connections: All the connections are aligned along the front of the amplifier for ease of installation; they include:
• Fuses: Four 30-amp ATO blade-type fuses installed.
• Power: Set-screw terminals for +12V Power and Ground.
• Remote In/Out: Set-screw terminal for remote wire.
• Line Level Inputs: Three pairs of RCA jacks labeled Front, Rear, and Sub.
• Speaker Level Input: Four removable connectors, each with inputs for two speakers.
• ACR-1 Remote Level Control: RJ-14 telephone-type connection for optional remote control.
• Speaker/Subwoofer Output: Removable connectors accept speaker wire.
