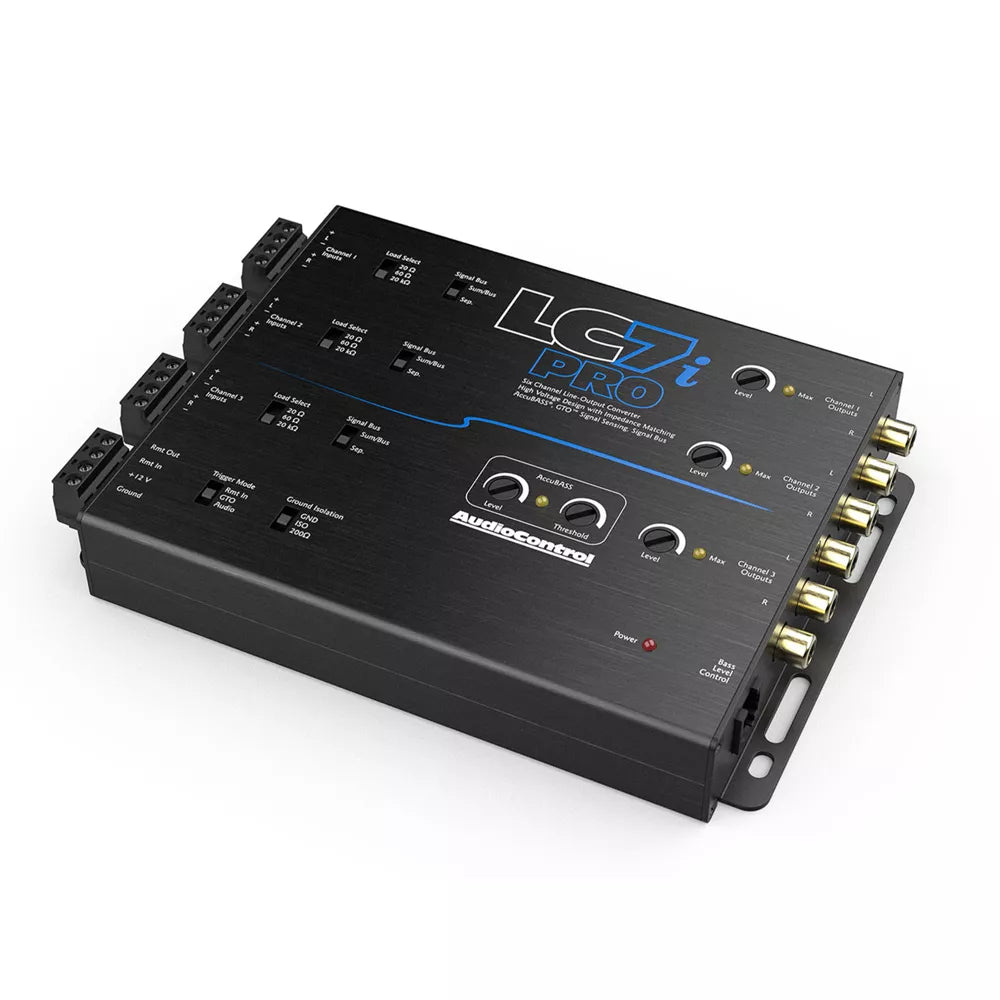

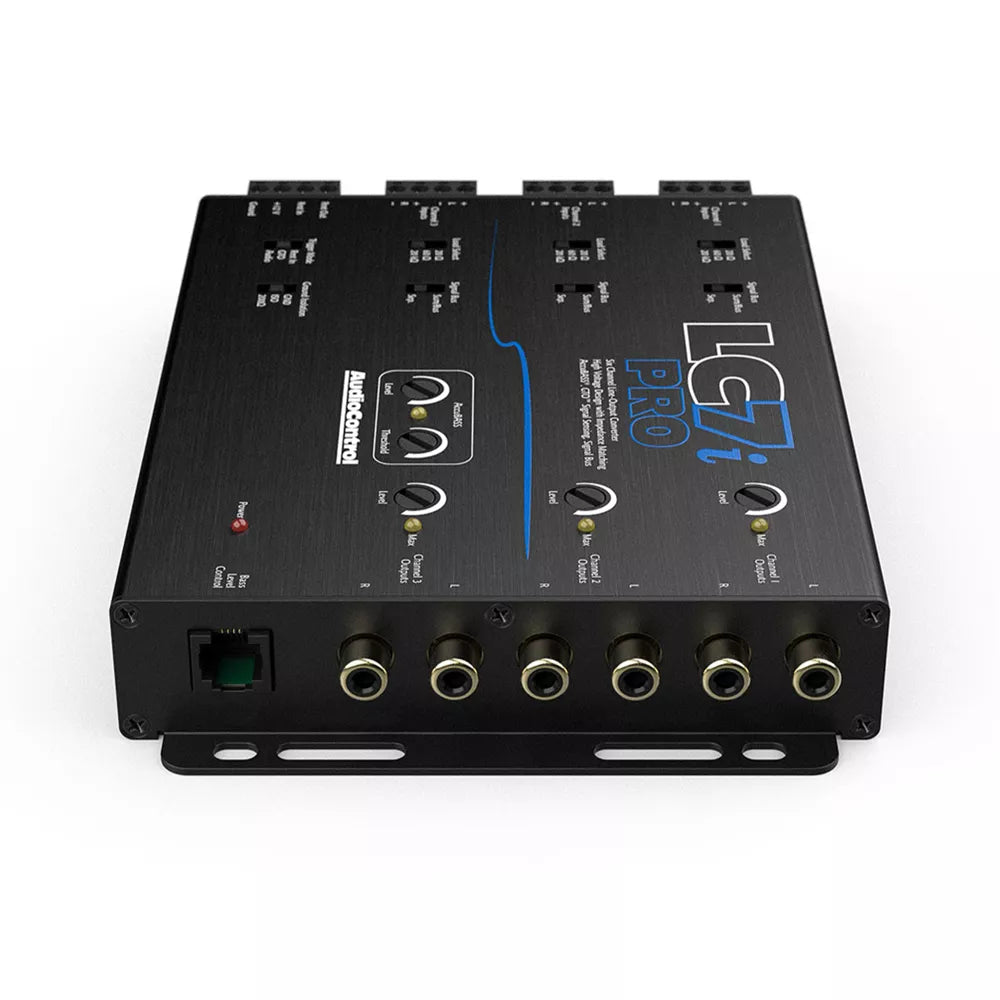

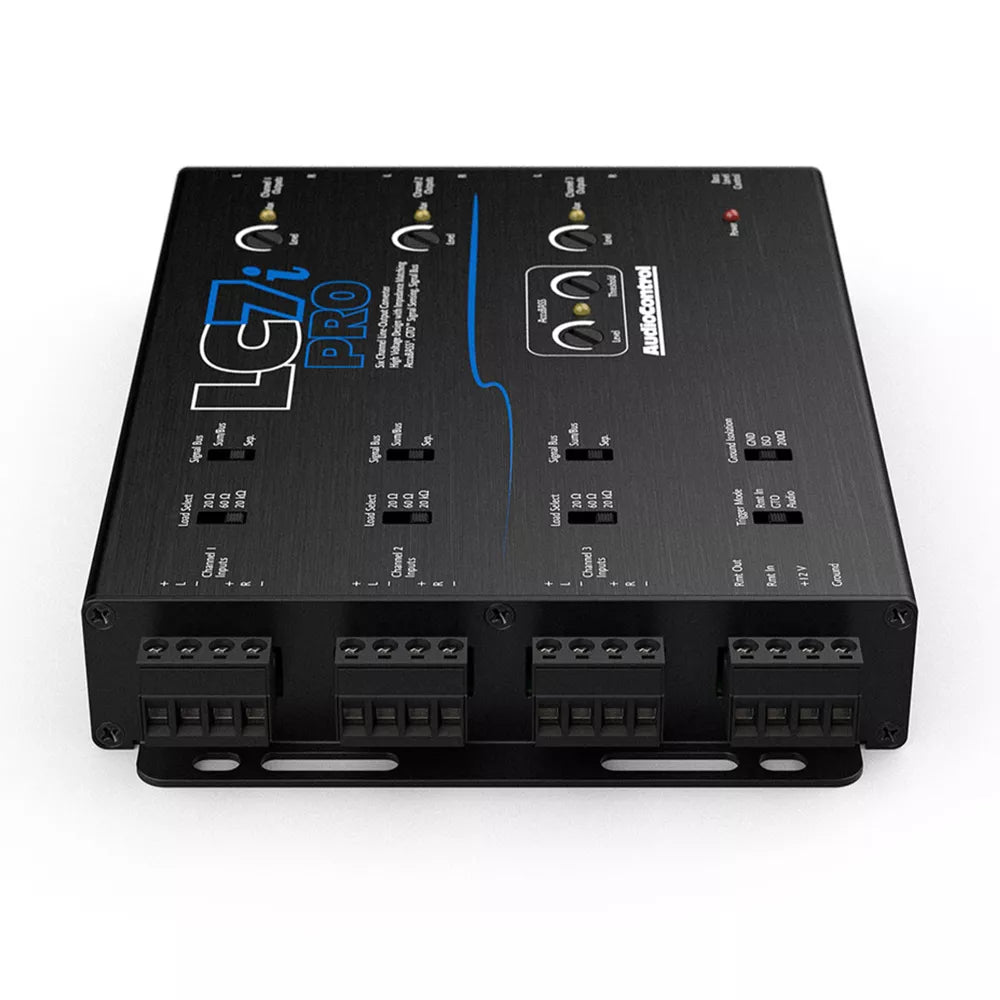

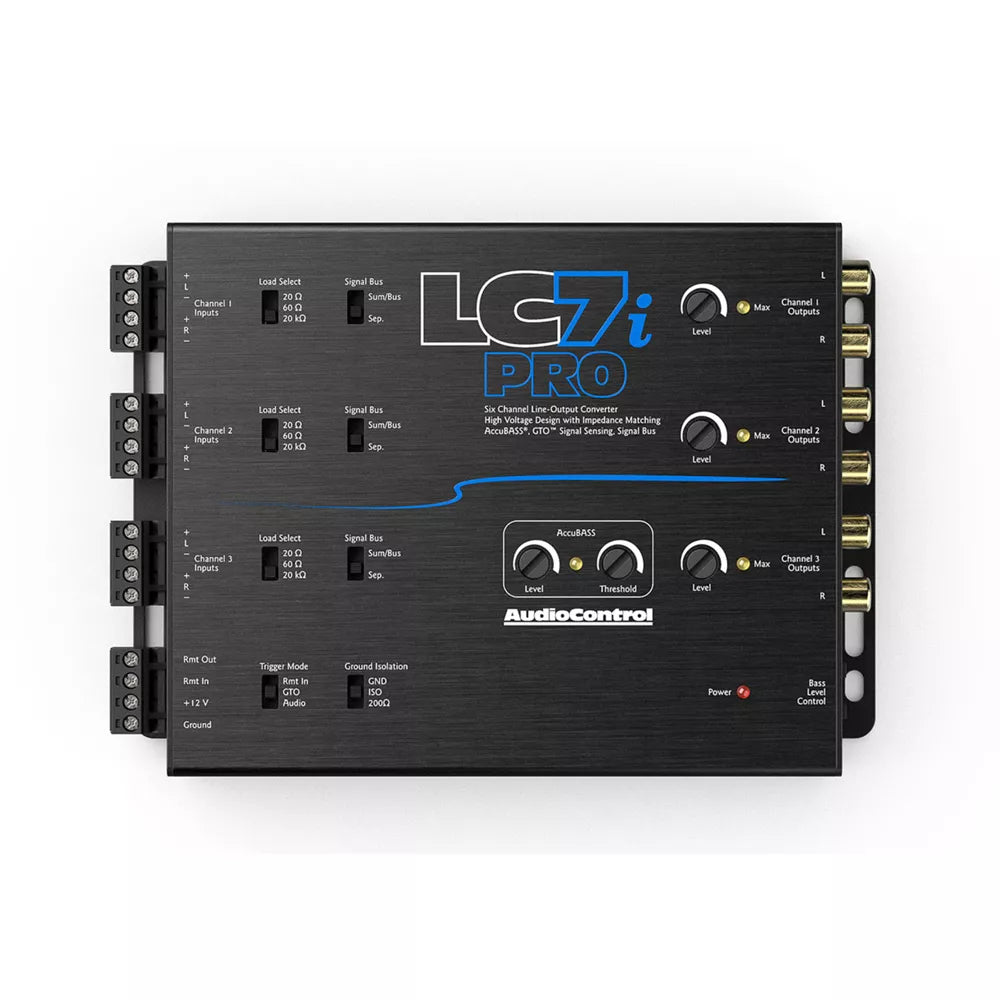

AudioControl LC7i PRO 6 Channel Line Out Converter With Accubass

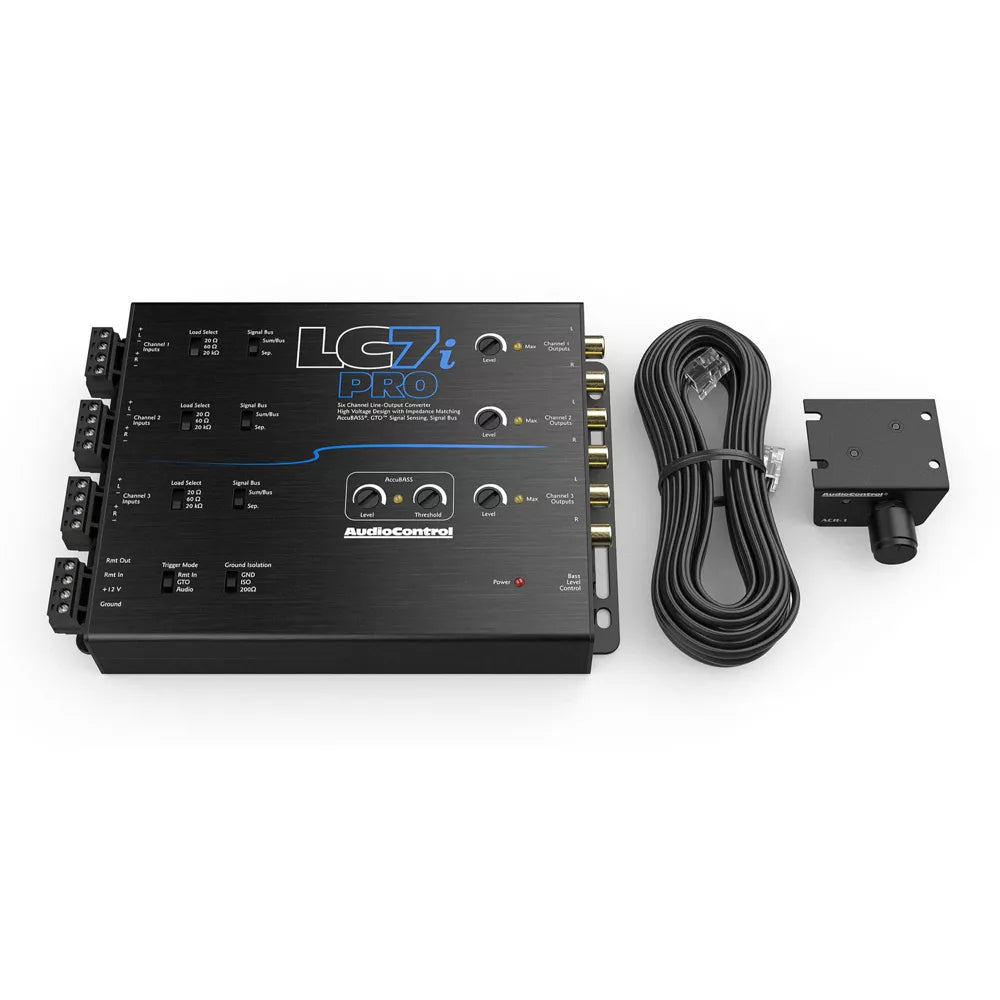

AudioControl brings you our most advanced line of LOCs yet. OEM integration has never been easier with the host of intelligent built-in features like LMC (Load Matching Ciruit), allowing even the most finicky factory sound systems to no longer be an obstacle to great sound. Installer-friendly trigger modes offer flexibility and expedited installation time since the units can be turned on via GTO Signal Sense (DC offset), audio signal sensing, or standard remote 12 volt input. ALL PRO series products feature AudioControl's patented AccuBass for restoring low frequency output diminished by factory processing, and an ACR-1 level control is included to dial in the perfect level for your subwoofer right from comfort of the driver's seat. The Pro series ensures that you will start with the clean, powerful signal you need to take your system from sounding good to sounding great. Inputs - • Speaker Level Input: 1 (6 channels) • Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting) • Input Impedance (selectable): 20Ω, 60Ω, 20kΩ Control - • Remote In / GTO™ Signal Sense / Audio Sense • 12VDC Remote Out (always active when unit is on) Outputs - • Preamp Outputs: 6 (4 channels main, 2 channels bass) • Maximum Output Level: 9.5Vrms/13V peak • Output Gain: +/- 15 dB • Output Impedance: 150Ω General - • Current Draw: 330 mA • Recommended Fuse Rating: 2 A Performance - • Total Harmonic Distortion: 0.01% • Signal to Noise: >124 dB • Frequency Response: 20 Hz – 20 kHz

Highlights

• Six channels of active speaker-level inputs (up to 40V input handling)
• Fixed and variable outputs with discrete-level controls
• AccuBASS processing for correction of bass roll-off
• Load Selection Switch
• GTO Signal Sensing
