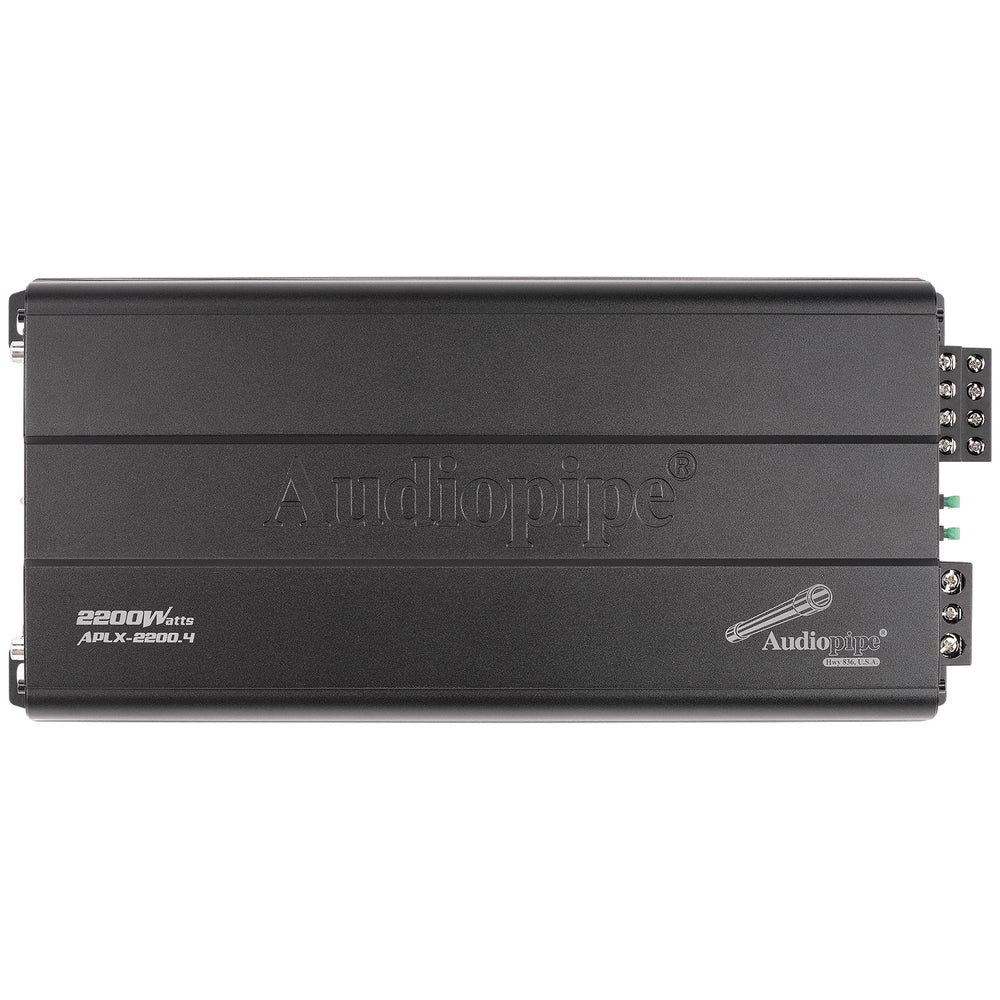

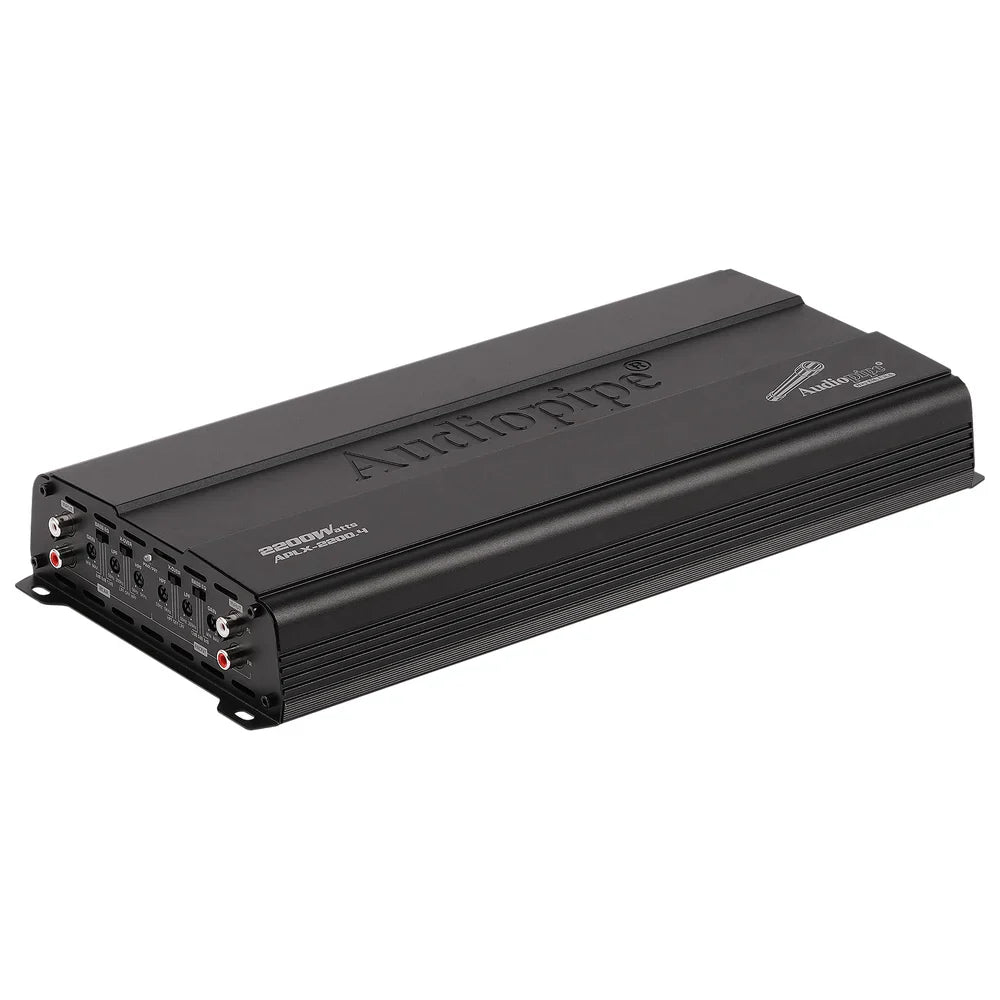

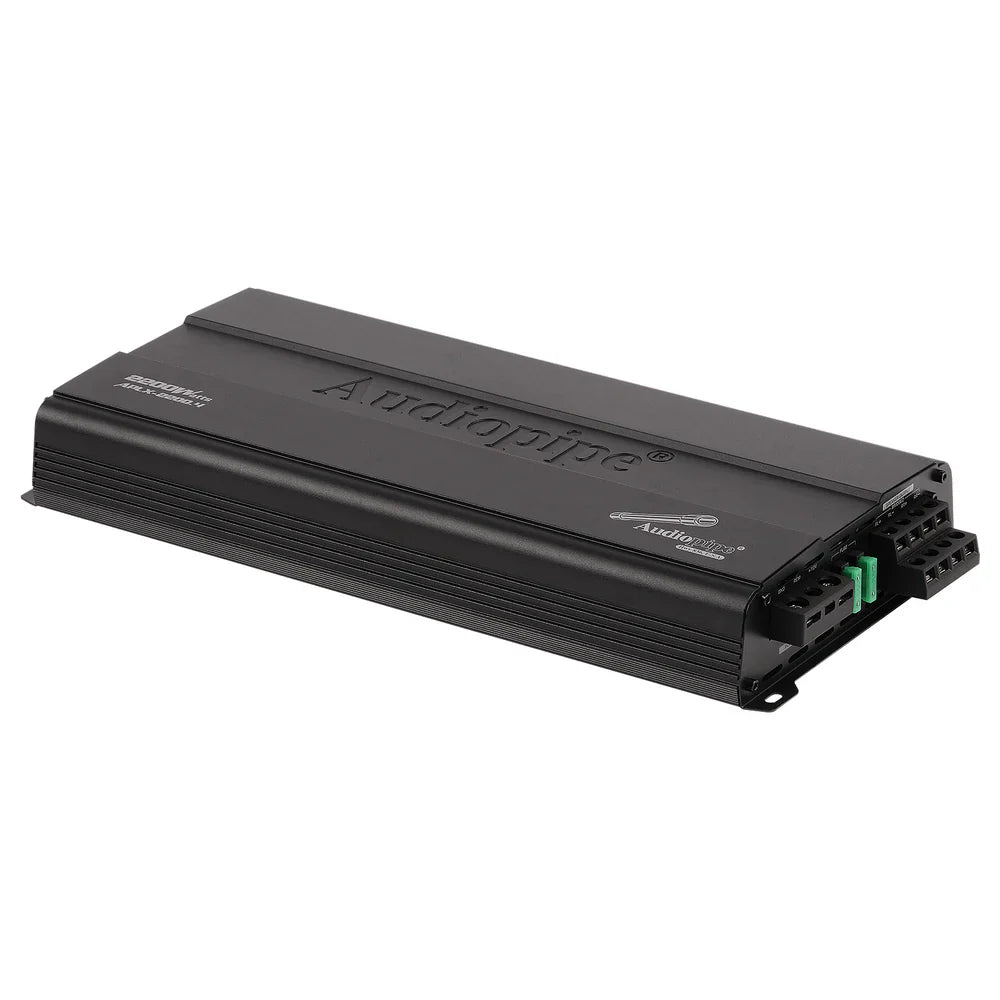

Audiopipe APLX-2200.4 | 4-Channel Class A/B Amplifier

Product details

• CLASS A/B MOSFET AMPLIFIER: The APLX-2200.4 delivers clean, powerful sound with the warmth and detail of Class A/B circuitry, ideal for high-fidelity car audio systems.
• VERSATILE 4-CHANNEL OUTPUT: Maximum Power Output: 2 × 320W; RMS @ 2 Ohms (<1% Distortion): 4 × 160W; RMS @ 4 Ohms (<1% Distortion): 4 × 110W, offering flexible configurations for speakers or subwoofers.
• WIDE FREQUENCY RESPONSE: Covers 20Hz–20KHz, reproducing deep bass, rich mids, and crisp highs for a full-range listening experience.
• PRECISION AUDIO CONTROL: Adjustable input sensitivity from 0.15V to 6V allows perfect matching with a wide variety of head units and signal sources.
• LOW DISTORTION, HIGH CLARITY: Signal-to-noise ratio ≥ 89dB and THD ≤ 0.1% ensure pure, accurate audio reproduction with minimal background noise.
• FULL RANGE DESIGN FOR FLEXIBLE SYSTEMS: Designed for versatile full-range audio setups, this amplifier delivers exceptional performance in 4-channel interior speaker configurations as well as sophisticated 3-way systems. Two channels can power mid/high speakers, while the remaining two channels can be bridged to drive a dedicated subwoofer, offering maximum flexibility and sound quality.

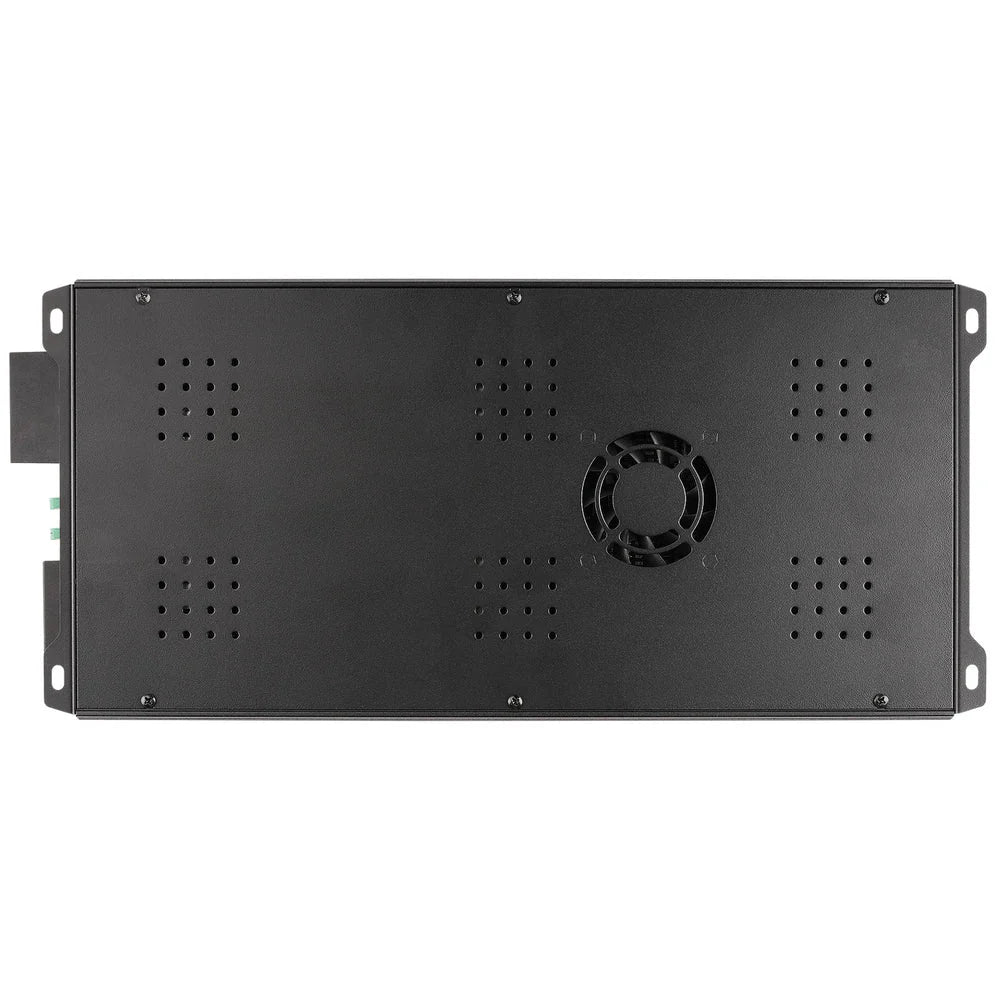

• INTEGRATED COOLING FAN: Features a built-in fan that actively dissipates heat, maintaining optimal operating temperature and ensuring reliable performance during extended use.
• DOUBLE-SIDED PCB DESIGN: Built with a durable double-sided PCB for improved heat dissipation, stability, and long-term reliability.

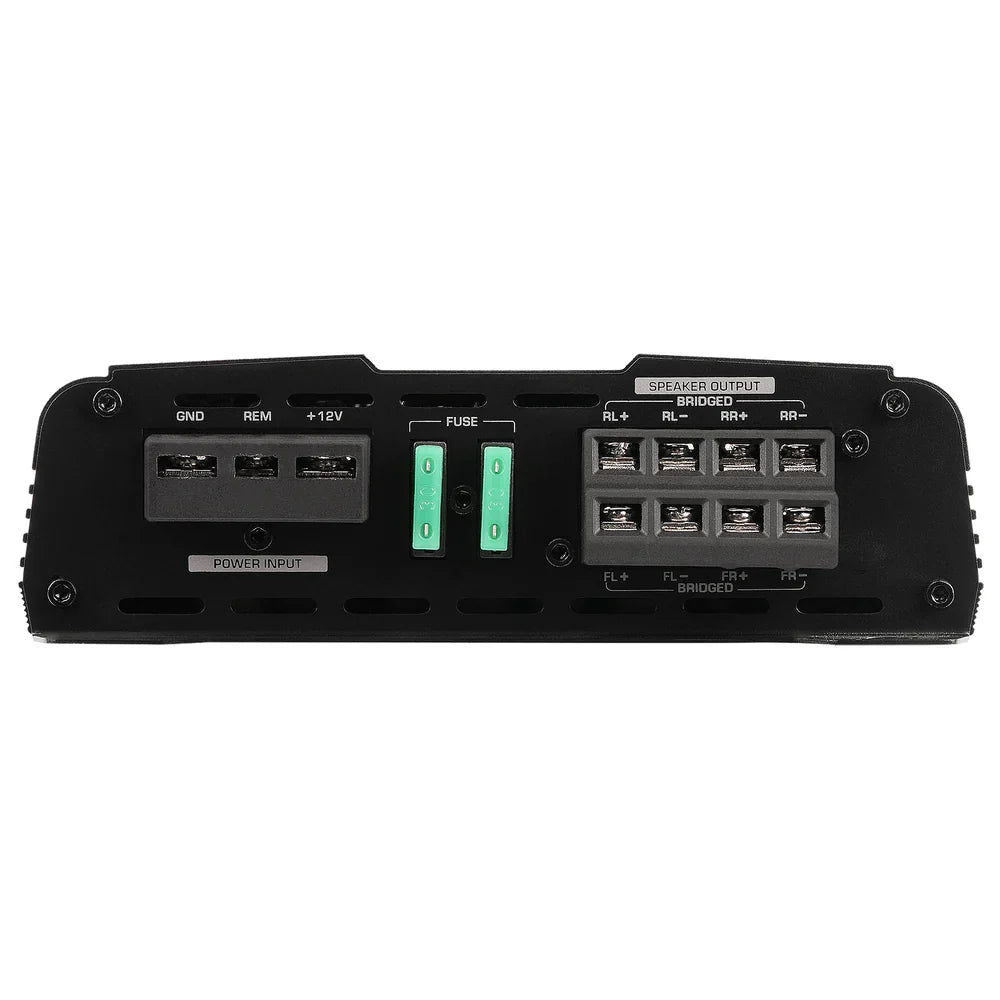

• RELIABLE PERFORMANCE RANGE: Operates within a 9V–16V working voltage, maintaining stable output even under demanding automotive conditions.
• MINIMUM LOAD: 2 Ohm
• DIMENSIONS: 15.2” x 7.09“ x 2.11” (386 x 180 x 53.5 mm)

Description:

The Audiopipe APLX-2200.4 is a versatile 4-channel Class A/B MOSFET amplifier delivering up to 2200W peak power with clear, low-distortion sound. Its wide frequency response and adjustable input sensitivity allow precise tuning for both full-range speakers and subwoofers. Designed to perform reliably from 9V to 16V, it offers durable, high-quality audio for daily driving or competitive setups, ensuring your car audio system sounds its best in any situation.
