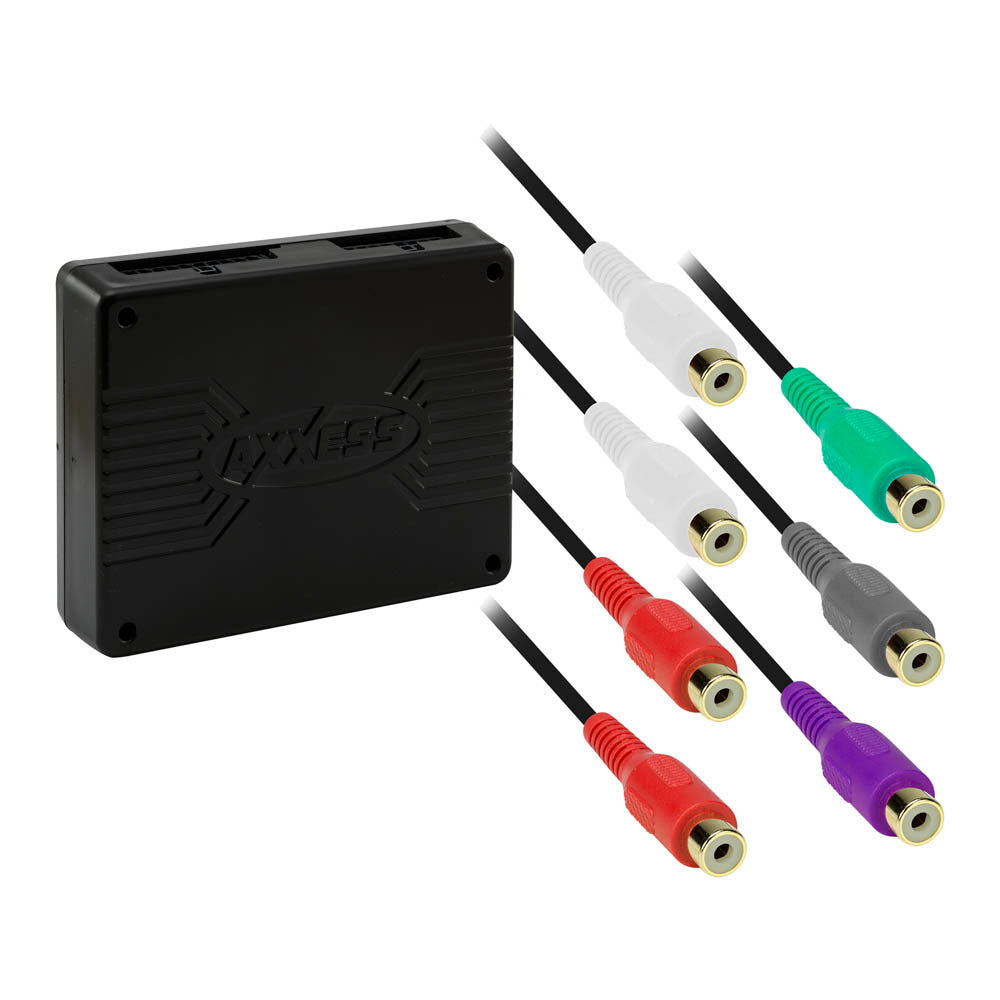

AX-DSP-LITE Axxess DSP “Lite” 6-Channel Digital Signal Processor

Not every sound system will utilize all the features of the AXDSP-X, so we created a “Lite” option to provide just the essentials while still retaining important vehicle functions. Use the AXDSP-L with OEM or aftermarket radios to take fixed level/digitally controlled analog audio and convert it to six channels of analog signal for use with an aftermarket amplifier or DSP. While this may be a “Lite” version, it still provides retention of many important vehicle functions. It features chime control, retains OEM voice prompts and sonar sensors, and has clipping detection and limiting circuits. There are four inputs and six outputs, including front, rear and subwoofer, and the front and rear outputs can be delayed independently up to 10 ms.

• 15-band graphic EQ on each channel with high pass, low pass, and bandpass filters
• 4 inputs and 6 individually assignable outputs
• Independent equalization on each of the 6 outputs
• Selectable slope (12, 24, 36, or 48db per octave)
• Selectable Graphic or Parametric EQ
• Each channel can be delayed independently for up to 10 ms
• Easy behind the radio installation in most applications
• Can be used with OE and aftermarket radios
• Chime control for GM/Chrysler vehicles
• Clipping detection and limiting circuits
• Internal header port for adding interface modules
• Bass knob included
• Retains OE voice prompts (Sync® and OnStar®)
• Retains factory chimes, including parking sensor and cross path detection alerts with adjustable chime level
• Settings adjusted wirelessly in a smart device application (tablet or mobile phone)
• Read, write, and store configurations for future recall
• Password-protect feature is available in the mobile app
• Micro “B” USB updatable
