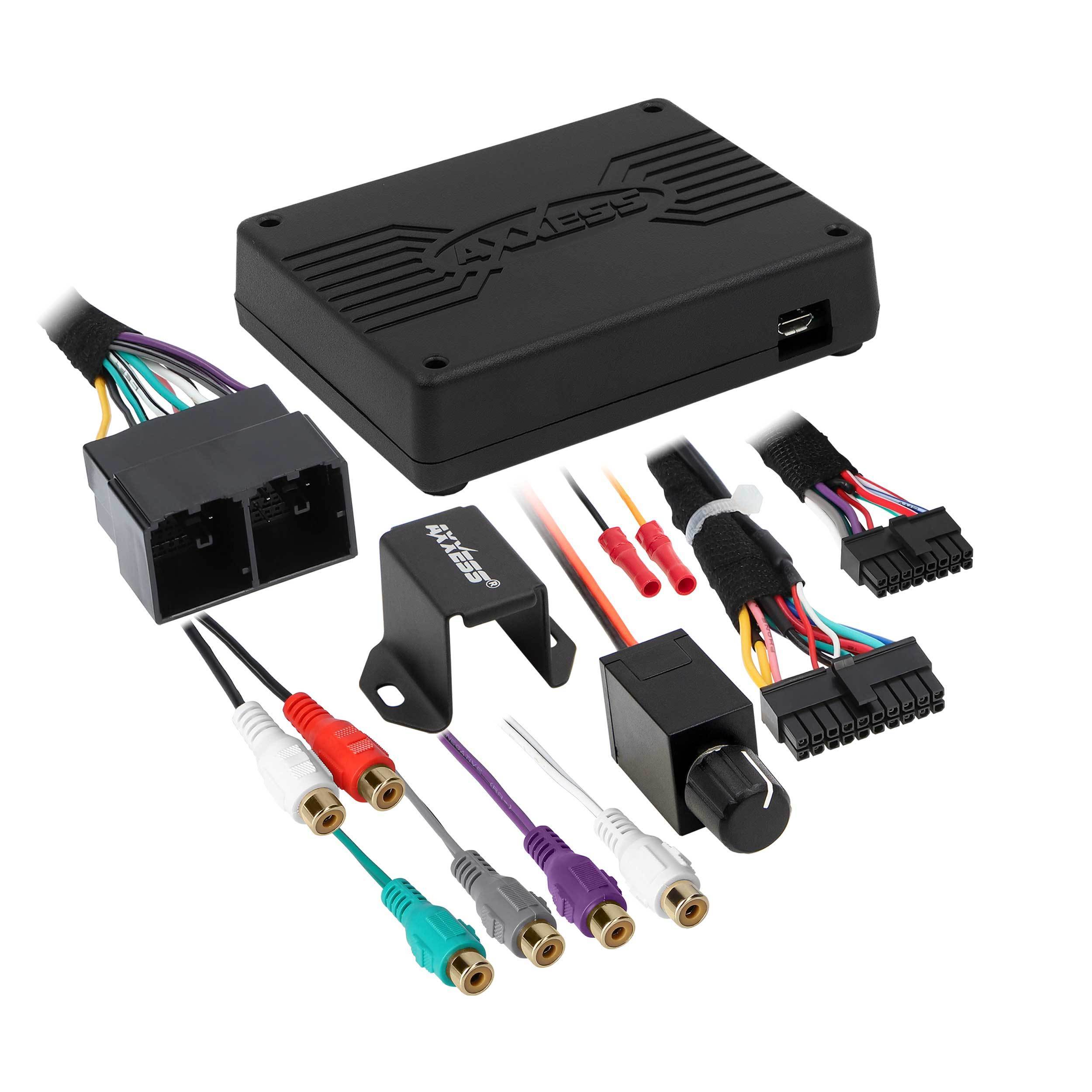

AXDSPL-GM30 Axxess DSP “Lite” Package Fits Select GM 2019-2021

Upgrade the sound system with this cost-effective, easy-to-install DSP “Lite” package that includes a vehicle-specific T-harness. It works with OEM or aftermarket radios to take fixed level/digitally controlled analog audio and convert it to 6 channels of analog signal for use with an aftermarket amplifier or DSP.

Retain Features with a Built-in Interface

While this may be a “Lite” version, it still provides retention of many important vehicle functions utilizing Axxess’s cutting-edge technology. It features chime control, retains OEM voice prompts and sonar sensors, and has clipping detection and limiting circuits, going beyond what a traditional DSP can do.

Complete Tuning Control

There are 4 inputs and 6 outputs, including front, rear and subwoofer, and the front and rear outputs can be delayed independently up to 10ms. Full tuning control settings are adjusted via a smart device application for tablets or mobile phones and can be password-protected once set up. Once tuning has been completed, installers can password-protect their settings to prevent anyone else from adjusting, and the information is stored for future recall.

• Designed for non-amplified models
• Package includes the AXDSP-L and vehicle-specific T-harness
• 15-band graphic EQ or 5-band Parametric EQ
• Selectable high pass, low pass, or bandpass filters on each channel
• 4 inputs and 6 individually assignable outputs
• Independent equalization on each of the 6 outputs
• Selectable slope (12, 24, 36, or 48db per octave)
• Each channel can be delayed independently for up to 10 ms
• Easy behind the radio installation in most applications
• Can be used with OE and aftermarket radios
• Clipping detection and limiting circuits
• Internal header port for adding interface modules
• Bass knob included
• Retains OE voice prompts (OnStar®)
• Retains factory chimes, including parking sensor and cross path detection alerts with adjustable chime level
• Settings adjusted wirelessly in a smart device application (tablet or mobile phone)
• Read, write, and store configurations for future recall
• Password-protect feature is available in the mobile app
• Micro “B” USB updatable

Vehicle Applications

Chevrolet

• Blazer (IOT, IOU) 2019-2021
• Camaro (IOS, IOT) 2019-2021
• Cheyenne (IOS, IOT) 2019-2021
• Colorado (IOS, IOT) 2019-2021
• Equinox (IOS, IOT) 2019-2021
• Malibu (IOU, IOS) 2019-2021
• Silverado (IOS, IOT) 2019-2021
• Traverse _(IOS, IOT)_2020-Up

GMC

• Acadia (IOU) 2019-2021
• Canyon (IOS, IOT) 2019-2021
• Sierra 1500 (IOS, IOT) 2019-2021
• Terrain (IOS, IOT, IOU) 2019-2021
