INTRODUCTION

We would like to congratulate you on your purchase of the E5 HLC6; a 6 channel, high-performance line output converter. The E5 HLC6 will accept two, four, or six channels of Speaker-level signal from a factory-installed amplier or Source unit and convert it into a high-quality, low-noise pre-amp signal. Therefore the E5 HLC6 will allow you to use your factory installed source unit but give you the ability to add any high performance aftermarket amplier and processor. Wether this is your rst product or you are already a rm believer, you will denitely enjoy how great the E5 HLC6 can make your High performance stereo system sound. Please read these instructions carefully before beginning to install your new E5 HLC6. Proper installation and adequate tuning will help you get optimal sound quality results

FEATURE

- Six Input & Output Channels - Speaker-Level Inputs - Signal Sensing Inputs - Level Matching Controls - 12 Volt Remote Trigger Output - 24 kT Gold Plated RCA Connectors1

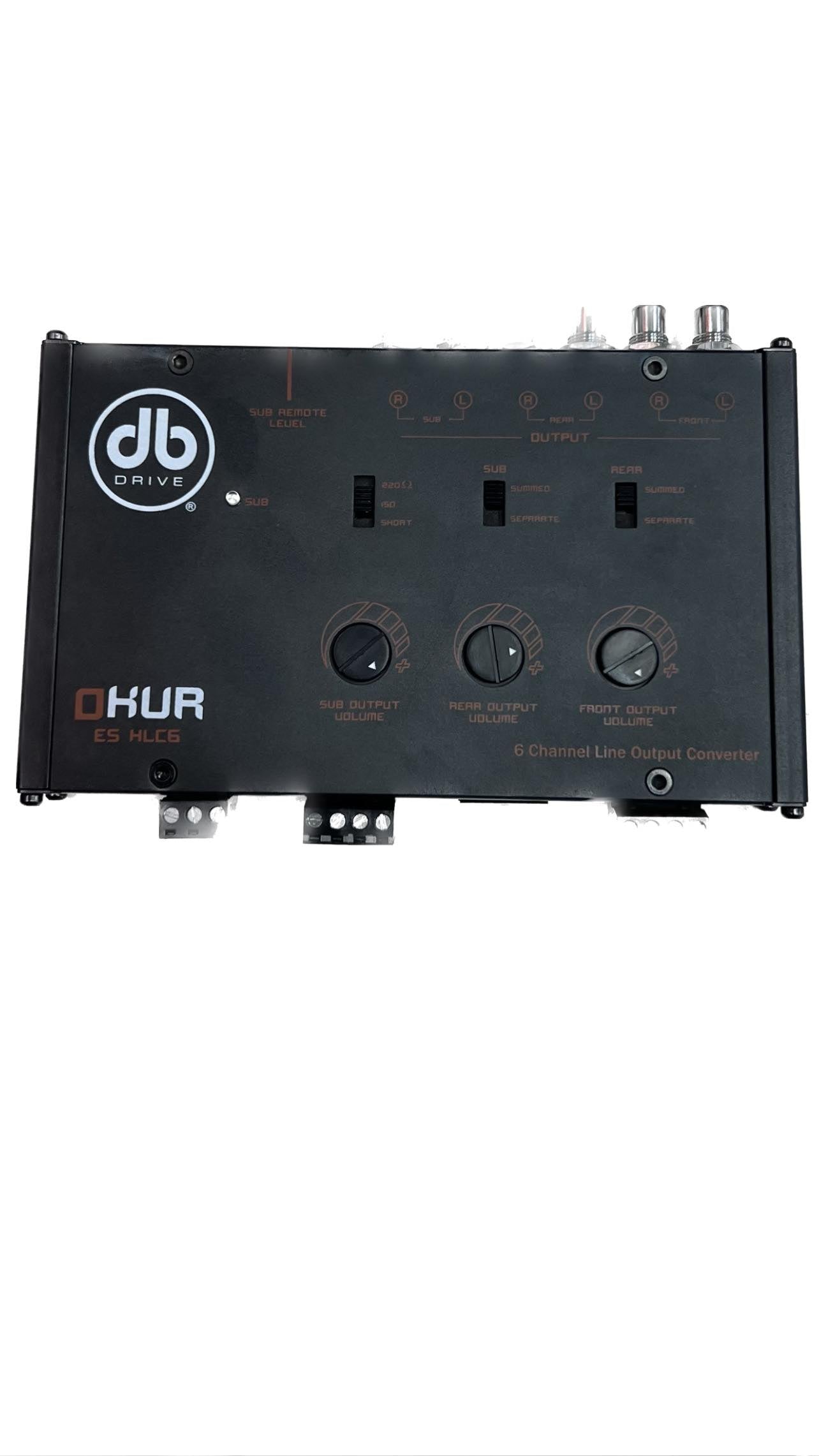

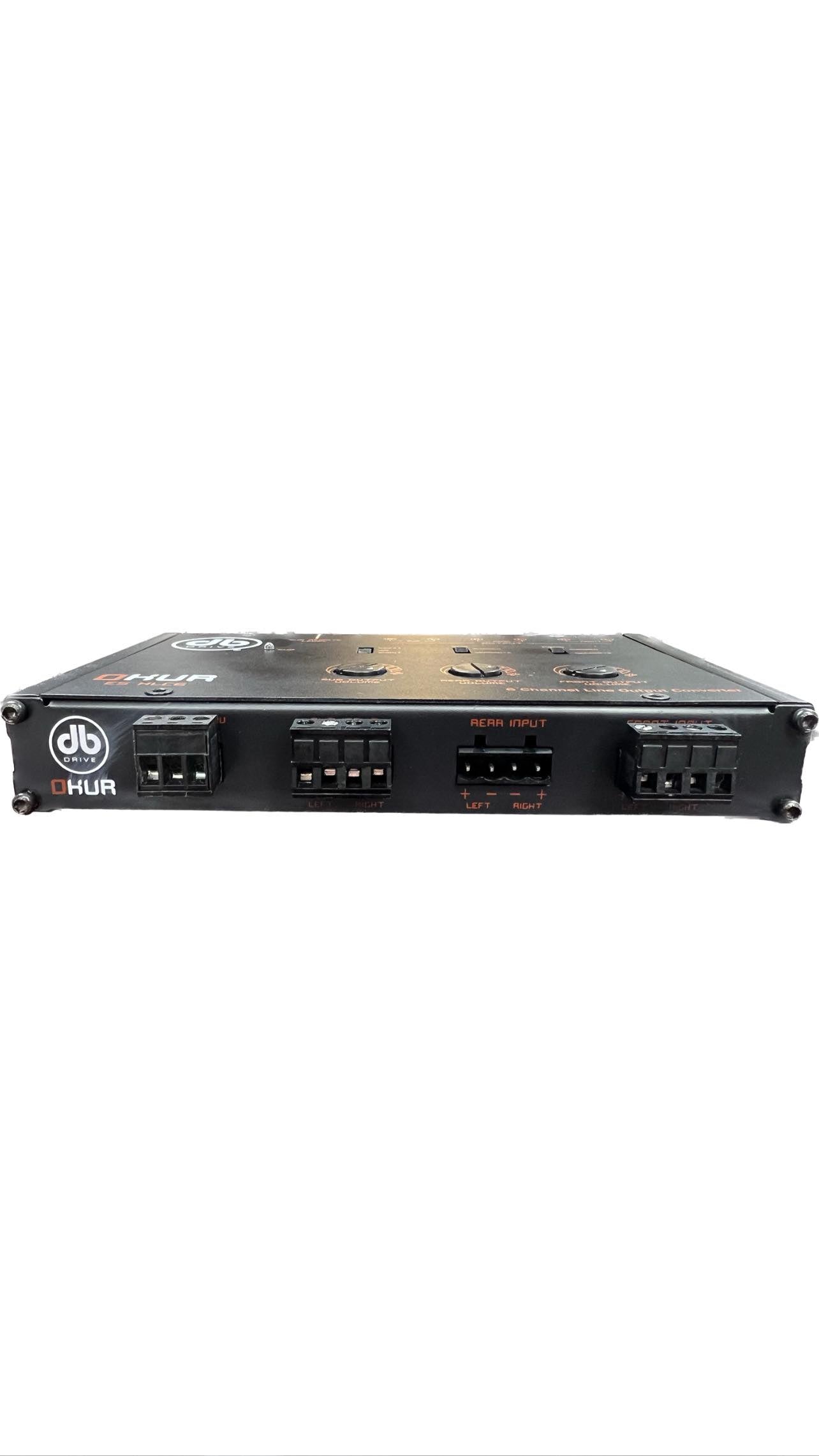

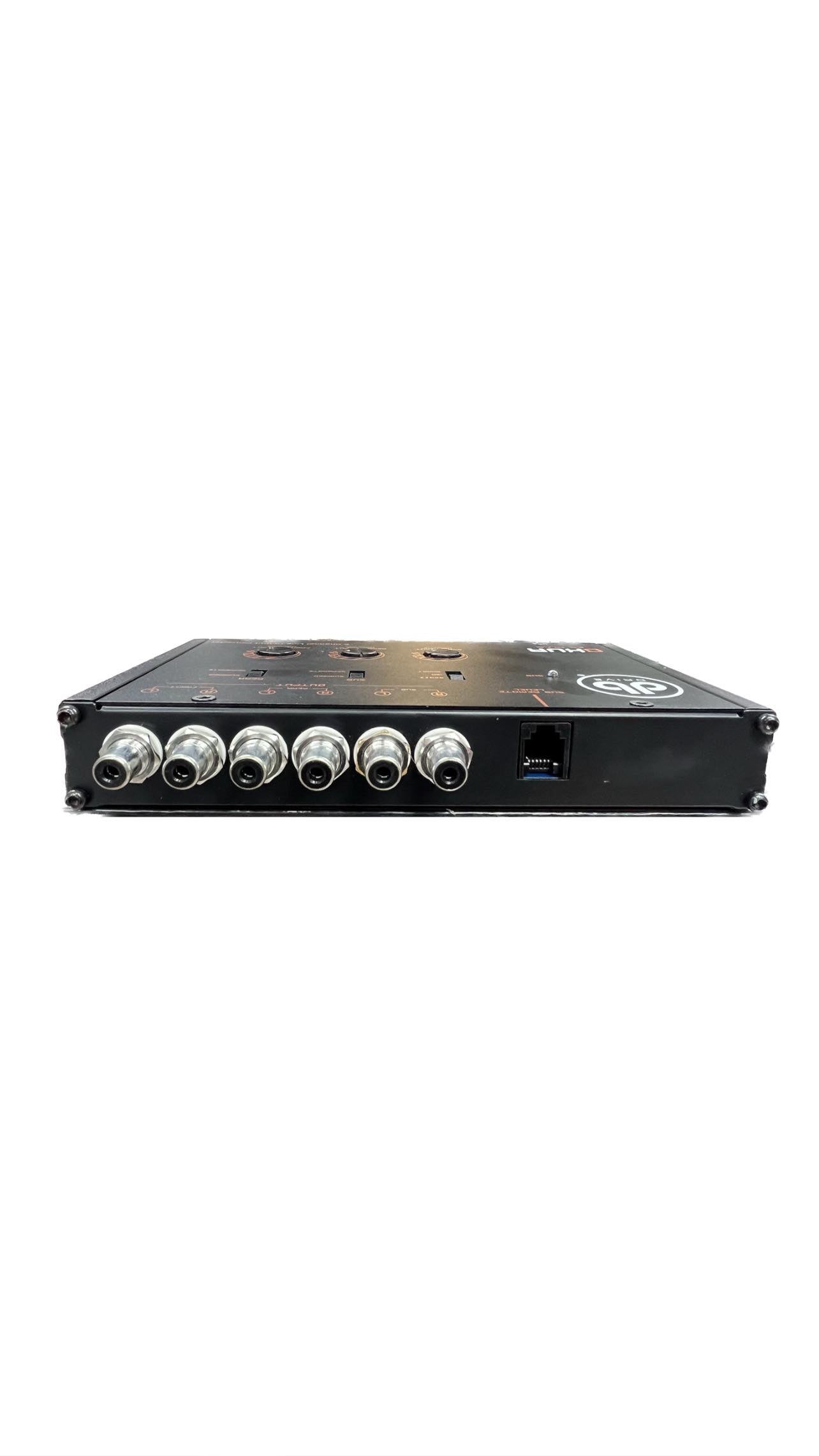

FRONT PANEL CONTROLS ELECTRICAL INSTALLATION Speaker-Level Inputs - Six Speaker Level Inputs 12V Output Trigger - Gives you a separate 12 volt turn-on lead for external amplifiers so there is no need to run a separate wire to the front of the car Ground Isolation Selector - Occasionally alternator noise may appear in a system because the source unit and amplifier are using different grounding schemes. To help in this situation, we have provided alternative grounding connections. Make sure your system is turned OFF before you move these jumpers. Six Output Channels - Six output channels that can either run independently or be summed together internally Channel Summing - The E5 HLC6 internal jumpers allow installer to sum selected channels into sub channels. This is especially useful for factory-installed systems with actively crossed-over speaker systems. Level Matching Controls - Allows the user to adjust the outputs on the E5 HLC6 independently to help insure proper level matching throughout the entire system
