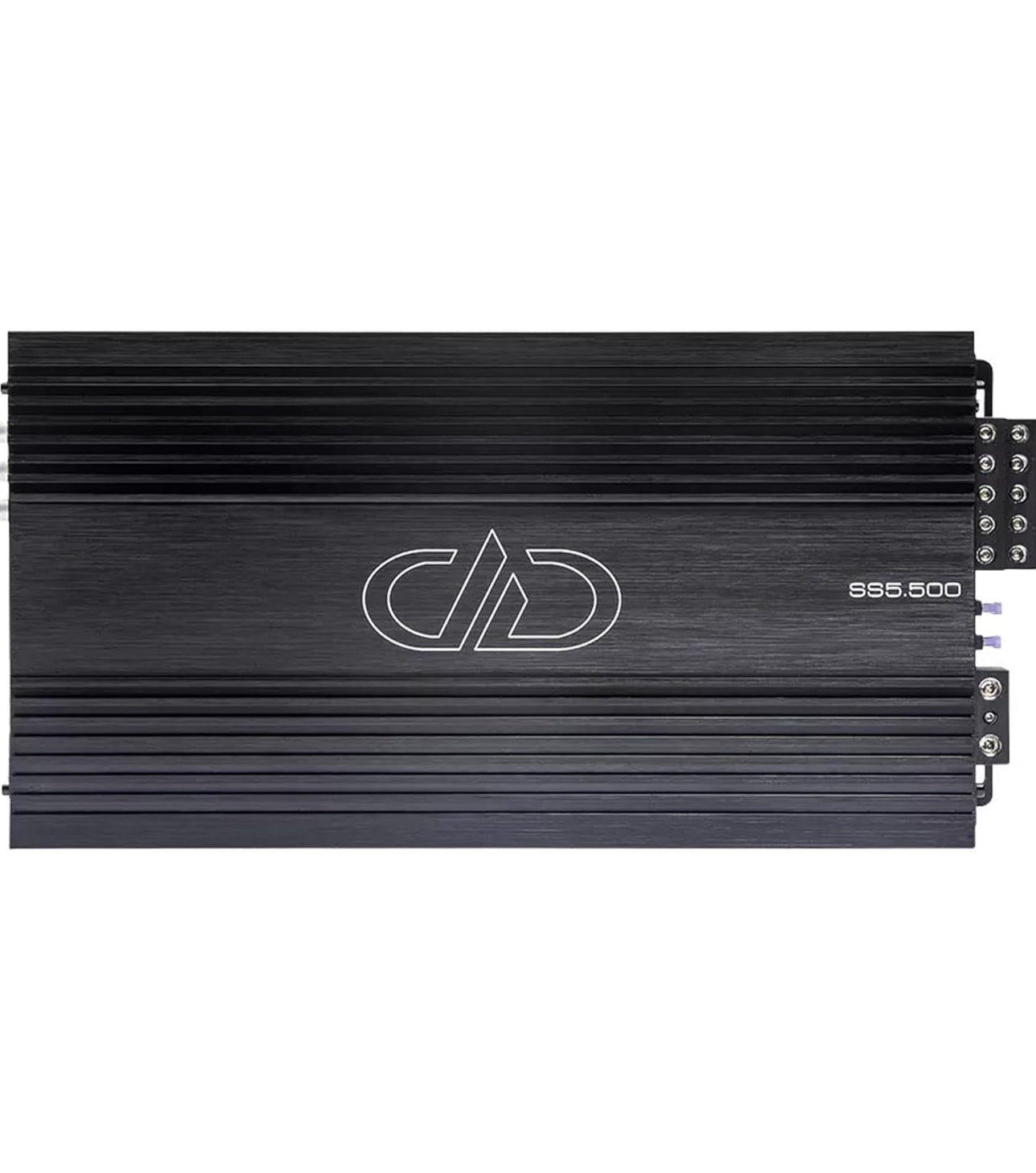

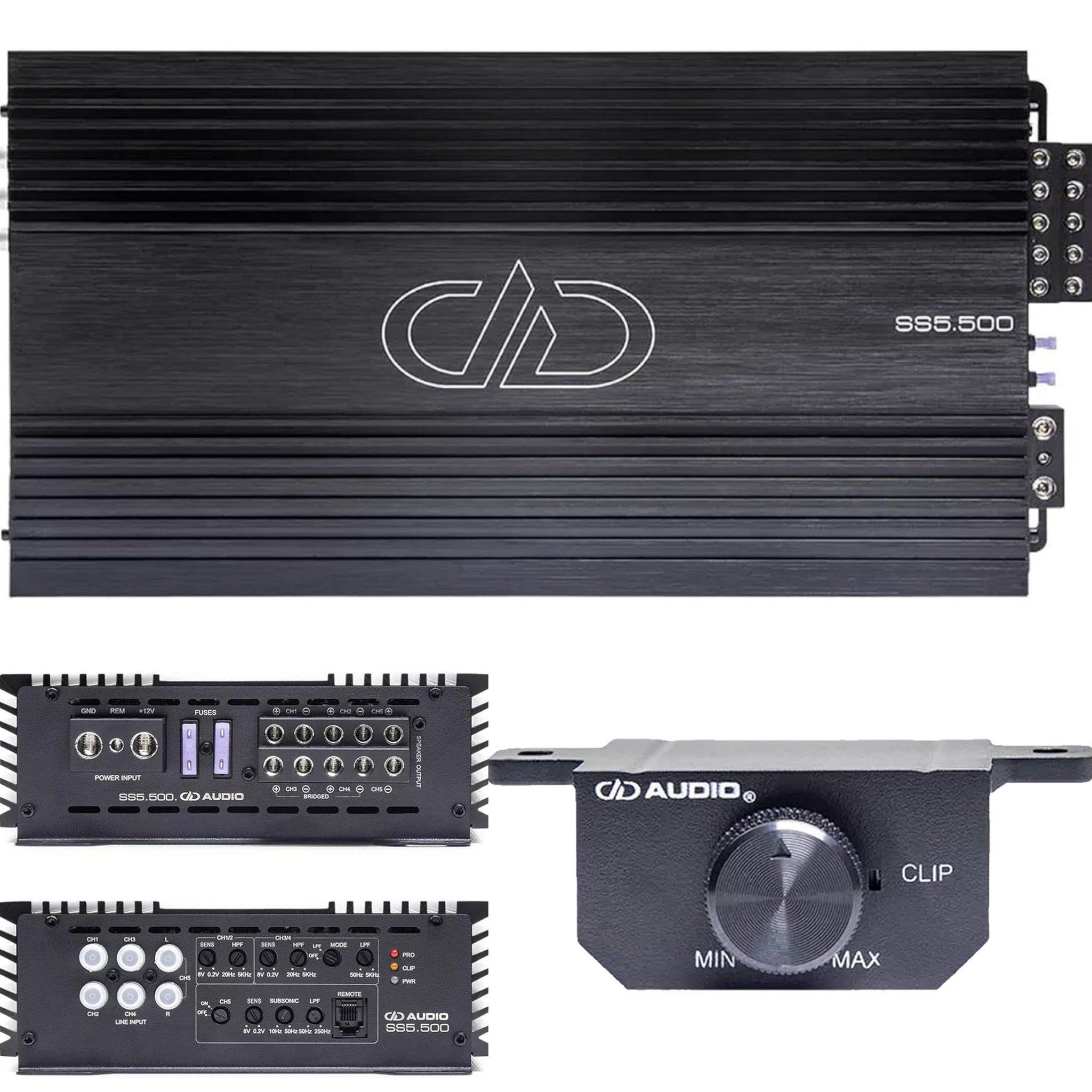

DD Audio Digital Designs SS5.500 5-Channel 980W RMS Class AB 4-Channels Class D 5th Channel Amplifier

Watch our Video Review on Youtube ⬇️

Product details

Elevate your build with the SS5.500, a true five-channel powerhouse that lets you run crisp mids/highs and seismic bass from a single, compact chassis. DD Audio paired a silky Class AB four-channel front stage with a muscle-efficient Class D mono sub stage, so every note gets an amplifier custom-tuned to its job.

Why it hits different

• Balanced circuit topology – Class AB warmth and imaging for your speakers (80 W × 4 @ 4 Ω; 120 W × 4 @ 2 Ω) plus a dedicated Class D sub channel that delivers 500 W RMS @ 1 Ω without stressing your electrical system.

• Audiophile parts throughout – Elna capacitors, precision resistors and high-spec transistors keep midrange textures lifelike and highs silky-smooth.

• Deep-core bass control – International Rectifier FETs and a dual toroidal power supply unleash rapid current for punchy, accurate low-end, even on stock wiring.

• On-board 12 dB/oct crossovers & sub-sonic filter – Dial in flawless hand-offs (HPF 20-5 kHz, LPF 50-5 kHz, SSF 10-50 Hz) without outboard processors

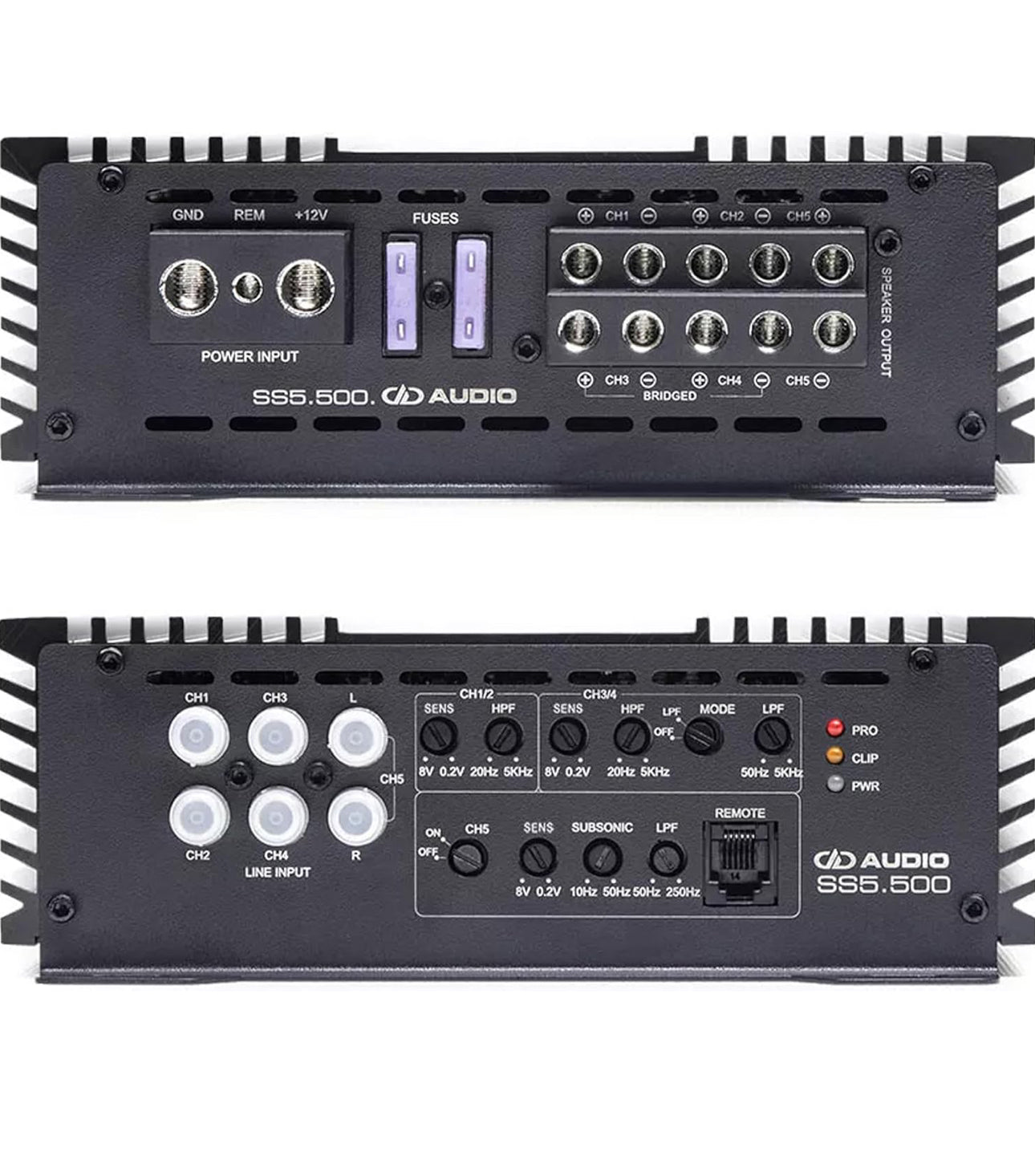

• Every-install ready – 6 × RCA or high-level inputs accept almost any source; solid set-screw terminals take 4 AWG power and 12 AWG speaker cable

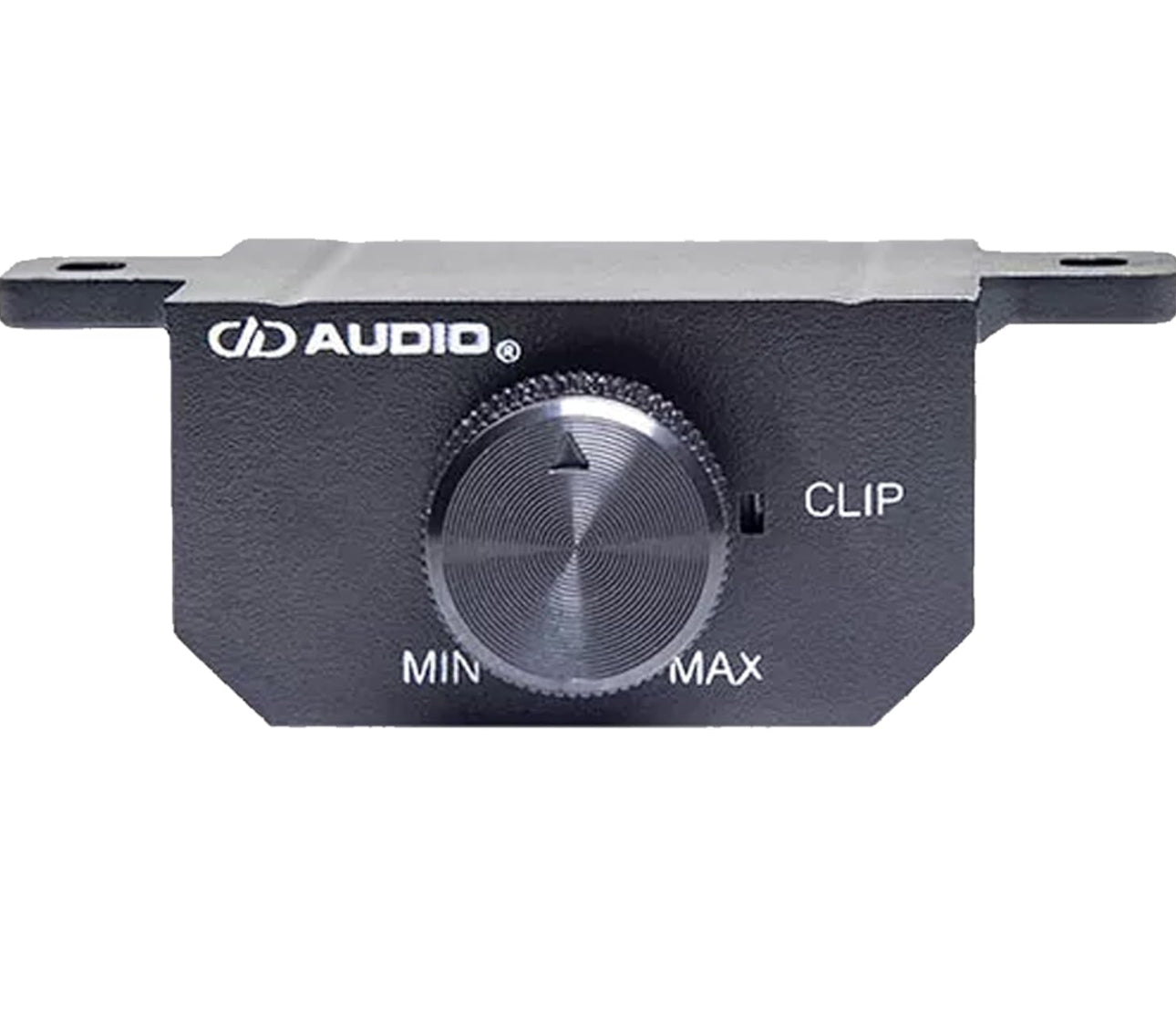

• Remote-gain included – Tweak sub-level from the driver’s seat when the track demands extra slam.

Features:

• 12dB/Oct High Pass/Low Pass X-Overs
• Dual Toroidal Power Supply
• Heavyweight DD Aluminum Chassis
• Set Screw Power and Speaker Terminals
• Remote Gain Control
• 4 AWG Power Terminals

Specfications:

• Operating Voltage:	9 - 16
  Test Voltage:	14.4
  Input Channel(s):	6
  Output Channel(s):	5
  Continuous Wattage @4ohm:	80 x 4
  Continuous Wattage @2ohm:	120 x 4
  Continuous Wattage @1ohm:	500 x 1
  Max Current Draw (Amps):	100
  RCA Input Voltage Sensitivity:	6 - 0.25
  High-Level Input Voltage Sensitivity:	20 - 1.1
  RCA Input S/N:	> 95
  Damping Factor:	> 100
  THD:	< 1.0%
  Bass Boost:	12
  Frequency Response (Hz):	20 - 20k
  High Pass Filter:	20 - 5k
  Sub-Sonic Filter:	10 - 50
  Low-Pass Filter:	50 - 5k
  Remote Control:	Remote Included in Box
  Power Wire Gauge:	4
  Speaker Wire Gauge:	12
  Dimensions (Inches):	13.5 x 7.3 x 2.4
  Dimensions (MM):	340 x 185 x 60

Install it, forget it, feel it

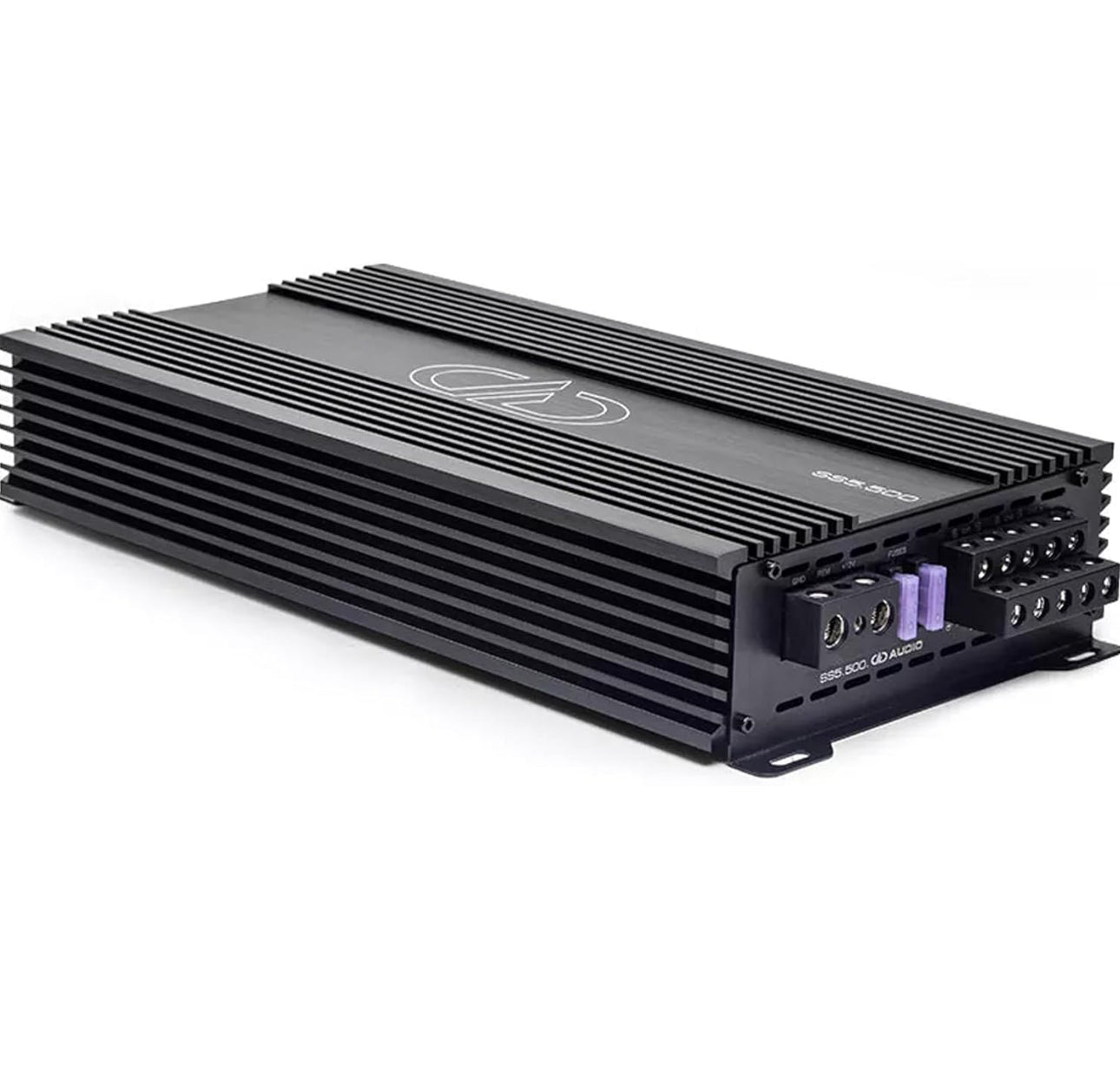

Slip the SS5.500 under a seat or on a back-wall rack and reclaim cargo space that multiple amps would devour. Its heavyweight, finned aluminum chassis doubles as a heat-sink, keeping temperatures — and distortion — low during those long, loud summer drives.

Whether you’re chasing SQ trophies or simply want a clean, integrated solution for your daily driver, the DD Audio SS5.500 delivers studio-grade fidelity and truck-bed-shaking output from a single, elegantly engineered unit.
