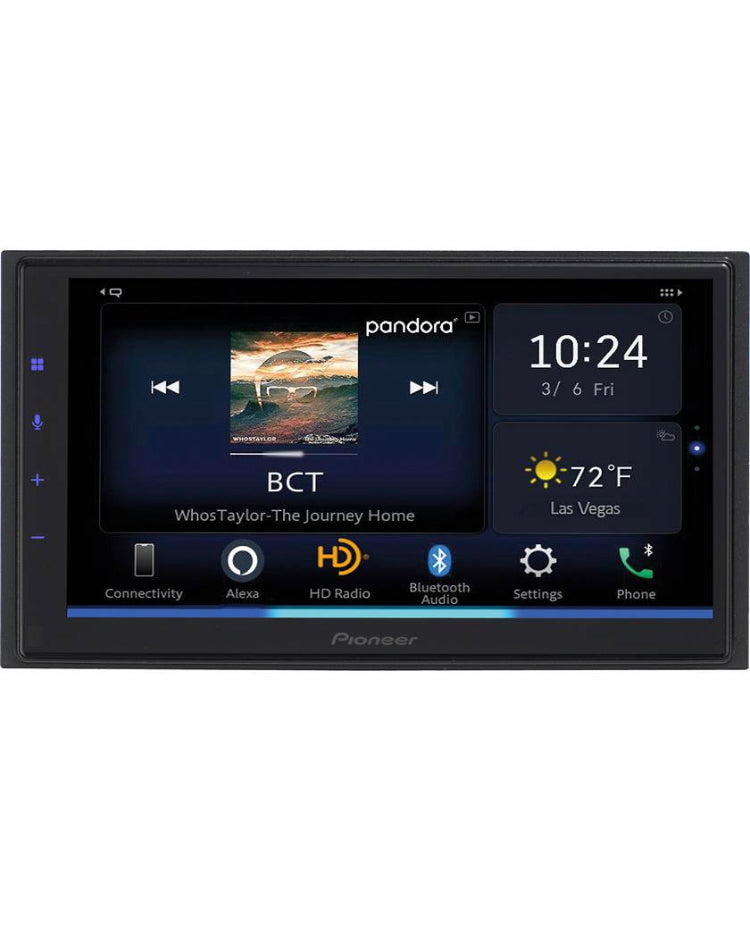

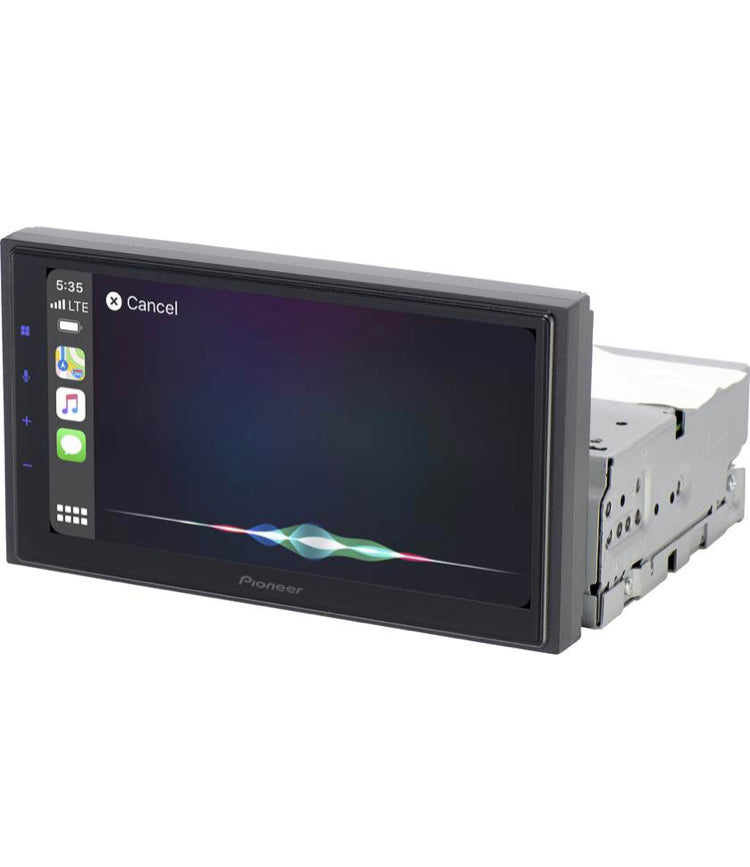

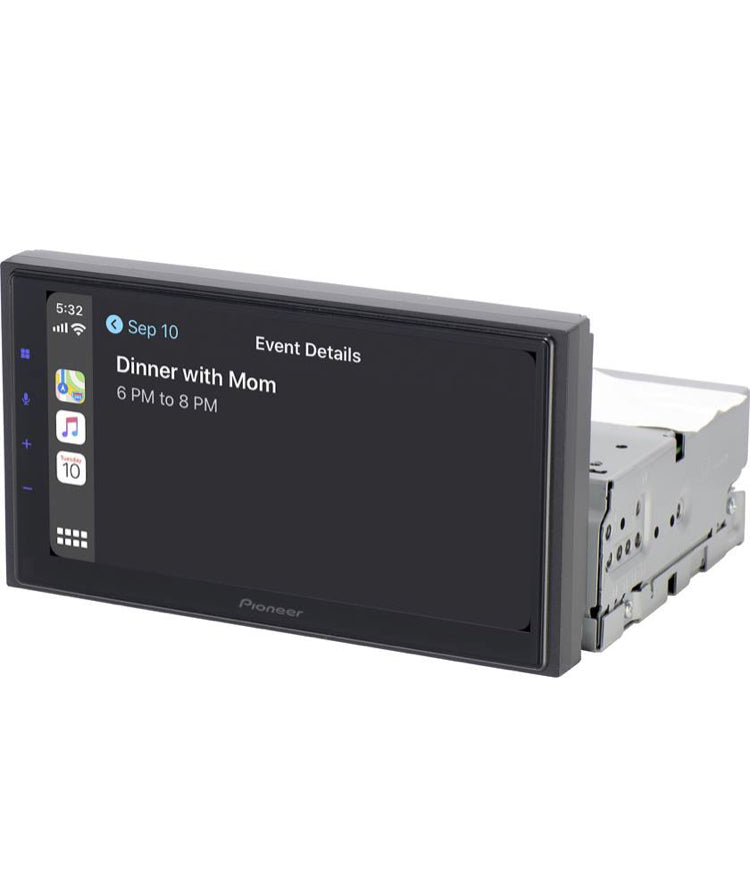

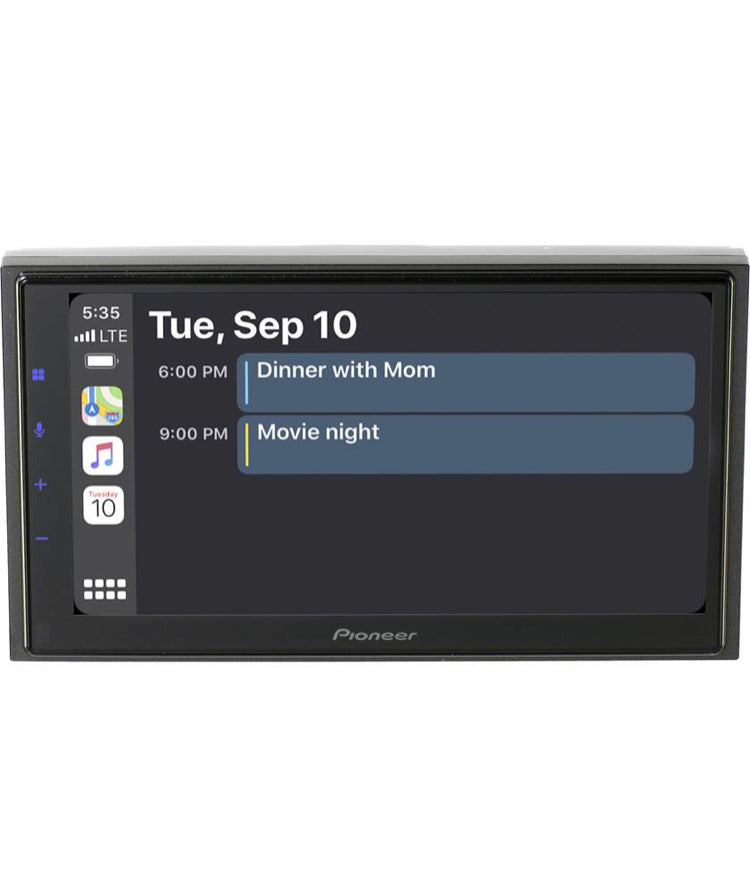

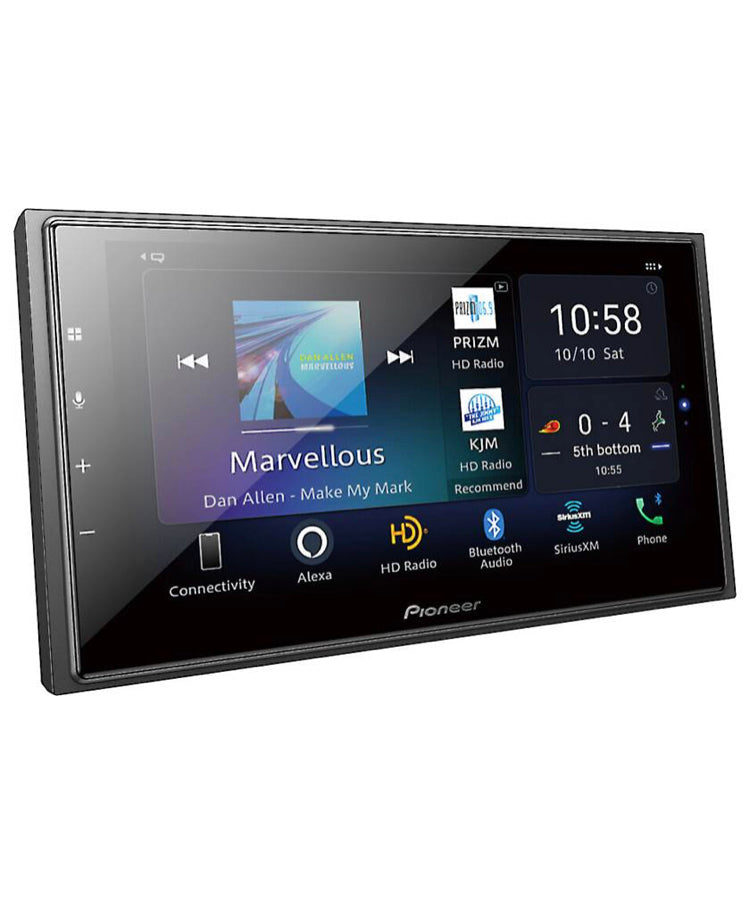

DMH-WC5700NEX
Pioneer's modular solution works with all kinds of dashes
Got a dash that's shallow and hard to fit? Or just feeling particularly creative? Pioneer's DMH-WC5700NEX digital multimedia receiver fits the bill for all kinds of installations, thanks to its modular design that offers a "black box" that's separate from the display. The capacitive 6.78" screen work in most double-DIN (4" tall) dash openings, even those with very little depth to spare, while the separate, compact chassis contains all the electronics and entertainment, including wireless Apple CarPlay®, wireless Android Auto™, Bluetooth®, and an HD Radio™ tuner. Pioneer includes a 12" cable to connect the screen and separate DIN (2" tall) chassis, but extension cables are available so you can mount the chassis in a more convenient spot.
Product highlights:
- digital multimedia player with AM/FM tuner (does not play discs)
- touchscreen and separate DIN (2" tall) chassis
- can be installed together or independently
- fits problem vehicles where standard radios won't fit
- plays media loaded with MP3, WMA, AAC, and high-res FLAC, WAV, and DSD music files
- 6.78" capacitive touchscreen display
- built-in Bluetooth for hands-free calling and music streaming
- built-in HD Radio tuner
- Android Auto and Apple CarPlay compatible (wireless or wired)
- built-in Amazon Alexa with Wi-Fi connection
- display and command of select music, navigation, and other apps with iPhone and Android
- Pandora and Spotify through Apple CarPlay, Android Auto, and Amazon Alexa
- Siri Eyes Free control for select iPhones
- wired screen-mirroring for select devices
- 13-band graphic EQ
- time alignment
- compatible with SiriusXM satellite radio tuner
- inputs: rear USB port, rear-view camera input, two rear A/V inputs (3.5mm and RCA — RCA can be converted to a 2nd camera input), HDMI input
- outputs: video output, 6-channel preamp outputs (4-volt front, rear, sub)
- wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
- built-in amplifier (14 watts RMS CTA-2006/50 peak x 4 channels)
- compatible with most factory steering wheel audio controls (adapter required)
- works with iDataLink Maestro module
- retains factory features in a wide selection of vehicles
- displays engine performance and other vehicle data on touchscreen
- wireless remote included (optional wired remote)
- optional touchscreen/chassis extension cables
- warranty: 1 year
- Our 14-day money-back guarantee
- MFR # DMH-WC5700NEX
What's in the box:
Pioneer DMH-WC5700NEX owner's manual
- Touchscreen monitor
- Chassis body (10A fuse)
- Wiring harness
- Preout/AV harness
- 58" USB-C extension cable
- USB-C to USB-A adapter
- Remote control (CXE5116)
- CR2025 3V battery (pre-installed in remote)
- Microphone w/ bracket (attached 13' cable terminated by a right-angle 2.5mm connector)
- GPS antenna (attached 11.5' cable)
- Self-adhesive square
- 3 Self-adhesive clips
- Two-sided tape
- 2 Mounting brackets
- 6 Pan-head ISO screws (M5 x 9mm)
- 6 Counter-sunk ISO screws (M5 x 9mm)
- 8 Pan-head screws (M4 x 5mm)
- Quick Start Guide
- Installation Manual
- Warranty Information
- "Caution" note
