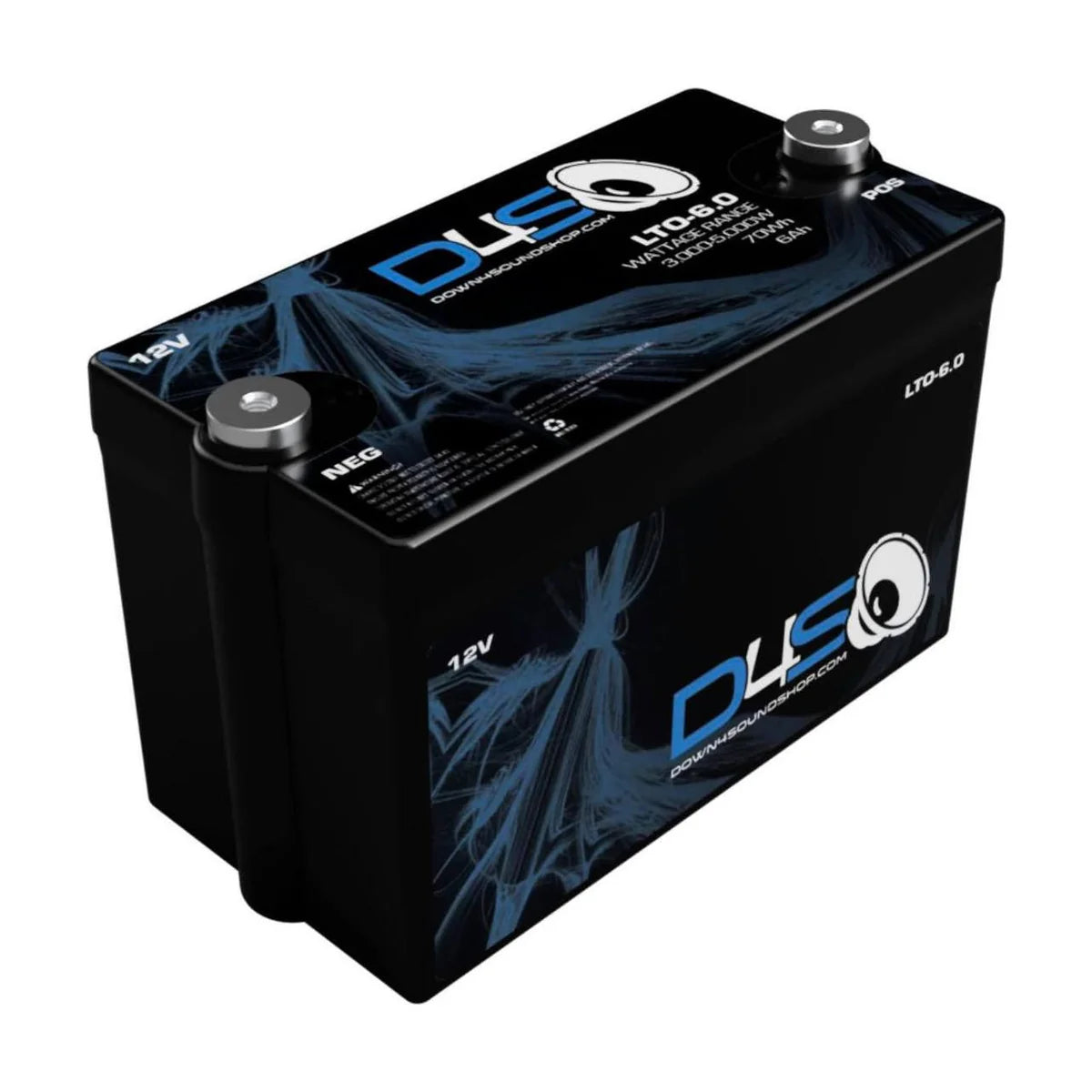

Model - LTO-6.0

cells capable of 40C, rated for 20C daily use to maintain 12v+

Designed to work directly inline with stock charging voltages (No voltage-boosting needed to achieve optimal results).

Can be paired with regular 12v / non-lithium batteries with no issues.

14.8v Maximum Charge voltage (DO NOT EXCEED THIS OR BATTERY DAMAGE / FAILURE COULD OCCUR).

DO NOT MOUNT UNDER THE HOOD UNDER ANY CIRCUMSTANCES AS SEVERE DAMAGE / FAILURE COULD OCCUR.

Wattage Range - 3000-5000W (Depends largely on alternator input).

Example -
120-160A alternator - 3000w rating
240-270A alternator - 4000w rating
320-370A alternator - 5000w rating

CRAZY RECHARGE RATE (can take a High-Output alternator by itself with NO ISSUES).

6 Ah
70 Wh

Battery Technology - LTO (Lithium Titanate Oxide).
*We feel this is the safest lithium technology.

Built-in Balancing (No other parts or assembly needed).

Comes with conventional M6 terminals for ease of installation.

Lightweight & compact design

Weight - 4 pounds! YES, YOU READ THAT RIGHT! FOUR POUNDS!
Measurements
Width - 7”
Height - 4.75”
Depth - 3.5”

PROPER CHARGING IS CRUCIAL!

Charge before initial use, be sure to read the instruction sheet for full instructions proper charging is

crucial to the life of your Down4Sound battery. It is very important that the temperature of the battery

remains cool with respect to the charge voltage.

CHARGING

Typically the battery will ship at less than 100% State of Charge (SOC.) Please charge your new battery immediately upon receipt. For charging your 12V Lithium battery we recommend a battery charger specifically designed for lithium batteries Lithium batteries are by their very nature voltage sensitive. Further, the lithium battery is the most vulnerable to damage while charging. It is important that the charging process of the battery be fully understood and carefully controlled. Do not use a battery charger designed for “Flooded” or “Maintenance Free” batteries. Do not use a battery charger with a “de-sulfa-tion mode” or “float mode”. USING THIS STYLE OF CHARGER WILL CAUSE DAMAGE / FAILURE AND VOID WARRANTY. Remove the battery charger once the battery is full meaning 100% State of Charge. Unlike lead acid batteries, over charging lithium batteries does not help them nor cause them to store more power. Instead it harms them and should be strictly avoided. Lithium cells are in a state of stress when at 100% SoC and beyond. Continuous charging must be avoided. Lithium batteries do not have a “memory effect” therefore they do not have to be empty to benefit from re-charging. Simply recharge them when convenient and avoid overcharging. In general,float charging or battery maintain-ing should be avoided. Can be charged at a rate of 60A continuous, 400A 10 sec

If you want to charge this battery with a battery charger, it MUST BE A LITHIUM BATTERY CHARGER

(Using a regular battery charger can damage the battery / void the warranty).

STATE OF CHARGE

100% - 13.6V

96% - 13.2V

77% - 12.8V

54% - 12.4V

25% - 12V

10% - 11.6V

8% - 11.2V

5% - 10.8V

1% - 10.4V

0% - 10V not waterproof.

- Do not crush, puncture, or dispose in fire or water.

- Do not attempt to open, disassemble, or service the battery pack
