1-4 DAYS DELIVERY
DS18
DS18 10.5" Floating Adjustable Modular Touchscreen Mechless Single-DIN Head Unit with Bluetooth, Mirror Link and USB
$383.95
In Stock
Pre-Order
Sold out
Couldn't load pickup availability
100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
- Description
- Technical Details
- Shipping and Refund
- Reviews
DS18 DDX10.5ML 10.5” Single-Din Floating Adjustable Display Mech-Less Digital Media Receiver With Mirror Link For iOS & Android/ BT / AUX / USB / SD / AM / FM
DS18’s DDX10.5ML Receiver takes everything our customers loved about the DDX6.9ML Single Din Multimedia Receiver but upgraded the screen from 6.9” to an incredible 10.5” inches!
The Flawless Touch Screen Control supported by all DS18’s Receivers returns for seamless maneuvering through the numerous features available in this upgraded model.
This receiver will include everything you need to bring your multimedia dreams including Wi-Fi, Bluetooth, AUX, USB, SD, phone controls, and all your AM / FM stations.
Connecting your head unit to your mobile hotspot makes accessing the available options to this receiver much easier.
These receivers are mech-less; this means that they don’t support the play of compact discs and only play music back from digital media players. That’s why we’ve included so many options for playing music back from your digital devices.

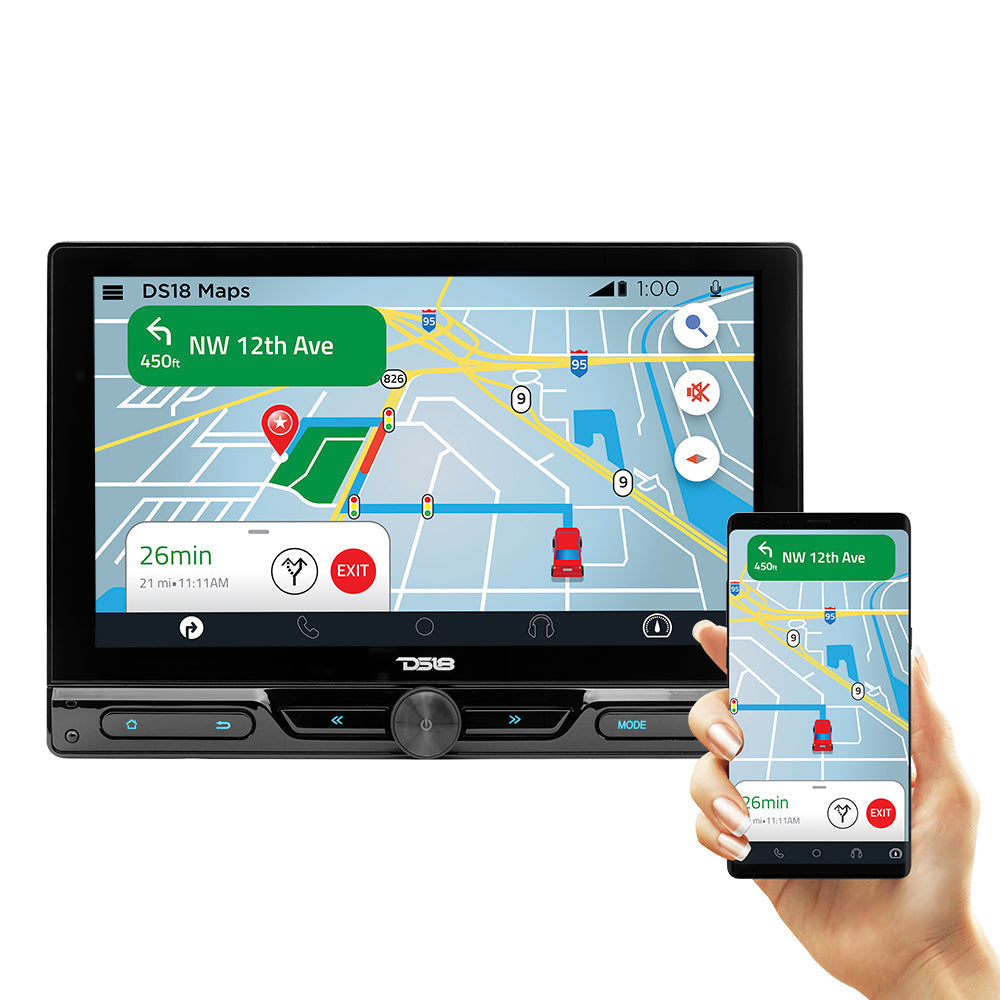

Set up Mirror link to display all media from your phone on the device.
This receiver does it all and has the power to support it: with 4CH x 15W RMS and, 4CH x 40W MAX at 4 ohms this receiver has just enough power to charge most entry level speakers.
(PLEASE REMEMBER DO NOT WATCH MOVIES IN MOTION, WAIT UNTILL THE CAR IS PARKED)
Highlights
- 10.5” (Wide 16:9) Full HD (1280x720 pixels) Single-Din touchscreen to maximize your viewing and allow perfect fit modular mounting.

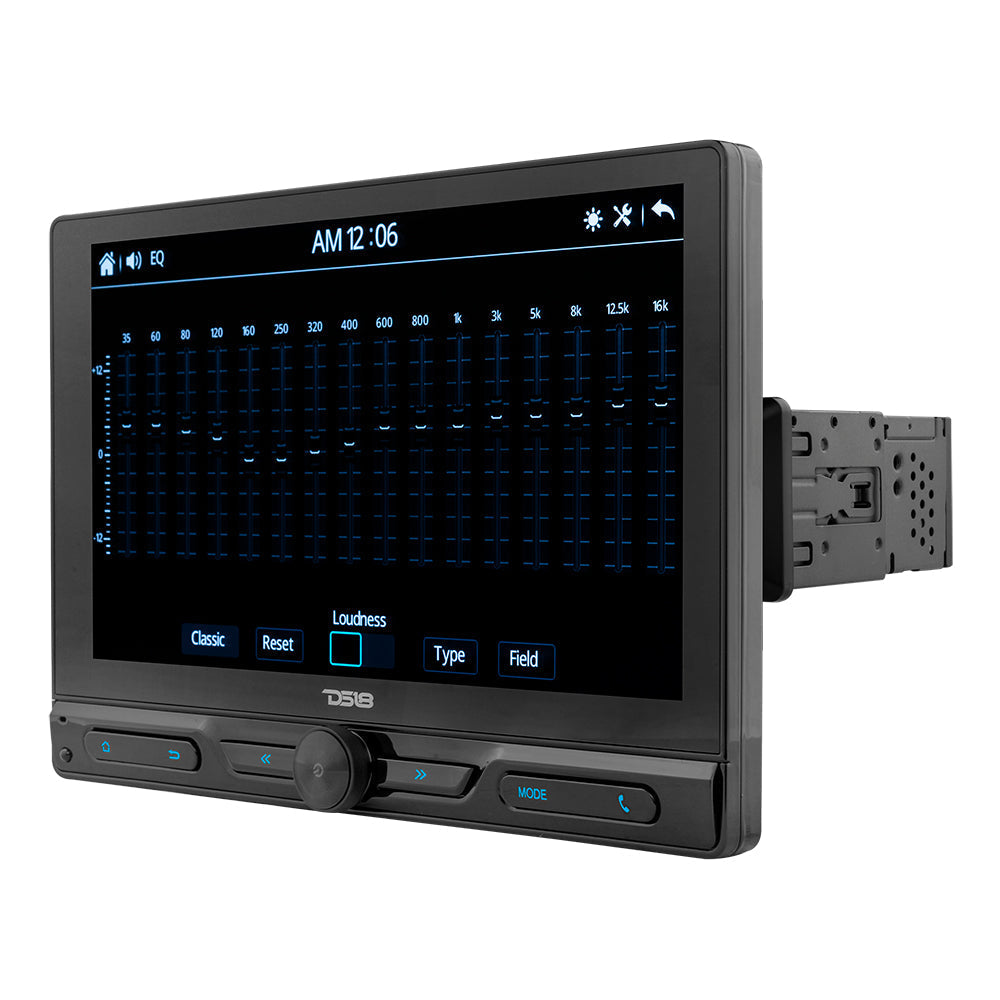

- Full 16 Band EQ and Subwoofer LPF with 4.5v Pre-Output
- Built in, Aux, SD Reader (64GB), 1.5a USB charging, AUX Input, AM/FM Tuner, and USB connections (1 front and 1 rear)

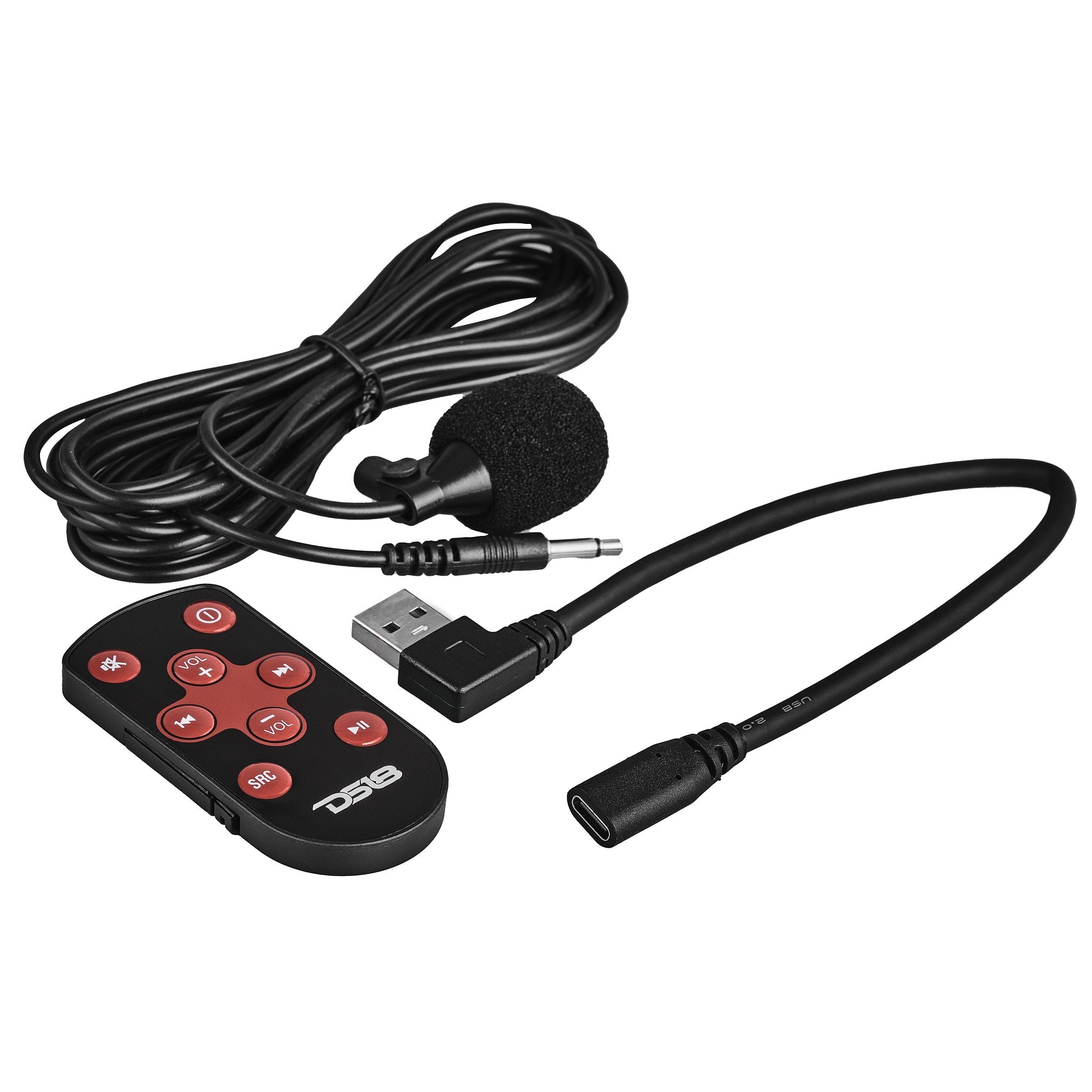

- Wireless remote control for easy operation.
- RCA inputs so you can view external sources video easily via source.
- Multi Colored Backlit Keys for easy use in dim settings
- MIC in options for easy phone operation and built in controls.
- Camera Inputs (front/rear) included so you can plug and play most types of back up cameras.
- Apple and Android compatible.
| Specifications | |
| GENERAL | |
| Rated power source | 14.4V DC (10.8V to 15V operation) |
| Maximum Current Consumption | 15 Amp |
| Dimensions (W x H x D) | Chassis: 178mm x 100mm x 138mm Bezel frame: 170mm x 96mm x 5mm Screen Frame: 266mm x 180mm Weight: 5.5 Lb |
| DISPLAY | |
| Screen Size / Aspect Ratio | 10,5 inch / Wide 16:9 |
| Pixels | 1280x720 |
| Display Type | TFT / Full HD / Capacitive Touch Screen |
| Temperature Operation | -20°C to +60°C (14°F to 140°F) |
| AUDIO | |
| Maximum Power Output | 40W x 4 Ch / 4 ohm |
| Continuous Power Output | 15W x 4 Ch / 4 ohm |
| Pre-output Level | 4.5 Volts (Front, Rear) 7 Volts (Subwoofer) |
| Equalizer | 16 bands (35Hz, 60Hz, 80Hz, 120Hz, 160Hz, 250Hz, 320Hz, 400Hz, 600Hz, 800Hz, 1KHz, 3KHz, 5KHz, 8KHz, 12.5Khz, 16Khz) |
| Gain | +/- 12dB |
| Audio Control | Volume / Balance / Fader / Loudness |
| TUNER | |
| Frequency Range | FM: 87.5 ~ 107.9 KHz AM:530 ~ 1710 KHz |
| Presets Memory | 30 Stations (18 FM/12 AM) |
| Region | Selectable (USA, Latin, Japan, Asia, Europe, OIRT, Australia, Mid-East) |
| Sensitivity Adjustment | LOC (On/Off) / ST (On/Off) |
| USB / SD PLAYER | |
| Type / Class | V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS |
| Format Files Supported | RMVB, MPG4, AVI, MP3, WMA, JPEG, DivX |
| Resolution Supported | 1080P Video |
| Memory Size Reader | up to 64 Gb |
| Max Current Supply | 1.5 Amp (USB) |
| Number of USB Ports | 2 (1 x Front, 1 x Rear) |
| CONNECTIVITY | |
| Bluetooth Version / Services | V5.1 / Audio Streaming / Hands Free calls |
| Camera Input | RCA Analog Video up to HD 720p (Front/Rear) |
| Video Output | Dual RCA (1 Volt/75 ohm) |

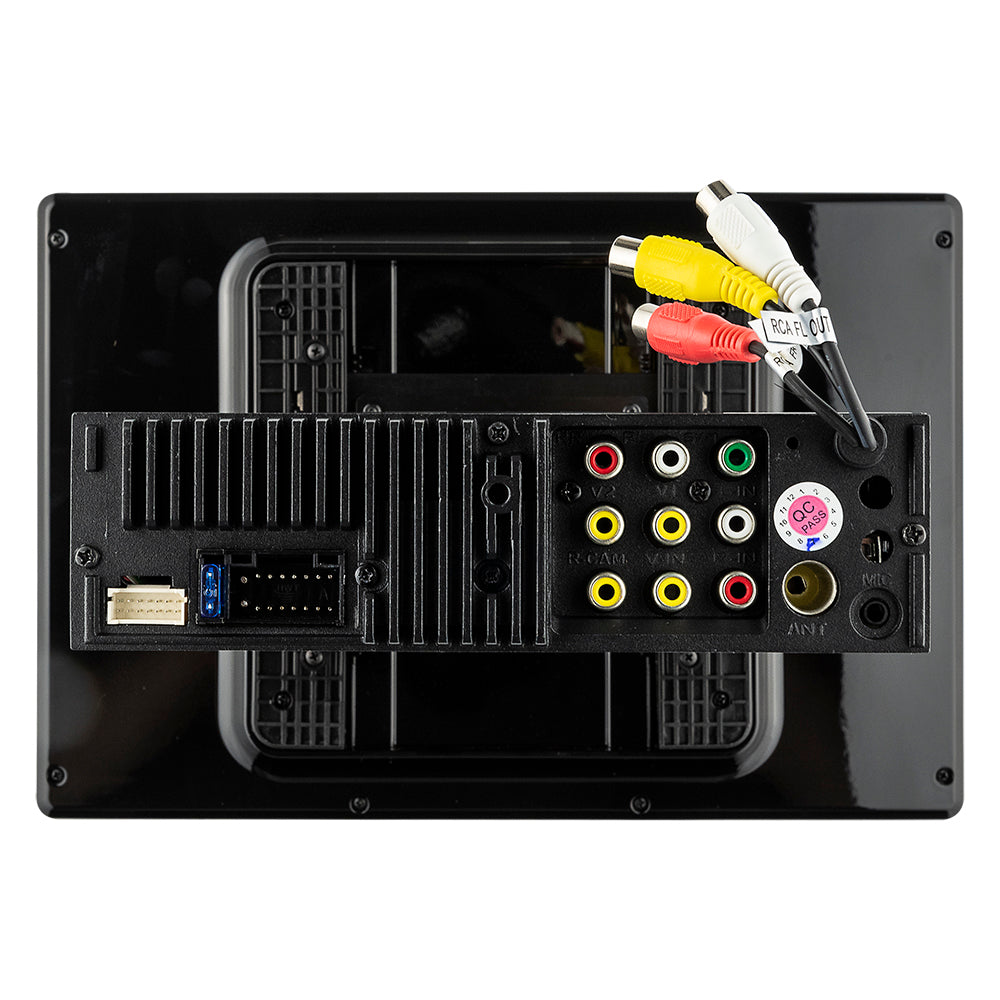

| AV Aux Input | Rear RCA Audio and Video / Front 3.5mm Jack Stereo Audio |
| Microphone | 3.5mm Jack external MIC Input |
| Remote Control | Frontal IR Receptor / Wired (3.5mm jack) Input |
