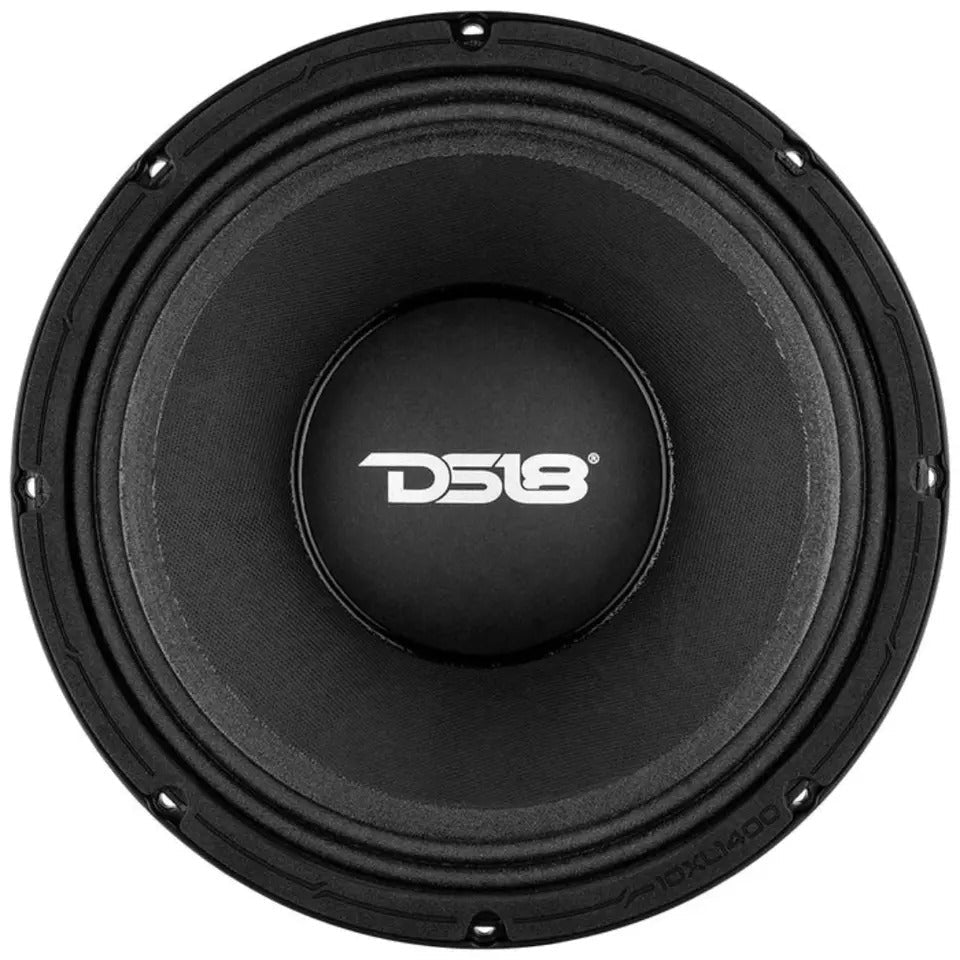

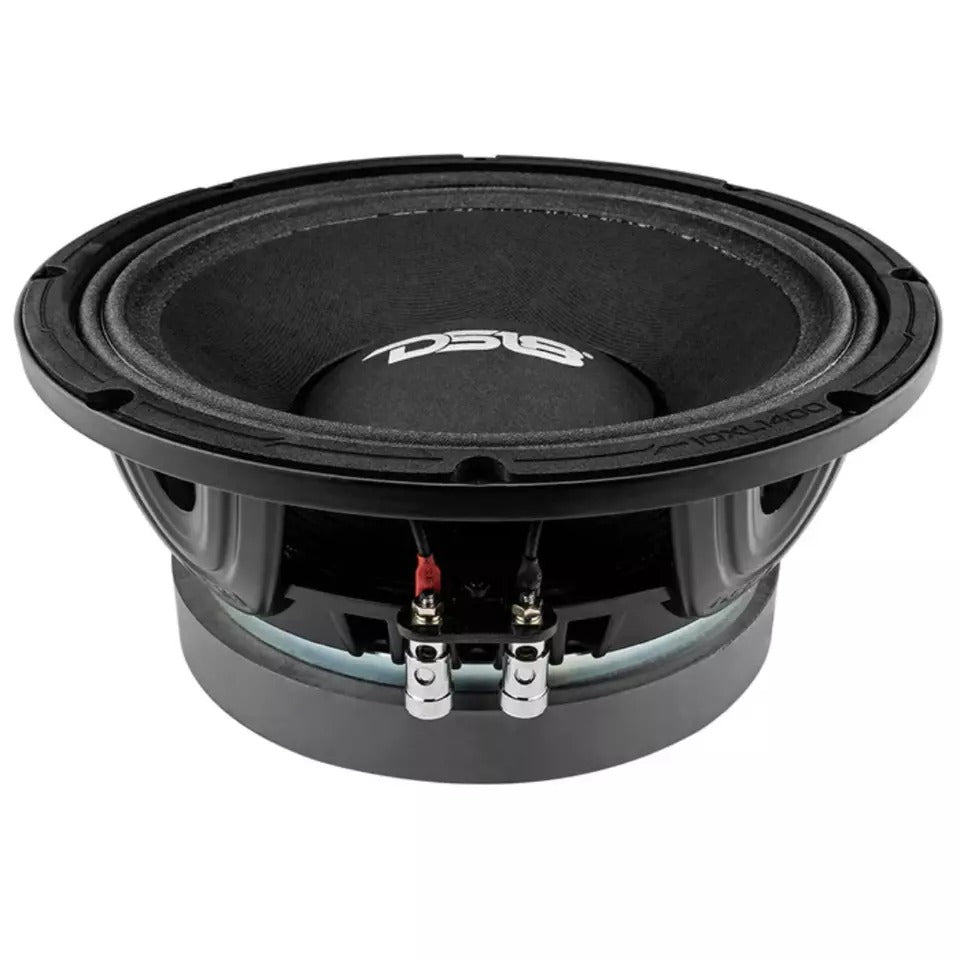

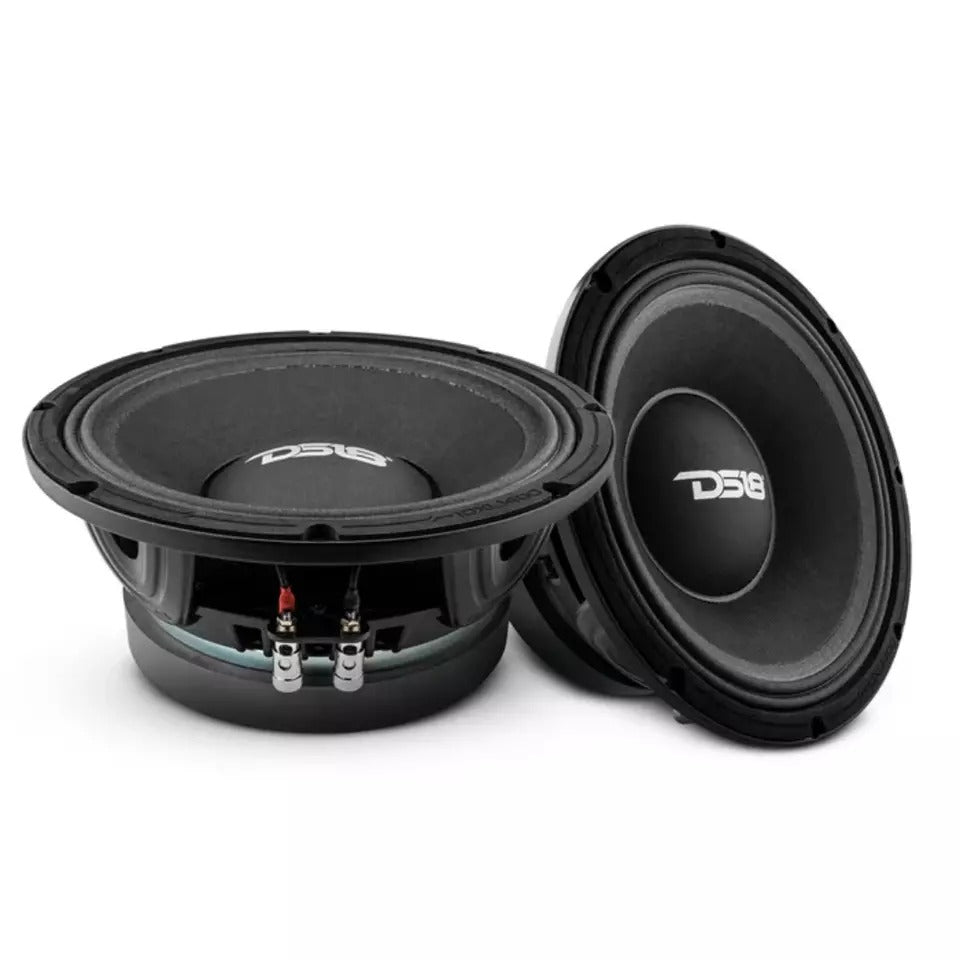

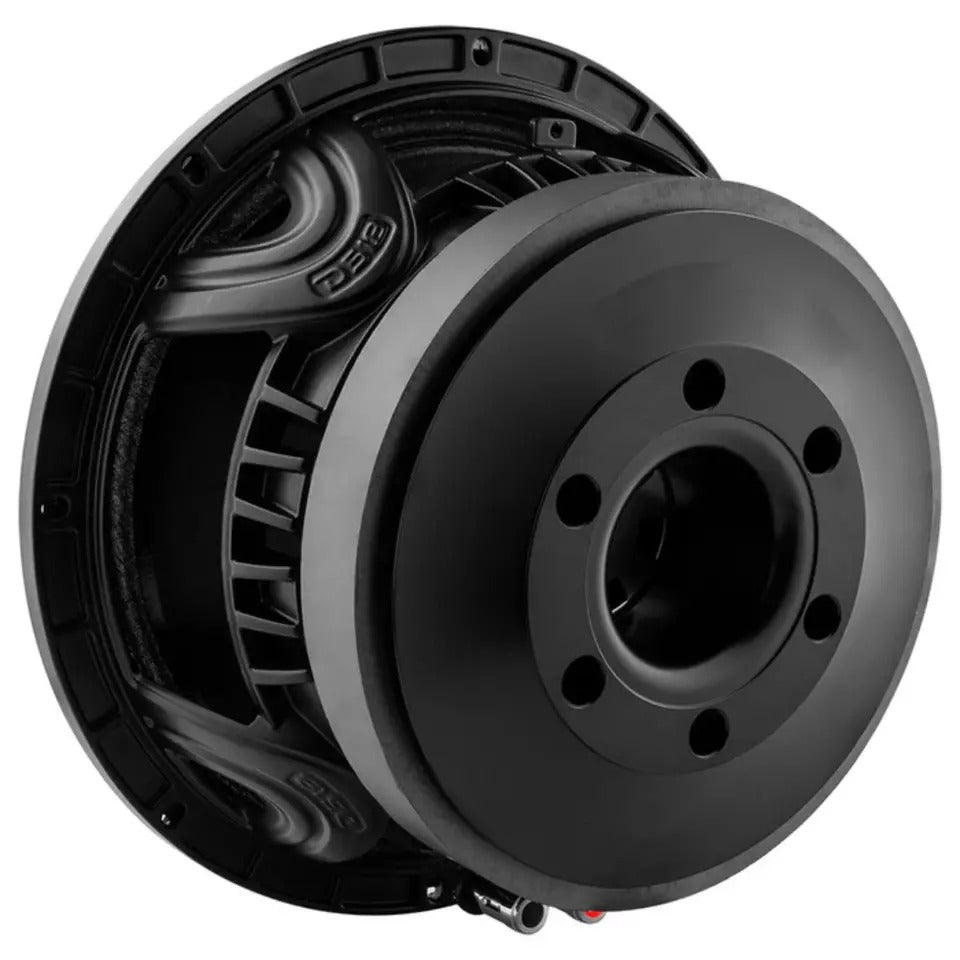

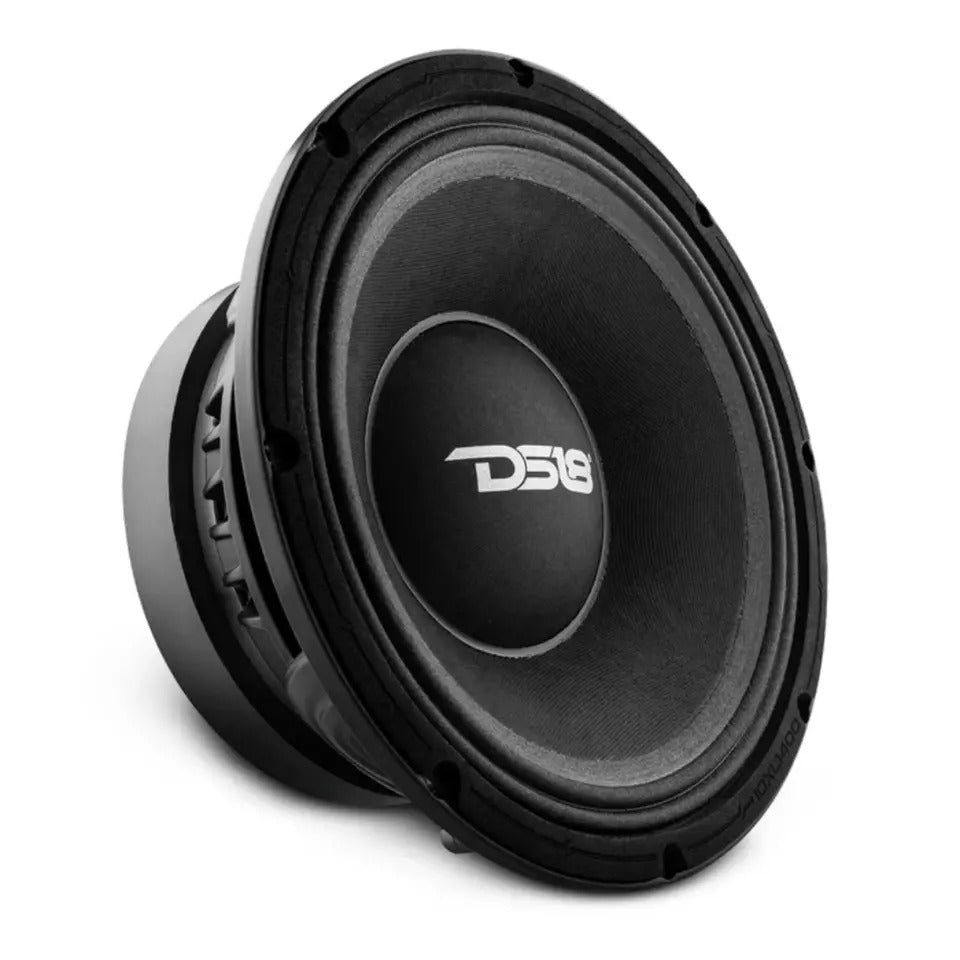

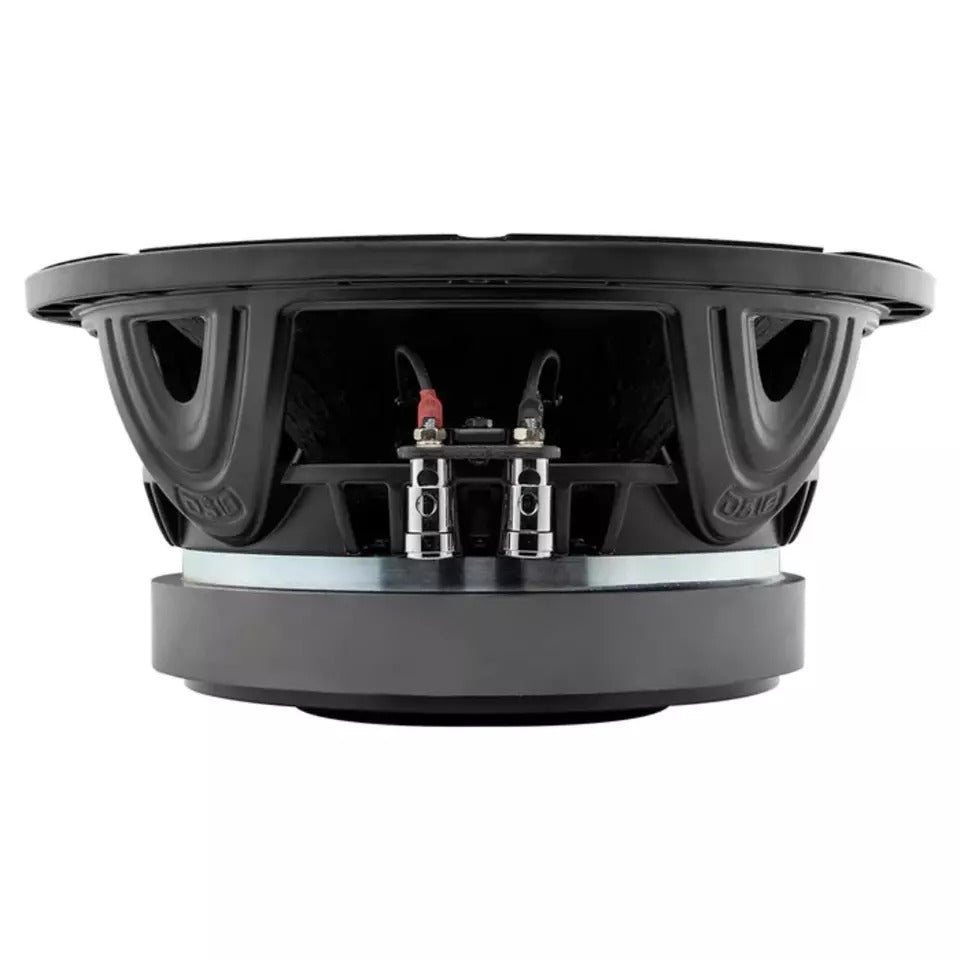

DS18 10XL1400-8 10" 1400W Max 8-Ohm 3.5" Voice Coil Car Mid-Range Loudspeaker
$199.95
In Stock
Pre-Order
Sold out
Couldn't load pickup availability
100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
- Description
- Shipping and Refund
- Reviews
BRAND NEW
DS18 10XL1400-8
10-inch 1400 Watts Max 8-Ohm 3.5" Voice Coil Mid-Range Loudspeaker
Key Features:
- High Power Handling – 700W RMS and 1400W Max for powerful, distortion-free sound.
- Premium Build Quality – Reinforced steel basket and high-strength ferrite magnet for durability.
- Crisp & Loud Midrange – Designed to deliver clear, punchy mids with excellent sensitivity.
- 8-Ohm Impedance – Compatible with various audio setups for flexible installation.
- Large 3” Voice Coil – Ensures efficient heat dissipation and long-lasting performance.
Specification:
- SKU: 10XL1400-8
- Nominal Diameter: 10" / 254mm
- Nominal Impedance: 8 Ohm
- RMS Power Handling: 700 watts
- MAX Power Handling: 1400 watts
- Sensitivity (1w/1m): 98dB
- Frequency Response: 60Hz-6KHz
- Recommended HI Pass Crossover: 80Hz
Motor:
- Voice Coil Diameter: 3.5" / 89mm
- Voice Coil Former Material: Kapton
- Winding Material: CCAW (2 Layers IN/OUT)
- Cone Material: Non-pressed Paper
- Dust Cap Material: Paper
- Surround Material: Cloth
- Basket Material: Aluminum
- Basket Color/Finish: Satin Black
- Magnet Material: Ferrite
- Magnet Weight: 93 Oz
- Displacement Volume: 1.44L / 0.051ft3
- Thiele & Small Parameters:
- Equivalent Volume: 21L / 0.741ft3
- Excursion (one way): 4mm
- Free Air Resonance: 70Hz
- Mechanical Factor: 3.796
- Electrical Factor: 0.39
- Total Factor: 0.354
- Mechanical Mass: 43.4g
- Mechanical Compliance: 0.11mm/N
- BL Factor: 13.52
- Voice Coil Inductance: 0.12mH
- Cone Area: 363cm²
- DC Resistance: 5.6 ohm
- Mechanical Mass w/o air: 50g

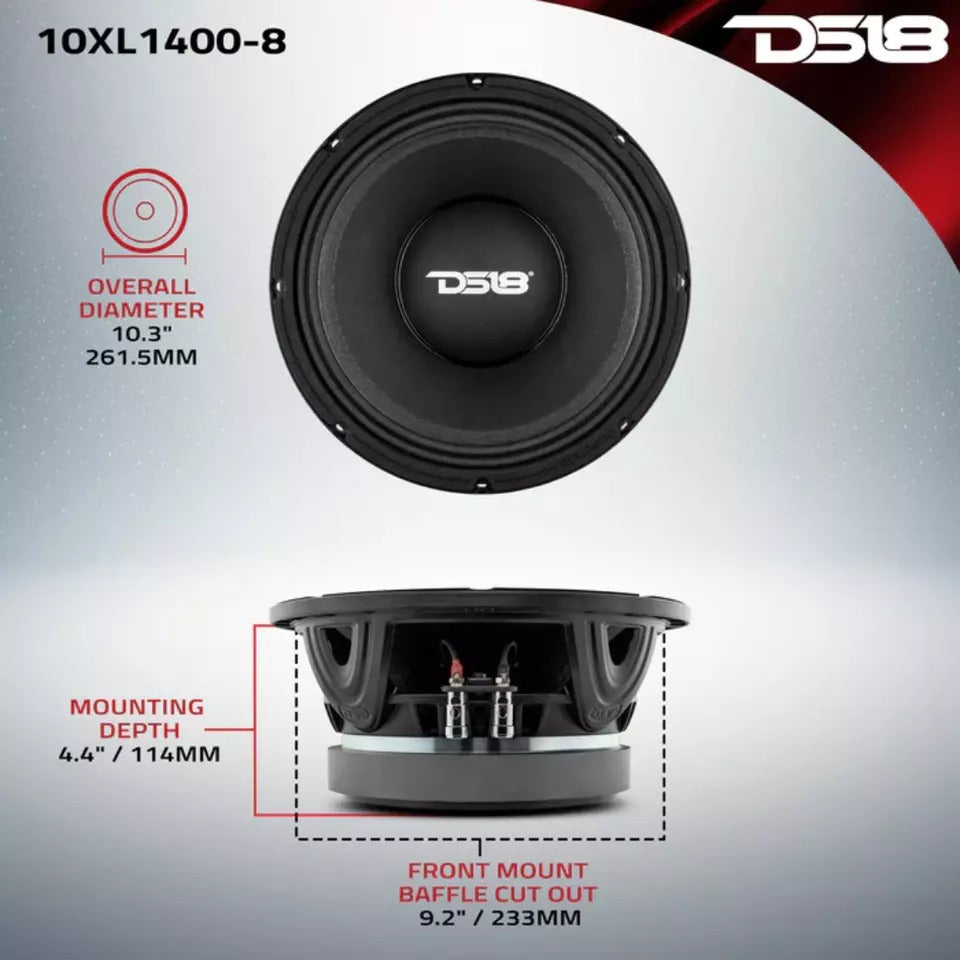

Measurement:
- Overall Diameter: 10.3" / 261.5mm
- Overall Depth: 4.93" / 125mm
- Front Mount Baffle Cutout: 9.2" / 233mm
- Mounting Depth: 4.4" / 114mm
- Motor Diameter: 7.48" / 190mm
