DS18
DS18 12" Loaded Subwoofer Ported Enclosure With ZR12.2D 750 Watts Rms
$359.95
In Stock
Pre-Order
Sold out
Couldn't load pickup availability
100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
- Description
- Technical Details
- Shipping and Refund
- Reviews

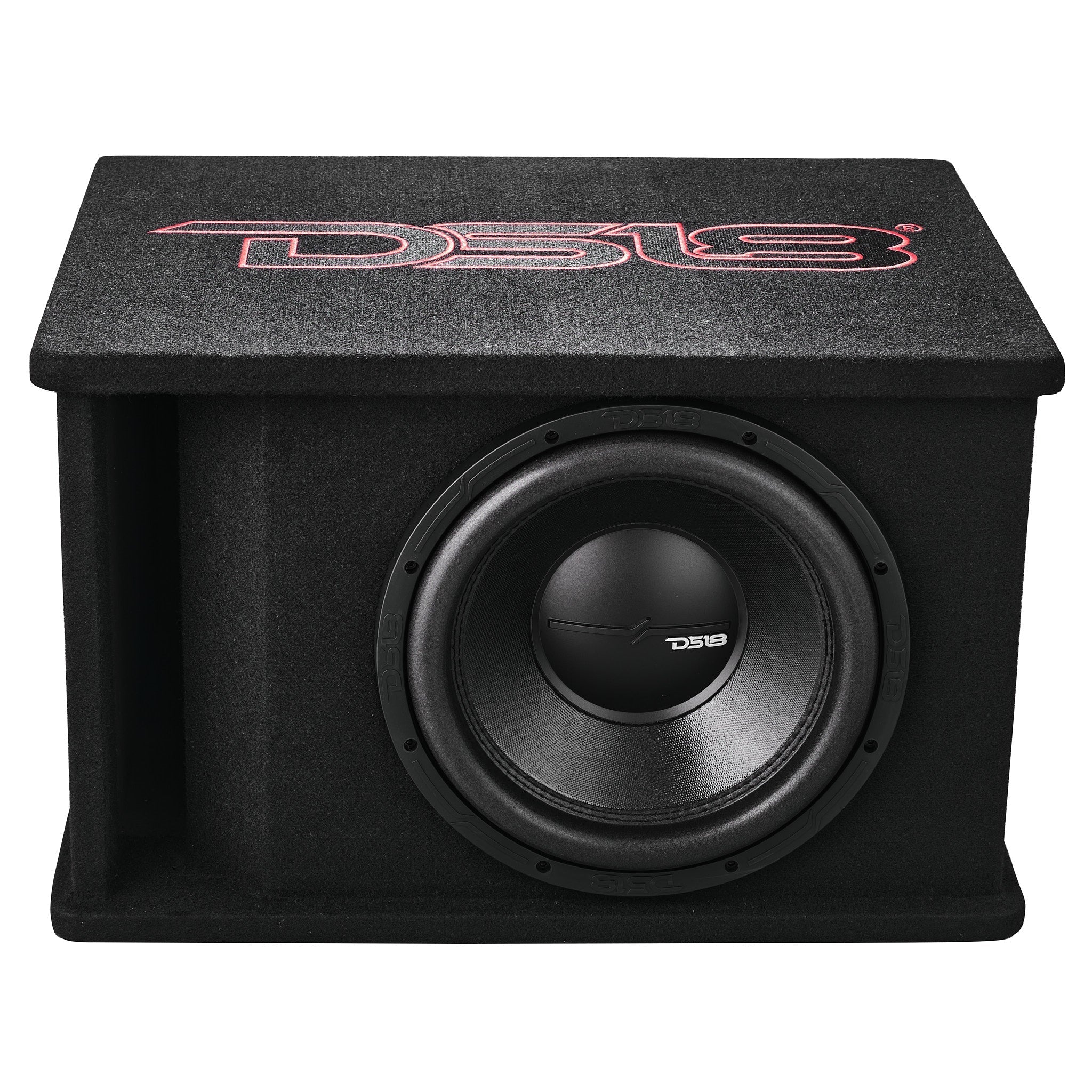

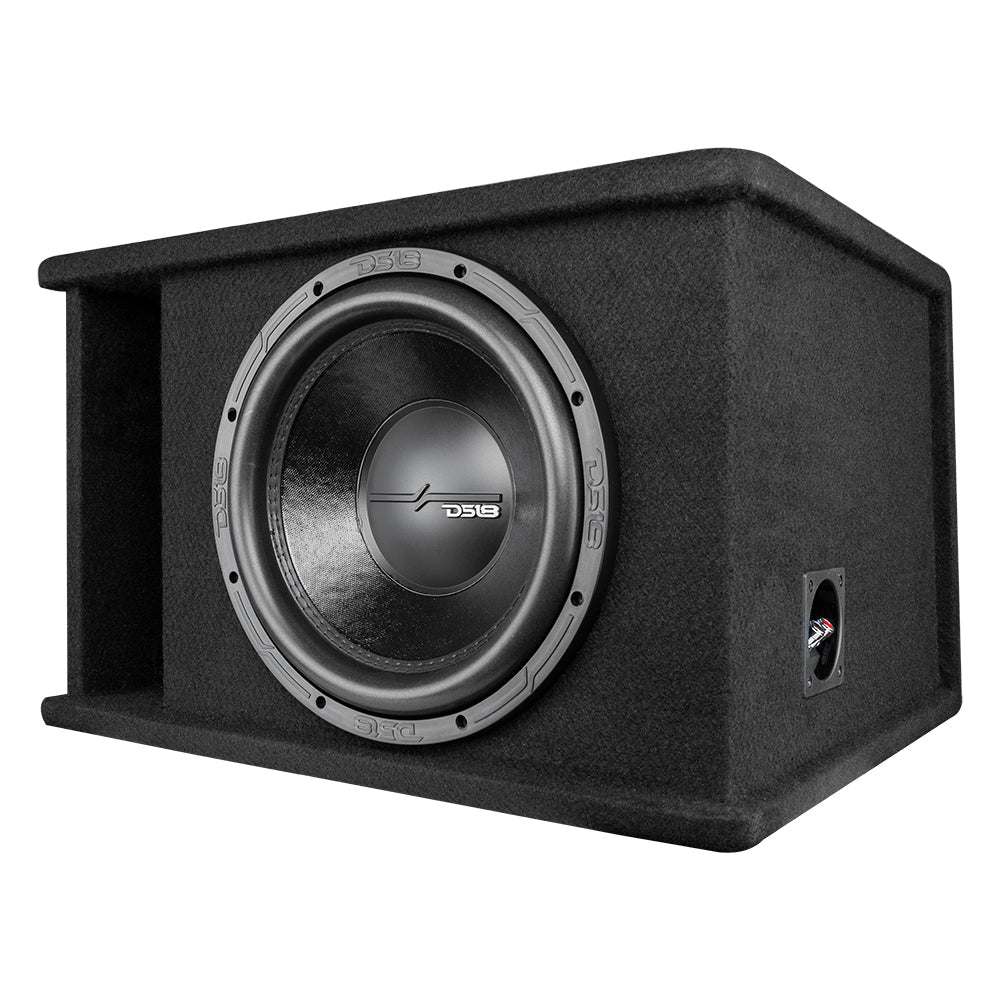

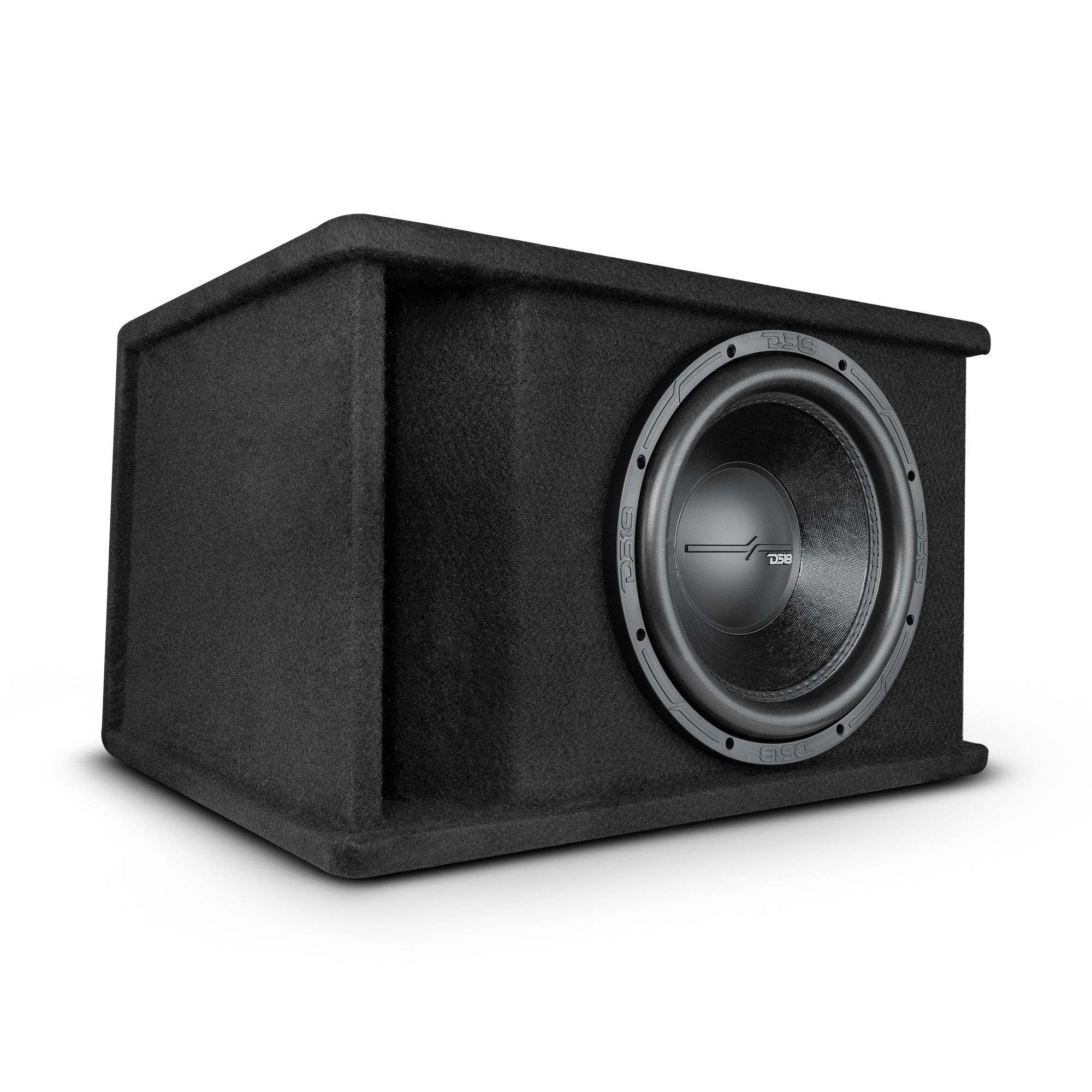

DS18 ZR112LD Bass Package 1 x ZR12.2D 12" Subwoofer In a Ported Box 1600 Watts
This is a prefabricated box that comes with one of our best selling subwoofers, the ZR12.2D. Included is a beautiful carpeted box with DS18 designs tuned to 29 HZ.
The box is constructed of thick 3/4 MDF for great sound and acoustical resonance. The subwoofer included is the very popular ZR12.2D that is a dual voice coil 2 ohm subwoofer wired in parallel for a final nominal impedance of 1 ohm that will require 800w RMS and 1600 W MAX.
This loaded box is a great solution to get hard hitting heavy bass for all to enjoy. To power this combo, we recommend a 1000w RMS amplifier like the ZR1000.1D to power this setup to its maximum potential.
Highlights
- The box is constructed of thick 3/4 inch MDF for great strength, resonance, and tuned to 29hz for low and hard hitting bass.
- One ZR12.2D 12 inch subwoofer that will give you the cone area to push out great sounding bass without a lot of power requirements.
Key Features
- 12 inch subwoofer
- Max Power Handling: 1600 watts
- RMS Power Handling: 800 watts
- Frequency Response: 25hz-200hz
- Voice Coil Diameter: 2.5"
- Voice Coil Material: Copper
- Impedance: Dual Voice Coil 2-Ohm
- Sensitivity: 82 DB
- Magnet Weight: 100 OZ
- Magnet Material: Ferrite
- Mounting Depth: 6.6"
- X max: 25mm one way
Box:
- Box Material: 3/4 inch MDF
- Box Covering: Carpet
- Box Tuning: 29hz
- Box Type: Ported
- Internal Volume: 2.8 ft3

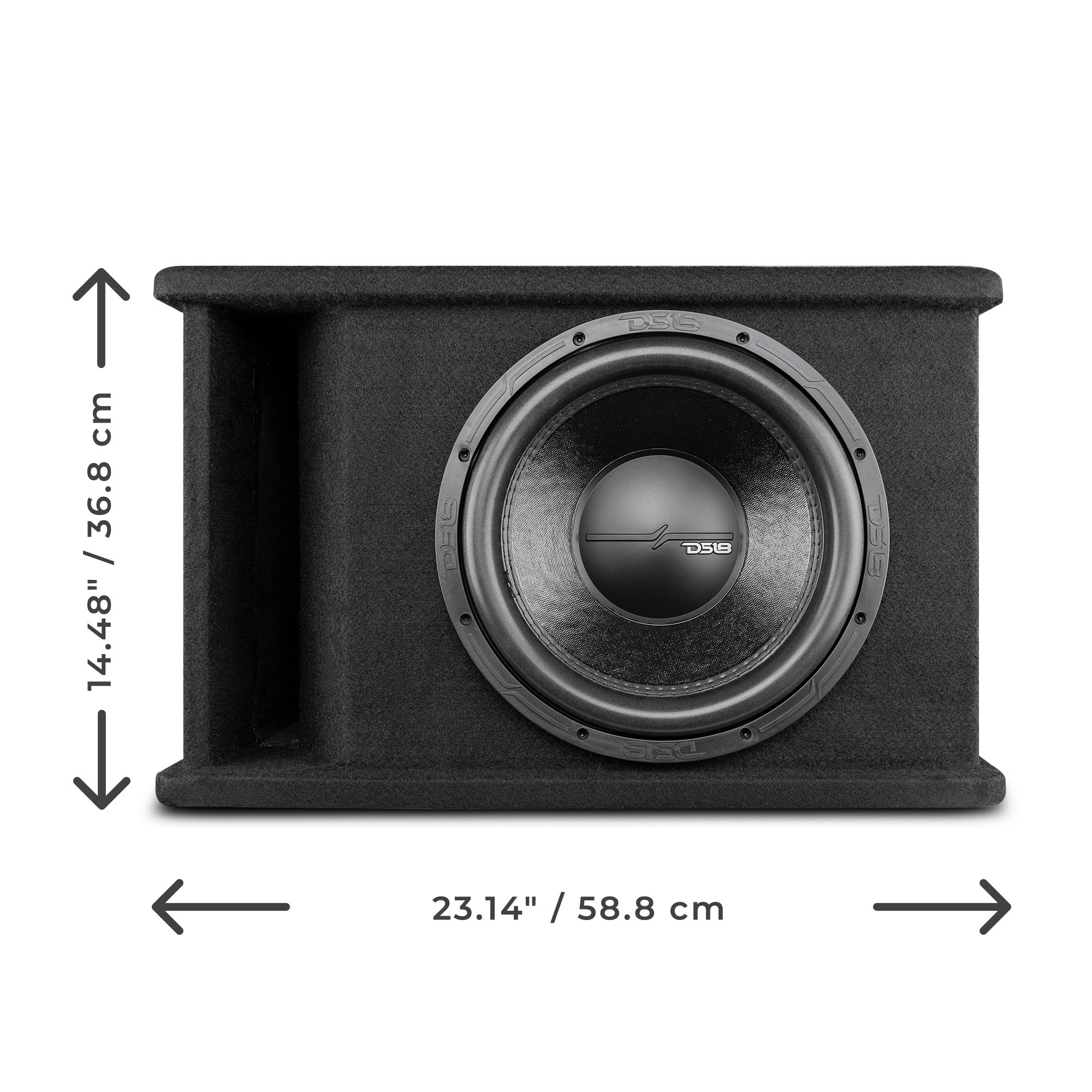

Dimensions:
- Height: 14.48"
- Width: 23.14"
- Depth 1: 17.71"
- Depth 2: 19.68"
Great For:
- Car Audio
- Pro Audio
- Home Solutions
- Hi-Fi Installation
- DIY Projects
- " width="100%">
| SPECIFICATIONS / ESPECIFICACIONES: | |
| Speaker Type/Size / Tipo/Tamaño de Altavoz | Single 12" / 316mm |
| Total Impedance / Impedancia Total. | 1 ohm |
| Total RMS Power Handling / Manejo de Potencia RMS total | 750 w |
| Total MAX Power Handling / Manejo de Potencia MAX total | 1500 w |
| Sensitivity (1w/1m) / Sensibilidad (1w/1m) | 84db |
| Frequency Response / Respuesta de Frecuencia . | 20-200 Hz |
| Recommended Lo Pass Crossover / Crosover Paso Bajo Recomendado. | 70Hz |
| MOTOR / MOTOR: | |
| Voice Coil Diameter / Diámetro de la Bobina de Voz | 2.5" / 61.6mm |
| Voice Coil Former Material / Material Interior de Bobina Móvil | Aluminum / Aluminio |
| Winding Material / Material de Bobinado | Copper / Cobre |
| Cone Material / Material del Cono | Non-Pressed Paper / Papel no Prensado |
| Dustcap Material / Material de la Tapa Anti-polvo | PPI |
| Surround Material / Material de la Suspension . | Foam / Espuma |
| Basket Material / Material de la Canasta .. | Steel / Acero |
| Magnet Material / Material del Imán | Ferrite / Ferrita |
| Magnet Weight / Peso del Imán . | 100 Oz |
| BOX SPECIFICATIONS / ESPECIFICACIONES DE LA CAJA: | |
| BOX SPECIFICATIONS / ESPECIFICACIONES DE LA CAJA | 79.3L / 2.8 ft3 |
| Port Tune / Melodía de Puerto | 29 Hz |
| Load Configuration / Configuración de carga | Ported Box / Caja Portada |
| Box Type / Tipo de caja | Singe 12” / Individual 12” |
| Box Material / Material de la caja | 3/4” (19mm) MDF |
| Finish Material / Material de acabado .. | Black Carpet / Alfrombra Negra |
| Logo / Logo . | Red Stitched / Rojo Tejid |
| -3Db Dropping Point / Punto de caída de -3Db .. | 24 Hz |
| MEASUREMENTS / MEDIDAS: | |
| Height / Altura | 14.48" / 36.8 cm |
| Width / Ancho | 23.14" / 58.8 cm |
| Depth 1 / Profundidad 1 | 17.71" / 450 cm |
| Depth 2 / Profundidad 2 | 19.68" / 500 cm |
