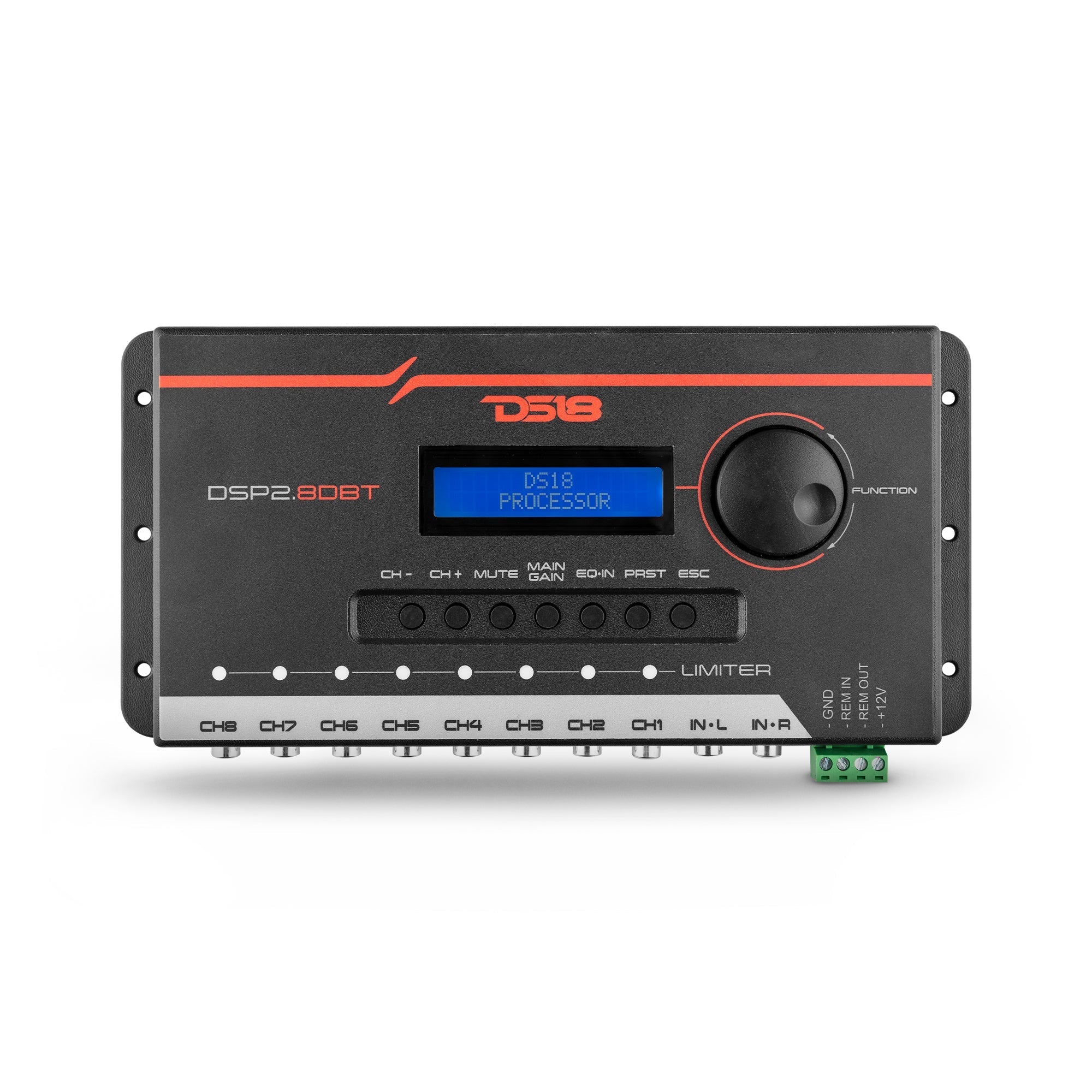

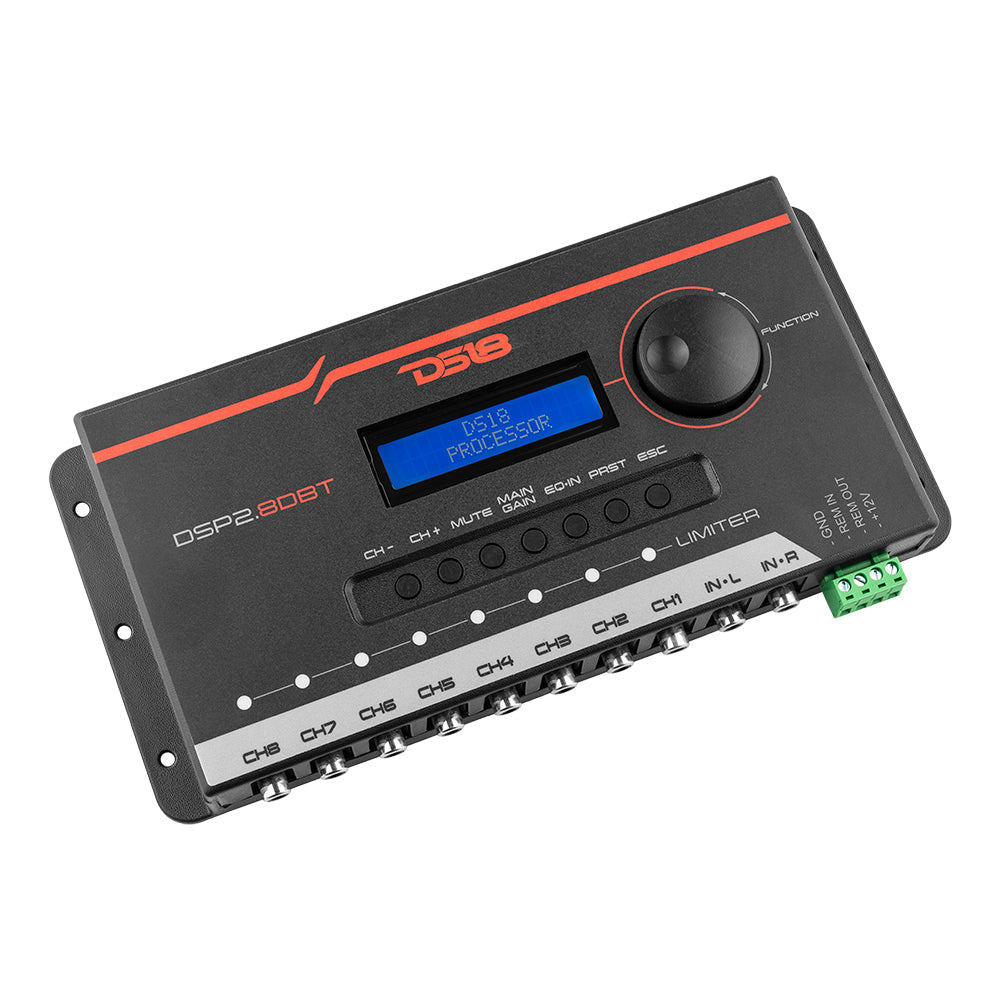

DS18 2-Channel In and 8-Channel Out Digital Sound Processor (DSP) with Bluetooth and LCD Screen
$239.95
In Stock
Pre-Order
Sold out
Couldn't load pickup availability
100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
- Description
- Technical Details
- Shipping and Refund
- Reviews
DS18 DSP2.8DBT 2-Channel In and 8-Channel Out Digital Sound Processor with Bluetooth and LCD Screen
At DS18, our team of engineers is always working to give users unrestrained control over the unmatched power our products deliver. The DSP2.8DBT, our newest digital sound processor, gives users access to every bit of power in your vehicle’s audio system, allowing you to gain the control needed to handle and achieve the quality of sound you desire.
Creating a flawless audio system has never been easier. The DSP2.8DBT gives users access to a list of filtrations settings directly from our BT Interface. This interface also gives users option to save presets for certain songs or genres allowing for the perfect listening experience one hundred percent of the time.
The DSP2.8DBT gives you access to a great number of tuning options that can be adjusted using the DSP2.8DBT Application on the App Store or Google Play.
Highlights
- Bluetooth connectivity to allow for easy and accessible audio tuning
- Easy to use software found on Google Play or the App Store to fine tune and monitor every aspect of your signal processing.
- 2 Channel RCA inputs
- 8 Channel RCA outputs
- Parametric equalizer with 3 independent band per channel
- Crossover with filters: Butterworth, Linkwitz-Riley and Bessel.
Great for:
- Car Audio
- Pro Audio
- Motor Cycles
- Home Studio
- Stunt Walls
- DIY Projects
| Specifications | |
| INPUTS | |
| Type | Unbalanced |
| Connection | RCA |
| Max level | Up to 6 Volts RMS |
| Impedance | 47kΩ |
| OUTPUTS (1,2,3,4,5,6,7,8): | |
| Type | Unbalanced |
| Connection | RCA |
| Max Level | 2 Volts RMS |
| Impedance | 470kΩ |
| TECHNICAL INFORMATION | |
| Resolution | 24 Bits |
| Sample Frequency | 48KHz |
| Latency Frequency | 1.08ms |
| Range Frequency | 15Hz a 22KHz (-1db) |
| THD+N max | 0,01% |
| Signal Noise Ratio | 100dB |
| POWER SUPPLY | |
| Voltage | 10~15Vdc |
| Consumption | 300mA (5w) |
| Fuse | 2A |
| Dimensions (H x L x D) | 4.72” x 9.84” x 1.18” / 120 x 250 x 30mm |
| Weight | 382g / 13.4 Oz |
