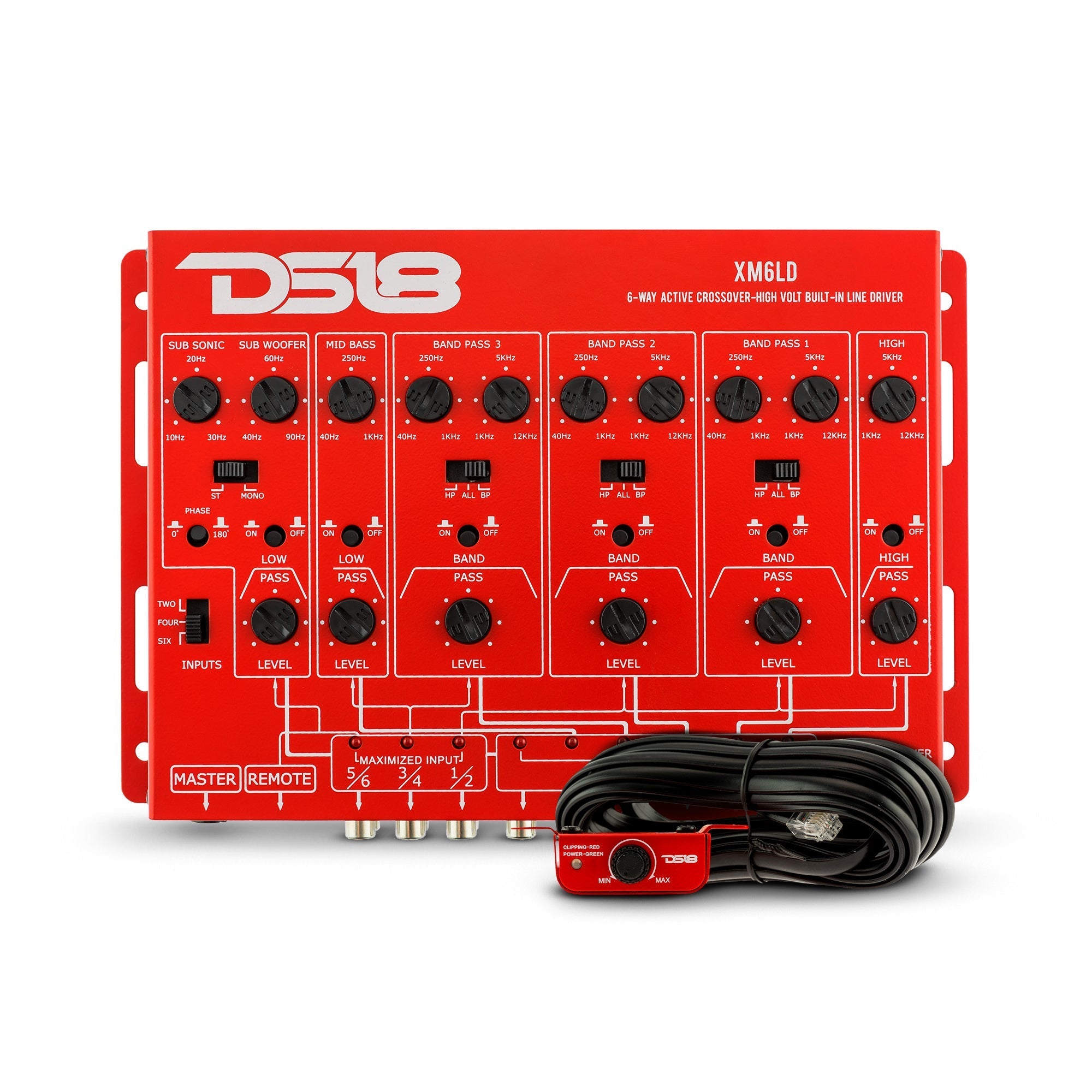

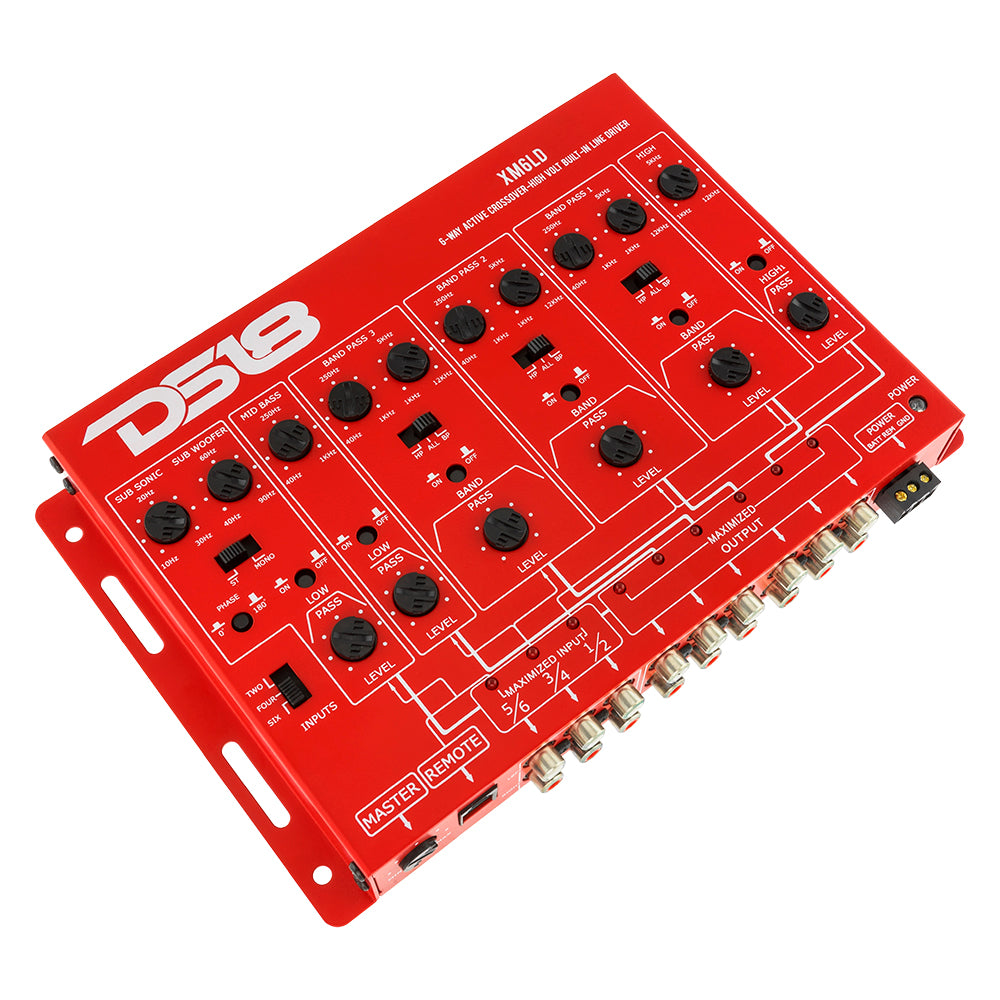

DS18 XM6LD 6-Way Active Crossover with Remote Gain Control

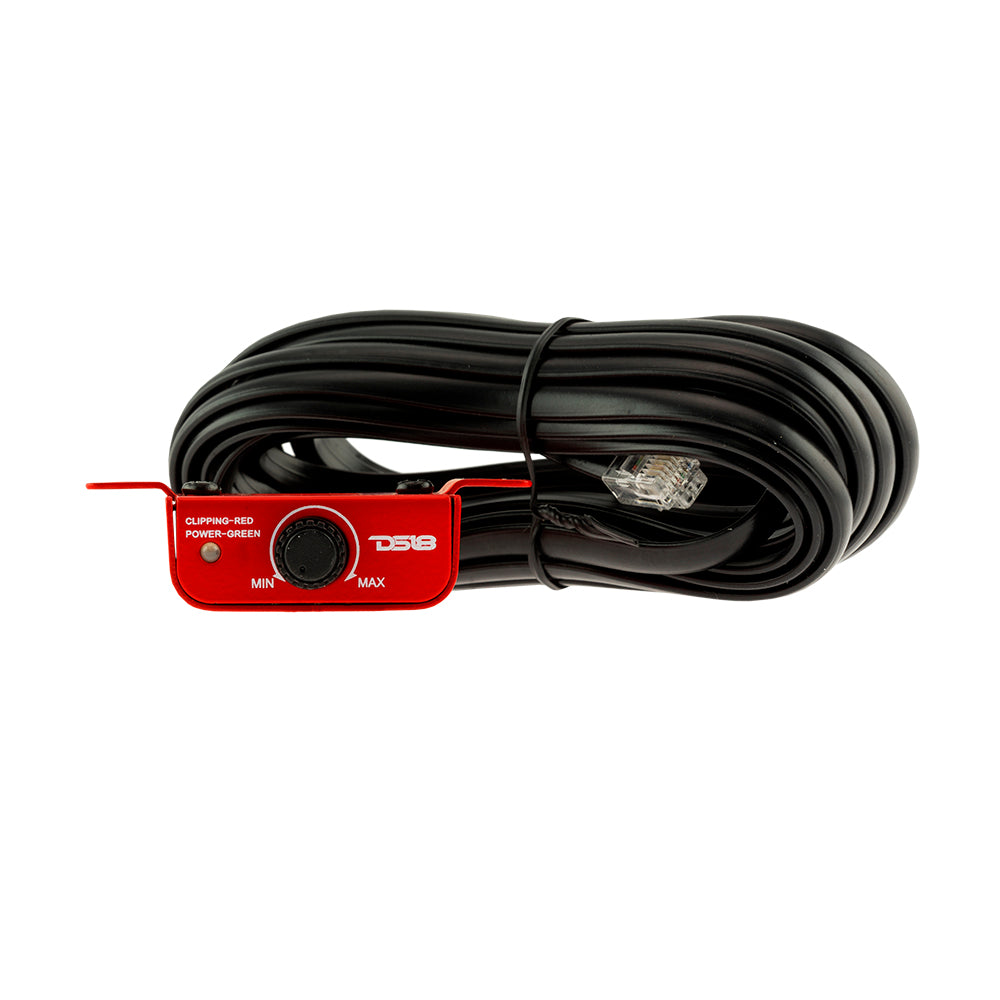

Having the perfect tools to make your sound system the ultimate music machine is what DS18 has for you. Our crossovers are designed to provide the perfect frequency distribution throughout your system to ensure the clarity and peak efficiency for your acoustic needs. This EQ has 6 separate bands and also line driver options so you can increase your input voltage for a perfect match to your amplifier voltage. Also included is a remote level knob for the bass do you can adjust your subs on the fly. This is what you need if you are tuning a multi amp audio system and finely tunes all aspects of your audio.
Highlights
- Get precise tuning accuracy with the XM6-LD easy to use tuning controls.
- high pass and band pass filters will help you get your exact midrange and high range frequency targets easily.
- Subwoofer low pass adjustments will help you perfectly tune your sub in compliance with specs.
- The Master gain knob along with the 6 level adjustment knobs will increase voltage via line driver to help you get your amps the proper signal voltage they need for maximum volume.
| Total Harmonic Distortion @ 1kHz: | 0.04% |
| Signal to Noise Ratio: | >105dB |
| Stereo Separation: | >70dB |
| Current Drain: | 200mA |
| Remote Turn-on Time: | 0.5 Sec |
| Recommended Fuse: | 1A |
| Dimensions (WxDxH): | 1.5"H x 6.5"L x 8.5"W |
| Input Impedance | |
| Front & Rear & Subwoofer: | 22K-Ohms |
| Input Voltage: | 150mV~6V |
| Outputs | |
| Crossover Cut Off Slope: | 12dB/Octave |
| Maximum Output Voltage: | 11.5V |
| Subwoofer | |
| Low Pass Crossover Frequency: | 40~90Hz |
| Subsonic Filter: | 10Hz~30Hz |
| Phase Shift: | 0 to 180 degrees |
| Bass Level Remote Control: | Wired |
| Rear (Mid Bass/Band Bass 3) | |
| Mid Bass: Low Pass Crossover Frequency: | 40Hz ~1KHz |
| Band Pass 3 | |
| High Pass Crossover Frequency: | 40Hz ~1kHz |
| Low Pass Crossover Frequency: | 1KHz~12KHz |
| Front (HIGH/Band Pass1/Band Pass2) | |
| High | |
| High Pass Crossover Frequency: | 1KHz~12KHz |
| Band Pass 1 & Band Pass 2 | |
| High Pass Crossover Frequency: | 40Hz ~1KHz |
| Low Pass Crossover Frequency: | 1KHz~12KHz |
