DS18

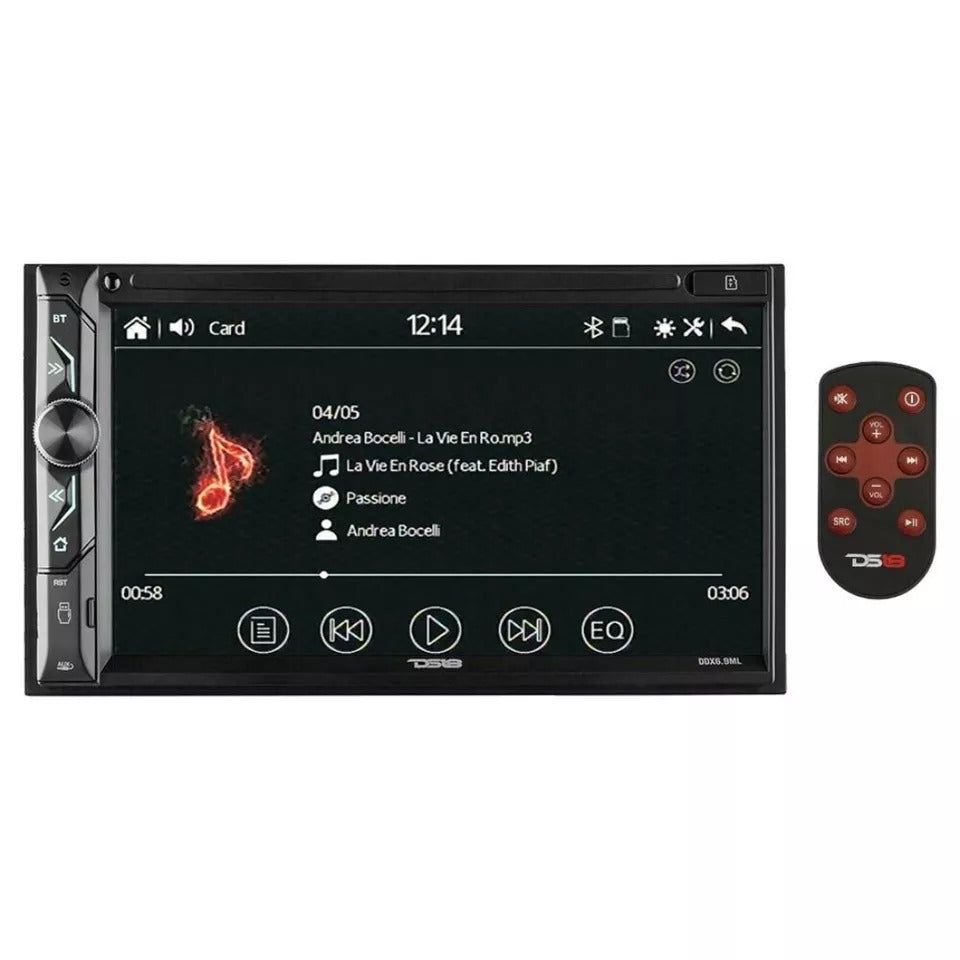

DS18 DDX6.9ML 6.9" Touchscreen Mechless Double-Din Headunit
$169.95
In Stock
Pre-Order
Sold out
Couldn't load pickup availability
100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
- Description
- Shipping and Refund
- Reviews
Brand New
DS18 DDX69ML
6.9" Touchscreen Mechless Double-Din Headunit
Key Features:
6.9-inch (16:9) 1080p (1024x600 pixels) double din touchscreen to maximize your viewing in a small space.
Full 16 Band EQ and Subwoofer LPF accessible via our DS18 DDXRC app on google play.
4.5a preamp outputs (Front, and Rear)
Built in , Aux, SD Reader (64GB), 1.5a USB charging, AUX Input, AM/FM Tuner, and USB connections (1 front and 2 rear)
Wireless remote control for easy operation.
RCA inputs so you can view external sources video easily via source.
MIC in options for easy phone operation and built in controls.
APP control with the DS18 DDXRC app easily found on Google Play or the Apple store.
Camera Inputs included so you can plug and play most types of back up cameras.
Apple and Android compatible
Specifications:
Rated power source: 14.4V DC (10.8V to 15V operation)
Maximum Current Consumption: 10 Amp
Dimensions (W x H x D): Chassis: 178mm x 100mm x 135mm
Bezel frame: 170mm x 96mm x 5mm
Weight: 820 grams
Screen Size / Aspect Ratio: 6.9 inch / Wide 16:9
Pixels 1024 x 600
Display Type: TFT / WSVGA / Capacitive Touch Screen
Temperature Operation: -20o C to +60o C (14o F to 140o F
Maximum Power Output: 40W x 4 Ch / 4 ohm
Continuous Power Output: 15W x 4 Ch / 4 ohm
Pre-output Level: 4.5 Volts (Front, Rear) 7 Volts (Subwoofer)
Equalizer: 16 bands (35Hz, 60Hz, 80Hz, 120Hz, 160Hz, 250Hz, 320Hz, 400Hz, 600Hz, 800Hz, 1KHz, 3KHz, 5KHz, 8KHz, 12.5Khz, 16Khz) +/- 12dB
Gain: +/- 12dB
Audio Control: Volume / Balance / Fader / Loudness
Frequency Range: FM: 87.5 ~ 107.9 KHz AM: 530 ~ 1710 KHz
Presets Memory: 30 Stations (18 FM/12 AM)
Region: Selectable (USA, Latin, Japan, Asia, Europe, OIRT, Australia, Mid-East)
Sensitivity Adjustment: LOC (On/Off) / ST (On/Off)
Type / Class: V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS
Format Files Supported: RMVB, MPG4, AVI, MP3, WMA, JPEG, DivX
Resolution Supported: 1080P Video
Memory Size Reader: up to 64 Gb
Max Current Supply: 1.5 Amp (USB)
Number of USB Ports: 2 (1 x Front, 1 x Rear)
Bluetooth Version / Services: V4.1 / Audio Streaming / Hands Free calls
Camera Input: RCA Analog Video up to HD 720p (Front/Rear)
Video Output: Dual RCA (1 Volt/75 ohm)
A/V Aux Input: Rear RCA Audio and Video / Front 3.5mm Jack Stereo Audio
Microphone: 3.5mm Jack external MIC Input
Remote Control: Frontal IR Receptor / Wired (3.5mm jack) Input
Package Dimensions: 8 x 6 x 3 inches
