DS18

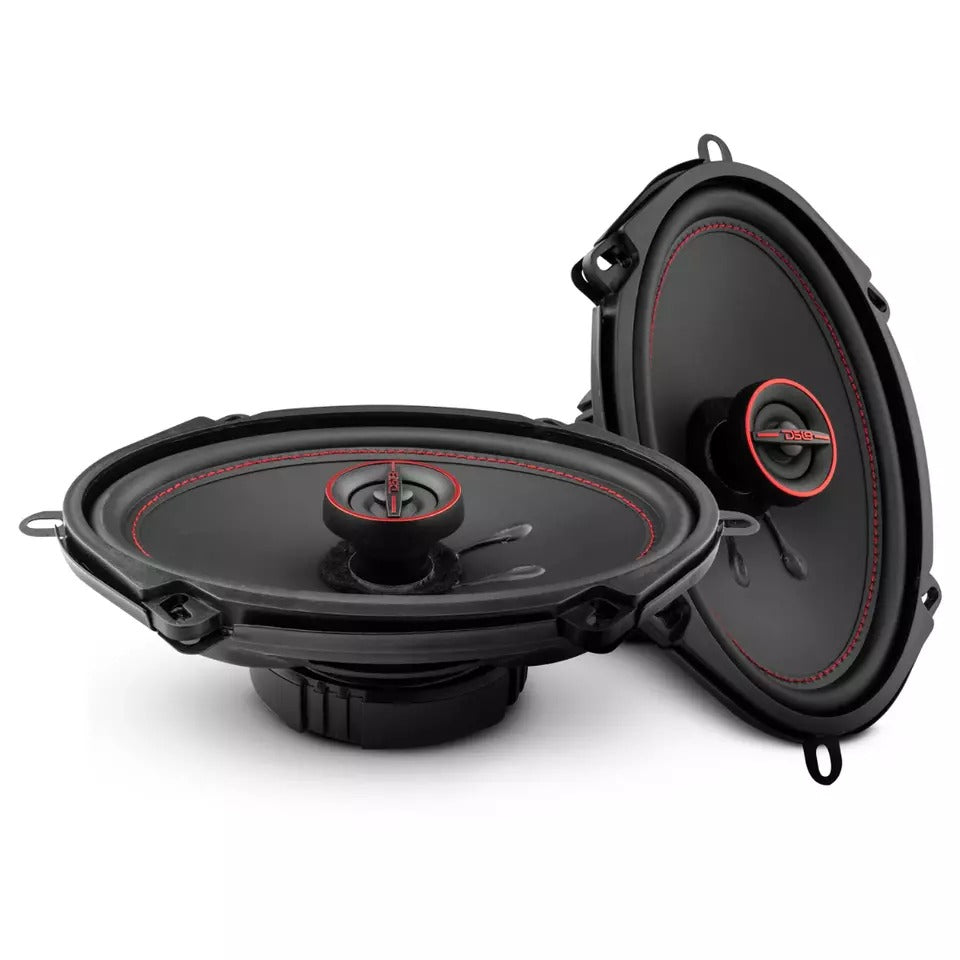

DS18 G5.7Xi 5" x 7" 2-Way 150W Max 4-Ohm Car Audio Coaxial Speakers (Pair)
$47.95
In Stock
Pre-Order
Sold out
Couldn't load pickup availability
100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
- Description
- Shipping and Refund
- Reviews
BRAND NEW
DS18 G5.7Xi
5" x 7" 2-Way 150 Watts Max 4-Ohm Car Audio Coaxial Speakers (Pair)
The G5.7Xi is notable for its 2-way design consisting of a woofer, and a tweeter. The different drivers are each responsible for reproducing sounds within a specific frequency range, allowing for a more accurate and full-sounding audio experience.
Key Features:
- 5 x 7" 2-Way Coaxial
- MAX Power: 150 Watts
- RMS Power: 50 Watts
- Impedance: 4-Ohm
- Ferrite & Neodymium Magnets
Specifications:
- SKU: G5.7XI
- Nominal Diameter: 5X7" / 127x177mm
- Nominal Impedance: 4 Ohms
- RMS Power Handling: 50W
- Maximum Power Handling: 150W
- Sensitivity (1w/1m): 85dB
- Frequency Response: 40Hz-20KHz
- Recommended HI Pass Crossover: 70Hz
- Number of ways: 2
- Pair or single: Pair
- Grill Included: No
Woofer Specifications:
- Voice Coil Diameter: 1" / 25.5mm
- Voice Coil Former Material: ASV
- Winding Material: EISV
- Cone Material: Paper
- Surround Material: Rubber
- Basket Material: Steel
- Basket Color/Finish: Black Matte
- Magnet Material: Barium Ferrite
- Magnet Weight: 7.8Oz / 221g
Thiele & Small Parameters:
- Equivalent Volume Vas: 6.2L / 0.21ft3
- Excursion (one way) Xmax: 2.7mm
- Free Air Resonance Fs: 82Hz
- Mechanical Factor Qms: 4.1
- Electrical Factor Qes: 2.2
- Total Factor Qts: 1.4
- Mechanical Mass Mms: 13.2g
- Mechanical Compliance Cms: 250mm/N
- Bl Factor Bl: 3.4
- Voice Coil Inductance Le: 172uH
- Cone Area Sd: 134.7cm2
- DC Resistance Re: 3.7 Ohms
- Mechanical Mass w/o air Mmd: 11.5g
Tweeter Specifications:
- Nominal Diameter: 1" / 25.5mm
- Voice Coil Diameter: 0.5" / 13.25mm
- Voice Coil Former Material: ASV
- Winding Material: EISVM
- Diaphragm Material: Mylar
- Magnet Material: Neodymium
- Magnet Weight: 1.8g
Measurements:
- Overall Diameter: 5.57" x 7.6" / 141.5 x 193mm
- Overall Depth: 2.63" / 66.8mm
- Front Mount Baffle Cutout: 4.9" x 7" / 126 x 180mm
- Mounting Depth: 2.13" / 54mm
- Motor Diameter: 3.4" / 86mm
- Tweeter Protrusion: 0.5" / 12.8mm
- Gross Single Unit Weight: 0.68KG
- Single Unit Box Dimensions W x L x H: 235 x 85 x 310mm
