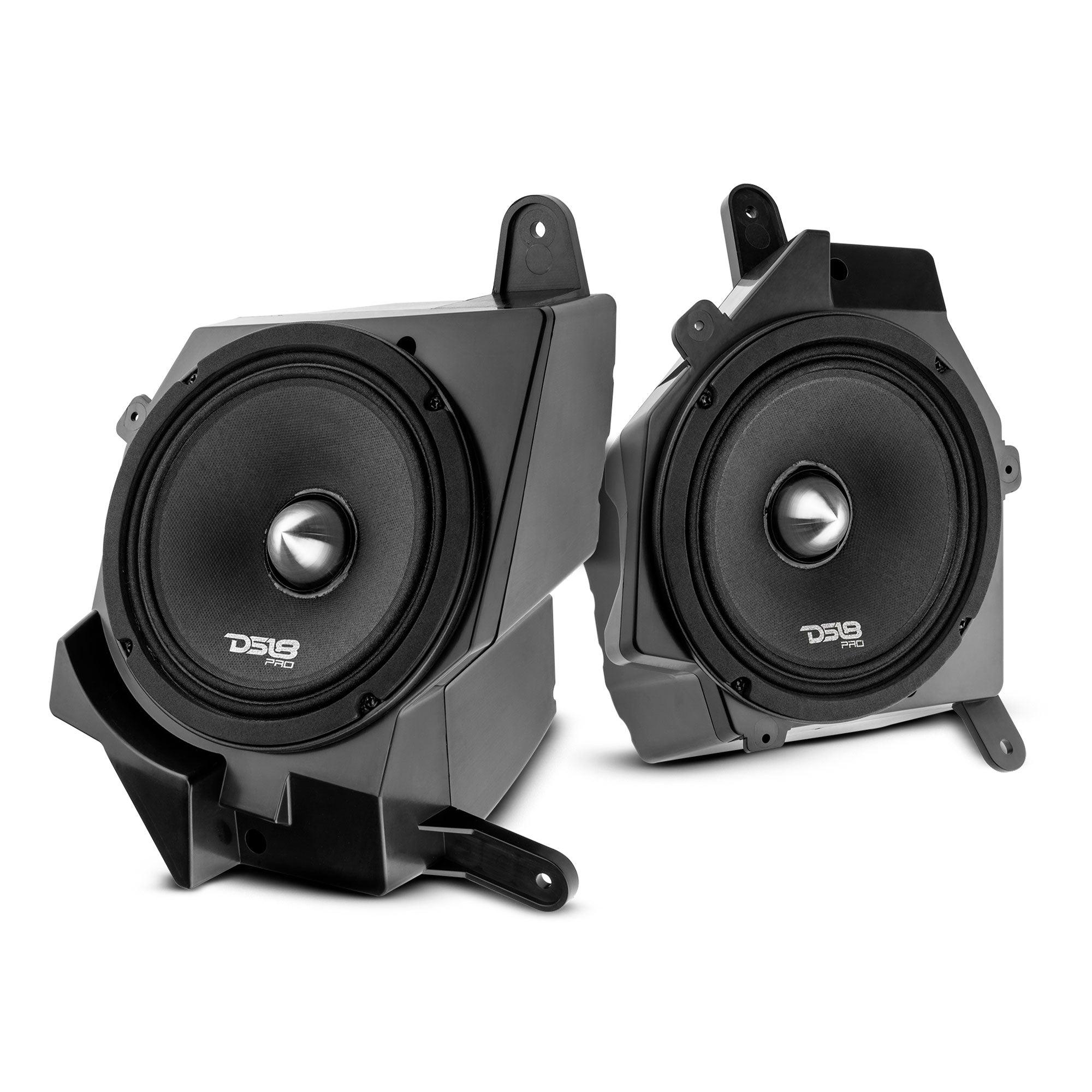

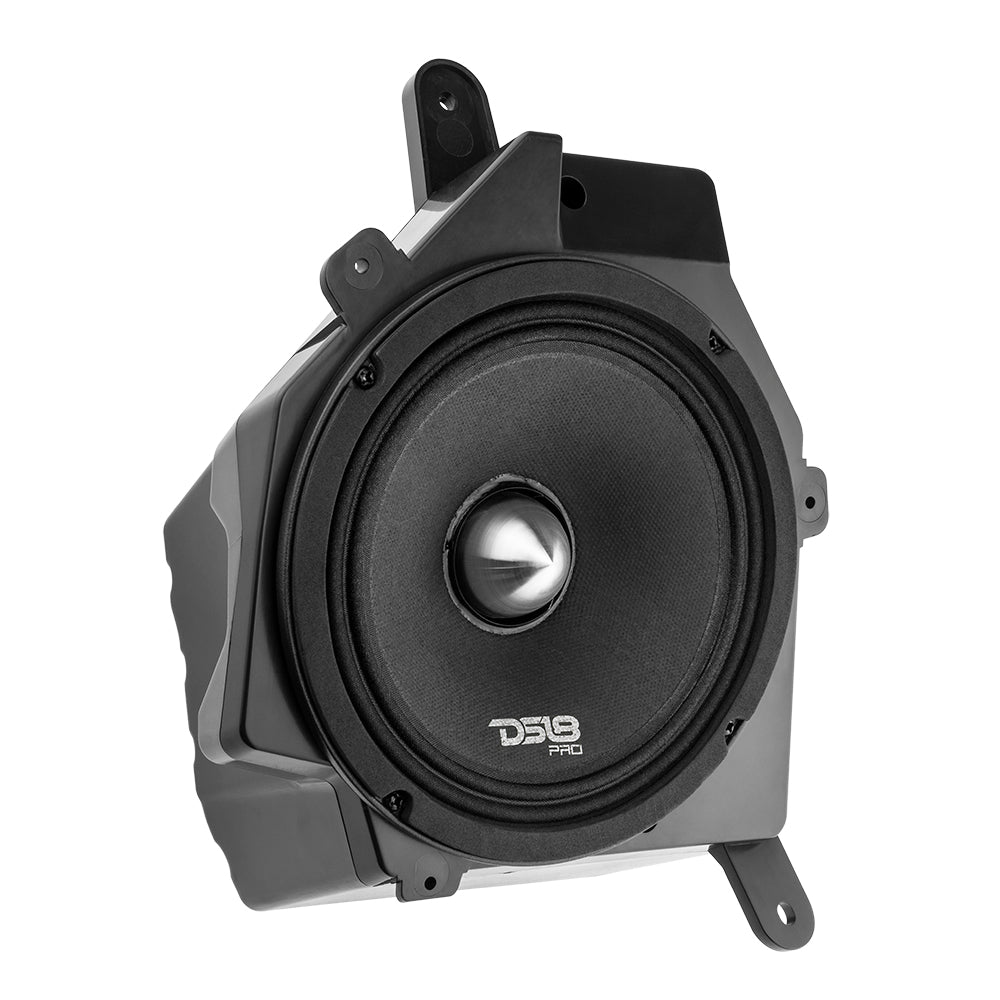

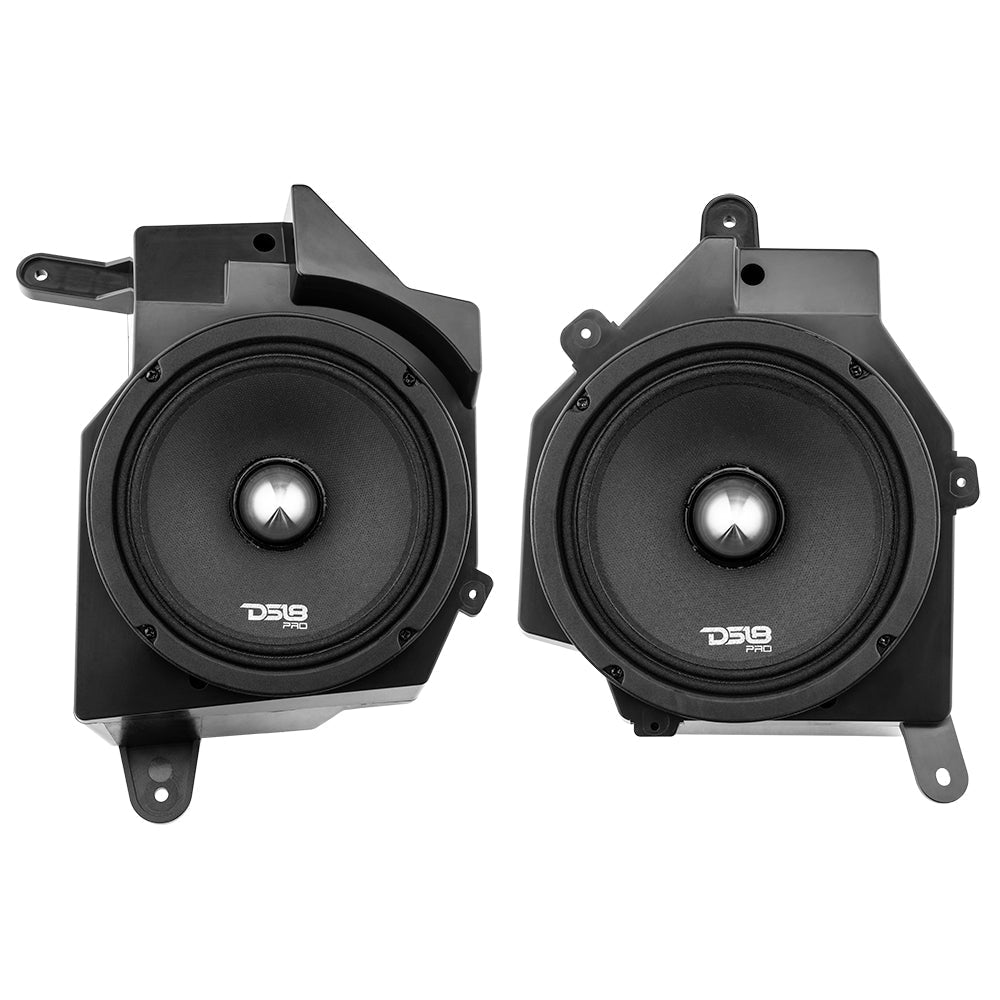

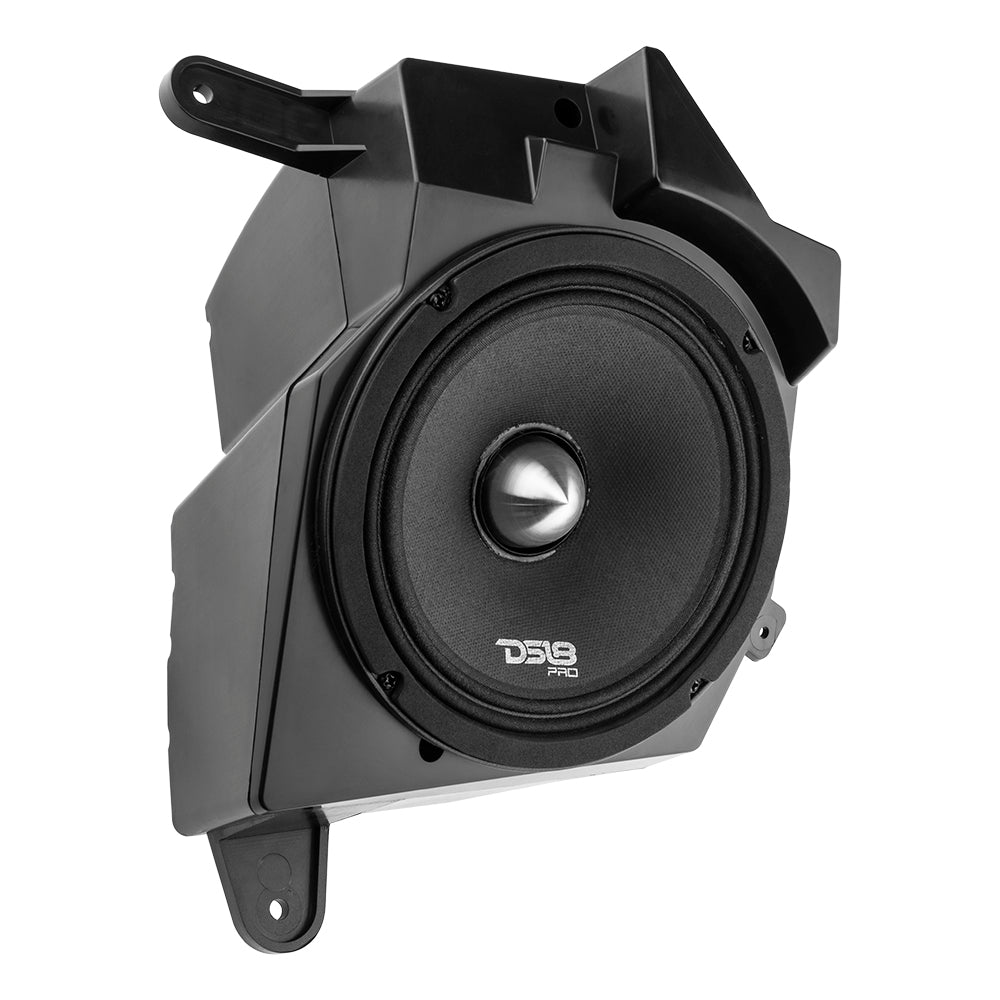

DS18 JP6NEO.FR Plug and Play Dash Enclosure Upgrade with 6.5" Neo Full-Range Loudspeaker for Jeep JL/JLU and JT Left and Right
As the most popular manufacturer of professional grade Jeep Audio products, DS18’s expert engineering team is still in search of ways to enhance their previous designs.
Neodymium magnets are the strongest and lightest magnets commercially available today. The JP6NEO.FR is furnished with high strength neodymium midrange speakers, the PRO-FR6NEO, for an expansive covering of the midrange frequencies.
Protected by a high-strength aluminum basket, these speakers are sure to outlast your vehicle. The speakers included with the JP6NEO.FR offer extreme volumes at a lower power requirement than other mid-range loudspeakers. They also come equipped with a Silver Bullet Phase Plug that helps efficiency throughout. These neodymium powerhouses are sure to give crisp clear highs with a power rating of 225 watts RMS and 450 watts MAX power @ 4 Ohms.

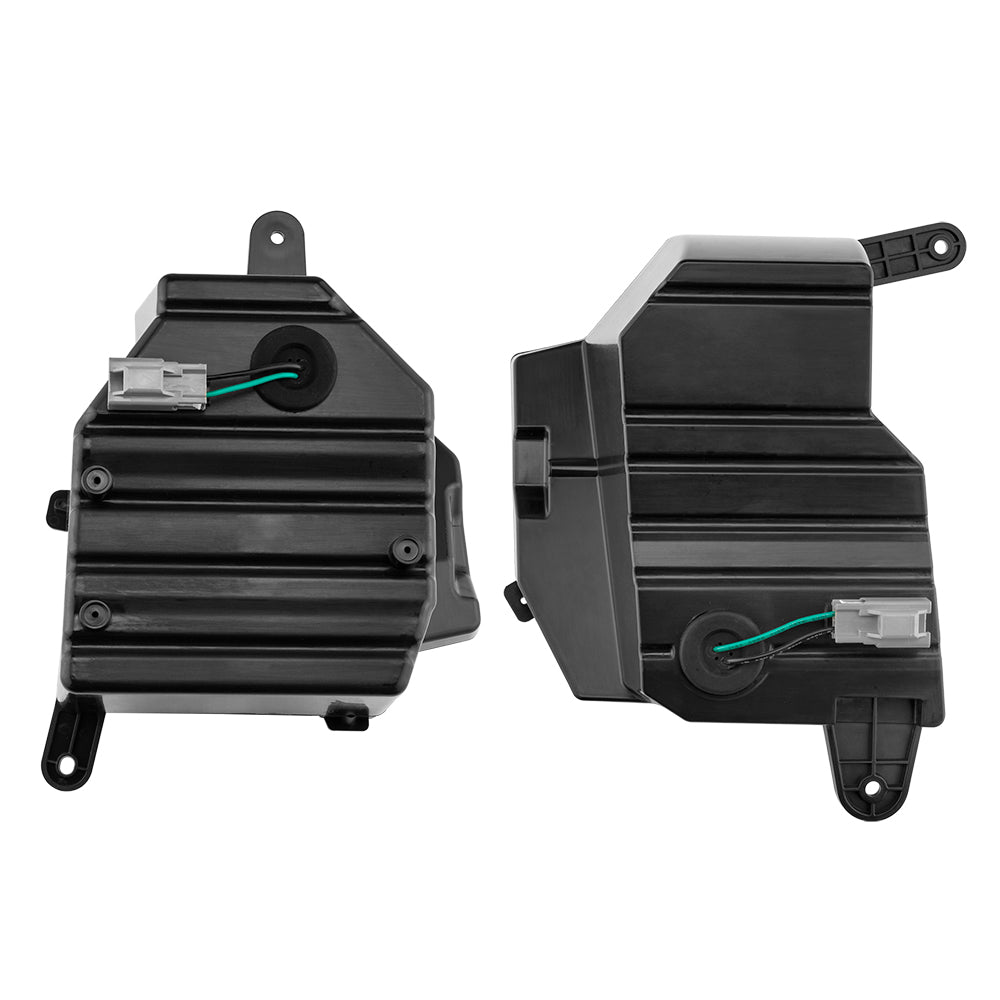

This pair of easy to install enclosures come with everything you need to get amazing sound out of your front stage! Plug this enclosure directly into your existing wiring harness, connect directly to your factory amplifier, or add an external amplifier for extreme power and maximum loudness immediately!
Highlights
- Plug and Play capabilities for instant installation
- Especially designed for Jeep JL, JLU, and JT plug and play installation.
- The units use the factory amplifier but alternatively can be powered for even more volume with an external amplifier.
- 6.5” DS18 Pro-FR6NEO Pro Audio Mid-Range Loudspeaker included for the loudest sound and highest wattage to decibel efficiency 225 watts RMS 450 watts MAX @ 4 Ohms. (pair)
- Silver Bullet Resonator (tweeter) that offers the higher range of your NEO bringing you a fuller range of frequencies to blast.
Great For
- Jeep Audio
|
General Specifications |
|
|
|
Nominal Speaker Diameter |
|
6.5" / 165mm |
|
Nominal Impedance |
|
4 Ohms |
|
RMS Power Handling |
|
225W |
|
MAX Power Handling |
|
450W |
|
Sensitivity (1w/1m) |
|
97dB |
|
Frequency Response |
|
100Hz-16KHz |
|
Recommended HI Pass Crossover |
|
160Hz |
|
Sold in Pair or Single |
|
Pair (Left & Right) |
|
|
|
|
|
Body / Features |
|
|
|
Enclosure Material |
|
ABS Injected Plastic |
|
Wiring / Connections |
|
OEM Plug Connector |
|
Clamps |
|
ABS Factory Location |
|
Finish |
|
Satin Black |
|
|
|
|
|
Woofer Specifications |
|
|
|
Voice Coil Diameter |
|
1.5" / 38.6mm |
|
Voice Coil Former Material |
|
Kapton |
|
Winding Material |
|
CCAW |
|
Cone Material |
|
Non-Pressed Paper |
|
Dust Cap Material |
|
N/A |
|
Bullet Material / Color |
|
Silver Aluminum |
|
Surround Material |
|
Cloth |
|
Basket Material |
|
Aluminum |
|
Magnet Material |
|
Neodymium |
|
Magnet Size / Weight |
|
90x6mm / 7.67 Oz |
|
|
|
|
|
Thiele & Small Parameters |
|
|
|
Equivalent Volume |
Vas |
2.11L / 0.074ft3 |
|
Excursion (one way) |
Xmax |
6.8mm |
|
Free Air Resonance |
Fs |
166Hz |
|
Mechanical Factor |
Qms |
3.173 |
|
Electrical Factor |
Qes |
0.409 |
|
Total Factor |
Qts |
0.362 |
|
Mechanical Mass |
Mms |
11.31g |
|
Mechanical Compliance |
Cms |
0.08mm/H |
|
BL Factor |
BL |
9.79 |
|
Voice Coil Inductance |
Le |
0.472mH |
|
Cone Area |
Sd |
136.85cm2 |
|
DC Resistance |
Re |
3.3 ohm |
|
Mechanical Mass w/o air |
Mmd |
/ |
|
|
|
|
|
Enclosure Measurement |
|
|
|
Overall Length (Left) |
|
7.5" / 190mm |
|
Overall Depth (Left) |
|
7.38" / 187mm |
|
Overall Height (Left) |
|
10.47" / 265mm |
|
Overall Length (Right) |
|
8.18" / 207mm |
|
Overall Depth (Right) |
|
8.14" / 206mm |
|
Overall Height (Right) |
|
9.96" / 252mm |
|
|
|
|
