DS18

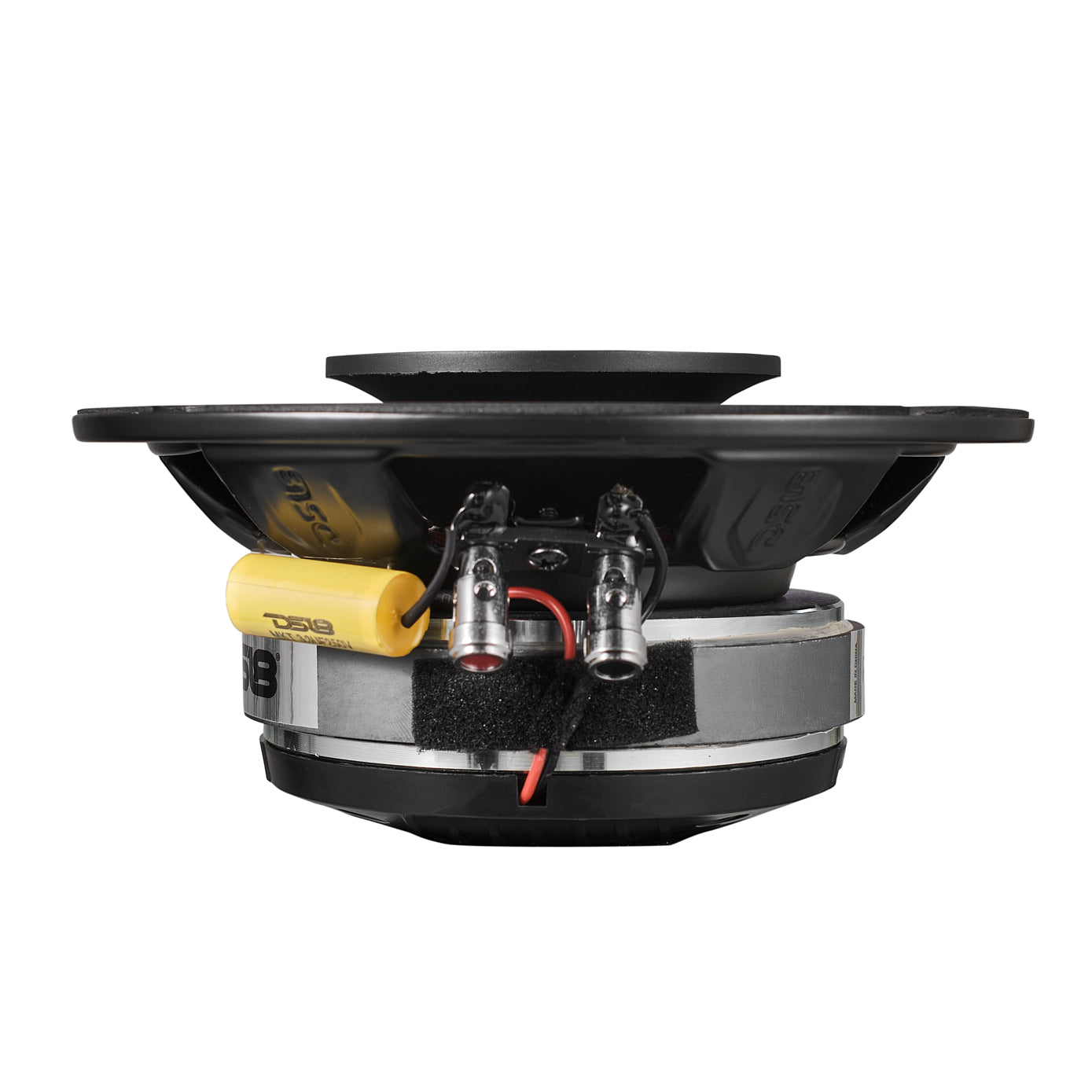

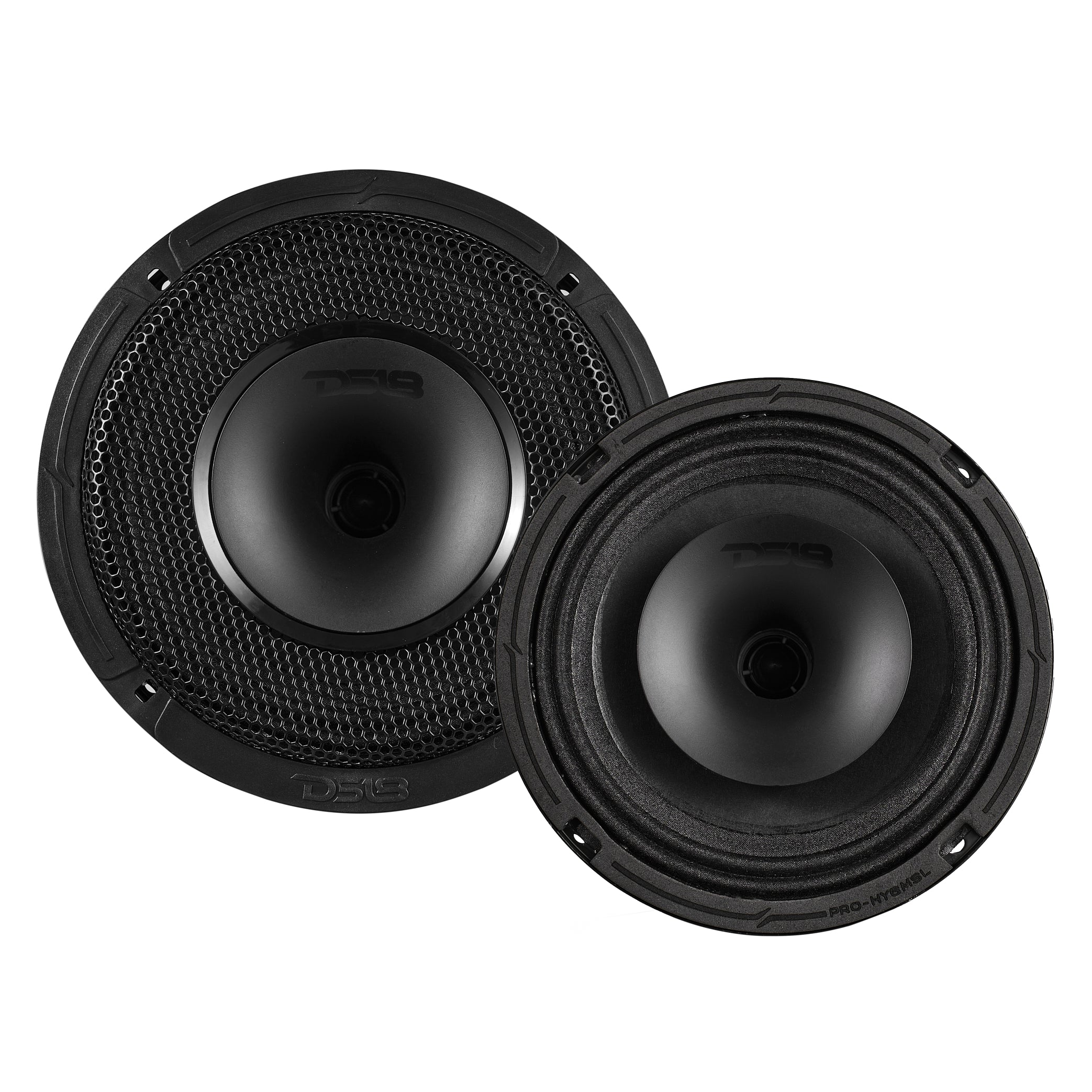

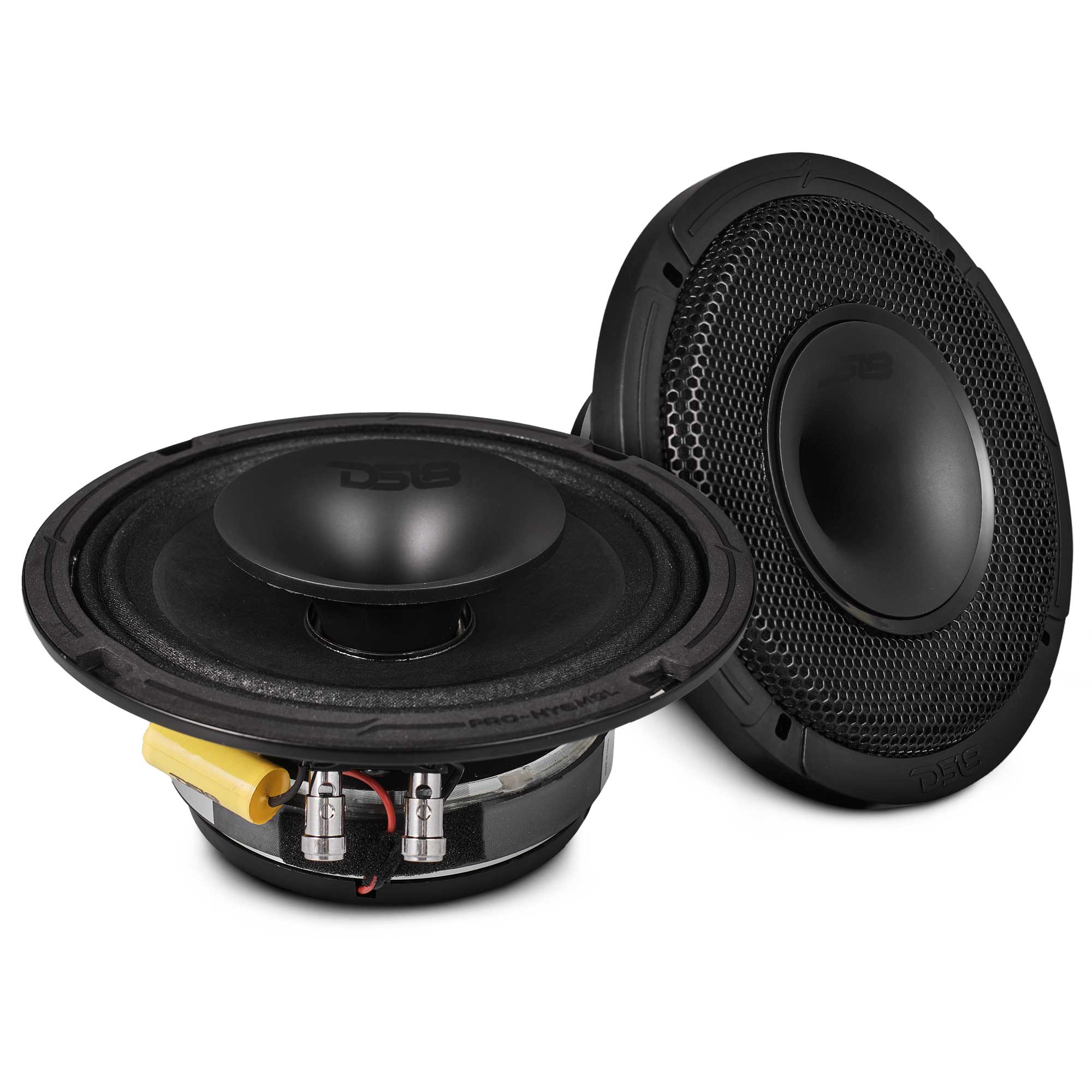

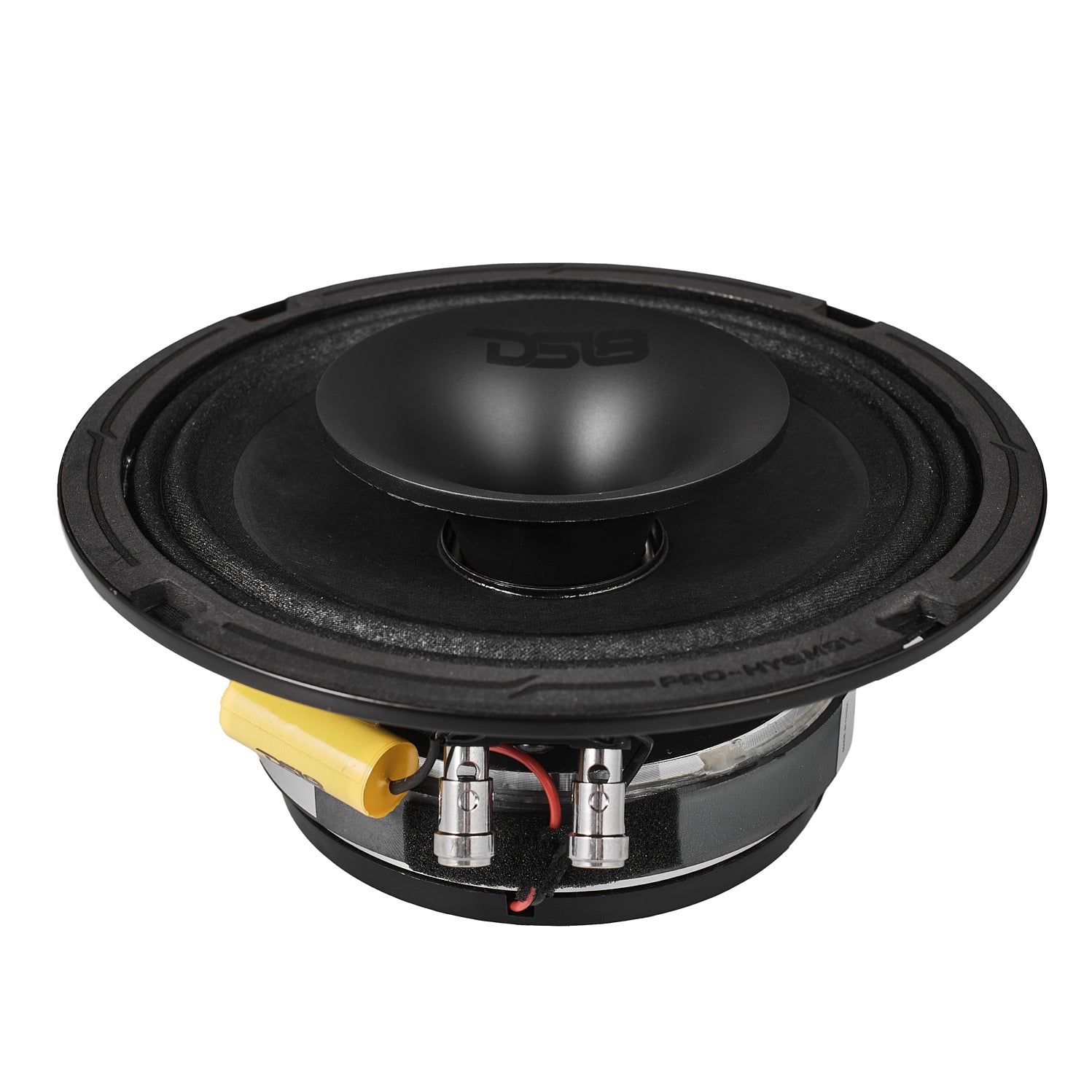

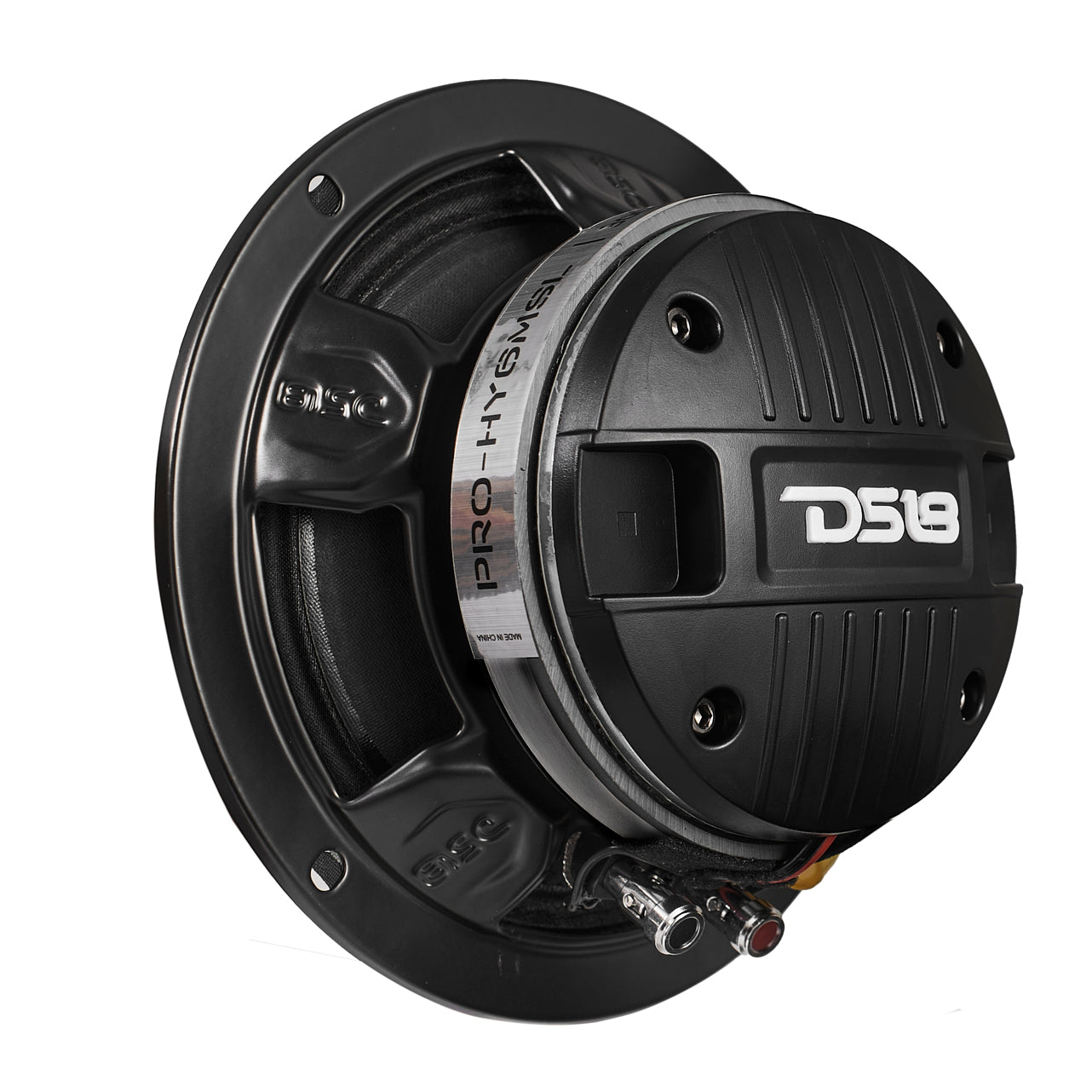

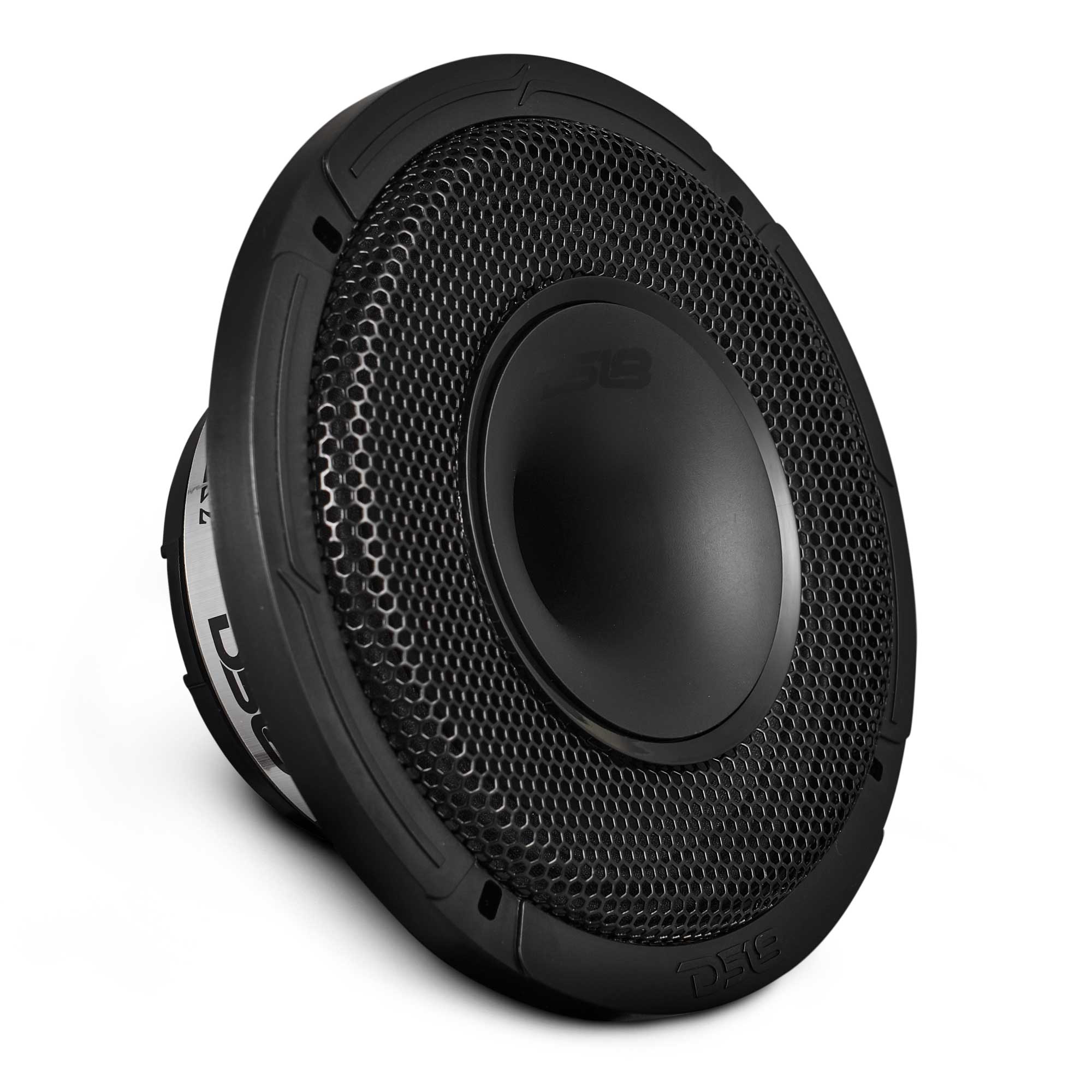

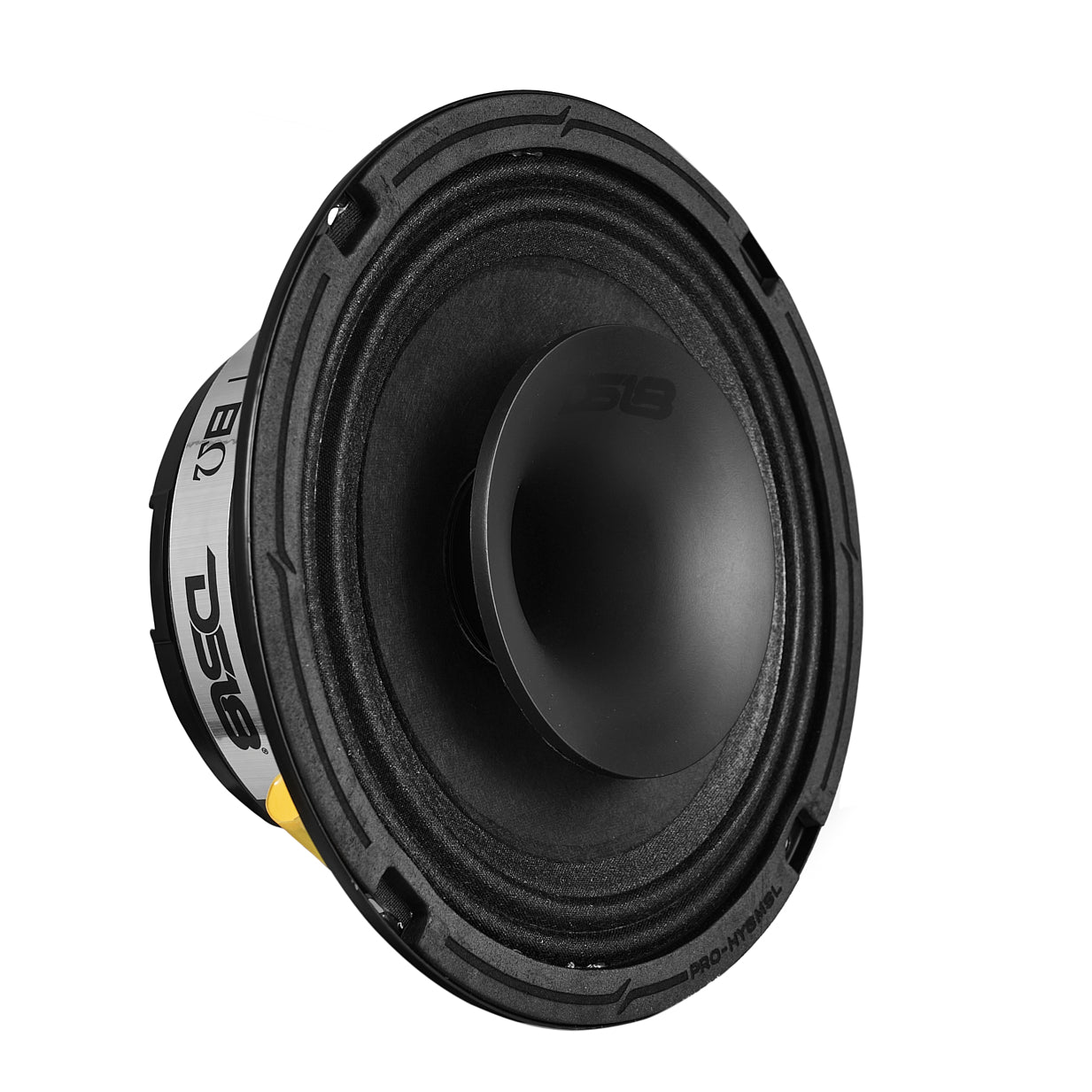

DS18 PRO 6.5" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver 150 Watts Rms 8-Ohm
$80.95
In Stock
Pre-Order
Sold out
Couldn't load pickup availability
100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
- Description
- Technical Details
- Shipping and Refund
- Reviews
DS18 PRO-HY6MSL PRO 6.5" Shallow Hybrid Mid-Range Ferrite Loudspeaker with Built-in Neodymium Driver 300 Watts 8-Ohm - Grill Included
Your search for the best high-powered audio speakers comes to an end with the DS18 Hybrid Speakers!
These compact Speakers combine the best of both worlds! We have emphasized and carefully combined both our Pro-Audio midrange and a high intensity driver all in a slim package for an endless amount of applications that need Pro-Audio sound in tight spaces where traditional drivers wouldn't fit.
This high-quality, durable, and innovative design perfectly blends a high-volume Speaker with a high wattage driver. These Speakers are the ultimate choice for extreme loudness with amazing clarity at high volumes.
Be sure no other brand can match up to this powerful and durable 6.5" Pro-Audio Speaker and Driver Hybrid. If you are looking for a high-powered Audio Speaker for your car or any other application, this completely customized Speaker will give you the output you need to get the job done.
Highlights:
- With 150 watts RMS Power Handling and 300 watts MAX Power Handling, and a frequency response of 120Hz-20Khz, this is the best Car Audio Loudspeaker you can find that is compact yet getting amazing and rich musical response.
- With an Overall size of 6.92 inches in width and 2.77 inches of mounting depth, this is that you can use in a huge amount of applications with ease.
- Made of titanium, neodymium, ferrite, and featuring a glossy red basket color, this revolutionary Hybrid Loudspeaker is going to last you years!
Key Features
- 6.5" Inch Hybrid Pro-Audio Driver / Speaker Hybrid
- RMS Power Handling: 150W
- MAX Power Handling: 300W
- Frequency Response: 120Hz-20KHz
- Voice Coil Diameter: 1.5"
- Voice Coil Material: KSV
- Impedance: 8-Ohms
- Sensitivity: 93dB
- Magnet Weight: 17.5 Oz
- Magnet Material: Ferrite
- Mounting Depth: 2.77"
- Recommended High Pass: 140Hz
Great For:
- Car Audio
- Pro Audio
- Home Audio
- Satellite Speakers
- Bookshelf Speakers
- Hi-Fi Installation
- DIY Projects
PRO-HY6MSL Product Manual
| SPECIFICATIONS | |
| Nominal Diameter | 6.5" / 165.1mm |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 150W |
| MAX Power Handling | 300W |
| Sensitivity (1w/1m) | 93dB |
| Frequency Response | 120Hz-20KHz |
| Recommended HI Pass Crossover | 140Hz |
| Number of ways | 2 ways |
| Pair or Single | Single |
| Grill Included | Yes |
| WOOFER SPECIFICATIONS | |
| Voice Coil Diameter | 1.5" / 38.6mm |
| Voice Coil Former Material | KSV |
| Winding Material | CCAW |
| Cone Material | Paper |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Glossy Red |
| Magnet Material | Ferrite |
| Magnet Weight | 17.5 Oz |
| DRIVER SPECIFICATIONS | |
| Voice Coil Diameter | 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Horn Diameter | 3" / 76.2mm |
| SPEAKER MEASUREMENT | |
| Overall Diameter | 6.92" / 176mm |
| Overall Depth | 3.52" / 89.5mm |
| Front Mount Baffle Cutout | 5.6" / 142mm |
| Mounting Depth | 2.77" / 70.5mm |
| Motor Diameter | 4.33" / 110mm |
