1-4 DAYS DELIVERY
-10%
DS18

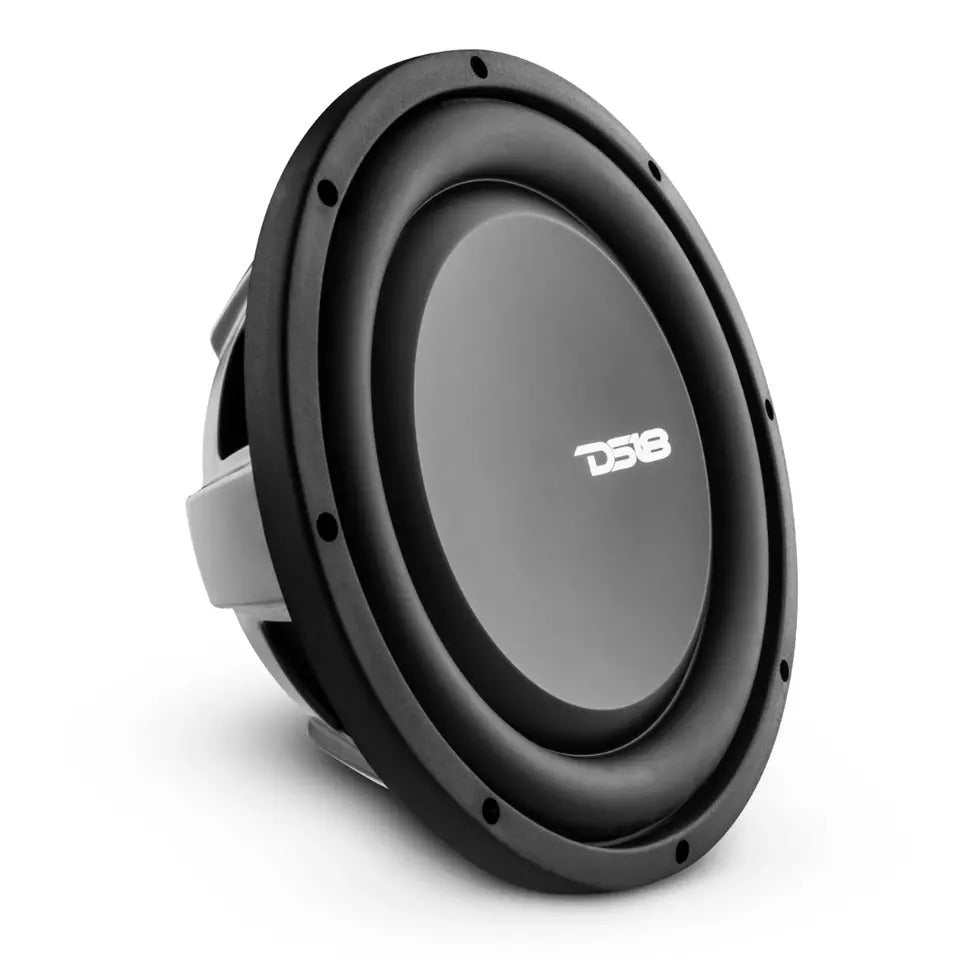

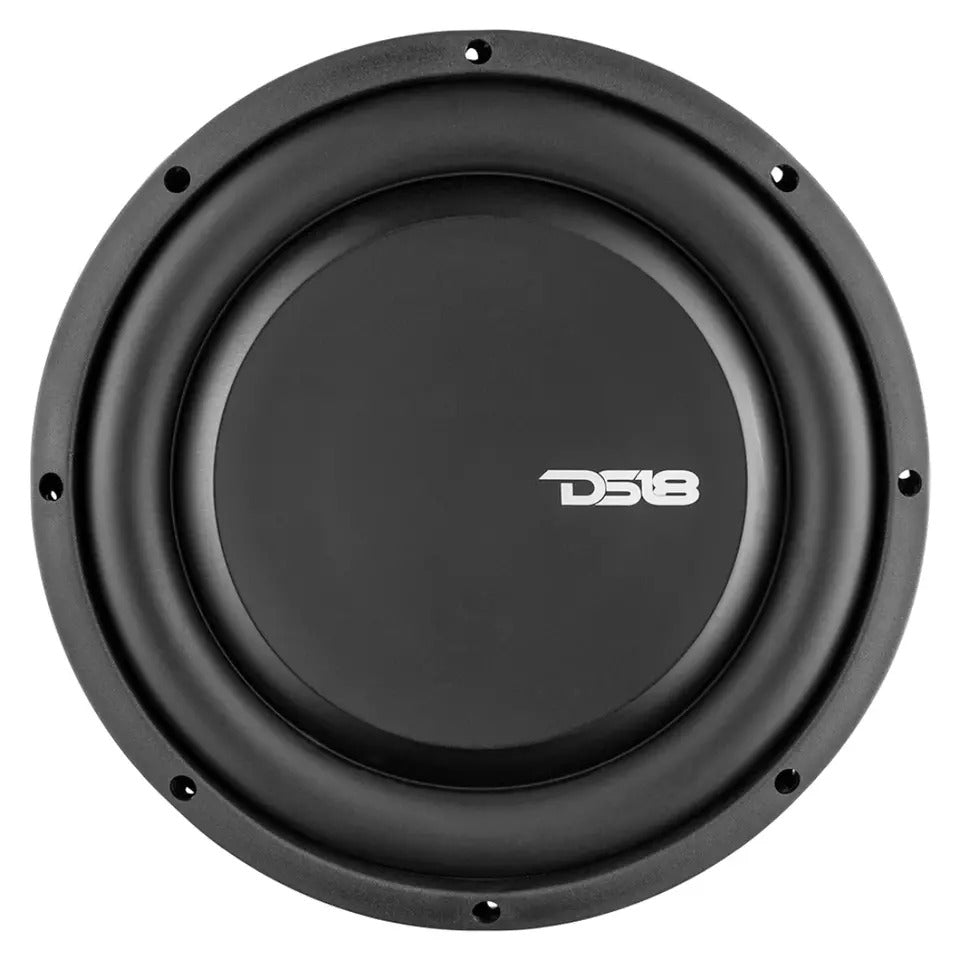

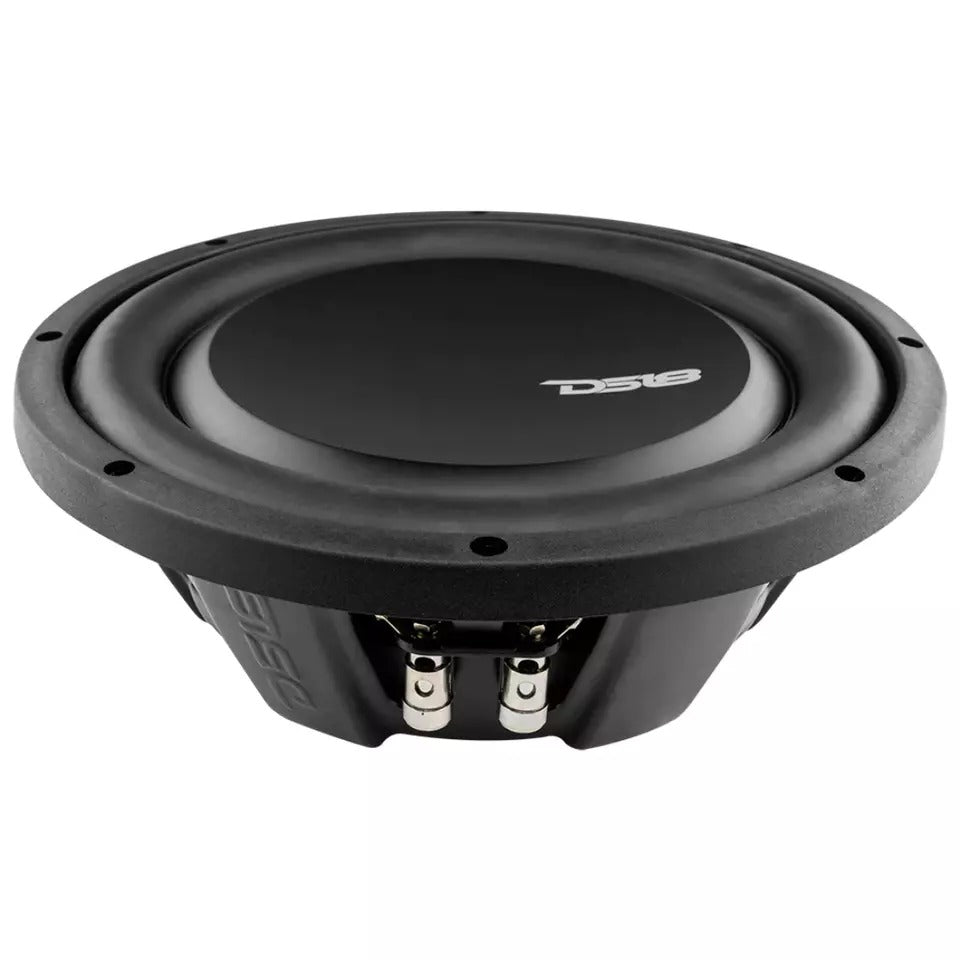

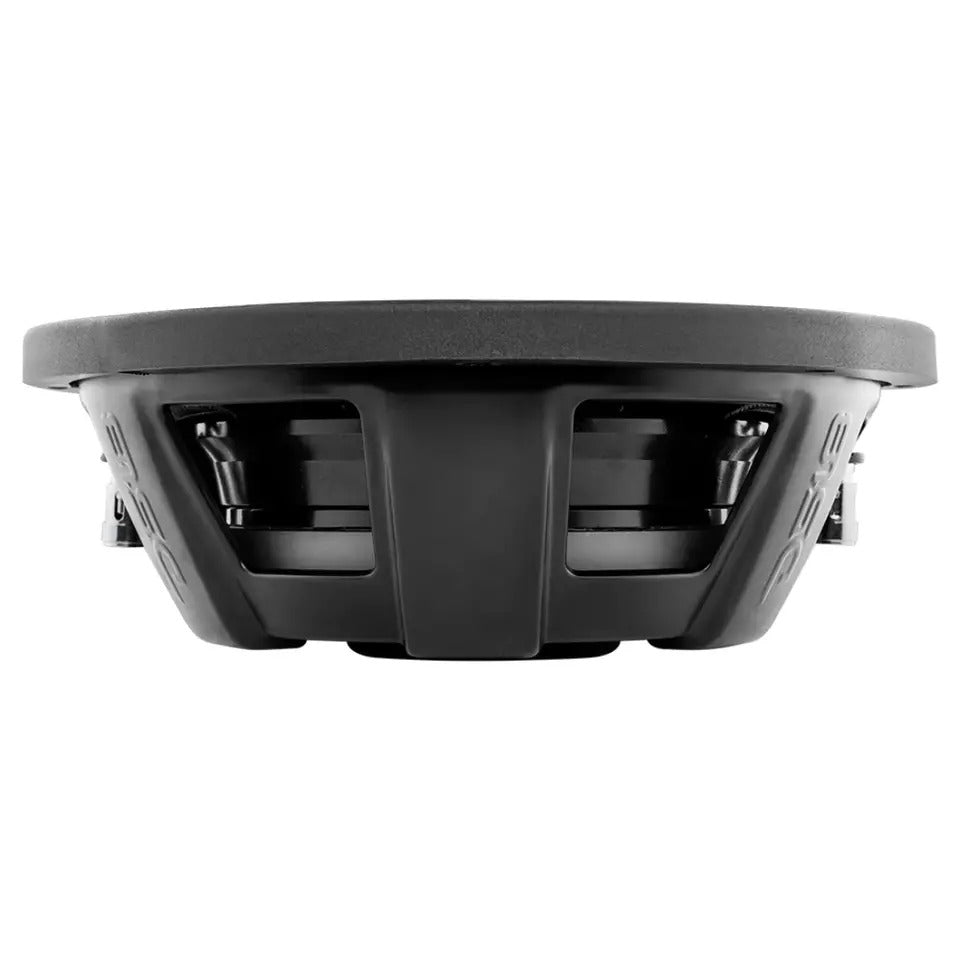

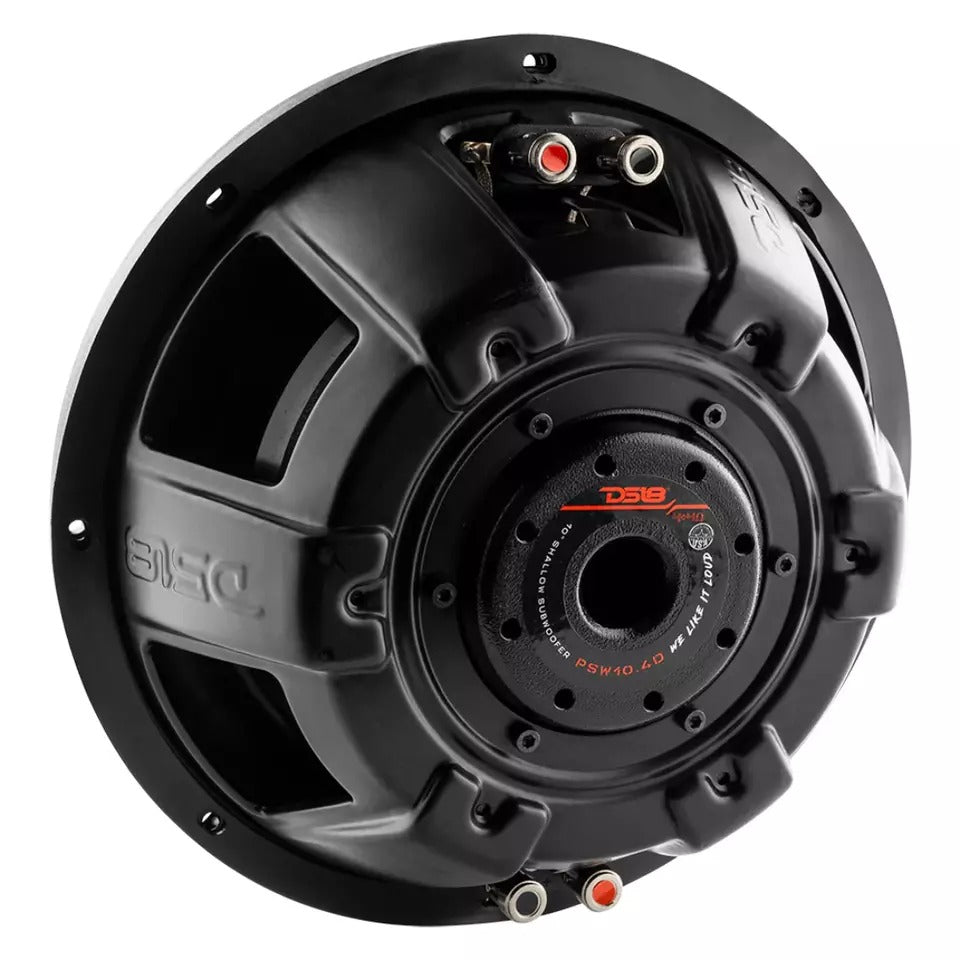

DS18 PSW10.4D 10" 1000W Max Dual 4-Ohm Voice Coil DVC Shallow Mount Subwoofer
$149.95
In Stock
Pre-Order
Sold out
Couldn't load pickup availability
100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
- Description
- Shipping and Refund
- Reviews
BRAND NEW
DS18 PSW10.4D
10-Inch 1000Watts Max Dual 4-Ohm DVC Car Audio Shallow Mount Subwoofer
Specifications:
- SKU: PSW10.4D
- Nominal Diameter: 10" / 254 mm
- Nominal Impedance: 4 + 4 Ohms
- RMS Power Handling: 500 W
- Maximum Power Handling: 1000 W
- Sensitivity (1w/1m): 84 dB
- Frequency Response: 20 - 800 Hz
- Recommended Lo Pass Crossover: 90 Hz
Motor Features:
- Voice Coil Diameter: 2.5" / 63.5 mm
- Voice Coil Former Material: Aluminum
- Winding Material: Copper
- Cone Material: Water Resistant PPI
- Surround Material: Rubber
- Basket Material: Steel
- Basket Color/Finish: Matt Black
- Magnet Material: Ferrite
- Magnet Weight: 58 Oz
- Displacement Volume: 0.8L / 0.028ft3
Thiele & Small Parameters:
- Equivalent Volume Vas: 25.6L / 0.9ft3
- Free Air Resonance Fs: 32 Hz
- Mechanical Factor Qms: 3.612
- Electrical Factor Qes: 0.76
- Total Factor Qts: 0.63
- Moving Mass Mms: 154 g
- Compliance Cms: 0.161 mm/N
- Bl Factor BI: 8.57
- Voice Coil Inductance Le: 2.1 mH
- Diaphragm Area Sd: 336.54 cm2
- DC Resistance Re: 3.6+3.6 Ohms
- Efficiency Bandwidth Product EBP: 42
Recommended Enclosures:
- Sealed Internal Volume (minimum): 14.2L / 0.5ft3
- Sealed Box Output Response F3: 44 Hz
Measurement:
- Overall Diameter: 10.23" / 260 mm
- Overall Depth: 3.6" / 92 mm
- Front Mount Baffle Cutout: 9.2" / 234 mm
- Mounting Depth: 3" / 78 mm
- Motor Diameter: 6.5" / 165 mm
- Gross Single Unit Weight (lb): 11.5
- Single Unit Box Dimensions W x L x H (Inches): 12.25 x 11.5 x 4.75
- Quantity of Units in Master Carton: 2
- Gross Master Carton Weight (lb): 24
- Master Carton Dimensions W x L x H (Inches): 12.5 x 12 x 10
