-10%
DS18

DS18 Single-DIN SDX1 Digital Media Receiver Mech-Less Player, Bluetooth, Dual USB ,7 Volt Preouts

$99.99
$89.99 In Stock Pre-Order Sold out
Notify when available

1-4 DAYS DELIVERY

100% ORIGINAL AND QUALITY

24 MONTHS GUARANTEE

  • Description
  • Shipping and Refund
  • Reviews

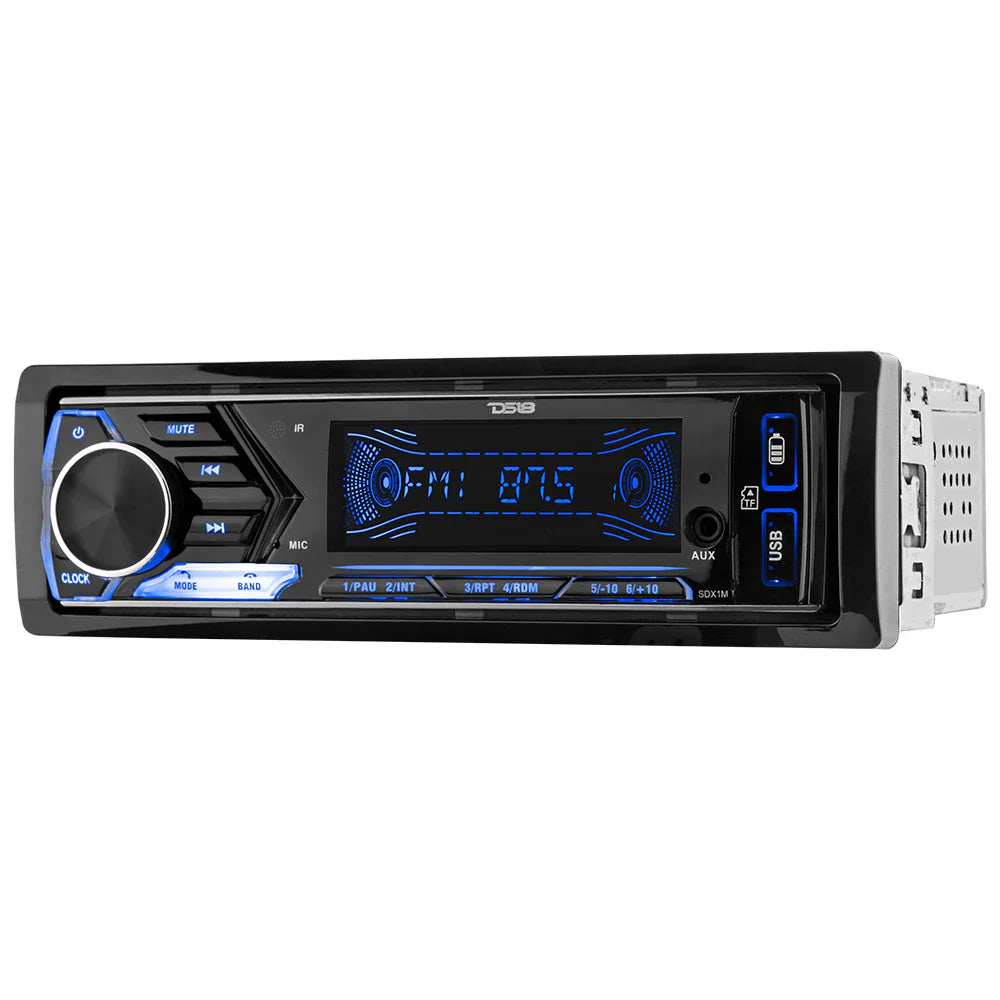

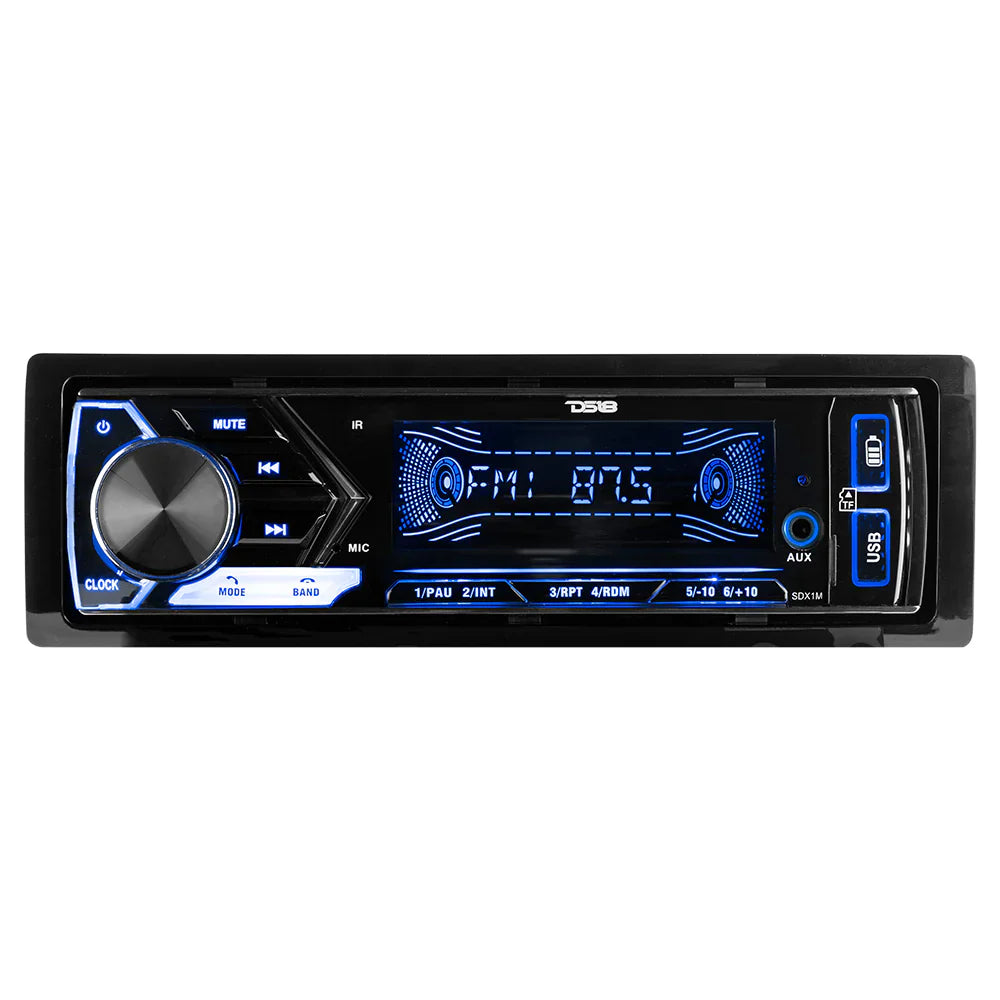

DS18 Single-DIN SDX1

Digital Media Receiver Mech-Less Player, Bluetooth, Dual USB ,7 Volt Preouts

  • Digital Media Single Din Receiver
  • Mech-Less
  • BT ~ SD ~ USB ~ AUX ~ AM/FM
  • 7 Selectable Colors

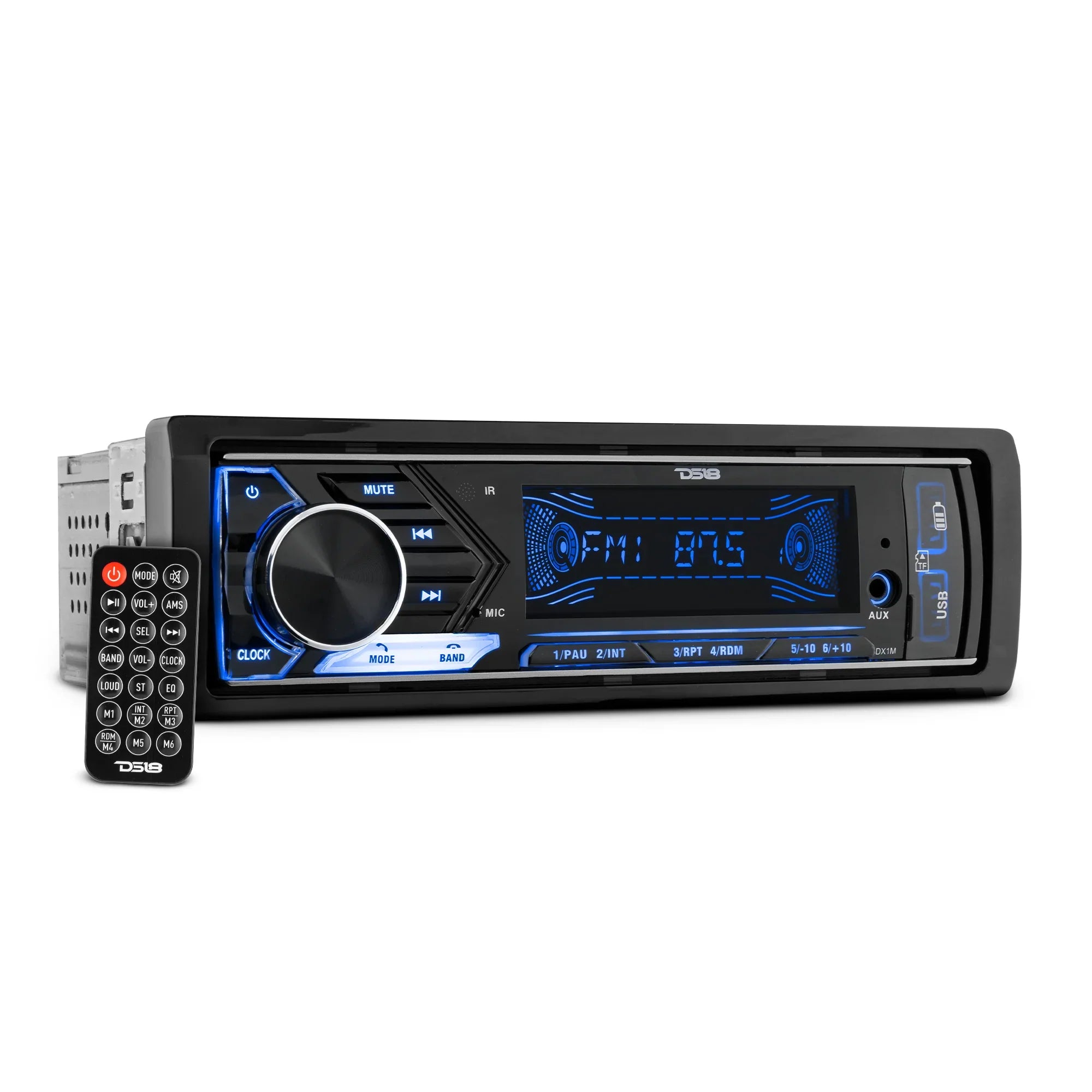

  • Remote Control
  • EQ and Subwoofer Control

SPECS

SKU
SDX1
Rated power source
14.4V DC (11V to 16V operation)
Maximum Current Consumption
10 Amp

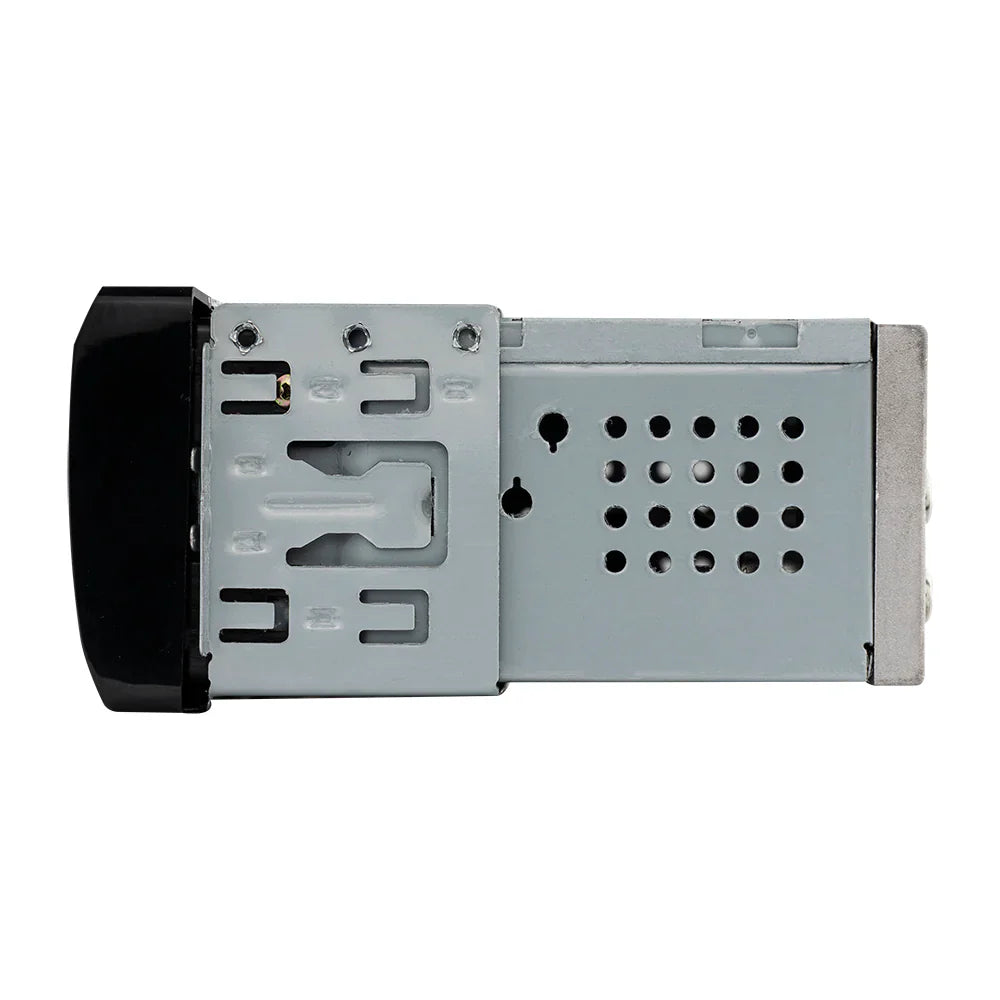

Dimensions (W x H x D)
Chassis: 178mm x 50mm x 150mm Bezel frame: 188mm x 58mm x 30mm
Weight
15.9 Oz / 452 grams


DISPLAY

Screen Size
3" / 75 x 25mm
Display Type
VA LCD
Temperature Operation
-20C to +60C (14F to 140F)


AUDIO

Maximum Power Output
50W X 4 Ch @ 4 ohm (14.4v)
Continuos Power Output
17W x 4 Ch @ 4 ohm (14.4v)
Pre-output Level
7 Volts (14.4V)
Equalizer
2 bands (Bass: 60Hz, Treble: 10KHz)
Gain
+/- 7dB
Preset EQ
Jazz / Rock / Pop / Classic
Audio Control
Volume / Balance / Fader / Loudness / Bass / Treble
Subwoofer Control
Vol (0-20) / Cut (80/120/160 Hz)
Signal to Noise Ratio
>60dB
THD
<0.3%
Frequency Response
20Hz - 20Khz


TUNER

Frequency Range
FM: 87.5 ~ 107.9 KHz
Presets Memory
18 Stations
Region
North America
Sensitivity Adjustment
LOC / DX & ST / Mono
Sensitivity
<20dB
Stereo Separation
>25dB


USB / SD PLAYER

Type/Class
V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS
Format Files Supported
MP3, WMA, FLAC, MAV
Info Display Format
ID3 Tag
Memory Size Reader
up to 64 Gb
Max Current Supply
1.5 Amp (Charging USB port)

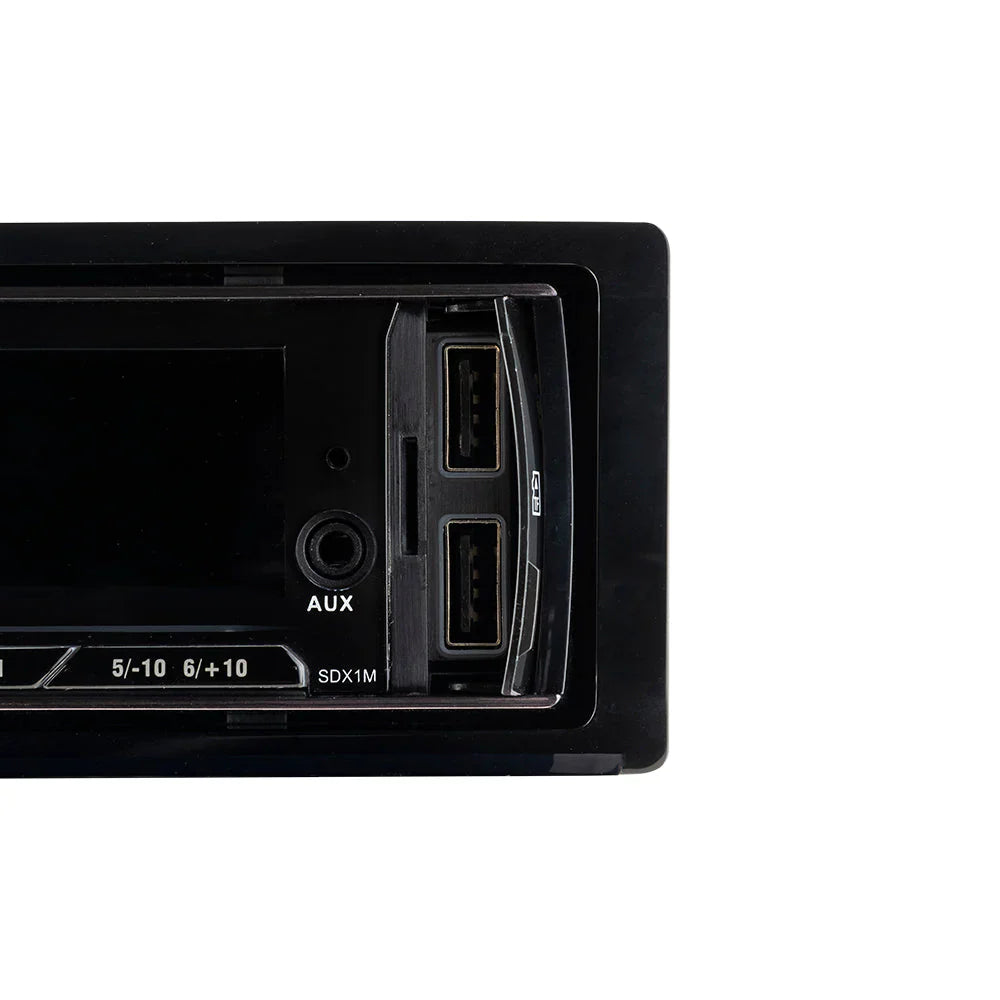

Number of USB Ports
2 x Front (1 for Audio / 1 for Charging)
SD Slot
1 x Front Micro SD


CONNECTIVITY

Bluetooth Version / Services
V4.1 / Audio Streaming / Hands Free calls
Audio Protoco
A2DP v1.2 Sink (SNK)
Aux input
Front 3.5mm Jack Stereo Audio

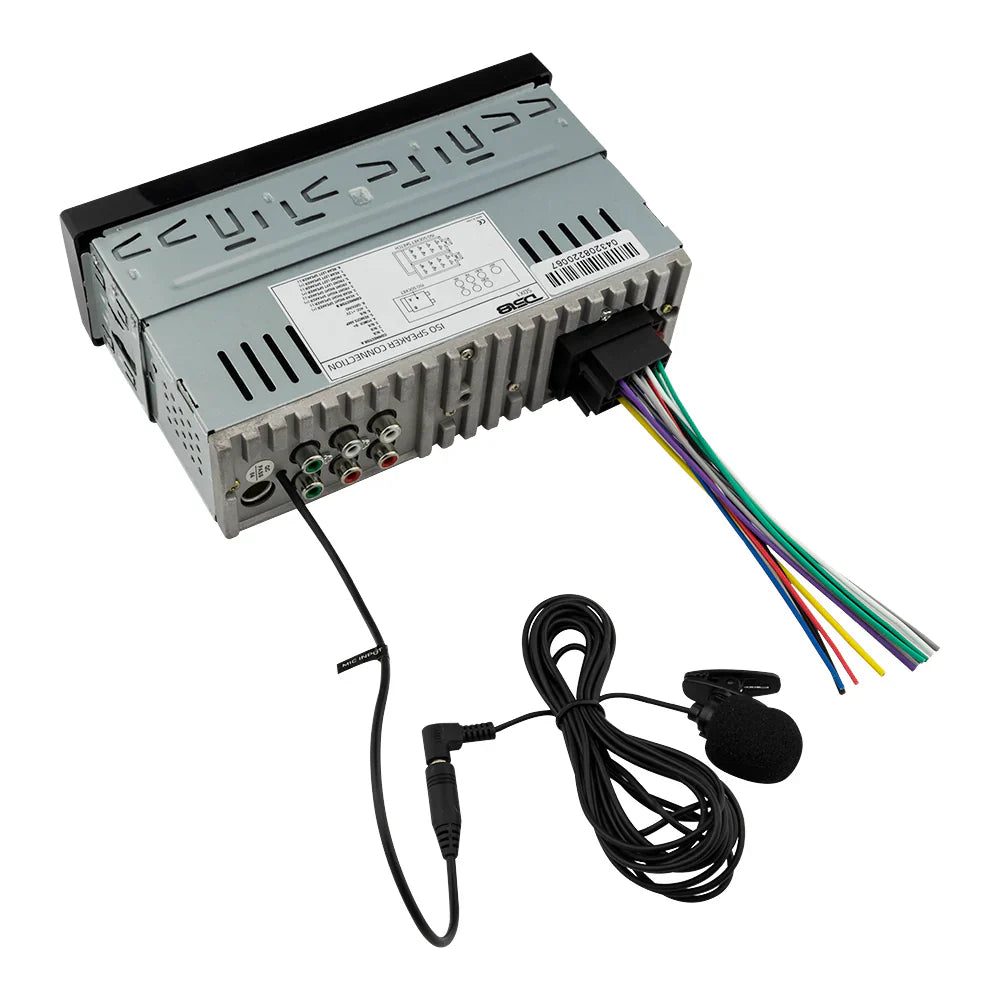

Microphone
Built-In Microphone on faceplate
Remote Control
Frontal IR Receptor
