DS18 ZR112LD-PKG Bass Package 12" Subwoofer In a Ported Box With Amplifier and Amplifier Installation Kit - ZR112LD + ZR1000.1D Amp + AMPKIT4
$644.85
In Stock
Pre-Order
Sold out
Couldn't load pickup availability
100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
- Description
- Technical Details
- Shipping and Refund
- Reviews

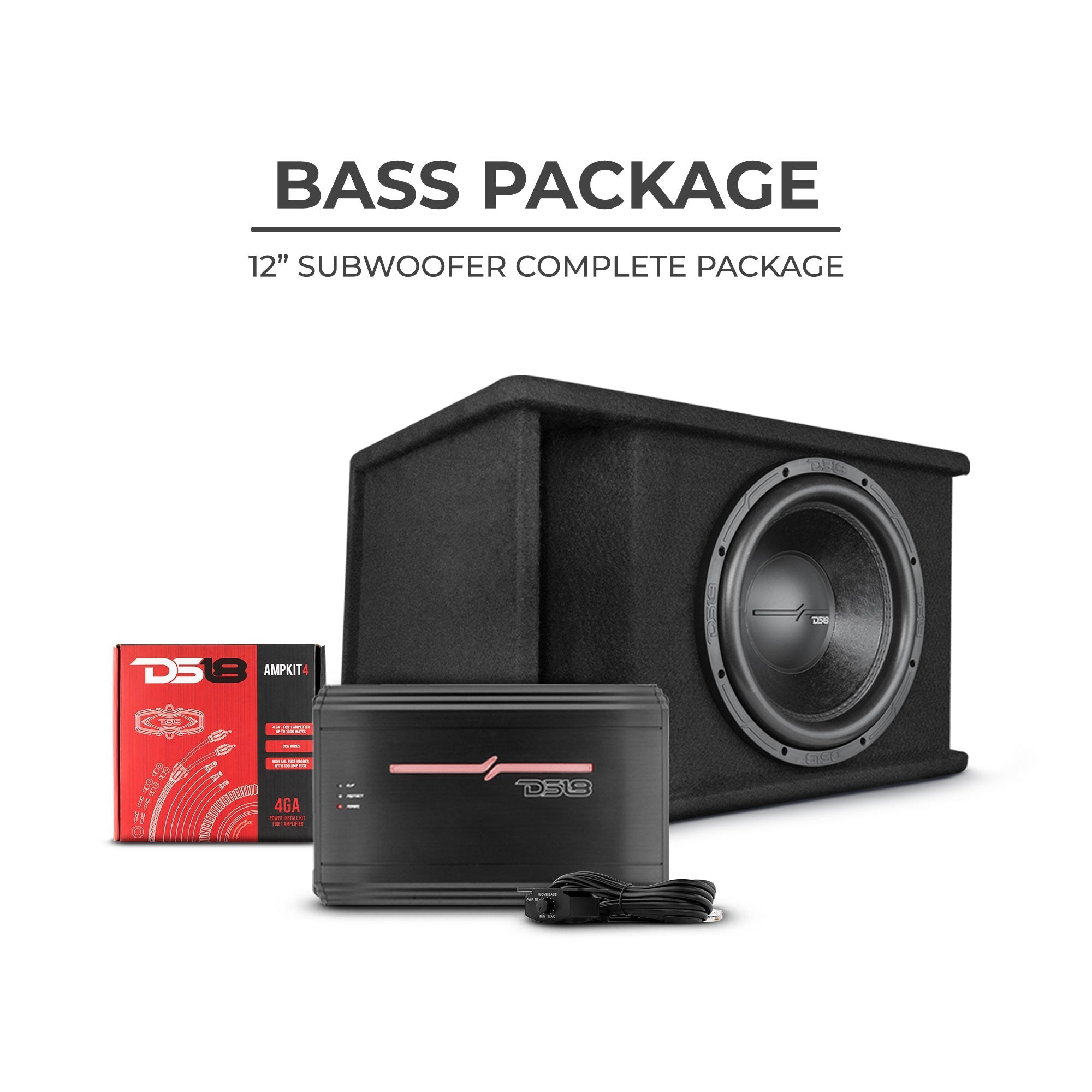

DS18 ZR112LD-PKG Bass Package 12" Subwoofer In a Ported Box With Amplifier and AMPKIT - ZR112LD + ZR1000.1D Amp + AMPKIT4
Looking for that perfect bass box, subwoofer, and amp package but are overwhelmed by all the options? We have made it easy with our loaded subwoofer package, the ZR112LD, combined with our ZR1000.1D and easy to use 4 gauge installation kit!
This is a prefabricated box that comes with one of our best selling subwoofers. Included is a beautiful carpeted box with DS18 designs tuned to 29 HZ. The box is constructed of thick 3/4 MDF for great sound and acoustical resonance. The subwoofer included is the very popular ZR12.2D that is a dual voice coil 2 ohm subwoofer wired in parallel for a final nominal impedance of 1 ohm that will require 800 W RMS and 1600 W MAX .
This loaded box is a great solution to hard hitting heavy bass for all to enjoy. To power this package, we use the ZR1000.1D amplifier that pushes out 1000 watts RMS in this configuration maximizing your box and subwoofers full potential.
Package Includes:
1 x ZR112LD - Bass Package 1 x ZR12.2D 12" Subwoofers In a Ported Box 1600 Watts
1 x ZR1000.1D - Class D 1-Channel Monoblock Amplifier 1000 Watts RMS

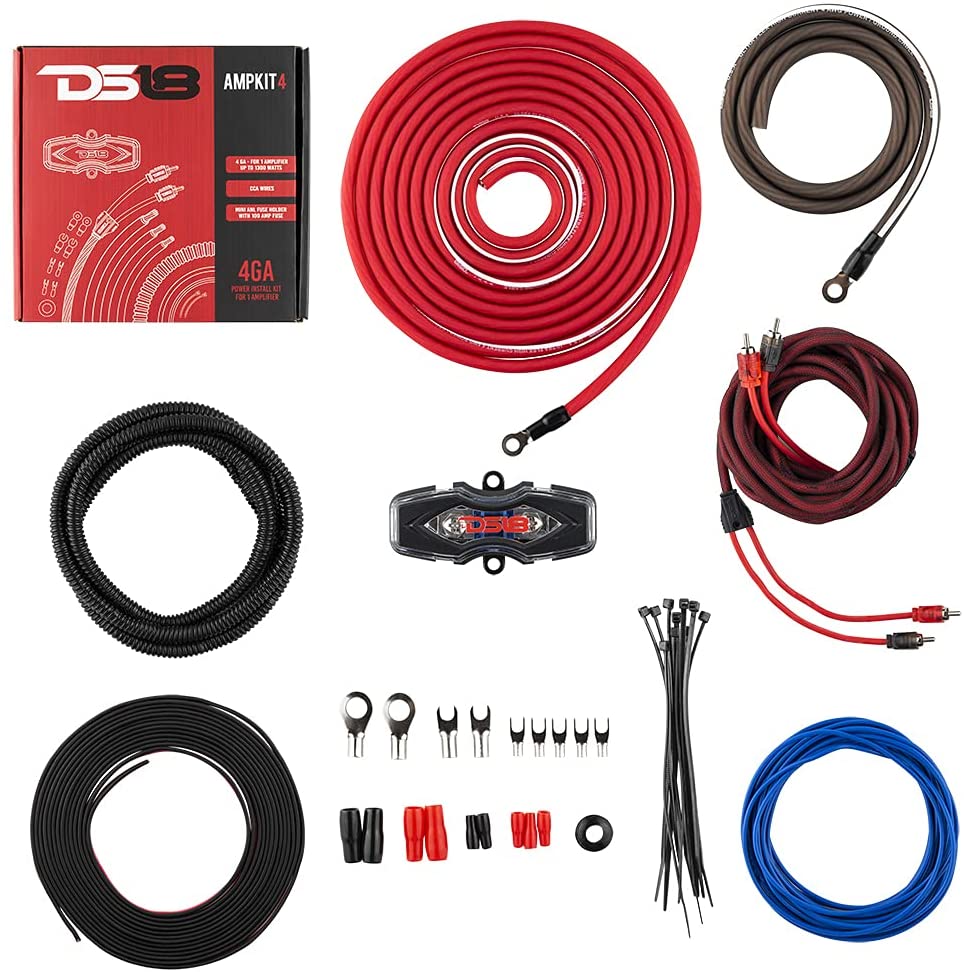

1 x AMPKIT4 - 4-GA Installation Kit For Car Amplifiers
Highlights
- The box is constructed of thick 3/4 inch MDF for great strength, resonance, and tuned to 29hz for low and hard hitting bass.
- One ZR12.2D 12 inch subwoofer that will give you the cone area to push out great sounding bass without a lot of power requirements.
- ZR1000.1D amplifier producing 1000 watts RMS that will maximize your bass output to the fullest.
- An amp installation kit to finish your build.
Good For:
Car Audio
Pro Audio
Home Solutions
Hi-Fi Installation
DIY Projects
ZR1000.1D Amp Product Manual

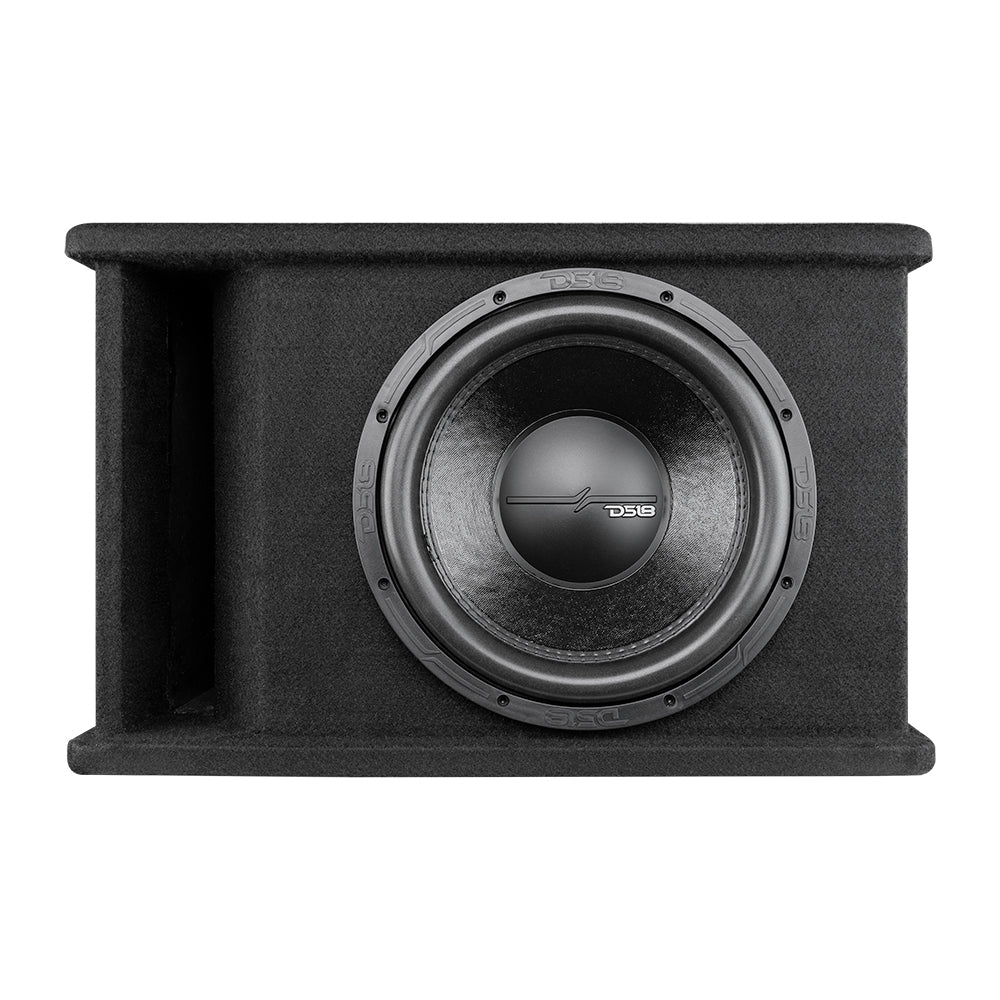

ZR112LD Subwoofer In a Ported Box
| SPECIFICATIONS | |
| Speaker Type / Size | Single 12" / 316mm |
| Total Impedance | 1 ohm |
| Total RMS Power Handling | 800w |
| Total MAX Power Handling | 1600w |
| Sensitivity (1w/1m) | 84 DB |
| Frequency Response | 20-200 Hz |
| Recommended Lo Pass Crossover | 70Hz |
| MOTOR | |
| Voice Coil Diameter | 2.5" / 61.6mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | Copper |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 100 Oz |
| BOX SPECIFICATIONS | |
| Internal Volume | 79.3L / 2.8 ft3 |
| Port Tune | 29 Hz |
| Load Configuration | Ported Box |
| Box Type | Single 12” |
| Box Material | 3/4" (19mm) MDF |
| Finish Material | Black Carpet |
| Logo | Red Stitched |
| -3Db Dropping Point | 24 Hz |
| MEASUREMENT | |
| Height | 14.48" / 36.8 cm |
| Width | 23.14" / 58.8 cm |
| Depth 1 | 17.71" / 45 cm |
| Depth 2 | 19.68" / 50 cm |

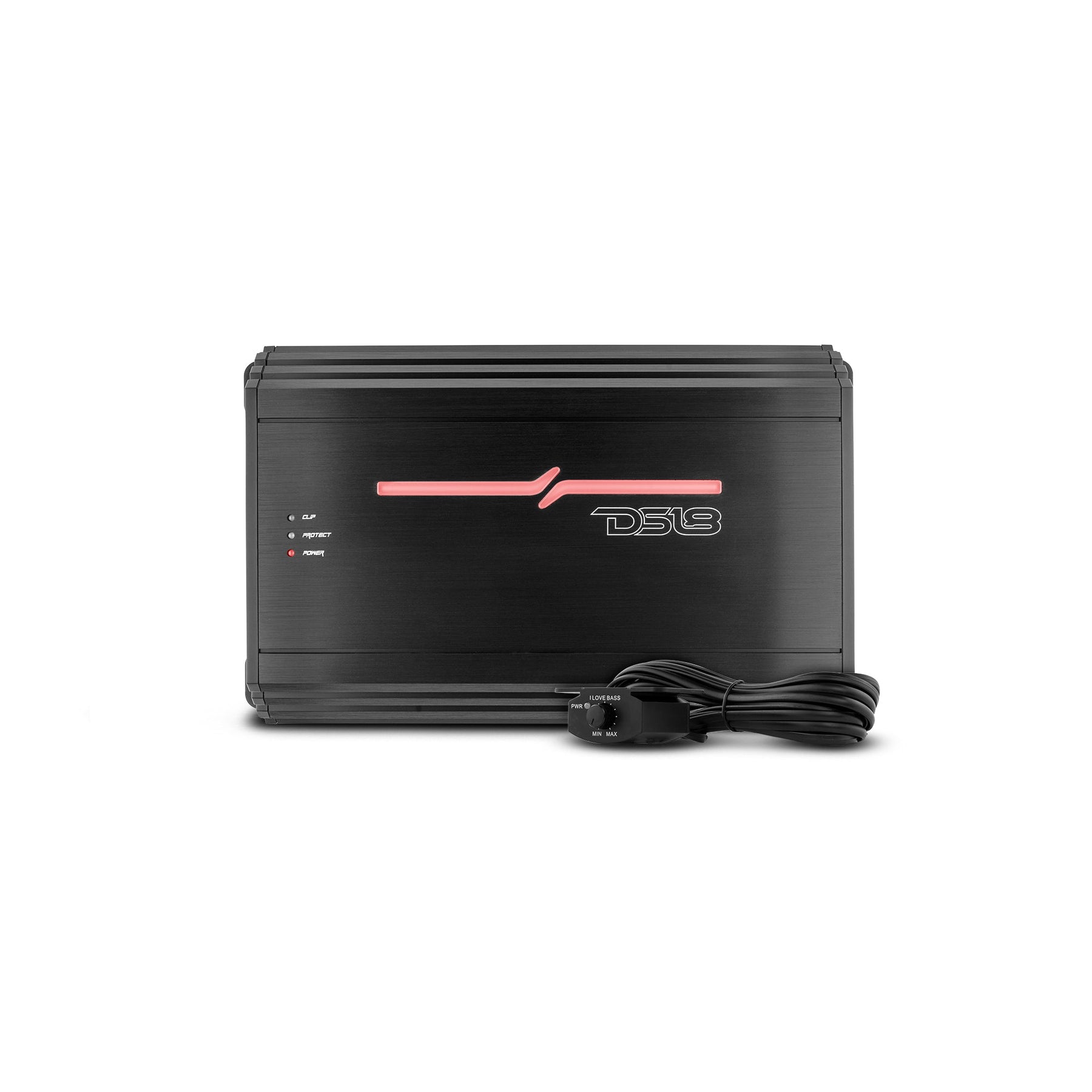

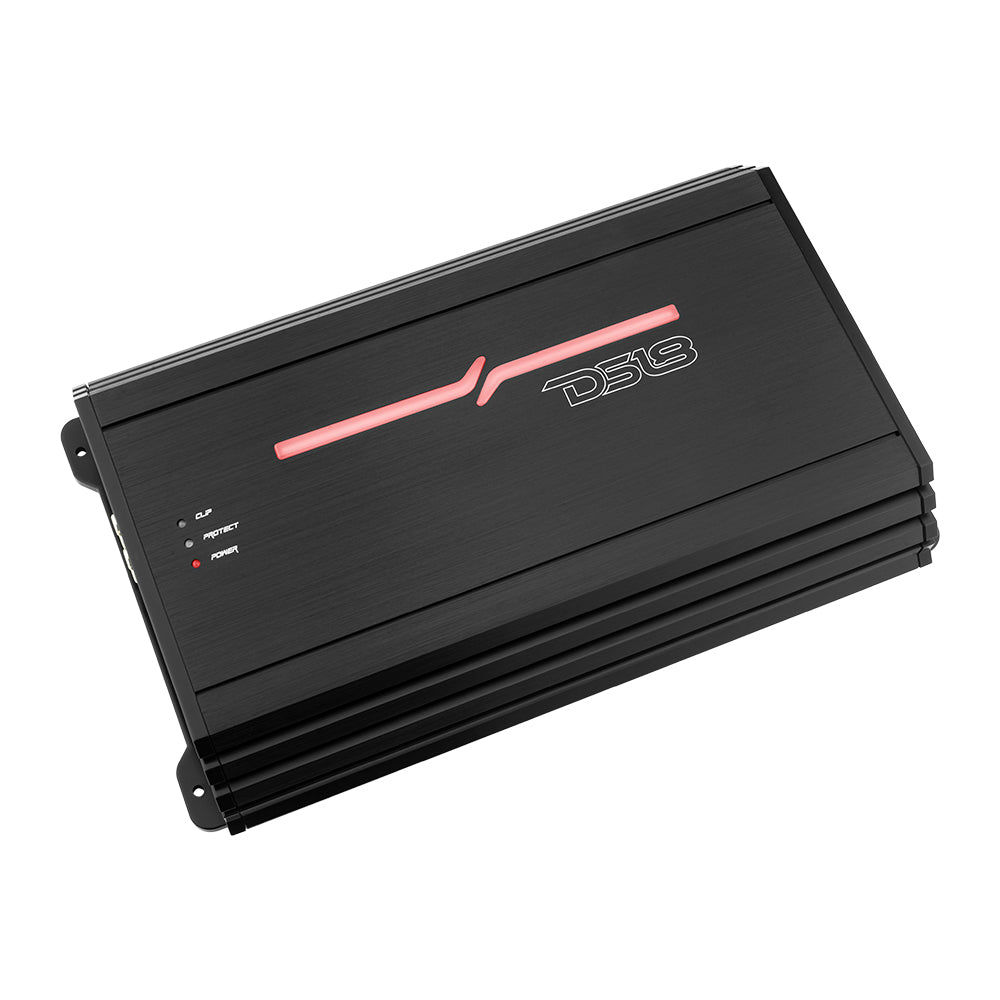

ZR1000.1D Monoblock Amplifier
| POWER | |
| Total Watts (Peak) | 3000W |
| RMS Power @ 4 ohm | 380W |
| RMS Power @ 2 ohm | 650W |
| RMS Power @ 1 ohm | 1000W |
| AUDIO | |
| Frequency Response | 10-220Hz |
| Signal to Noise Ratio | >95dB |
| Efficiency @ 4ohm | 80% |
| Damping Factor | 220 |
| Input Impedance | 20K ohm |
| Channel Separation | N/A |
| Total Harmonic Distortion (THD) | 0.01% |
| Low Level Input Range | 0.2-6V |
| High Level Input | No |
| Selectable X-Over | LPF Fixed |
| X-Over Filter Range | 40-180Hz |
| Bass Boost Range | 0-12db |
| Bass Boost Frequency | 30-80hz |
| Infrasonic Filter | 10-50hz |
| Phase Selector | No |
| FEATURES | |
| Amplifier Class | Digital |
| Amplifier Type | Monoblock Subwoofer |
| Number of Channels | 1 |
| Minimum Impedance | 1 ohm |
| Led Indicator | clipping/protect/power |
| Power Input Terminal Size | 4ga |
| Fuse Size | 100A |
| Remote Level Control | Yes / Dash Mount |
| Cooling Fan | No |
| Voltmeter | No |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes <9 / >16 Volts |
| Clipping Protection | Yes |
| Body Color / Finish | Black Aluminum Brush |
| MEASUREMENT | |
| Overall Length | 11.8" / 301mm |
| Overall Wide | 7.24" / 184mm |
| Overall Height | 2" / 53mm |
| Heatsink Length | 10.47" / 266mm |
| Gross Single Unit Weight | 5.8Lb |
