Hertz

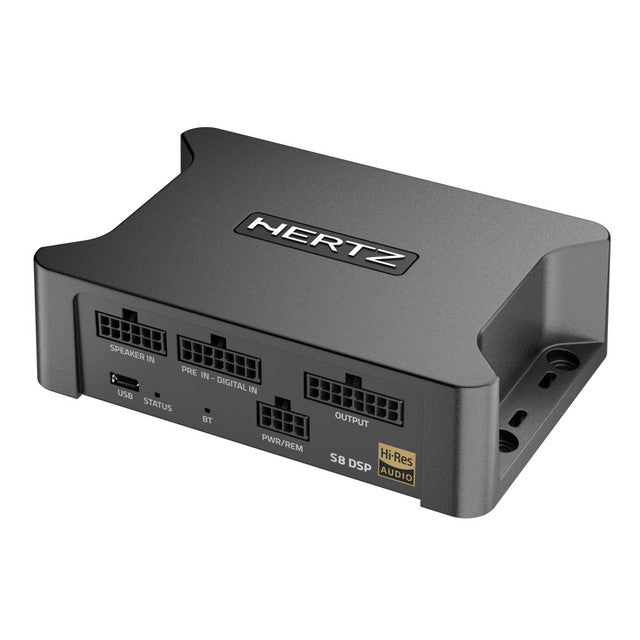

Hertz SPL Show S8 DSP Compact Digital Interface Processor 6 in + digital in & 8 outputs
$319.99
In Stock
Pre-Order
Sold out
Couldn't load pickup availability
100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
- Description
- Shipping and Refund
- Reviews
Description
The ultra-compact S8 DSP is the perfect solution for integrating any OEM source into your audio upgrade project for cars, motorcycles, and boats! S8 DSP is a distilled essence of technology at the service of the highest audio quality in a corrosion-free case cast in metal and composite materials.
S8 DSP processes the audio signal with 96 kHz / 24-bit resolution and has obtained the Hi-Res certification from the JAS (Japan Audio Society), an acknowledgment that certifies the extreme level of audio performance achieved.
The powerful 32-bit DSP manages 6 high/low-level analog input channels, one digital coaxial input, and 8 output channels, offering maximum freedom of configuration to the specialist. The SPDIF coaxial input is ideal for digital connection with a Hi-Res player, a solution that allows for maximum listening quality. For each of the eight output channels we have a level control, the 15-pole parametric equalizer, time delays, and crossover filter available. The 7-band parametric equalizer of the input signal allows obtaining a flat response from OEM sources, which often have an exaggerated emphasis on the low frequency.
General Specifications -
• Nominal Power supply voltage / fuse: 7 ÷ 20 VDC / 1A
• Pulse operating voltage: 5 ÷ 24 VDC
• Idling current: 0.34 A
• OFF current (ART= OFF): <80 uA
• OFF current (ART= ON): <80 uA
• Remote IN 6 ÷ 20 VDC (10 mA)
• Remote OUT 4 ÷ 20 VDC (150 mA)
• ART - Automatic Remote Turn on/off from BTL speaker outputs (selectable): 1.5 ÷ 7 VDC
Digital Signal Processor -
• Sample rate: 96KHz
• Bit depth: 24
• Output equalizer: 15 bands per channel w/ adjustable Q and Frequency
• Equalizer resolution: 1/10th dB per step +12dB / -12dB
• Time alignment (distance): 0 ÷ 468.4 cm / 0 ÷ 184.4 inches
• Time alignment (time): 0 ÷ 13.5ms
• Time alignment (step): 0,08 ms; 2,8 cm / 1.1 inch
• Time alignment (fine set): 0,02 ms; 0,7 cm / 0.27 inch
S8 DSP processes the audio signal with 96 kHz / 24-bit resolution and has obtained the Hi-Res certification from the JAS (Japan Audio Society), an acknowledgment that certifies the extreme level of audio performance achieved.
The powerful 32-bit DSP manages 6 high/low-level analog input channels, one digital coaxial input, and 8 output channels, offering maximum freedom of configuration to the specialist. The SPDIF coaxial input is ideal for digital connection with a Hi-Res player, a solution that allows for maximum listening quality. For each of the eight output channels we have a level control, the 15-pole parametric equalizer, time delays, and crossover filter available. The 7-band parametric equalizer of the input signal allows obtaining a flat response from OEM sources, which often have an exaggerated emphasis on the low frequency.
General Specifications -
• Nominal Power supply voltage / fuse: 7 ÷ 20 VDC / 1A
• Pulse operating voltage: 5 ÷ 24 VDC
• Idling current: 0.34 A
• OFF current (ART= OFF): <80 uA
• OFF current (ART= ON): <80 uA
• Remote IN 6 ÷ 20 VDC (10 mA)
• Remote OUT 4 ÷ 20 VDC (150 mA)
• ART - Automatic Remote Turn on/off from BTL speaker outputs (selectable): 1.5 ÷ 7 VDC
Digital Signal Processor -
• Sample rate: 96KHz
• Bit depth: 24
• Output equalizer: 15 bands per channel w/ adjustable Q and Frequency
• Equalizer resolution: 1/10th dB per step +12dB / -12dB
• Time alignment (distance): 0 ÷ 468.4 cm / 0 ÷ 184.4 inches
• Time alignment (time): 0 ÷ 13.5ms
• Time alignment (step): 0,08 ms; 2,8 cm / 1.1 inch
• Time alignment (fine set): 0,02 ms; 0,7 cm / 0.27 inch
Extra Information
Brand:
Hertz
Weight:
1.45 LBS
UPC:
8018823136709
Bundle:
No
Feature 1:
S8 DSP is a distilled essence of technology at the service of the highest audio quality in a corrosion-free case cast in metal and composite materials.
Feature 2:
S8 DSP processes the audio signal with 96 kHz / 24-bit resolution and has obtained the Hi-Res certification from the JAS (Japan Audio Society), an acknowledgment that certifies the extreme level of audio performance achieved.
Feature 3:
The powerful 32-bit DSP manages 6 high/low-level analog input channels, one digital coaxial input, and 8 output channels, offering maximum freedom of configuration to the specialist.
Feature 4:
The SPDIF coaxial input is ideal for digital connection with a Hi-Res player, a solution that allows for maximum listening quality.
Feature 5:

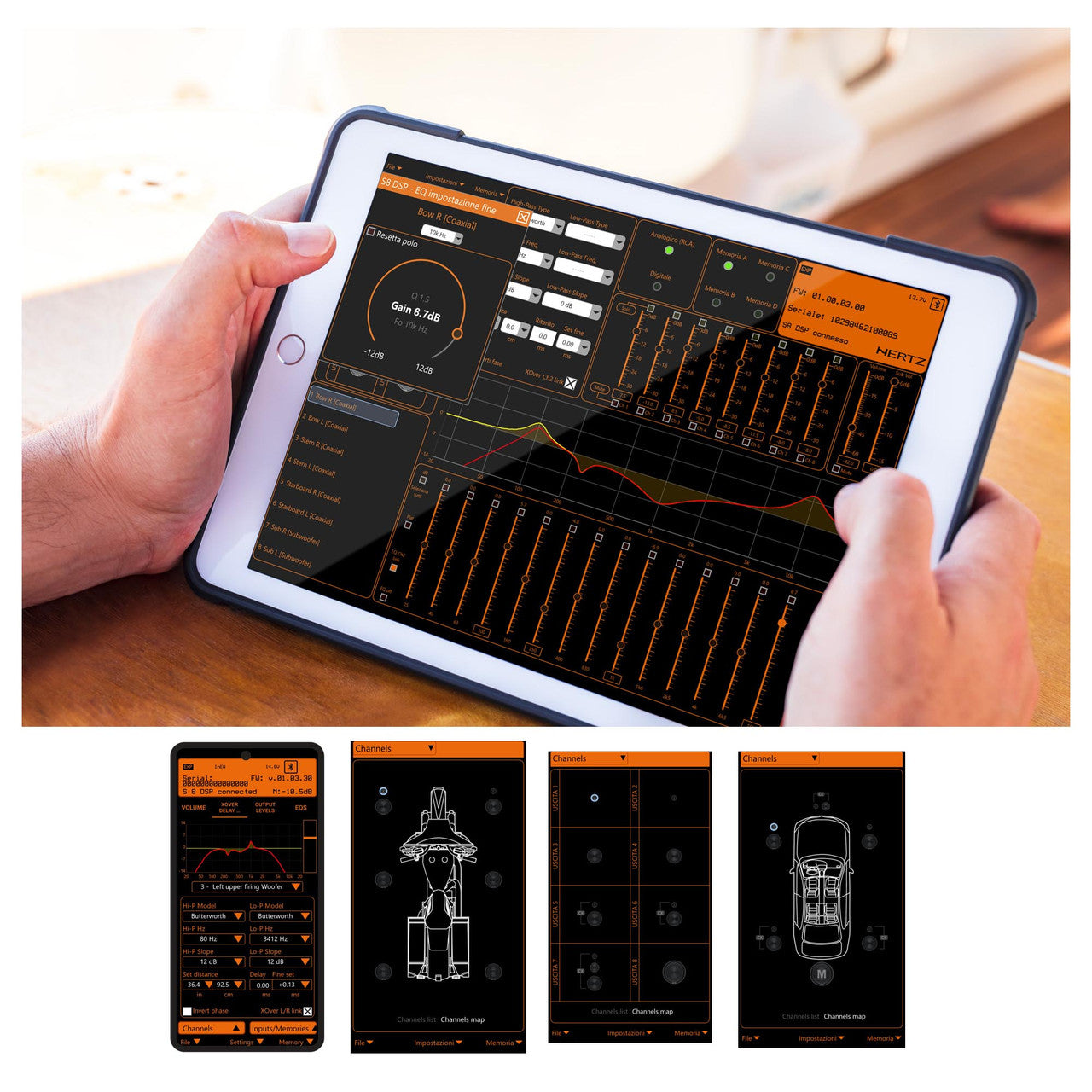

We can control every parameter of the DSP wirelessly using the CONFIGURATOR App for Apple and Android tablets and smartphones, thanks to the integrated Bluetooth® 5.0 receiver
Condition:
NEW
Weight:
1.4500 lbs
ASIN:
B0B1VRKC4Z
