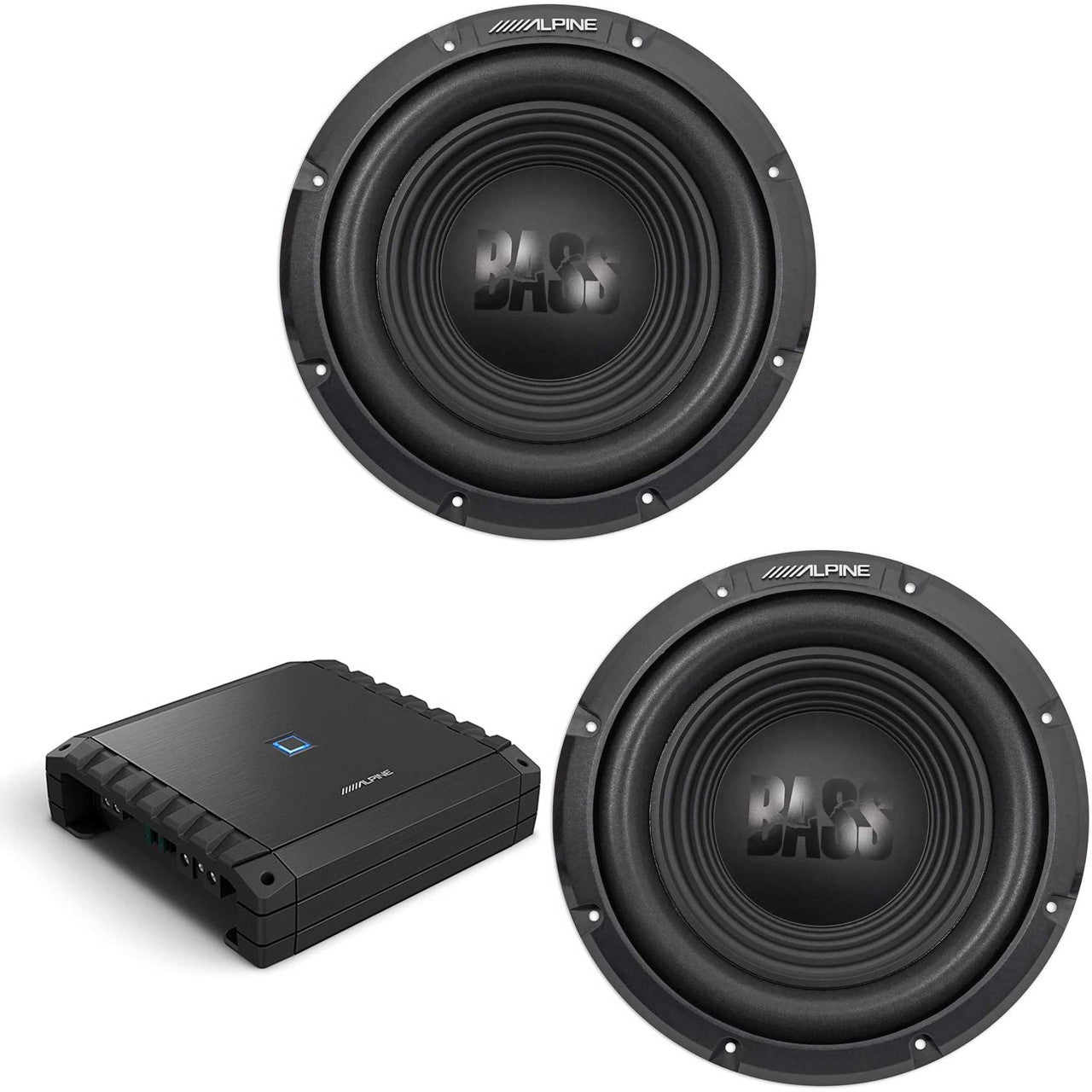

Alpine S2-A60M S-Series Class-D Mono Subwoofer Amp & (2) W10S4 10-Inch Bass Subwoofer Bundle

Reliable Performance and Value-Oriented Products -
Three new S-Series amplifiers join the S-Series family, known for reliable performance and value-oriented products. All three S-Series amps (mono, 4-channel and 5-channel) contain technology currently implemented in R and X-Series models. The S-Series amps feature attractive prices and are designed to perform perfectly with the existing S-Series speakers.

Allows High Power Output -
Compact and Powerful: the new digital amplification circuit allows high power output while keeping a small footprint. The S-A60M measures just 204mm in width x 204mm in length for easy installation in virtually any vehicle.Along with Alpine’s new intelligent amplifier platform, the new S-Series amplifiers feature an improved heat sink and protection circuit design that eliminates thermal shut-down, for dependable music playback.

Specifications -
• Power Requirements: 14.4 V.DC (9 - 16 V allowable)
• Input Sensitivity (RCA Input): Hi: 0.5 - 10 V Lo: 0.2 - 4.0 V
• High Level Input with automatic power on
• Cable size: Power Cable AWG 4, SPK Cable AWG 8
• Frequency Response (+0, -3dB: 1W into 4 ohms): 10Hz - 400Hz
• THD+N (@ 10W into 4 ohms): <0.03%
• THD+N (@ 50W into 4 ohms): <0.08%
• Damping Factor: >1000
• Signal to Noise (@ 50 Watts into 4 Ohms): >105dB
• Weight: 1.9 kg

Features -
• Amplifier Type: Class-D (Digital)
• Channel Design: Mono Channel
• Thermal Management Control
• Top Mounted LED Power/Status Indicator
• Speaker Level Input with remote turn on
• Crossover: Adjustable Low-pass (LPF)
• Gain Control: Adjustable
• Bass EQ
• Bass Control: Remote Bass Control (RUX-KNOB2) Ready

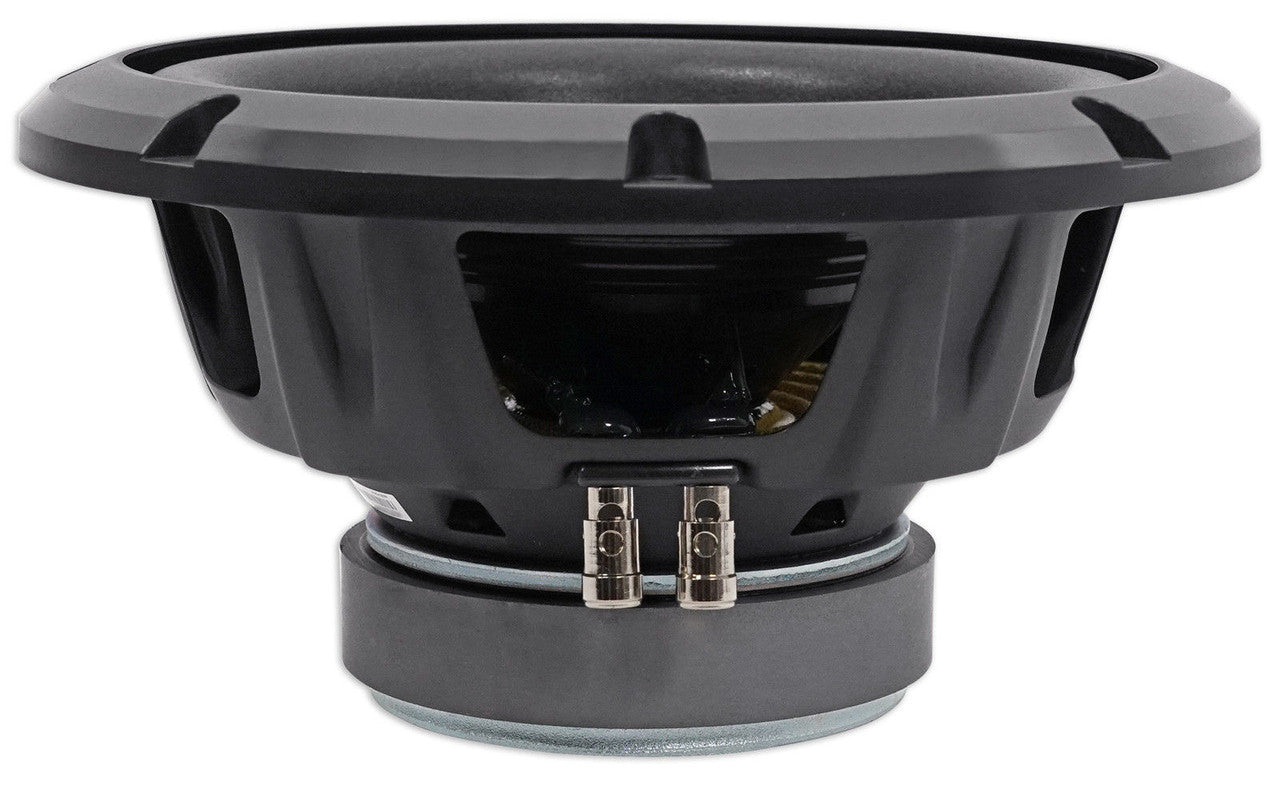

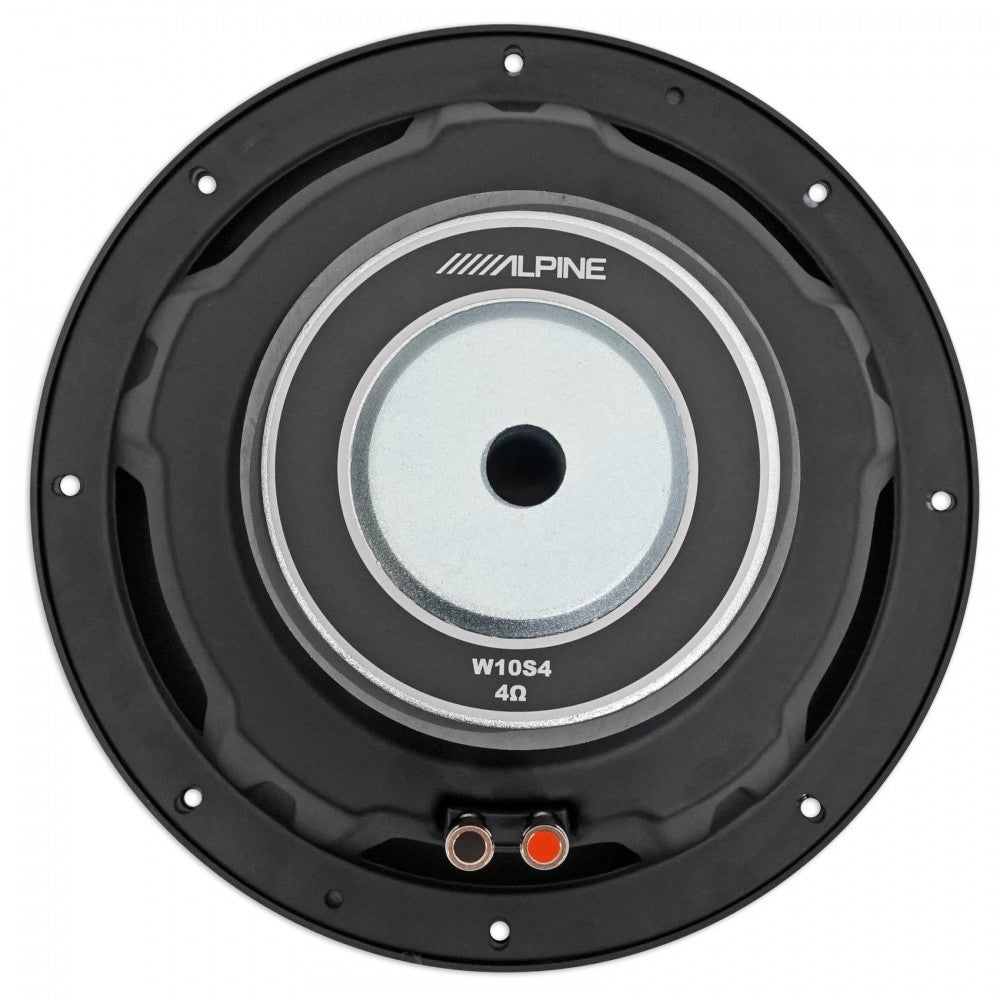

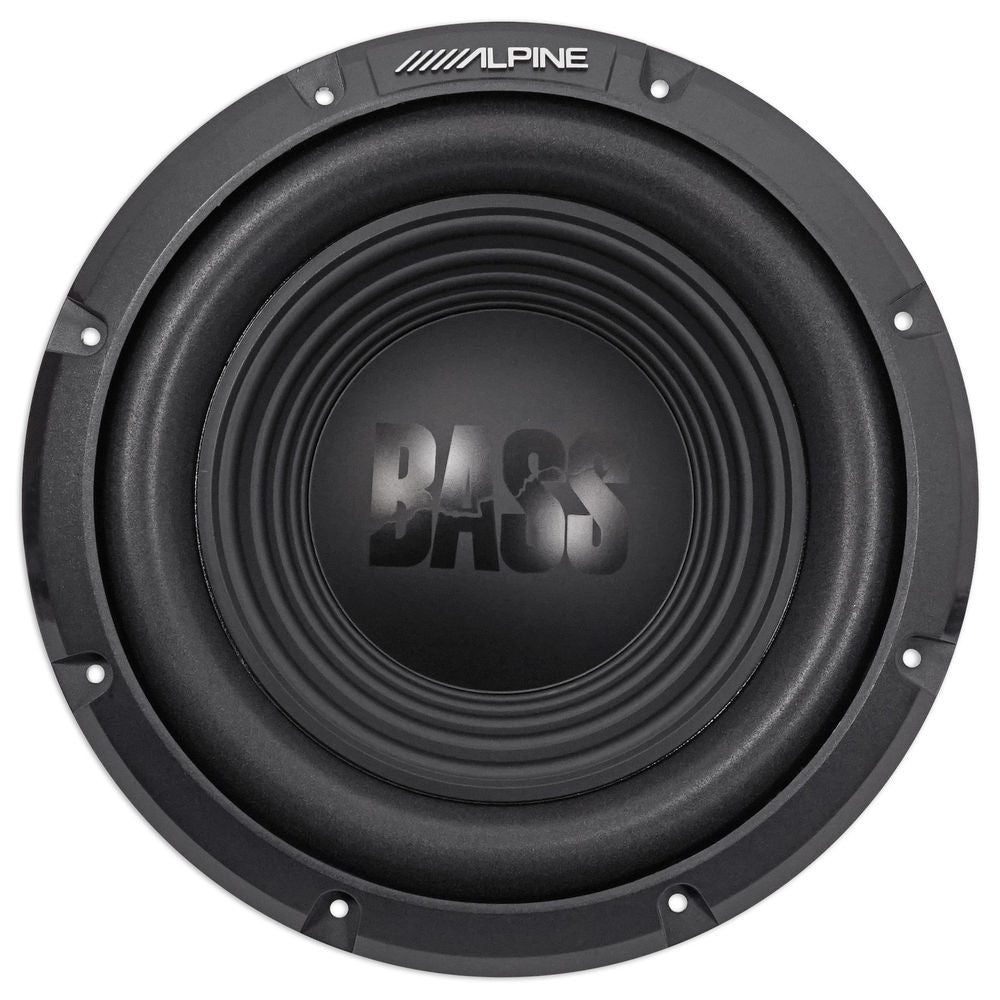

2x Alpine W10S4 10-inch Single 4 Ohm Subwoofer - (W10S4)

Alpine W10S4 10-inch Single 4 Ohm Subwoofer

Overview:
10-inch single 4Ω subwoofer
Polypropylene and mica cone with poly-foam surround
250W RMS
750W peak power handling
Frequency Response: 30Hz-200Hz

24Hz-200Hz frequency response
5-1/16-inch mounting depth
Recommended Sealed box volume: 0.83 cu. Ft.
Recommended Ported box volume: 1.51 cu. ft
Bass For All
The 2017 BASS subwoofers are engineered to be fun and loud in a budget friendly category by combining retro styling with enough efficiency to run on 250W RMS.
Performance: Efficiency & Tight Bass
An optimized magnet circuit allows more focused magnetism in the gap which results in improved efficiency. This means tighter bass control and more output!
