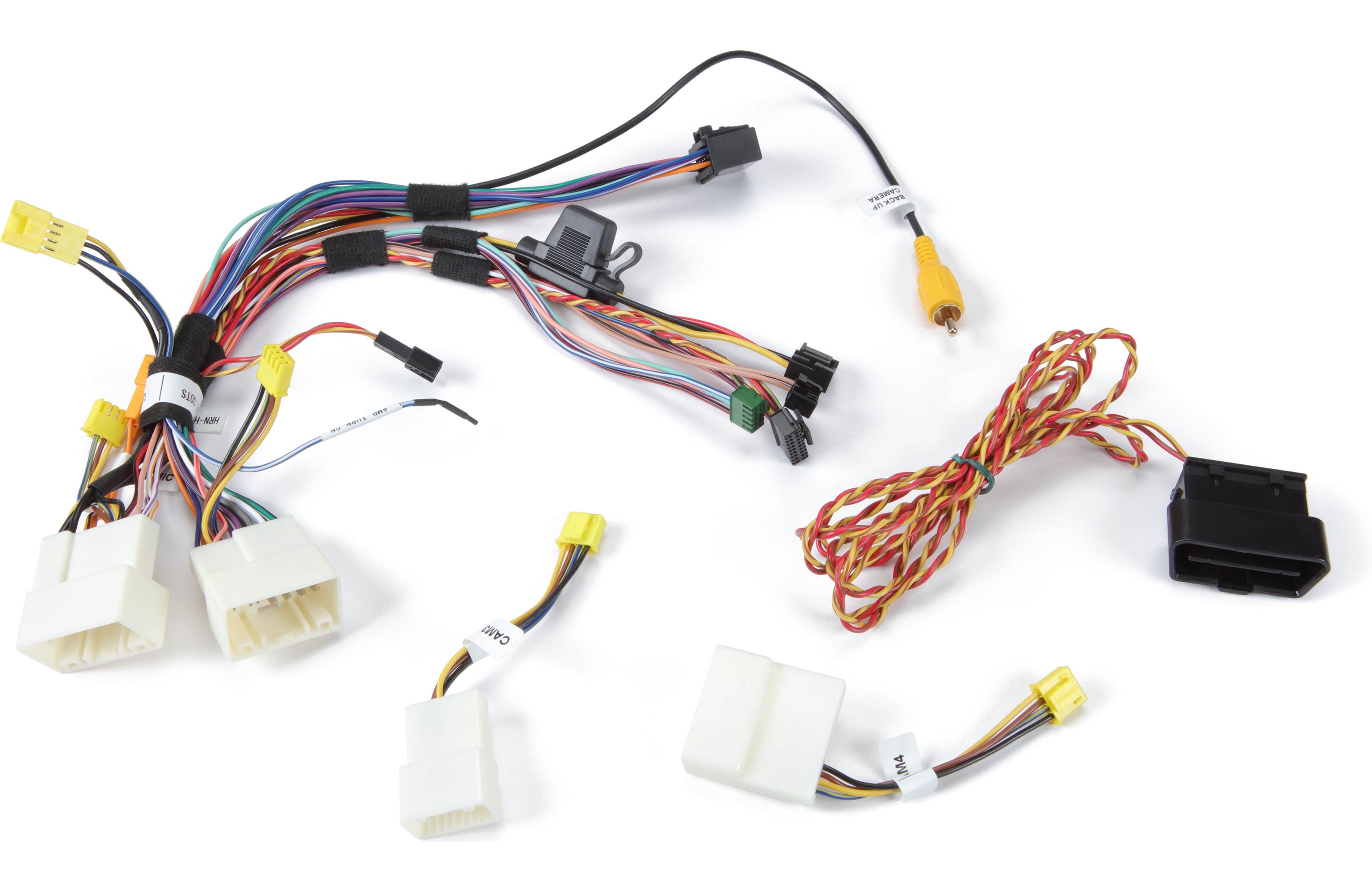

iDatalink HRN-HRR-HK1 Factory Integration Adapter select 2010-19 Hyundai and Kia vehicles

Product details

iDatalink's HRN-HRR-HK1 wiring adapter allows you to connect a new iDatalink-compatible car stereo in select 2010-19 Hyundai and Kia vehicles, working in conjunction with iDatalink's Maestro ADS-MRR or ADS-MRR2 module. Once connected, you'll retain the use of your steering wheel audio controls in these vehicles. You'll also retain your secondary vehicle display (if equipped), and the climate status display will appear on the new head unit's screen. The interface also adds vehicle information and gauge displays to your new stereo.

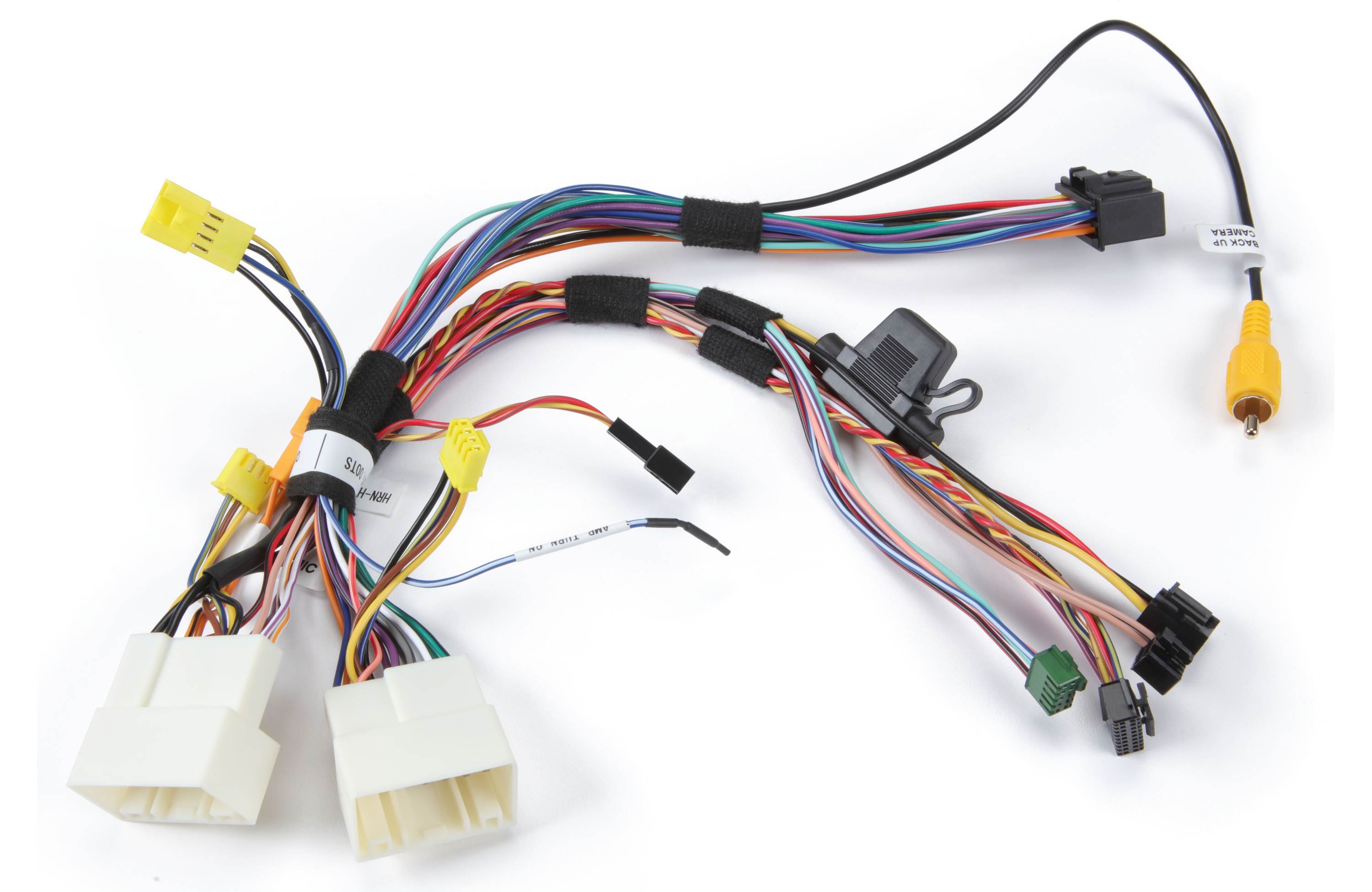

The package includes connectors that plug in between the Maestro module, your factory radio's wiring plugs, and your new car stereo. You'll have to solder or splice together this harness's power/ground, illumination, speaker, and navigation output wires to the corresponding wires on your aftermarket receiver's wiring harness. This harness features an in-line head-unit connector harness, which will plug into their new "Head-unit direct" harnesses for select radio brands. If you're installing a radio that doesn't work with a "Head-unit direct" harness, you simply cut off the plug and connect the wires to the harness included with your new radio.

Keeping your factory cameras and more

This harness allows you to retain the factory backup camera and 360° camera (if equipped) in your Hyundai or Kia, as long as your receiver has the necessary inputs. If you add an aftermarket front and/or side cameras (sold separately) to your iDatalink-compatible head unit with multiple camera inputs, the vehicle's factory auto camera switching feature is also retained. The harness also supplies the outputs (parking brake, reverse, Vehicle Speed Sense [V.S.S.]) required to install a navigation or video receiver as well as 12V accessory power and illumination outputs.

Product highlights:

• allows installation of new iDatalink-compatible receiver in select Hyundai and Kia vehicles (also requires the Maestro ADS-MRR or ADS-MRR2 module)
• retains the use of your steering wheel audio controls in select vehicles
• retains factory backup camera (if equipped)
• retains these factory features with an iDatalink-compatible head unit:
  • 360° camera (if equipped)
  • secondary vehicle display
  • climate status display
• adds these features with an iDatalink-compatible head unit:
  • display engine performance data and gauges on touchscreen
  • add a side- or front-view camera while retaining factory camera switching
• supplies outputs (parking brake, reverse, Vehicle Speed Sense [V.S.S.]) required for a navigation or video receiver
• supplies 12V accessory power and illumination outputs
