Illusion Audio Carbon Series 12" Slim Subwoofer (C12)

Illusion Audio Carbon C12

Shallow-mount 12" 4-ohm component subwoofer

Special speakers

Illusion Audio's designers have been creating audiophile car speakers for decades and, with several CES Innovations Awards, the buzz about their impressive subwoofers is getting around. Using high-tech materials and manufacturing techniques, their subs are compact and lightweight without compromising their commitment to great sound. One look will tell you they're something special.

Out in front

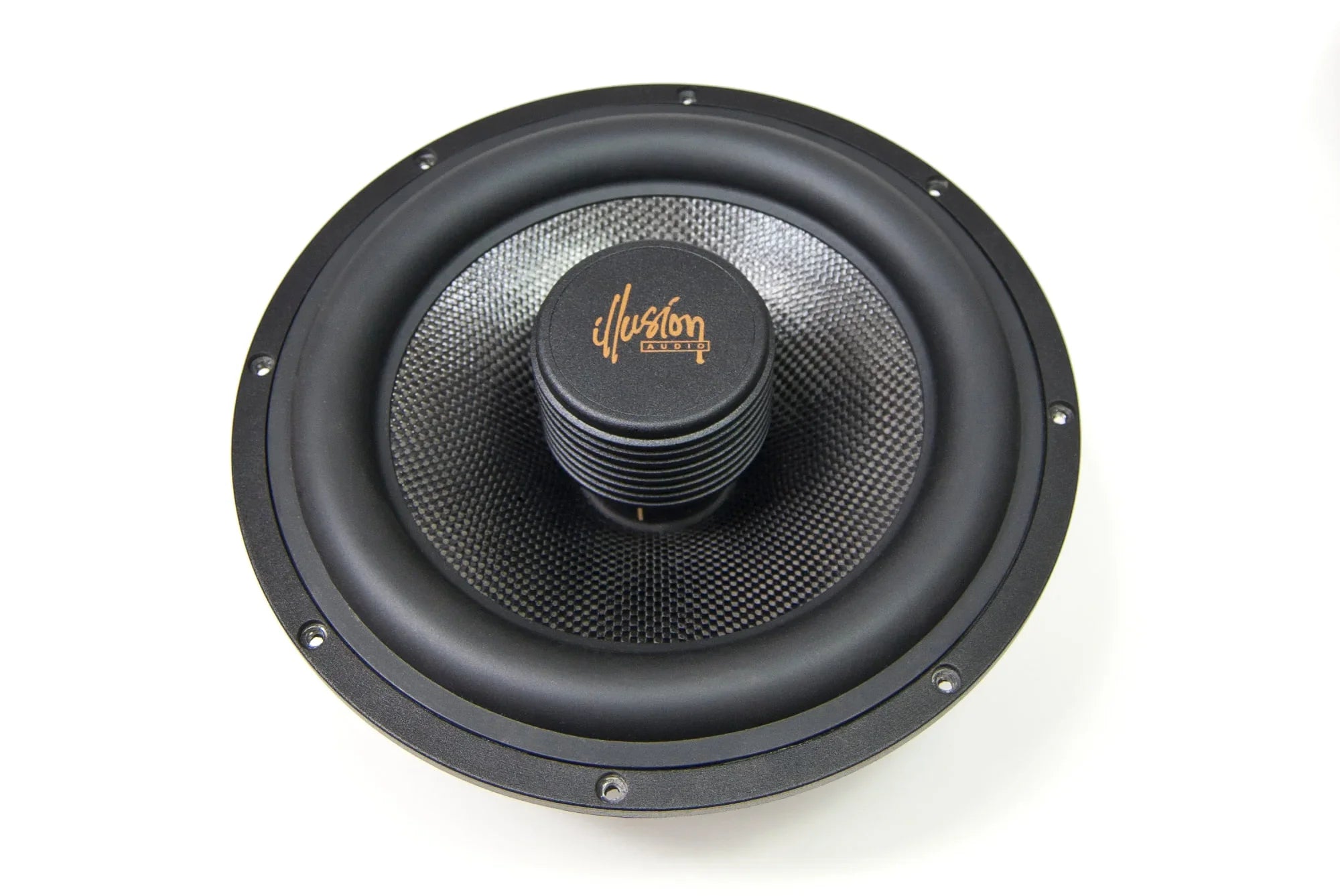

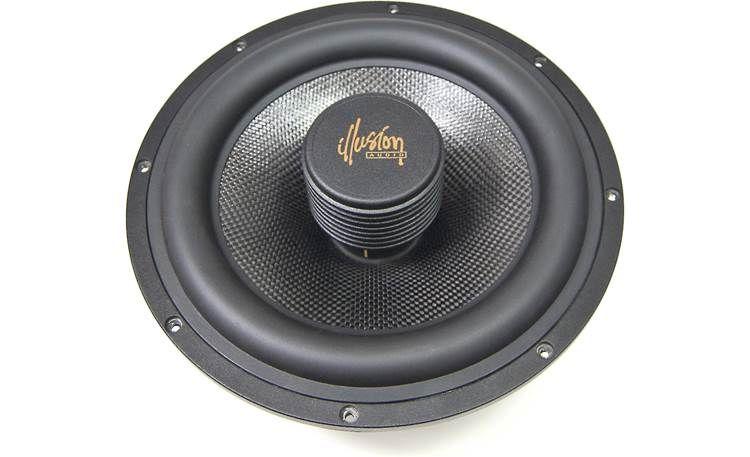

When it comes to great bass, Illusion Audio does things a little differently. Their Carbon C12 12" subwoofer features a magnetic motor that's mounted in front of the cone, unlike the rear-mount magnet in most subs. Why go to all this trouble? For one thing, the woofer is shallower, making it easier to fit in smaller spaces. And, because the motor releases heat from the front of the speaker, you don't have the problem of heat buildup inside of the sub's enclosure. The motor's heat sink fins help keep things even cooler, while the speaker's unique design allows extended cone travel with very low distortion.

Carbon cone

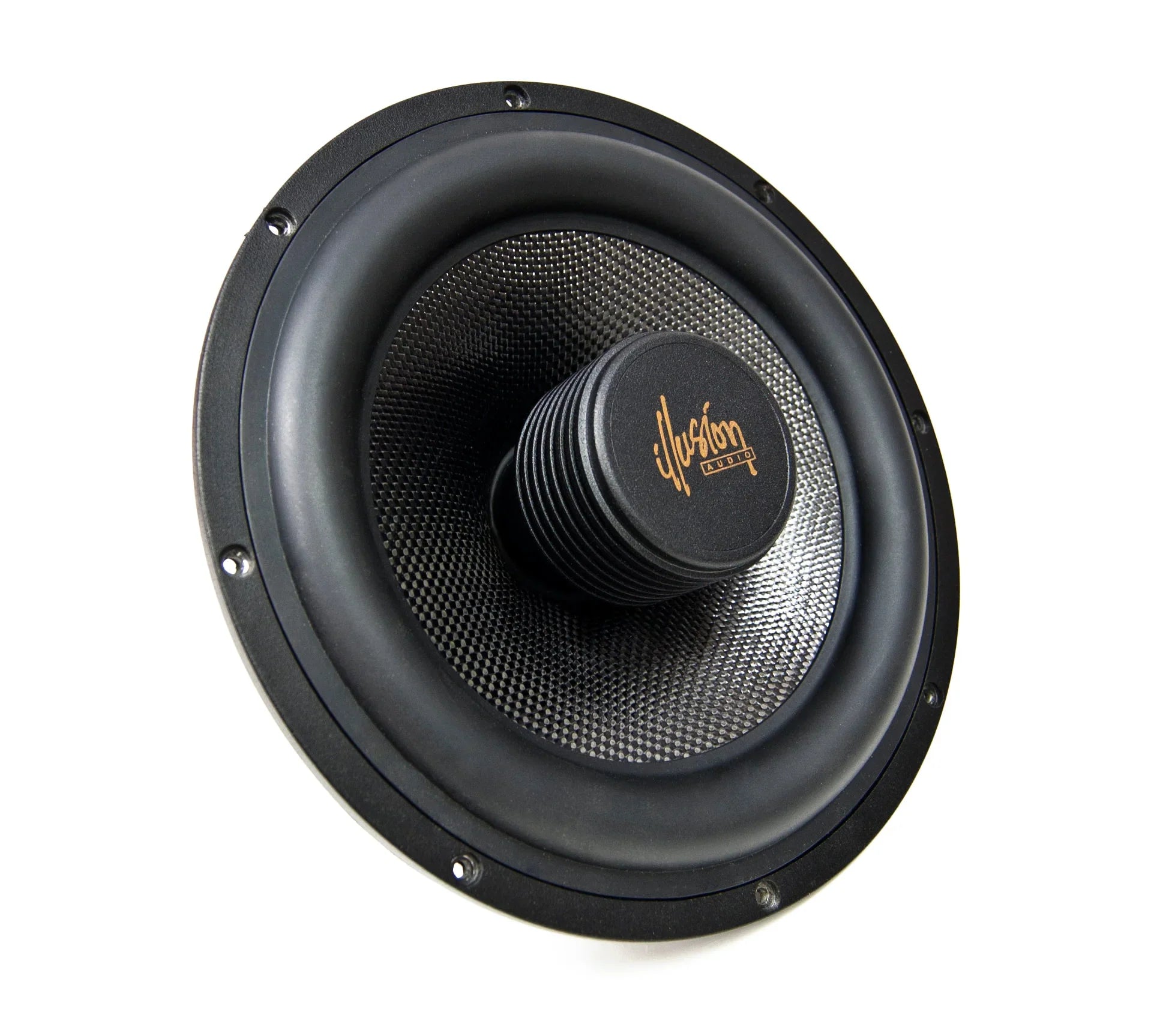

The C12's woven carbon fiber cone is reinforced with a high-damping epoxy resin for the ideal combination of low weight and stiffness to reproduce strong, clear bass. The cone's rubber surround keeps things on track, while the cast aluminum basket with its striking black powdercoat finish holds everything together, providing the necessary stability for great bass.

Product highlights:

• shallow-mount 12" 4-ohm component subwoofer
• woven carbon fiber cone with rubber surround
• cast aluminum basket
• power handling: 400 watts RMS (800 peak power)
• frequency range: 14-750 Hz
• sensitivity: 87.8 dB
• top mount depth: 3 1/4"
• sealed box volume: 1 cu. ft.
• ported box volume: 1.5 cu. ft.
• grille not included
• warranty: 1 year
• 60-day returns
• MFR # C12
