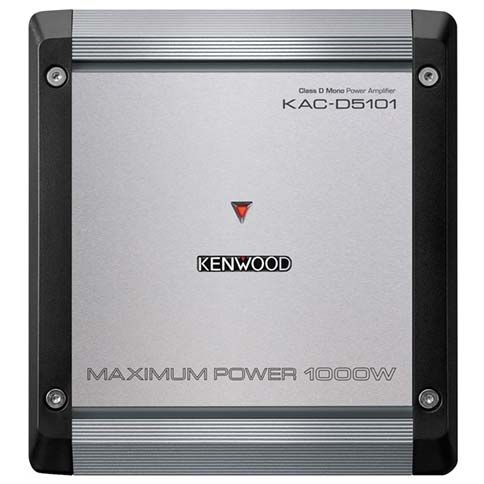

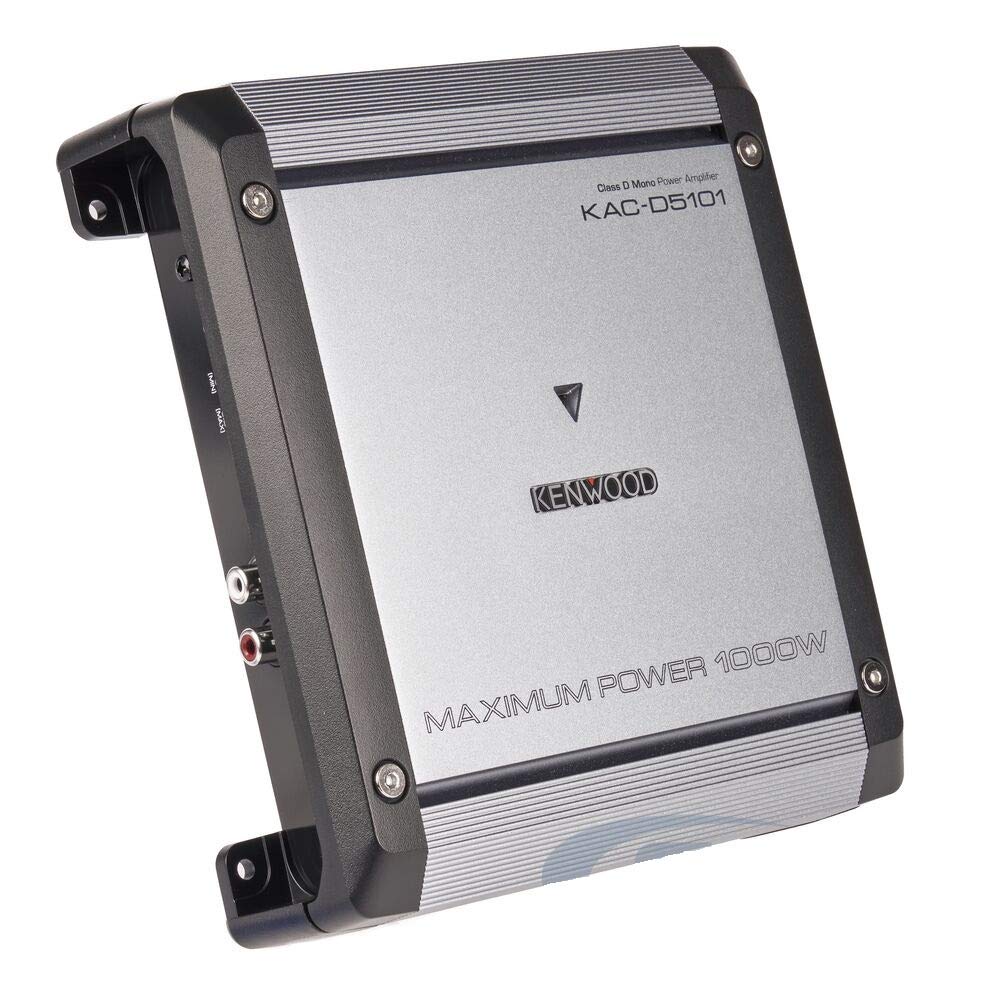

Kenwood KAC-D5101 1000 Watt Class D Monoblock Amplifier
Kenwood KAC-D5101 1000 Watt Class D Monoblock Amplifier
Kenwood KAC-D5101 1000 Watt Class D Monoblock Amplifier
Kenwood KAC-D5101 1000 Watt Class D Monoblock Amplifier
-31%
Kenwood

Kenwood KAC-D5101 1000 Watt Class D Monoblock Amplifier

$349.99
$239.99 In Stock Pre-Order Sold out
Notify when available

1-4 DAYS DELIVERY

100% ORIGINAL AND QUALITY

24 MONTHS GUARANTEE

  • Description
  • Shipping and Refund
  • Reviews

Kenwood KAC-D5101 1000 Watt Class D Monoblock Amplifier

Product details

Features:
  • 1000 Watt Class D Monoblock Amplifier
  • Amplifier will operate with 2 ohm or 4 ohm loads
  • 200mV-5V High Speaker Level or Low Level RCA Inputs
  • Extruded aluminum heat sink design
  • Speaker Level Input for easy integration to factory audio systems
  • Signal Sensing Turn-on for easy integration to factory audio systems
  • 8 Gauge power wire recommended
  • Fuse - 20A x 2
Pre-Amp features:
  • Frequency Response - 20Hz - 200Hz
  • Signal to Noise Ratio - >85dB
  • Gain Adjust - 200mV - 5V
  • Total Harmonic Distortion - 1.0%
  • Variable Low-pass Crossover Frequency - 50Hz - 200Hz
  • Variable Low-pass Crossover Slope - (dB/oct): 24dB/octave
  • Variable Bass Boost @ 40Hz (0 - 18 dB)
Inputs and Outputs:
  • One-channel operation (2-Channel input)
  • 1 Pair RCA low level inputs
Max Power Output:
  • Total Power Output: 1000 Watts
RMS Power Output:
  • 500W x 1 @ 2 Ω
  • 300W x 1 @ 4 Ω
Dimensions:
  • Overall Dimensions: 2-3/16 inch (H) x 7-3/8 inch (L) x 6-11/16 inch (W)

Specifications


Manufacturer Kenwood
Part Number KAC-D5101
Amplifier Topology Class Class D
Number of Channels 1 Channel
Total RMS Power at 1 ohm 0.00
Total RMS Power at 2 ohm 500.00
Total RMS Power at 4 ohm 300.00
RMS Output per Channel (x1 at 4 ohms) 300.00 Watts
RMS Output per Channel (x2 at 4 ohms) 0.00 Watts
RMS Output per Channel (x4 at 4 ohms) 0.00 Watts
Total Peak Power Output 1,000.00 (Watts)
Amplifier Bridging Not Bridgable
Minimum Impedance in Bridged Mode Not Bridgeable
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
RCA Pre-amp Audio inputs 1 Pair
RCA Pre-amp Audio outputs None
Preamp voltage 5 volts
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain No
Built in Crossover Low-pass
Cooling Fan No
Color Silver
Warranty 1 Year
Recommended Power Wire Gauge 8 Gauge
Overall Height 2.19 inches
Overall Length 7.38 inches
Overall Width 6.69 inches
