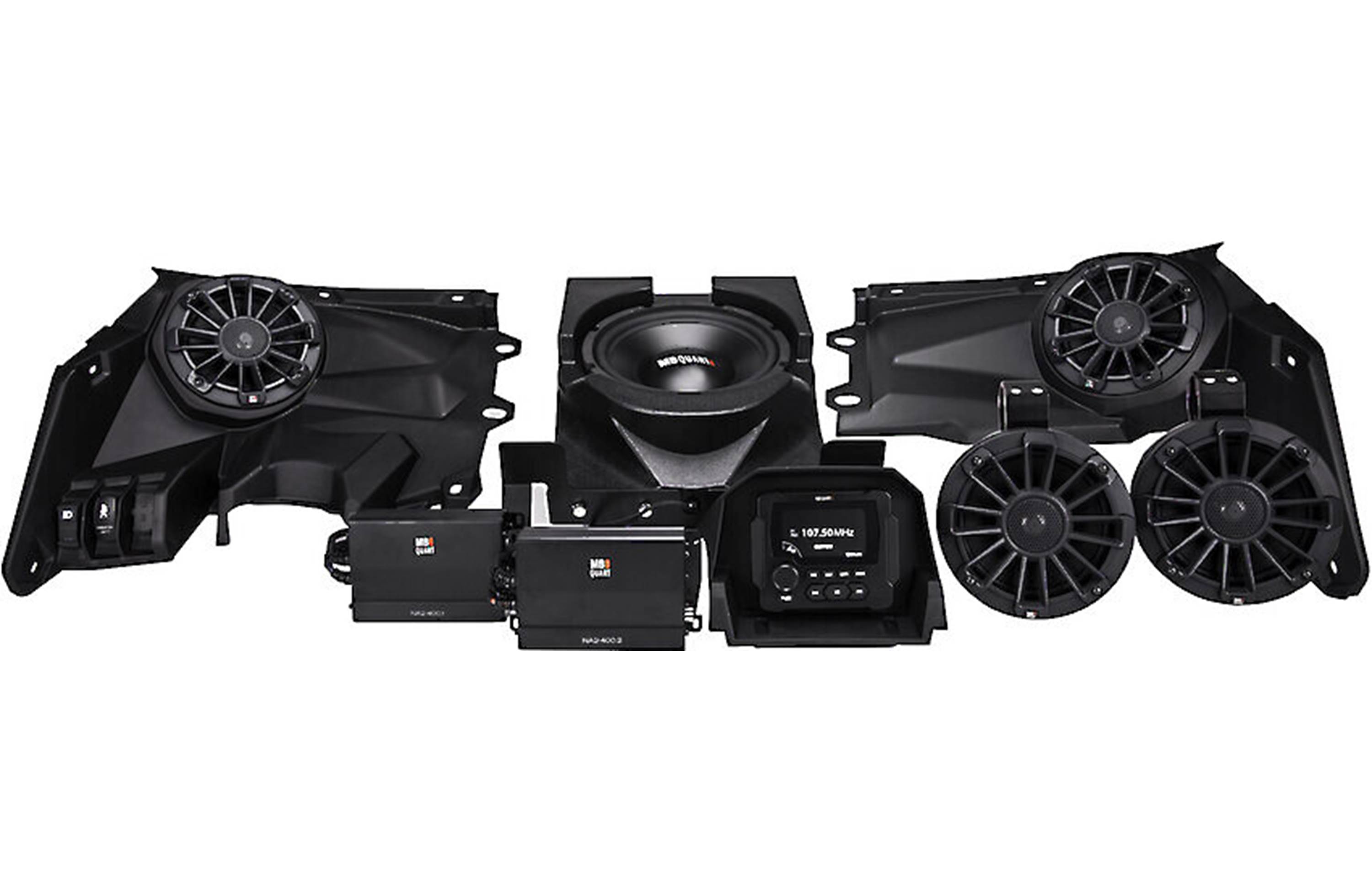

MB Quart MBQX-STG5-1 Stage 5 audio system with receiver, four 6-1/2" speakers, 4-channel amp, 10" subwoofer, and mono amp — fits select 2017-up Can-Am Maverick X3s

About the MB Quart MBQX-STG5-1

Awesome sound for the great outdoors

Can-Am's Maverick X3 is a high-performance side-by-side with plenty of power, and MB Quart's Stage 5 kit is the ultimate Maverick system. With a marine digital media receiver, front and rear 6-1/2" marine speakers, a 4-channel amp, a mono sub amp, and a 10" subwoofer, this system will add some serious thump to your off-road adventures.

MB Quart designed this package to fit right into your Maverick, with no cutting and minimal hassle. It also comes with all the parts and pieces needed for a smooth, hassle-free installation. Each component is tough enough for trail duty, so you won't have to worry about your system getting swamped.

A rugged receiver that fits right in

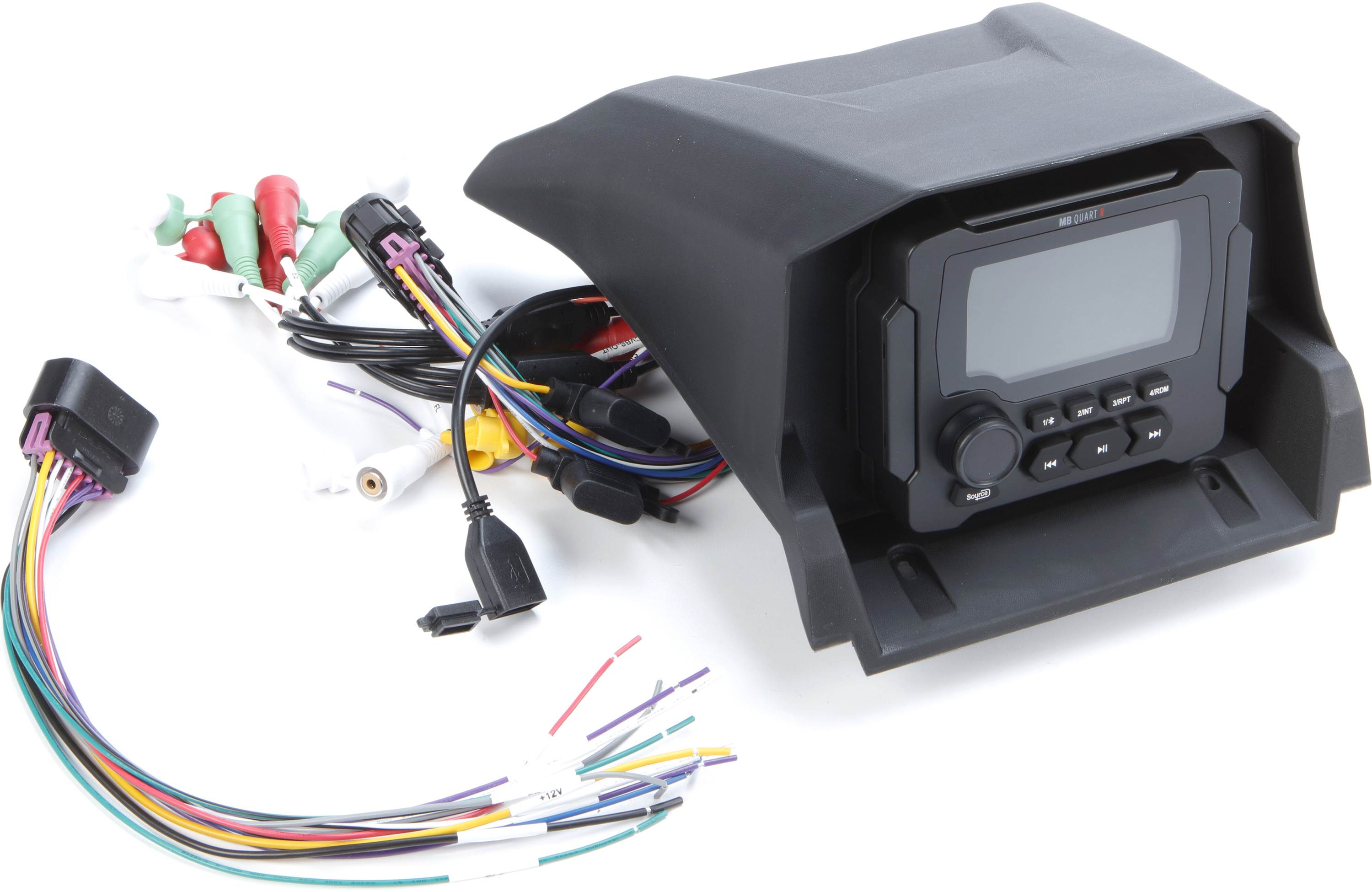

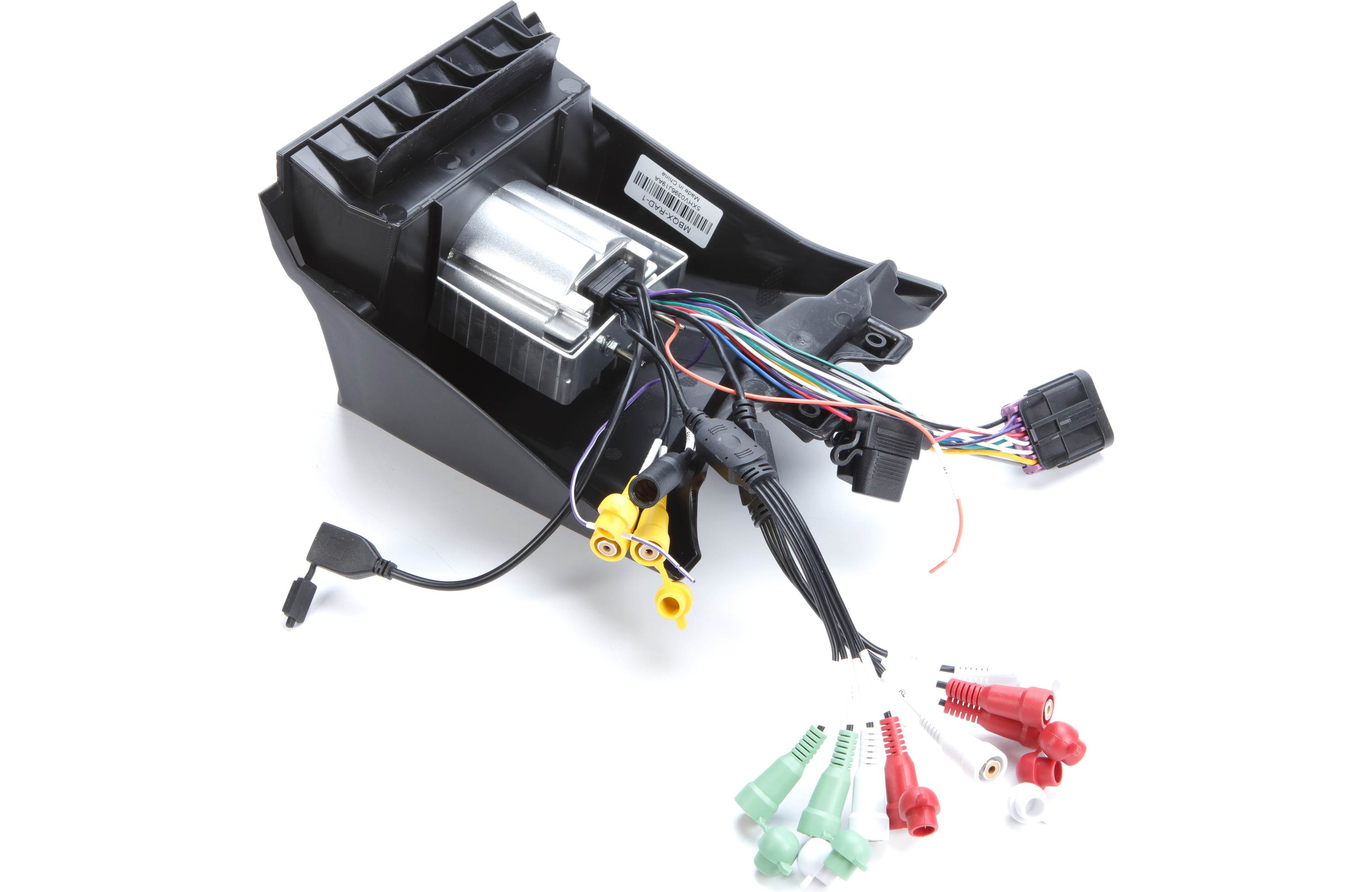

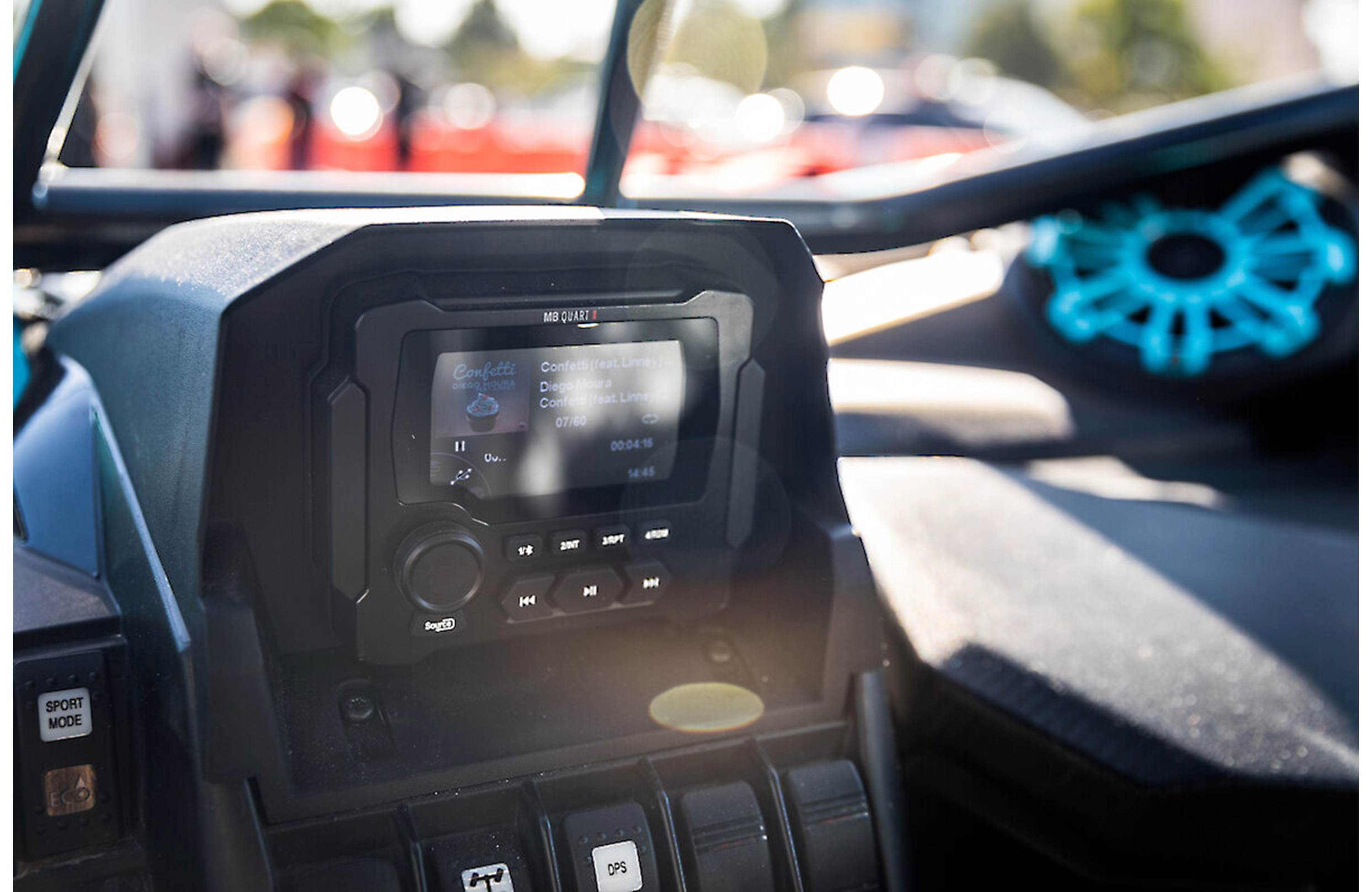

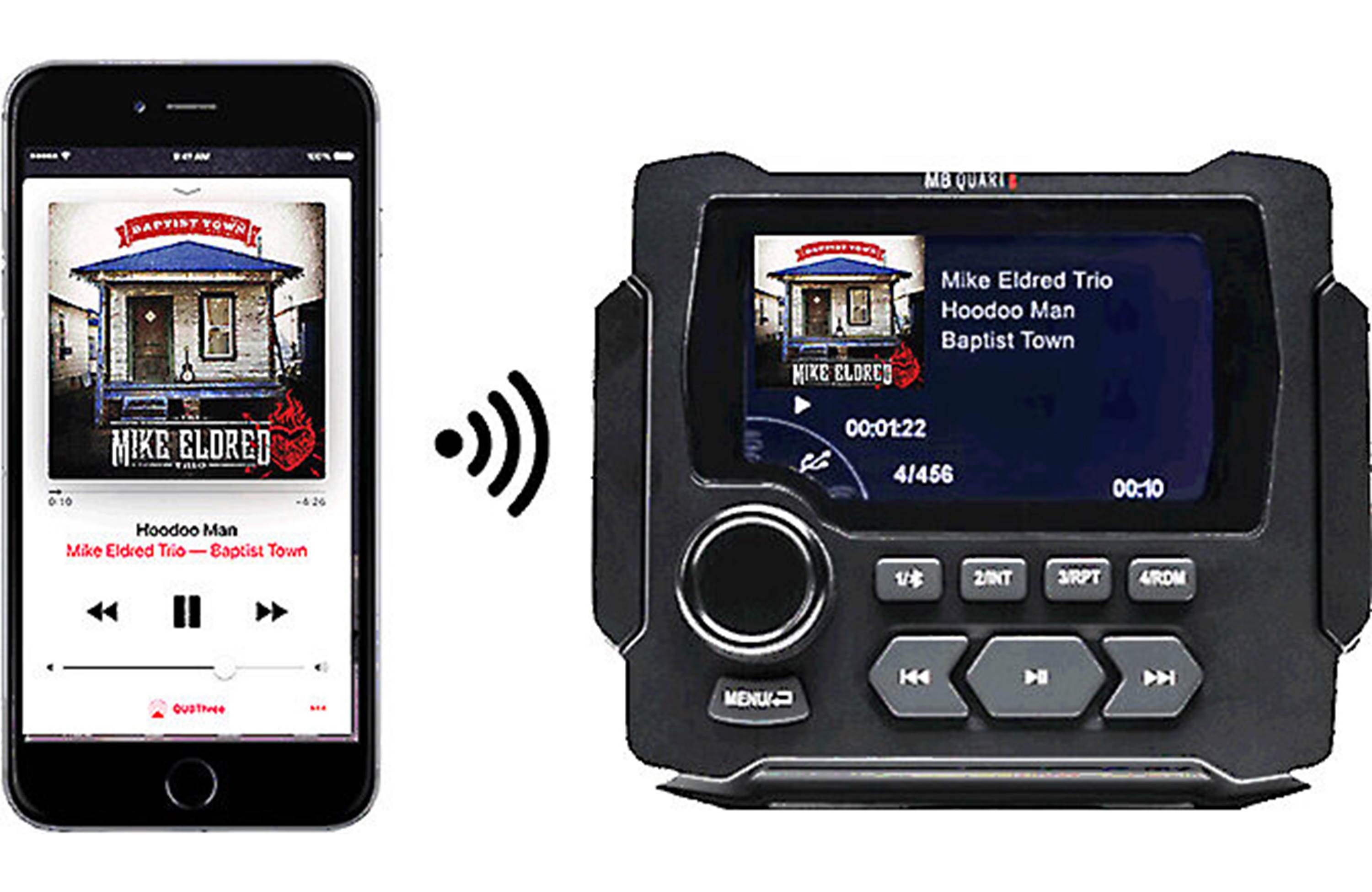

The MB Quart MBQX-RAD-1 digital media receiver packs a lot of cool stuff into a compact, outdoor-ready package that's made for your Maverick. This AM/FM/WB receiver features built-in Bluetooth®, so you can pair up quickly and stream music stored on your phone. If you prefer to plug in, you'll find an AUX input and a charging USB input.

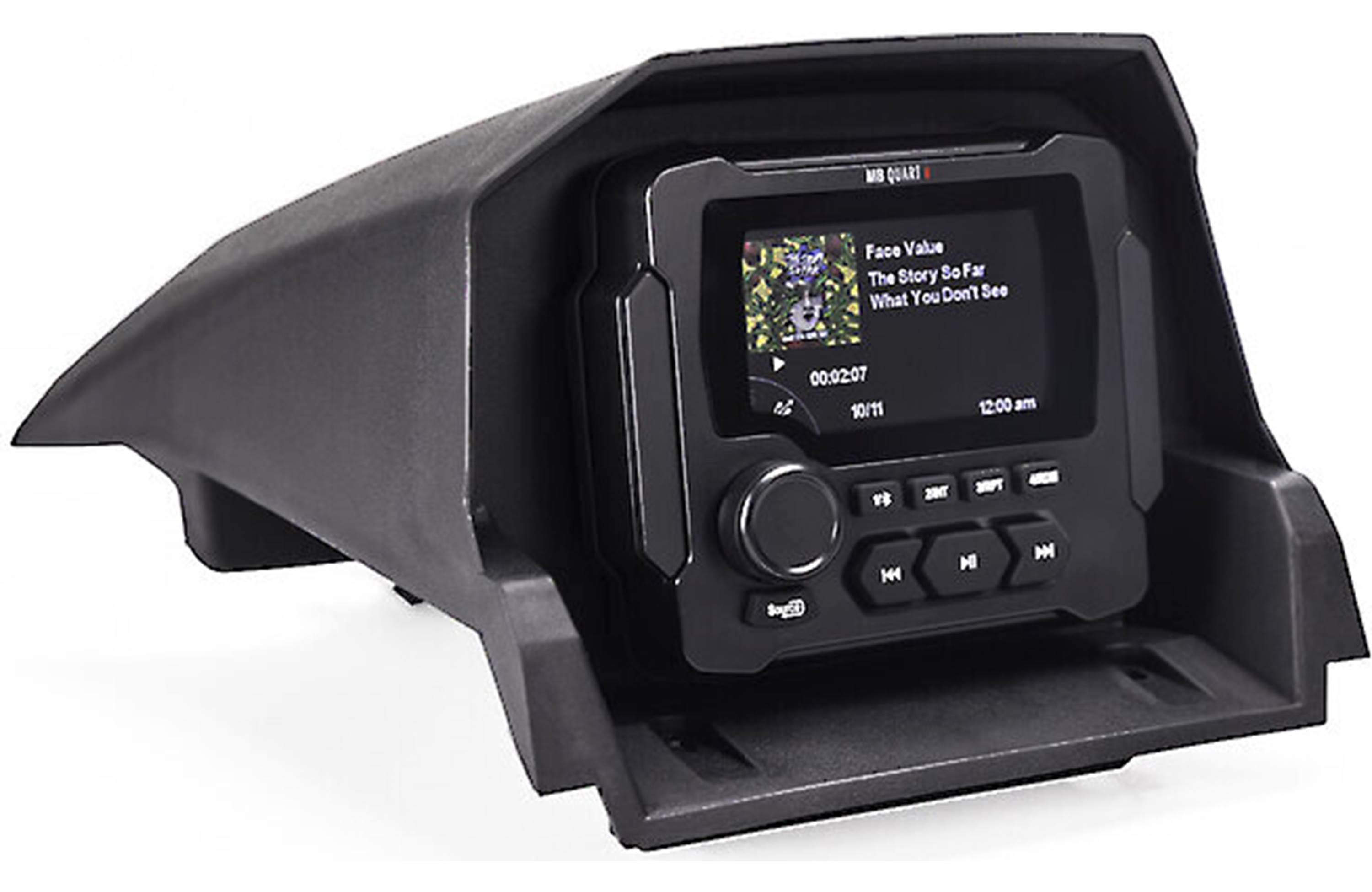

If you want to expand your system later, the GMR-LED features a full set of preamp outputs, along with a handy camera input. This kit includes a custom-designed dash panel that holds the receiver and blends into your Maverick's dash.

Dash speakers designed for your ride

The package includes a pair of NP1-116 Nautic marine speakers that are built for off-road and marine use. The durable poly cones withstand moisture and sunlight, as do the 1" titanium dome tweeters.

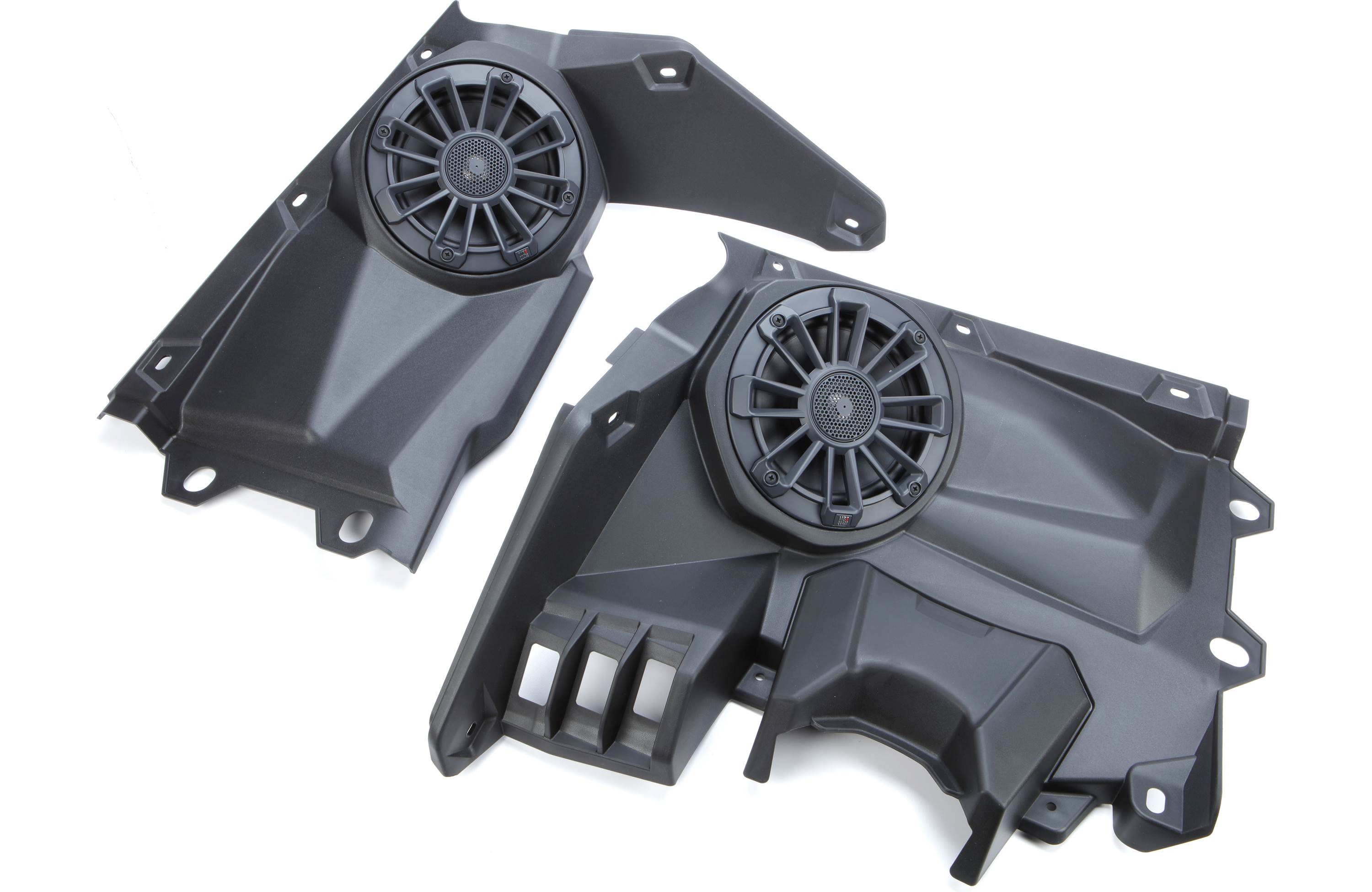

They're really easy to install, too, thanks to the made-for-the-Maverick X3 speaker enclosures included in this kit. These rugged enclosures bolt right in using the factory mounting holes with just a little bit of drilling. The left speaker panel works with your Maverick's Smart-Lok™.

Crank it up with cage-mount speakers

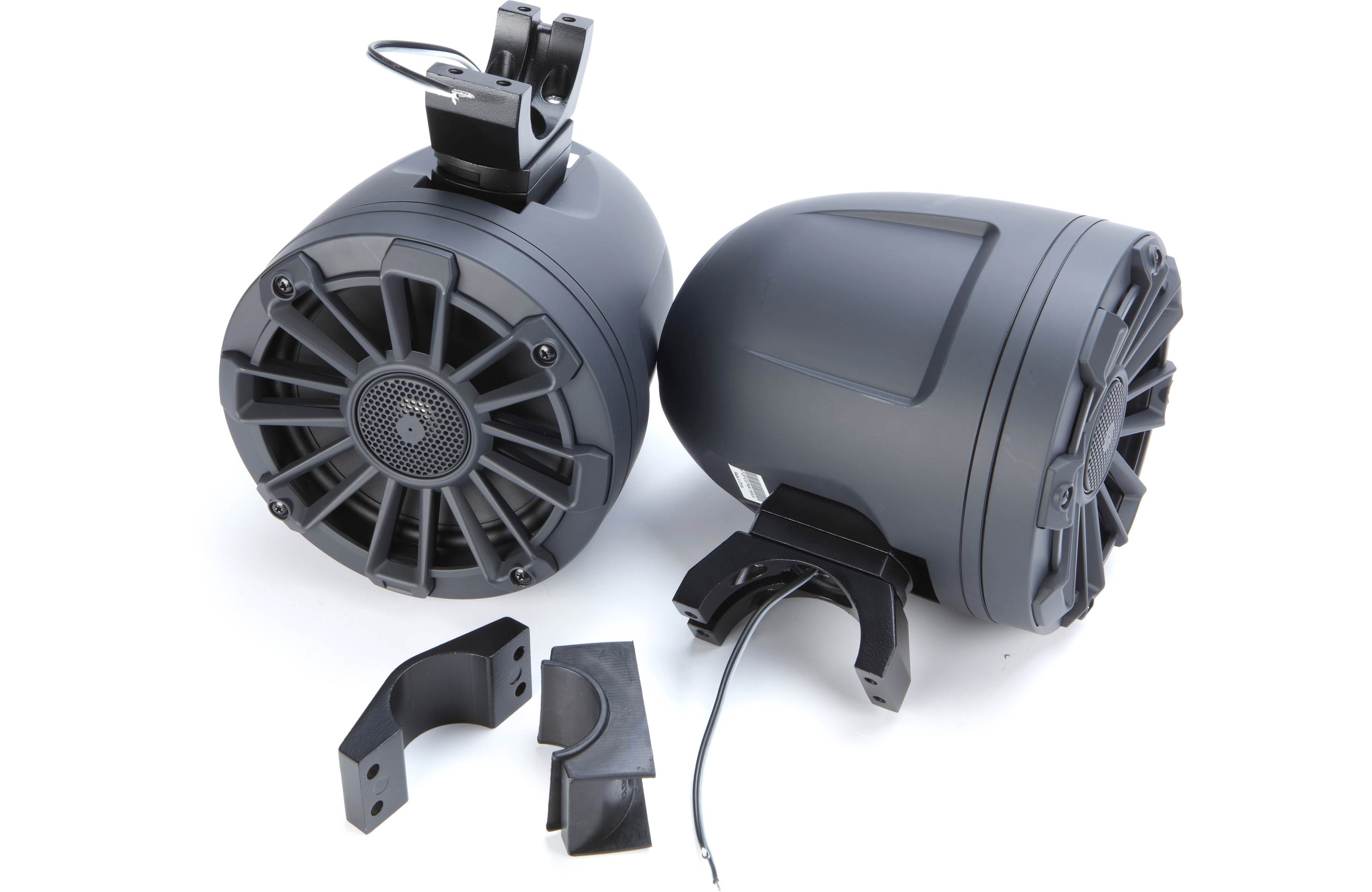

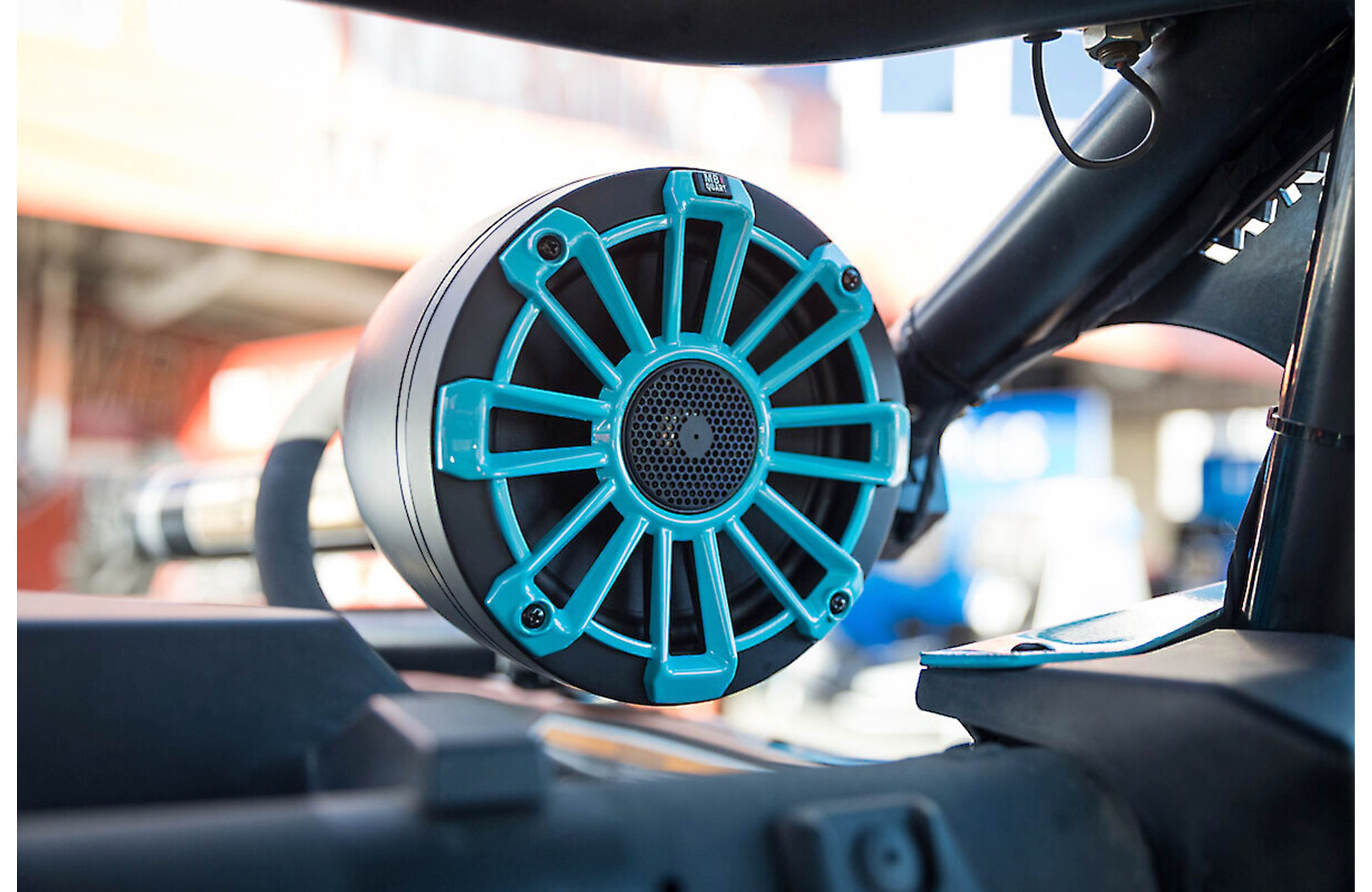

Out back, you'll have another pair of NP1-116 speakers in cage-mount pods designed for your Maverick. Swivel mounts mean you can point the sound where you want it on the trail or at the campsite.

Power to spare from a 4-channel amp

MB Quart's NA2-400.2 amplifier packs a lot of power into a small package that's perfect for powersports applications. This rugged Class D amp delivers 200 watts per channel at 2 ohms, so your speakers will get the juice they need.

A 10" sub with its very own amp

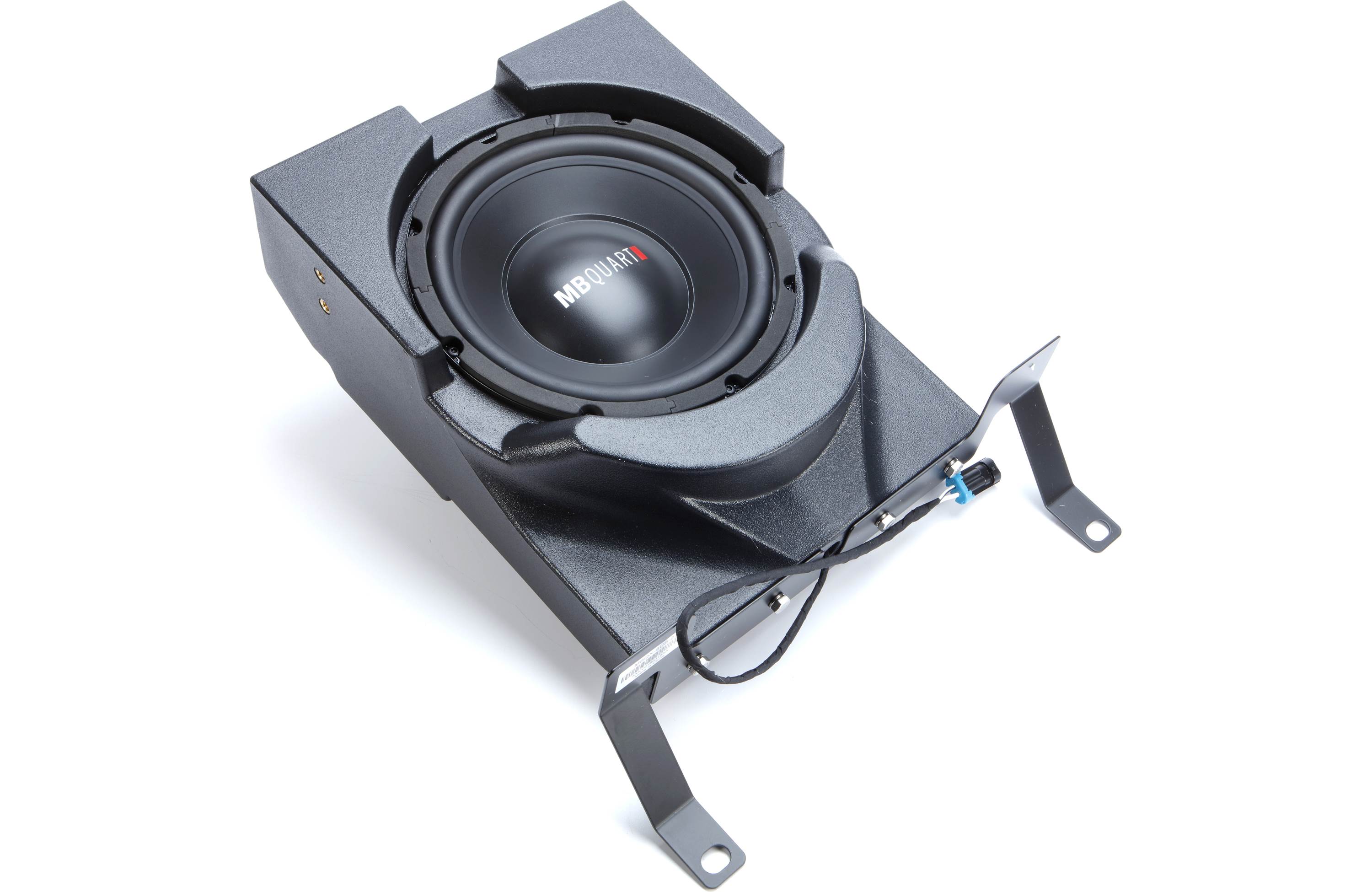

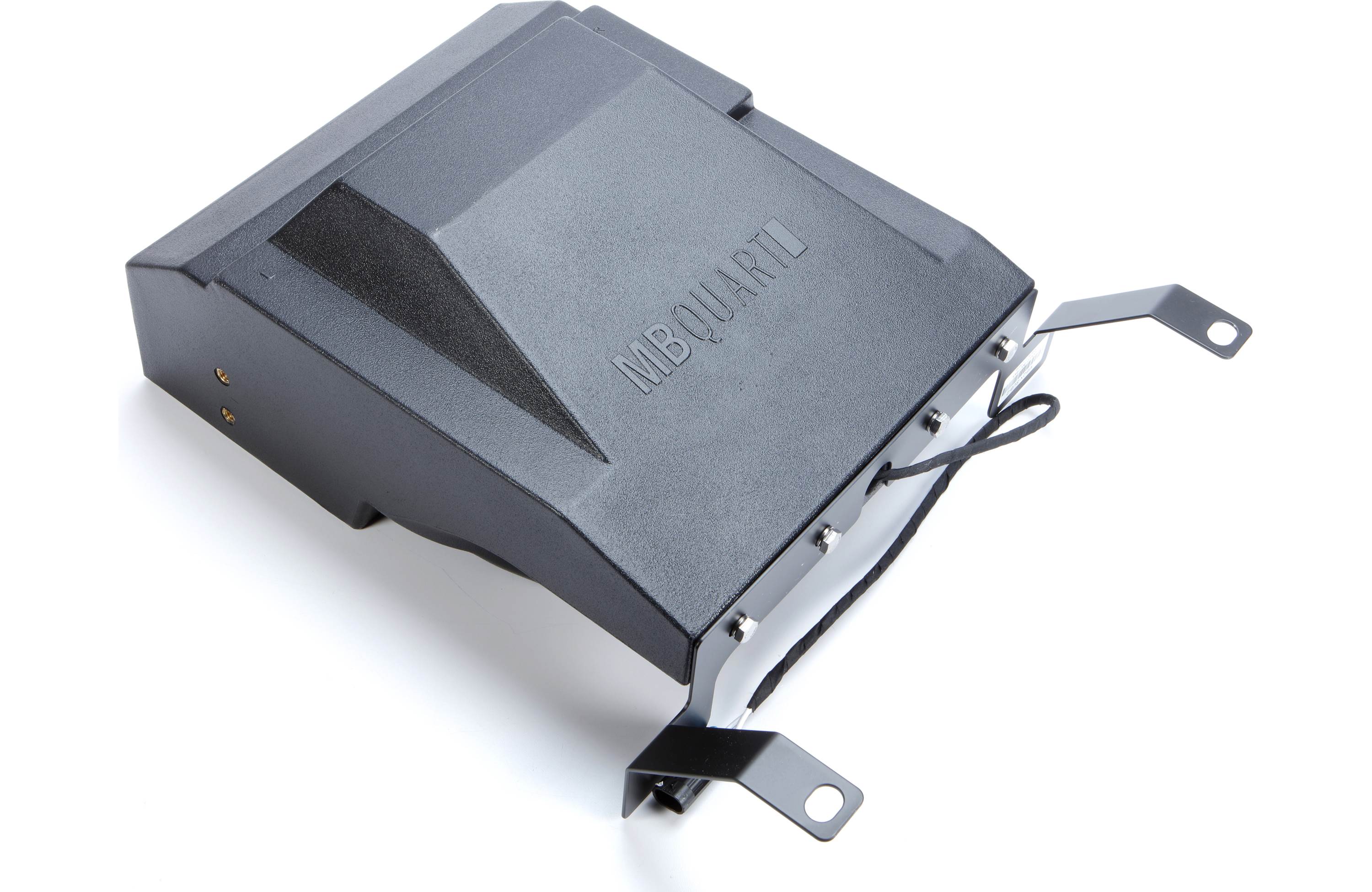

This thunderous audio kit includes a marine-rated MB Quart MBQX-SUB-2 10" sub that bolts right into your Maverick X3 using the included direct-fit enclosure. The enclosure is made from a durable composite material that blends right into your Maverick X3 and stands up to life on the trail.

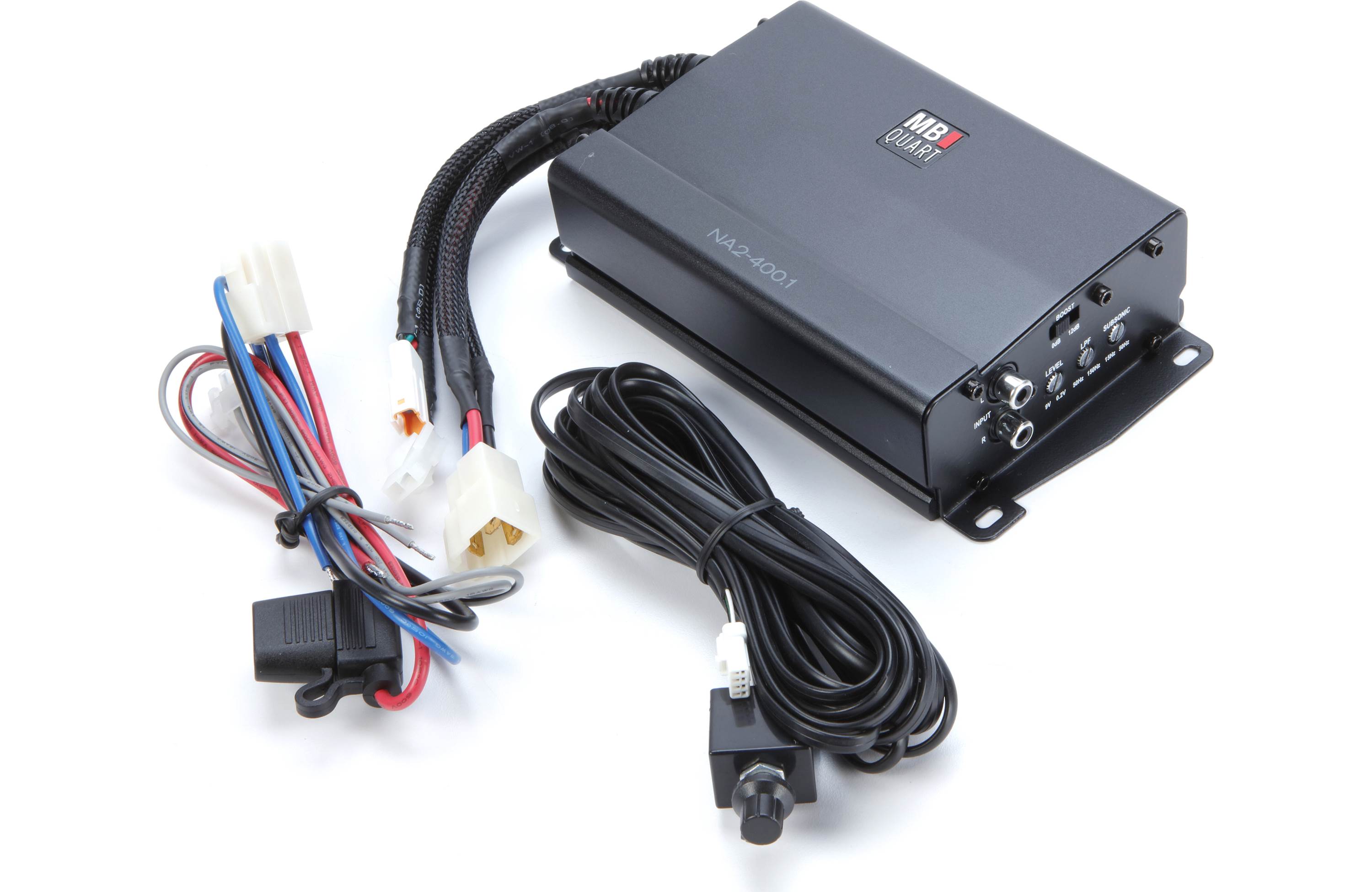

The power for this beefy underseat sub comes from the MB Quart NA2-400.1 powersports mono amp. With 400 watts of max power, on-board equalization and quick release connectors, installation is easy and you'll really feel the bass when you're on the trail.

Product highlights:

• marine digital media receiver (does not play CDs)
• system also includes:
  • 4 speakers, 10" subwoofer, 4-channel amp, mono amp

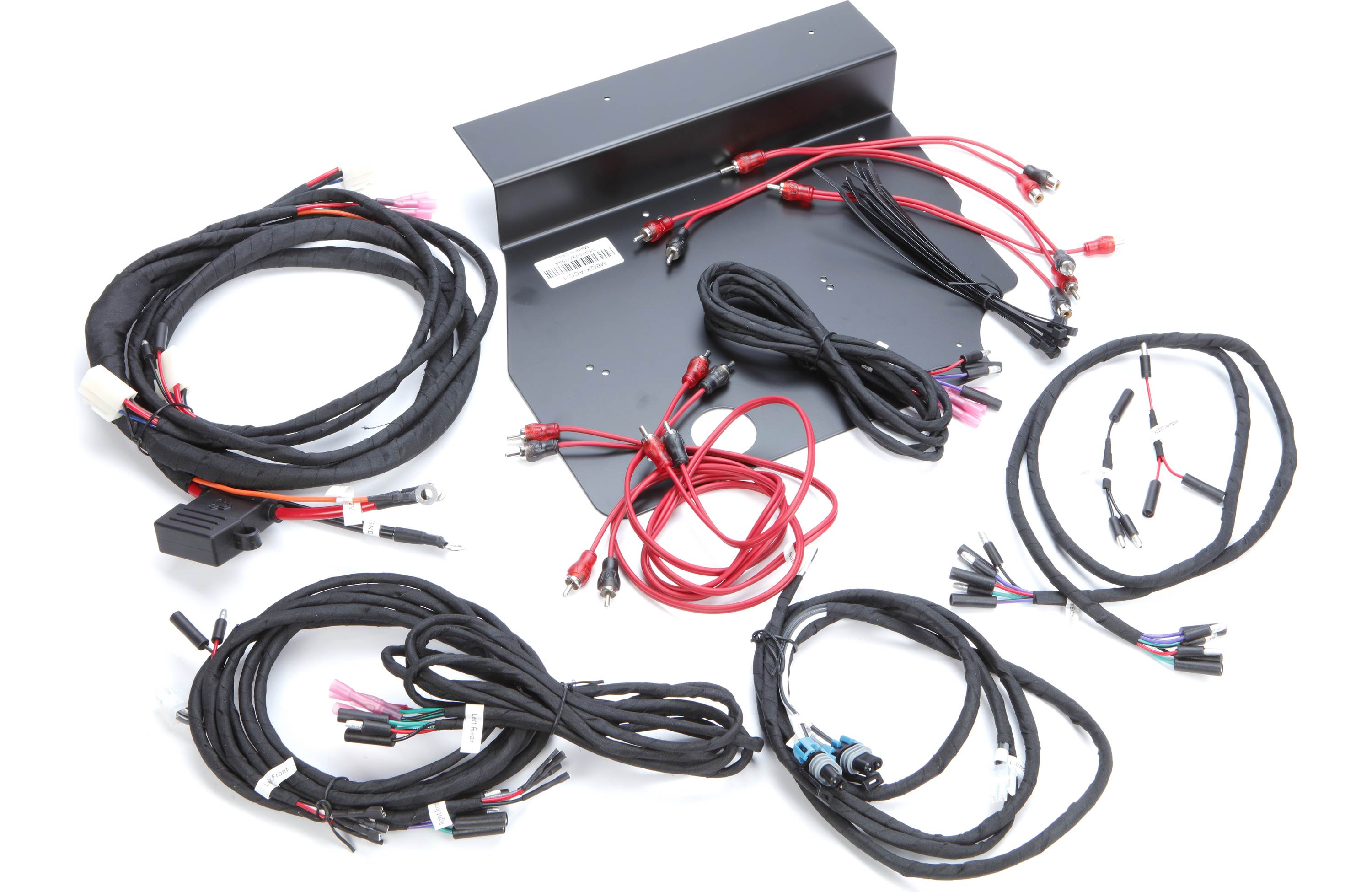

  • speaker and sub enclosures, dash kit, amp brackets, installation parts and wiring
• compatible with Smart-Lok

MB Quart GMR-LED marine digital media receiver (does not play CDs)

• built-in amplifier (20 watts RMS/40 peak x 4 channels)
• built-in Bluetooth connectivity
• works with Apple and Android smartphones
• global AM/FM/Weather tuner
• inputs: AUX in, USB port, video/camera input
• outputs: 6-channel preamp outs (4-volt front, rear, sub), video out
• independent subwoofer level control with selectable low pass filter
• warranty: 1 year

MB Quart NP1-116 6-1/2" Nautic marine speakers (2 dash and 2 cage-mount)

• power handling up to 60 watts RMS (120 watts peak)
• designed to marine and off-road use
• 1" titanium dome tweeters
• Santoprene rubber surrounds
• warranty: 1 year

MB Quart MBQX-SUB-2 10" marine subwoofer

• handles up to 400 watts peak power
• enclosure mounts under front seat
• dual voice coils
• IP67-rated
• warranty: 1 year

MB Quart TM400X4AD 4-channel amp

• Class D design
• 100 watts RMS x 4 at 4 ohms (400 watts peak)
• frequency response: 20-20,000 Hz
• low-pass crossover and bass boost
• conformal-coated circuit board — suitable for power sports and marine applications
• warranty: 1 year

MB Quart NA2-400.1 mono subwoofer amp

• Class D design
• frequency response: 10-300 Hz
• power specs: 200 watts x 2 at 4 ohms (400 watts x 1 at 2 ohms)
• electronic crossover
